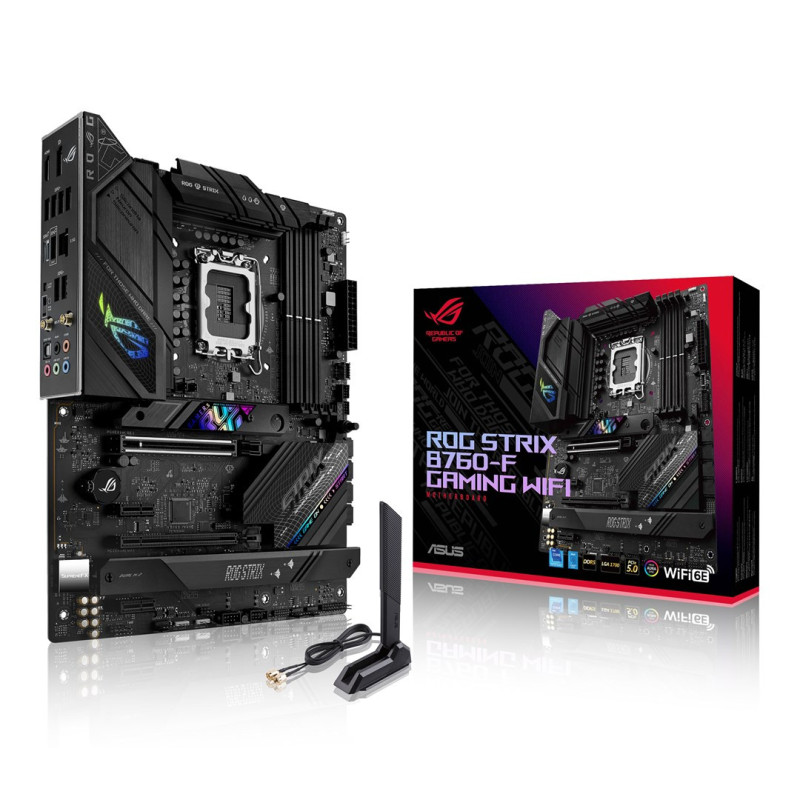

Motherboard - ASUS ROG Strix B760-F Gaming WiFi
Product reference:
14-4711081974666
The ASUS ROG STRIX B760-F GAMING WIFI motherboard supports 12th generation Intel Core processors and offers dual-channel DDR4 RAM up to 64 GB, as well as three M.2 slots and RAID support for data security.
Motherboard - ASUS ROG Strix B760-F Gaming WiFi
Product reference:
14-4711081974666
The ASUS ROG STRIX B760-F GAMING WIFI motherboard supports 12th generation Intel Core processors and offers dual-channel DDR4 RAM up to 64 GB, as well as three M.2 slots and RAID support for data security.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
8 - 9
business days
Motherboard - ASUS Rog Strix B760-f
This motherboard is designed for 12th generation Intel Core processors and features an ATX form factor design with dual-channel DDR5 memory support up to 192 GB. It also includes advanced storage controllers with RAID support, M.2 and SATA III interfaces.
Main features
- Socket type: LGA 1700
- Dual-channel, DDR5, up to 192 GB RAM support
- Rear Panel I/O Ports: USB 3.2 Gen 1 Gen 2x2 Type-C, DisplayPort 1.4, S/PDIF out, LAN (RJ-45) port
- Expansion slots: 3 M.2 (M), 1 PCI Express x16 (Gen 5.x)
Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Compatible processor models | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor manufacturer | Intel |
Graphics | |
| Support for parallel processing technology | Not supported |
| Integrated graphics card | No |
Features | |
| Motherboard chip | Intel B760 |
| Power supply type | ATX |
| Motherboard format type | ATX |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4080 |
| Supported Windows operating systems | Windows 11, Windows 10 |
| Product color | Black |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
Memory | |
| Unbuffered memory | Yes |
| Supported memory frequencies | 5200, 6800, 6200, 5800, 5400, 5600, 6600, 6000, 5000, 4800, 7800 MHz, 6400 MHz, 7000 |
| Maximum internal memory | 192GB |
| Supported memory types | DDR5-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 4 |
| Maximum supported memory frequency | 7800MHz |
| Memory channels | Dual channel |
Weight and dimensions | |
| Width | 305mm |
| Depth | 244 mm |
Network | |
| Bluetooth | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Wi-Fi | Yes |
| Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g |
| Ethernet LAN | Yes |
Internal I/O | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 ports | 2 |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| Thunderbolt connectors | 1 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| ATX power connector (24-pin) | Yes |
| Peripheral (Molex) power connector (4-pin) | 1 |
| Chassis intrusion connector | Yes |
| RGB LED pin connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
BIOS | |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
Packaging details | |
| Package weight | 1.27 kg |
| Package height | 265 mm |
| Package depth | 71 mm |
| Package width | 280 mm |
Package contents | |
| Cables included | SATA |
| User manual | Yes |
Storage controls | |
| RAID support | Yes |
| Supported storage device types | HDD SSD |
| Supported storage device interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10, 5 |
| Number of supported storage devices | 7 |
| Number of HDDs supported | 4 |
Rear panel I/O ports | |
| DisplayPort version | 1.4 |
| Number of DisplayPorts | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 6 |
| Number of HDMI ports | 1 |
| Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Number of USB 3.2 Gen 2x2 Type-C ports | 1 |
| HDMI version | 2.1 |
| WiFi-AP antenna connector | 2 |
Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Other features | |
| Back-to-BIOS button | Yes |
Security warning | |
| Warnings | Disconnect the product from the power supply before carrying out any maintenance or installation work. Do not dispose of the motherboard in the normal waste bin; the product requires special disposal. |
