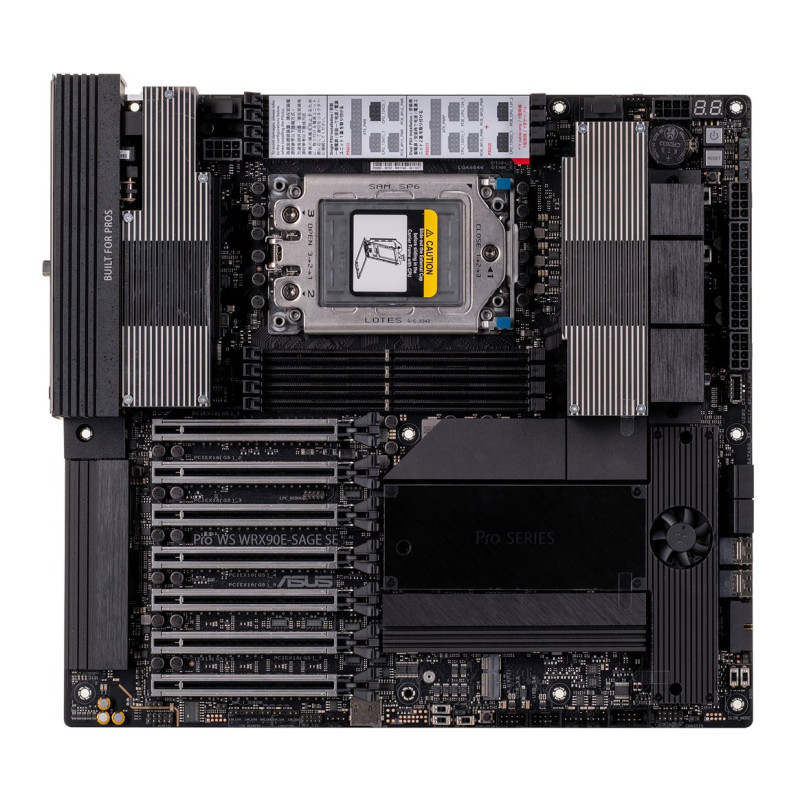

Motherboard - ASUS Pro WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
Product reference:
14-4711387441145
Socket sTR5 motherboard with 8 DDR5-SDRAM slots and 7 PCI Express x16 Gen 5.x slots. Supports up to 10 storage devices via M.2, SATA III and SlimSAS interfaces, and also has two Gigabit Ethernet ports.
Motherboard - ASUS Pro WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
Product reference:
14-4711387441145
Socket sTR5 motherboard with 8 DDR5-SDRAM slots and 7 PCI Express x16 Gen 5.x slots. Supports up to 10 storage devices via M.2, SATA III and SlimSAS interfaces, and also has two Gigabit Ethernet ports.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery in
9 - 13
business days
ASUS WRX90E Sage AMD WRX90 Socket STR5 EEC Motherboard
ASUS PRO WS WRX90E-SAGE SE is a professional motherboard for workstations and servers, featuring the AMD WRX90 chipset. Supports up to 10 storage devices and octa-channel memory.
Main features:
- Support for 10 storage devices (HDD/SSD)
- 8 DDR5-SDRAM memory slots with octal channel support
- Dual Gigabit Ethernet ports, 7 PCI Express x16 Gen 5.x slots
- RAID 0, 1, 5, 10 support
Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket sTR5 |
Features | |
| Audio chip | Realtek ALC1220P |
| Chipset | AMD WRX90 |
| Component | Workstation |
| Format type | EEC |
| Supported Windows OS | Windows 11, Windows 10 x64 |
| Chipset family | AMD |
Memory | |
| Supported memory | DDR5-SDRAM |
| Number of sockets | 8 |
| Socket type | DIMMs |
| ECC | Yes |
| Channels | Octave |
Weight and dimensions | |
| Width | 305mm |
| Depth | 330 mm |
Network | |
| Ethernet LAN | Yes |
| Ethernet type | Gigabit, Fast, 10 Gigabit |
| Wi-Fi | No |
Internal I/O | |
| Number of fan connections | 5 |
| Chassis break-in connector | Yes |
| USB 3.2 Gen 1 connectors | 1 |
| ATX power connector | Yes |
| USB 2.0 ports | 2 |
| USB 3.2 Gen 2x2 ports | 1 |
| Front audio connector | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM ports | 1 |
| EPS power connector | Yes |
| TPM connector | Yes |
BIOS | |
| BIOS memory | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
Storage controls | |
| Storage types | HDDs and SSDs |
| Number of supported HDDs | 4 |
| Storage interfaces | M.2, SATA III, SlimSAS |
| RAID levels | 1, 10, 0, 5 |
| Number of supported storage devices | 10 |
| RAID support | Yes |

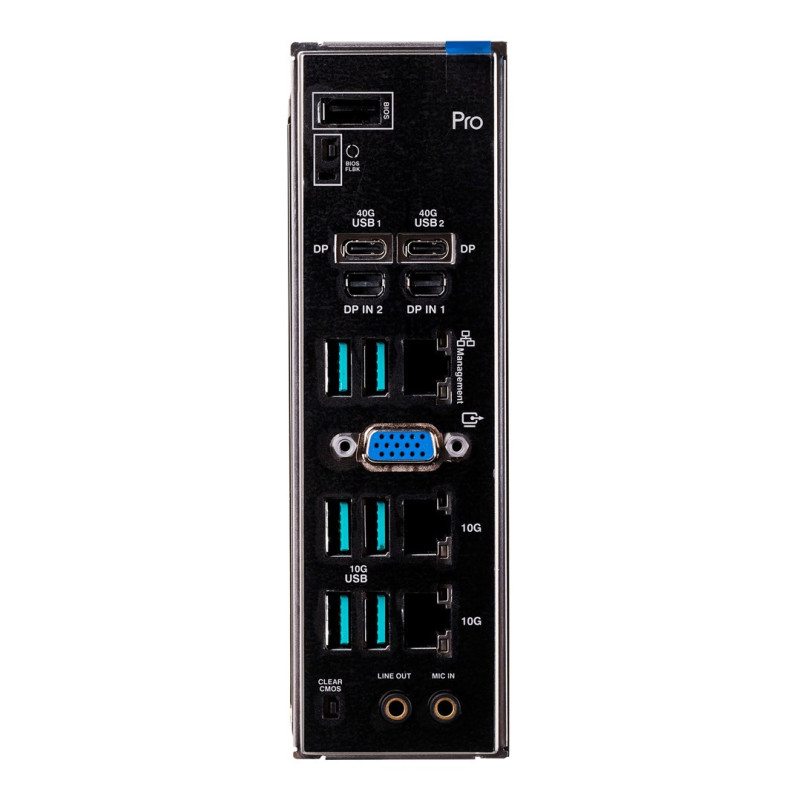

Rear I/O ports | |
| Number of USB 2.0 ports | 1 |
| Number of VGA ports | 1 |
| Number of USB 3.2 Gen 2 ports | 6 |
| Ethernet LAN ports | 2 |
| Number of USB4 Gen 3x2 ports | 2 |
| USB connection type | USB Type-C, USB Type-A |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 7 |
| Number of M.2 (M) slots | 4 |
Other features | |
| Number of Mini DisplayPorts | 2 |
