Motherboard - ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX
Product reference:
14-4711387718148
It supports AMD Ryzen processors with AM5 socket and has a maximum memory capacity of up to 192 GB with DDR5-SDRAM. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports, including USB4 Gen 2x2.
Motherboard - ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX
Product reference:
14-4711387718148
It supports AMD Ryzen processors with AM5 socket and has a maximum memory capacity of up to 192 GB with DDR5-SDRAM. The device has Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports, including USB4 Gen 2x2.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Europe in
9 - 13
business days

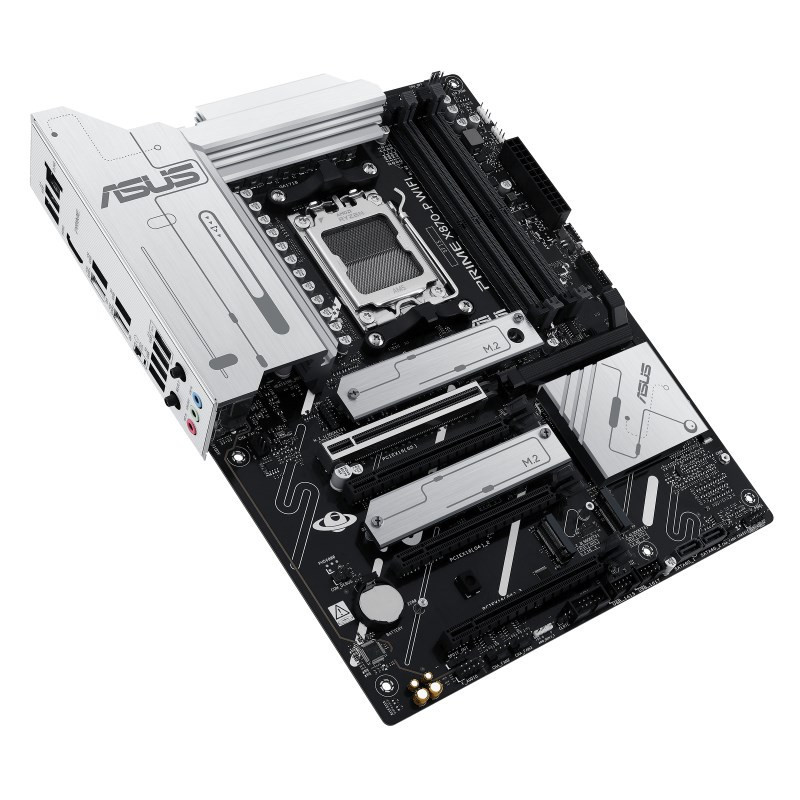

ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX motherboard black
Compatible with AMD Ryzen processors using Socket AM5 and has a maximum memory capacity of up to 192 GB with DDR5-SDRAM. Features Wi-Fi 7, 2.5 Gigabit Ethernet and multiple USB ports including USB4 Gen 2x2.
- Compatible with AMD Ryzen™ 5, 3, 7, 9 (7th, 8th and 9th generation) processors using Socket AM5.
- Facilitates up to 192 GB of DDR5-SDRAM memory with a maximum frequency speed of 8000 MHz across 4 DIMM slots.
- Equipped with Wi-Fi 7 (802.11be) and Bluetooth 5.4, ensuring advanced connectivity capabilities.
- Features 7.1 channel audio output and passive cooling for efficient operation.
- Several expansion slots are included: 1 PCIe x16 (Gen 5.x), 3 PCIe x16 (Gen 4.x), and 4 M.2 slots, providing a variety of upgrade options.
Processor | |
|---|---|
| Complex processor models | AMD Ryzen™ 5, 3, 9 7th/8th/9th Generation, AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
Graphics | |
| Integrated graphics card | No |
Features | |
| Satellite Windows operating systems | Windows 11, 10 |
| Cooling type | Passive |
| Power supply type | ATX |
| Motherboard chip family | AMD |
| Product color | Black |
| Audio output channels | 7.1 channels |
| Motherboard chip | AMD X870 |
| Motherboard format type | ATX |
Memory | |
| Satellite memory frequency rate (max) | 8000MHz |
| Number of memory slots | 4 |
| Memory slot type | DIMMs |
| Types of satellite memory | DDR5-SDRAM |
| Memory channels | Dual channel |
| Maximum internal memory | 192GB |
| Memory not full | Yes |
Weight and dimensions | |
| Depth | 244 mm |
| Width | 305mm |
| Height | 48 mm |
Network | |
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a/b/g/n/ac/ax/be |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Internal I/O | |
| RGB LED pin connector | Yes |
| USB 3.2 Gen 2 ports | 1 |
| 12V power connector | Yes |
| Number of COM ports | 1 |
| EPS power connector (8-pin) | Yes |
| ATX power connector (24-pin) | Yes |
| CPU cooler connector | Yes |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| Number of chassis cooler connections | 4 |
| USB 3.2 Gen 1 connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of USB 2.0 ports | 2 |
BIOS | |
| BIOS type | UEFI AMI |
Memory controllers | |
| Number of satellite memory disks | 6 |
| Number of satellite HDDs | 2 |
| RAID support | Yes |
| RAID levels | 10, 1, 0, 5 |
| Satellite storage disk interfaces | M.2, SATA III |
| Types of satellite storage drives | HDDs and SSDs |

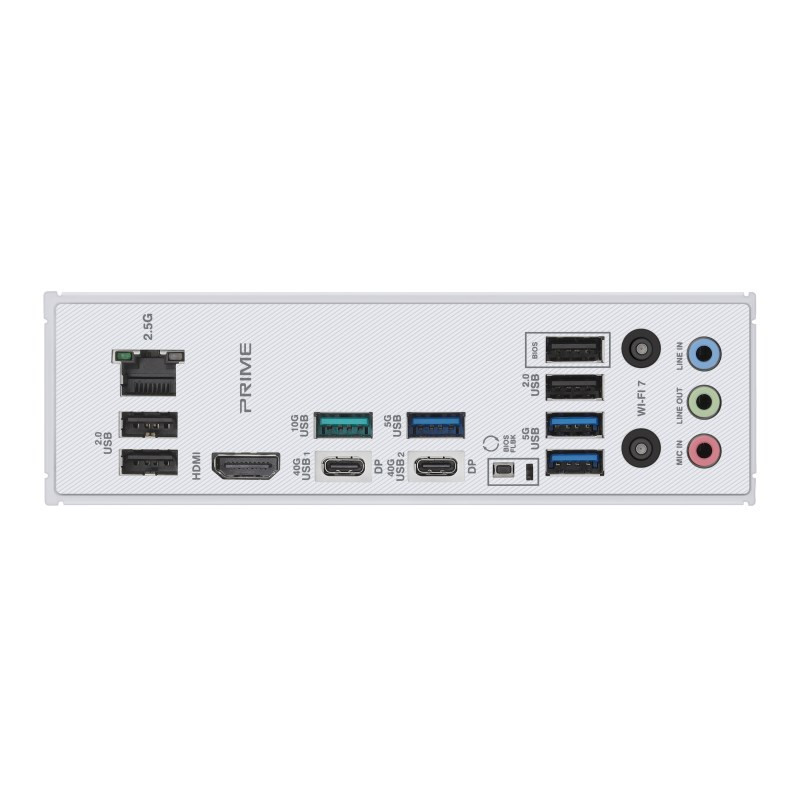

Rear panel I/O ports | |
| Line-in | Yes |
| Microphone input | Yes |
| Number of USB4 Gen 2x2 ports | 2 |
| HDMI version | 2.1 |
| Number of HDMI ports | 1 |
| Number of USB 2.0 ports | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of USB 3.2 Gen 2 Type-A ports | 1 |
| Number of USB 3.2 Gen 1 Type-A ports | 3 |
| DisplayPort version | 1.4a |
Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 4 |
Other features | |
| Return to BIOS button | Yes |
| Weight | 1.56 kg |
