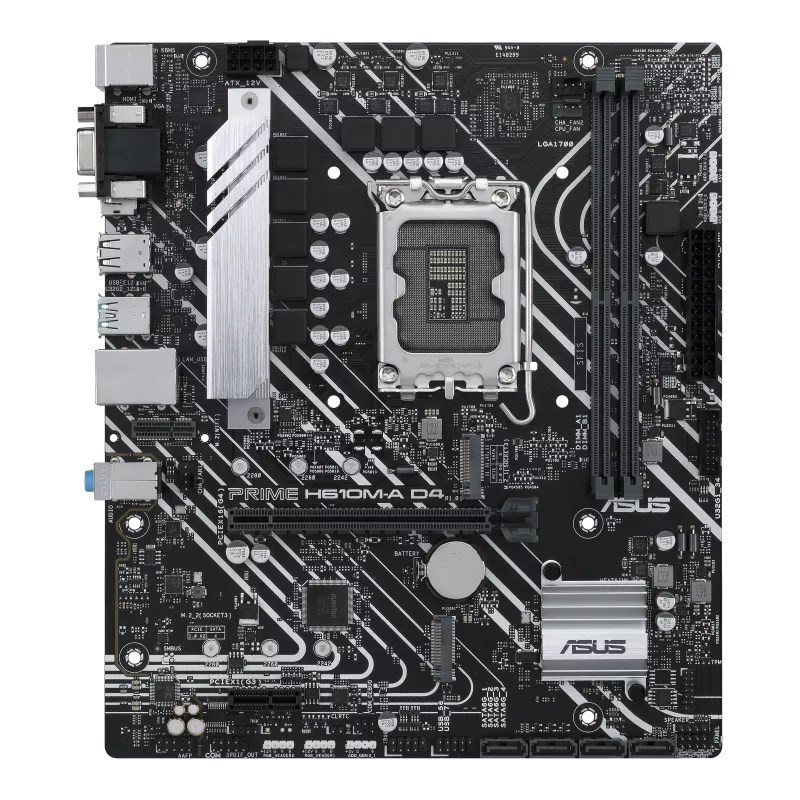

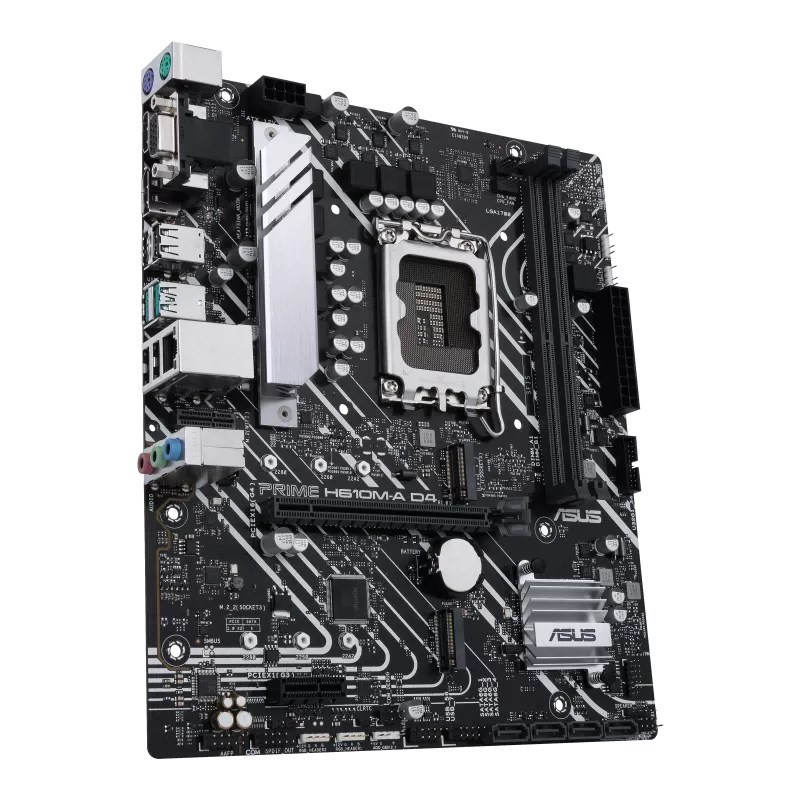

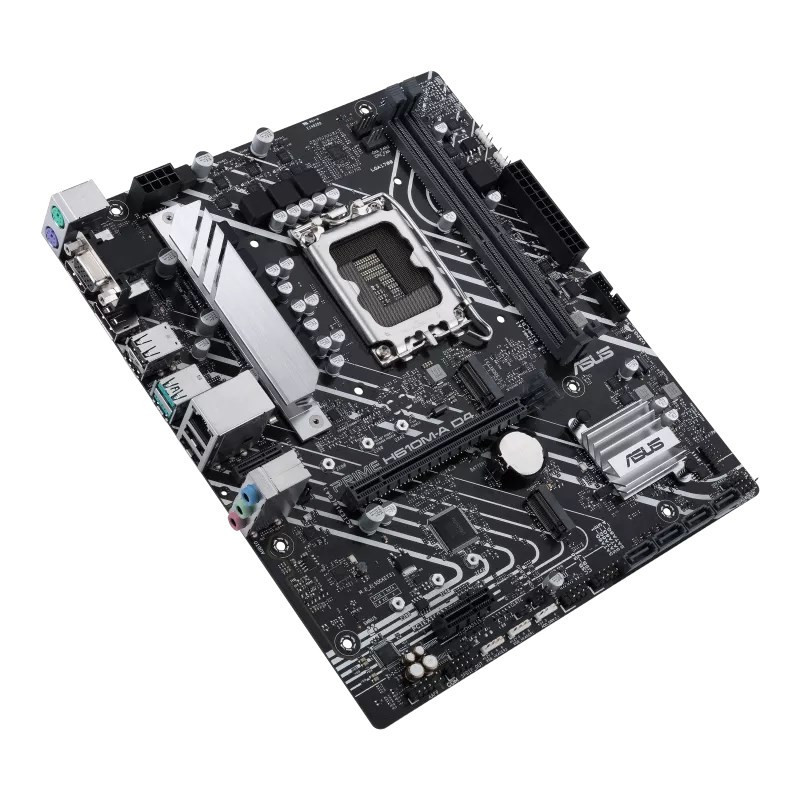

Motherboard - ASUS PRIME H610M-A D4-CSM Intel H610 micro ATX
Unlock your PC's potential with the ASUS PRIME H610M-A D4-CSM motherboard. Featuring the Intel H610 chipset and micro ATX design, it delivers reliable performance, smooth multitasking, and future-proof upgrades.
- Compatible with Intel® Core™ i3, i5, i7, i9, Pentium® and Celeron® processors
- Facilitates support for up to 64GB of DDR4 memory
- Equipped with 7.1 channel audio output
- Includes multiple USB and SATA III ports for extensive connectivity
- Gigabit Ethernet for fast network connectivity
Processor | |
|---|---|
| Composite processor series | Intel® Core™ i3, i5, i7, i9, Pentium®, Celeron® |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
Features | |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel H610 |
| Supported Windows operating systems | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | Intel |
Memory | |
| Unbuffered memory | Yes |
| Maximum internal memory | 64GB |
| Supported memory clock speeds | 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz |
| Memory channels | Dual channel |
| Supported memory types | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory slot type | DIMMs |
| Number of memory slots | 2 |
Weight and dimensions | |
| Depth | 211 mm |
| Height | 221 mm |
| Width | 244 mm |
Network | |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Internal I/O | |
| USB 2.0 ports Number | 1 2 |
| Number of SATA III connectors | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) ports | 1 |
| CPU cooler connector | Yes |
| ATX power connector (24-pin) | Yes |
| Number of chassis cooler connections | 2 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin connector | Yes |
BIOS | |
| BIOS type | UEFI AMI |
Package contents | |
| Cables included | SATA |
Memory controllers | |
| Supported storage drive types | HDDs and SSDs |
| Supported storage drive interfaces | M.2, SATA III |

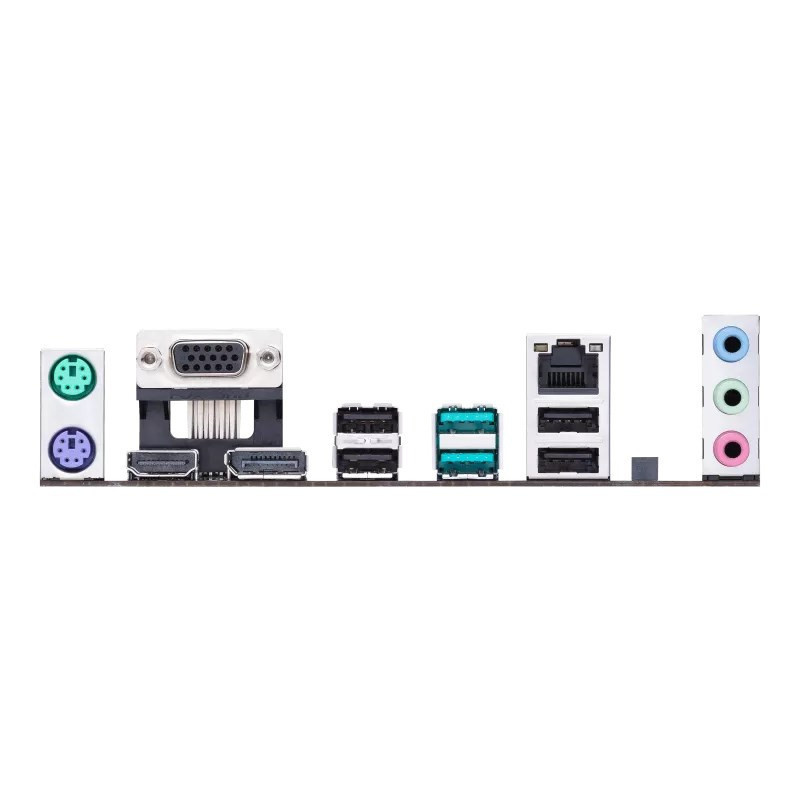

Rear panel I/O connectors | |
| DisplayPort quantity | 1 |
| Ethernet LAN (RJ-45) connectors | 1 |
| DisplayPort version | 1.4 |
| Number of USB 2.0 ports | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A connectors quantity | 2 |
| Number of HDMI ports | 1 |
| Number of PS/2 ports | 2 |
| HDMI version | 2.1 |
| VGA (D-Sub) connector quantity | 1 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features | |
| Weight | 382 g |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
