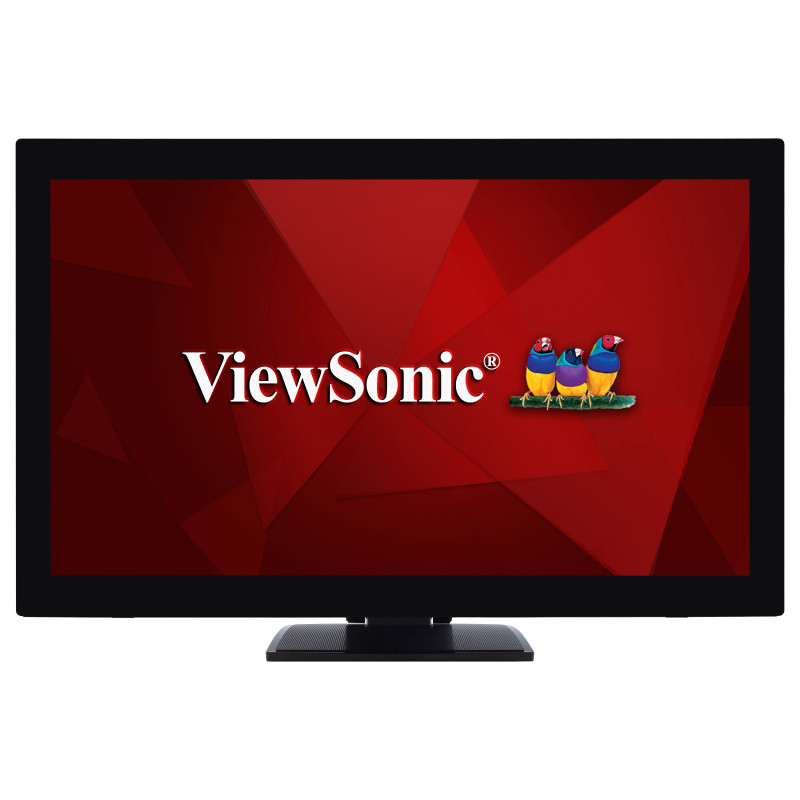

Viewsonic TD2760 computer monitor

Viewsonic TD2760. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
The ViewSonic® TD2760 is an ideal solution for both commercial and consumer touch-screen applications. With an intuitive 10-point multi-touch display and a Full 1080p HD resolution, the 27-inch TD2760 delivers a versatile solution for use in the office or at home, as well as for use as an information kiosk in public areas, retail, and corporate sectors. SuperClear® IPS Panel technology with ultra-wide viewing angles and 50M:1 MEGA Dynamic Contrast Ratio bring greater definition and clarity to multimedia content. For added convenience, cross-platform compatibility works with operating systems such as Windows 10, Linux, Chrome, and Android. Built-in connectivity options include DisplayPort, HDMI, and VGA ports along with a VESA compatible mount design, offering additional convenience for use as a wall-mount display. With serial port RS232 and HDMI CEC, the TD2760 can directly control connected devices. Even more, the ergonomic stand makes it easy for the user to tilt, raise, and lay the monitor flat for the most natural position, and create a comfortable working environment. Lastly, low power consumption with ENERGY STAR certification saves energy costs while reducing carbon emissions.

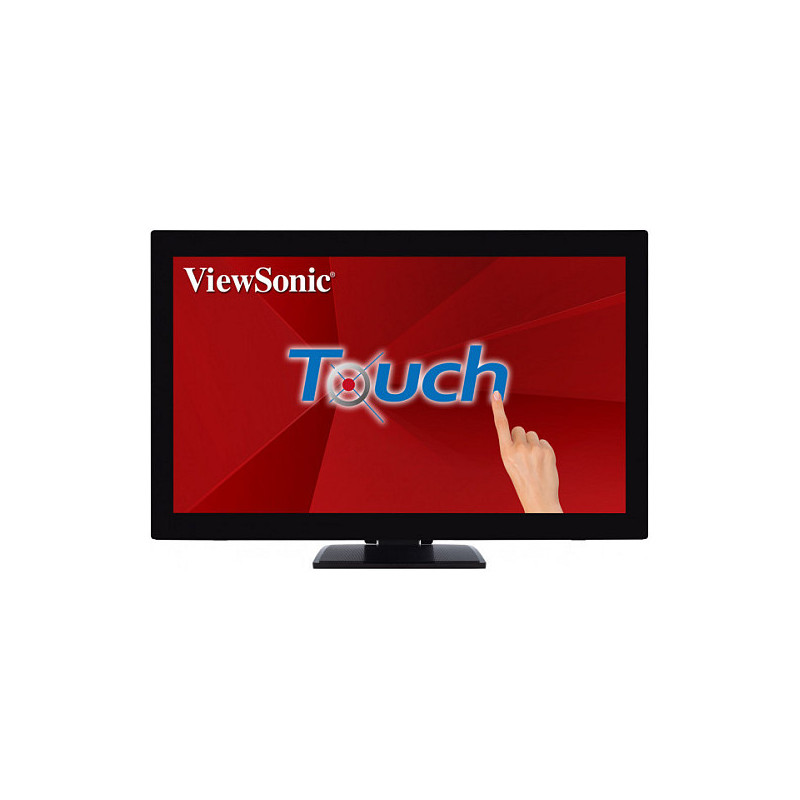

10-POINT MULTI-TOUCH
With 10-point multi-touch capabilities, multiple users can simultaneously write or draw on the display's surface using styluses or their fingers - or both at the same time.
SUPERCLEAR ® MVA PANEL TECHNOLOGY
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear MVA panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

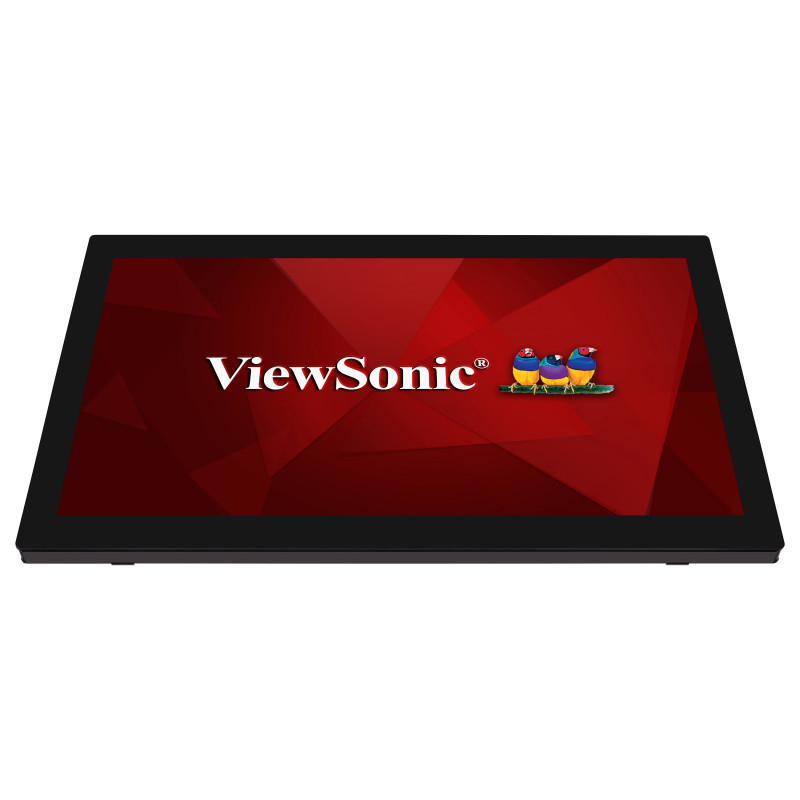

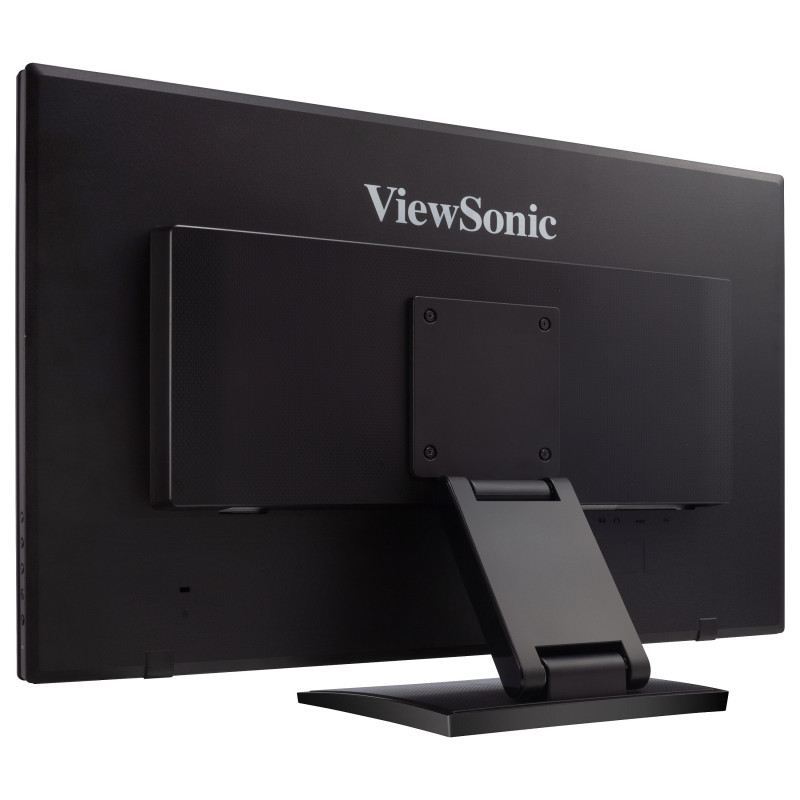

ERGONOMIC DUAL-HINGE DESIGN
A dual-hinge stand allows the screen to be tilted and adjusted, or rest flat on a desk or table. This sturdy ergonomic design maximizes comfort and productivity, and makes this touch display well suited to a variety of touch scenarios in the home, school or office.

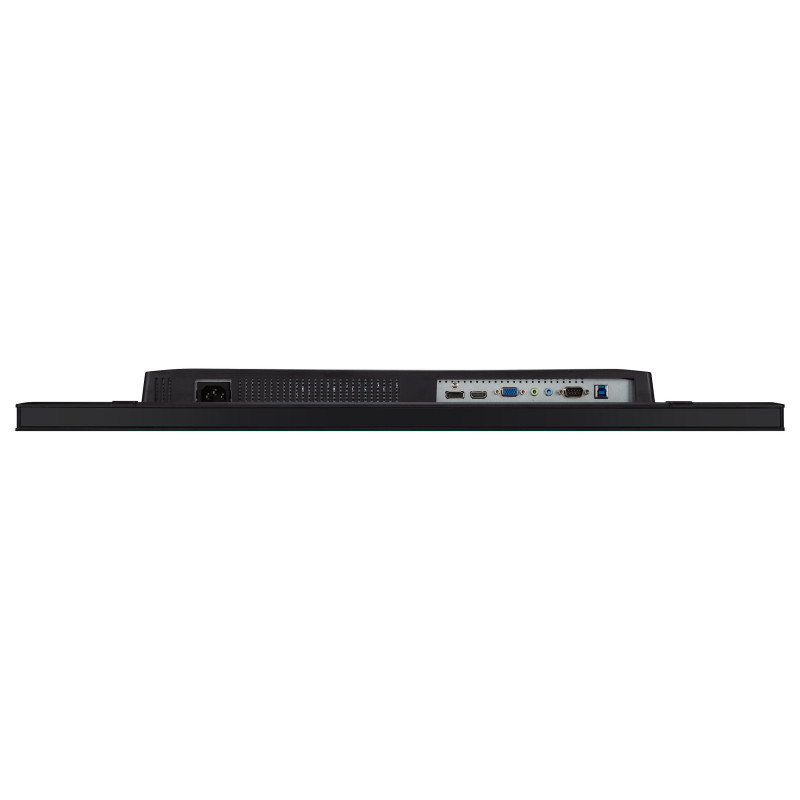

VERSATILE CONNECTIVITY
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your display to a variety of devices.
CONTROL MULTIPLE DEVICES
RS232 offers local control for set-top boxes and other RS232 connected devices, directly with the display's remote controller. HDMI CEC functionality offers local control of DVD players, sound systems, and other HDMI connected devices, directly with the display's remote controller.

Display

Display diagonal: 68.6 cm (27")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
LED backlight: Yes
Backlight type: LED
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 300 cd/m²
Response time: 6 ms
Anti-glare screen: Yes
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 50000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.311 x 0.311 mm
Horizontal scan range: 15 - 90 kHz
Vertical scan range: 50 - 76 Hz
Viewable size, horizontal: 59.8 cm
Viewable size, vertical: 33.6 cm
Display diagonal (metric): 68.58 cm
Surface hardness: 6H
Separate H/V sync: Yes

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Glass thickness: 1.88 mm

Ports interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Audio input: 1
Audio output: 1
HDCP: Yes
RS-232 ports: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Tilt adjustment: Yes
Tilt angle range: -4 - 90°
On Screen Display (OSD): Yes
Number of OSD languages: 14

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 26 W
Power consumption (standby): 0.3 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Weight dimensions

Width (with stand): 660 mm
Depth (with stand): 239 mm
Height (with stand): 443 mm
Weight (with stand): 7.9 kg
Width (without stand): 660 mm
Depth (without stand): 58 mm
Height (without stand): 410 mm
Weight (without stand): 5.5 kg

Packaging data

Package width: 753 mm
Package depth: 204 mm
Package height: 525 mm
Package weight: 10.2 kg

Packaging content

Cables included: Power, VGA, HDMI, USB, Audio
Quick start guide: Yes

Other features

Weight: 7.9 kg
Mean time between failures (MTBF): 30000 h
Supplied AC adapter type: AC
Certification: MX-CoC, Mexico Energy, CE, CE EMC, CB

Logistics data

Products per master (outer) case: 1 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 2.24 m
Harmonized System (HS) code: 8528521000
