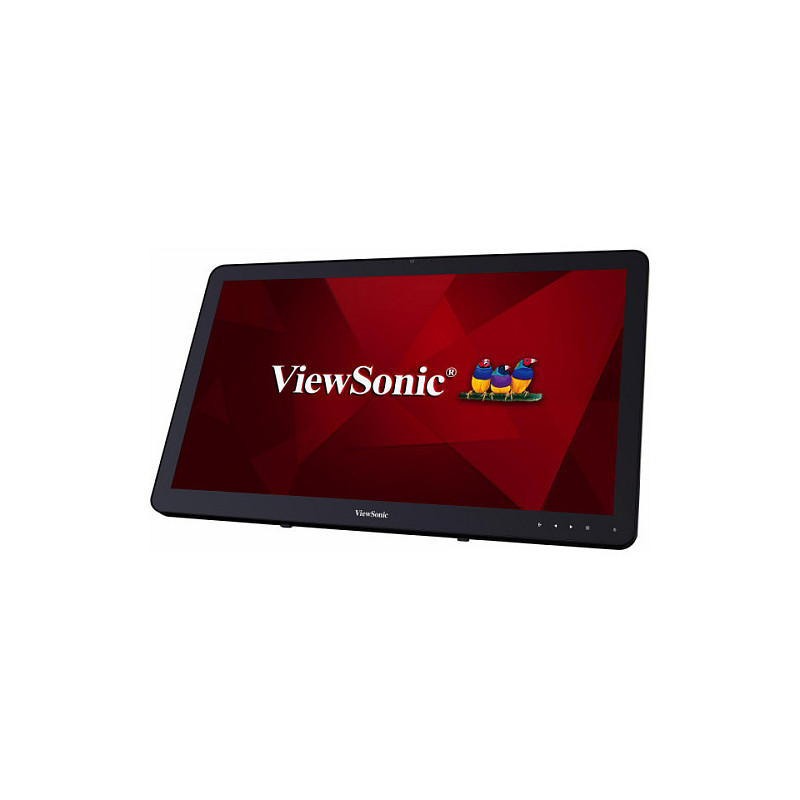

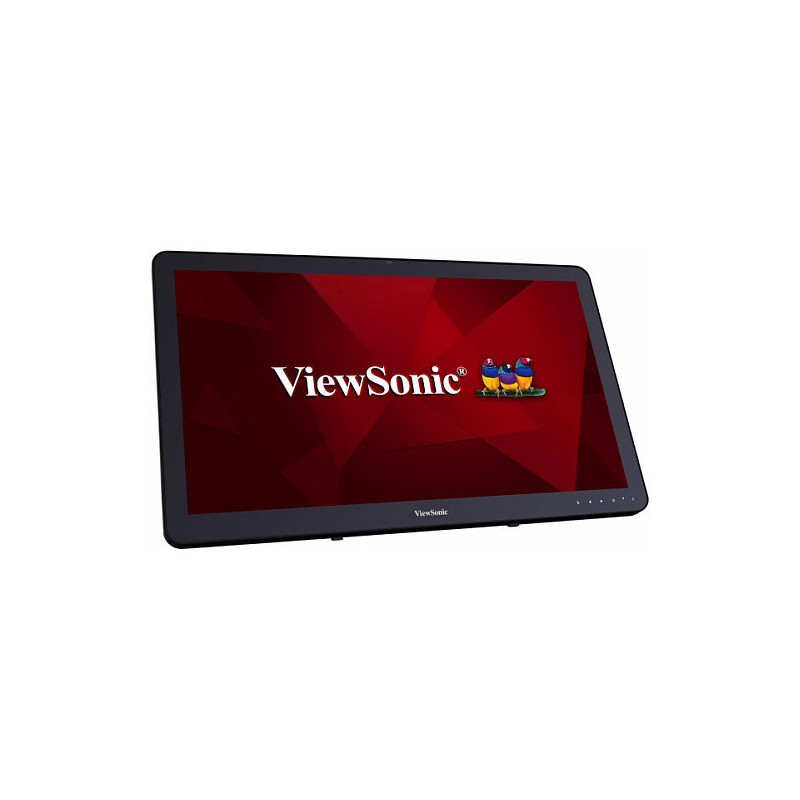

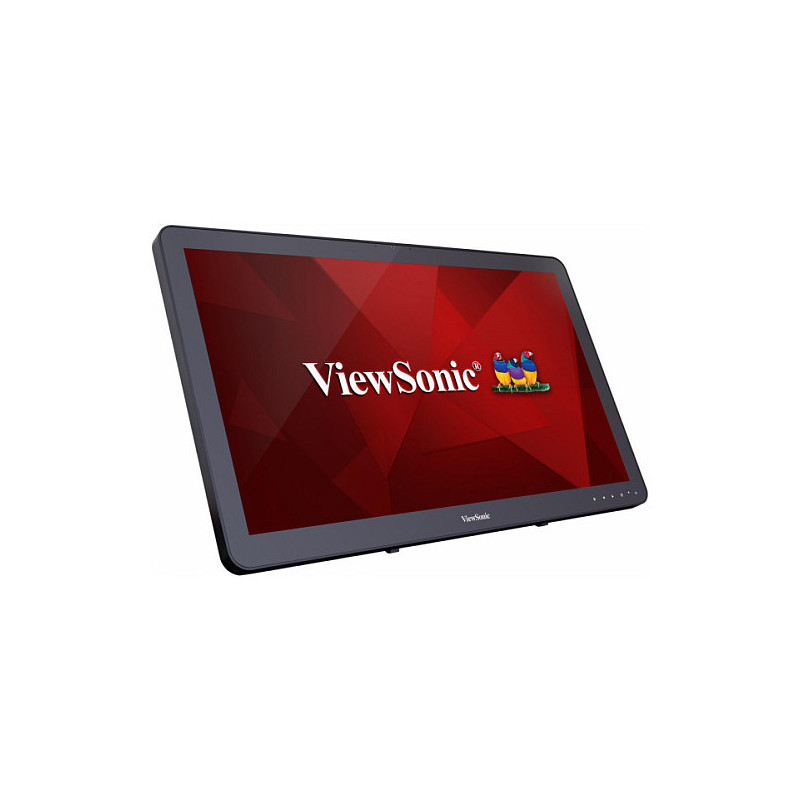

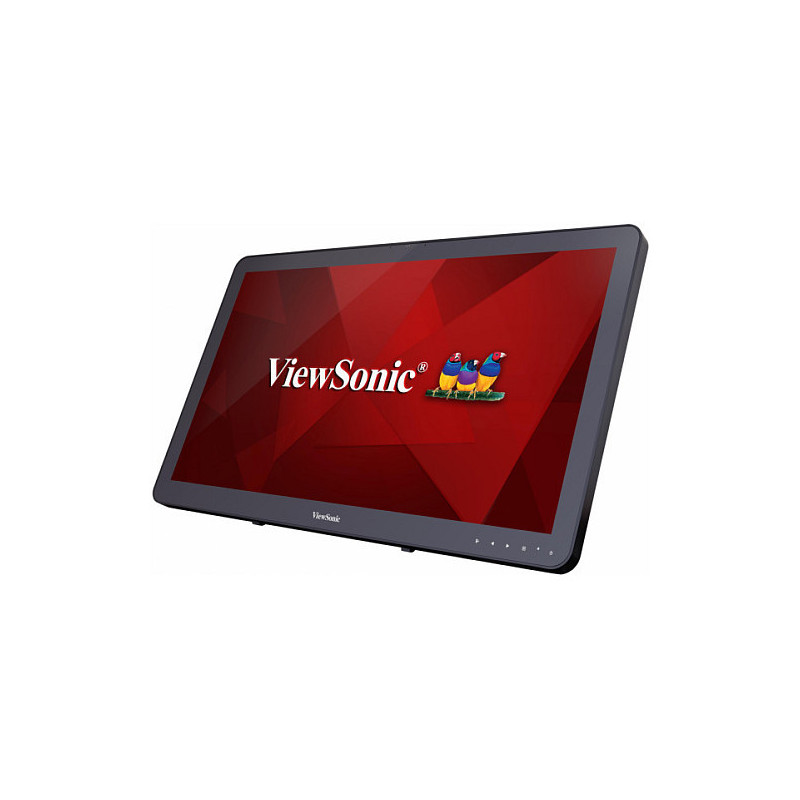

Viewsonic TD2430 computer monitor

Viewsonic TD2430. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

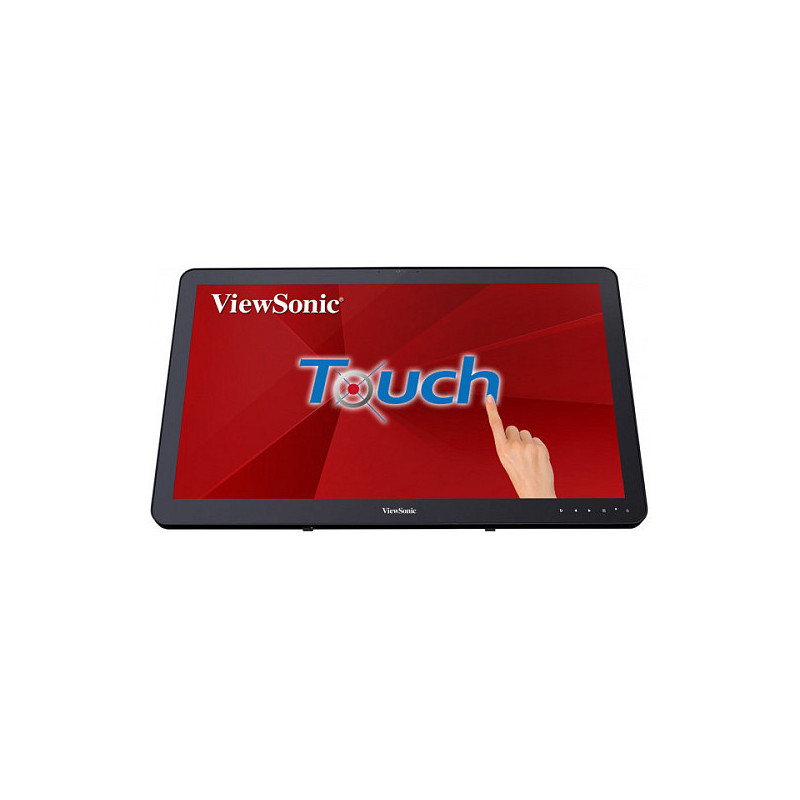

- 10-point Projected Capacitive Touch
- SuperClear® MVA-type panel technology
- Frameless Design
- Versatile Connectivity
- Durable, Scratch-resistant Screen
Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24" (23.6" viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.

Display

Display diagonal: 59.9 cm (23.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 200 cd/m²
Response time: 5 ms
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 76 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.2715 x 0.2715 mm
Horizontal scan range: 24 - 82 kHz
Vertical scan range: 50 - 75 Hz
Display diagonal (metric): 60 cm

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Windows 10, Windows 7, Windows 8
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android

Multimedia

Number of speakers: 2
RMS rated power: 5 W
Built-in speaker(s): Yes
Built-in microphone: No
Built-in camera: No

Design

Product colour: Black

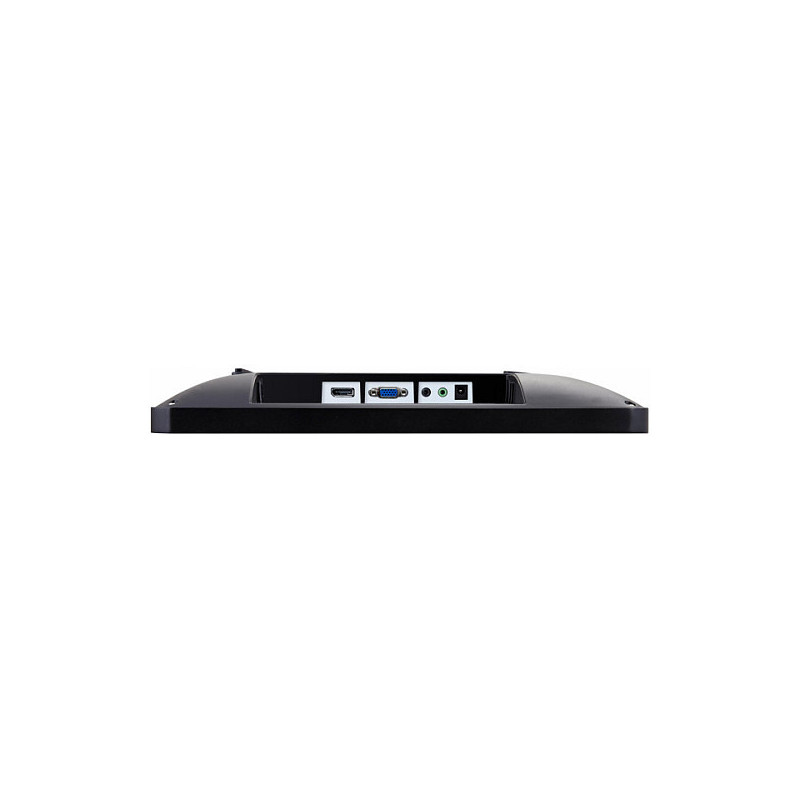

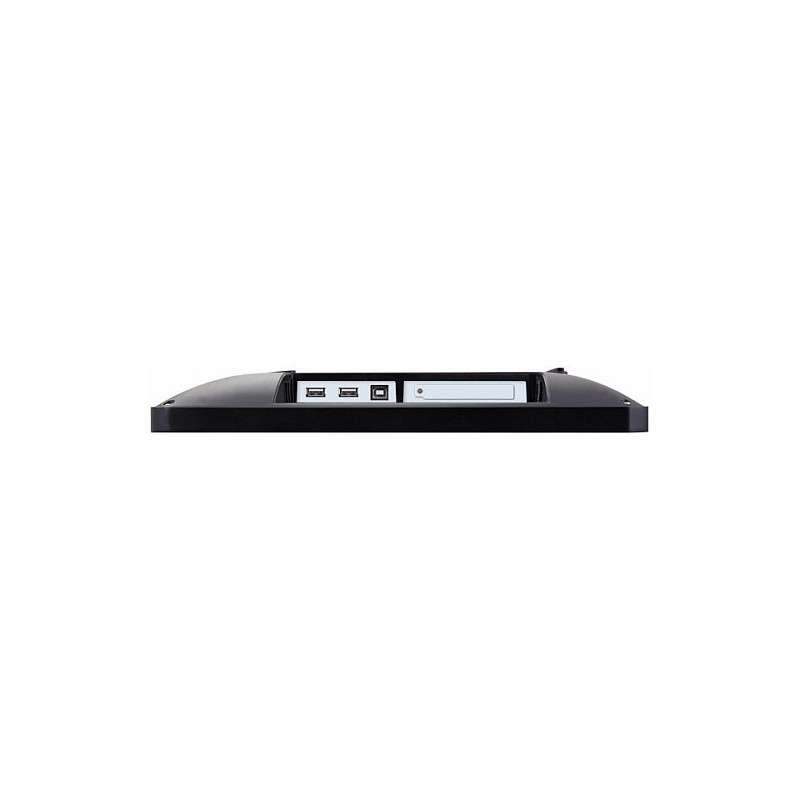

Ports interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Headphone out: Yes
Headphone outputs: 1

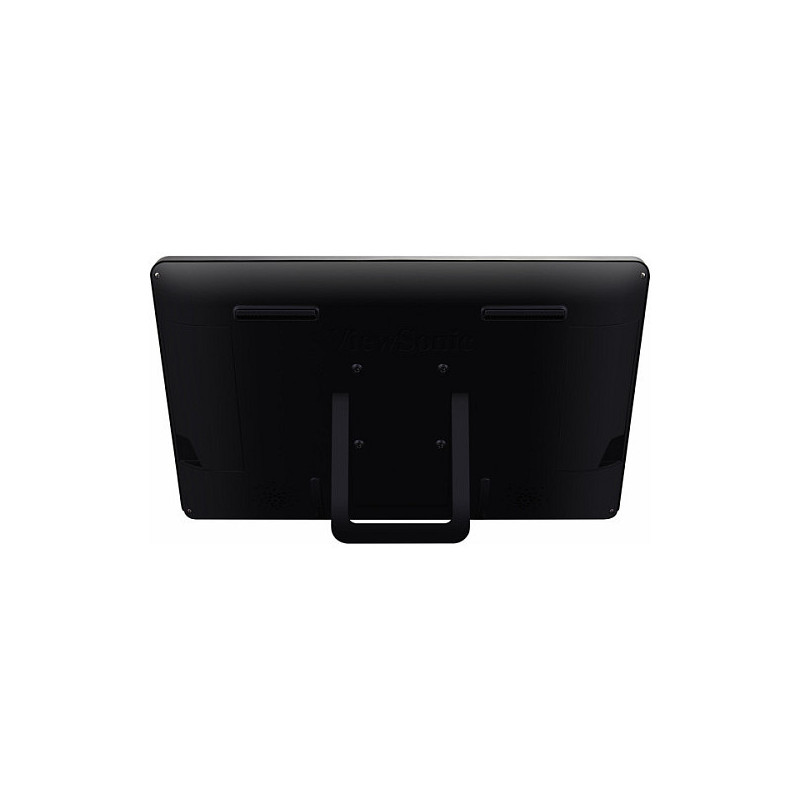

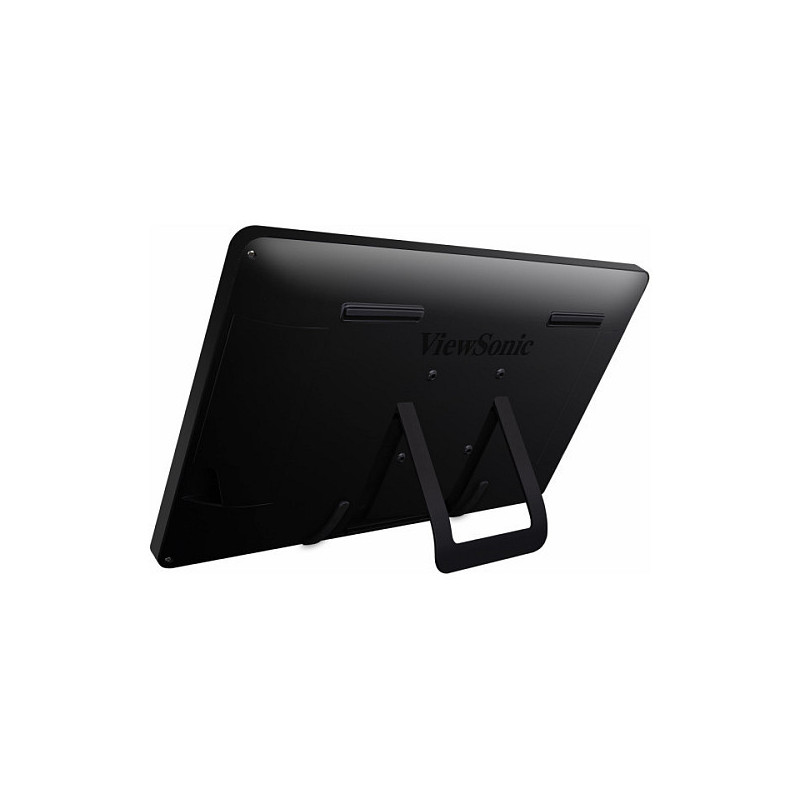

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Tilt adjustment: Yes

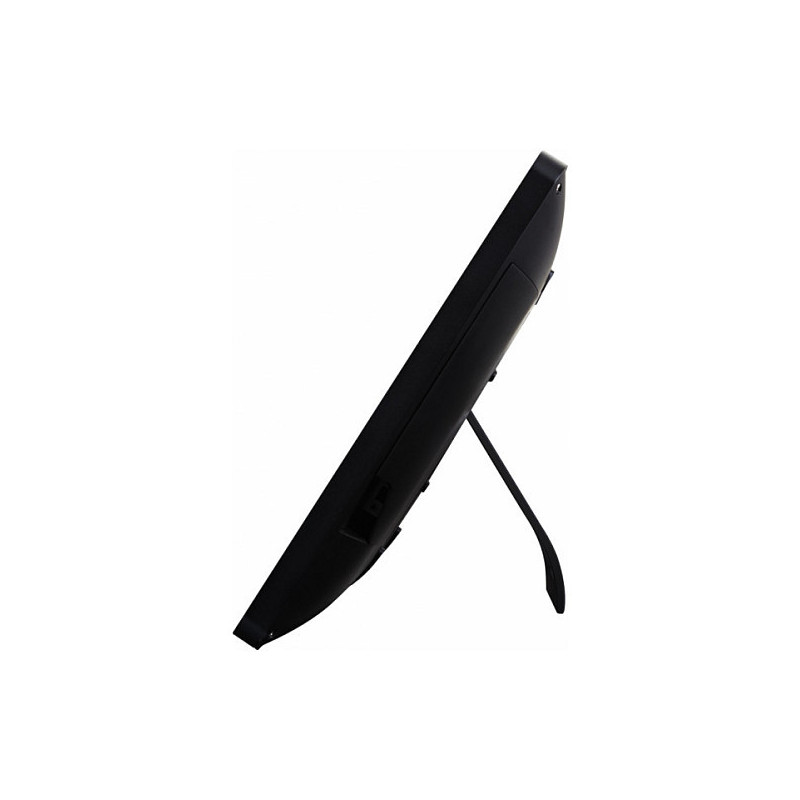

Tilt angle range: 20 - 53°

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 15 kWh
Power consumption (typical): 25 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width (with stand): 573 mm
Depth (with stand): 47 mm
Height (with stand): 353 mm
Weight (with stand): 5.51 kg

Packaging data

Package width: 643 mm
Package depth: 140 mm
Package height: 435 mm
Package weight: 7.1 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB

Sustainability

Sustainability certificates: ENERGY STAR, ErP

Other features

Display viewable area (HxV): 521.28 x 293.22 mm
Mobile operating systems supported: Android
Weight: 5.5 kg
Compliance certificates: CE, REACH, RoHS
Certification: cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP

Logistics data

Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 189 cm
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528521000
