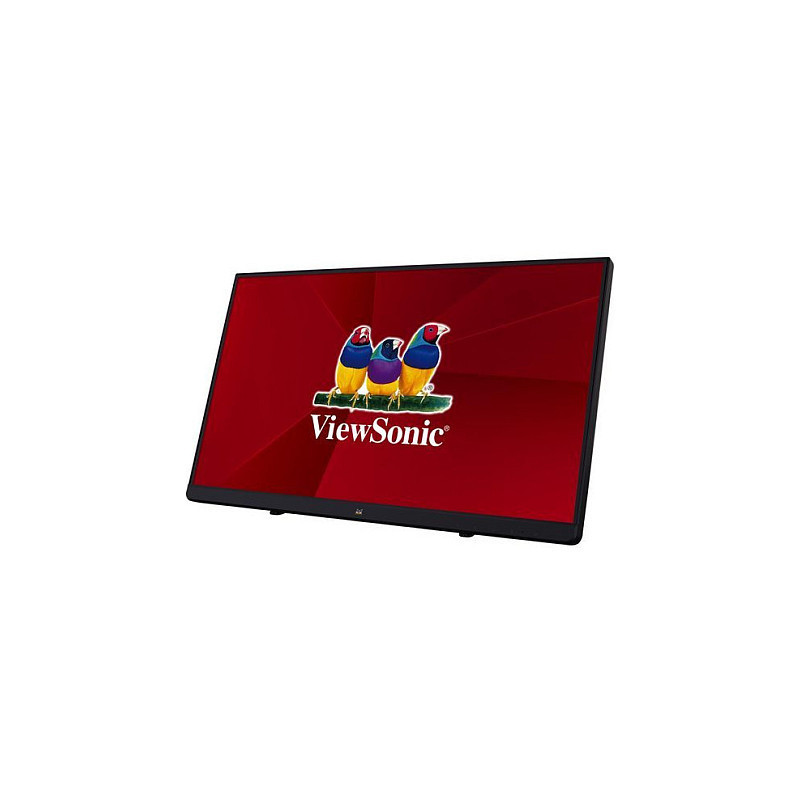

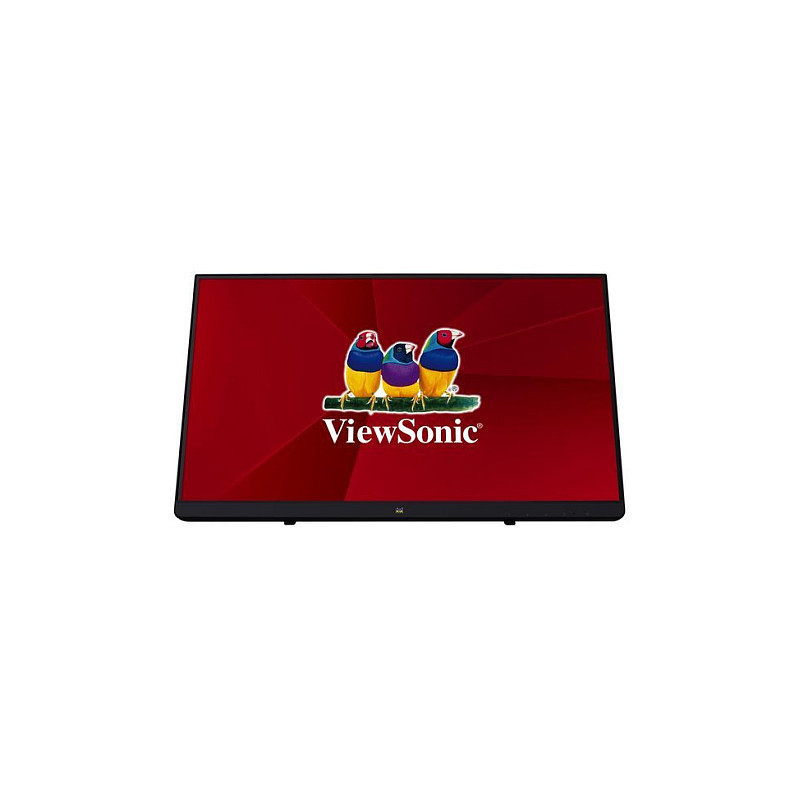

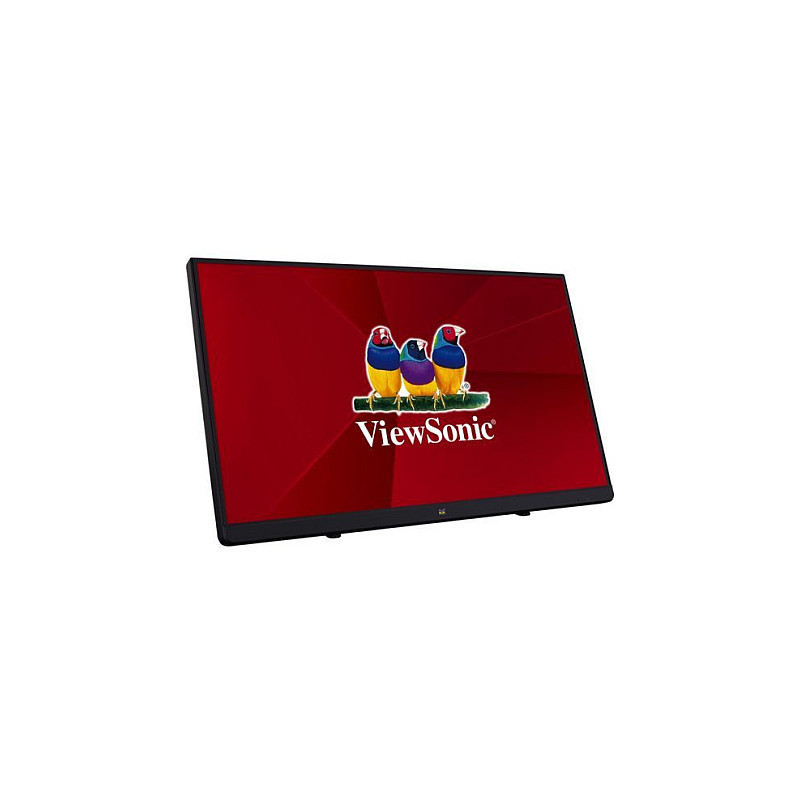

Viewsonic TD2230 computer monitor

Viewsonic TD2230. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

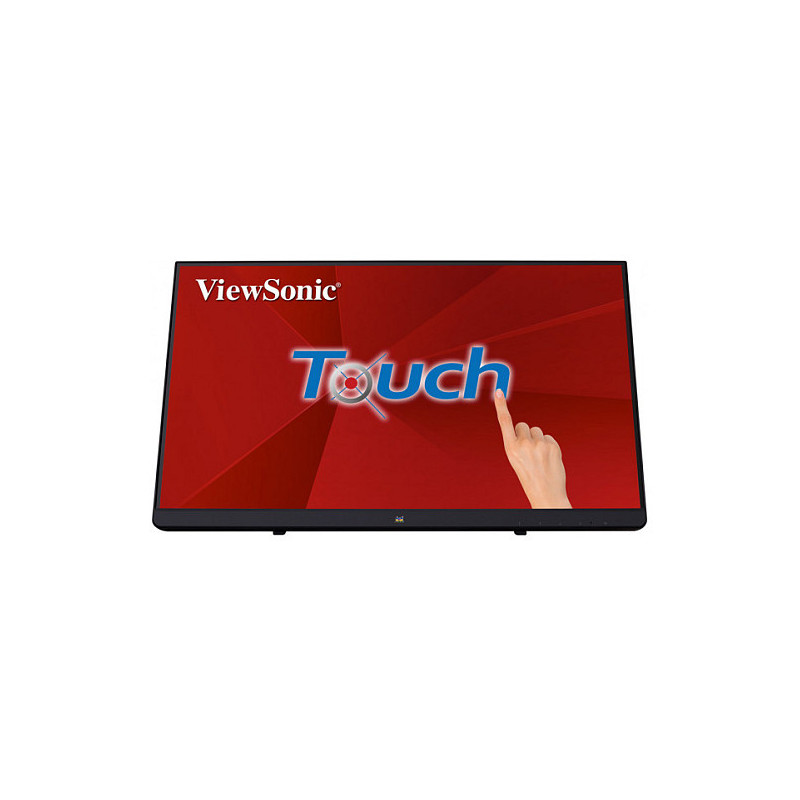

10-Point Projected Capacitive Touch
Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
SuperClear IPS Panel Technology
Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
Frameless Design
Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.

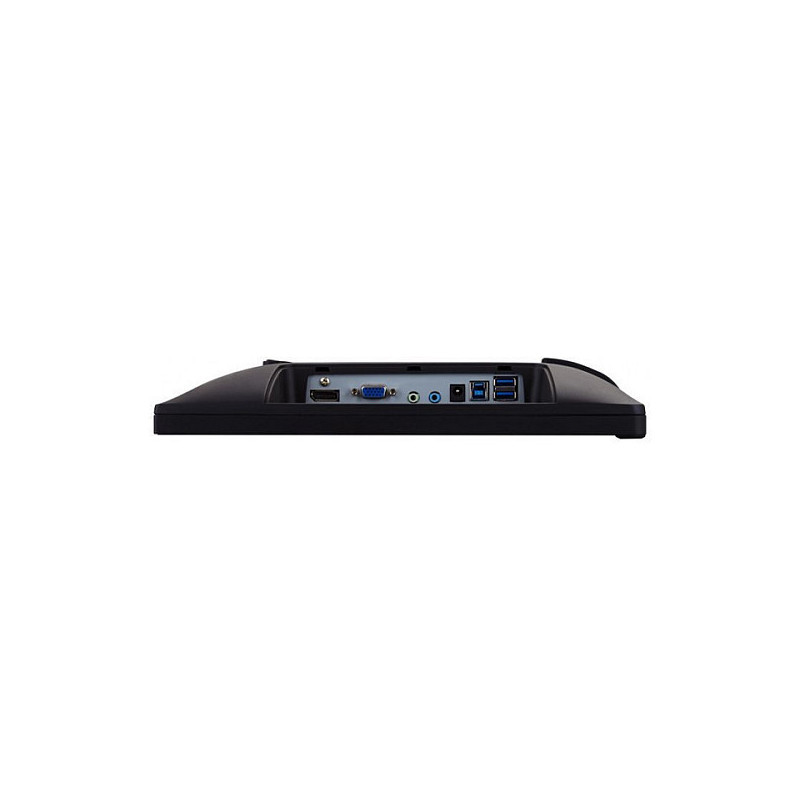

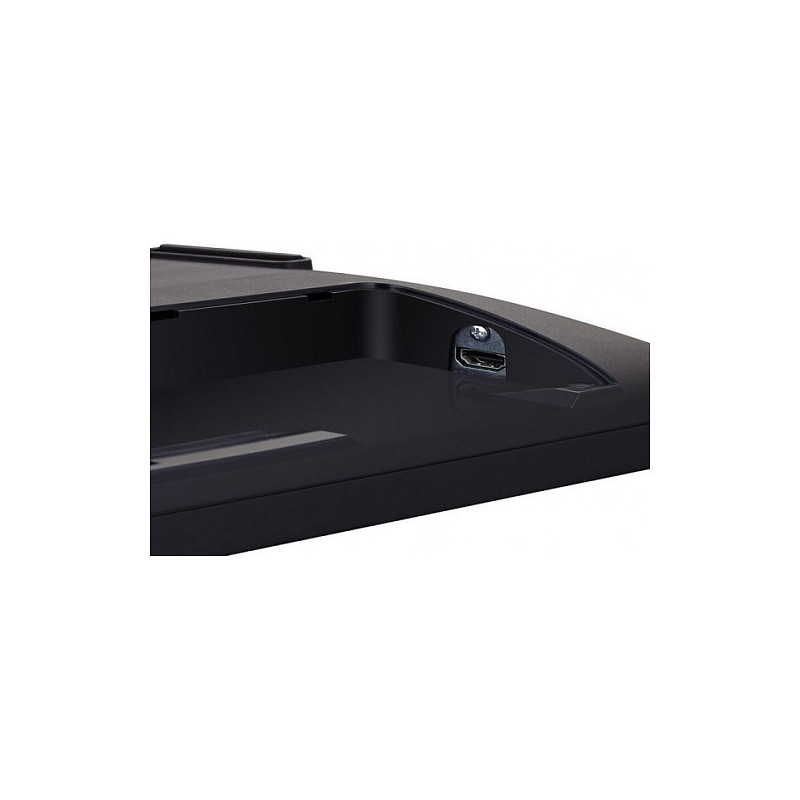

Versatile Connectivity
DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
Durable, Scratch-resistant Screen
This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

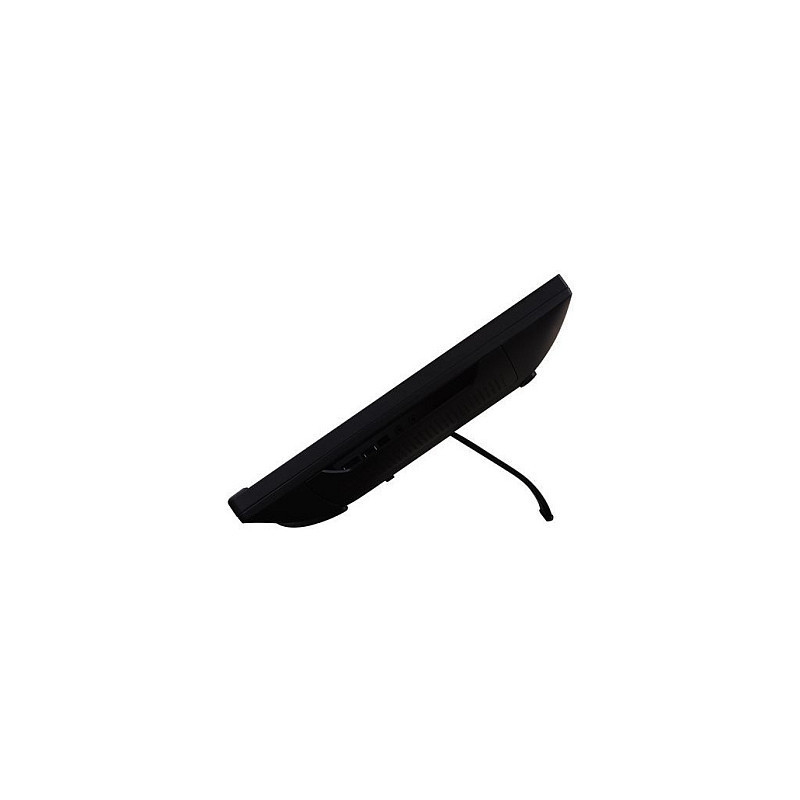

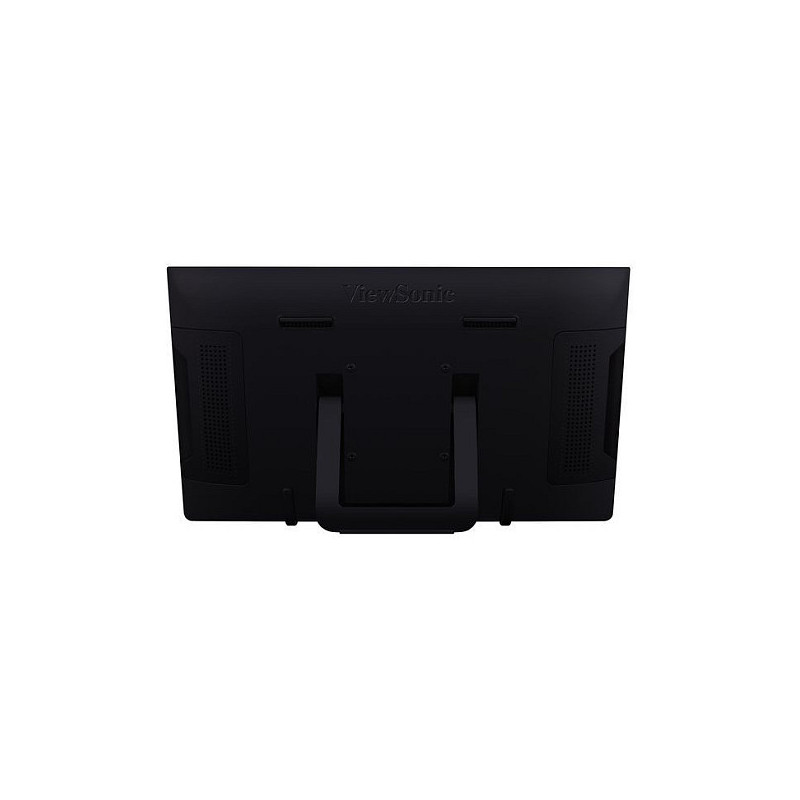

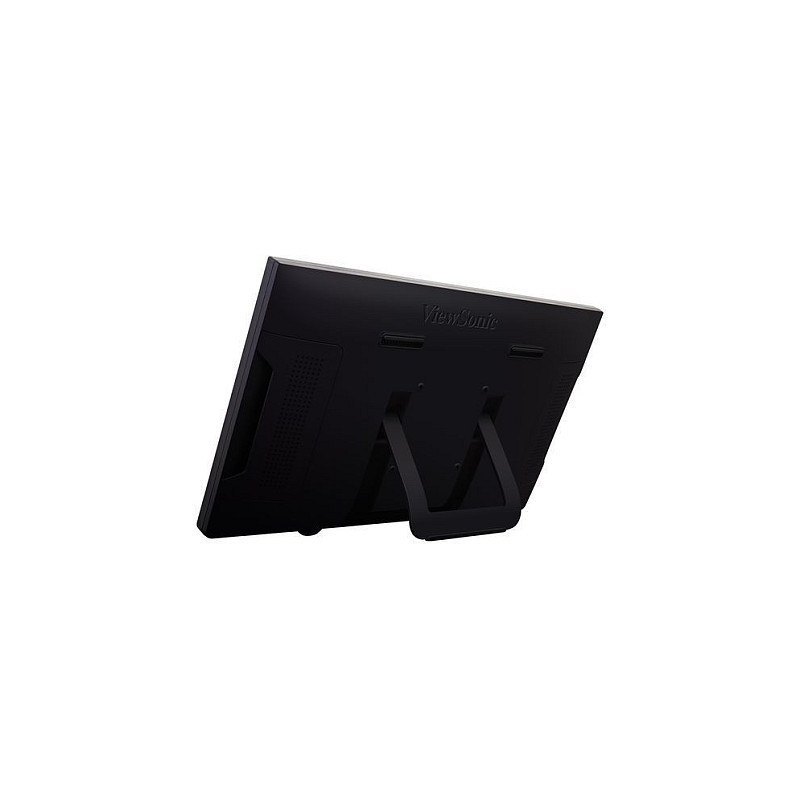

Stable Bookstand Design
A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilted or laid completely flat on a tabletop for a more comfortable work environment.
Enhanced ViewingComfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods.
Cross-platform Compatibility
Cross compatibility with a wide range of operating systems include Windows 10, and certain Android and Linux versions.
VESA-CompatibleMount
Mount the monitor as you see fit using its convenient VESA-compatible mount design.
3-year LimitedWarranty
Have peace of mind in the quality and reliability of your ViewSonic monitor—backed by one of the industry's best pixel performance policies and a 3-year limited warranty.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: ADS
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Maximum refresh rate: 76 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.24825 x 0.24825 mm
Horizontal scan range: 24 - 82 kHz
Vertical scan range: 50 - 76 Hz
Display diagonal (metric): 54.6 cm

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android

Multimedia

Number of speakers: 2
RMS rated power: 6 W
Built-in speaker(s): Yes
Built-in microphone: No
Built-in camera: No

Design

Product colour: Black

Ports interfaces

Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B
Number of upstream ports: 1
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort version: 1.2
Audio input: 1
Audio output: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
Tilt adjustment: Yes
Tilt angle range: 20 - 70°
On Screen Display (OSD): Yes
Number of OSD languages: 12

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 25 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC
Energy efficiency scale: A to G
European Product Registry for Energy Labelling (EPREL) code: 389769

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%
Storage relative humidity (H-H): 5 - 90%

Weight dimensions

Width (with stand): 490 mm
Depth (with stand): 47 mm
Height (with stand): 299 mm
Weight (with stand): 3.58 kg

Packaging data

Package width: 550 mm
Package depth: 114 mm
Package height: 371 mm
Package weight: 4.7 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB

Sustainability

Sustainability certificates: EPEAT Bronze, ErP

Other features

Display viewable area (HxV): 476.64 x 268.11 mm
Weight: 3.6 kg
Compliance certificates: CE, REACH, RoHS
Certification: cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP

Logistics data

Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 197.5 cm
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528521000
