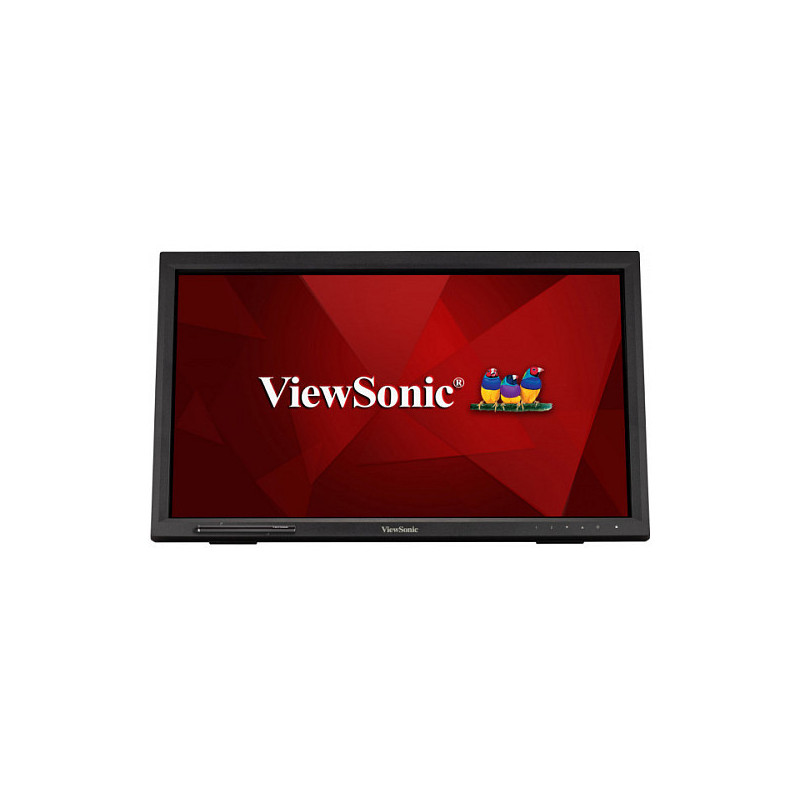

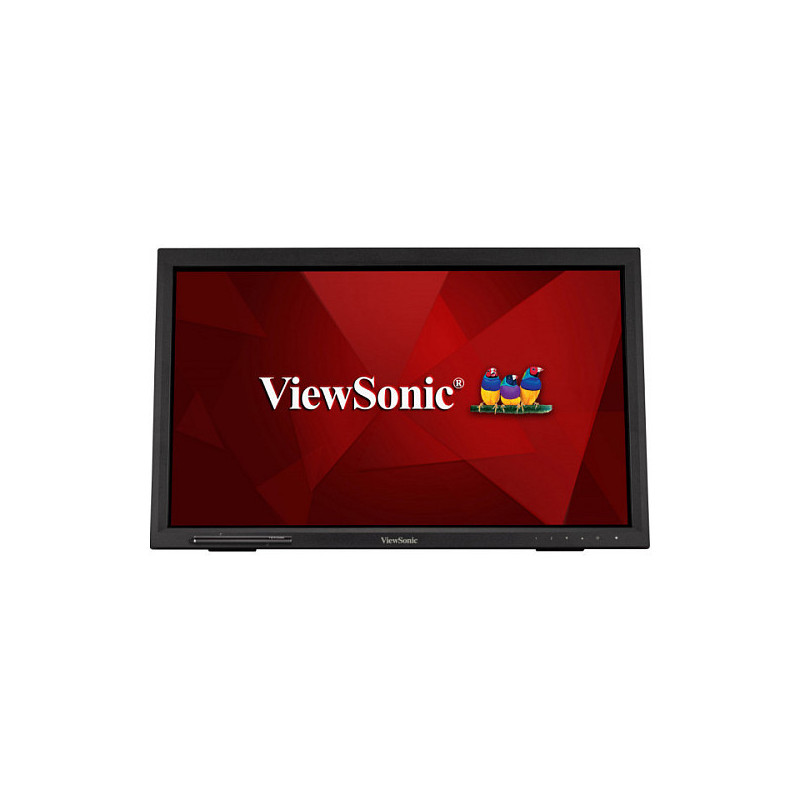

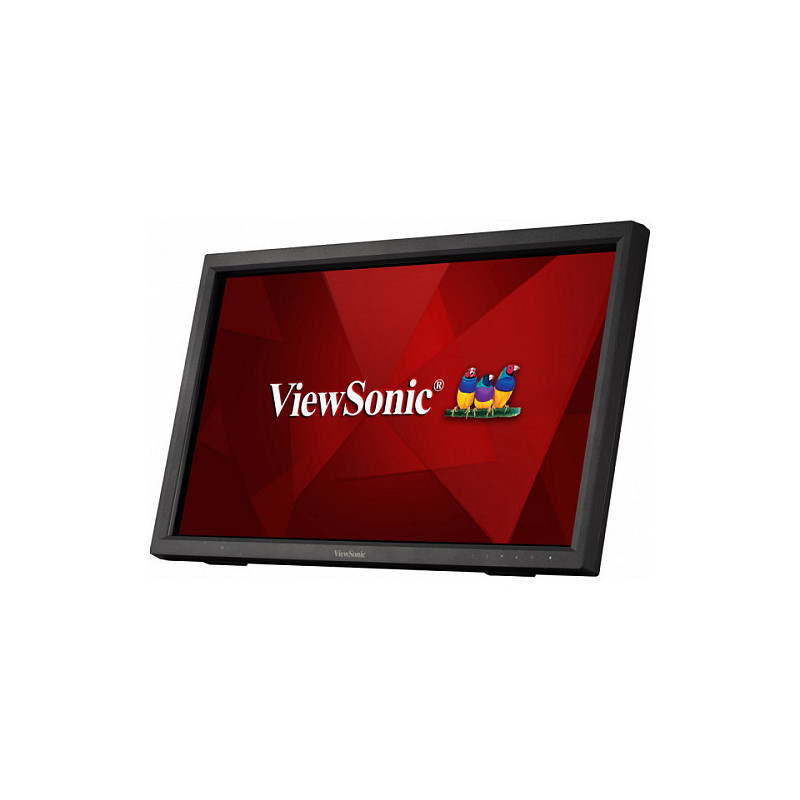

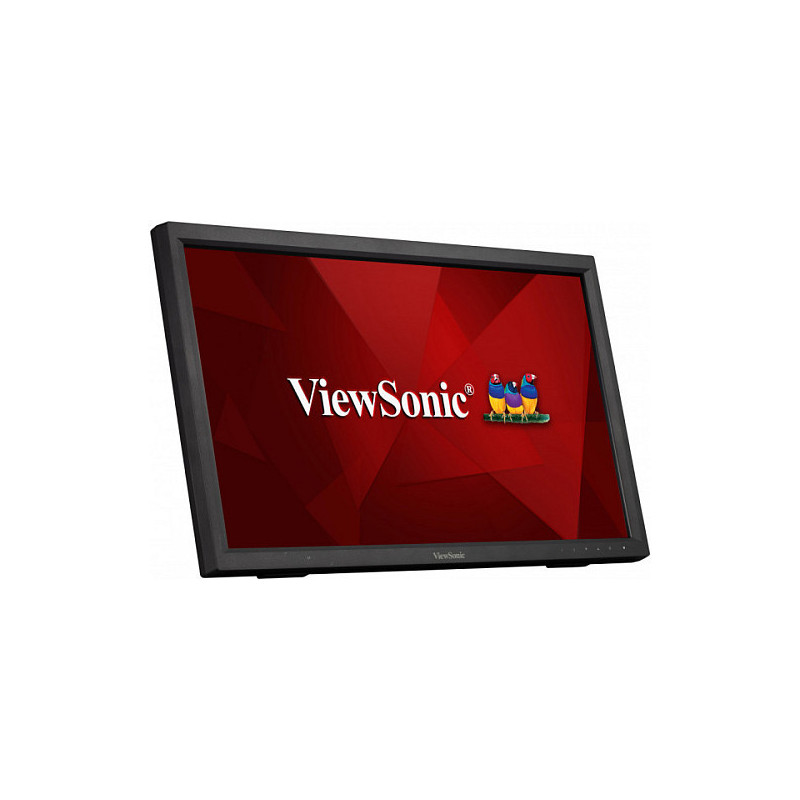

Viewsonic TD2223-2 computer monitor

Viewsonic TD2223-2. Display diagonal: 55.9 cm (22"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Gloss, Response time: 6.5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black

The ViewSonic® TD2223 is a 22" IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What's more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects.

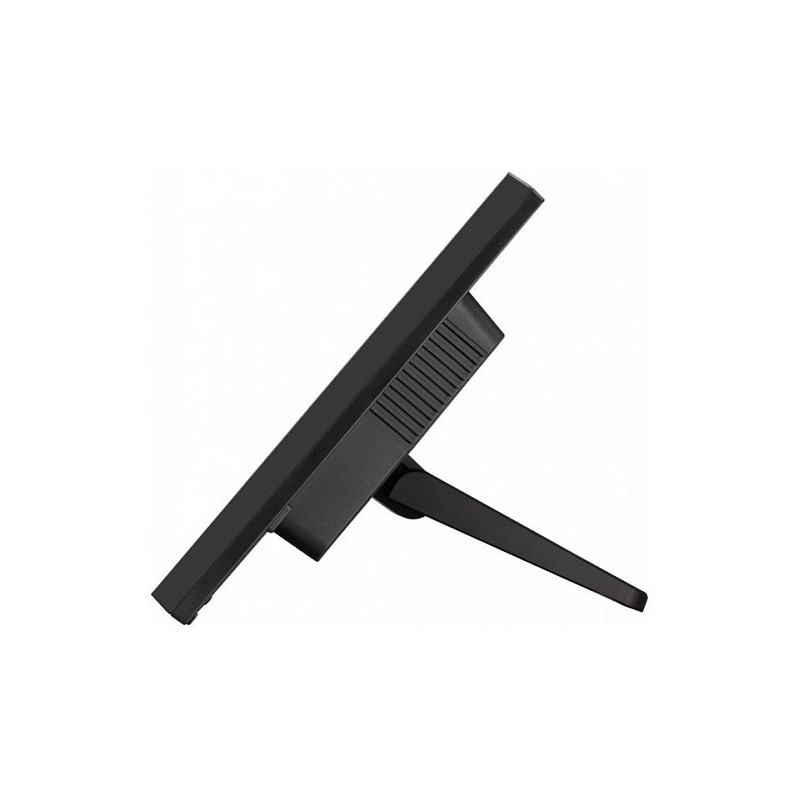

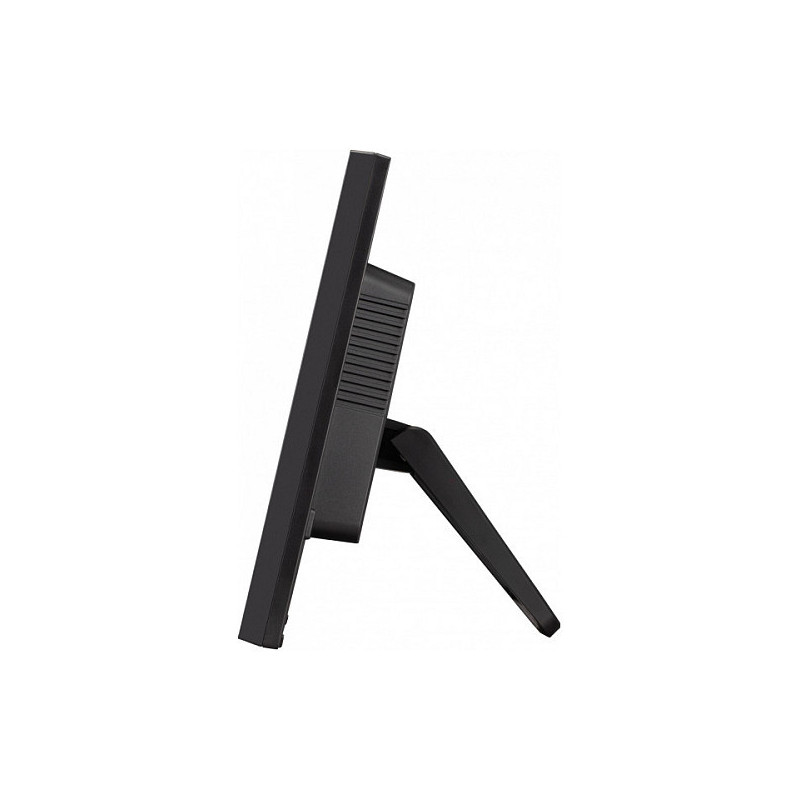

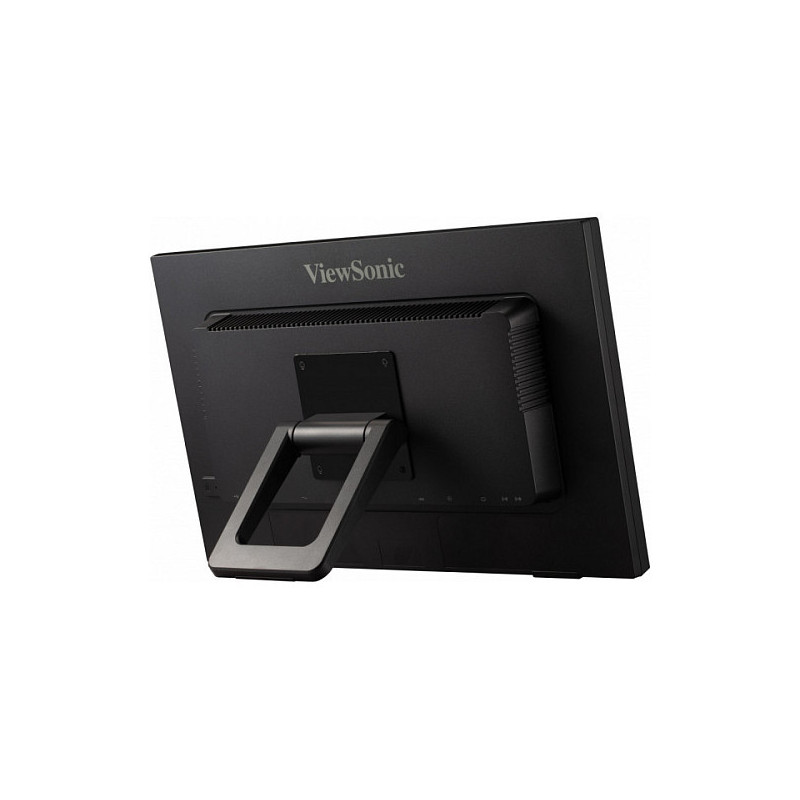

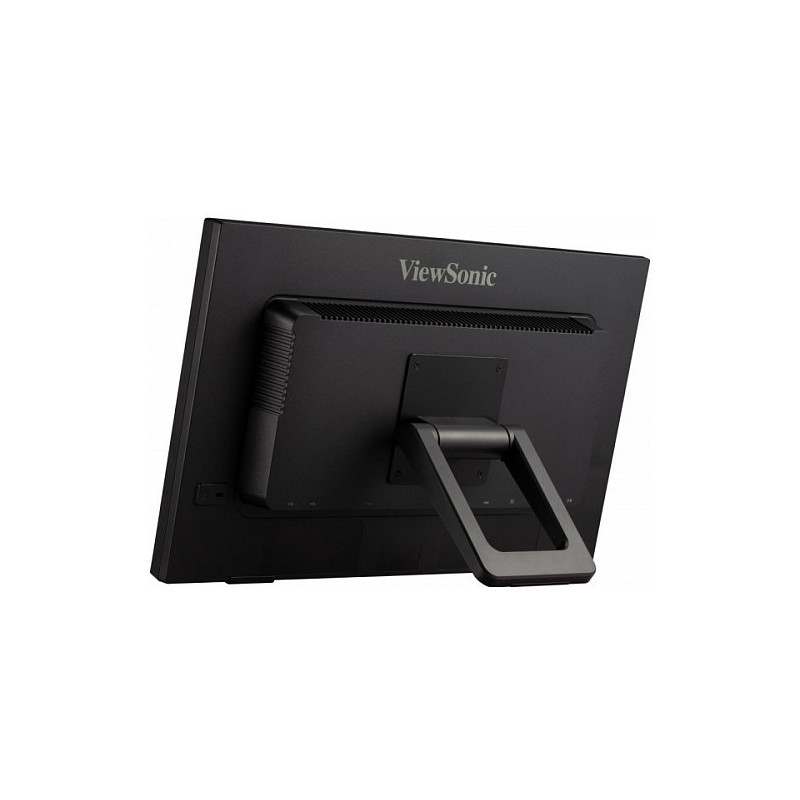

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

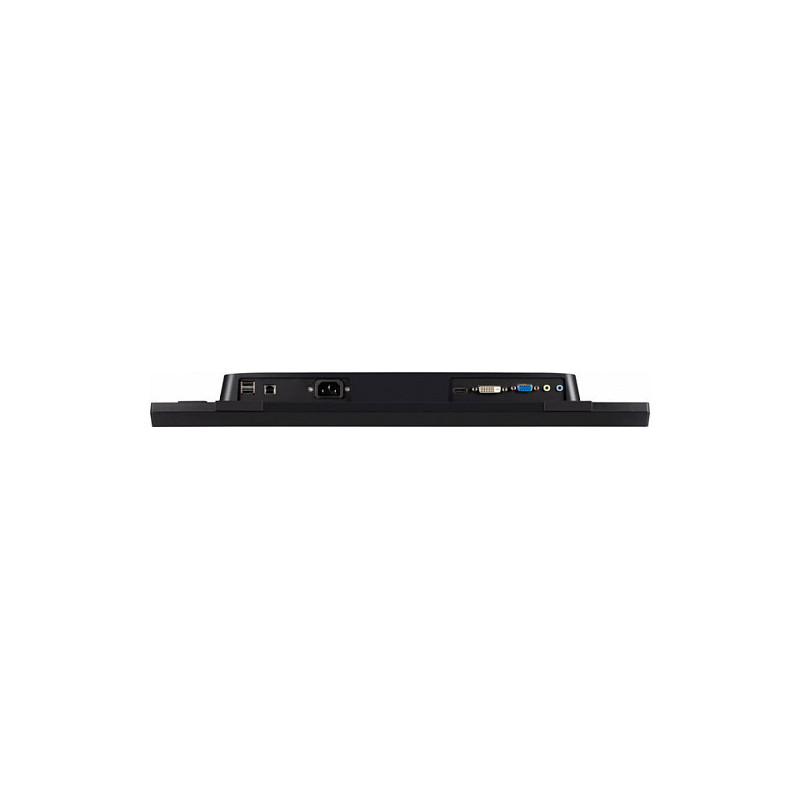

Dimension & I/O Ports

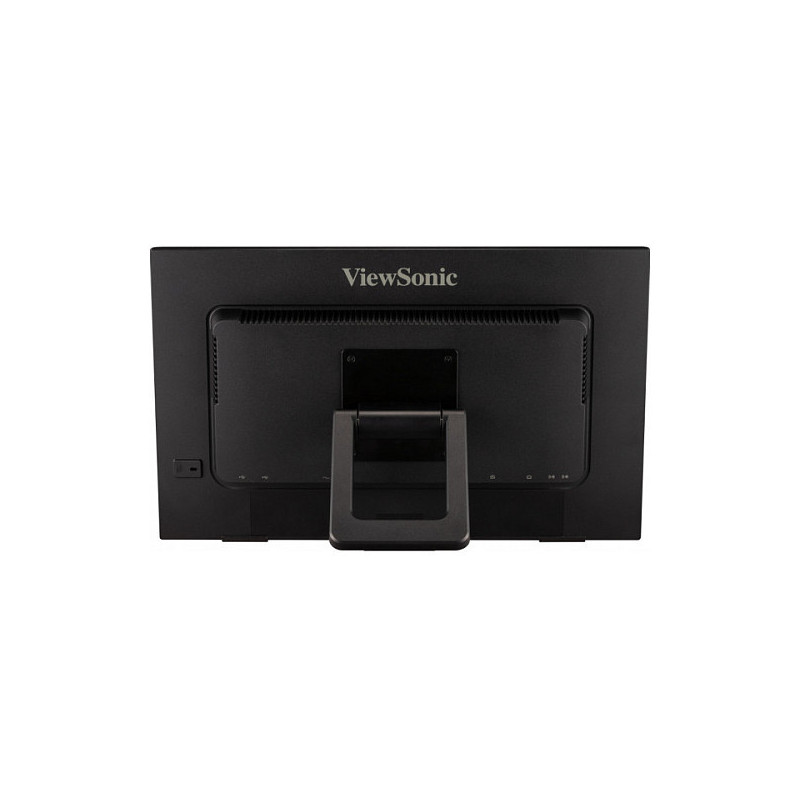

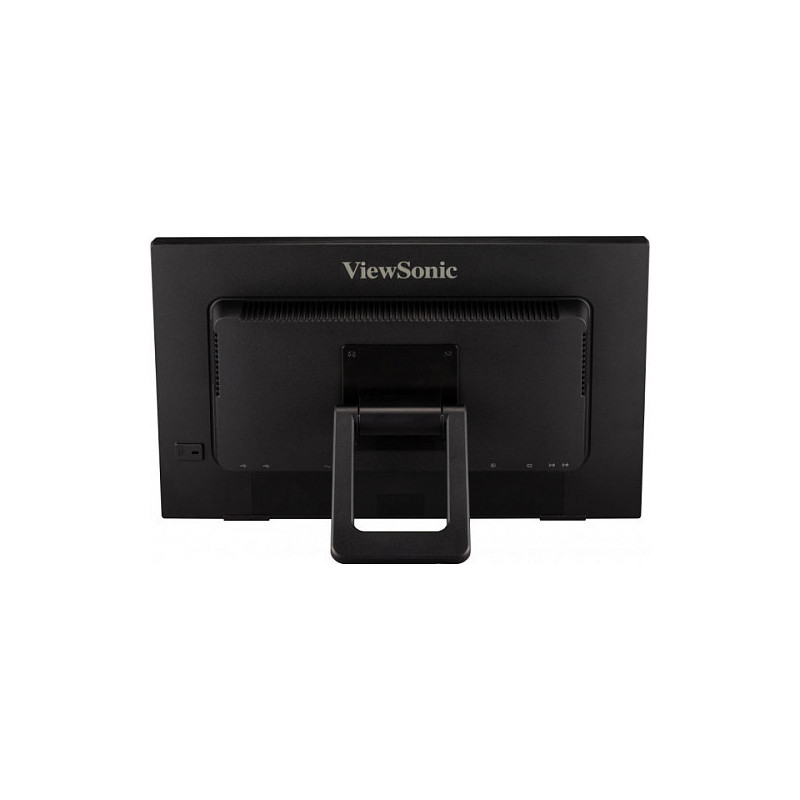

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

Display

Display diagonal: 55.9 cm (22")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Feature: LED backlight
Feature: Touchscreen
Touchscreen technology: Infrared
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 250 cd/m²
Response time: 6.5 ms
Display surface: Gloss
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 20000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.249 x 0.241 mm
Display diagonal (metric): 55.9 cm
Colour depth: 8 bit
sRGB coverage (typical): 104%
NTSC coverage (typical): 72%

Performance

Feature: Flicker-free technology
Feature: Low Blue Light technology

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)

Design

Market positioning: Office
Product colour: Black
Feet colour: Black
Glass thickness: 2 mm

Ports & interfaces

Feature: Built-in USB hub
USB hub version: 2.0
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
Feature: Headphone out
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: AC (power) in

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 20 - 40°
Feature: On Screen Display (OSD)

Power

Power consumption (typical): 18.5 W
Power consumption (standby): 0.5 W
Power consumption (max): 21.8 W
AC input voltage: 100 - 240 V
Power supply type: Internal

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width (with stand): 519 mm
Depth (with stand): 101 mm
Height (with stand): 329 mm
Weight (with stand): 4.2 kg
Width (without stand): 519 mm
Depth (without stand): 61 mm
Height (without stand): 308 mm
Weight (without stand): 3.7 kg

Packaging data

Package width: 580 mm
Package depth: 162 mm
Package height: 405 mm
Package weight: 5.7 kg

Packaging content

Feature: Stand included
Cables included: AC, Audio, HDMI, USB Type-A to USB Type-B
Feature: Quick start guide

Other features

Weight: 4.2 kg

Logistics data

Products per master (outer) case: 1 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 2.15 m
Harmonized System (HS) code: 8528521000
