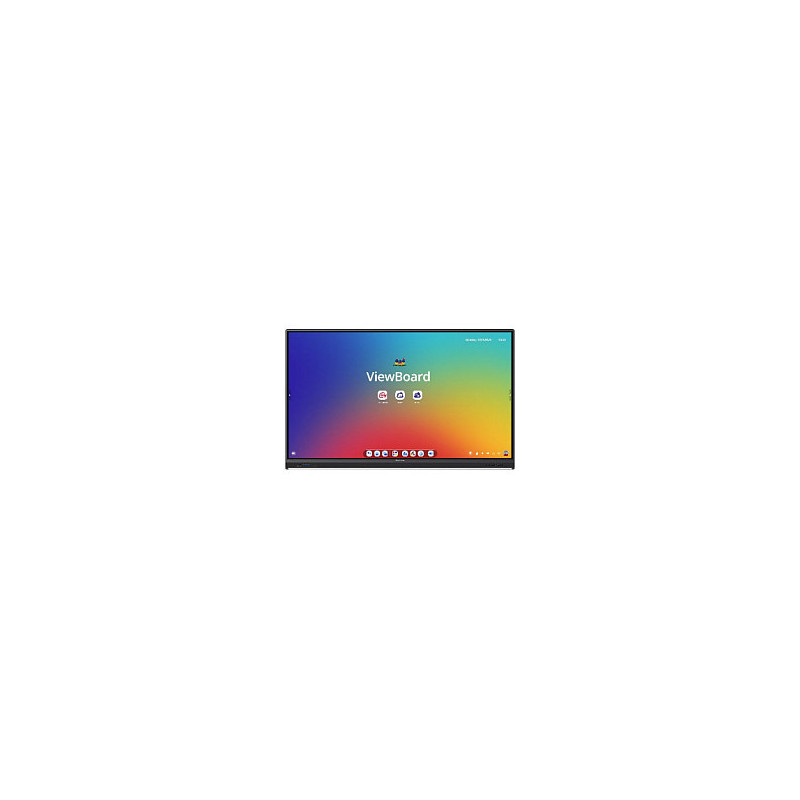

Viewsonic IFP6553 interactive whiteboard

Viewsonic IFP6553. Display diagonal: 165.1 cm (65"), Working area: 1428.48 x 803.52 mm, Display brightness: 450 cd/m². Operating system installed: Android, Processor architecture: ARM Cortex A73 + ARM Cortex A53, User memory: 128 GB. Speaker power: 20 W, Subwoofer RMS power: 20 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Headphone connectivity: 3.5 mm

21st Century Classroom Collaboration
ViewBoard® Interactive Displays
ViewSonic® ViewBoard® interactive displays deliver an immersive learning experience in any classroom environment. Featuring high-accuracy touchscreens, these interactive displays deliver an intuitive digital whiteboard experience for everyone from the youngest of students to the most experienced teachers.

Every ViewSonic ViewBoard interactive display includes complimentary access to myViewBoard software to deliver an unparalleled classroom experience. With this innovative hardware and software combination, teachers can engage students like never before with dynamic lesson creation, real-time collaboration, and immersive multimedia presentations.

Display

Display diagonal: 165.1 cm (65")
Display brightness: 450 cd/m²
Display number of colours: 1.07 billion colours
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Panel type: IPS
Feature: LED backlight
LED backlighting type: Direct-LED
Native aspect ratio: 16:9
Response time: 6.5 ms
Feature: Touchscreen
Touch technology: Multi-touch
Touchscreen type: Infrared
Number of simultaneous touchpoints: 40
Touch system response time: 5 ms
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Working area: 1428.48 x 803.52 mm

Computer system

Operating system installed: Android
Operating system version: 13
Feature: Built-in processor
Processor architecture: ARM Cortex A73 + ARM Cortex A53
Processor cores: 8
User memory: 128 GB
RAM capacity: 16 GB
Graphics card family: ARM
Graphics card: Mali-G52

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
Speaker power: 20 W
Feature: Built-in subwoofer
Subwoofer RMS power: 20 W
Feature: Built-in microphone
Number of microphone arrays: 8

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 3
USB 2.0 ports quantity: 1
USB 2.0 Type-A hub ports quantity: 1
HDMI ports quantity: 4
USB Type-C ports quantity: 3
Feature: USB Type-C DisplayPort Alternate Mode
HDMI version: 2.1
HDMI output ports quantity: 1
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 2
Headphone connectivity: 3.5 mm
RS-232 ports: 1

Ergonomics

Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm
Feature: Wall mountable

Power

Power consumption (max): 384.9 W
Power consumption (typical): 182.7 W
Power consumption (off): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%

Weight & dimensions

Width: 1485.7 mm
Depth: 118 mm
Height: 934.6 mm
Weight: 39 kg

Packaging data

Package width: 1660 mm
Package depth: 220 mm
Package height: 1045 mm
Package weight: 48.8 kg
Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual
USB cable length: 3 m
Cables included: AC, HDMI, USB
Feature: Remote control included
Feature: Mounting kit
Number of stylus pens: 2

Logistics data

Pallet gross width: 168.5 cm
Pallet gross length: 114 cm
Pallet gross height: 116 cm
Products per master (outer) case: 1 pc(s)
