Viewsonic EP5542T Signage Display

Viewsonic EP5542T. Product design: Totem design. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 2160 x 3840 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating system installed: Android 8.0. Product colour: Black
OVERVIEW

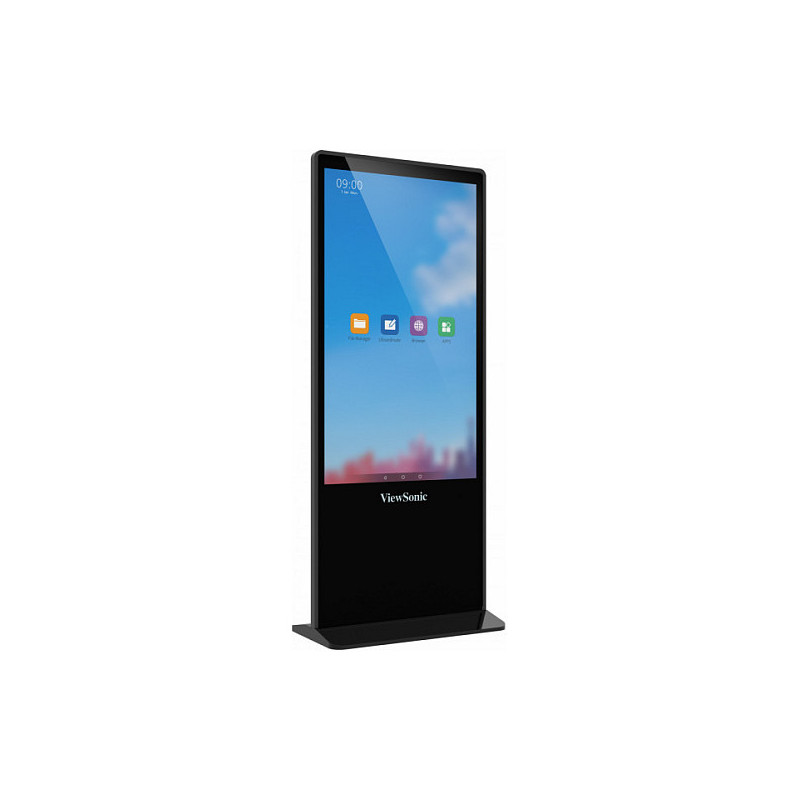

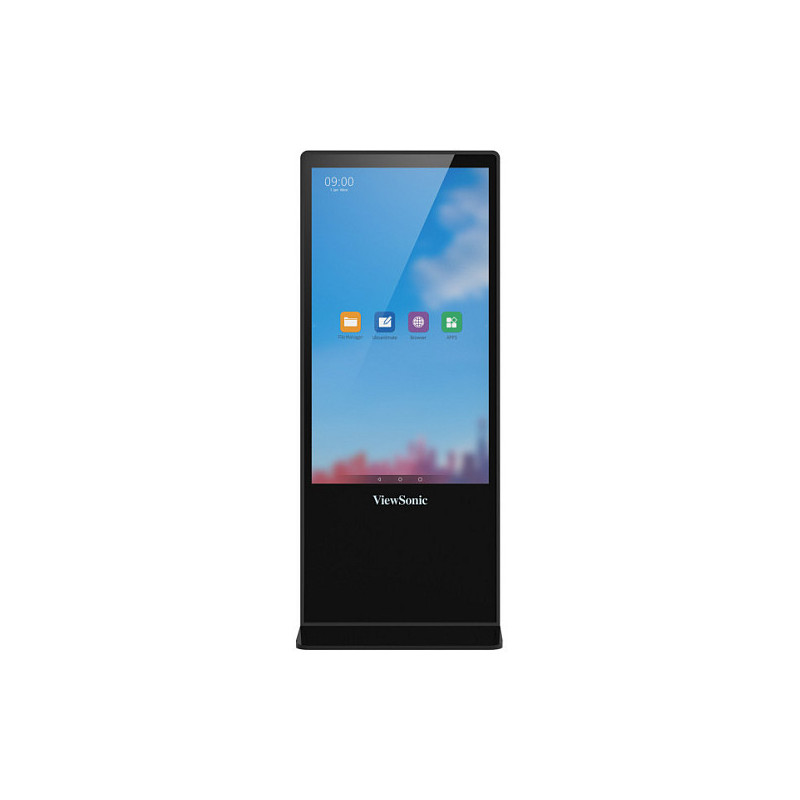

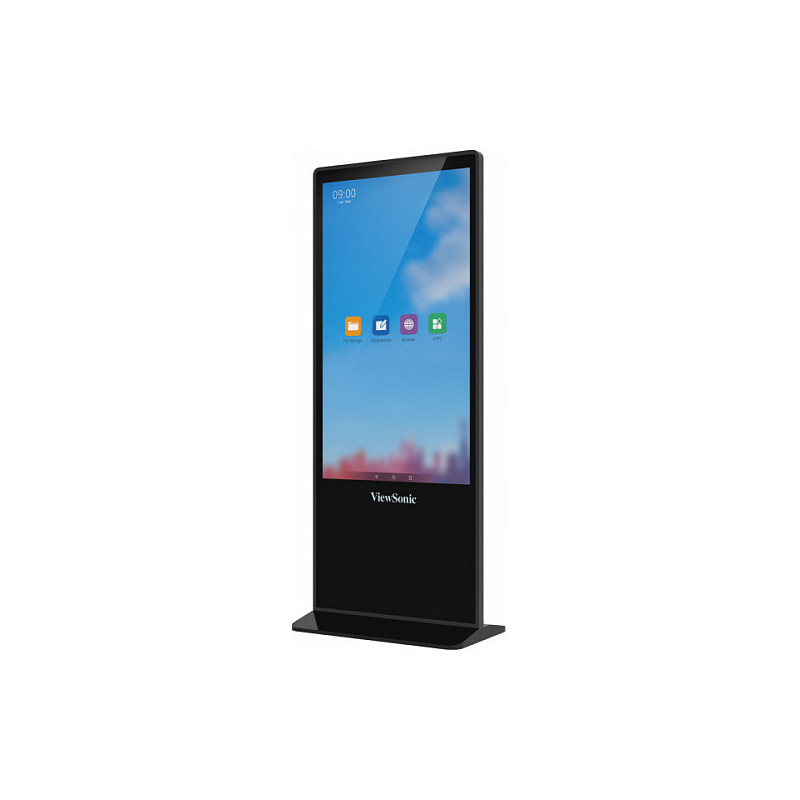

The ViewSonic EP5542T is a 10-point interactive 55" all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5542T comes with a scratch-proof tempered glass faceplate for added durability. Featuring 4K resolution, 178°/178° wide-angle viewing, and dual 10W stereo speakers, the EP5542T delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded ARM media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door. It has build-in media playback software, as well as compatibility with ProAV control systems, make for easy management of multiple displays.
Interactive On-Demand Messaging
This display delivers on-demand interactive messaging with 10-point multi-touch capability and is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.
All-in-one with Integrated Media Player
A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.
USB Multimedia Playback
Customised photos, music, and 4K video can be quickly displayed on-screen directly from a USB drive.
Access to Web Contents
Integrated with RJ45 connectivity, the display offers convenient web browsing functionality. Users can search online and watch videos directly on the display without having to connect to other computing devices.
Internal Scheduler
An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, or videos run smoothly and on time.
Remote Various Display Management
Compatible with professional ProAV control systems such as Crestron, AMX, Extron, Control4, SureMDM, and Revel Digital, this ePoster allows IT personnel to manage and configure settings remotely over LAN with other display devices.

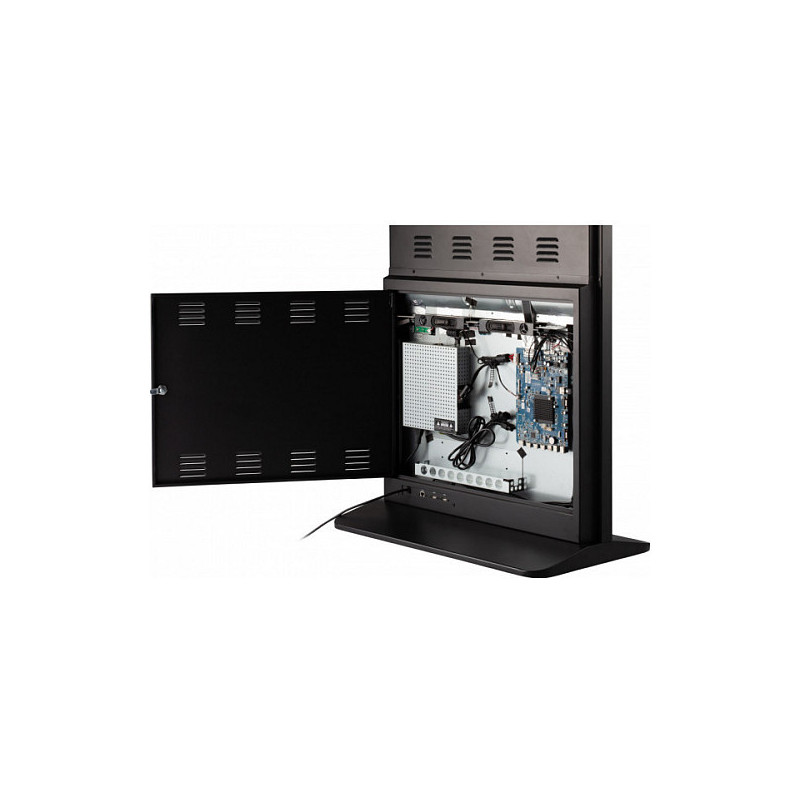

Media Player Cradle with Security Door
A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.
Dual 10W Speakers
Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound for an immersive multimedia experience.
Premium Design

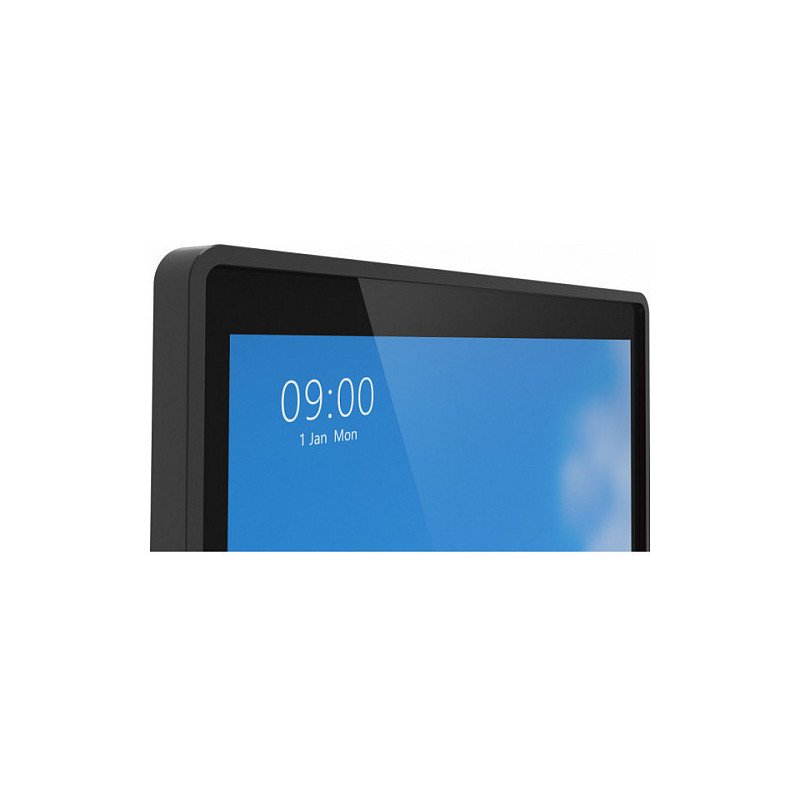

This standing all-in-one digital ePoster kiosk features a sleek and slim premium design utilising a 7H tempered glass faceplate that offers scratch-proof protection to keep your ePoster looking like new year after year.
4K Resolution
With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

Display

LED backlighting type: Direct-LED
Display diagonal: 139.7 cm (55")
Display technology: LED
Display resolution: 2160 x 3840 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Infrared
Number of simultaneous touchpoints: 10
Feature: Multi-touch
Native aspect ratio: 9:16
Response time: 9 ms
Contrast ratio (typical): 1300:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Active display area (W x H): 1209.6 x 680.4 mm
Panel life: 30000 h

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
Feature: USB port
USB ports quantity: 5
Ethernet LAN (RJ-45) ports: 1
Feature: PC Audio in
Feature: RS-232 interface

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Totem design
Placement supported: Indoor
Product colour: Black

Performance

Purpose: Universal

Power

Power consumption (typical): 126 W
Power consumption (off): 0.5 W
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 73 kWh
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Internal storage capacity: 16 GB
Operating system installed: Android 8.0
Video formats supported: AVI, DAT, MKV, MOV, MP4, MPEG, MPG, RM, RMVB, TS, WMV
Audio formats supported: AAC, MP3, WAV
Image formats supported: BMP, JPG, PNG

Weight dimensions

Display width: 768.5 mm
Display depth: 450 mm
Display height: 1870 mm
Display weight: 62.7 kg
Weight: 58 kg

Packaging data

Package width: 920 mm
Package depth: 550 mm
Package height: 2000 mm
Package weight: 66.7 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Certificates

Certification: cTUVus, FCC, Energy Star, CE, CB, RoHS, ErP, EEI, WEEE, BSMI

Logistics data

Products per master (outer) case: 1 pc(s)
Pallet gross length: 92 cm
Pallet gross width: 55 cm
Pallet gross height: 2.13 m
Harmonized System (HS) code: 8528529100

Network

Feature: Ethernet LAN

Technical details

Sustainability certificates: ENERGY STAR, ErP
Compliance certificates: CE, RoHS
