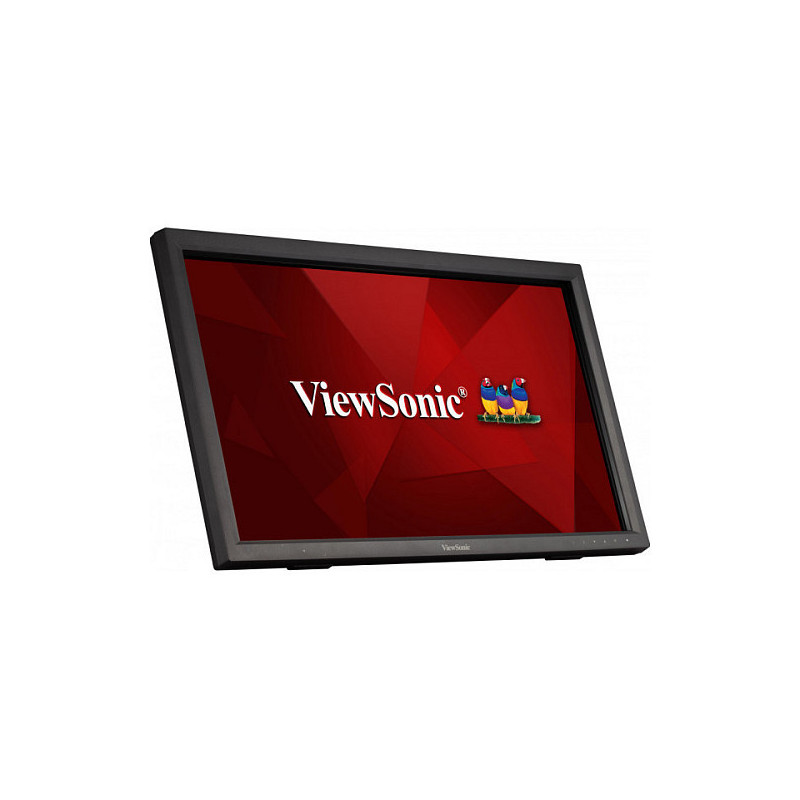

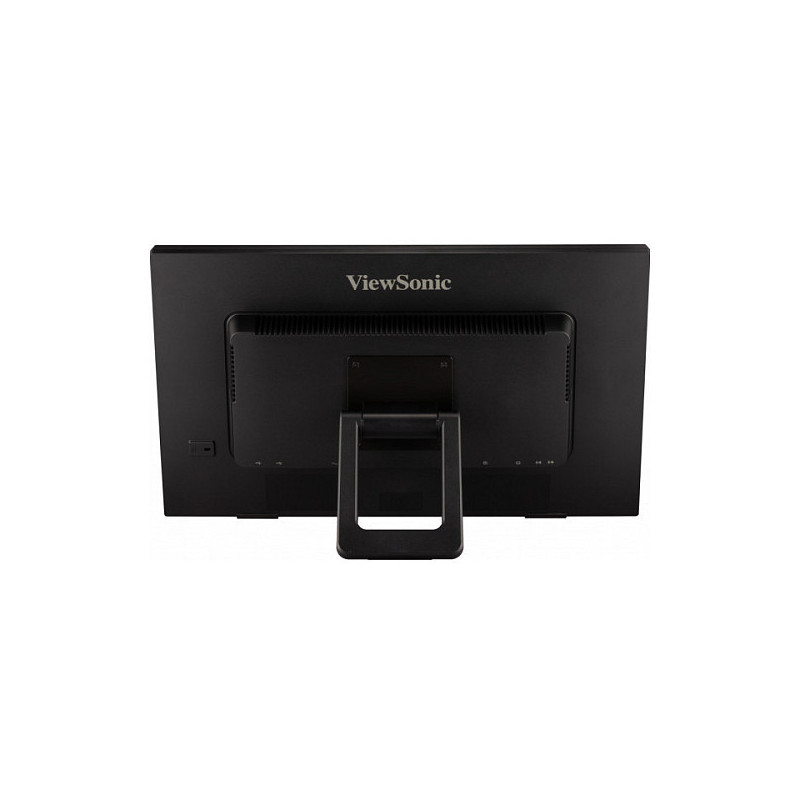

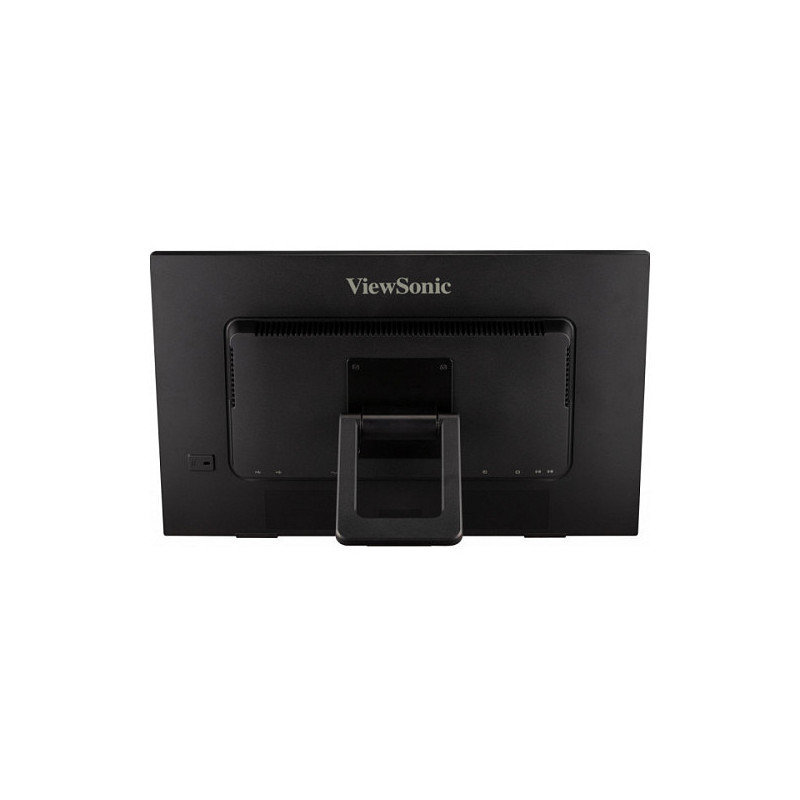

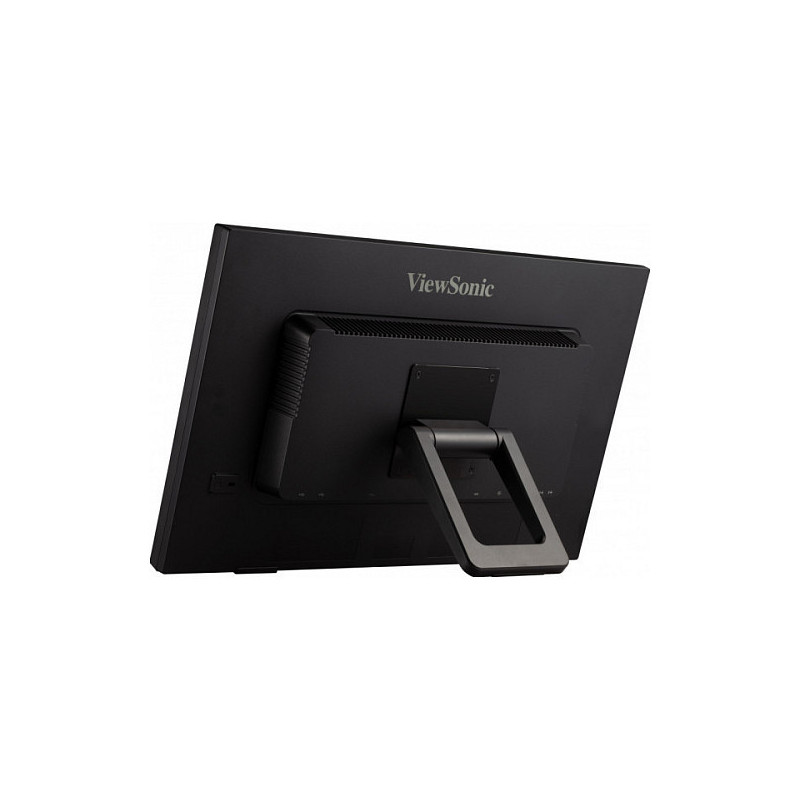

Viewsonic TD2423 computer monitor

Viewsonic TD2423. Display diagonal: 59.9 cm (23.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 7 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black

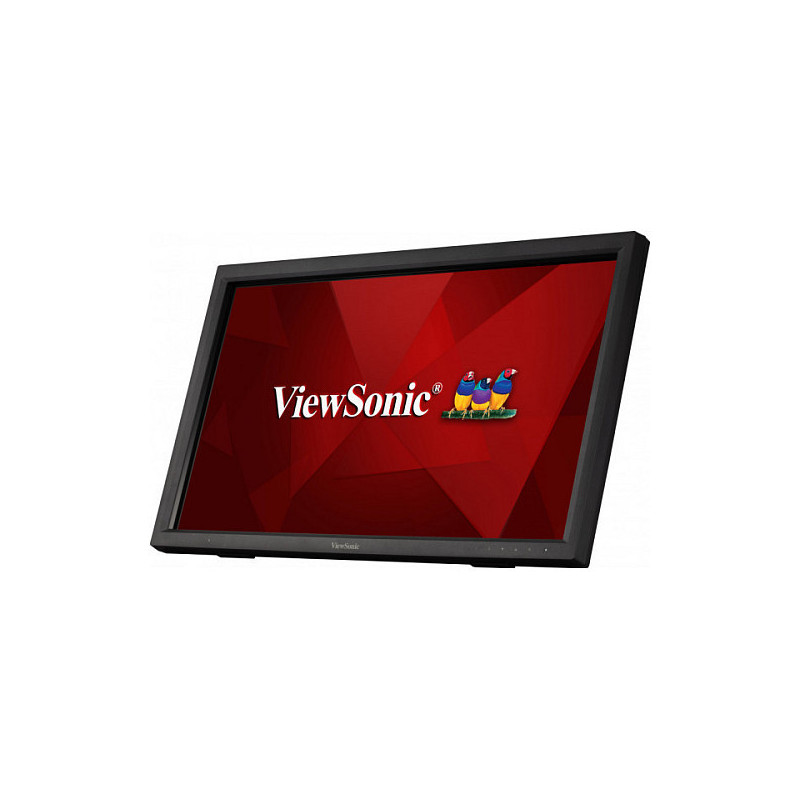

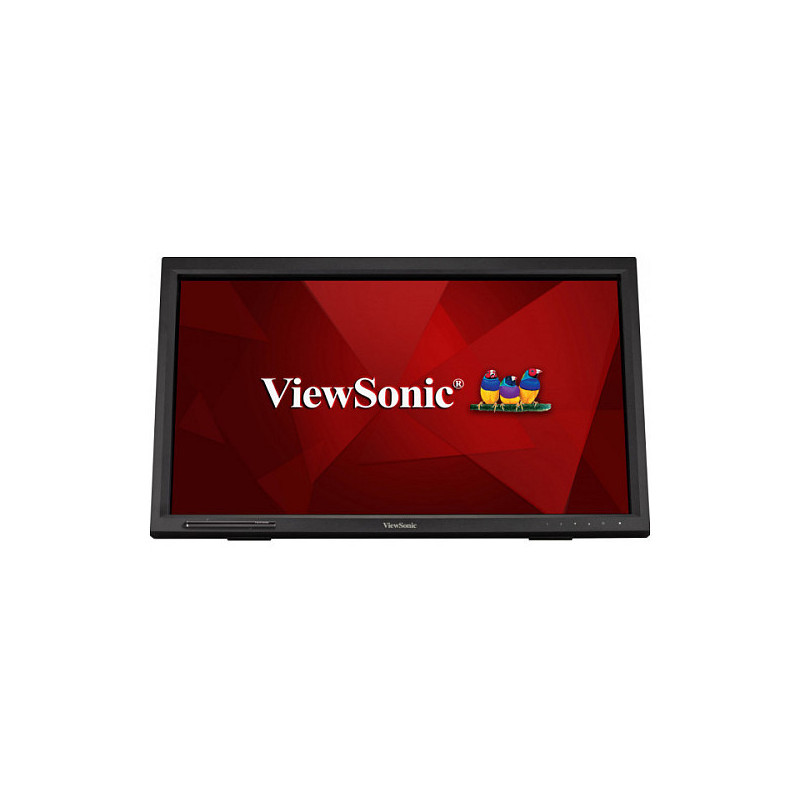

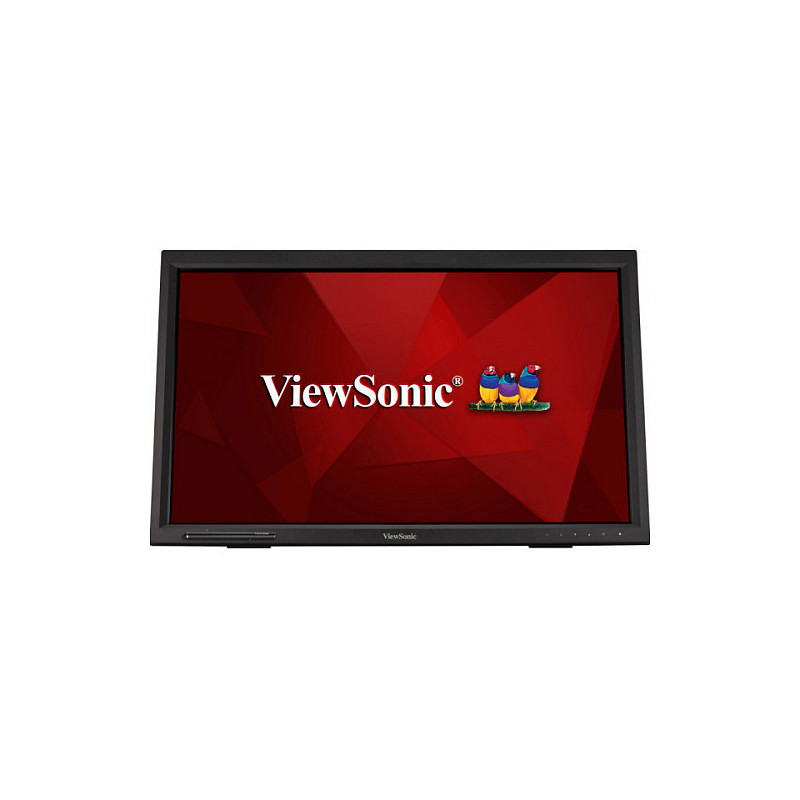

The ViewSonic® TD2423 is a 24" IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.


Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What's more, there is a magnetic pen placeholder on the base.

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it's resistant to surface damage caused by sharp objects.
7H Hardness Screen

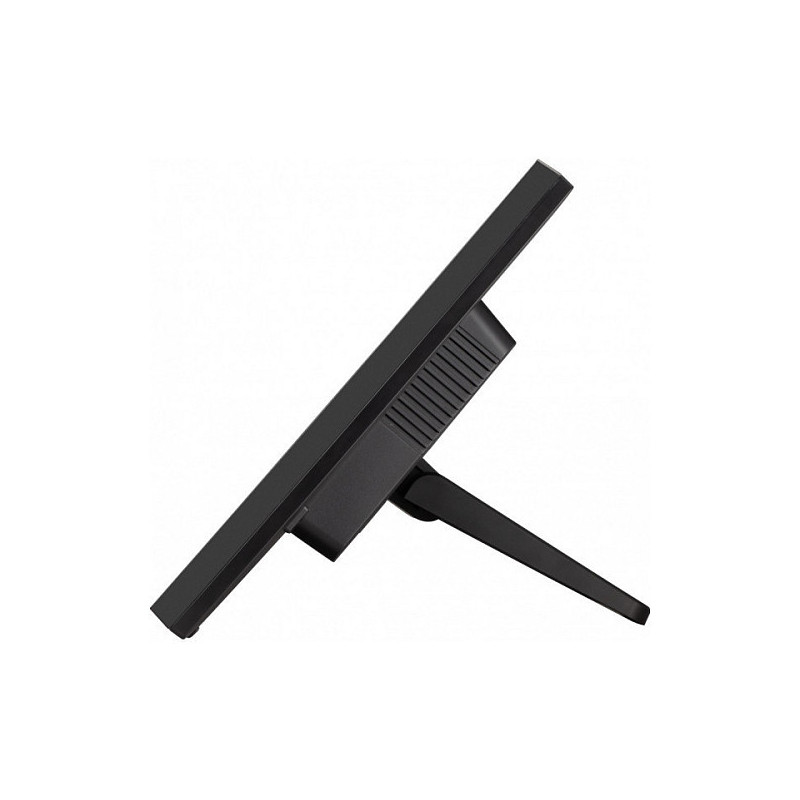

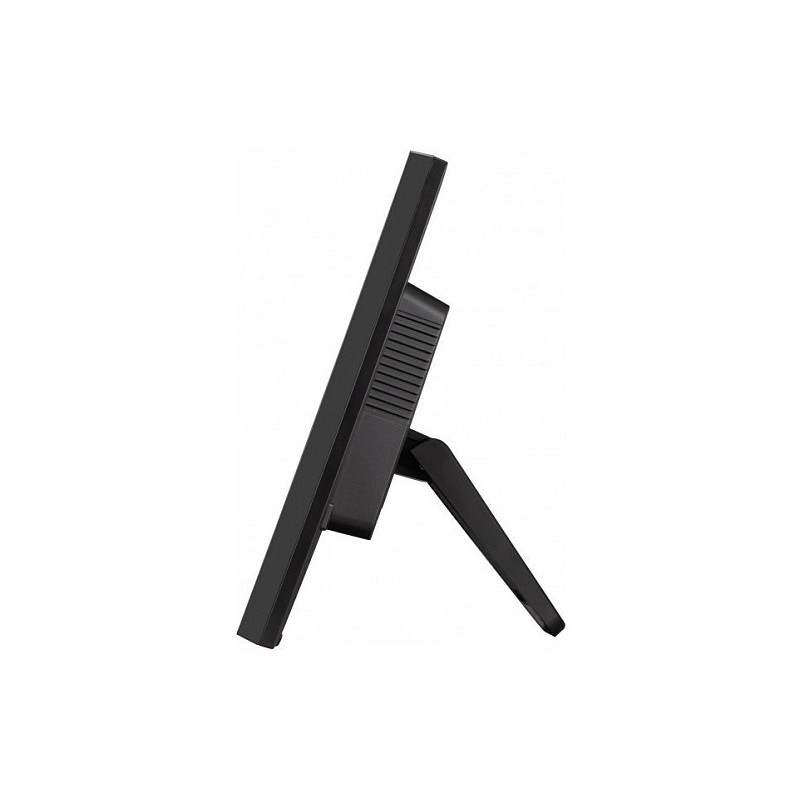

Adjustable Tilt

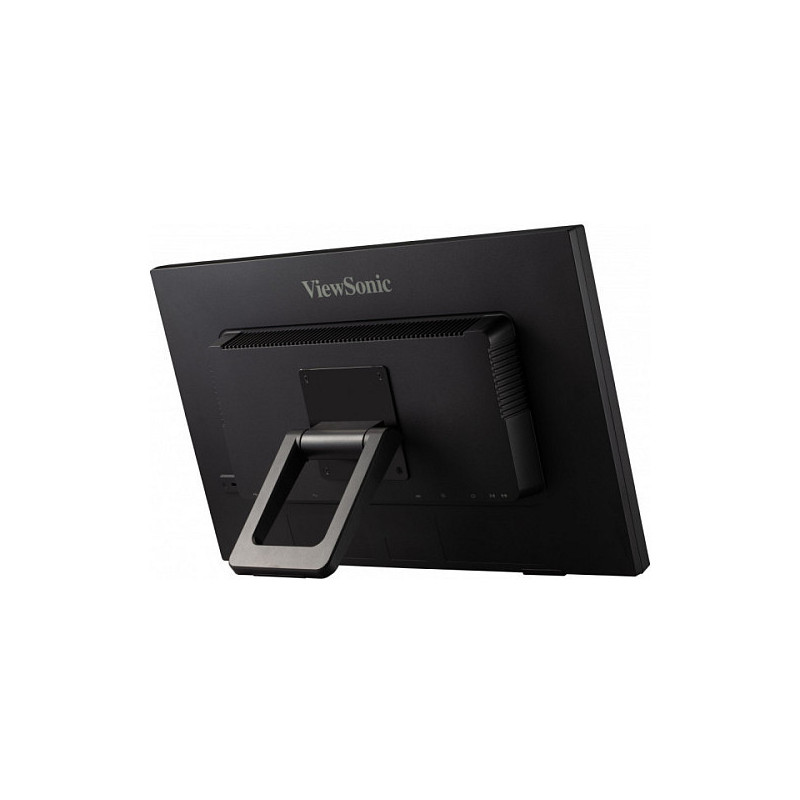

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Clear Images
This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.

Display

Display diagonal: 59.9 cm (23.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Infrared
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness: 250 cd/m²
Response time: 7 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.271 x 0.271 mm
Digital horizontal frequency: 24 - 82 kHz
Digital vertical frequency: 50 - 75 Hz
Display diagonal (metric): 59.94 cm

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)

Design

Product colour: Black
Glass thickness: 1.85 mm

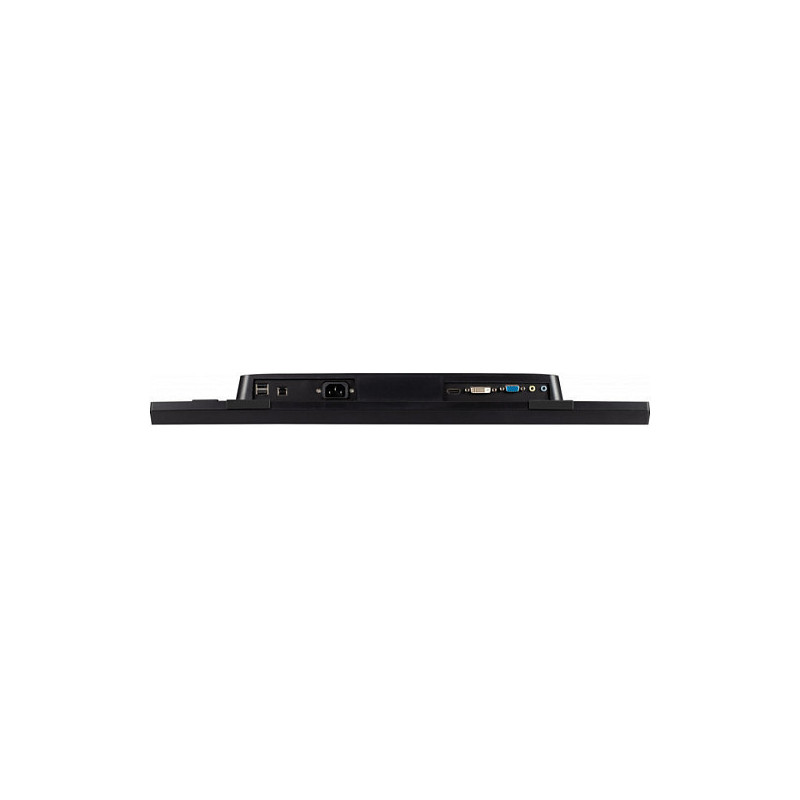

Ports & interfaces

Feature: Built-in USB hub
USB upstream port type: USB Type-B
Number of upstream ports: 1
USB Type-A downstream ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
Audio input: 1
Audio output: 1
Feature: HDCP

Ergonomics

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 22 - 38°

Power

Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 14 kWh
Power consumption (typical): 15.5 W
Power consumption (standby): 0.5 W
Power consumption (max): 16.5 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply type: AC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Weight & dimensions

Width (with stand): 571 mm
Depth (with stand): 101 mm
Height (with stand): 348 mm
Weight (with stand): 5.2 kg
Width (without stand): 571 mm
Depth (without stand): 61 mm
Height (without stand): 348 mm
Weight (without stand): 4.7 kg

Packaging data

Package width: 645 mm
Package depth: 166 mm
Package height: 422 mm
Package weight: 7 kg

Packaging content

Cables included: AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B

Sustainability

Sustainability certificates: EPEAT Silver

Other features

Display viewable area (HxV): 521 x 293 mm
Weight: 5.2 kg
Compliance certificates: CE, REACH, RoHS

Logistics data

Products per master (outer) case: 1 pc(s)
Pallet gross width: 120 cm
Pallet gross length: 100 cm
Pallet gross height: 2.24 m
Harmonized System (HS) code: 8528521000
