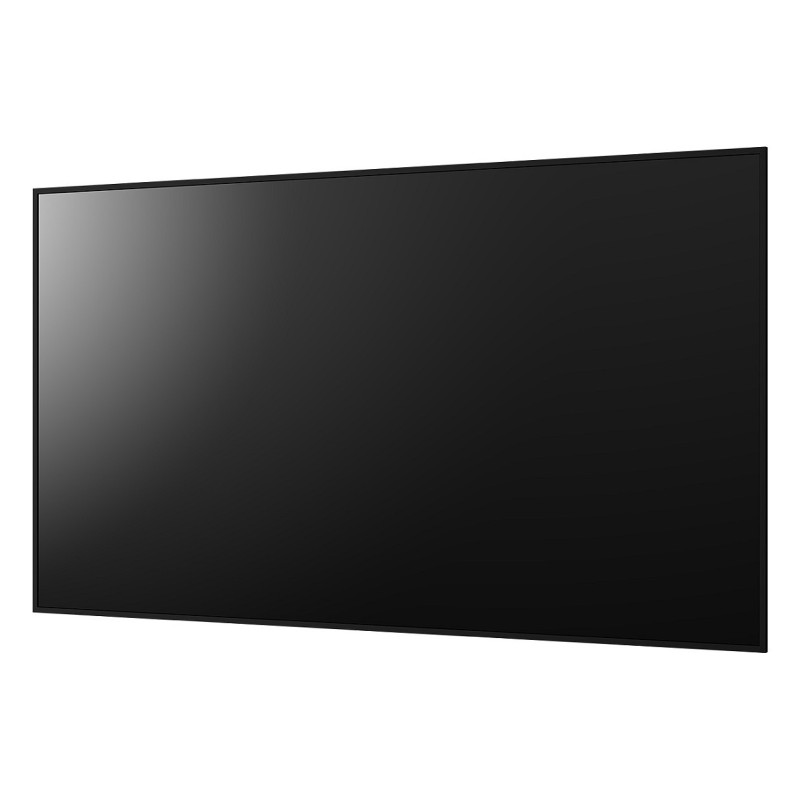

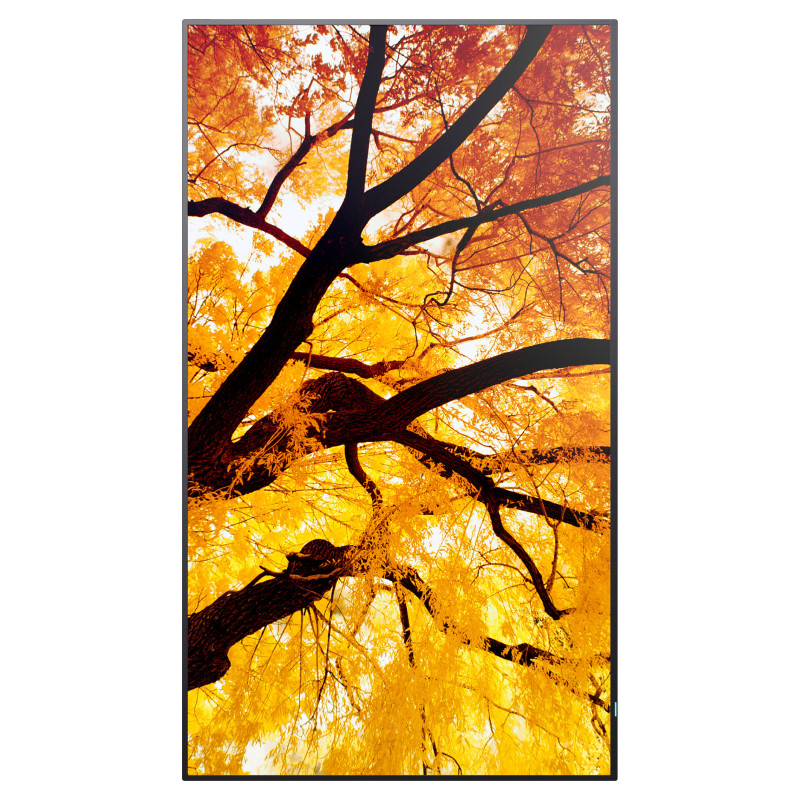

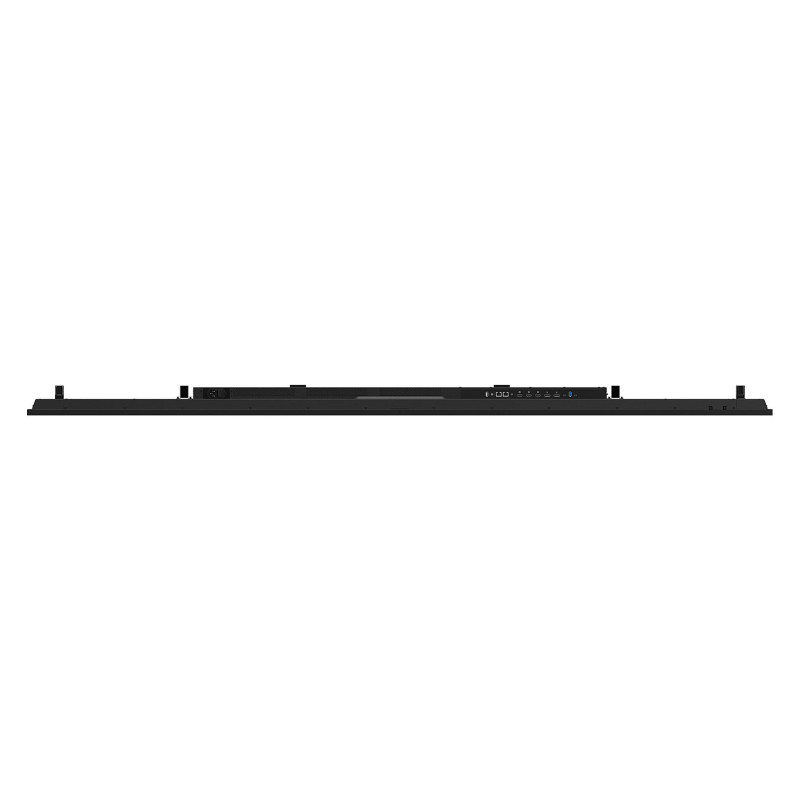

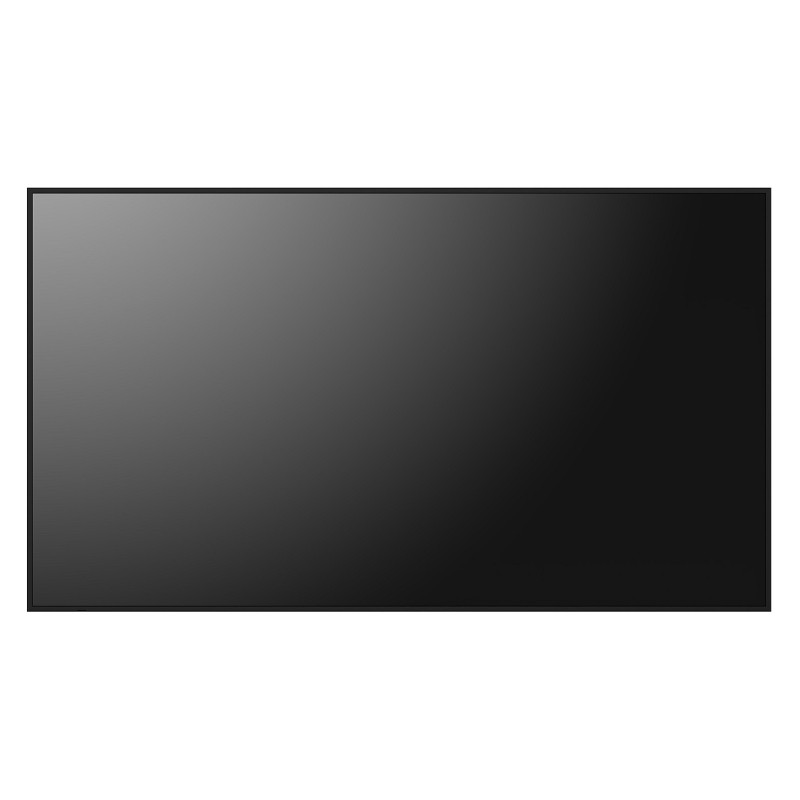

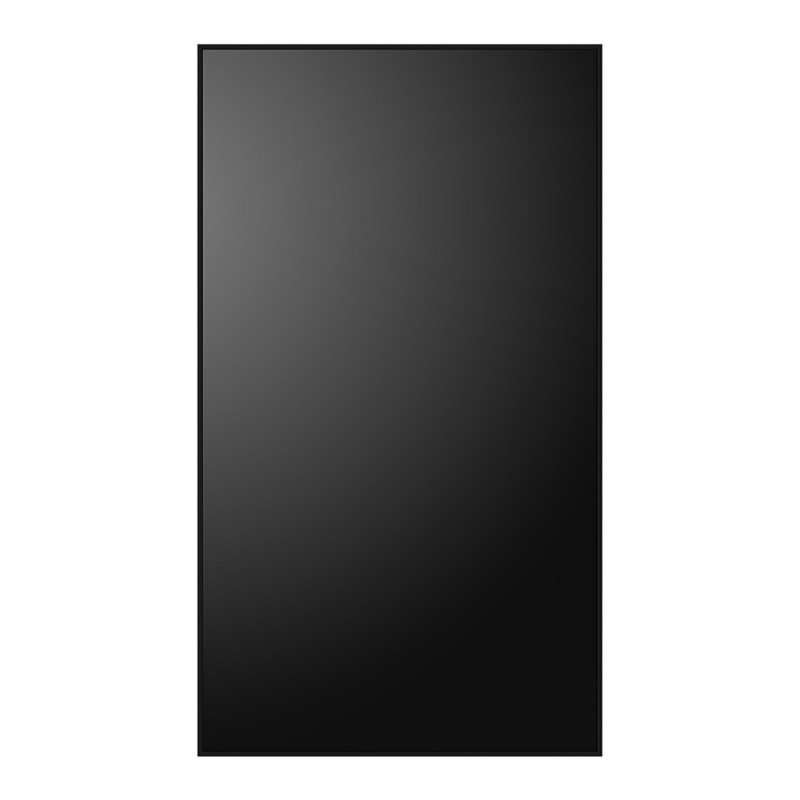

Sharp MultiSync PN-M982

Sharp MultiSync PN-M982. Product design: Interactive flat panel. Display diagonal: 2.48 m (97.5"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 550 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC's legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.

Display

Panel type: IPS
LED backlight: Yes
LED backlighting type: Direct-LED
Display diagonal: 2.48 m (97.5")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 550 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Display diagonal (metric): 247.7 cm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 23 - 76 Hz
Native refresh rate: 60 Hz
Haze rate: 25%

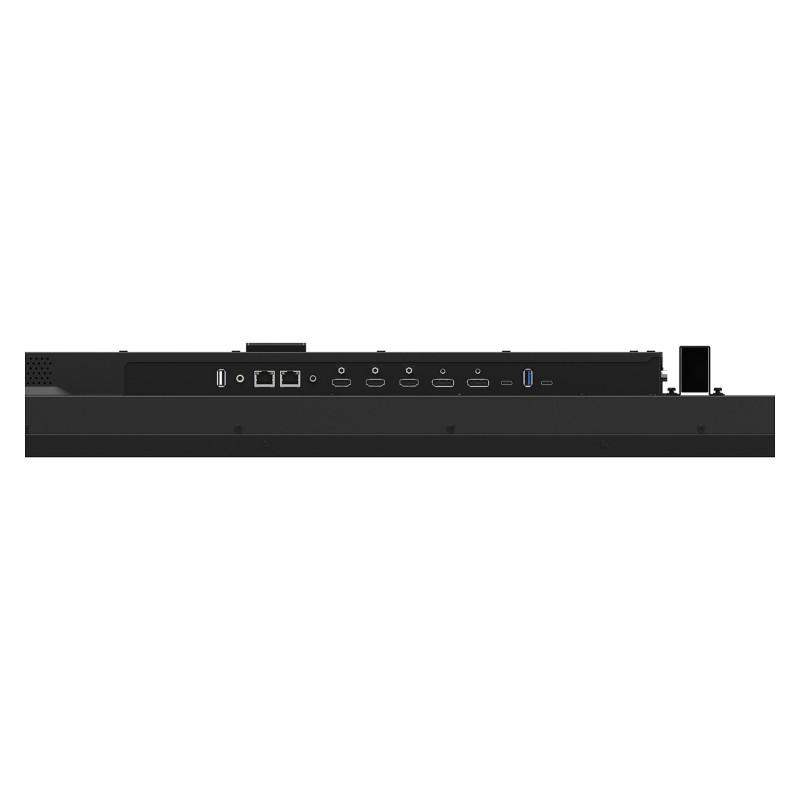

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 2
HDMI output ports quantity: 1
DVI port: No
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
DisplayPort version: 1.4
USB port: Yes
USB connector type: USB Type-C
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 60 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 1
Audio Return Channel (ARC): Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Interactive flat panel
Placement supported: Indoor

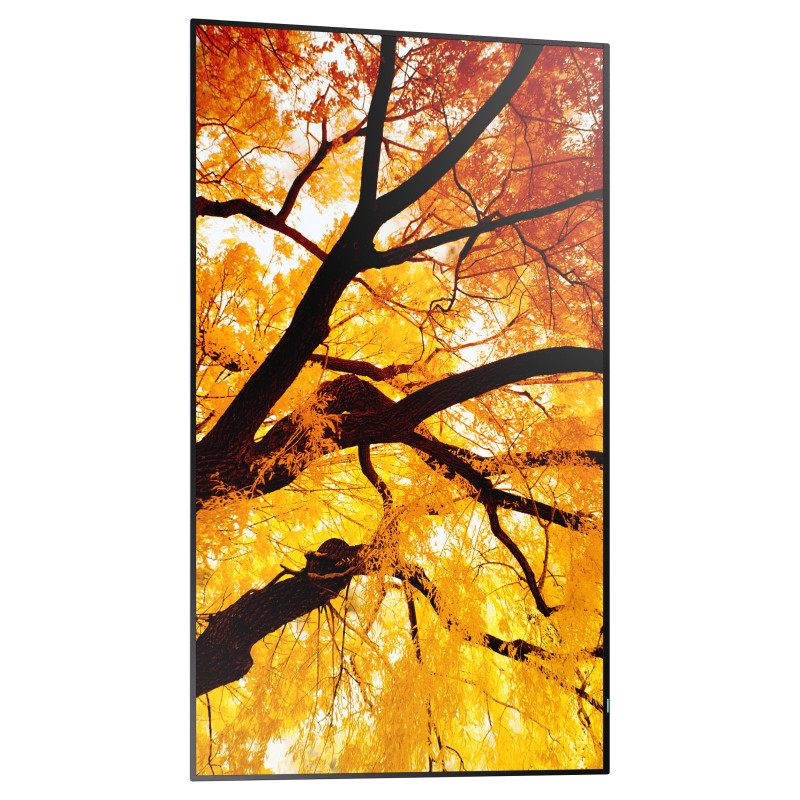

Orientation: Horizontal/Vertical
Product colour: Black

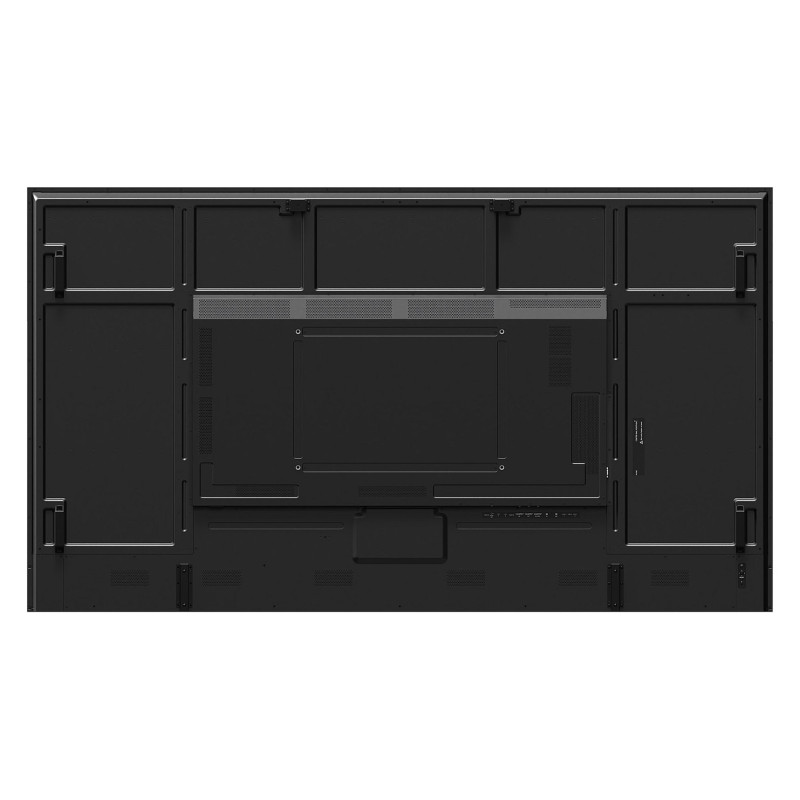

VESA mounting: Yes
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 1.59 cm
Bezel width (side): 1.59 cm
Bezel width (top): 1.59 cm

Performance

Purpose: Universal
Operating hours (hours/days): 24/7

Power

Power consumption (typical): 210 W
Power consumption (standby): 0.5 W

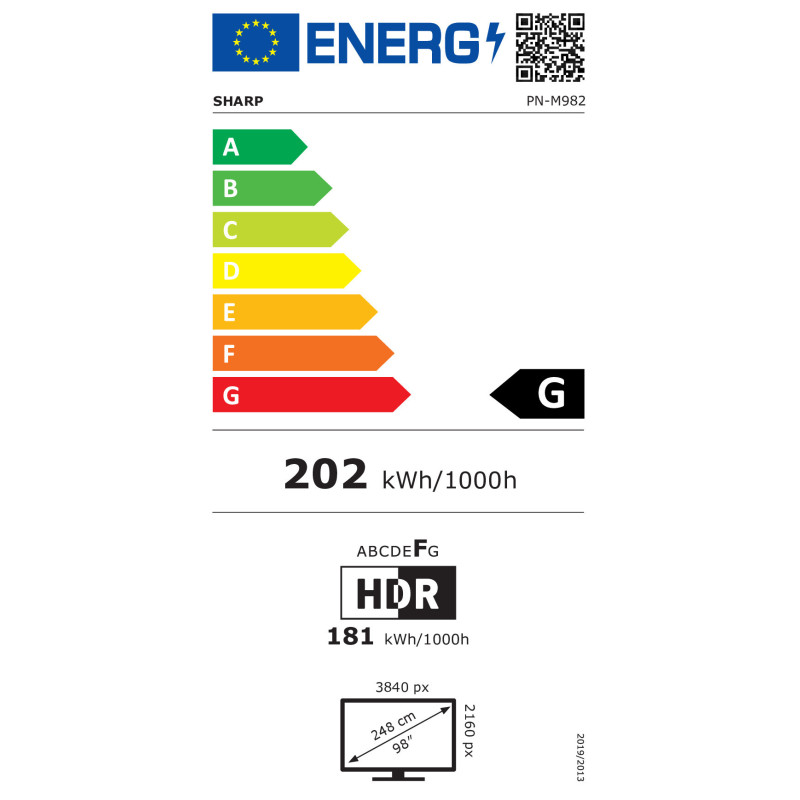

Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 202 kWh
Energy consumption (HDR) per 1000 hours: 181 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Weight dimensions

Display width: 2194.7 mm
Display depth: 84.3 mm
Display height: 1250.2 mm
Display weight: 68 kg

Packaging data

Package width: 1830 mm
Package depth: 1070 mm
Package height: 225 mm
Package weight: 51 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 80%

Sensors

Ambient light sensor: Yes

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100 Mbit/s
Wi-Fi: No
