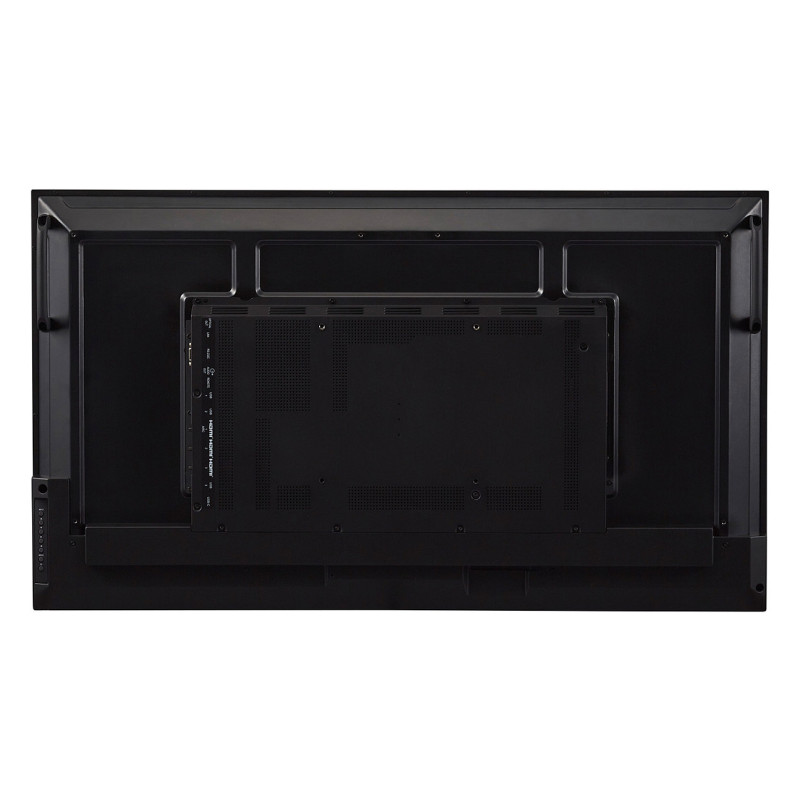

Sharp ME502

Sharp ME502. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 18/7. Operating system installed: Android. Product colour: Black
Class-leading performance and value
For best-in-class visual performance and value, the second generation ME series commands feature-rich professional capabilities for meeting rooms and signage applications. The multi-functional Sharp MultiSync® displays with high haze panel, native USB-C connectivity, and quick input detection appeals to Enterprise users for Bring Your Own Device simplicity, supporting hybrid workflows and spontaneous meetings.
An integrated System on Chip (SoC) with Android 13 CTS-compliant Operating System brings the most up to date features and security, powering signage applications and commanding high compatibility with CMS partners, making the multi-purpose Sharp MultiSync® ME series suitable for cost sensitive retail signage applications. Experience seamless access to Android apps and install apps directly on the display using the integrated browser, without the hassle and expense of an additional external media player.
Trusted long-life reliability is assured through Japanese engineering standards and high-quality components. The Sharp MultiSync® ME series is a class-leading solution for today's workplace challenges, bringing value and professional performance, without compromise.

Display

Panel type: VA
LED backlight: Yes
Display diagonal: 127 cm (50")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 6 ms
Contrast ratio (typical): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Display diagonal (metric): 125.7 cm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 23 - 76 Hz
Native refresh rate: 60 Hz
Haze rate: 25%

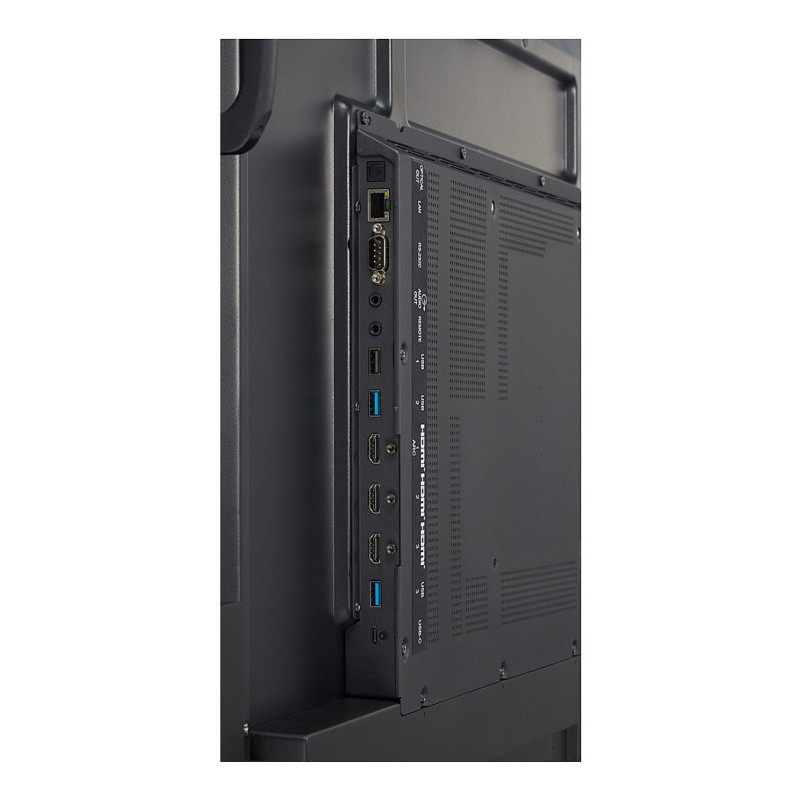

Ports interfaces

HDMI ports quantity: 6
HDMI input ports quantity: 6
DVI port: No
USB port: Yes
USB ports quantity: 5
USB 2.0 Type-B ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
RS-232 interface: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel

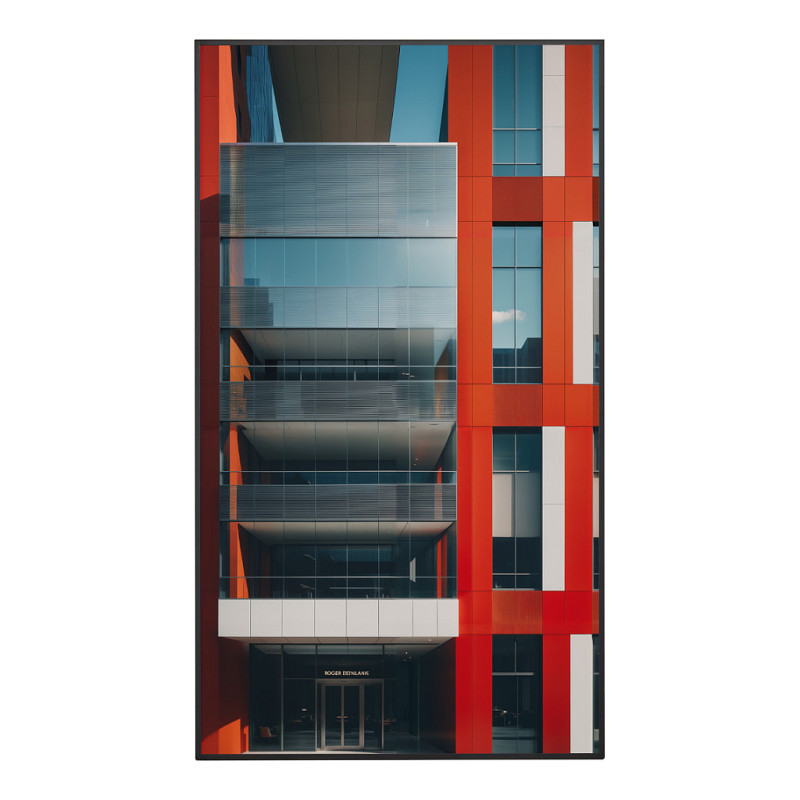

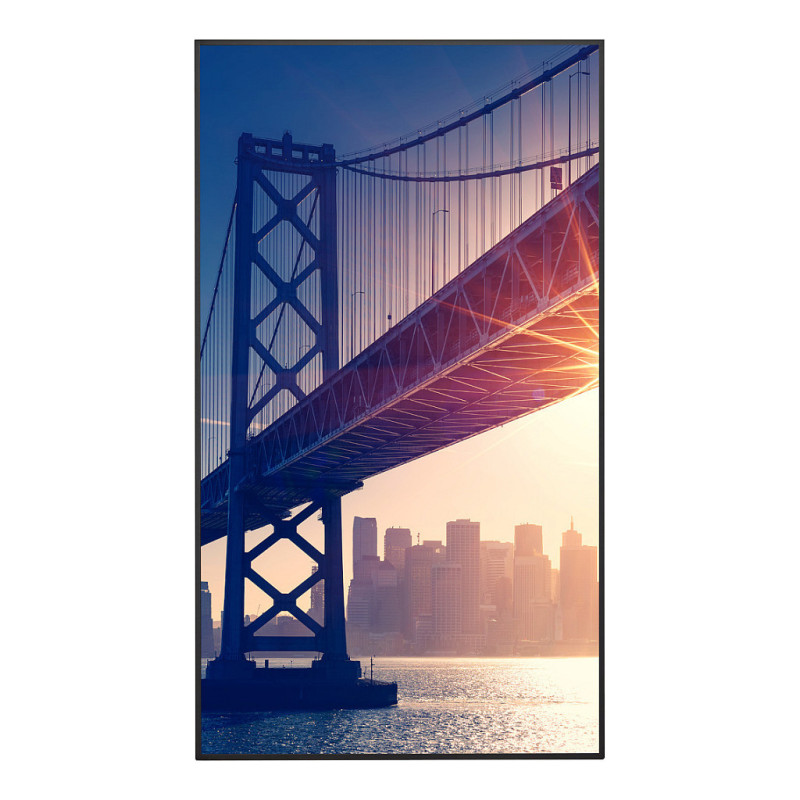

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 400 x 400 mm

Performance

Purpose: Universal
Operating hours (hours/days): 18/7
HDCP: Yes

Power

Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 96 kWh
Energy consumption (HDR) per 1000 hours: 98 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: Android 13
Video formats supported: H.264, HEVC/H.265, MP4, MPEG1, MPEG2

Weight dimensions

Display width: 1118.6 mm
Display depth: 62 mm
Display height: 639.2 mm
Display weight: 11.7 kg

Packaging data

Package width: 1202 mm
Package depth: 156 mm
Package height: 719 mm
Package weight: 17.5 kg

Packaging content

Batteries included: Yes
Cables included: HDMI, Power

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 100 Mbit/s
