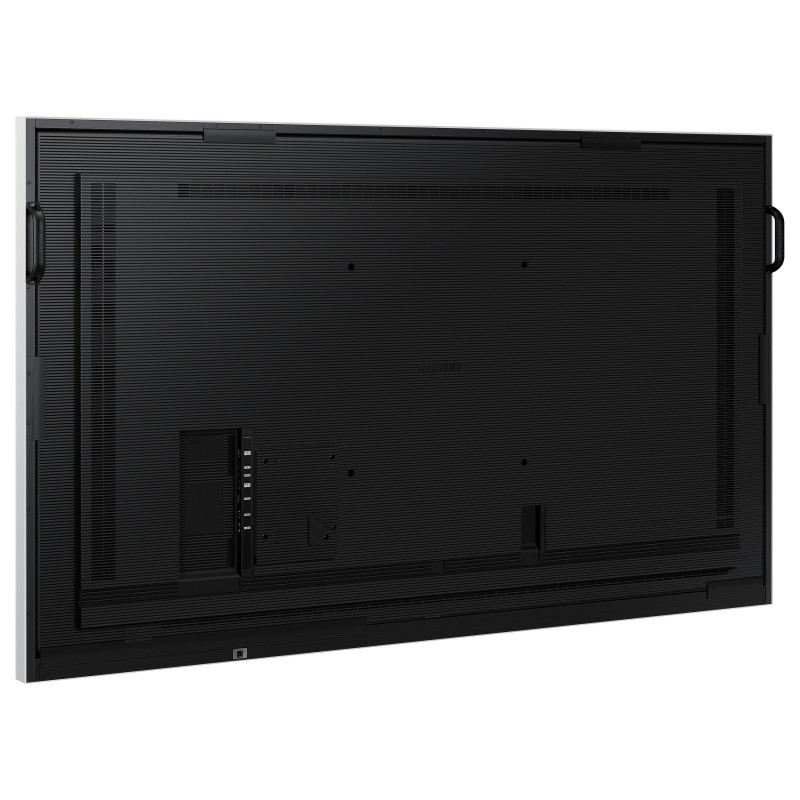

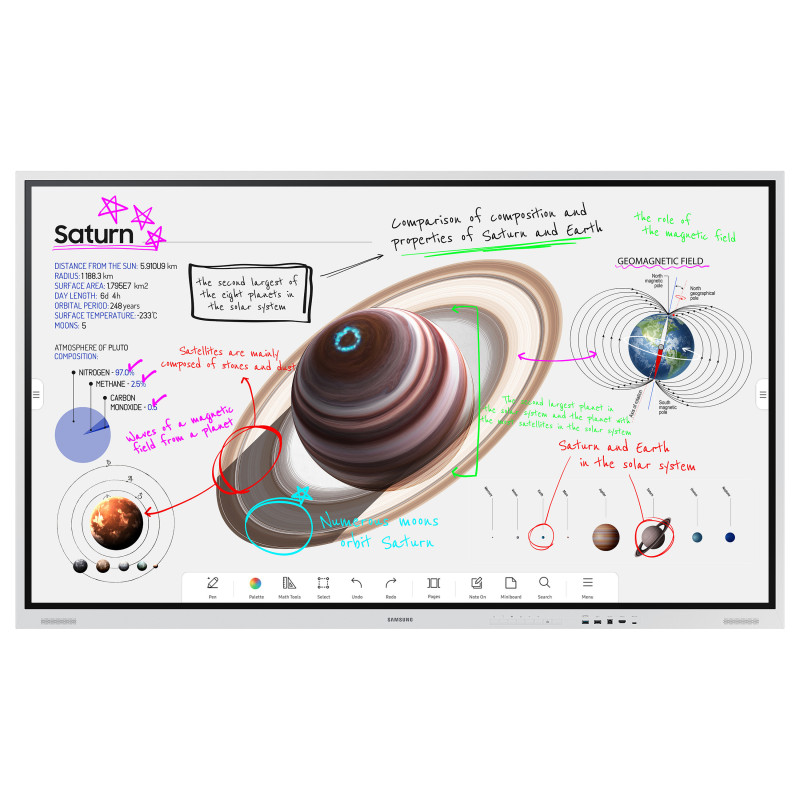

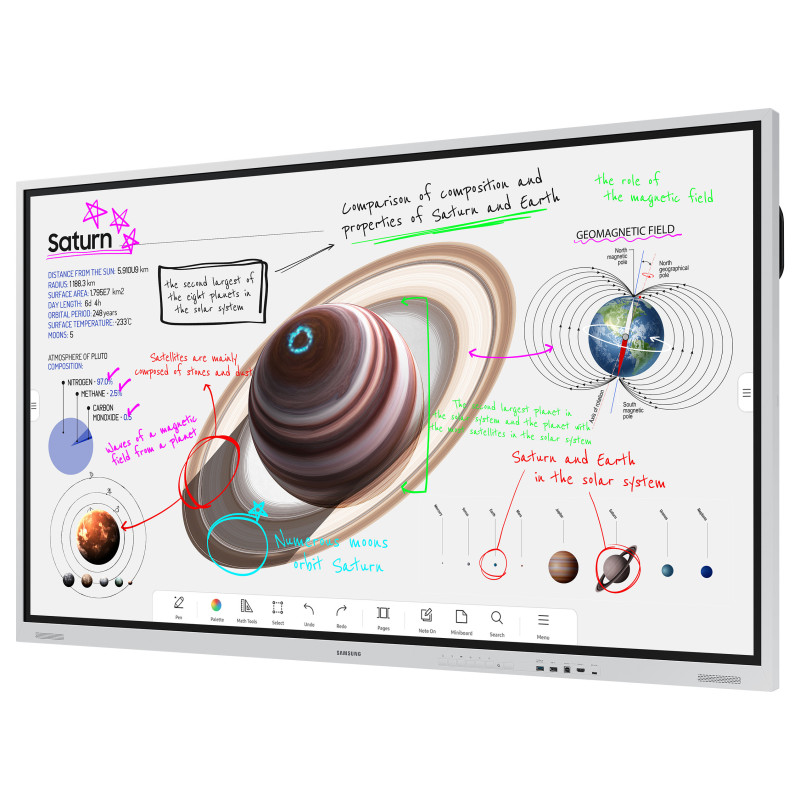

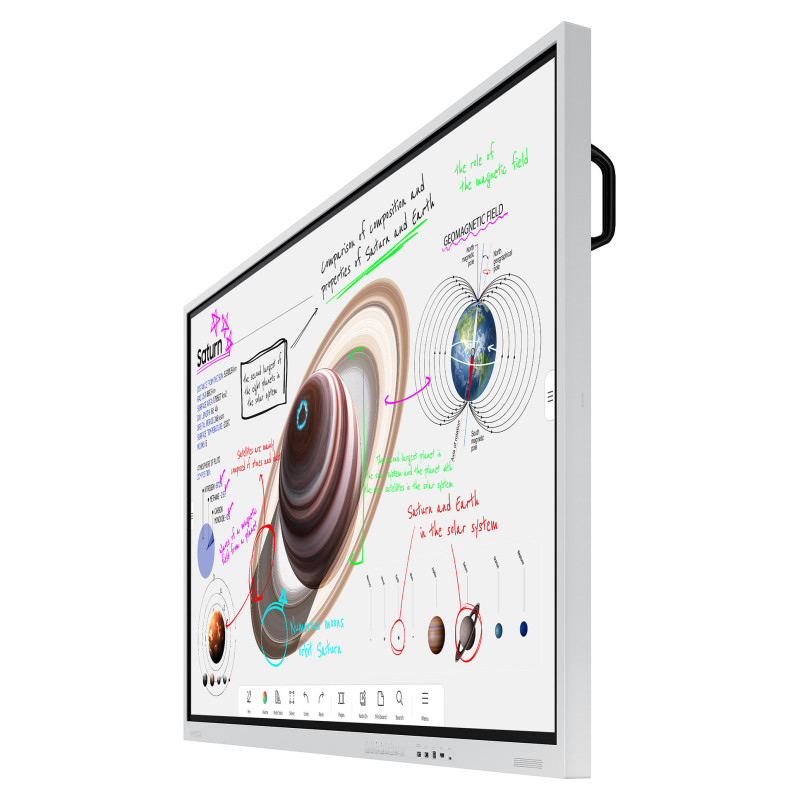

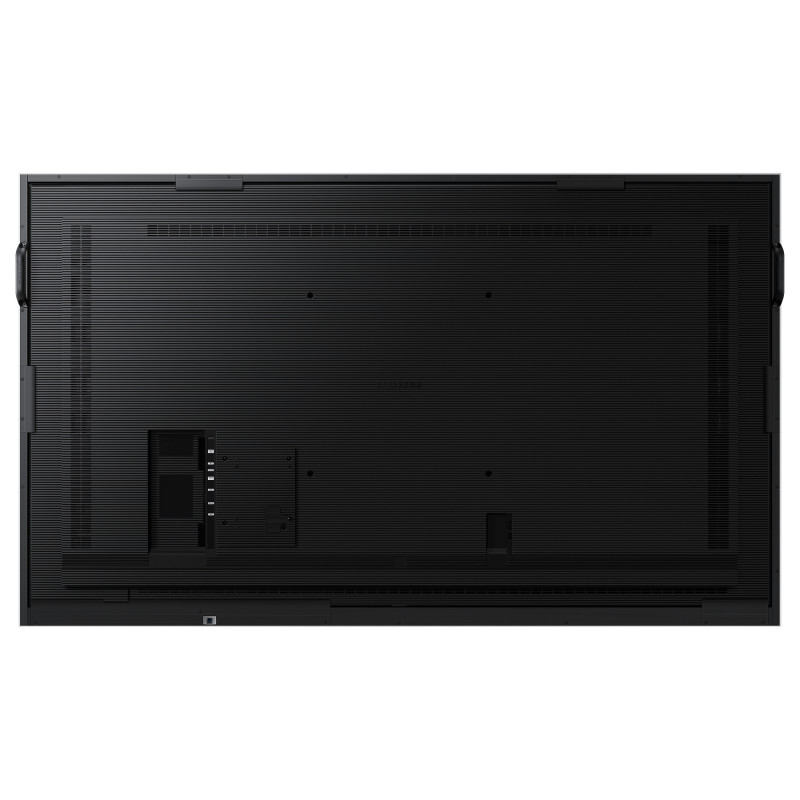

Samsung WM75B interactive whiteboard

Samsung WM75B. Display diagonal: 190.5 cm (75"), Display brightness: 350 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Tizen, User memory: 32 GB. Product colour: Grey, White, Panel mounting interface: 400 x 400 mm, Frame material: Aluminium. Operating hours (hours/days): 12/7. Power consumption (typical): 187 W, Power consumption (standby): 0.5 W, AC input voltage: 100-240 V

Display

Display diagonal: 190.5 cm (75")
Display brightness: 350 cd/m²
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Panel type: VA
Contrast ratio (typical): 4000:1
Response time: 8 ms
Display brightness (min): 220 cd/m²
Touchscreen: Yes
Touch technology: Multi-touch
Touchscreen type: Infrared
Number of simultaneous touchpoints: 20
Touch system response time: 8 ms
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.2451 x 0.2451 mm
Colour gamut: 72%
Horizontal scan range: 30 - 81 kHz
Vertical scan range: 48 - 75 Hz
Haze rate: 2%

Computer system

Operating system installed: Tizen
Operating system version: 6.5
Built-in processor: Yes
User memory: 32 GB

Projector

Built-in projector: No

Network

Wi-Fi: Yes
Bluetooth: Yes
Ethernet LAN: Yes

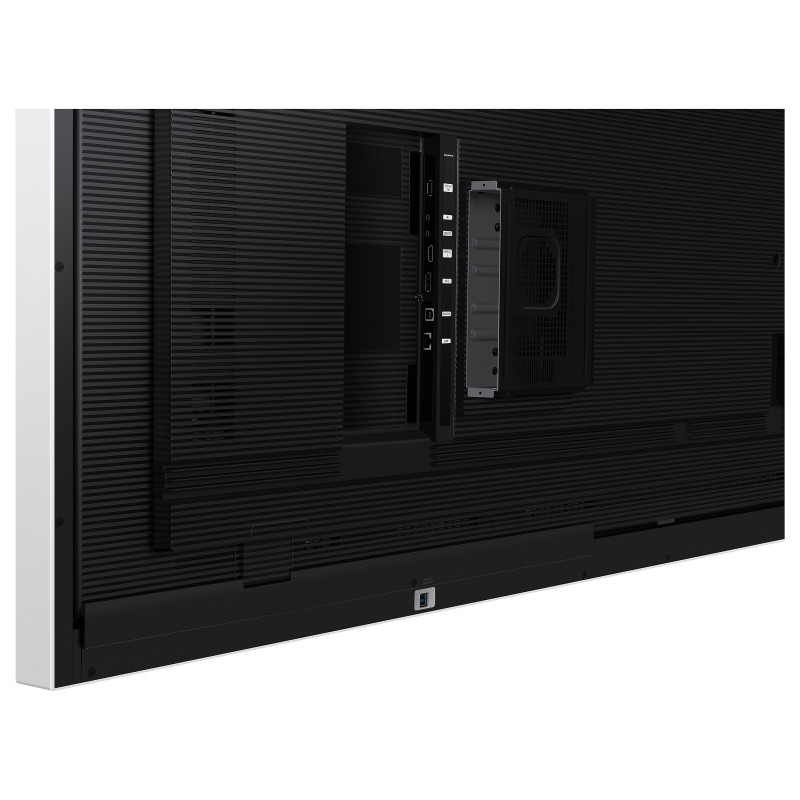

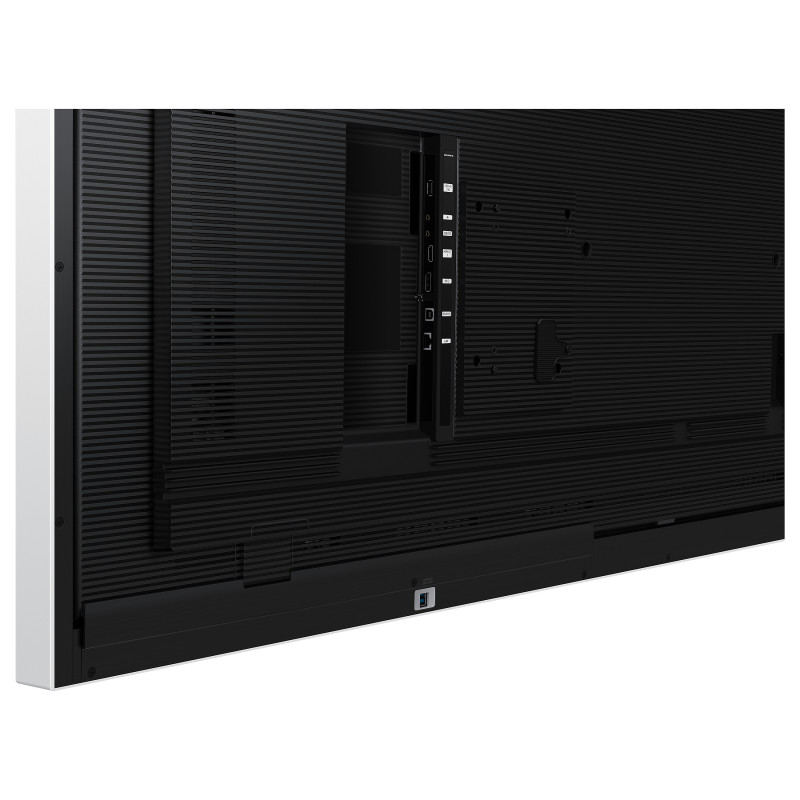

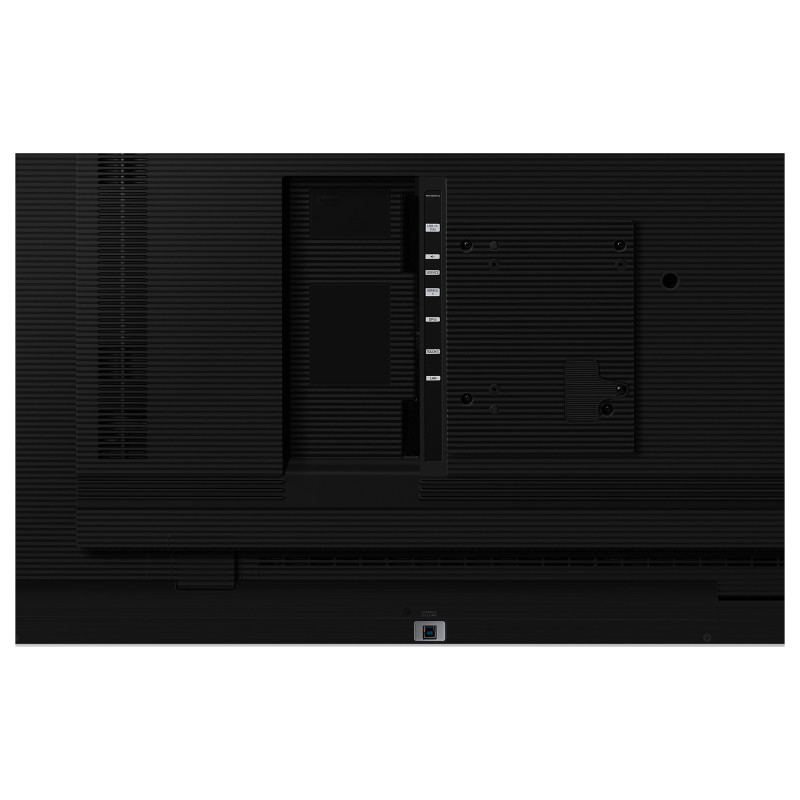

Ports interfaces

HDCP: Yes
HDCP version: 2.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 2.0 ports quantity: 2
HDMI ports quantity: 2
USB Type-C ports quantity: 1
HDMI version: 2.0
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
Audio output: 1
RS-232 ports: 1

Ergonomics

Product colour: Grey, White
VESA mounting: Yes
Panel mounting interface: 400 x 400 mm
Wall mountable: Yes
Frame material: Aluminium
Certification: Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32 :2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST( Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005

Performance

Operating hours (hours/days): 12/7

Power

Power consumption (typical): 187 W
Power consumption (standby): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

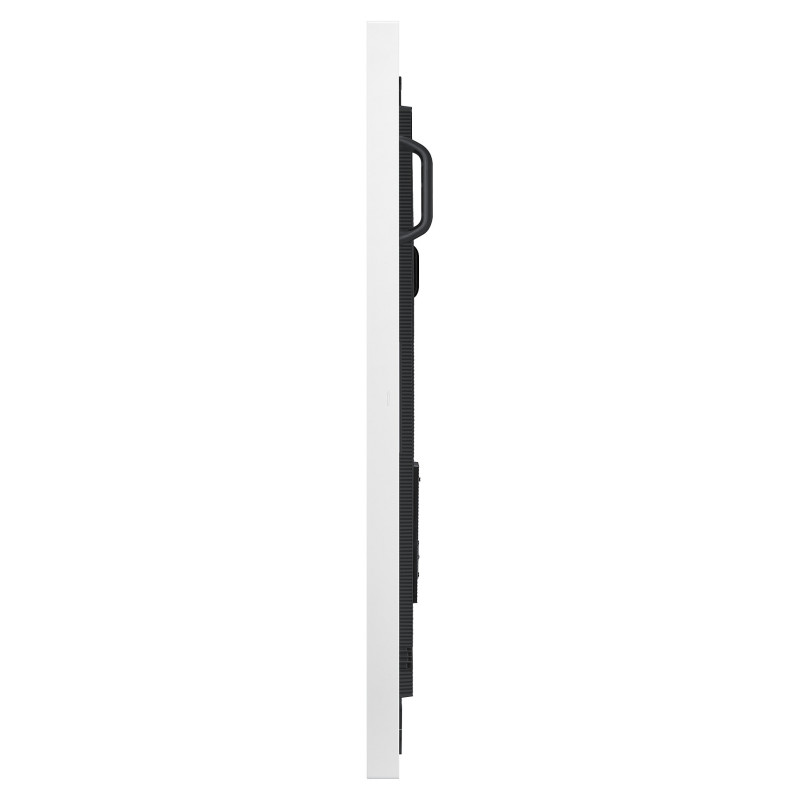

Weight dimensions

Width: 1724 mm
Depth: 89 mm
Height: 1026.3 mm
Weight: 59.3 kg
Bezel width (L/T, R/B): 20.4mm(T/LR), 44.7mm(B)

Packaging data

Package width: 1095 mm
Package depth: 287 mm
Package height: 1189 mm
Package weight: 72.2 kg
