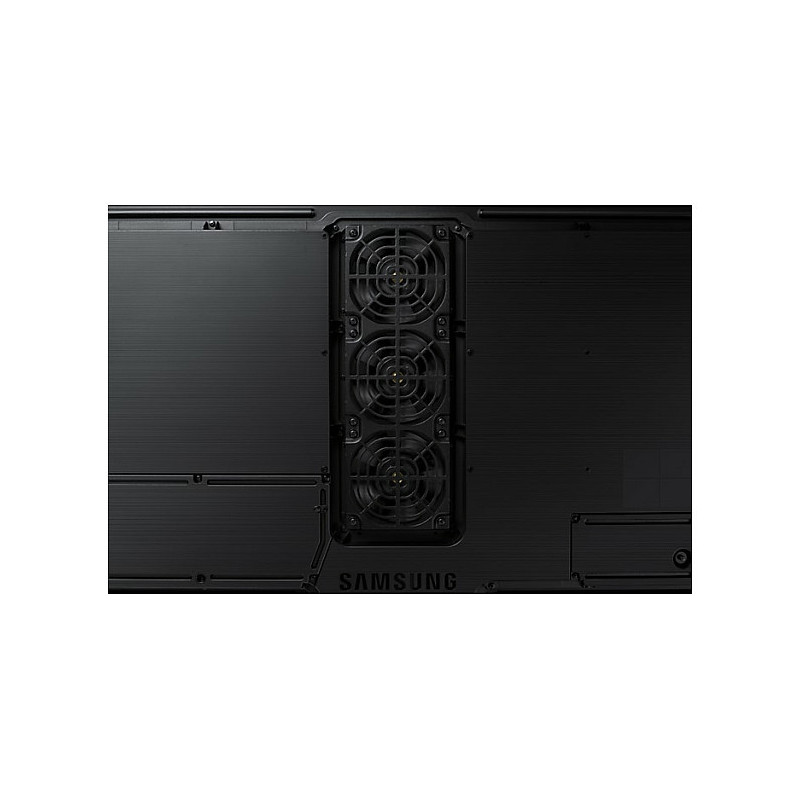

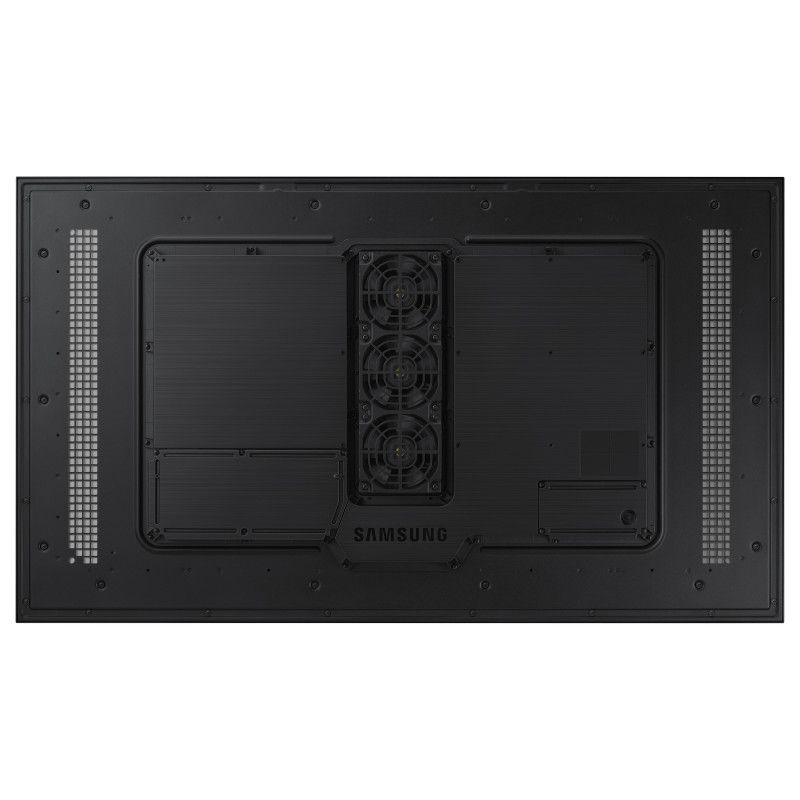

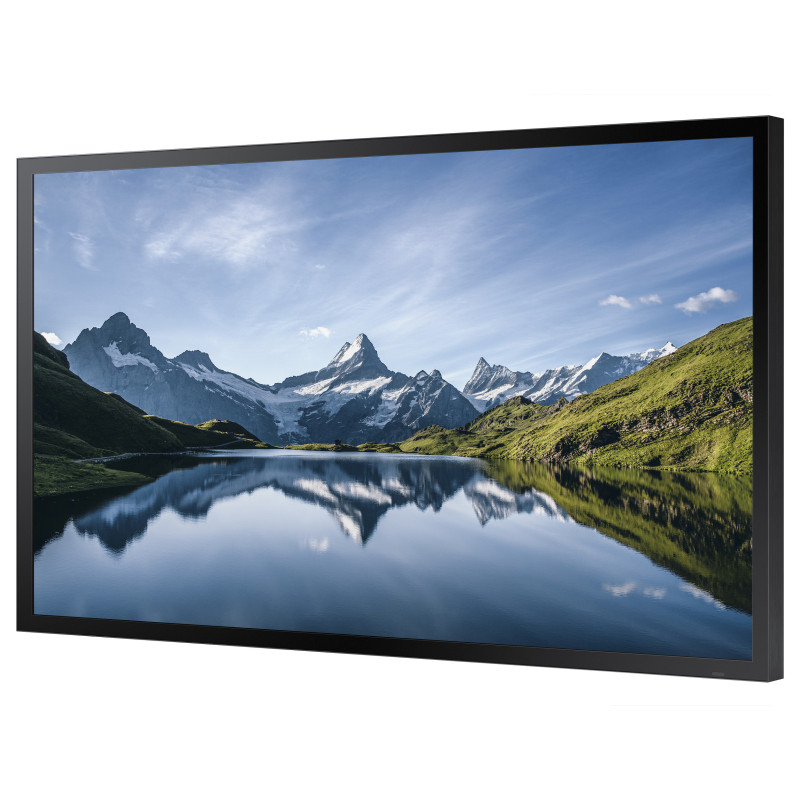

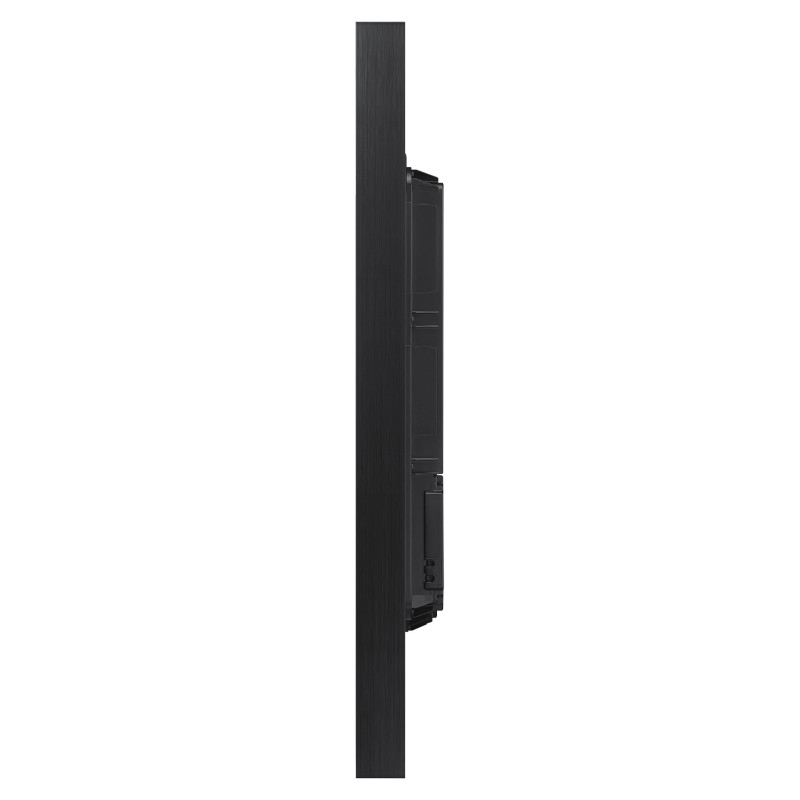

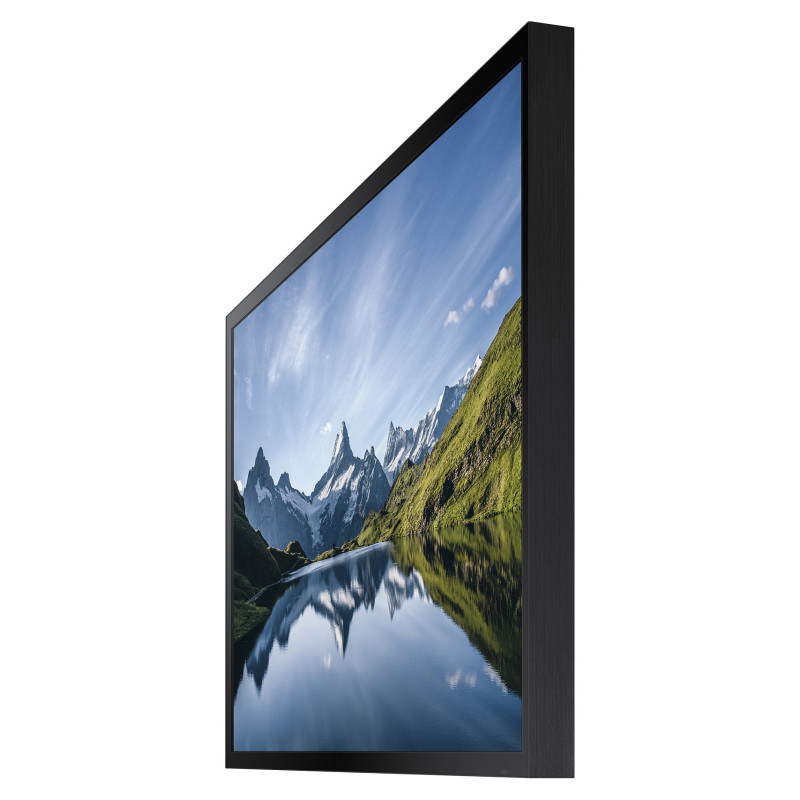

Samsung OH46B-S

Samsung OH46B-S. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: Tizen 6.5. Product colour: Black

Display

Panel type: VA
Display diagonal: 116.8 cm (46")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 3500 cd/m²
HD type: Full HD
Response time: 6 ms
Contrast ratio (typical): 6000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.53 x 0.53 mm
Horizontal scan range: 15 - 135 kHz
Vertical scan range: 24 - 75 Hz
Glass thickness: 5 mm
Glass film: AG/AR Film
RGB colour space: NTSC
Colour gamut: 72%

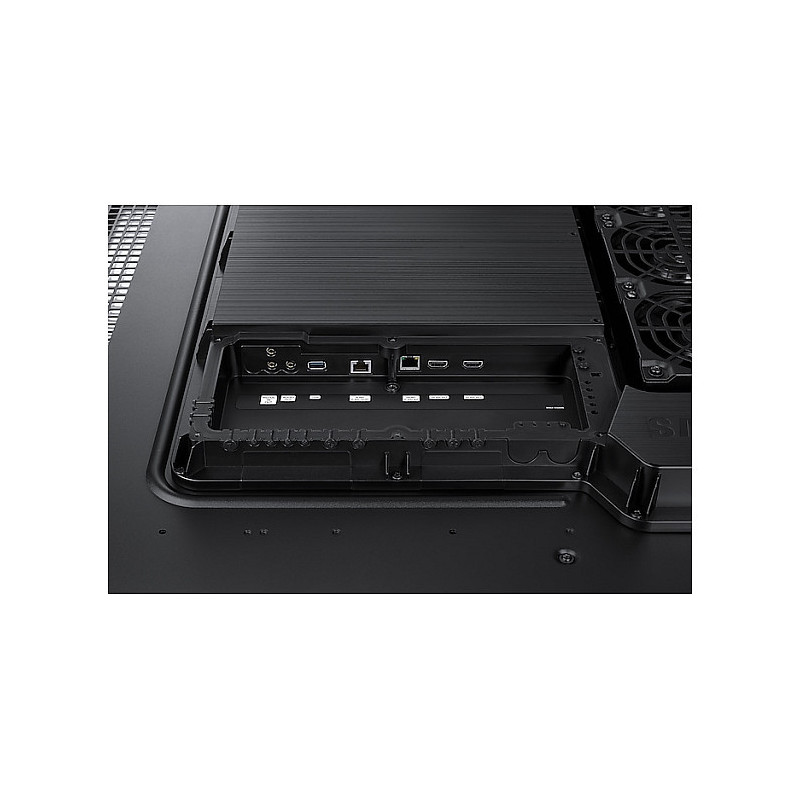

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Audio (L/R) out: 1
Feature: RS-232 interface

Design

Product design: Digital signage flat panel
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 995 x 500 mm
Bezel width (bottom): 2.49 cm
Bezel width (side): 2.49 cm
Bezel width (top): 2.49 cm
Bezel colour: Black

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 430 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 6.5

Weight & dimensions

Display width: 1069 mm
Display depth: 85 mm
Display height: 623.6 mm
Display weight: 36 kg

Packaging data

Package width: 1156 mm
Package depth: 200 mm
Package height: 713 mm
Package weight: 40.5 kg

Operational conditions

Operating temperature (T-T): -30 - 50 °C
Operating relative humidity (H-H): 10 - 80%

Certificates

Certification: Class A60950-1, 62368-1

Network

Feature: Ethernet LAN

Other features

Flash memory: 8000 MB
Feature: Glass protection
