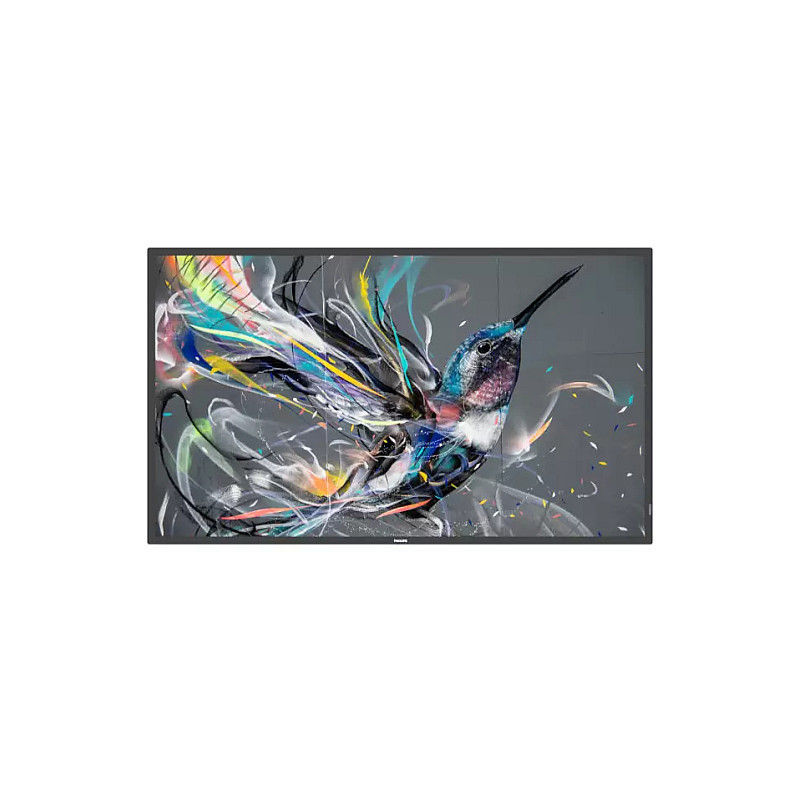

Philips Signage Solutions 75BDL3511Q / 00 Signage Display

Philips Signage Solutions 75BDL3511Q/00. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Product colour: Black

Display

LED backlighting type: Direct-lit LED
Display diagonal: 190.5 cm (75")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4296 x 0.4296 mm
Display diagonal (metric): 189.3 cm
Native refresh rate: 60 Hz
Haze rate: 1%

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
Feature: DVI port
DVI-I ports quantity: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C
Feature: OPS module slot

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 600 x 400 mm

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 12
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 180 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 181 kWh
AC input voltage: 100/240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Video formats supported: H.264, MPEG, WMV3
Audio formats supported: AAC, AAC HE, WMA
Image formats supported: BMP, JPEG, PNG

Weight & dimensions

Display width: 1683.5 mm
Display depth: 69.5 mm
Display height: 961.7 mm
Display weight: 37.3 kg

Packaging content

Feature: Batteries included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC, Class ACBBSMIVCCICUETLEMFPSB

Network

Feature: Ethernet LAN

Features

Feature: Wall mountable

Other features

Maximum refresh rate: 60 Hz
