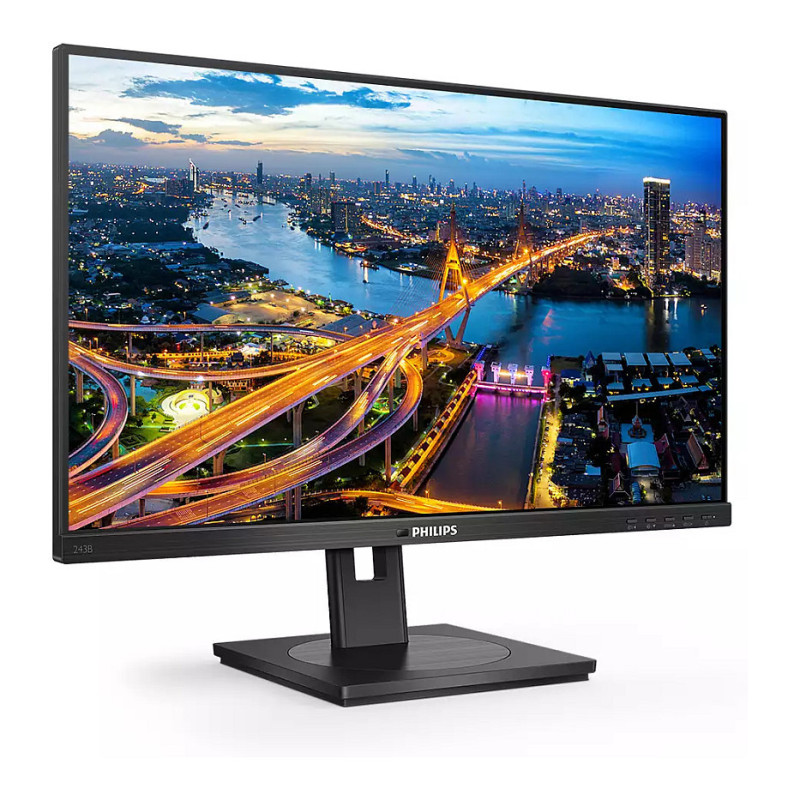

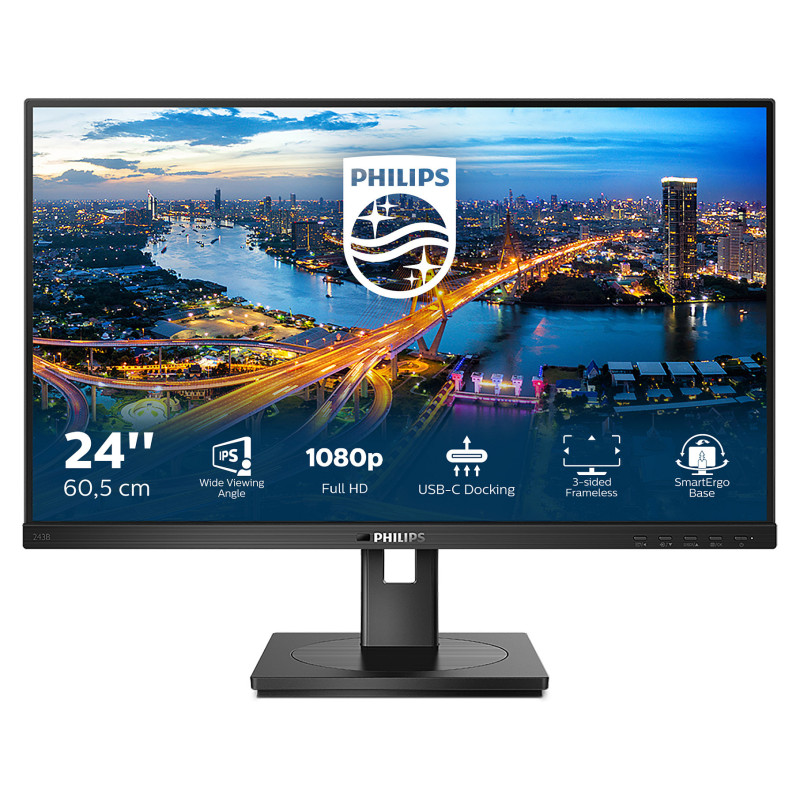

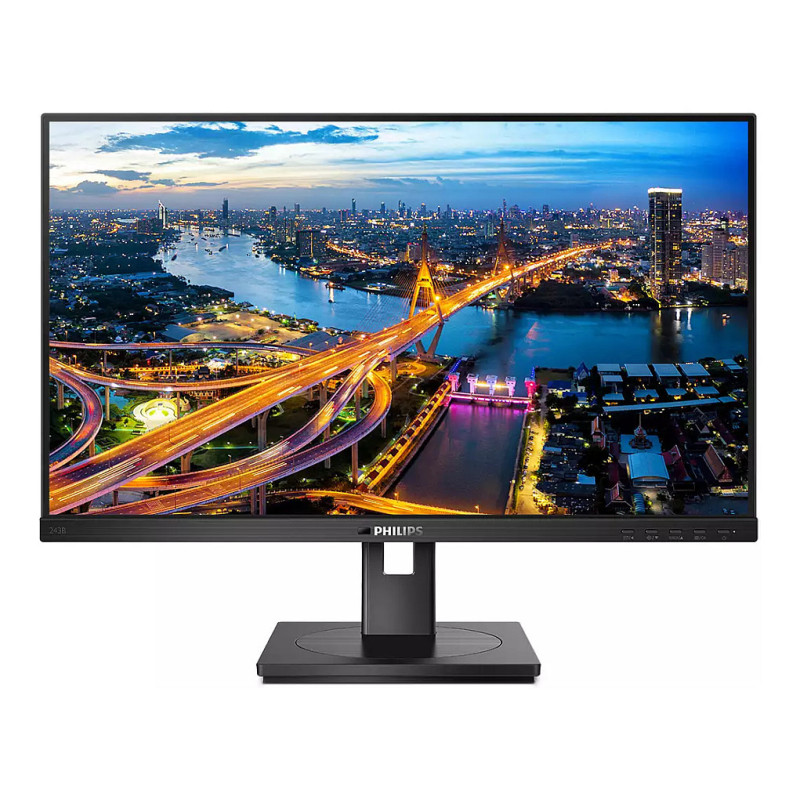

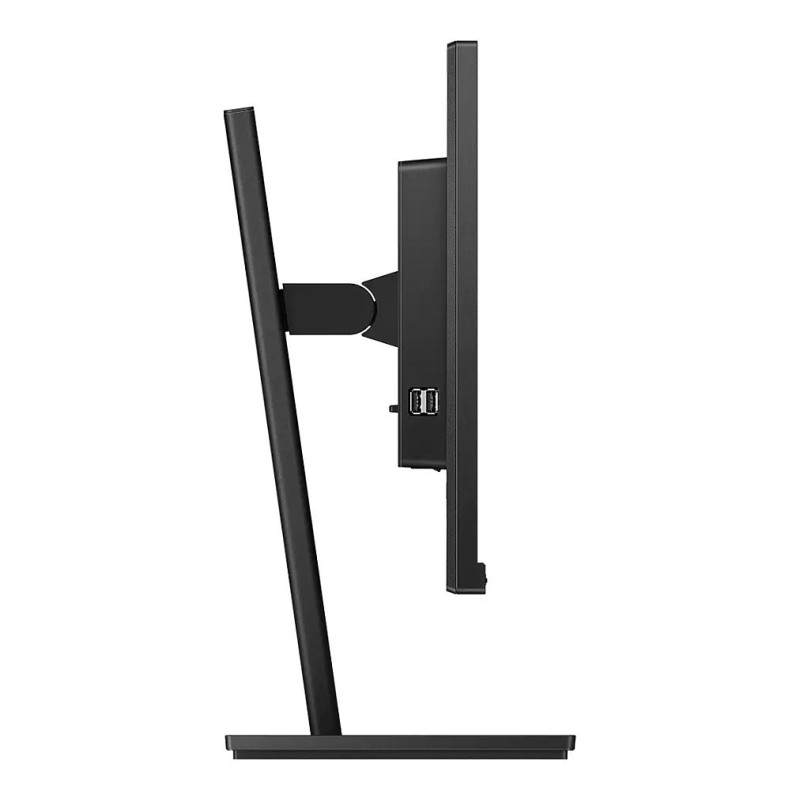

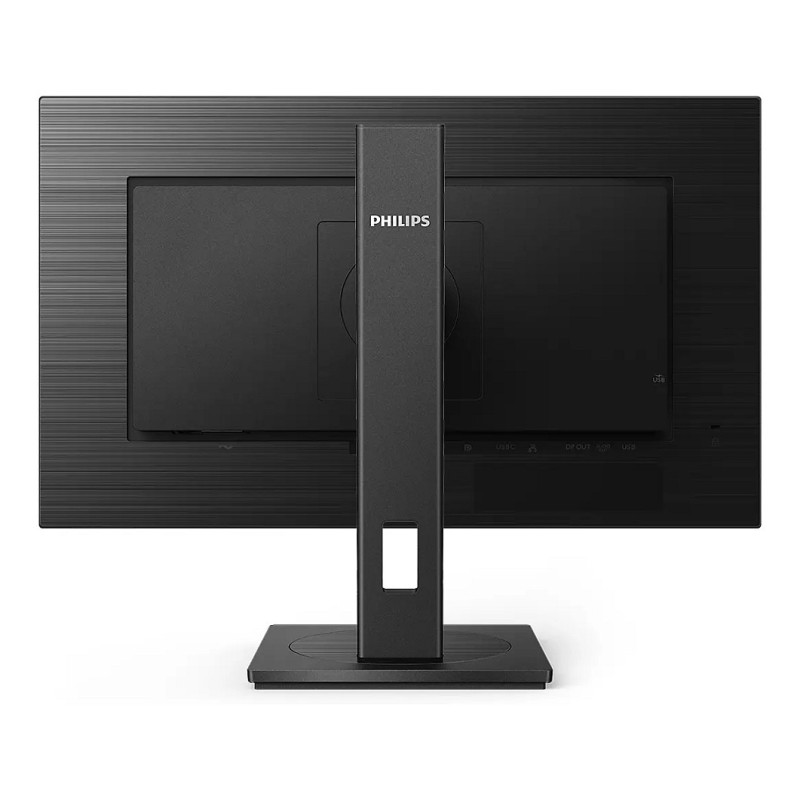

Philips B Line 243B1 / 00 computer monitor

Philips B Line 243B1/00. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 4 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 2 (3.1 Gen 2). VESA mounting, Height adjustment. Product colour: Black
The Philips USB-C monitor replaces cable clutter. View FHD image and recharge a laptop, all at the same time with a single USB-C cable. Features like Daisy chain for multi-display setup, Eye comfort with TUV certified to reduce eye fatigue

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
LED backlight: Yes
Backlight type: W-LED
Touchscreen: No
Display brightness (typical): 300 cd/m²
Response time: 4 ms
Anti-glare screen: Yes
Screen shape: Flat
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 832 x 624, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 50000000:1
Dynamic contrast ratio marketing name: SmartContrast
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2745 x 0.2745 mm
Pixel density: 93 ppi
Horizontal scan range: 30 - 85 kHz
Vertical scan range: 48 - 75 Hz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Digital horizontal frequency: 30 - 85 kHz
Digital vertical frequency: 48 - 75 Hz
Display diagonal (metric): 60.5 cm
DDC/CI: Yes
Haze rate: 25%
Surface hardness: 3H
Colour gamut standard: sRGB, NTSC
Colour gamut: 91%
sRGB coverage (typical): 107%
NTSC coverage (typical): 91%
3D: No
Separate H/V sync: Yes
Display sRGB: Yes
Display panel size: 23.8 inch/60.5 cm
Colour space supported: NTSC, sRGB

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Component video sync: Separate Sync
Flicker-free technology: Yes
Low Blue Light technology: Yes

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Home
Product colour: Black
Front bezel colour: Black
Feet colour: Black

Ports interfaces

I/O ports: USB 3.2 Gen 2 x 1 (upstream), USB 3.2 x 4 (downstream with 1 fast charge B.C 1.2)
Built-in USB hub: Yes
USB hub version: 3.2 Gen 2 (3.1 Gen 2)
USB upstream port type: USB Type-C
Number of upstream ports: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
USB Type-C DisplayPort Alternate Mode: Yes
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 90 W
DVI port: No
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
DisplayPort out quantity: 1
DisplayPort version: 1.4
Audio input: Yes
Audio output: Yes
Headphone out: Yes
Headphone outputs: 1
HDCP: Yes
HDCP version: 1.4
DisplayPort output: Yes

Network

Ethernet LAN: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: Yes
Adjustable height (max): 15 cm
Pivot: Yes
Pivot angle: -90 - 90°
Swivelling: Yes
Swivel angle range: -180 - 180°
Tilt adjustment: Yes
Tilt angle range: -5 - 35°
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukrainian
Number of OSD languages: 16
Plug and Play: Yes
LED indicators: Operation, Stand-by

Power

Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 15.2 W
Power consumption (standby): 0.5 W
Power consumption (off): 0 W
Power consumption (PowerSave): 12.6 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Operating altitude: 0 - 3658 m
Non-operating altitude: 0 - 12192 m

Weight dimensions

Width (with stand): 540 mm
Depth (with stand): 205 mm
Height (with stand): 501 mm
Weight (with stand): 4.98 kg
Width (without stand): 540 mm
Depth (without stand): 51 mm
Height (without stand): 323 mm
Weight (without stand): 3.4 kg

Packaging data

Package width: 730 mm
Package depth: 139 mm
Package height: 450 mm
Package weight: 7.66 kg

Packaging content

Stand included: Yes
Cables included: HDMI, DisplayPort, USB Type-C, AC
Manual: Yes
Bundled software: SmartControl

Sustainability

Sustainability certificates: ENERGY STAR, TCO
Doesn't contain: Mercury, PVC/BFR

Other features

HBR3 support: Yes
Compatible operating systems: Mac OS X; Windows 10/8.1/8/7
On/off switch: Yes
USB Power Delivery revision: 3.0
TV tuner integrated: No
Exterior finish type: Textured
Monitor sync input signal: Separate Sync
Heavy metals free: Hg (mercury)
Light sensor: Yes
EasyRead mode: Yes
LowBlue mode: Yes
User controls: SmartImage; Input; PowerSensor; Menu; Power On/Off
Picture enhancement: SmartImage
Regulatory Approvals: CE Mark; FCC Class B; CU-EAC; EAEU RoHS; TUV/GS; TUV Ergo; UKRAINIAN; ICES-003; CB; TUV Eye Comfort certified
Compliance certificates: RoHS, WEEE
Mean time between failures (MTBF): 70000 h
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Wake-on-LAN: Yes
Certification: CE Mark, FCC Class B, SEMKO, CU-EAC, EAEU RoHS, TUV/GS, TUV Ergo, UKRAINIAN, ICES-003, CB, TUV Eye Comfort certified

Recycling data

Overall recyclability rate: 100%
Packaging recyclability rate: 100%
Product post-consumer recycled plastic: 85%

Logistics data

Harmonized System (HS) code: 85285210
