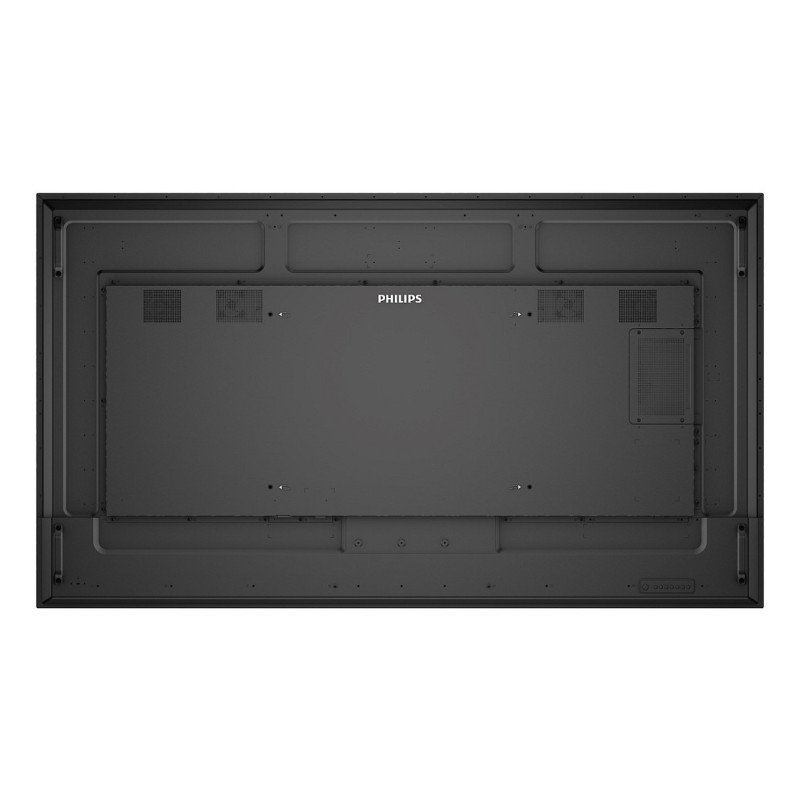

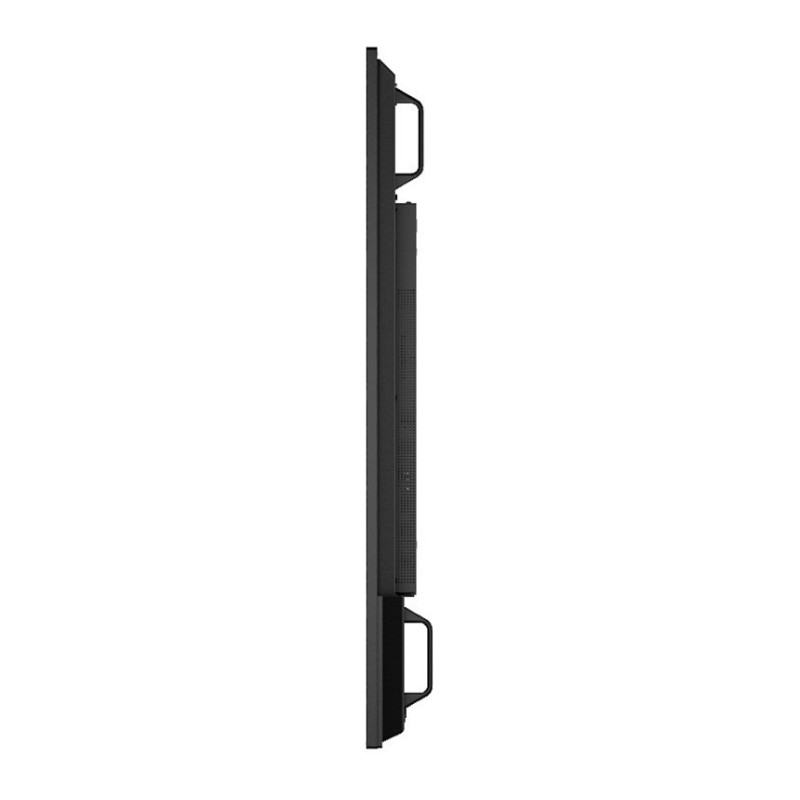

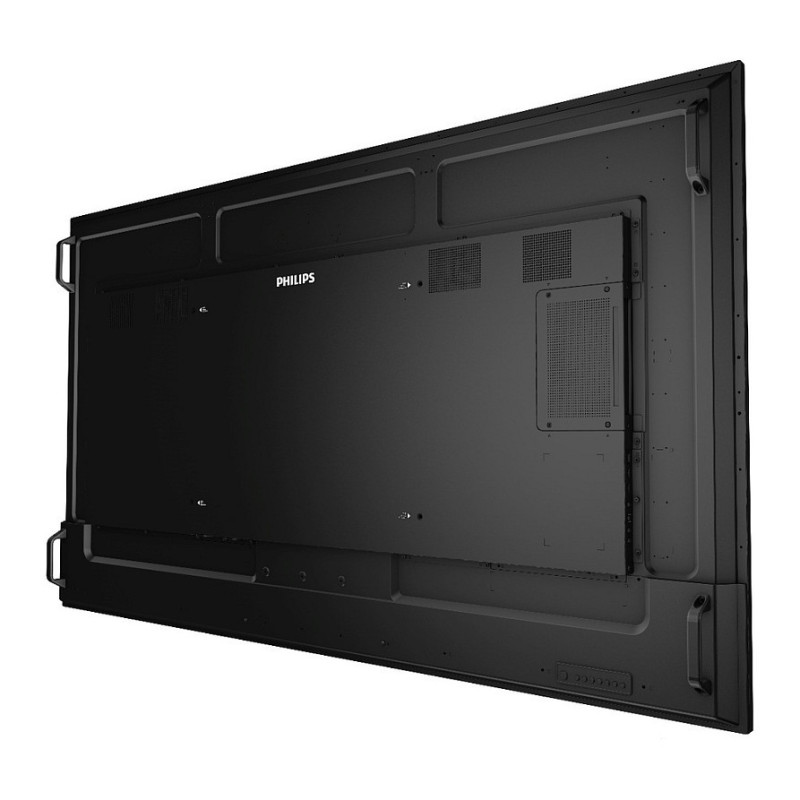

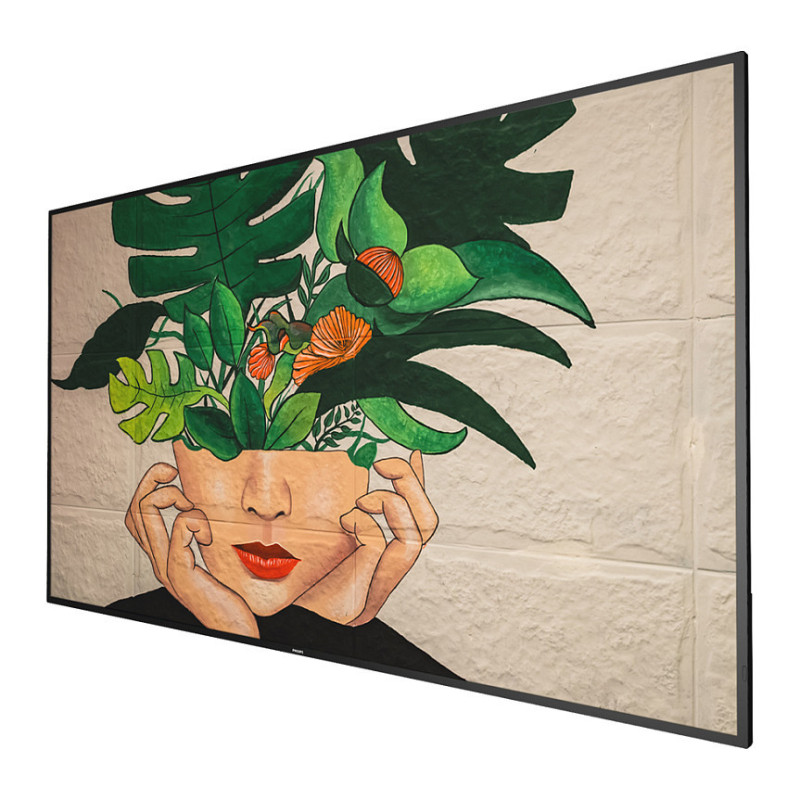

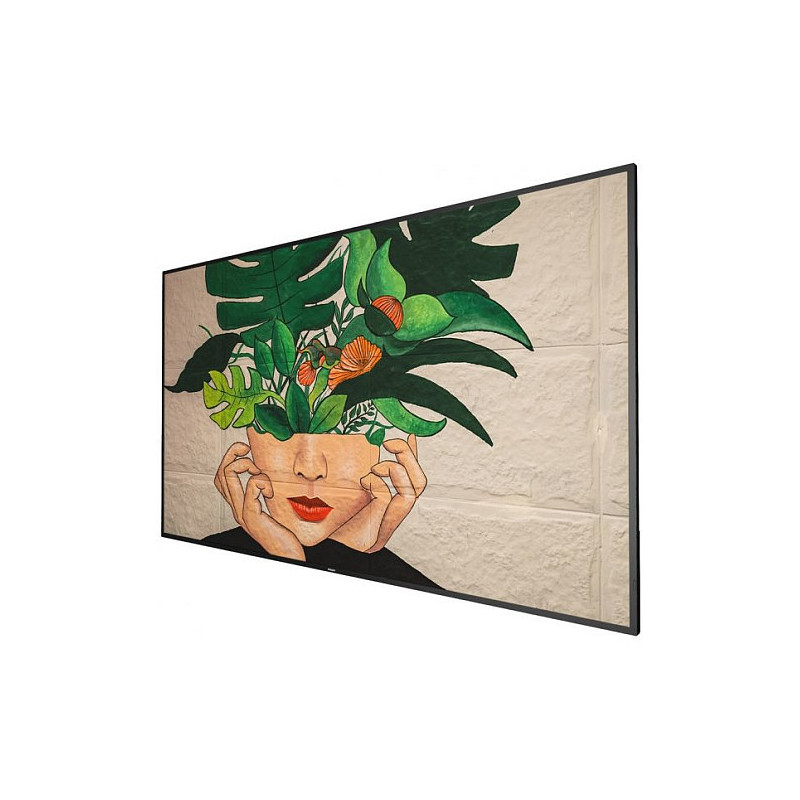

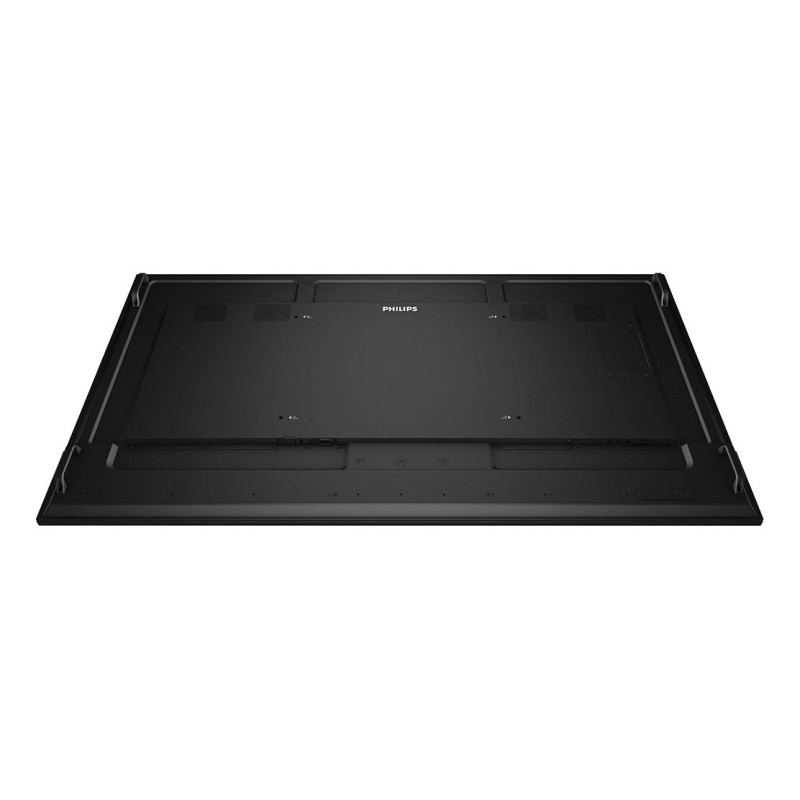

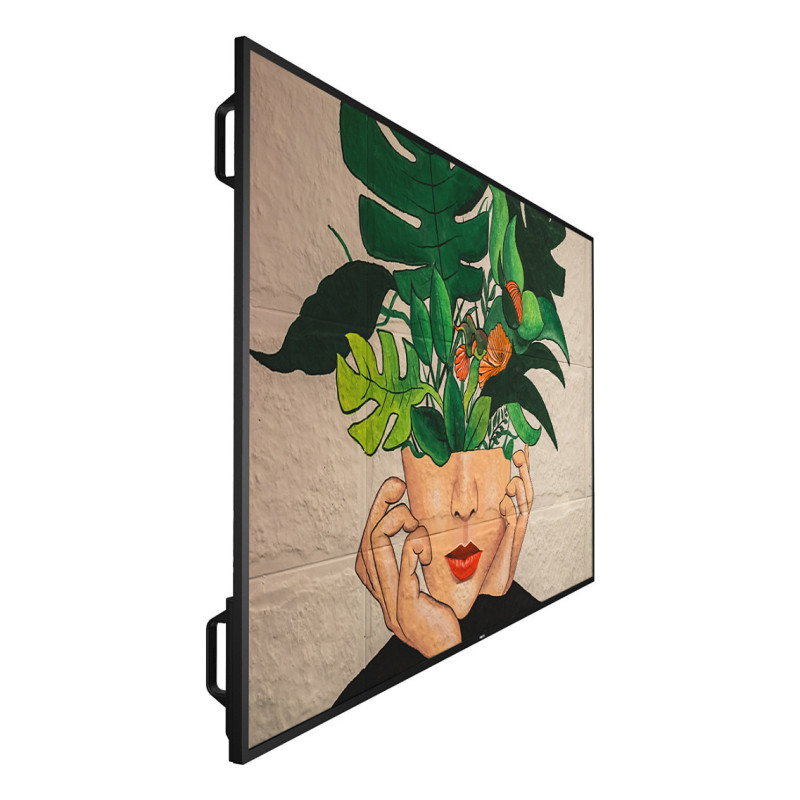

Philips 86BDL4511D / 00 Signage Display

Philips 86BDL4511D/00. Product design: Digital A-board. Display diagonal: 2.18 m (86"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black
Operate, monitor and maintain with CMND Control
Run your display network over a local (LAN) connection. CMND Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
SmartPower for energy saving
The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.
Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.
Optional OPS Slot
Open Pluggable Specification is an industry standard slot in to which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need. Turning your display in to an all-in-one digital signage solution has become simplicity personified.

Display

Panel type: IPS
Display diagonal: 2.18 m (86")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4935 x 0.4935 mm
Display diagonal (metric): 217.4 cm
Panel life: 50000 h
Haze rate: 3%

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DVI port: Yes
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Audio (L/R) in: 1
Audio (L/R) out: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1
OPS module slot: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital A-board
Placement supported: Indoor
Product colour: Black
VESA mounting: Yes
Panel mounting interface: 400 x 400 mm
Bezel width (bottom): 1.55 cm
Bezel width (side): 1.55 cm
Bezel width (top): 1.55 cm

Performance

Purpose: Commercial
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Danish, Dutch, English, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days): 24/7

Power

Power consumption (typical): 355 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 351 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Video formats supported: H.263, H.264, H.265, MPEG
Audio formats supported: AAC, HE-AAC
Image formats supported: BMP, JPEG, PNG

Weight dimensions

Display width: 1929 mm
Display depth: 69.5 mm
Display height: 1100 mm
Display weight: 50.2 kg

Packaging content

Cables included: AC, IR sensor, RS-232, USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Technical details

Compliance certificates: RoHS
