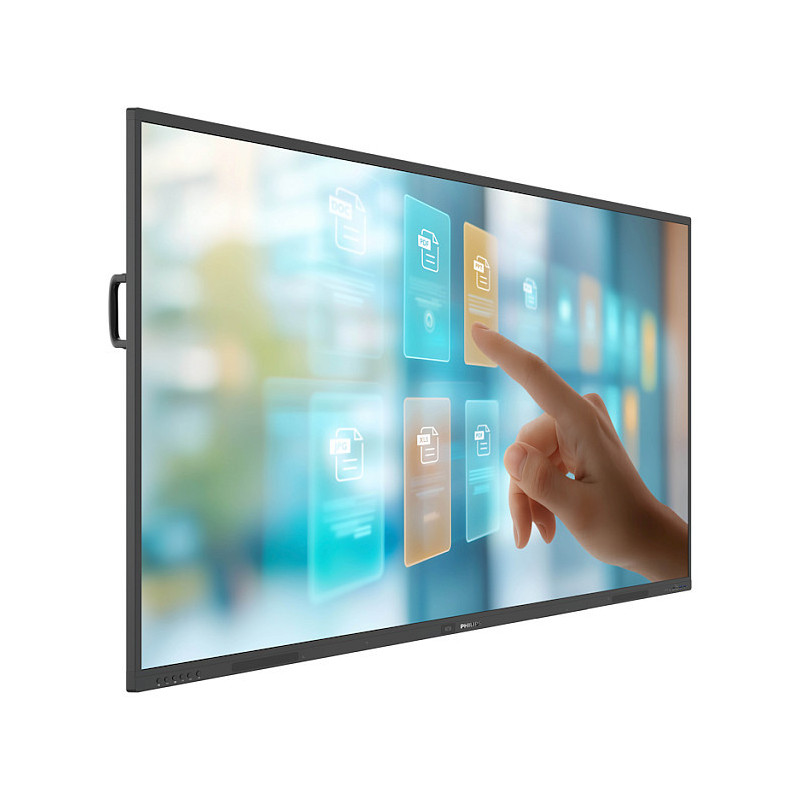

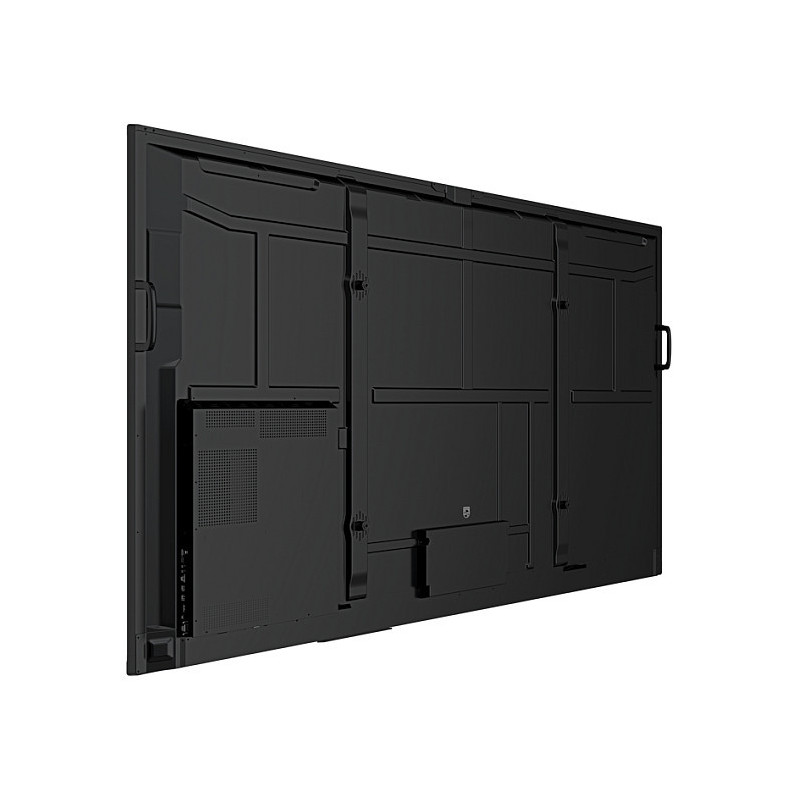

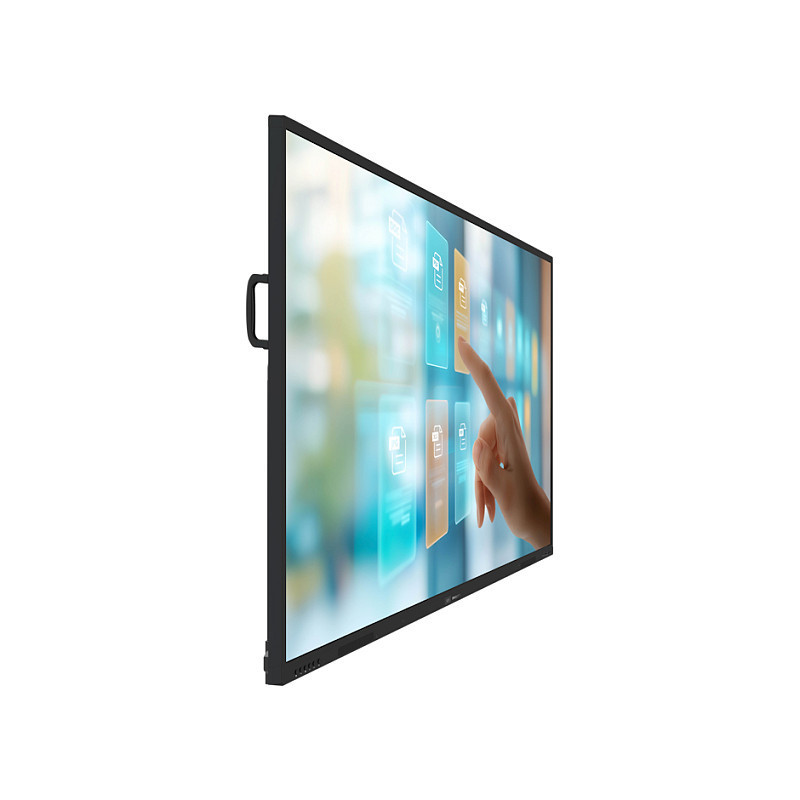

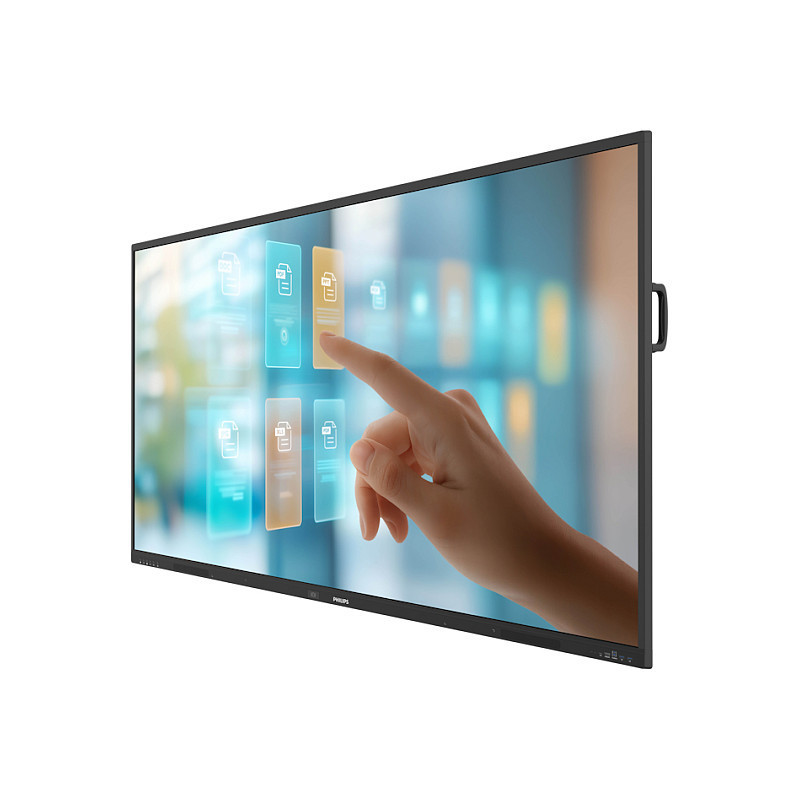

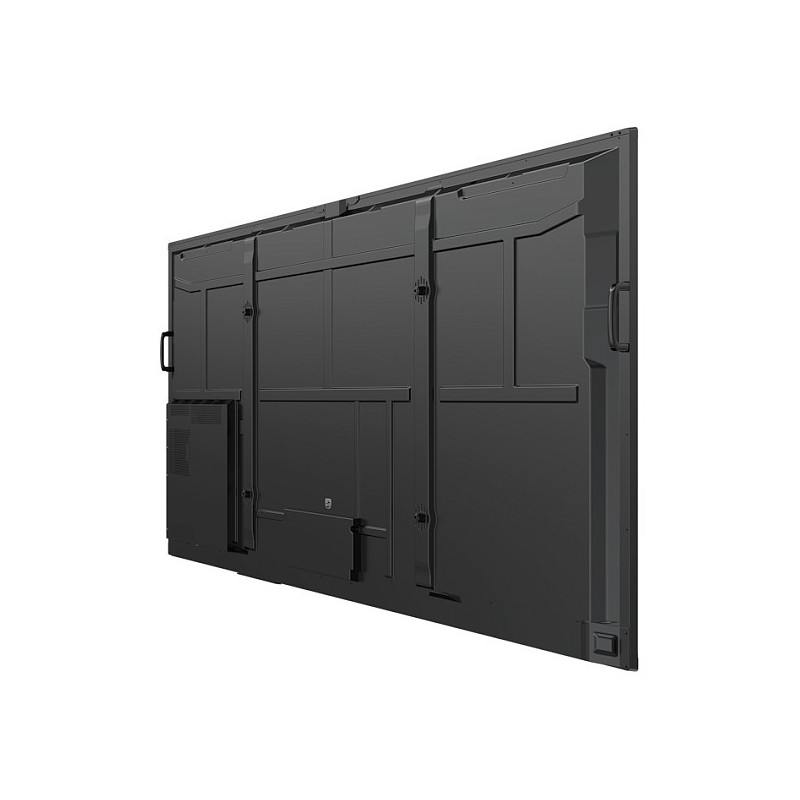

Philips 86BDL4252E / 00 Signage Display

Philips 86BDL4252E/00. Product design: Interactive flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 14. Product colour: Black

This interactive display, powered by Android 14, has up to 50 touchpoints, maximising engagement and collaboration. Toughened anti-glare, anti-reflection and anti-fingerprint glass are ideal for heavy daily use in busy environments.

Display

Display diagonal: 2.18 m (86")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4935 x 0.4935 mm
Display diagonal (metric): 218.44 cm
Panel life: 50000 h
Supported video modes: 480i, 480p, 720p, 1080i, 1080p, 2160p

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
HDMI output ports quantity: 1
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
Feature: USB port
USB ports quantity: 4
USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
Component video (YPbPr/YCbCr) in: 1
Audio (L/R) out: 1
Feature: PC Audio in
Number of speaker outputs: 1
Feature: RS-232C

Audio

Feature: Built-in speaker(s)
Feature: Bluetooth audio
Number of built-in speakers: 2
RMS rated power: 40 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black

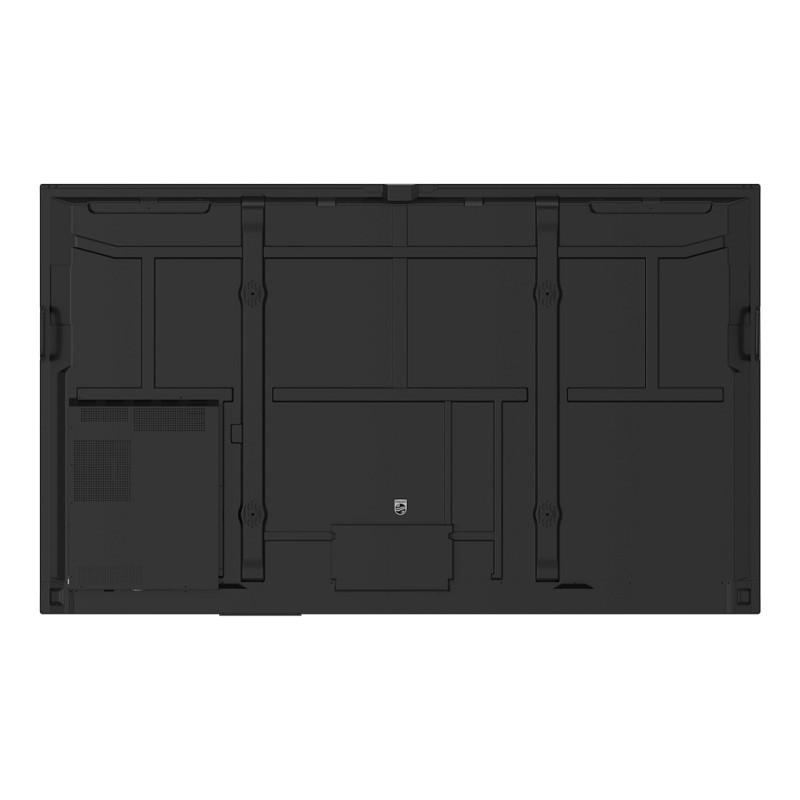

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel width (bottom): 4.49 cm
Bezel width (side): 1.64 cm
Bezel width (top): 1.73 cm
Feature: Anti-glare screen

Performance

Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 175 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor architecture: ARM Cortex-A53+Cortex-A73
Operating system installed: Android 14

Weight & dimensions

Display weight: 51.2 kg
Width: 1957 mm
Depth: 97.1 mm
Height: 1170.8 mm
Width (with stand): 1957 mm
Depth (with stand): 97.1 mm
Height (with stand): 1170.8 mm

Packaging data

Package weight: 70 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Feature: Stylus pen
Number of stylus pens: 2
Cables included: AC, USB Type-A to USB Type-B

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Technical details

Compliance certificates: CB, CE, EAC, EMF, ETL, Federal Communications Commission (FCC), RoHS

Other features

Feature: Manual
Feature: Quick start guide
Aspect ratio: 16:9
