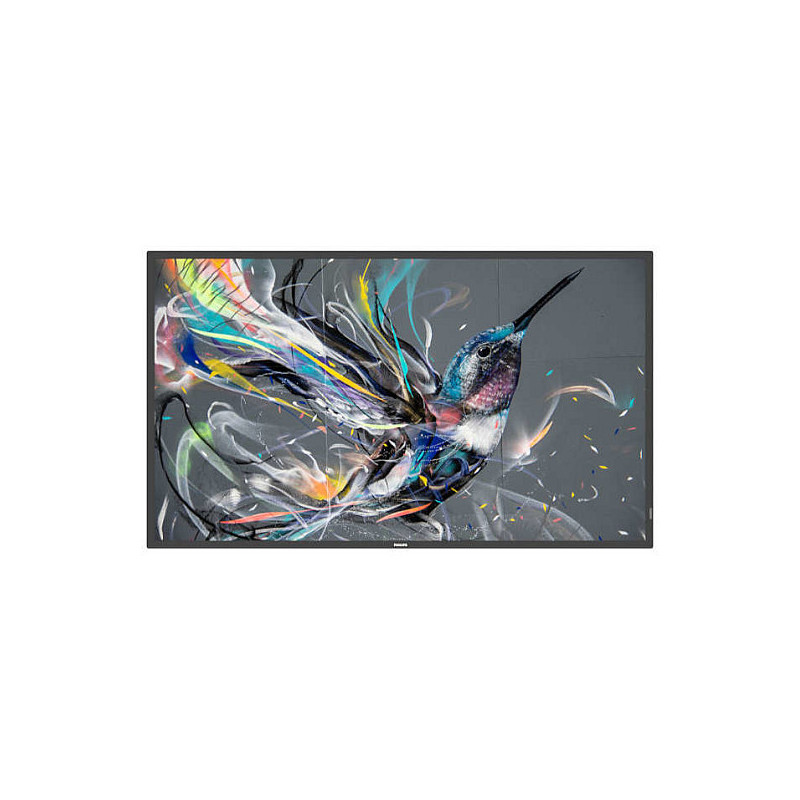

Philips 86BDL3511Q / 00 Public Display

Philips 86BDL3511Q/00 Public Display. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Product colour: Black
Operate, monitor and maintain with CMND and Control
Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures that content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
OPS slot allows for PC embedding without cabling
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
Schedule what you want, when you want with SmartPlayer
Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere.
Integrated media player. Easily schedule USB content
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.

Display

Display diagonal: 2.18 m (86")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4935 x 0.4935 mm
Display diagonal (metric): 217.4 cm

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
DVI port: Yes
DVI-I ports quantity: 1
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Infrared data port: Yes
OPS module slot: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
VESA mounting: Yes
Panel mounting interface: 600 x 400 mm
Bezel width (top): 1.55 cm

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 12
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish

Power

Power consumption (typical): 360 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 355 kWh
AC input voltage: 100-240
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Video formats supported: H.264, M-JPEG, WMV3
Audio formats supported: AAC, HE-AAC, WMA
Image formats supported: BMP, JPEG, PNG

Weight dimensions

Display width: 1929 mm
Display depth: 69.5 mm
Display height: 1100 mm
Display weight: 49.5 kg

Packaging content

Cables included: AC, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Certificates

Certification: CEosdFCC, Class ACBBSMIVCCICUETLEMFPSB

Logistics data

Harmonized System (HS) code: 85285210

Network

Ethernet LAN: Yes
