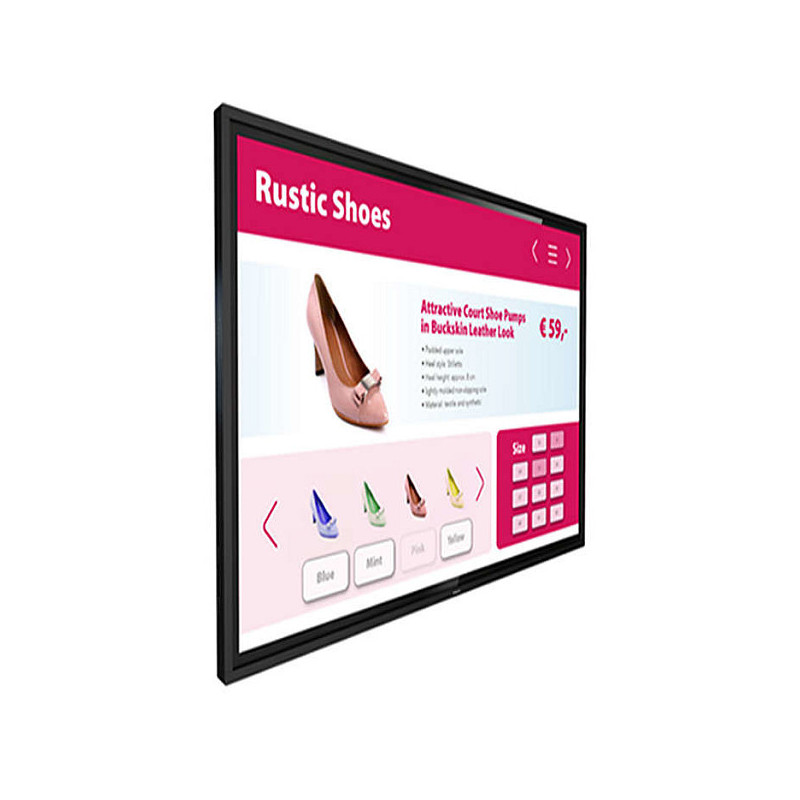

Philips 55BDL3452T / 00 Signage Display

Philips 55BDL3452T/00. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 8.0
Engage them
Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications-from wayfinding to presentations. Up to 20 touch points can be active at once.
Operate, monitor and maintain with CMND Control
Run your display network over a local (LAN) connection. CMND Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
CMND Create. Develop and launch your own content
Take control of your content with CMND Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.
FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND Deploy. Install and launch apps remotely
Quickly install and launch any app-even when you're off-site and working remotely. CMND Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.
Internal memory. Upload content for instant play
Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.
Android SoC processor. Native and web apps
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Display

Display diagonal: 139.7 cm (55")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: Capacitive
Multi-touch: Yes
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1300:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm

Ports interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DVI port: Yes
DVI-I ports quantity: 1
USB port: Yes
USB ports quantity: 3
USB version: 2.0
Audio (L/R) in: 1
Audio (L/R) out: 1
RS-232 interface: Yes
Remote (IR) input: 1
Remote (IR) output: 1
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
OPS module slot: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

Performance

Purpose: Corporate
On Screen Display (OSD): Yes
Number of OSD languages: 18
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 140 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 137 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Built-in processor: Yes
Processor model: A53
Internal memory: 2 GB
Internal storage capacity: 8 GB
Operating system installed: Android 8.0
Video formats supported: M2TS, M4V, MKV, MP4, MPEG, MPG, MTS, TS, VOB, WMV
Audio formats supported: AAC, AIFF, ASF, LPCM, M4A, MP3, MP4, WAV, WMA
Image formats supported: BMP, GIF, JPEG, JPG

Weight dimensions

Width: 1272 mm
Depth: 54.5 mm
Height: 743 mm
Weight: 27 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, RS-232, USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Network

Ethernet LAN: Yes
Wi-Fi: Yes

Technical details

Sustainability compliance: Yes
Compliance certificates: CE
