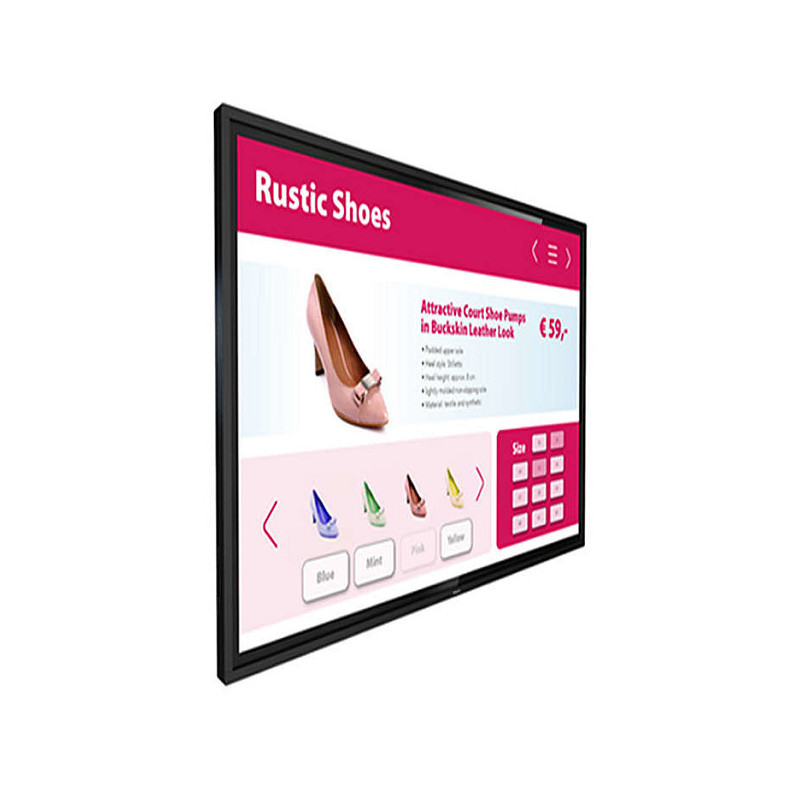

Philips 43BDL3651T / 00 Signage Display

Philips 43BDL3651T/00. Product design: Digital signage flat panel. Display diagonal: 109.2 cm (43"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android 8.0

Engage them
Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications-from wayfinding to presentations. Up to 20 touch points can be active at once.

Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content
Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

CMND & Deploy. Install and launch apps remotely
Quickly install and launch any app-even when you're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.

Internal memory. Upload content for instant play
Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

Android SoC processor. Native and web apps
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.

Display

Display diagonal: 109.2 cm (43")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1300:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
Feature: DVI port
DVI-I ports quantity: 1
Feature: USB port
USB ports quantity: 3
USB version: 2.0
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232 interface
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Feature: OPS module slot

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

Performance

Purpose: Corporate
Feature: On Screen Display (OSD)
Number of OSD languages: 18
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 140 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 95 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor model: A53
Internal memory: 2 GB
Internal storage capacity: 8 GB
Operating system installed: Android 8.0
Video formats supported: MPEG, WMV, MPG, MTS, M2TS, M4V, TS, MKV, VOB, MP4
Audio formats supported: MP3, ASF, MP4, AAC, WAV, WMA, LPCM, M4A, AIFF
Image formats supported: BMP, GIF, JPEG, JPG

Weight & dimensions

Width: 990 mm
Depth: 70.2 mm
Height: 578 mm
Weight: 17.9 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, RS-232, USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Technical details

Feature: Sustainability compliance
Compliance certificates: CE
