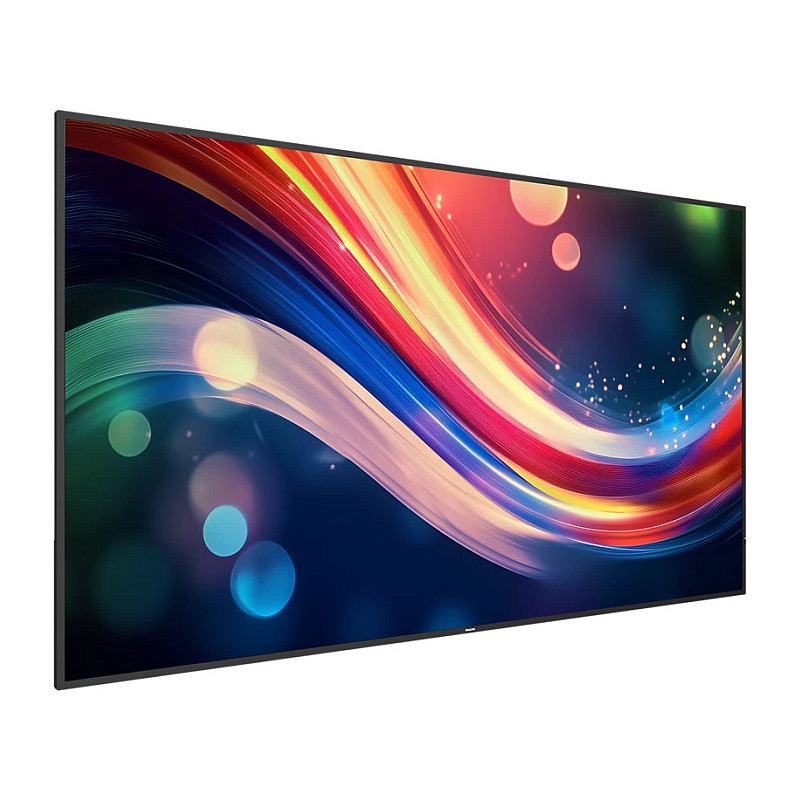

Philips 4050 series Q-Line 86BDL4050Q / 00

Philips 4050 series Q-Line 86BDL4050Q/00. Product design: Digital signage flat panel. Display diagonal: 2.17 m (85.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Operating system installed: Android 10. Product colour: Black
Inform and enthral with Philips Signage 4050. UHD resolution is matched with enhanced brightness and high haze, and the efficiency of the tried and tested Android 10 SoC. Wave-ready for remote management, putting you in full control.
500 cd/m2 brightness
With 500 cd/m2 brightness for better visibility, the Philips Signage 4050 display is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centres, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.
Easily mounted in landscape or portrait.
Install in portrait or landscape orientations, with size variants to suit a range of installation purposes across the range of settings and industries.
Proven reliability. No need for external media player.
Tried, tested, and proven intuitive user experience, with a professional Android 10 SoC built in for easy apps and solutions integrations and no need for an external media player.
Remote management with Philips Wave
Manage your display and control content remotely with Philips Wave Controller - your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.
Add optional Philips ScreenShare
Add in the fully secure and GDPR-compliant optional Philips ScreenShare presentation software for instant and effortless content sharing, using any device, on any network, and without additional hardware.
Supporting business sustainability and energy savings.
Supporting business sustainability and energy savings, with power saving features and using more environmentally friendly materials on the product and in the packaging.
Add optional CRD22 module for easy Wifi
With a range of input options for easy content control, simply add in a CRD22 module to bring the power of Wifi into the mix.
OPS slot allows for PC embedding without cabling
Advanced quality brings stunning contrast for the richest colours and the clearest picture to captivate passers by and draw customers in.

Display

Panel type: ADS
LED backlight: Yes
Display diagonal: 2.17 m (85.6")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 500000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4935 x 0.4935 mm
Display diagonal (metric): 217.4 cm
Native refresh rate: 60 Hz
Haze rate: 25%

Ports interfaces

HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DVI port: Yes
DVI-I ports quantity: 1
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
RS-232 interface: Yes
Infrared data port: Yes
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
OPS module slot: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
VESA mounting: Yes
Panel mounting interface: 600 x 400 mm

Performance

Purpose: Commercial
On Screen Display (OSD): Yes
Number of OSD languages: 12
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
Operating hours (hours/days): 24/7
Over the Air Updates (OTA): Yes
Open Pluggable Specification (OPS): Yes

Power

Power consumption (standby): 0.5 W
Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 100 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Built-in processor: Yes
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A55
Processor cores: 4
Internal memory: 3 GB
On-board graphics card model: Mali-G52 MC1
Internal storage capacity: 16 GB
Operating system installed: Android 10
Video formats supported: H.263, H.264, H.265, MPEG1, MPEG2, MPEG4, VP8, VP9
Audio formats supported: AAC, HE-AAC, MPEG-1, MPEG-2
Image formats supported: BMP, JPEG, PNG, WEBP

Weight dimensions

Display width: 1929 mm
Display depth: 69.5 mm
Display height: 1100 mm
Display weight: 49.1 kg
Base width: 1.55 cm

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Network

Ethernet LAN: Yes

Features

Wall mountable: Yes

Technical details

Warranty period: 3 year(s)
Compliance certificates: CB, CE, Federal Communications Commission (FCC), RoHS, UL, VCCI
