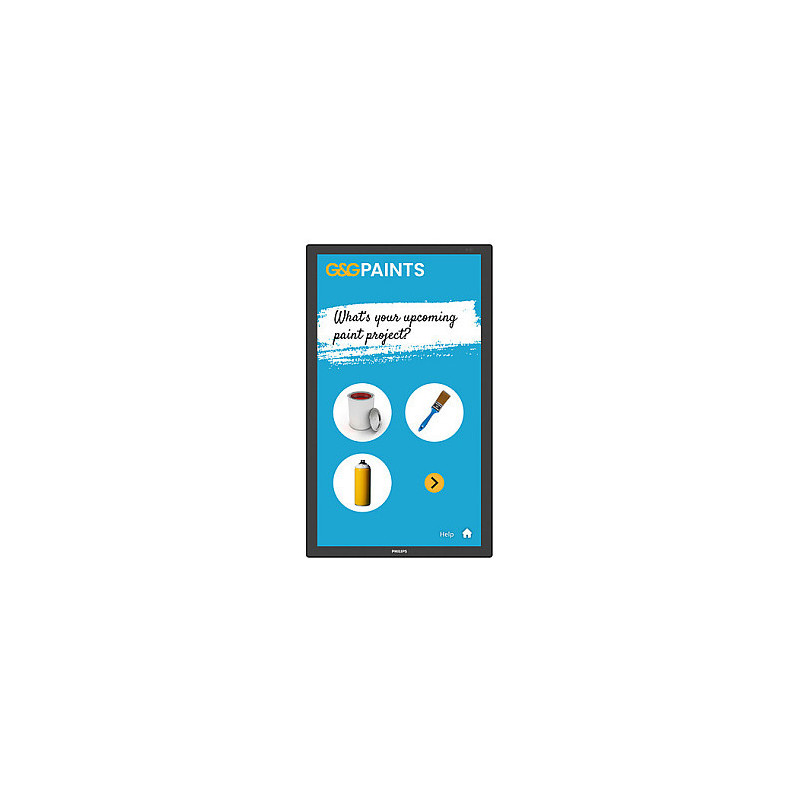

Philips 3000 series 24BDL3751T / 00 Signage Display

Philips 3000 series 24BDL3751T/00. Product design: Interactive flat panel. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black

Better connected - versatile multi-touch display

Delivering 24/7 operation with 250 nits brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready, and no need for an external media player.

Easy to clean, with anti-glare and anti-fingerprint coating.
A flush design with no bezel bringing an edge to edge experience augmented with anti-glare glass. Easy to clean, these interactive touch screens also feature anti-fingerprint coating.

Also supporting 30° tilt - ideal for kiosk installations.
Install in portrait or landscape orientations, with the option to tilt to 30°, with size variants to suit a range of installation purposes. Whether on a shelf - ideal for the 24" - angled or upright for Point of Sale, configurators, order points and kiosks - with the 32" and 43" - or for wayfinding - think 55".

Better visibility even in bright daylight
With 250 cd/m2 brightness for better visibility under bright lights, the Philips Interactive 3000 Series is designed to be used 24/7, making it a great selection for travel and transportation hubs, retail centers, food and beverage locations, and more. FailOver is also included enabling your display to switch automatically between primary and secondary inputs should an outage occur.

No need for external media player. 4GB RAM + 32GB ROM.
The ultimate in intuitive user experience, with a professional Android 13 SoC built in for easy apps and solutions integrations and no need for an external media player. Connections include Wifi and Bluetooth, as well as USB-C port.

Remote monitoring, maintenance, and management.
Manage your display and control content remotely with PPDS Wave Controller - your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.

Supporting business sustainability and energy savings.
Reduced power consumption compared to previous models, supporting business sustainability and energy savings.

Better connecting customers with content.
Allows seamless connectivity, enabling easily access and engagement with content.

Activated out of the box for hassle free peace of mind.
Reliable, worry-free protection for your displays, with a three-year warranty automatically in place from the start, eliminating any setup effort.

Display

Panel type: ADS
Display diagonal: 60.5 cm (23.8")
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.2745 x 0.2745 mm
Display diagonal (metric): 60.5 cm
Number of displays: 1
Native refresh rate: 60 Hz
Glass thickness: 1.8 mm

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.3
Feature: USB port
USB ports quantity: 5
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: Micro-USB, USB Type-A, USB Type-B, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Ethernet LAN (RJ-45) ports: 1
Audio (L/R) in: 1
Audio (L/R) out: 1
Feature: RS-232 interface
Feature: Infrared data port

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Interactive flat panel
Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 2.11 cm
Bezel width (side): 2.11 cm
Bezel width (top): 2.11 cm
Feature: Anti-glare screen
Feature: Fingerprint resistant
Mounting type: Wall

Performance

Purpose: Commercial
Number of OSD languages: 18
Feature: HID support
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 25 W
Power consumption (standby): 0.5 W
Power consumption (max): 83 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 21 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Processor manufacturer: ARM
Processor family: ARM Cortex
Processor model: A55
Processor architecture: ARM Cortex-A55
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 13
Video formats supported: H.263, H.264, H.265, MPEG1, MPEG4, VP8, VP9
Audio formats supported: AAC, HE-AAC, MPEG-1, MPEG-2
Image formats supported: BMP, JPEG, PNG, WEBP

Weight & dimensions

Width (with stand): 570.8 mm
Depth (with stand): 38.4 mm
Height (with stand): 340.3 mm
Weight (with stand): 4.78 kg

Packaging data

Package weight: 6.7 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, RS-232, USB Type-A to USB Type-B

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 5 - 95%

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi

Features

Feature: Wall mountable

Technical details

Warranty period: 3 year(s)
Compliance certificates: BSMI, CB, CE, ETL, Federal Communications Commission (FCC), PSB, RoHS

Other features

Feature: Bluetooth
Bluetooth version: 5.2
