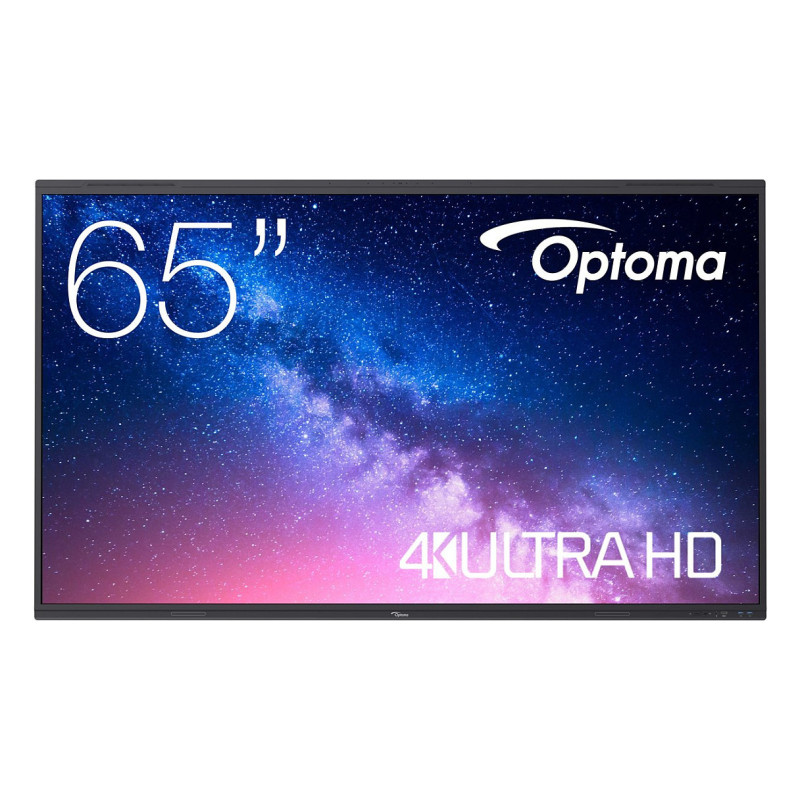

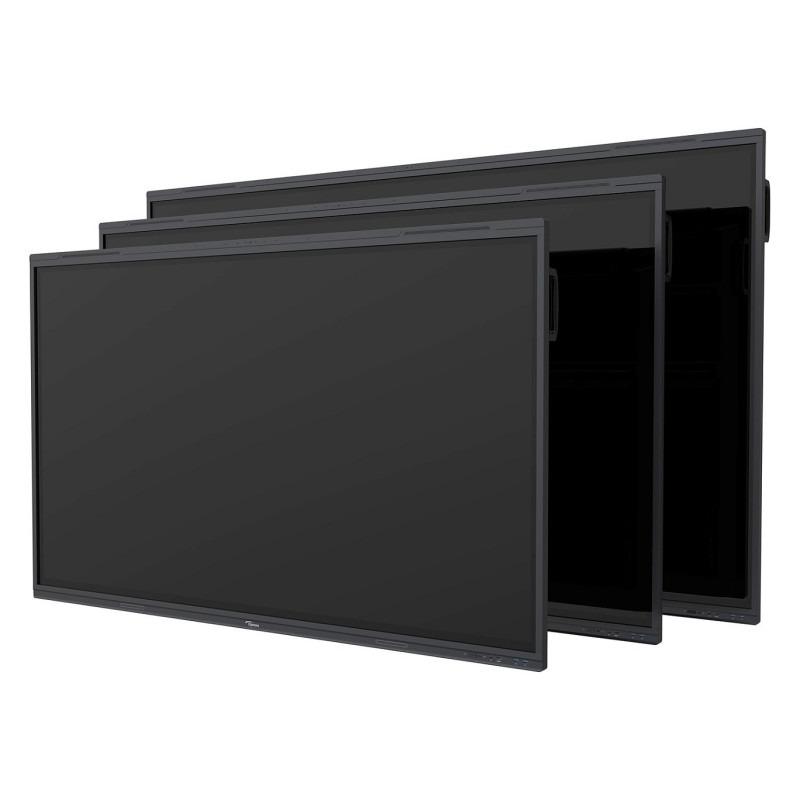

Optoma 5653RK interactive whiteboard

Optoma 5653RK. Display diagonal: 165.1 cm (65"), Display brightness: 400 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Android, Processor architecture: ARM Cortex A76 + ARM Cortex A55, User memory: 64 GB. Speaker power: 18 W. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Panel mounting interface: 600 x 400 mm

Create. Connect. Inspire. Teacher led technology

Optoma's interactive displays are designed to fit the needs of teachers and students seamlessly. By listening to educators and gathering customer feedback, Optoma creates solutions that remove the challenging barriers facing teachers today. The result; intuitive user-friendly software to work in harmony with the way you educate - Create. Connect. Teach.

Google EDLA certification means a full library of Apps are at your disposal via the pre-installed Google Play Store.

Creative sharing is easy with built-in annotation tools to help facilitate collaboration in the classroom. Designed for hybrid working - Whiteboard provides smart collaboration and connectivity features for any classroom.

Work simultaneously. Multiple teams or individuals can work together from two separate locations in real-time.

Launch the Whiteboard by simply lifting the pen from the chassis and enjoy the features such as Magic draw - a shape recognition tool, pressure sensitivity pen, marker, and much more!

The stylish and sleek design of the 53 Series includes an 8 array microphone with a pickup distance of up to 8M accompanied by x2 18W speakers & x2 8W subwoofers making it the ideal solution to be heard in a large environment without the need of external speakers.

Display

Display diagonal: 165.1 cm (65")
Display brightness: 400 cd/m²
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
LED backlight: Yes
LED backlighting type: Direct-LED
Contrast ratio (typical): 5000:1
Response time: 6 ms
Touchscreen: Yes
Touch technology: Multi-touch
Number of simultaneous touchpoints: 50
Touch resolution: 32768 x 32768 pixels
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Hardness: 7H

Computer system

Operating system installed: Android
Operating system version: 13
Built-in processor: Yes
Processor architecture: ARM Cortex A76 + ARM Cortex A55
User memory: 64 GB
RAM capacity: 8 GB
Graphics card: Mali-G610 MC4

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
Speaker power: 18 W

Network

Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 5
USB Type-C ports quantity: 2
HDMI version: 2.0
HDMI output ports quantity: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 2
OPS slot: 1
S/PDIF out port: Yes
RS-232 ports: 1

Ergonomics

VESA mounting: Yes

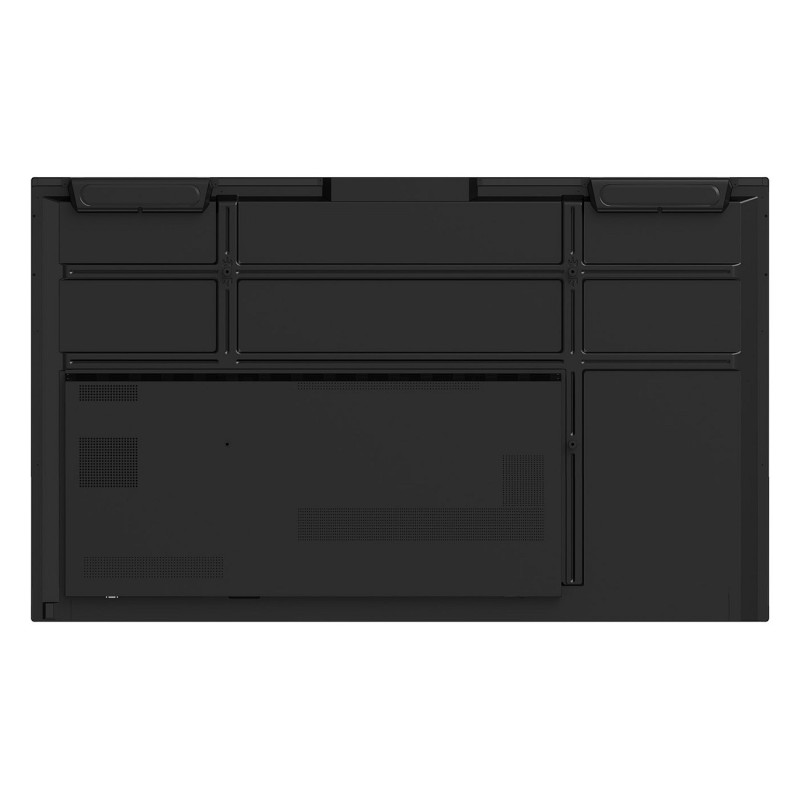

Panel mounting interface: 600 x 400 mm

Power

Power consumption (max): 380 W
Power consumption (typical): 200 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Weight & dimensions

Width: 1488 mm
Depth: 86 mm
Height: 908 mm
Weight: 38.6 kg

Packaging data

Package weight: 48.2 kg

Packaging content

Pen tray included: Yes
Cables included: AC, HDMI, USB, USB Type-C
Remote control included: Yes
Quick start guide: Yes
Stylus included: Yes
Stylus pen type: Passive
