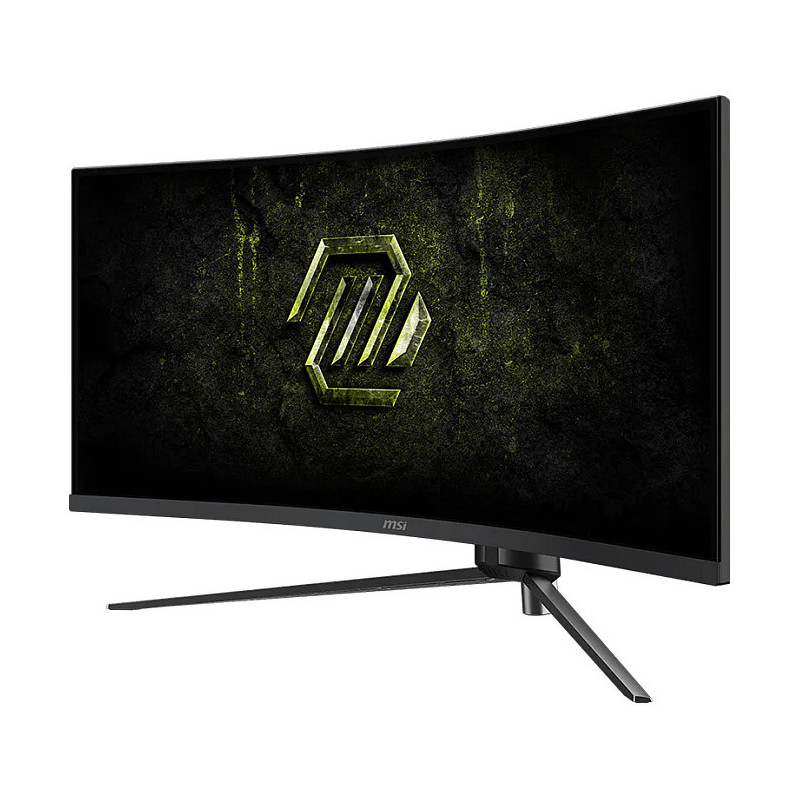

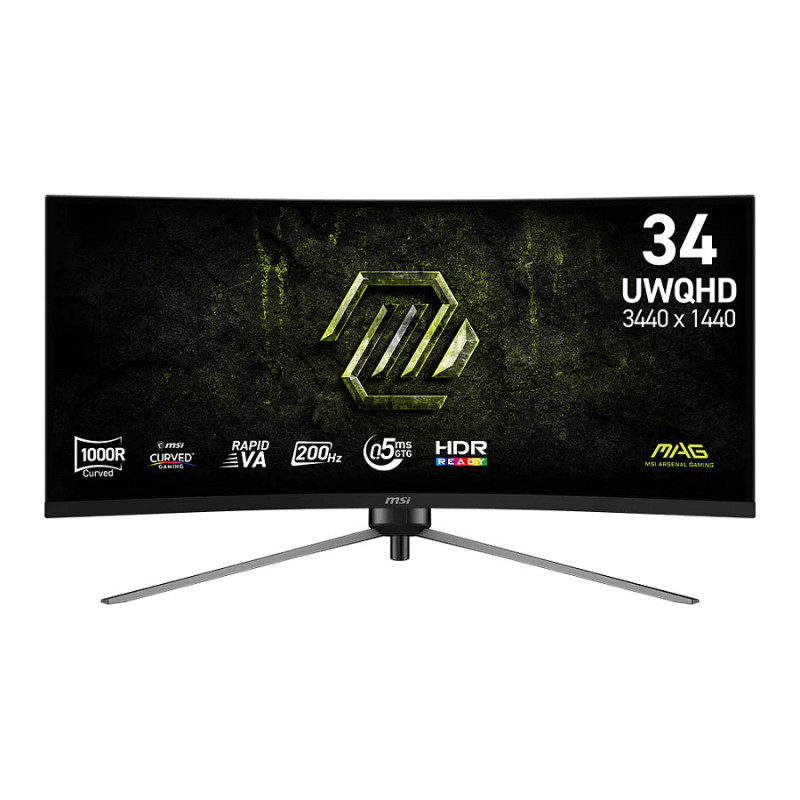

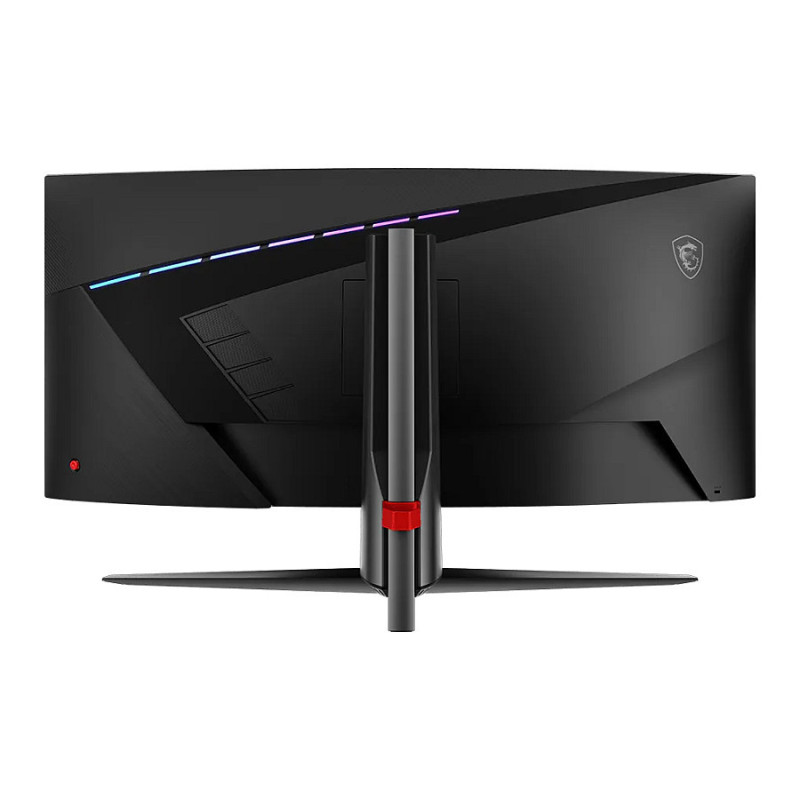

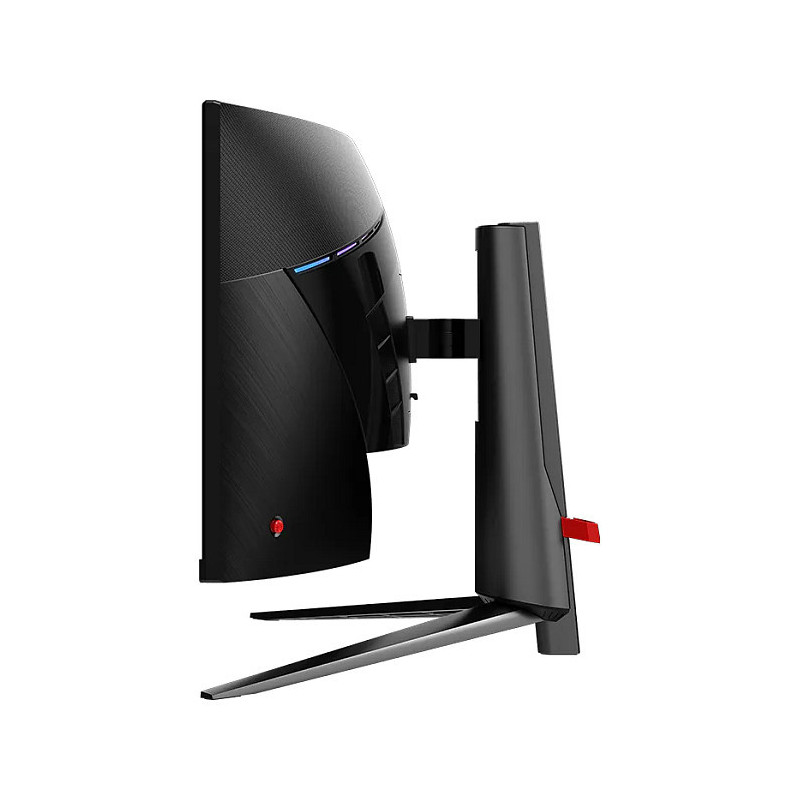

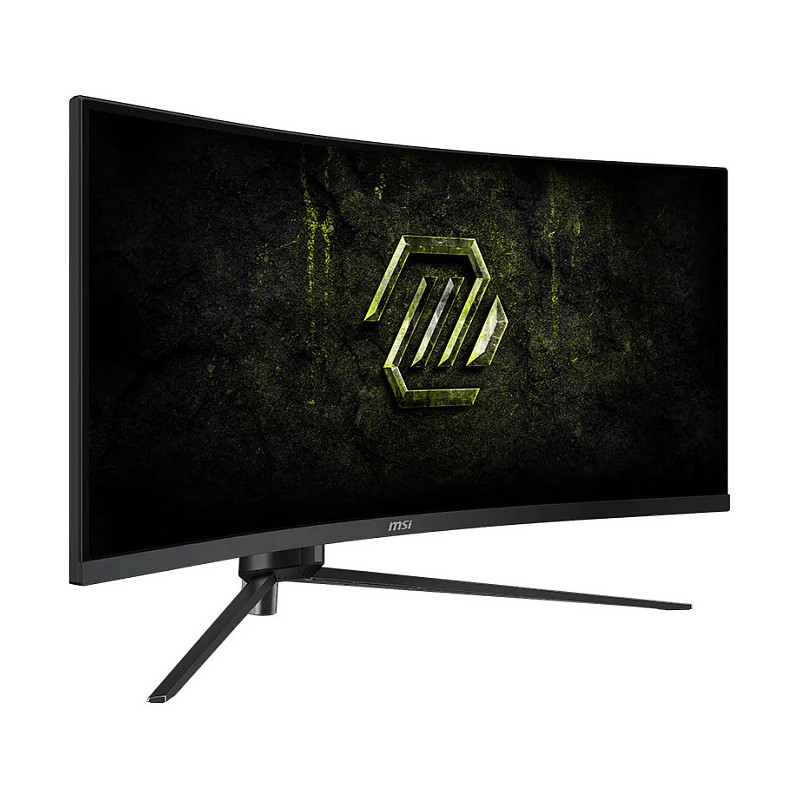

MSI MAG 345CQRF E20 computer monitor

MSI MAG 345CQRF E20. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Dual Quad HD, Response time: 0.5 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting, Height adjustment. Product colour: Black
Experience immersive gaming with the MAG 345CQRF E20 gaming monitor. It features a 3440x1440 (UWQHD) panel, a 200Hz refresh rate, and a rapid 0.5ms (GtG, Min) response time. The monitor is HDR Ready, enhancing eye-catching details through adjustments in contrast and shadows. Designed for competitive FPS, first-person RPG/MMORPG, and flight/racing simulator genres, the MSI MAG 345CQRF E20 gaming monitor takes casual gaming to a new level, challenging players to see beyond the game.
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Display

Display diagonal: 86.4 cm (34")
Display resolution: 3440 x 1440 pixels
HD type: UltraWide Dual Quad HD
Native aspect ratio: 21:9
Panel type: Rapid VA
Touchscreen: No
Display brightness (typical): 300 cd/m²
Response time: 0.5 ms
Response time measurement type: GTG (Gray to Gray)
Anti-glare screen: Yes
Screen shape: Curved
Screen curvature rating: 1000R
Supported graphics resolutions: 3440 x 1440
Supported video modes: 1440p
Contrast ratio (typical): 3500:1
Contrast ratio (dynamic): 100000000:1
Maximum refresh rate: 200 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.23175 x 0.23175 mm
Horizontal scan range: 70.51 - 285.31 kHz
Vertical scan range: 48 - 200 Hz
Viewable size, horizontal: 79.7 cm
Viewable size, vertical: 33.4 cm
Display diagonal (metric): 86.36 cm
Colour gamut standard: DCI-P3
Colour gamut: 90%
sRGB coverage (typical): 110%
NTSC coverage (typical): 88%
DCI-P3 coverage: 90%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Gaming
Product colour: Black
Frameless design: Yes
Feet colour: Black

Ports interfaces

Built-in USB hub: No
HDMI: Yes
HDMI ports quantity: 2
HDMI version: 2.0b
DisplayPorts quantity: 1
DisplayPort version: 1.4a
Headphone out: Yes
Headphone outputs: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: Yes
Adjustable height (max): 10 cm
Pivot: Yes
Pivot angle: -1.5 - 1.5°
Swivelling: Yes
Swivel angle range: -30 - 30°
Tilt adjustment: Yes
Tilt angle range: -5 - 20°

Power

Energy efficiency class (SDR): F
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 31 kWh
Energy consumption (HDR) per 1000 hours: 57 kWh
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 3.42 A
AC adapter output voltage: 19 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 797.5 mm
Depth (with stand): 332.3 mm
Height (with stand): 418.9 mm
Weight (with stand): 7.75 kg
Width (without stand): 797.5 mm
Depth (without stand): 158.2 mm
Height (without stand): 363 mm

Packaging data

Package width: 985 mm
Package depth: 228 mm
Package height: 510 mm
Package weight: 11.3 kg
Package type: Box

Packaging content

Stand included: Yes
Cables included: AC, Audio (3.5mm), DisplayPort, Power
Quick start guide: Yes
