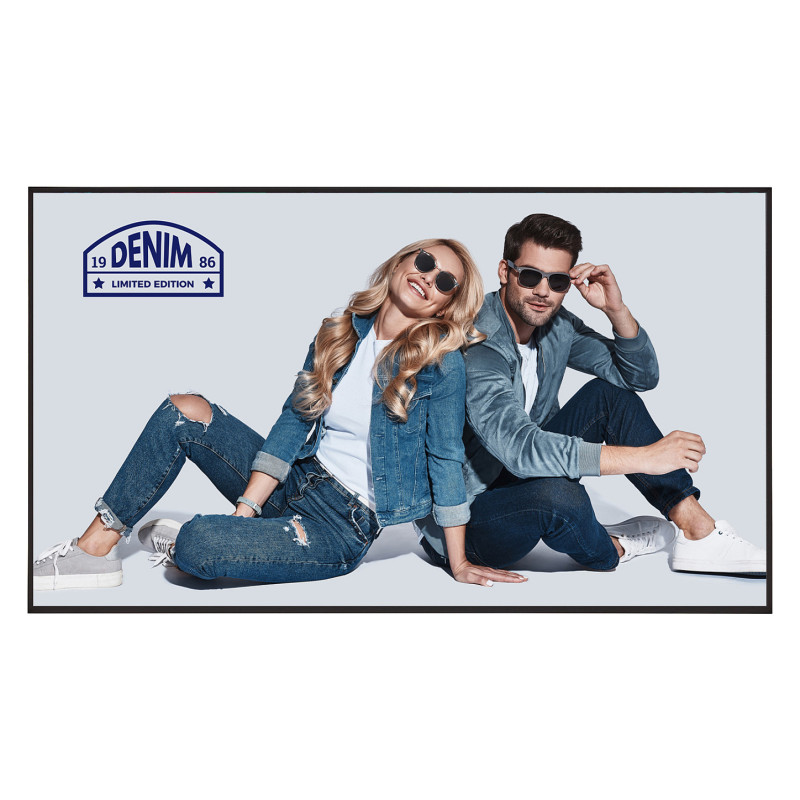

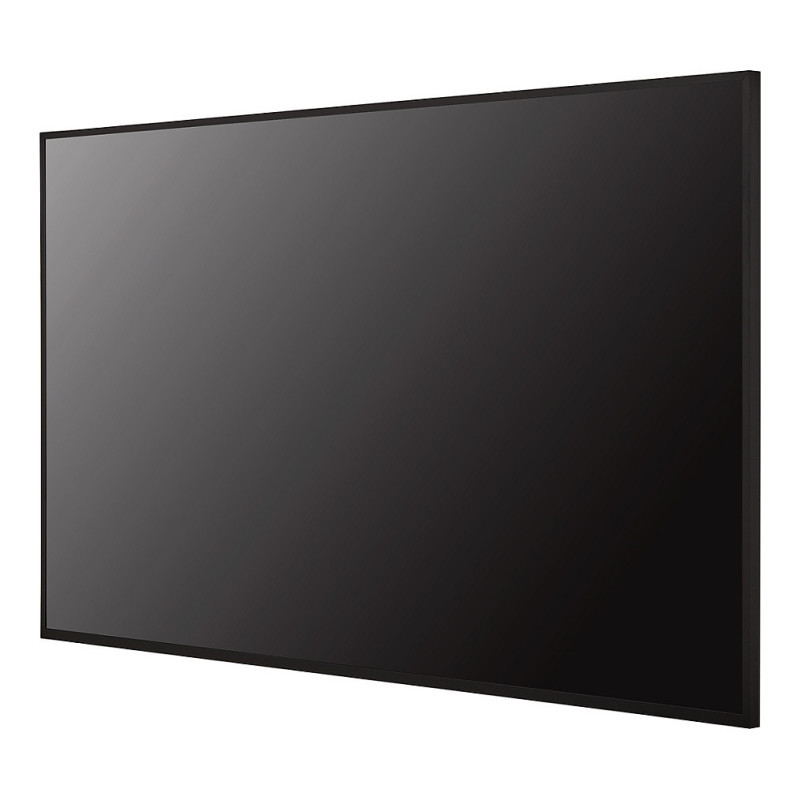

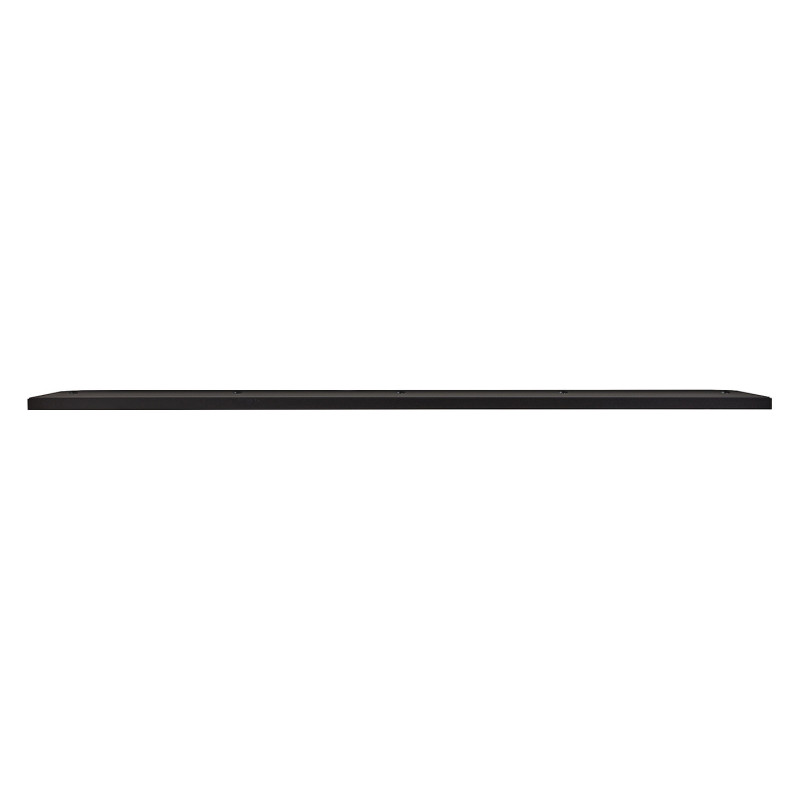

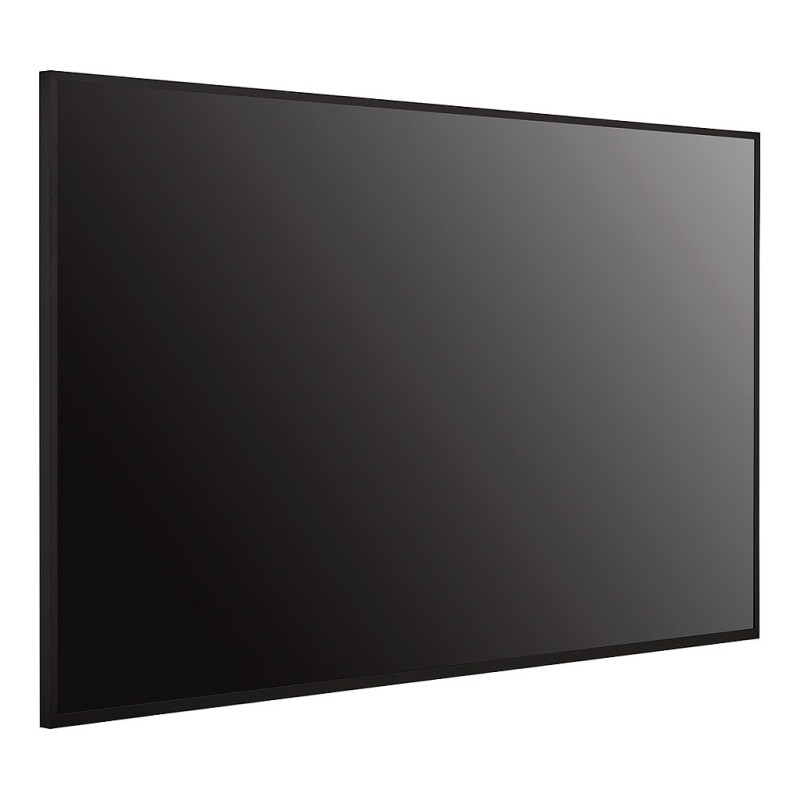

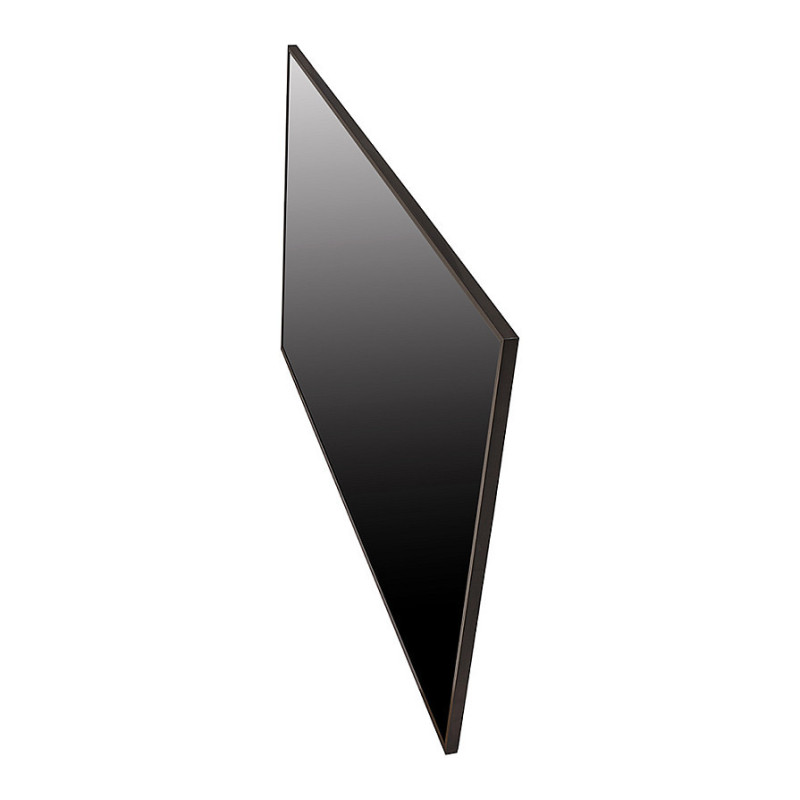

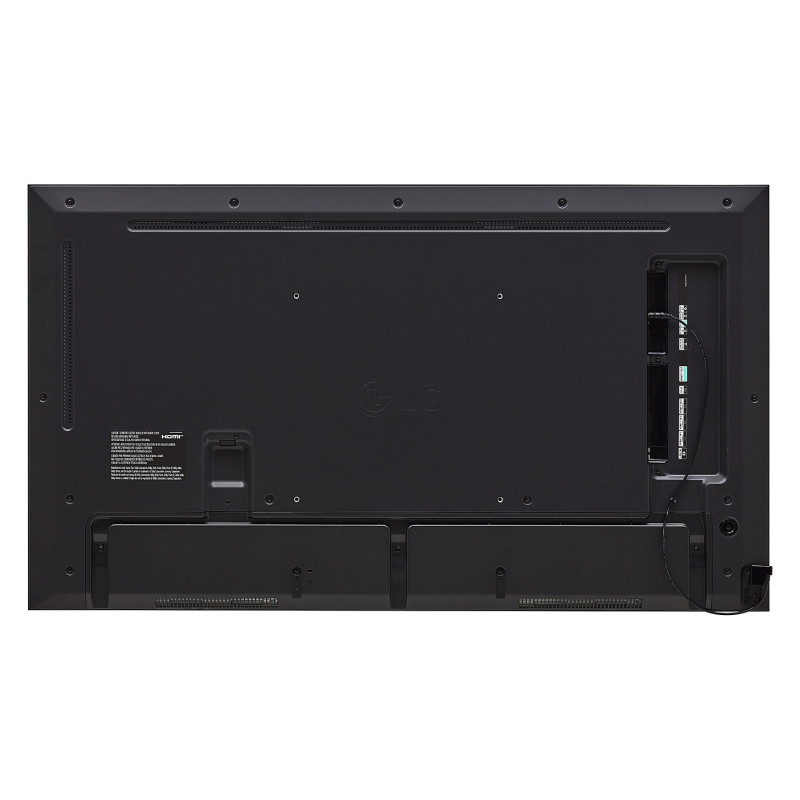

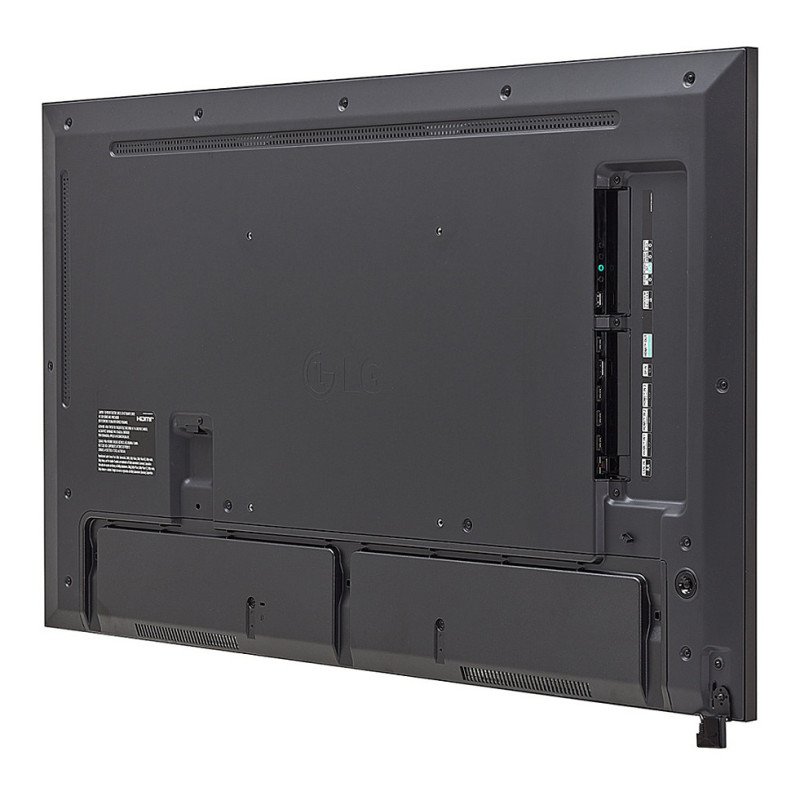

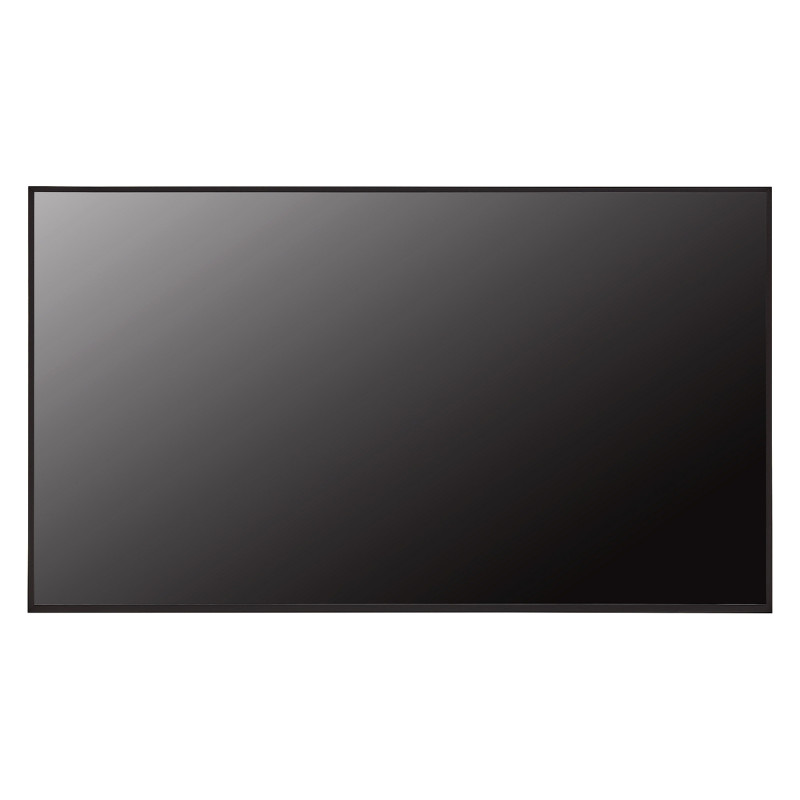

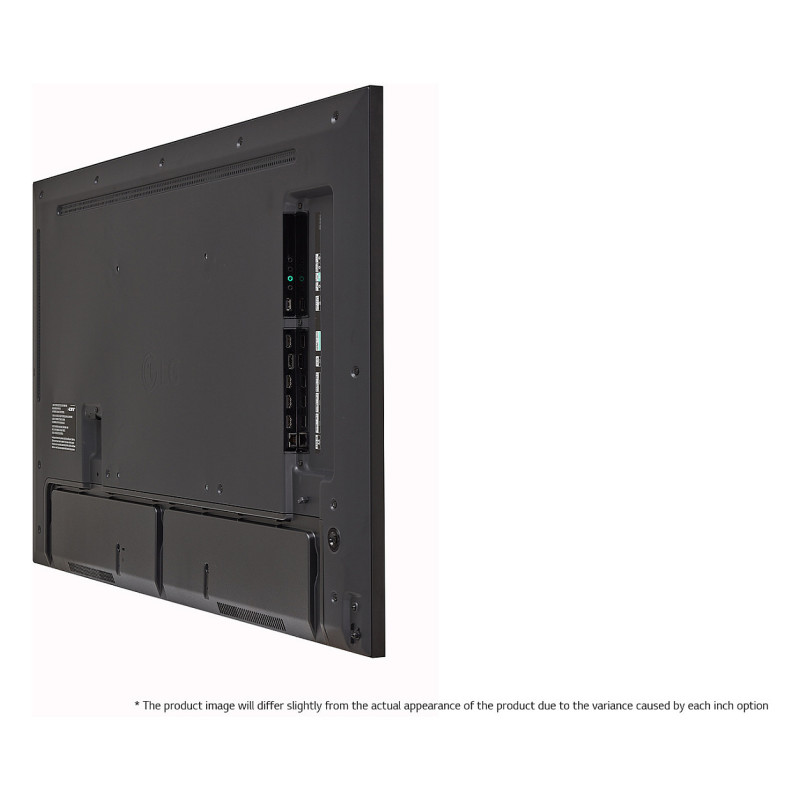

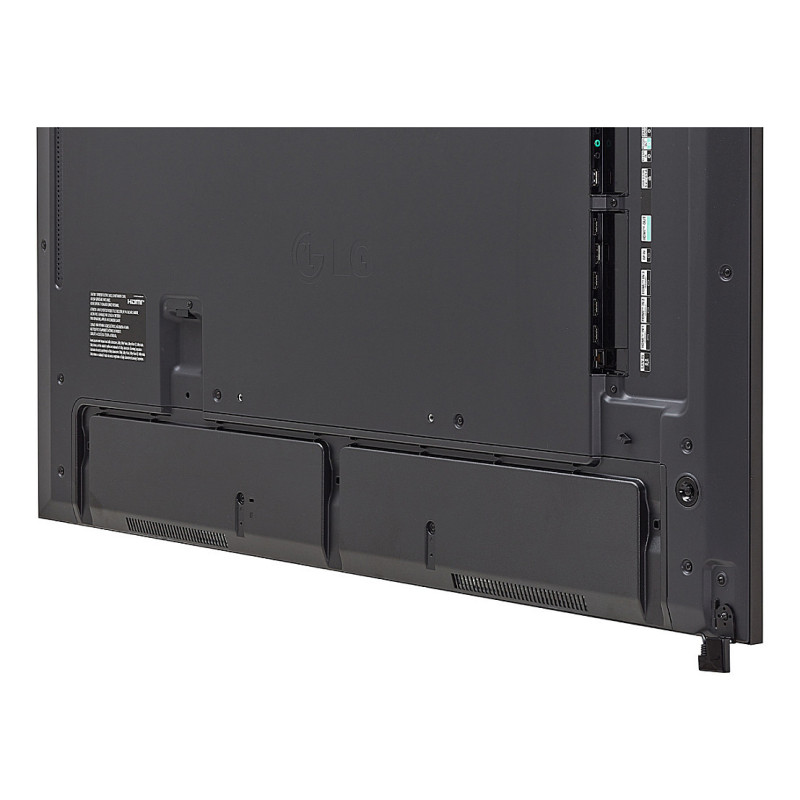

LG 55UH5N-M Signage Display

LG 55UH5N-M. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
UHD Signage Display with
LG webOS Platform and Advanced Security
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space Utilization

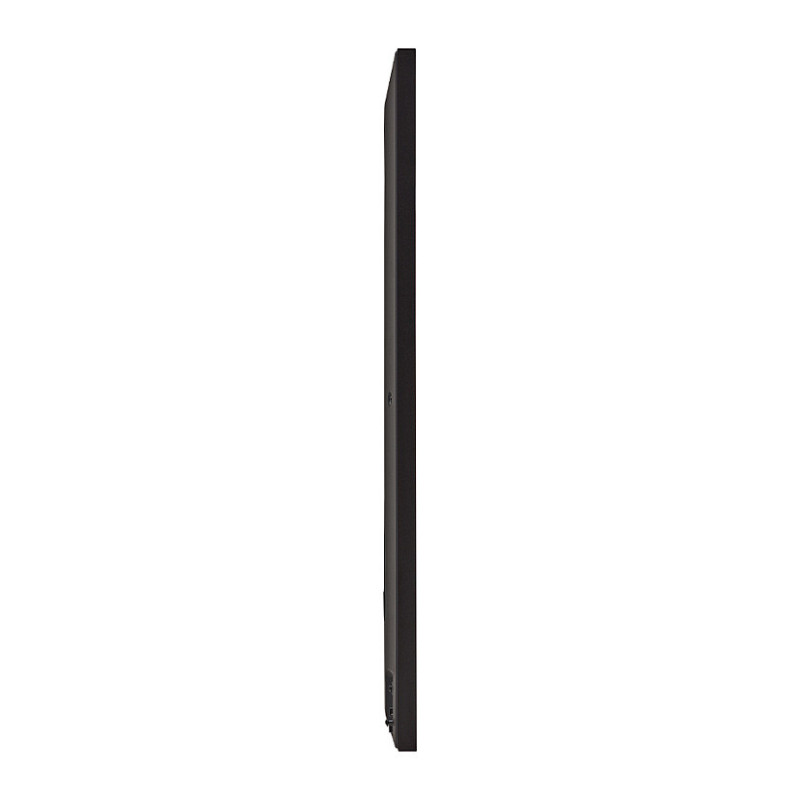

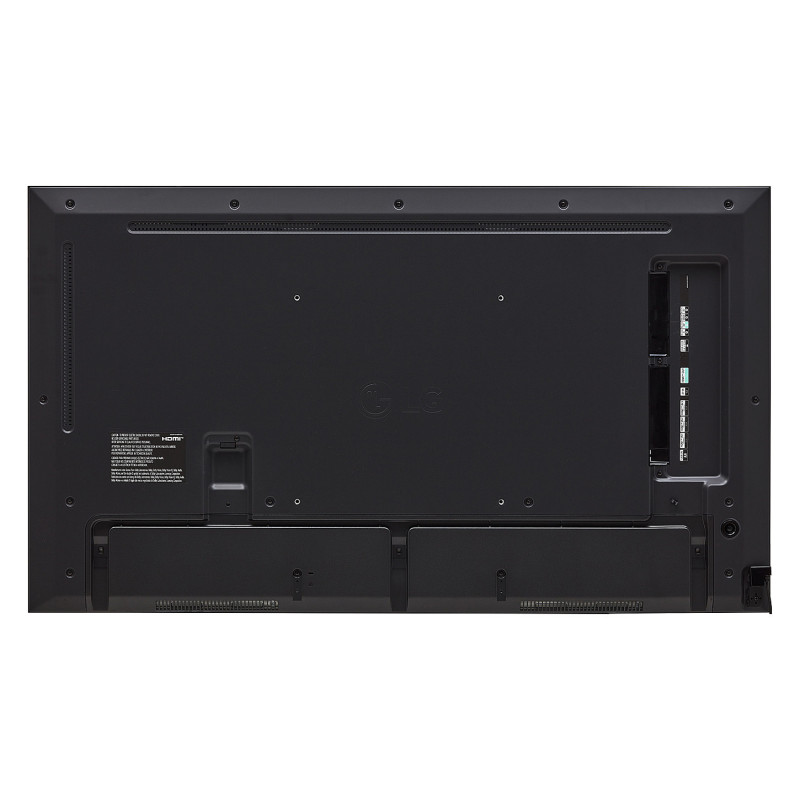

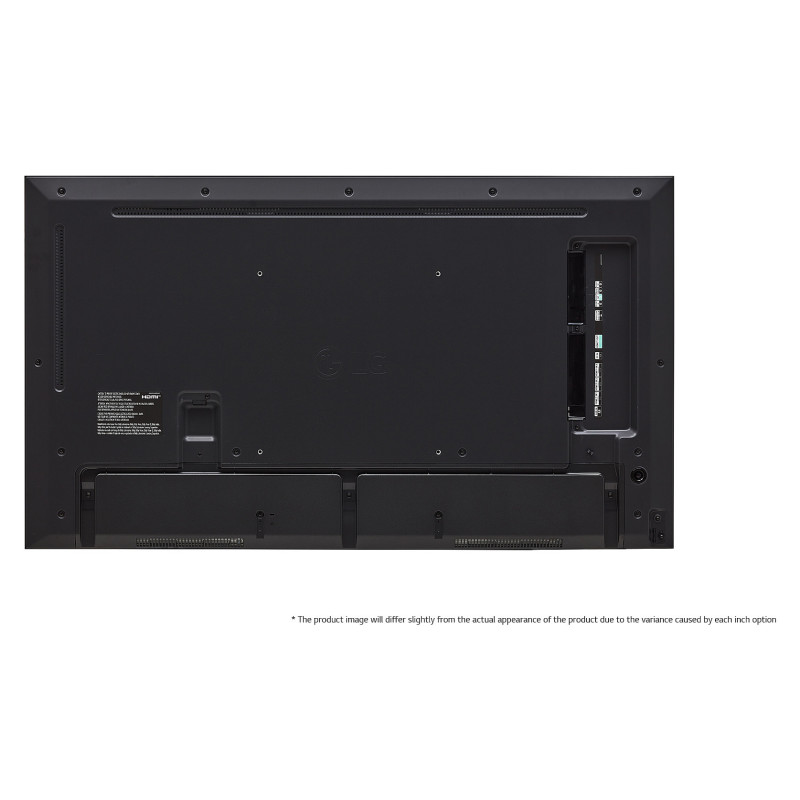

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Display

Panel type: IPS
LED backlight: Yes
LED backlighting type: Edge-LED
Display diagonal: 139.7 cm (55")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 1000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 50000 h
Colour depth: 10 bit
Native refresh rate: 60 Hz
Haze rate: 25%
Colour gamut: 95%

Ports interfaces

HDMI ports quantity: 3
HDMI input ports quantity: 3
DVI port: No
DisplayPorts quantity: 1
USB port: Yes
USB ports quantity: 1
USB version: 2.0
USB connector type: USB Type-A
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Remote (IR) input: 1

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
VESA mounting: Yes
Panel mounting interface: 300 x 300 mm
Bezel width (bottom): 1.29 cm
Bezel width (side): 8.9 mm
Bezel width (top): 8.9 mm

Performance

Purpose: Universal
Picture-in-Picture: Yes
On Screen Display (OSD): Yes
Operating hours (hours/days): 24/7
HDCP: Yes
Automatic brightness control: Yes
International Protection (IP) code: IP5X
HDCP version: 1.4/2.2/2.3

Power

Power consumption (typical): 103 W
Power consumption (standby): 0.5 W
Power consumption (max): 160 W

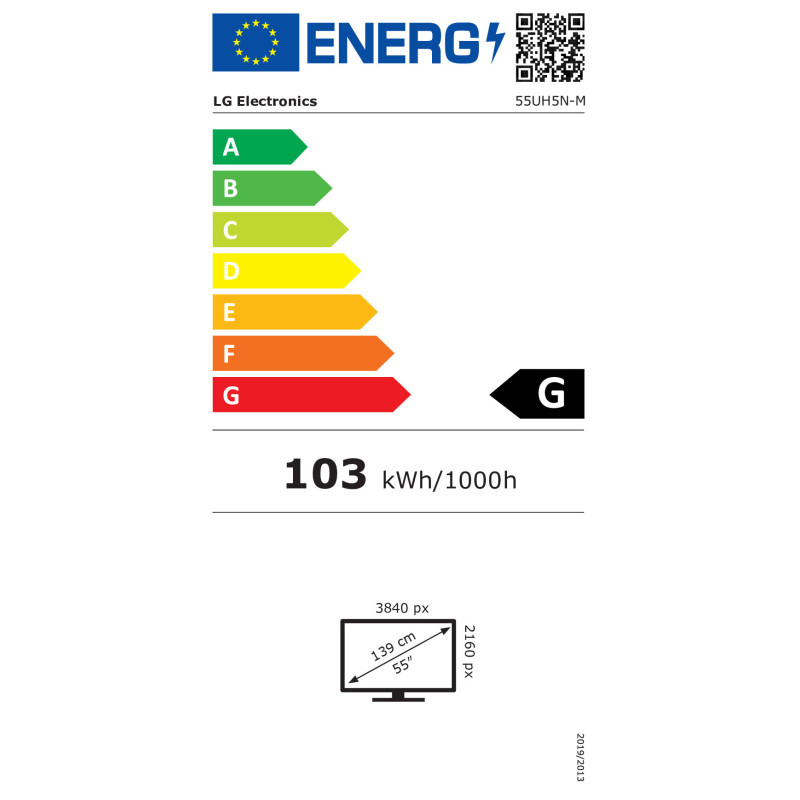

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 103 kWh
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Heat dissipation: 351 BTU/h

Computer system

Computer system: Yes
Computer system type: System on Chip (SoC)
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: 6.0

Weight dimensions

Display width: 1231.4 mm

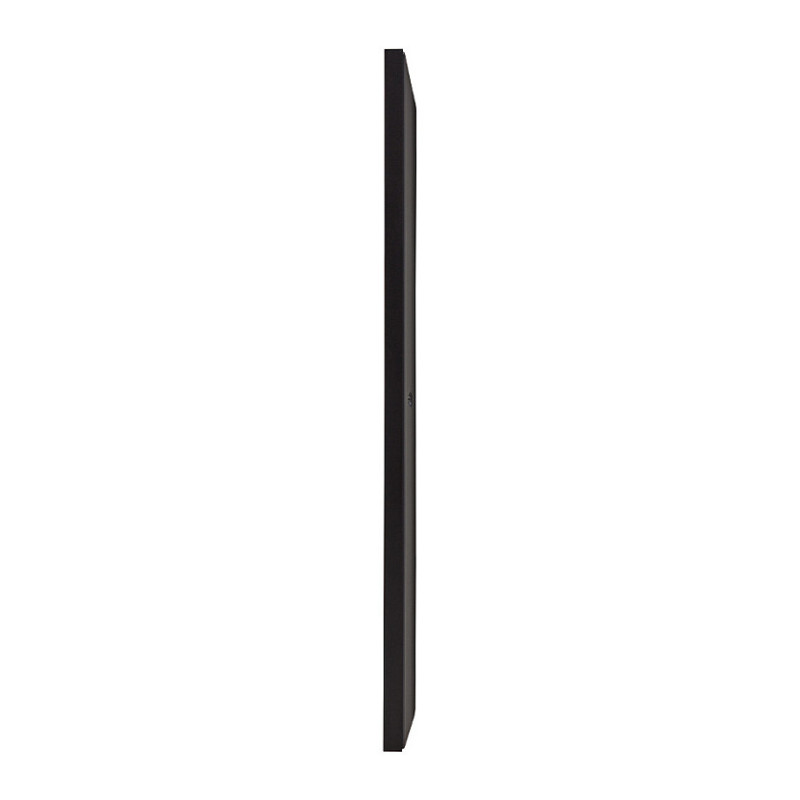

Display depth: 29.7 mm
Display height: 707.2 mm
Display weight: 16.1 kg

Packaging data

Package width: 1360 mm
Package depth: 161 mm
Package height: 801 mm
Package weight: 20.5 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, Phone

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Network

Ethernet LAN: Yes
Wi-Fi: Yes

Features

Heat dissipation (max): 546 BTU/h

Technical details

Real Time Clock (RTC): Yes

Other features

Audio output: 1
Power consumption (PowerSave): 72 W
Power supply type: Internal
Plug and Play: Yes
