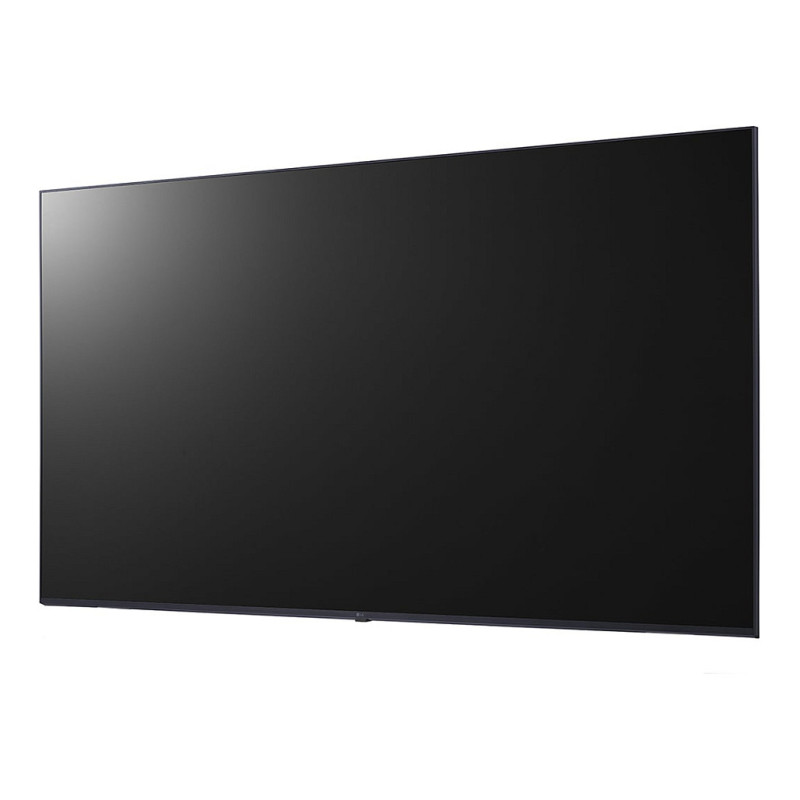

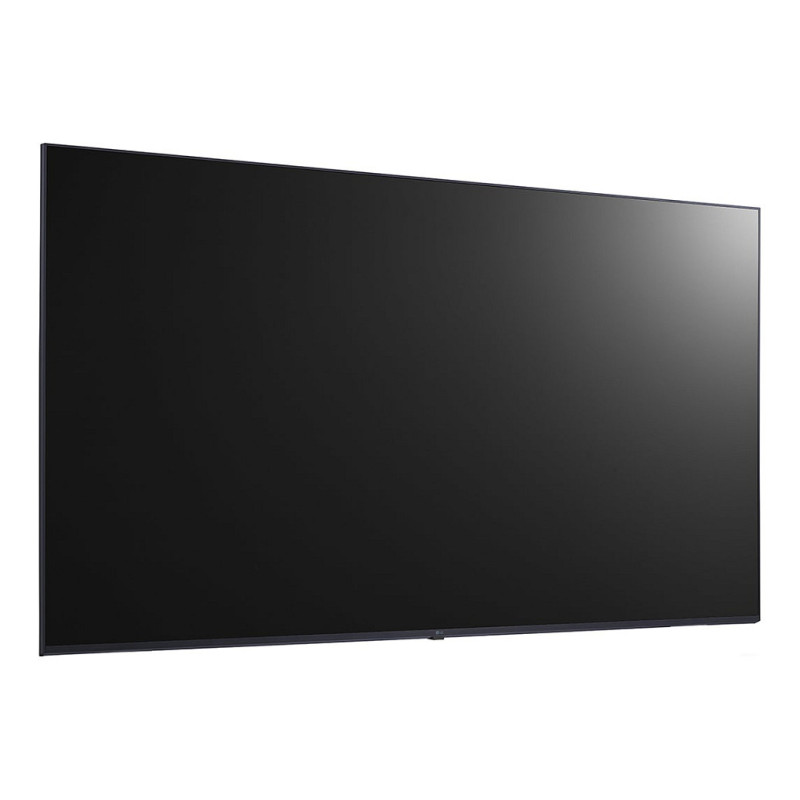

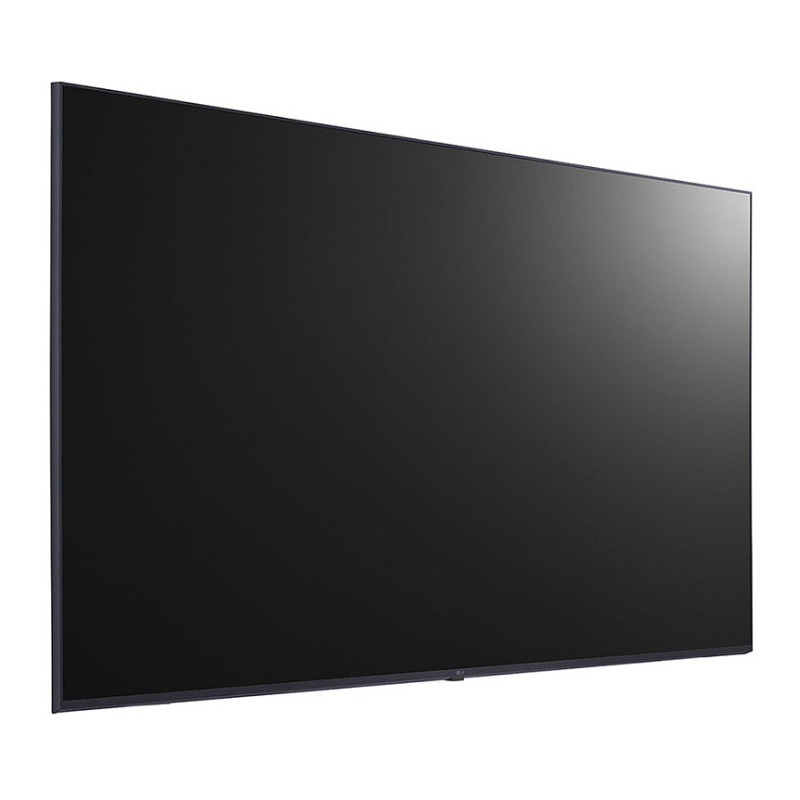

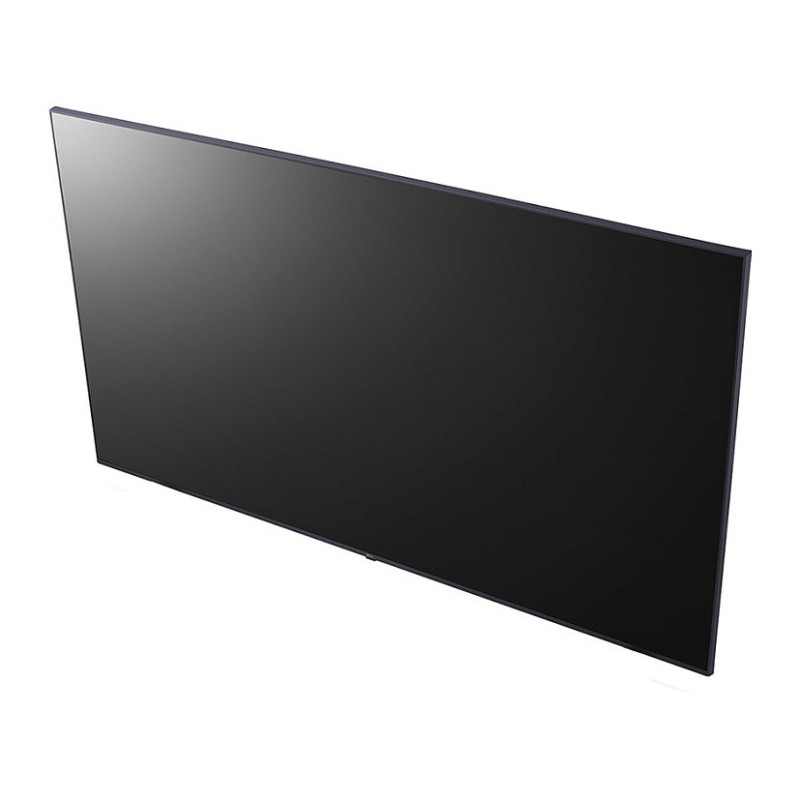

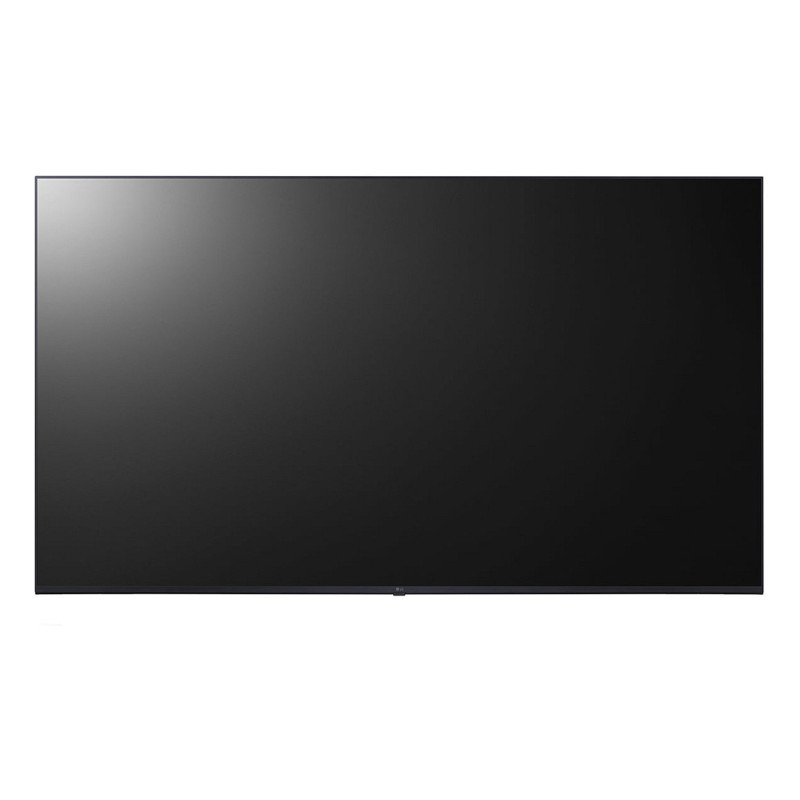

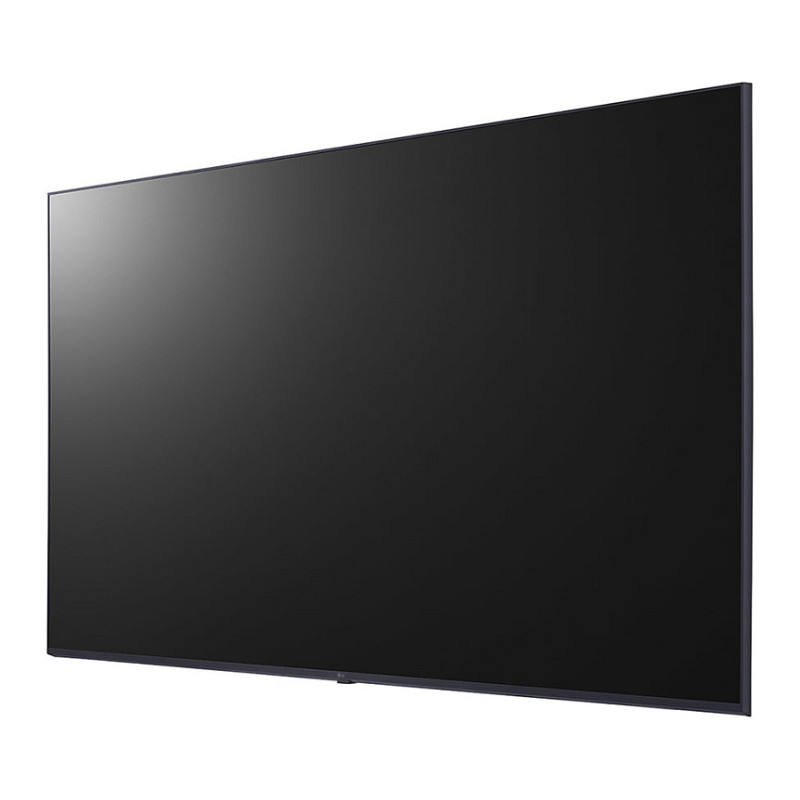

LG 50UL3J-M Signage Display

LG 50UL3J-M. Product design: Digital signage flat panel. Display diagonal: 127 cm (50"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: WebOS. Product colour: Blue

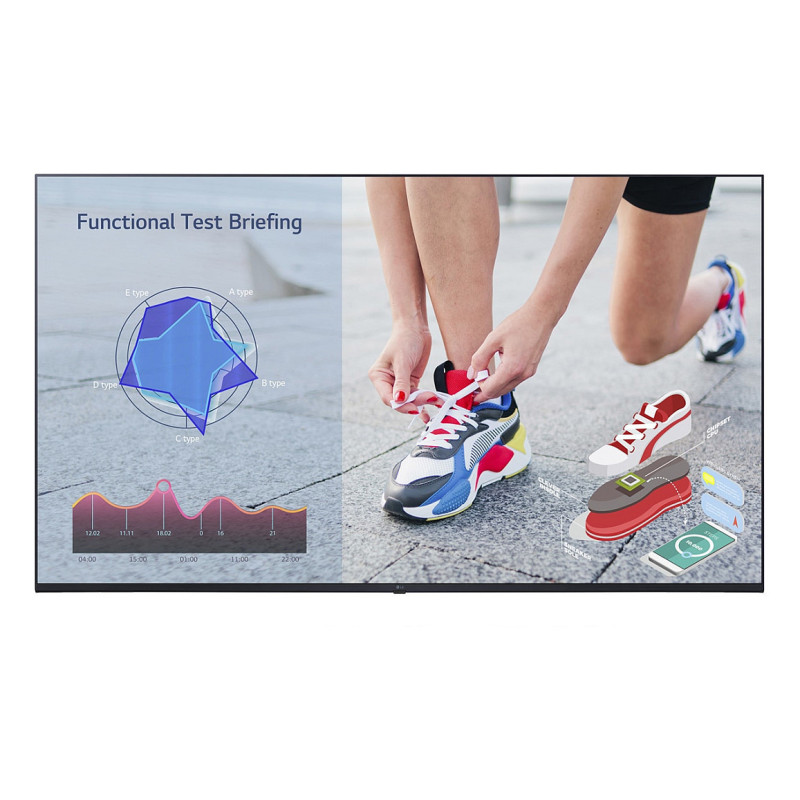

Superb Picture Quality with Ultra HD Resolution
With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

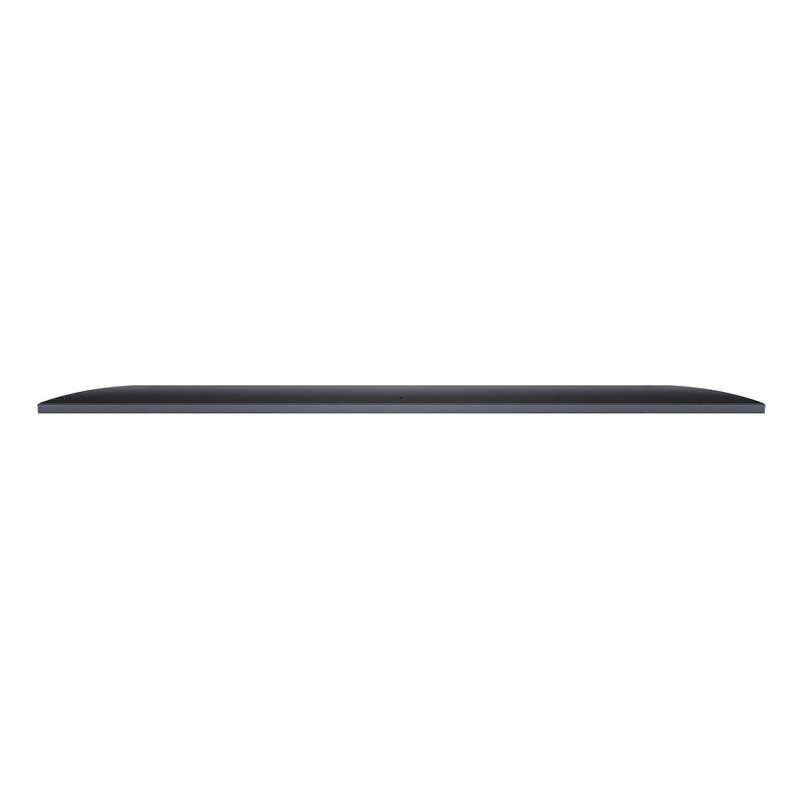

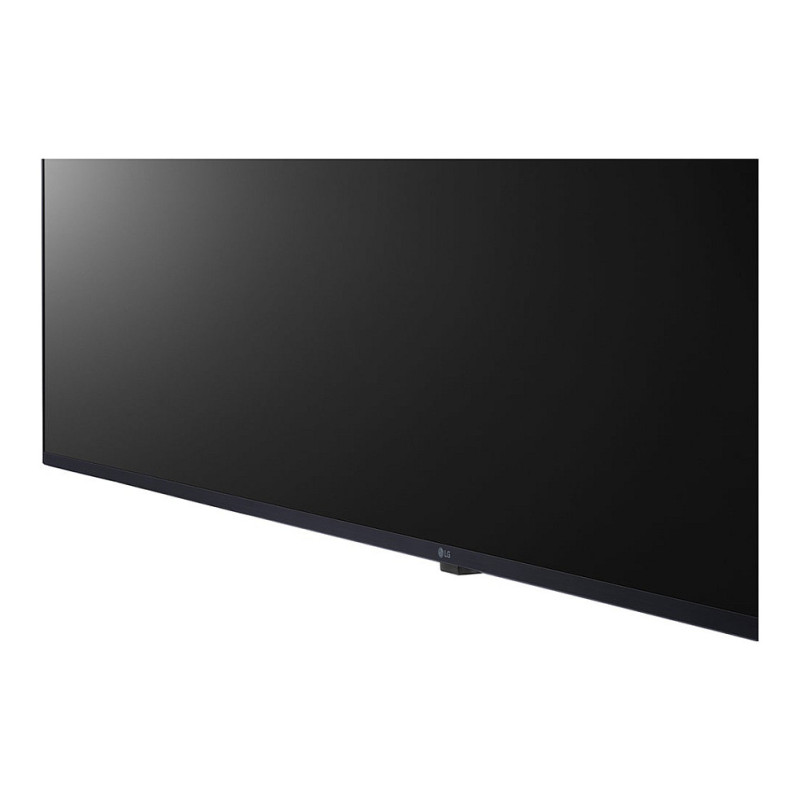

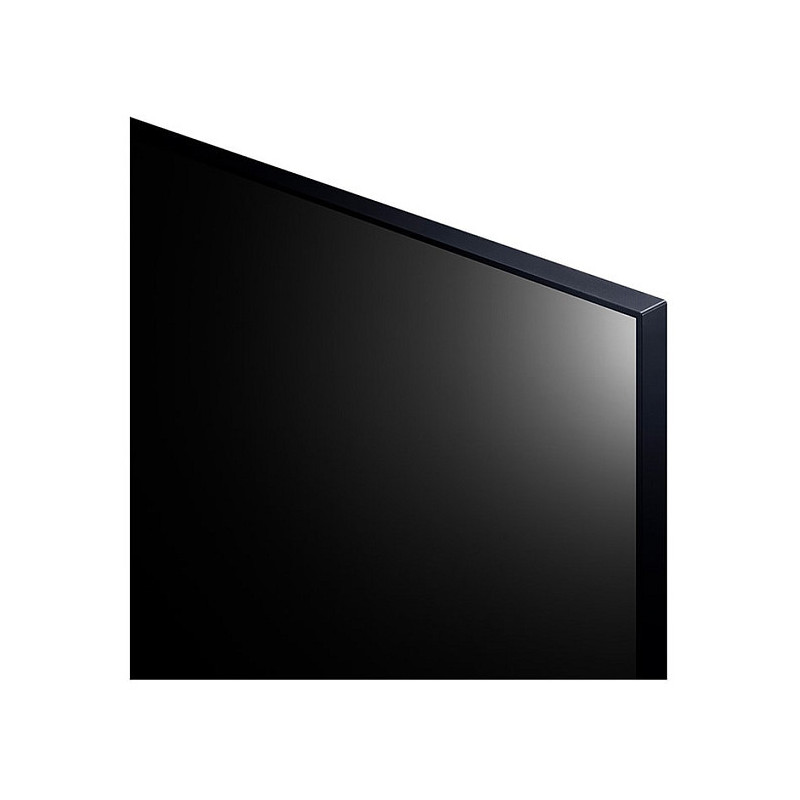

Sophisticated Slim Design
This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.
High-Performance with LG webOS 6.0
LG webOS 6.0, upgraded in SoC and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.
Various Sensor Connection
LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
LG's Simple Advertisement Helper, Promota
Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.
LG's Wireless Screen Sharing Solution, LG One:Quick Share
LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.
Remote Monitoring and Control
This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.
Compatible with AV Control Systems
The UL3J series supports Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Compatible with Video Conference System
For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control for a smarter video conference.
Easy Menu Setup for
Vertical Needs
UL3J series increases users' convenience by organizing frequently used menus by industry.
Easy Content Distribution
SW Update
UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.
Wireless Access Point
UL3J series operates as a virtual router which can be an wireless access point for mobile devices.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

Display

Panel type: ADS
LED backlight: Yes
LED backlighting type: Direct-LED
Display diagonal: 127 cm (50")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 400 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Native aspect ratio: 16:9
Response time: 6 ms
Contrast ratio (typical): 5000:1
Contrast ratio (dynamic): 1000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Panel life: 30000 h
Native refresh rate: 60 Hz
Haze rate: 2%

Ports interfaces

HDMI ports quantity: 3
HDMI input ports quantity: 3
DVI port: No
USB port: Yes
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Number of speaker outputs: 1
RS-232C: Yes

Audio

Built-in speaker(s): Yes

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Blue
VESA mounting: Yes
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.84 cm
Bezel width (side): 7.3 mm
Bezel width (top): 7.3 mm

Performance

Purpose: Universal
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish
Operating hours (hours/days): 16/7
HDCP: Yes
HDCP version: 1.4/2.2

Power

Power consumption (typical): 90 W
Power consumption (standby): 0.5 W
Power consumption (max): 130 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 81.8 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Computer system type: System on Chip (SoC)
Internal memory: 16 GB
Operating system installed: WebOS
Operating system version: 6.0

Weight dimensions

Display width: 1215 mm
Display depth: 57.1 mm
Display height: 651 mm
Display weight: 11.7 kg

Packaging data

Package width: 1215 mm
Package depth: 152 mm
Package height: 775 mm
Package weight: 14.4 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, Phone

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Network

Ethernet LAN: Yes
Wi-Fi: Yes

Technical details

Real Time Clock (RTC): Yes

Other features

Power consumption (PowerSave): 63 W
Power supply type: Internal
Plug and Play: Yes
