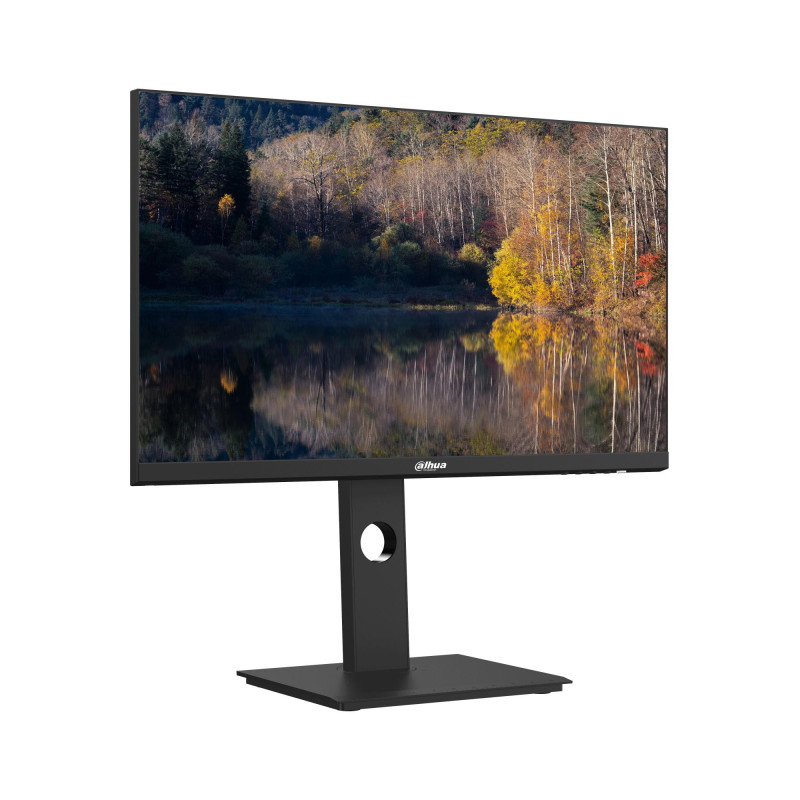

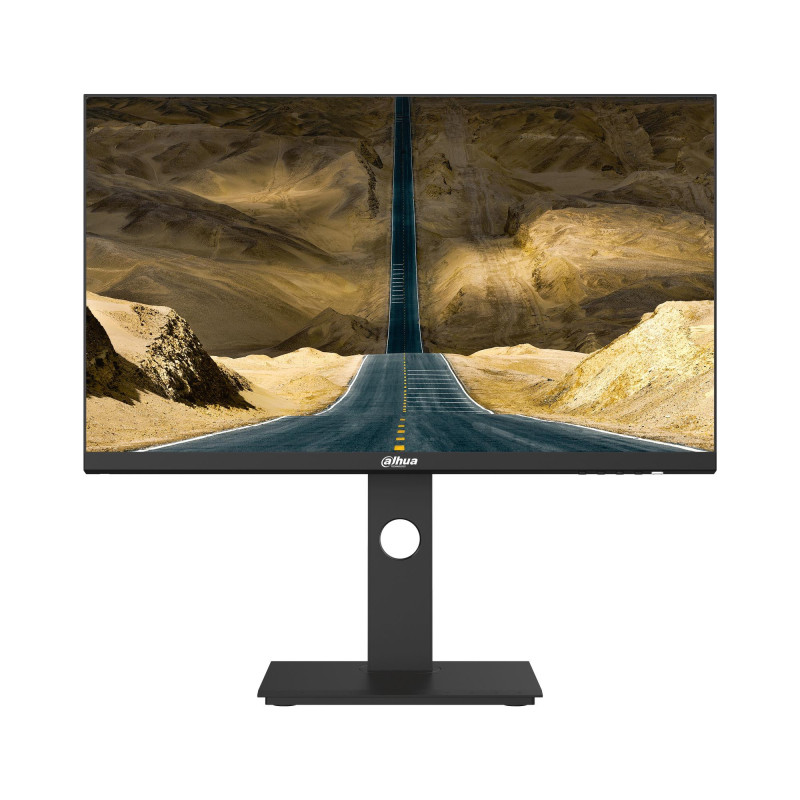

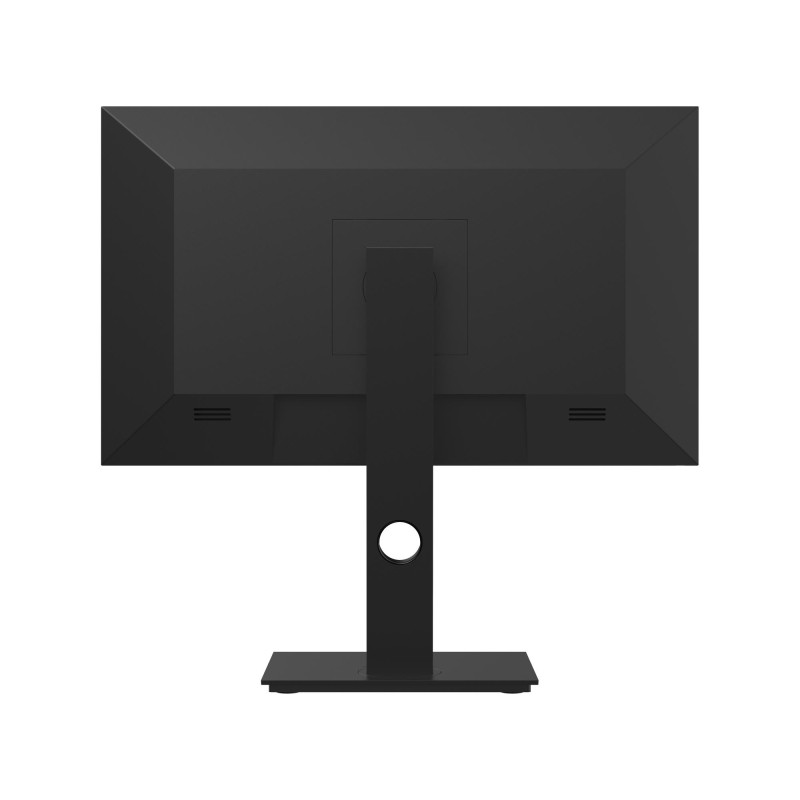

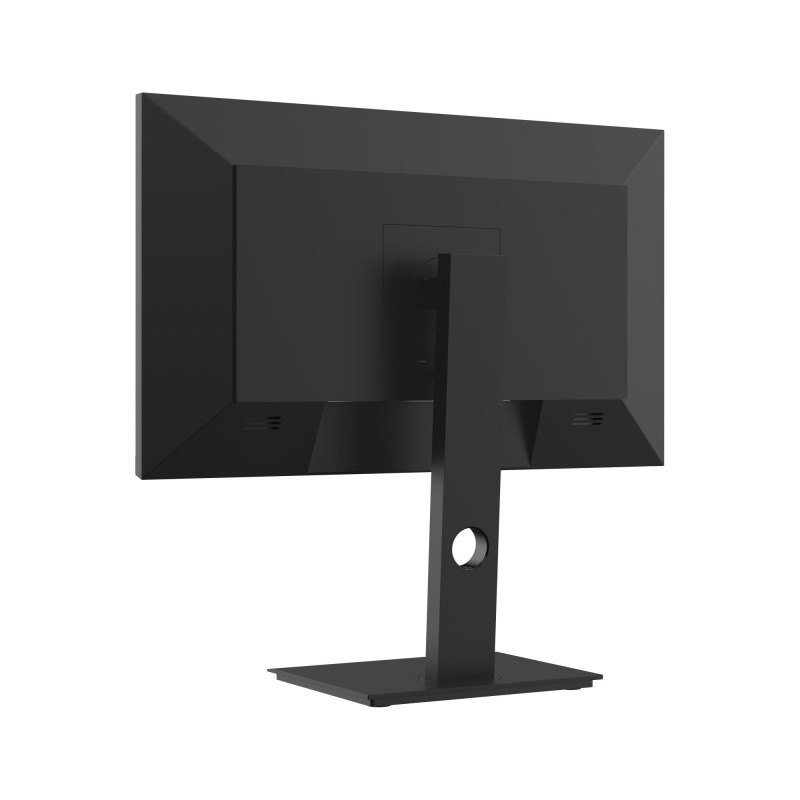

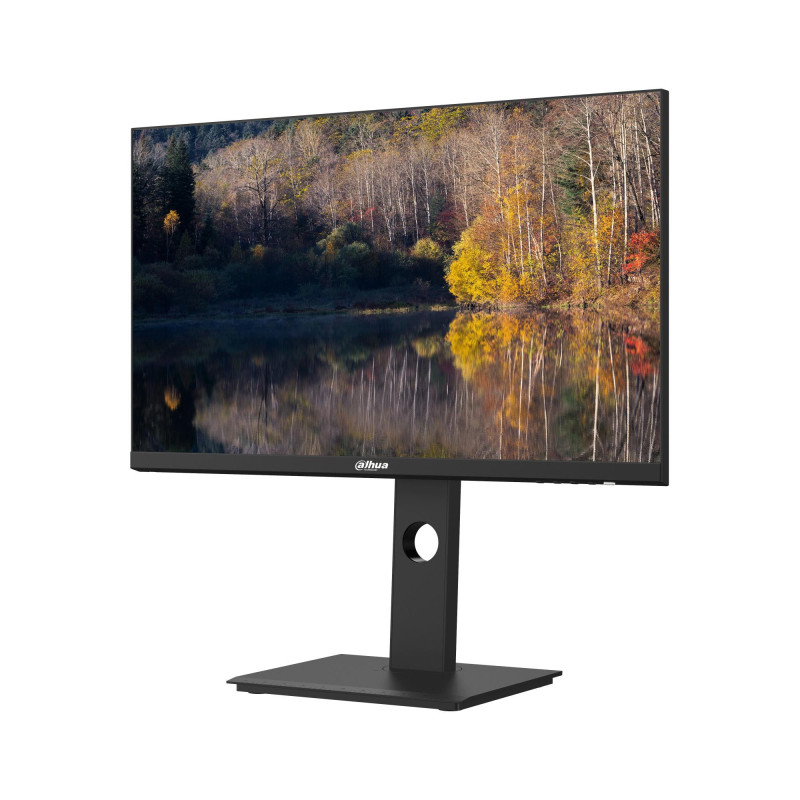

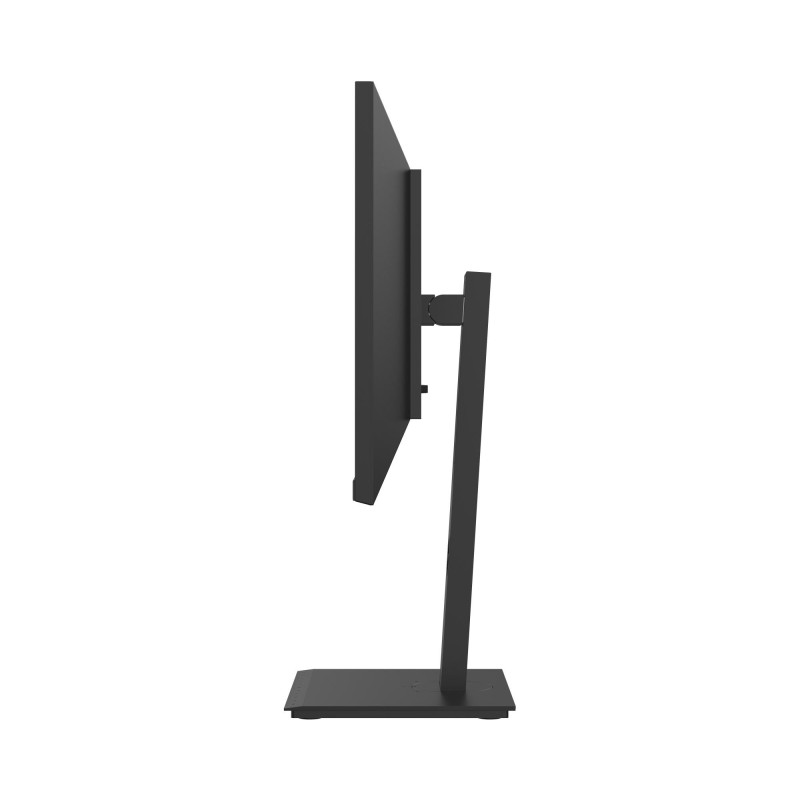

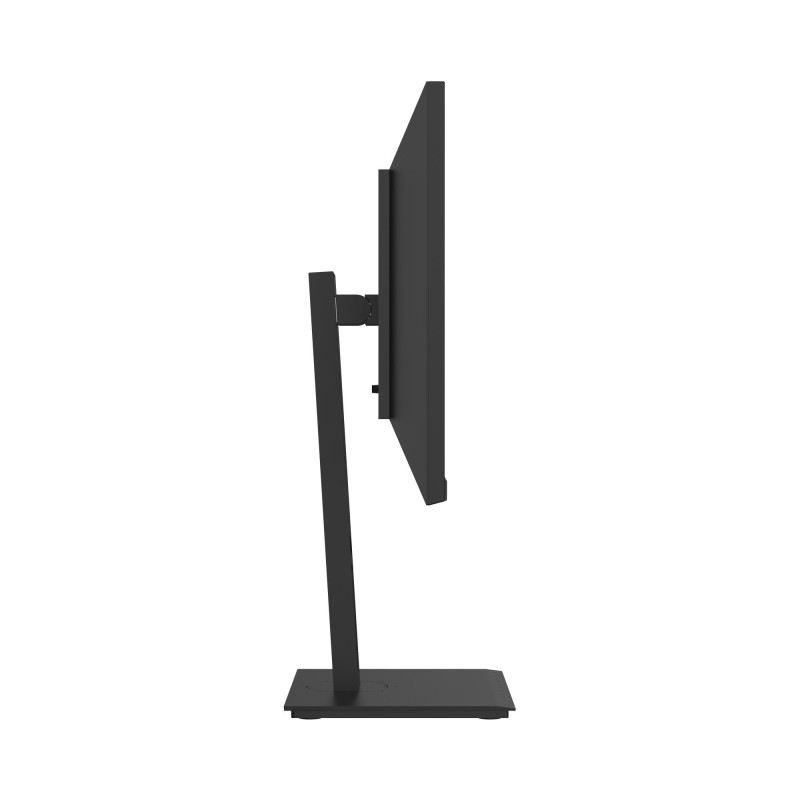

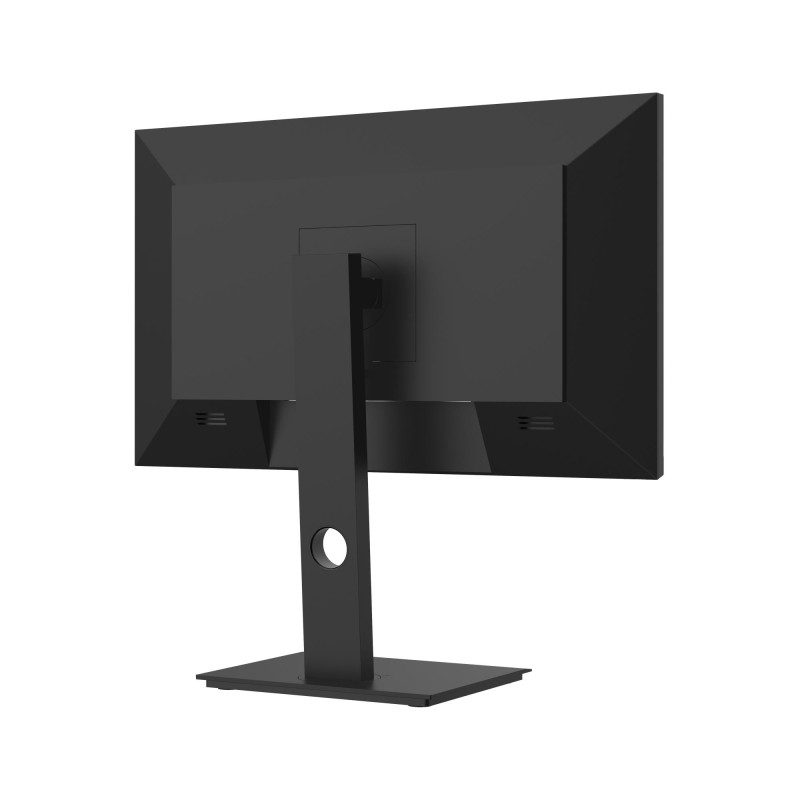

LCD Monitor, DAHUA, DHI-LM24-P301A, 23.8", 2560x1440, 16:9, 75Hz, 6 ms, Swivel, Tilt, Colour Black, LM24-P301A
Product reference:
2-6923172579744
LCD Monitor, DAHUA, DHI-LM24-P301A, 23.8", 2560x1440, 16:9, 75Hz, 6 ms, Swivel, Tilt, Colour Black, LM24-P301A
Product reference:
2-6923172579744
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
- The 2560*1440 resolution produces clearer and more vivid pictures
- IPS panel for wide viewing angles with 3-sided frameless design
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- Wide color gamut：99% sRGB, 120% NTSC, 98% DCI-P3
- Rich interfaces, 65W type-C can support reverse charging
- 6ms fast response time with no image blurring or ghosting
- Supporting PIP/PBP to display the screens of two devices on the display simultaneously
- The angle can be adjusted to meet different needs
| AC (power) in | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Adjustable height (max) | 125 mm |
| Adobe RGB coverage | 93 % |
| Aspect ratio | 16:9 |
| Audio output | Yes |
| Backlight type | Edge LED |
| Built-in camera | No |
| Built-in speaker(s) | No |
| Built-in USB hub | Yes |
| Cables included | AC/HDMI |
| Colour gamut | 98 % |
| Colour gamut standard | DCI-P3 |
| Contrast ratio (typical) | 1000:1 |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/1363937/fiches?language=EN |
| Depth (without stand) | 53.25 mm |
| Detachable stand | Yes |
| Display brightness (typical) | 320 cd/m² |
| Display diagonal | 23.8 " |
| Display resolution | 2560 x 1440 pixels |
| Display technology | LED |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| Energy efficiency class | F |
| Energy efficiency class (SDR) | F |
| Energy efficiency scale | A to G |
| EPREL Registration Number | 1363937 |
| EPREL Version Number | 1 |
| European Product Registry for Energy Labelling (EPREL) code | 1363937 |
| Feet colour | Black |
| HD type | Quad HD |
| HDMI | Yes |
| HDMI cable length | 1.5 m |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone out | No |
| Height (without stand) | 324.46 mm |
| Height adjustment | Yes |
| Input current | 2 A |
| Market positioning | Business |
| Maximum refresh rate | 75 Hz |
| Model | DHI-LM24-P301A |
| Model name | DHI-LM24-P301A |
| Native aspect ratio | 16:9 |
| NTSC coverage (typical) | 102 % |
| On Screen Display (OSD) | Yes |
| Operating relative humidity (H-H) | 10 - 85 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package depth | 127 mm |
| Package height | 397 mm |
| Package type | Box |
| Package weight | 8200 g |
| Package width | 779 mm |
| Panel mounting interface | 75 x 75 mm |
| Panel type | IPS |
| Picture-in-Picture | Yes |
| Pivot | Yes |
| Pivot angle | 0 - 90 ° |
| Power consumption (max) | 130 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 35 W |
| Power supply type | Internal |
| Product colour | Black |
| Product Net Weight | 5.7 kg |
| Response time | 6 ms |
| Screen shape | Flat |
| Shipping Box Depth | 78.5 cm |
| Shipping Box Height | 39.5 cm |
| Shipping Box Weight | 7.4 kg |
| Shipping Box Width | 12.5 cm |
| sRGB coverage (typical) | 99 % |
| Stand included | Yes |
| Summary | Dahua Technology LM24-P301A. Display diagonal: 60.5 cm (23.8"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting, Height adjustment. Product colour: Black |
| Supported graphics resolutions | 2560 x 1440 |
| Swivel angle range | -45 - 45 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 20 ° |
| Touchscreen | No |
| Unit Box Height | 0.395 |
| Unit Box Length | 0.785 |
| Unit Box Width | 0.125 |
| Unit Calculated Volume | 0.03876 cubm |
| Unit Calculated Weight | 7.4 kg |
| Units per Shipping Box | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C downstream ports quantity | 1 |
| Vendor Homepage | https://display.dahuasecurity.com/consumer/en/products/productDetail?product_id=115227 |
| VESA mounting | Yes |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Wall mountable | Yes |
| Weight (without stand) | 5700 g |
| Width (without stand) | 539.6 mm |
