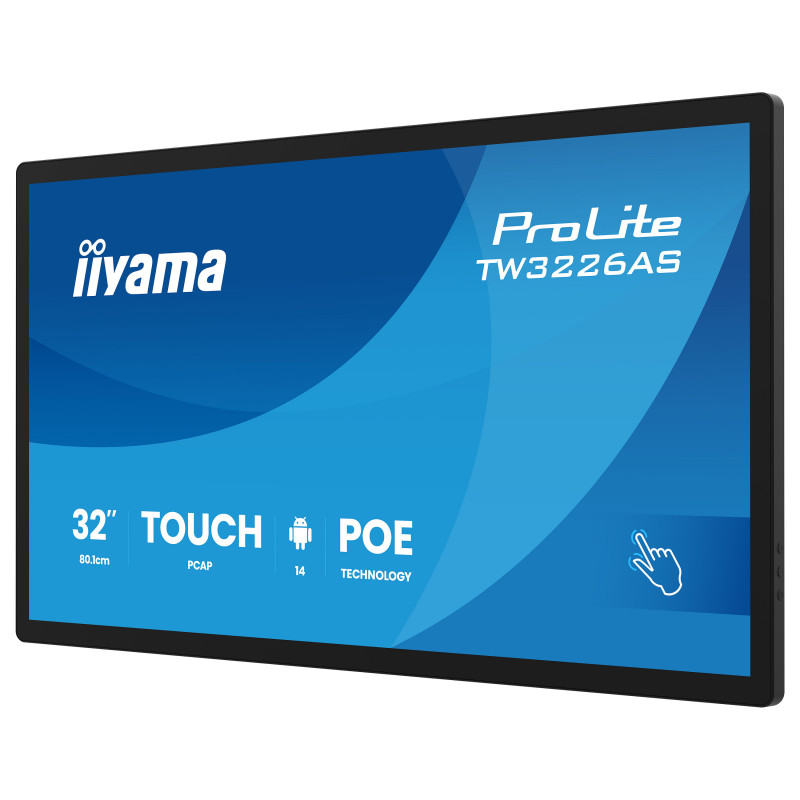

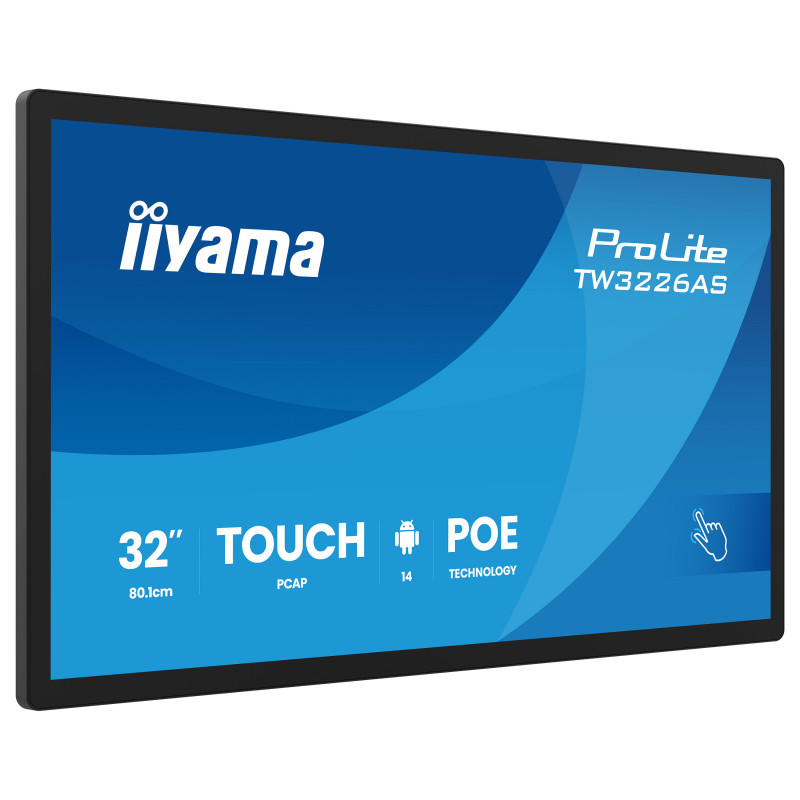

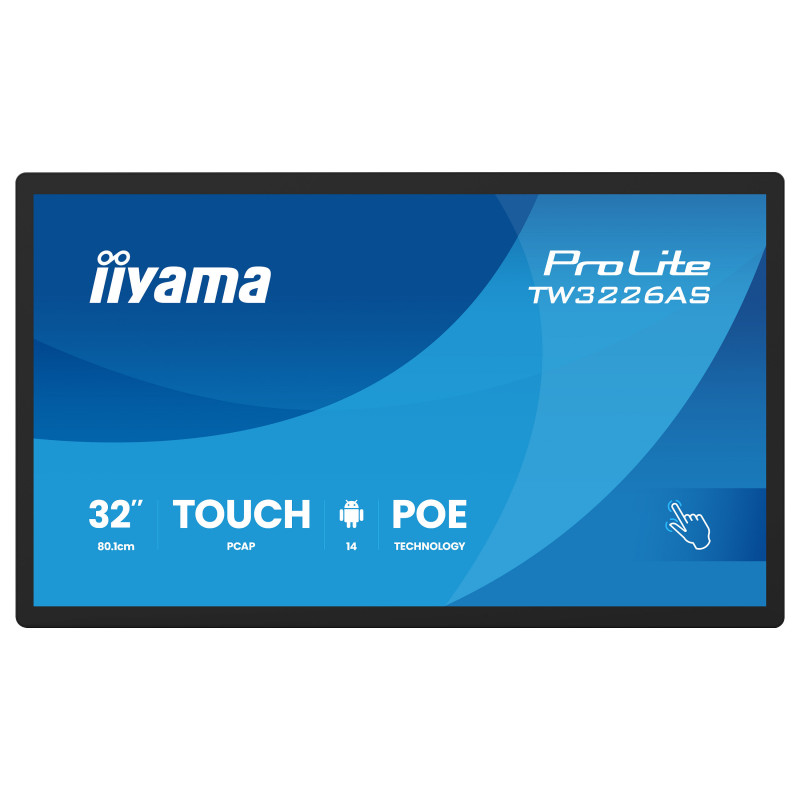

iiyama TW3226AS-B3P Signage Display

iiyama TW3226AS-B3P. Product design: Kiosk design. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 430 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

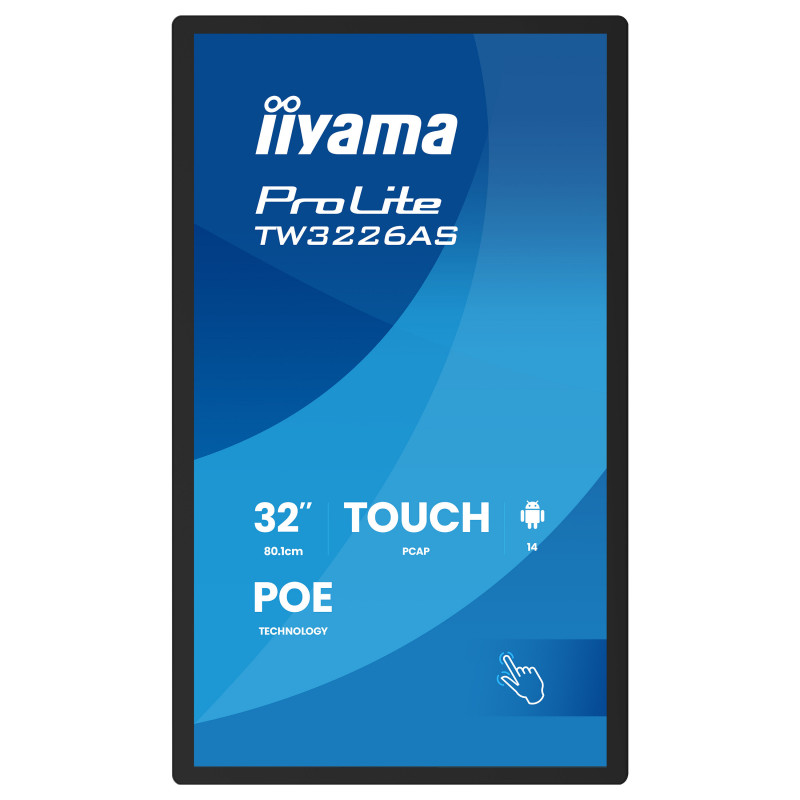

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama's Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display

Panel type: VA
Display diagonal: 80 cm (31.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 430 cd/m²
HD type: Full HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Multi-touch: Yes
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Active display area (W x H): 698.4 x 392.8 mm
Display diagonal (metric): 80.1 cm
Colour depth: 8 bit
Surface hardness: 3H

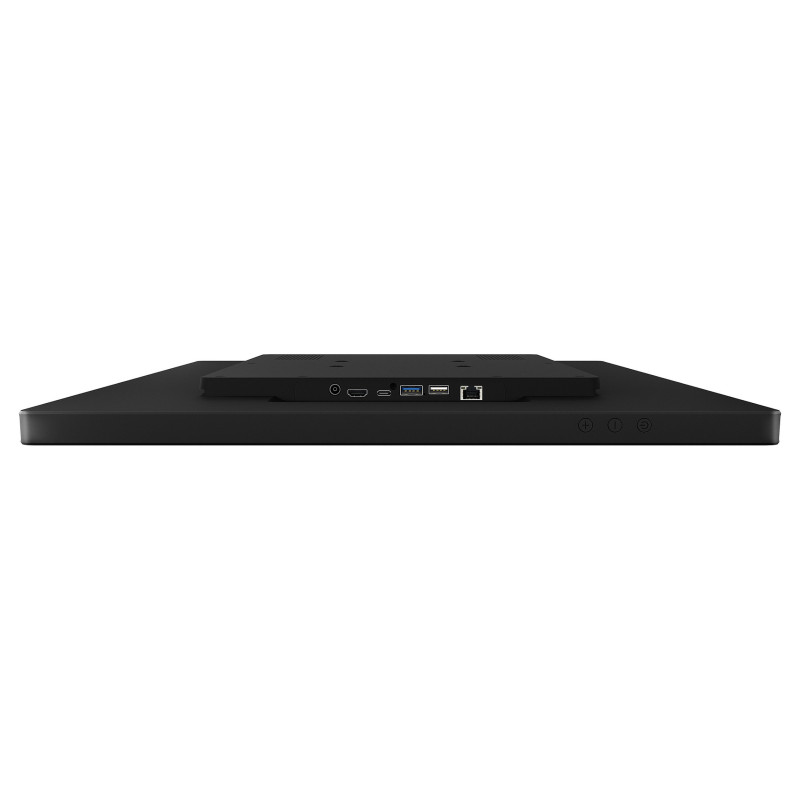

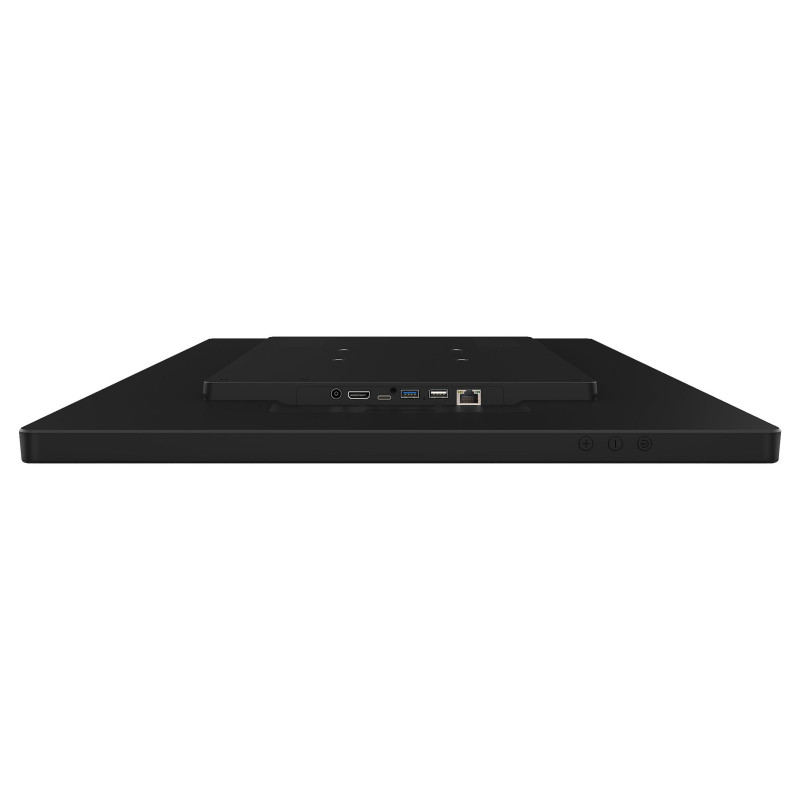

Ports & interfaces

HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
DVI port: No
USB port: Yes
USB ports quantity: 3
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
DC-in jack: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black

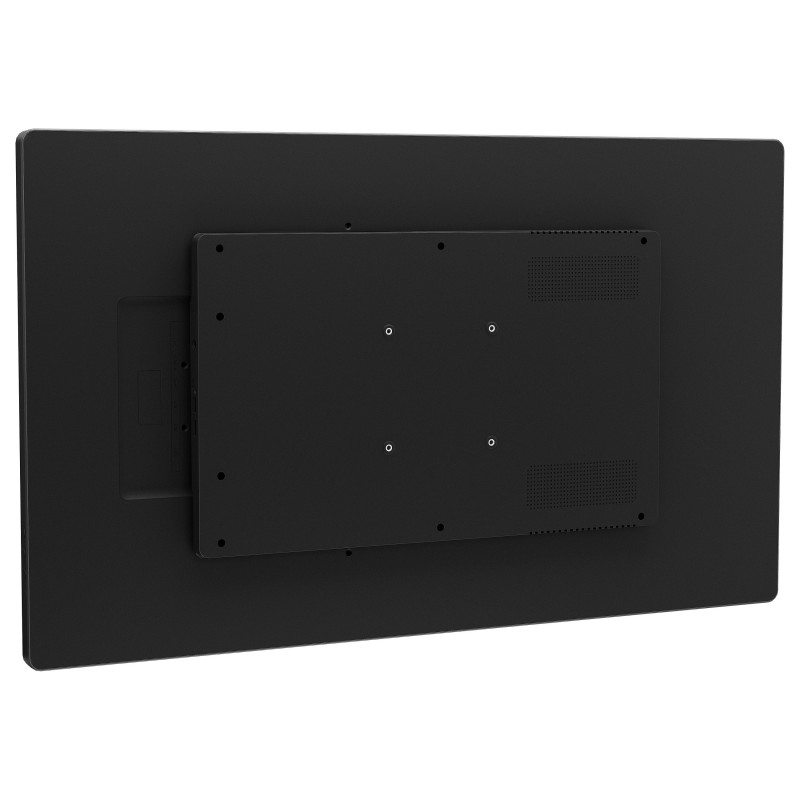

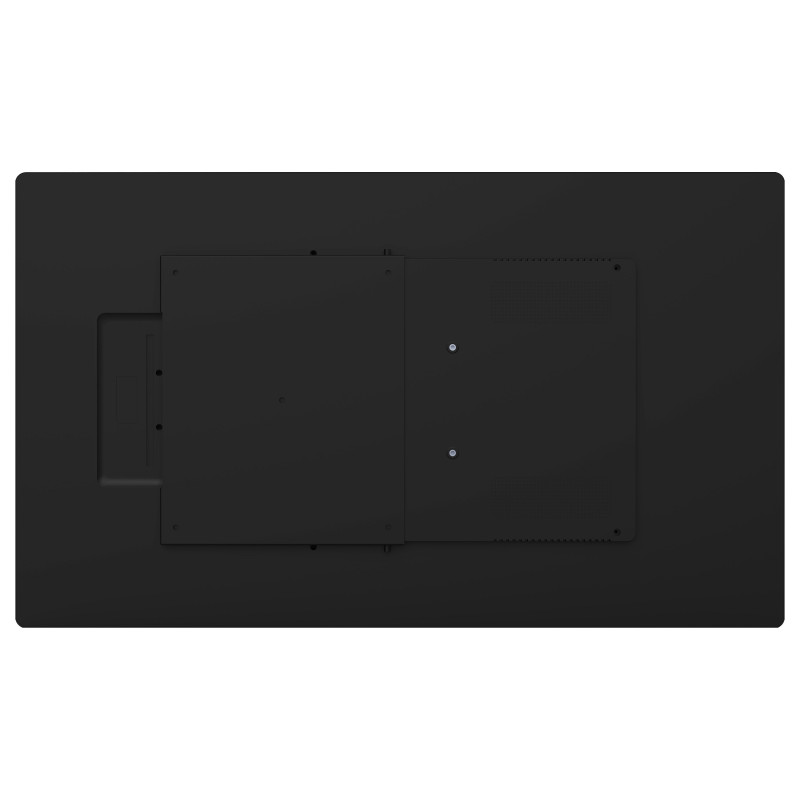

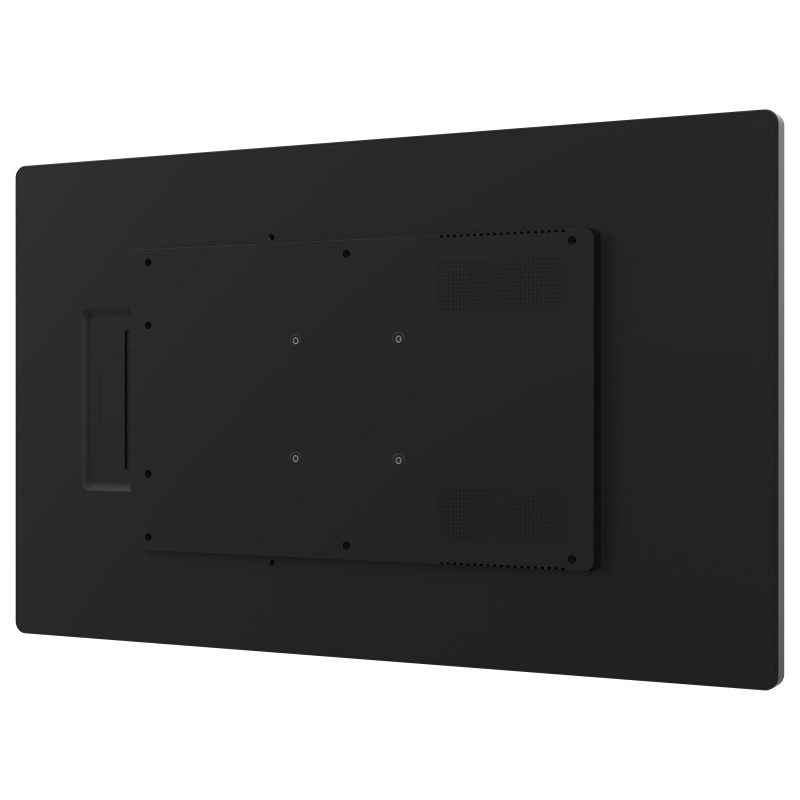

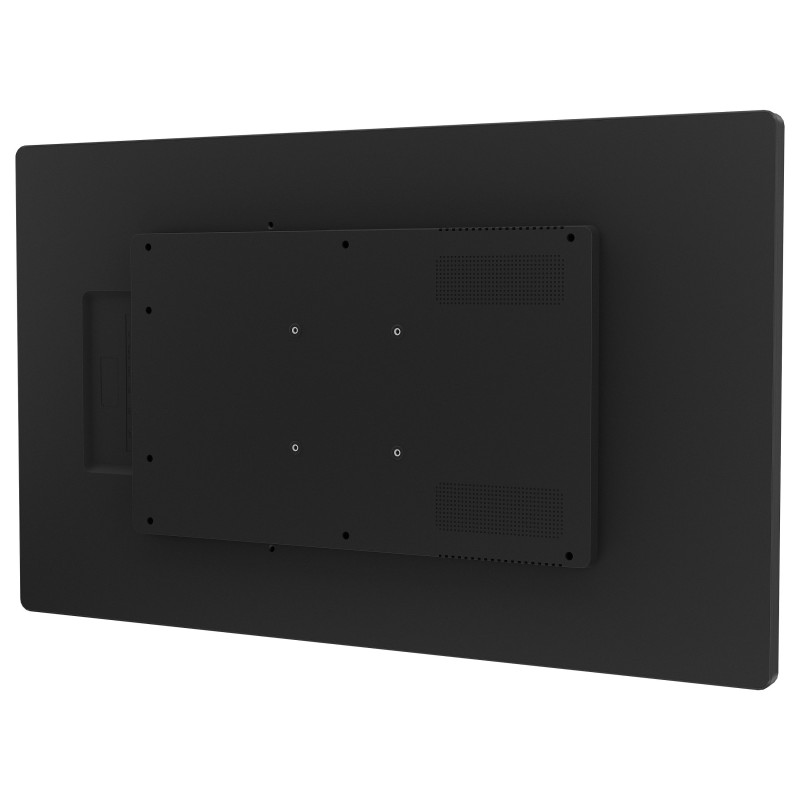

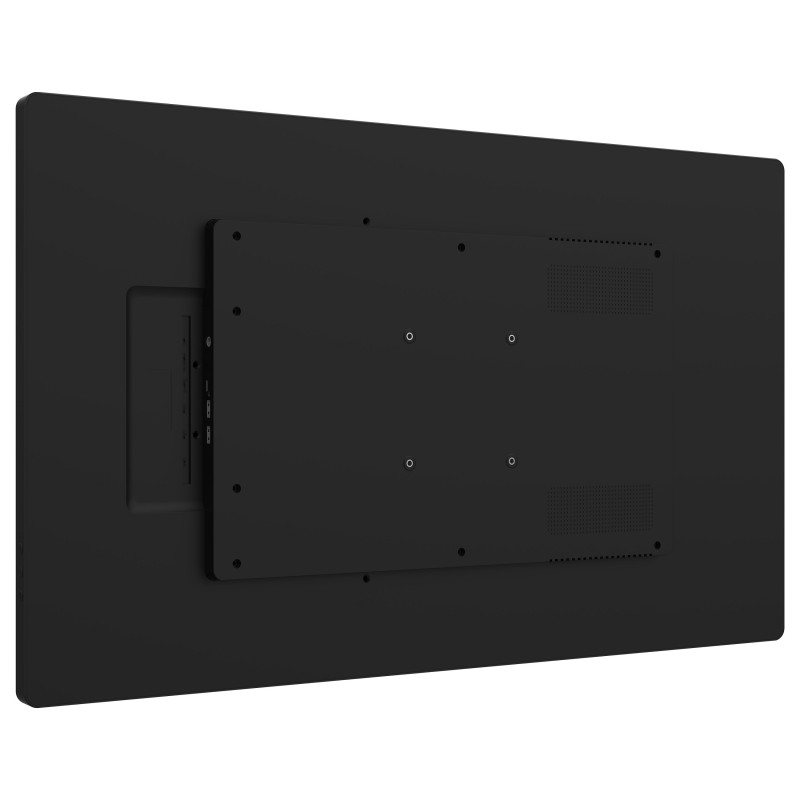

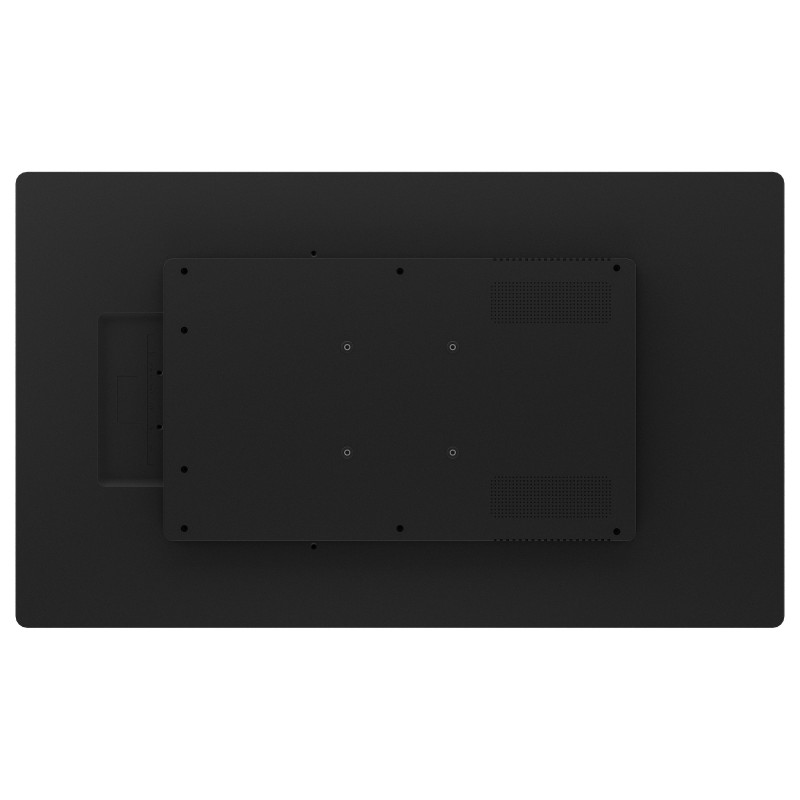

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Bezel colour: Black

Performance

Purpose: Universal
Operating hours (hours/days): 24/7
HDCP: Yes
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 36.34 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

Computer system

Built-in processor: Yes
Processor manufacturer: ARM
Processor family: ARM Rockchip
Processor model: Rockchip RK3576
Processor architecture: ARM Cortex-A53+Cortex-A72
Processor cores: 8
Internal memory: 4 GB
On-board graphics card model: Mali-G52 MC3
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14
Google applications: Google Chrome, Gmail, Google Calendar

Weight & dimensions

Display width: 735 mm
Display depth: 35 mm
Display height: 436 mm
Display weight: 7.7 kg
Width: 735 mm
Depth: 35 mm
Height: 436 mm
Weight: 7.7 kg
Width (with stand): 735 mm
Depth (with stand): 35 mm
Height (with stand): 436 mm
Weight (with stand): 7.7 kg

Packaging data

Package width: 833 mm
Package depth: 126 mm
Package height: 508 mm
Package weight: 12.4 kg

Packaging content

Power adapter included: Yes
Cables included: AC
Mounting kit: Yes

Certificates

Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Technical details

User controls: Power switch, volume/ button +, volume/ button -
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE

Other features

Quick start guide: Yes
AC adapter included: Yes
Audio output: Mini jack
Bluetooth: Yes
Bluetooth version: 5.3
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Brightness: 430 cd/m²
Compatible operating systems: All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: External
Cable management: Yes
