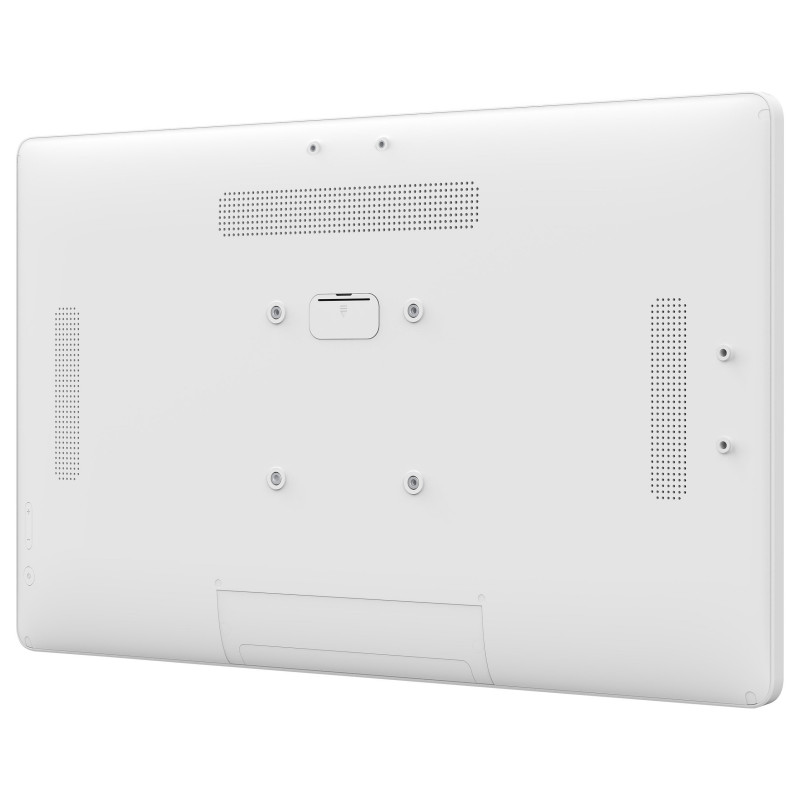

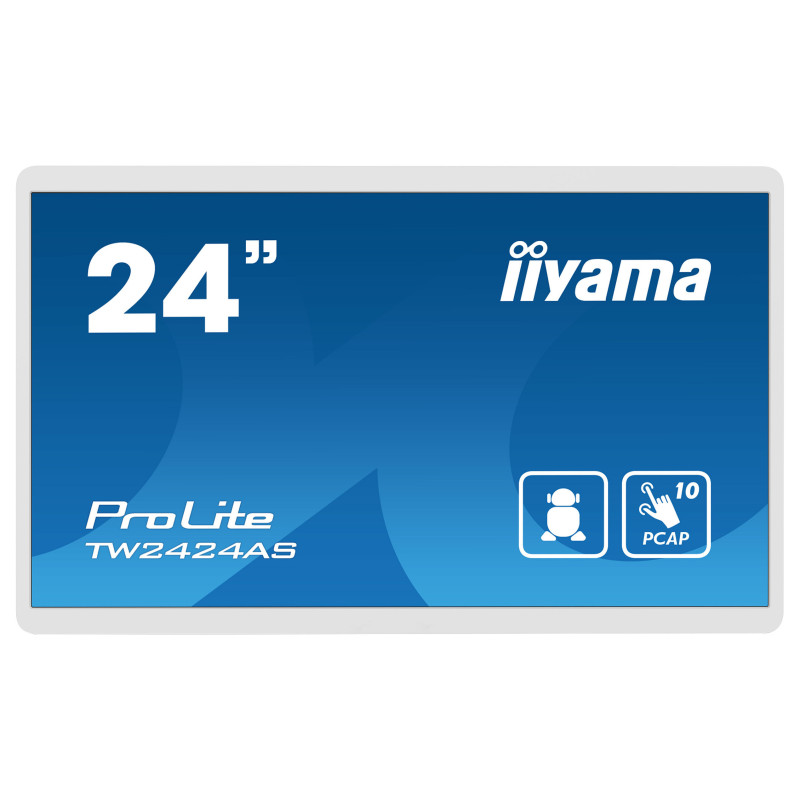

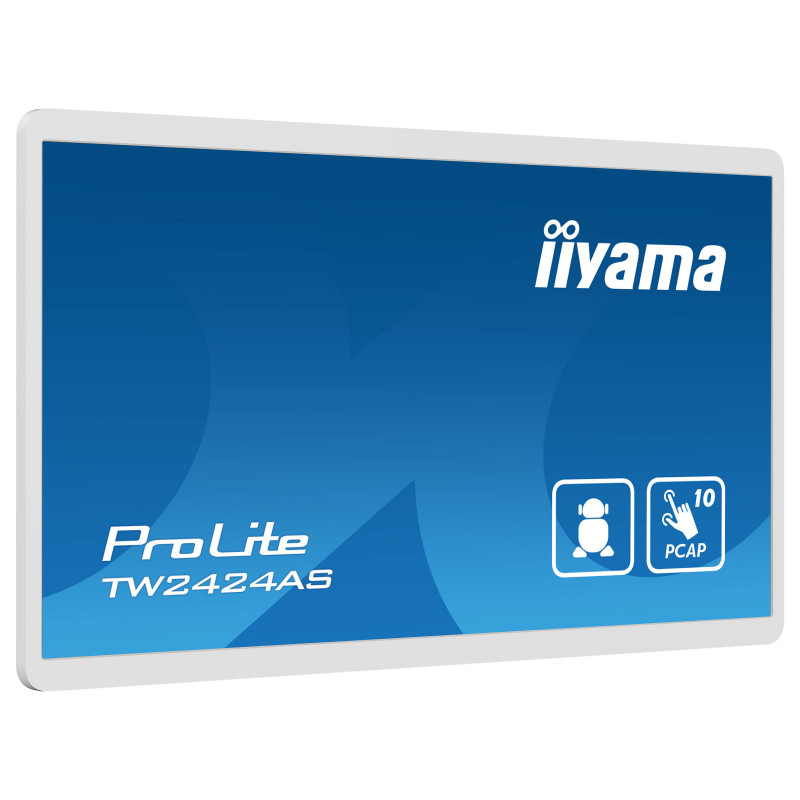

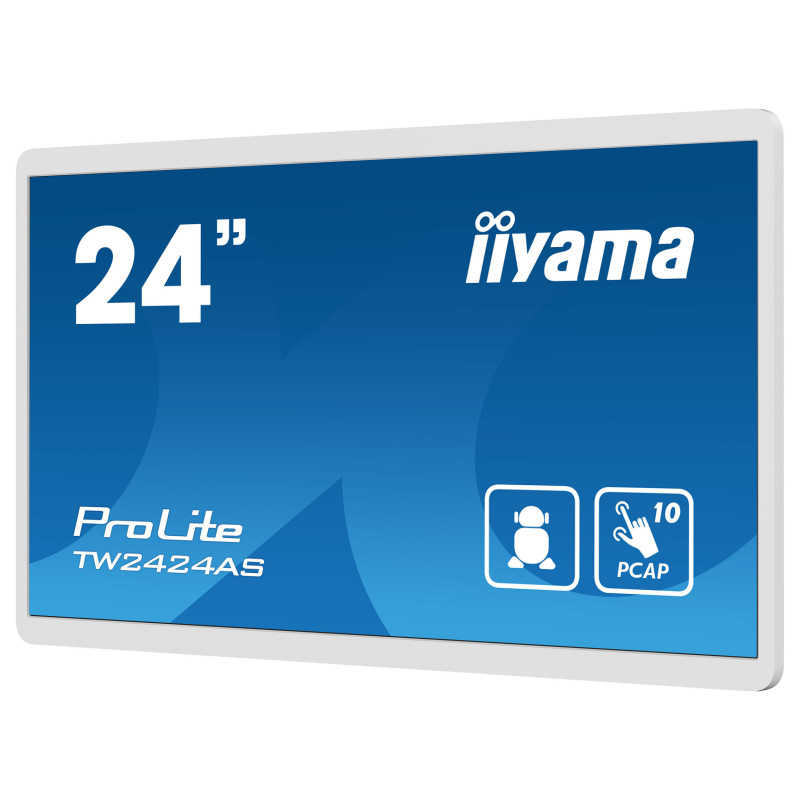

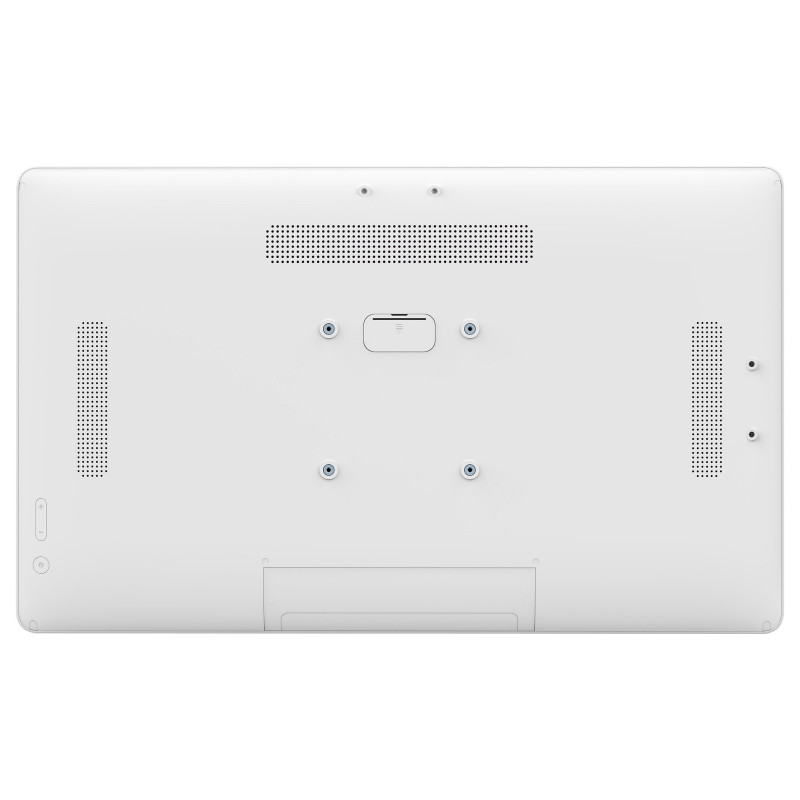

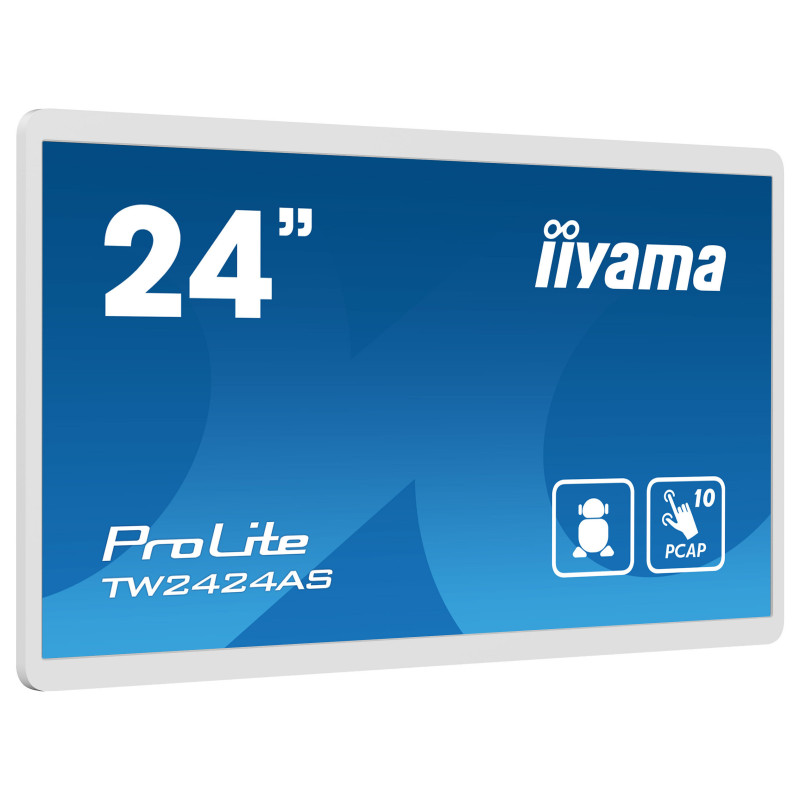

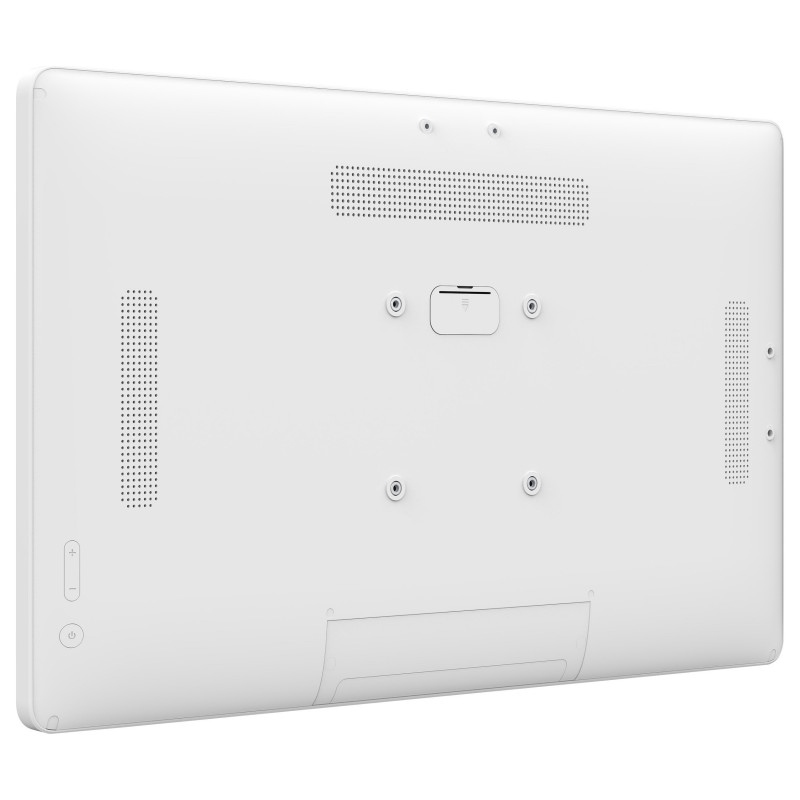

iiyama TW2424AS-W1 Signage Display

iiyama TW2424AS-W1. Product design: Digital signage flat panel. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

The ProLite TW2424AS-W1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.

Display

Panel type: IPS
LED backlighting type: Direct-LED
Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Active display area (W x H): 527 x 296.5 mm
Display diagonal (metric): 60.5 cm
Panel life: 50000 h
Horizontal scan range: 31 - 83 kHz
Surface hardness: 3H

Ports & interfaces

HDMI ports quantity: 1
HDMI input ports quantity: 1
VGA (D-Sub) input ports: 1
Feature: USB port
USB ports quantity: 3
USB 2.0 Type-B ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel colour: White
Feature: Anti-glare screen

Performance

Purpose: Commercial
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 19 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Computer system

Feature: Computer system
Feature: Built-in processor
Processor manufacturer: Rockchip
Processor family: ARM Rockchip
Processor model: RK3399
Processor frequency: 1.8 GHz
Processor cores: 2
Internal memory: 4 GB
On-board graphics card model: ARM Mali-T860 MP4
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 12
Google applications: Google Chrome, Gmail, Google Calendar

Weight & dimensions

Display width: 549.5 mm
Display depth: 28 mm
Display height: 336 mm
Display weight: 4.23 kg
Width: 549.5 mm
Depth: 28 mm
Height: 336 mm
Weight: 4.23 kg
Width (with stand): 549.5 mm
Depth (with stand): 28 mm
Height (with stand): 336 mm
Weight (with stand): 4.23 kg

Packaging data

Package width: 580 mm
Package depth: 126 mm
Package height: 375 mm
Package weight: 6.15 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Feature: Stylus pen
Number of stylus pens: 4
Cables included: AC

Certificates

Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Features

Base colour: Black
Base material: Metal
Feature: Suitable for indoor use

Technical details

Feature: Audio in (mini jack)
OPS slot: 1
User controls: Volume +, volume -, power switch
Sustainability certificates: ErP
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE

Other features

Feature: Quick start guide
Feature: AC adapter included
Audio input: Y
Feature: Bluetooth
Bluetooth version: 5.2
Feature: Built-in microphone
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Brightness: 350 cd/m²
Power supply type: External
Feature: Bluetooth Low Energy (BLE)
Feature: Plug and Play
