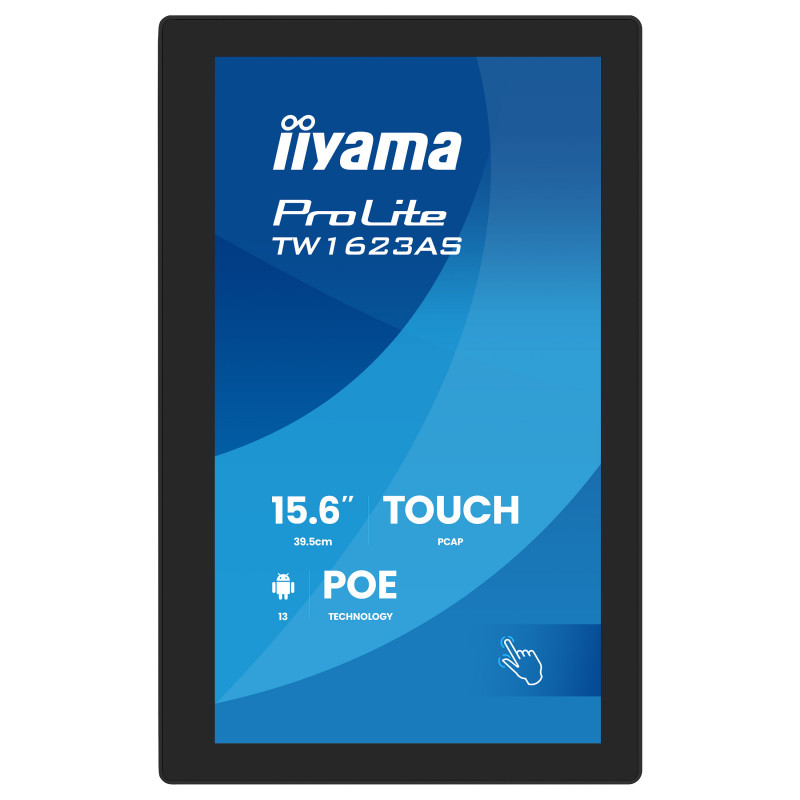

iiyama TW1623AS-B3P computer monitor

iiyama TW1623AS-B3P. Display diagonal: 39.6 cm (15.6"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 30 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 170°. Built-in speaker(s). VESA mounting. Product colour: Black

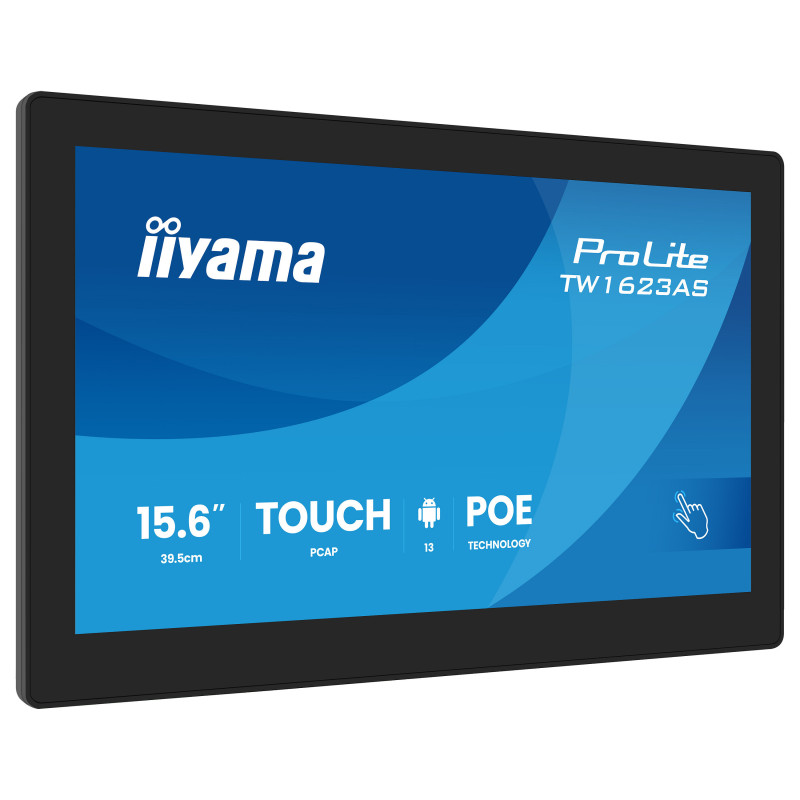

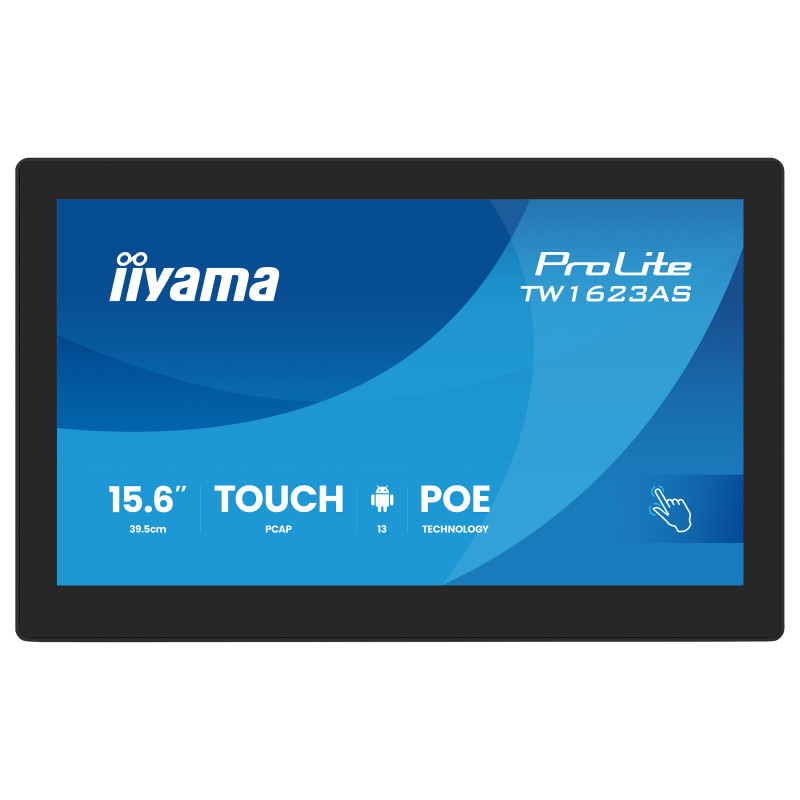

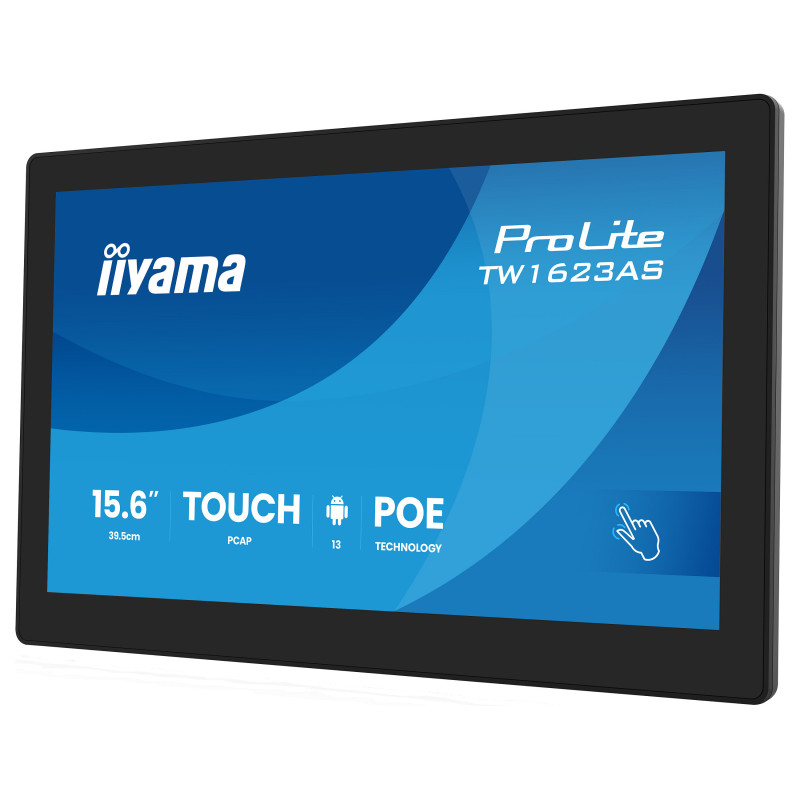

The ProLite TW1623AS-B3P is a smart and intuitive 15.6" touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in microphone and speakers, the TW1623AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage², iiyama's Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display

Display diagonal: 39.6 cm (15.6")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 385 cd/m²
Response time: 30 ms
Response time measurement type: GTG (Gray to Gray)
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 170°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1792 x 0.1792 mm
Viewable size, horizontal: 34.4 cm
Viewable size, vertical: 19.4 cm
Display diagonal (metric): 39.5 cm
Surface hardness: 6H
Colour depth: 8 bit

Performance

Operating hours (hours/days): 24/7
Operating system installed: Android
Operating system version: 13

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 1.8 mm

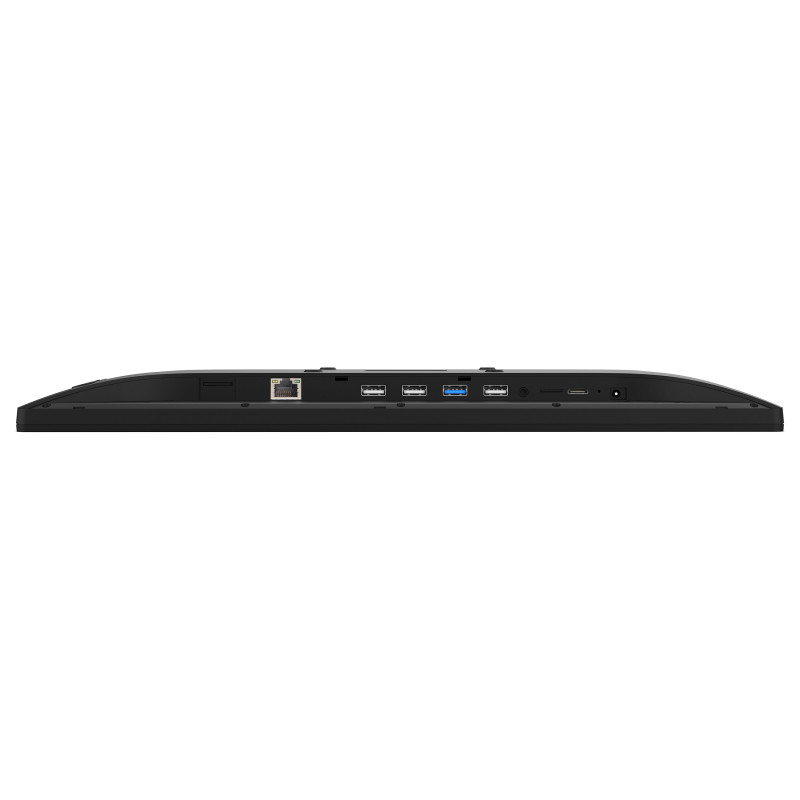

Ports interfaces

USB version: 2.0
USB Touch port: Yes
HDMI ports quantity: 1
Mini HDMI ports quantity: 1
Audio input: Mini Jack
Microphone in: Yes
HDCP: Yes
Card reader integrated: Yes
Compatible memory cards: SD

Network

Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Bluetooth: Yes
Bluetooth version: 5.2
Ethernet LAN: Yes

Ergonomics

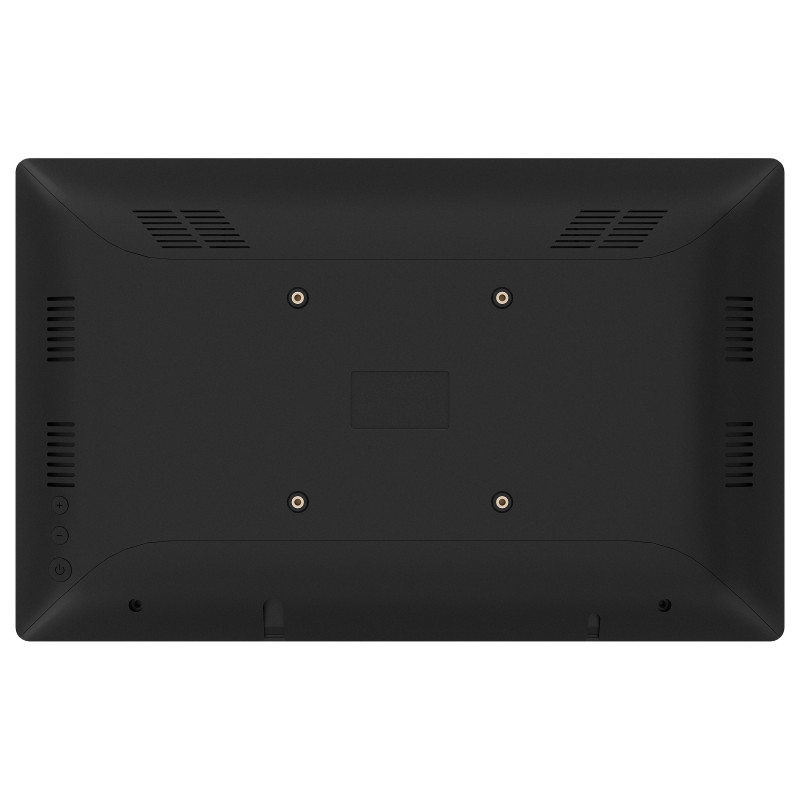

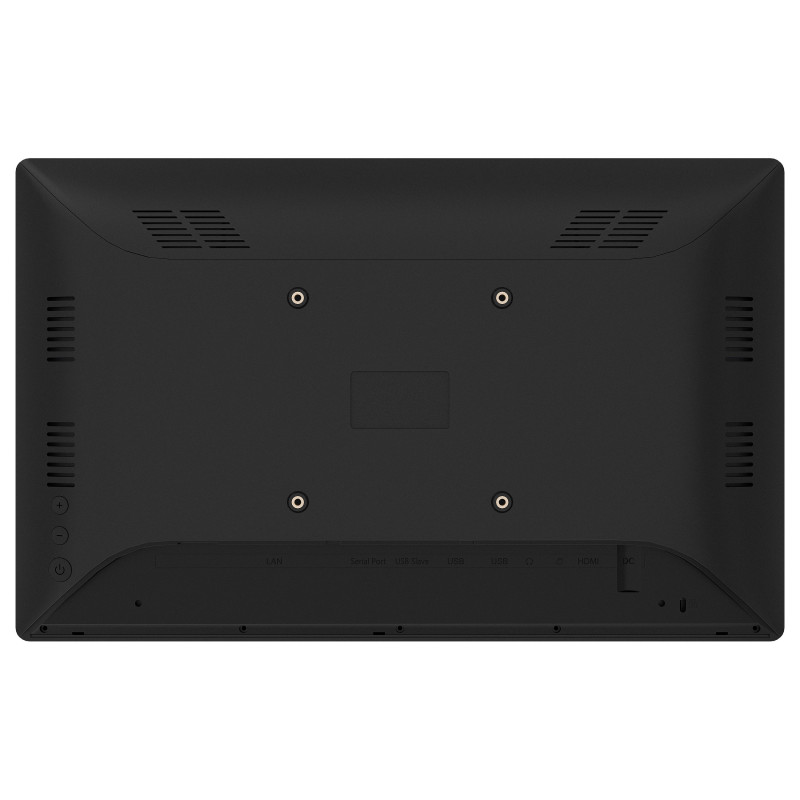

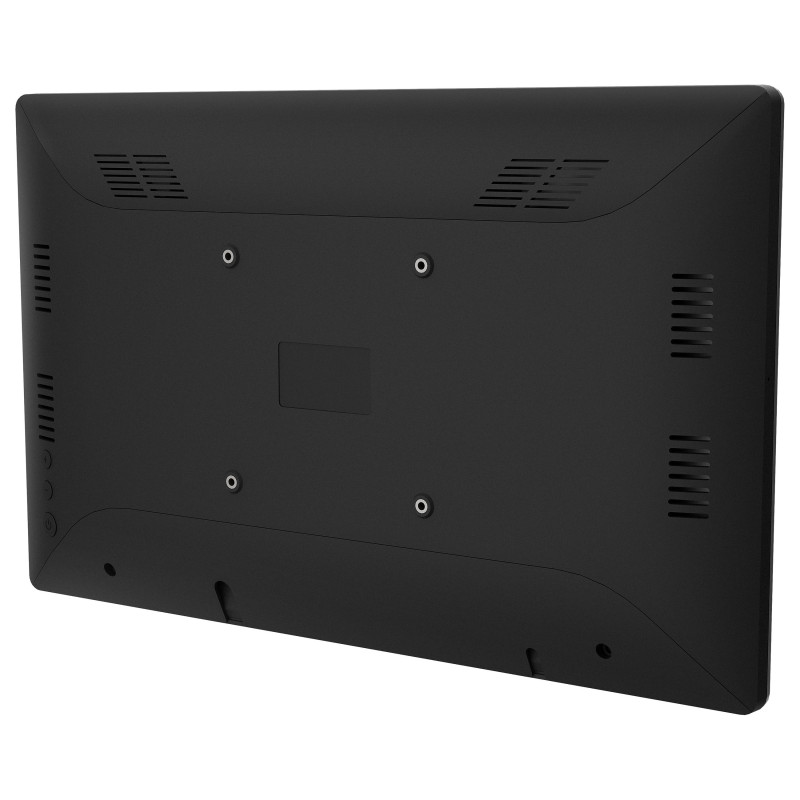

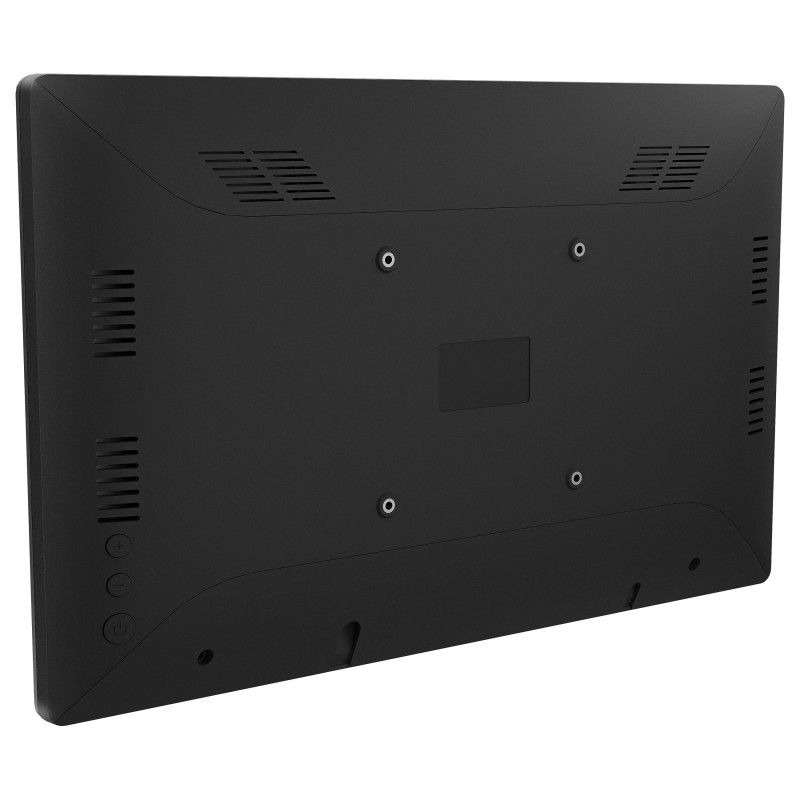

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Cable management: Yes
On Screen Display (OSD): Yes

Power

Power consumption (typical): 9 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External

Weight dimensions

Width (with stand): 387 mm
Depth (with stand): 30.5 mm
Height (with stand): 244 mm
Weight (with stand): 1.5 kg

Packaging data

Package width: 477 mm
Package depth: 75 mm
Package height: 298 mm
Package weight: 2.45 kg

Packaging content

Power adapter included: Yes
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

AC adapter included: Yes
Placement supported: Indoor
Google applications: Google Chrome, Gmail, Google Calendar
Brightness: 385 cd/m²
Packaging content: AC adapter, interchangeable plugs (EU/UK)
Built-in processor: Yes
Active display area (W x H): 344.2 x 193.6 mm
USB ports quantity: 3
Weight: 1.5 kg
User controls: Power switch, volume/ button +, volume/ button -
Touch method: finger, glove (latex), capacitive stylus
Height: 244 mm
Width: 387 mm
Control panel: Power switch, volume/ button +, volume/ button -
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Ethernet LAN (RJ-45) ports: 1
Certification: CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA

Thin Client

Processor family: ARM Rockchip
Processor model: RK3568
Processor architecture: ARM Cortex-A55
Processor frequency: 2 GHz
Processor cores: 4
