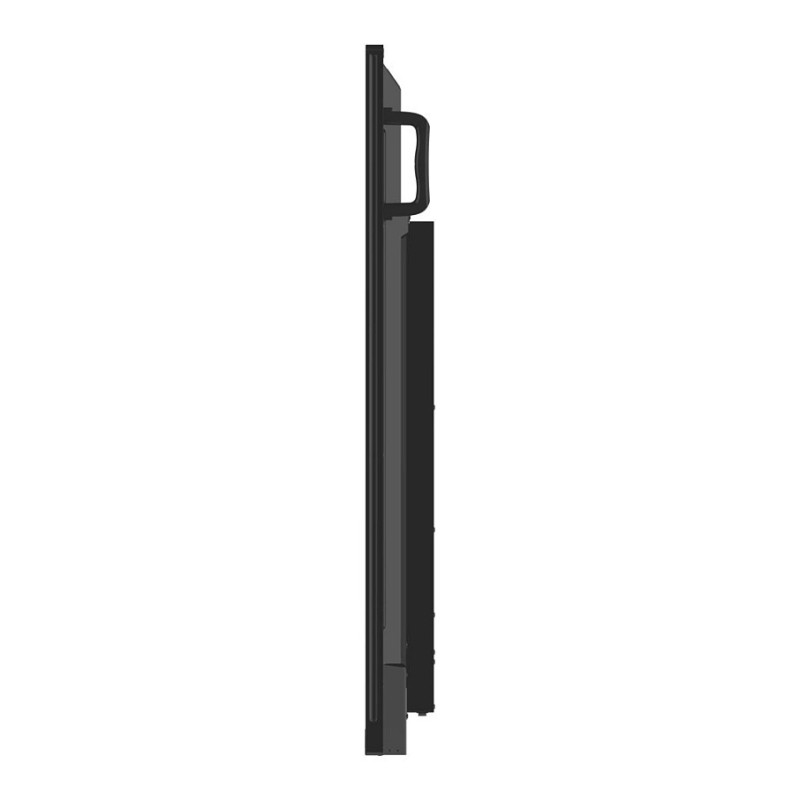

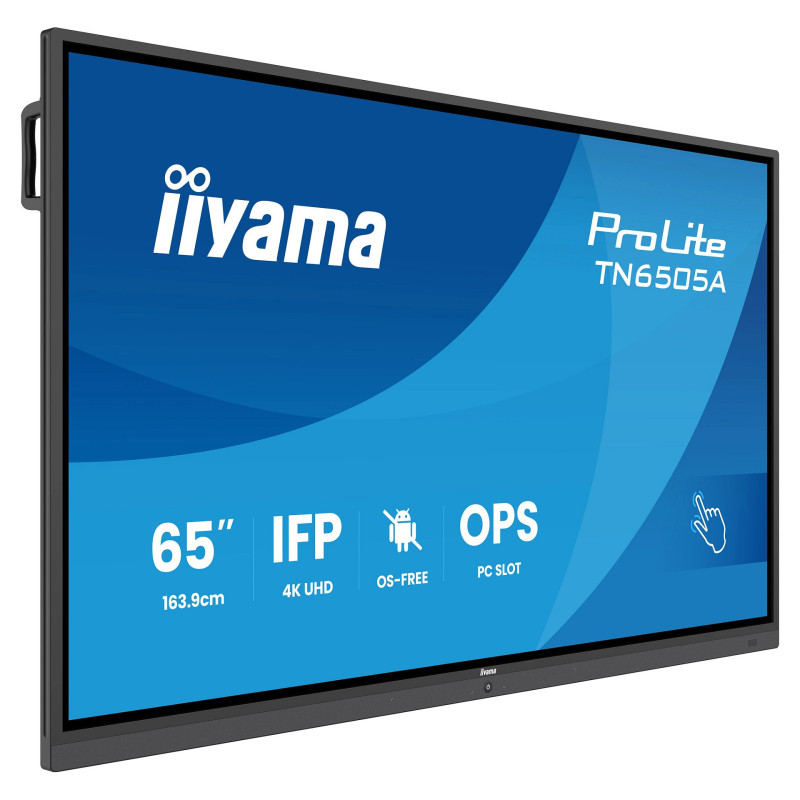

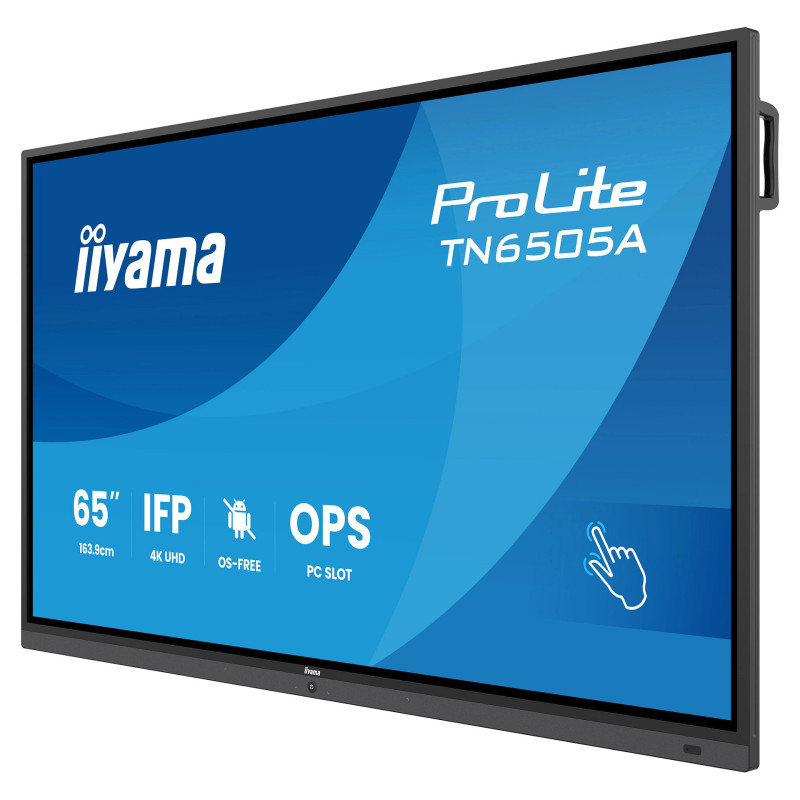

iiyama TN6505A-B1AG Signage Display

iiyama TN6505A-B1AG. Product design: Interactive flat panel. Display diagonal: 163.8 cm (64.5"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black

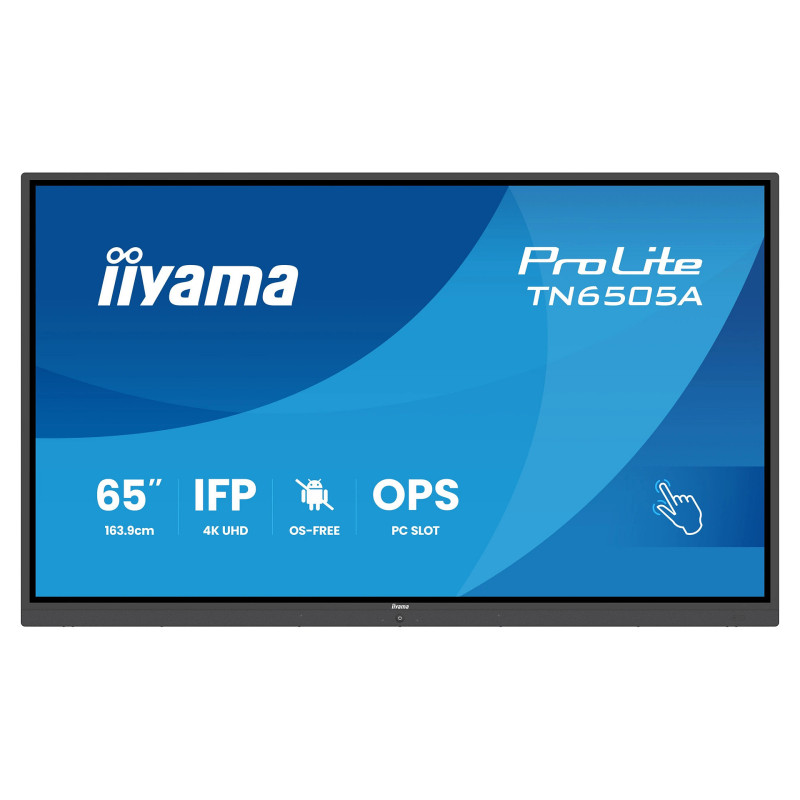

The ProLite TN6505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN6505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.

Display

Panel type: IPS
Display diagonal: 163.8 cm (64.5")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: Infrared
Native aspect ratio: 16:9
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 163.9 cm
Horizontal scan range: 30 - 135 kHz
Haze rate: 25%

Ports interfaces

HDMI ports quantity: 2
HDMI input ports quantity: 2
VGA (D-Sub) input ports: 1
DisplayPorts quantity: 1
USB port: Yes
USB ports quantity: 1
USB version: 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-C, USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 65 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 2
PC Audio in: Yes
RS-232C: Yes
Remote (IR) output: 1
PC Audio out: Yes
OPS module slot: Yes
Audio Return Channel (ARC): Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black
Screen shape: Flat

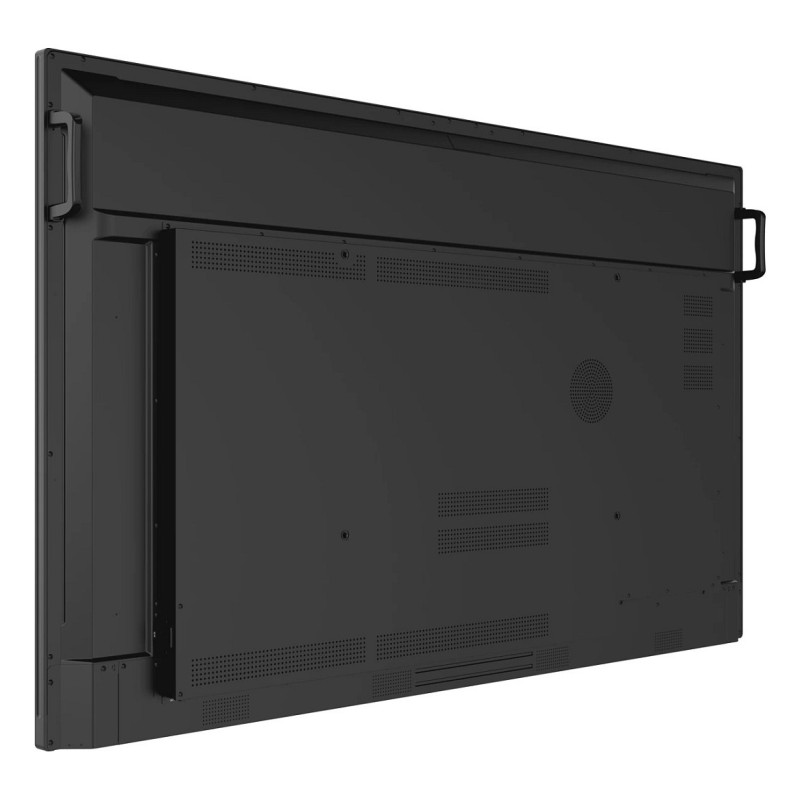

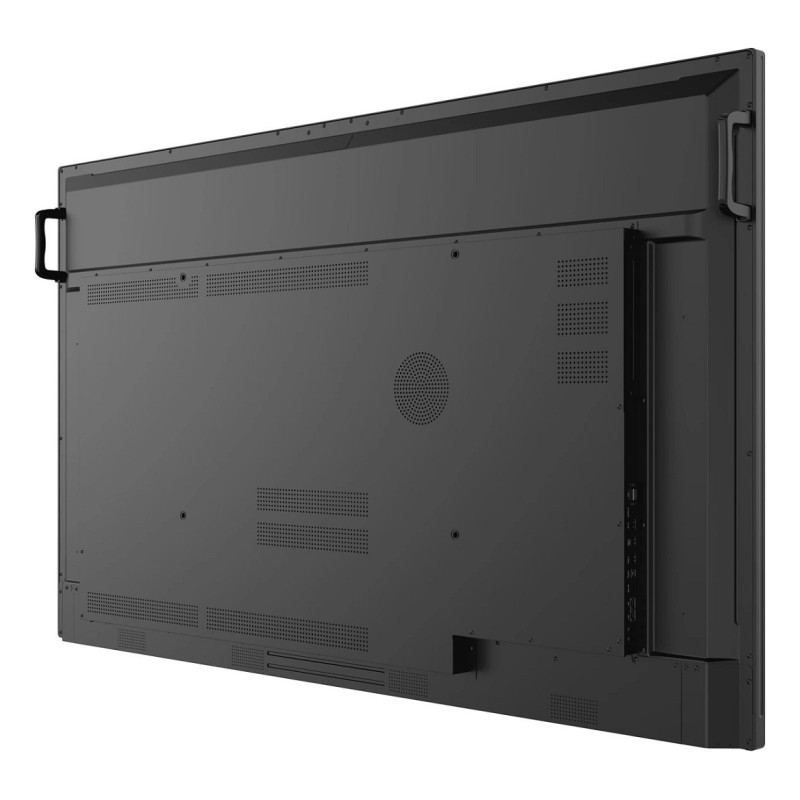

VESA mounting: Yes

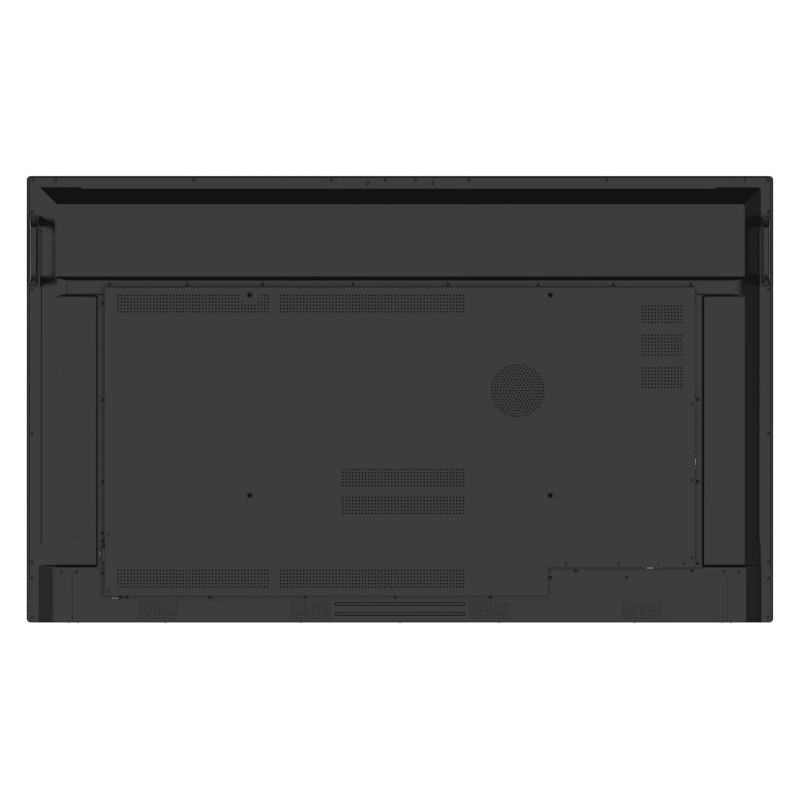

Panel mounting interface: 600 x 400 mm
Anti-glare screen: Yes
Positioning accuracy: 1 mm

Performance

Purpose: Education
Picture-in-Picture: Yes
On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Japanese, Dutch, Russian

Power

Power consumption (typical): 146 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 146 kWh
Energy efficiency scale: A to G

Weight dimensions

Display width: 1489.1 mm

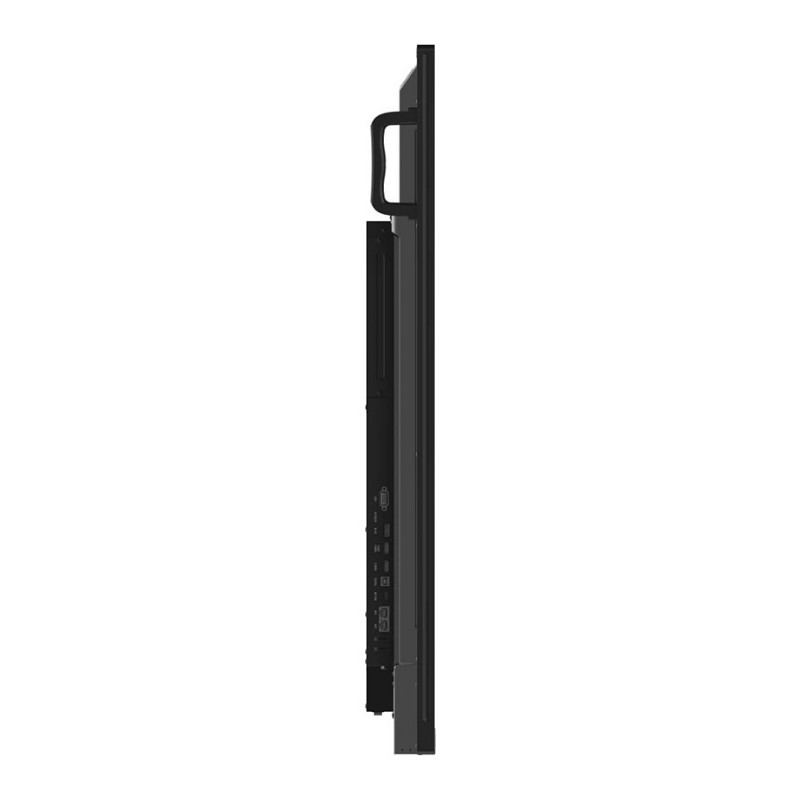

Display depth: 118.6 mm
Display height: 911.8 mm
Display weight: 41.1 kg
Width: 1489.1 mm
Depth: 118.6 mm
Height: 911.8 mm
Weight: 41.1 kg

Packaging content

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Ethernet LAN: Yes

Technical details

Audio in (mini jack): Yes
OPS slot: 1
User controls: Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP PBP, brightness / contrast.
Sustainability certificates: ErP
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Brightness: 450 cd/m²
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
