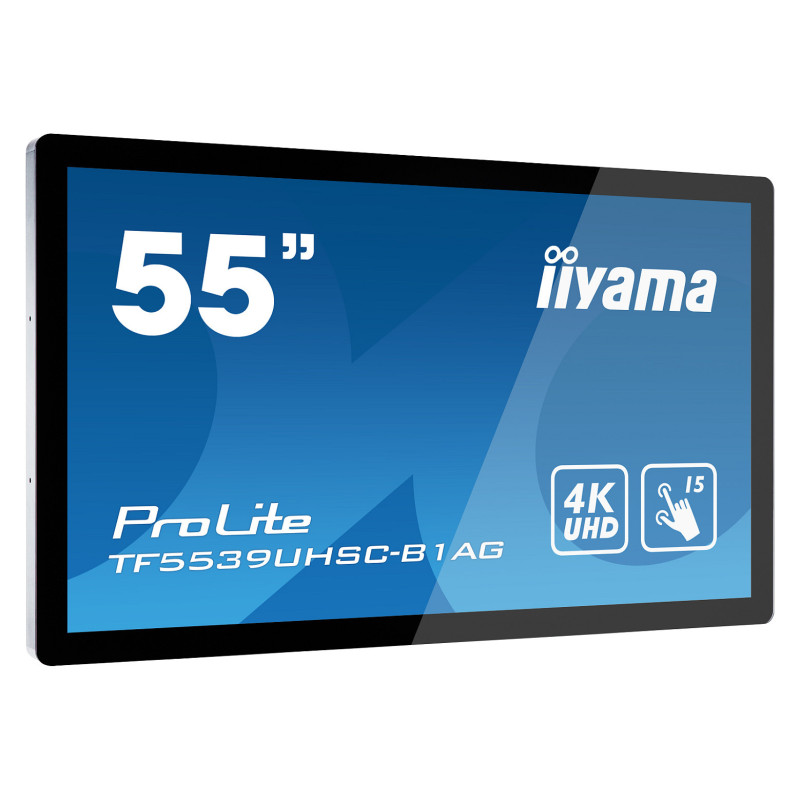

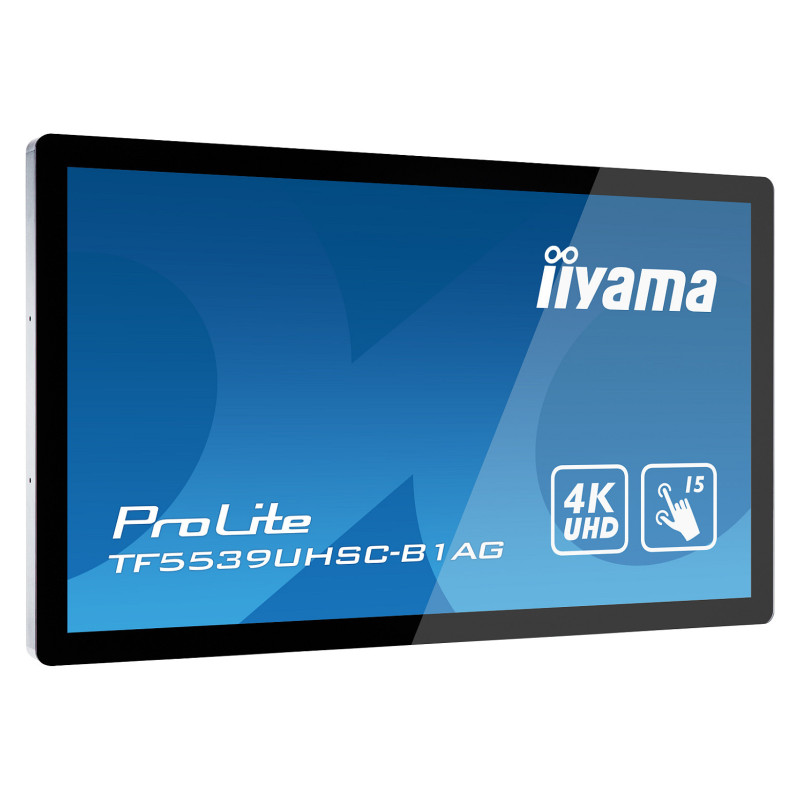

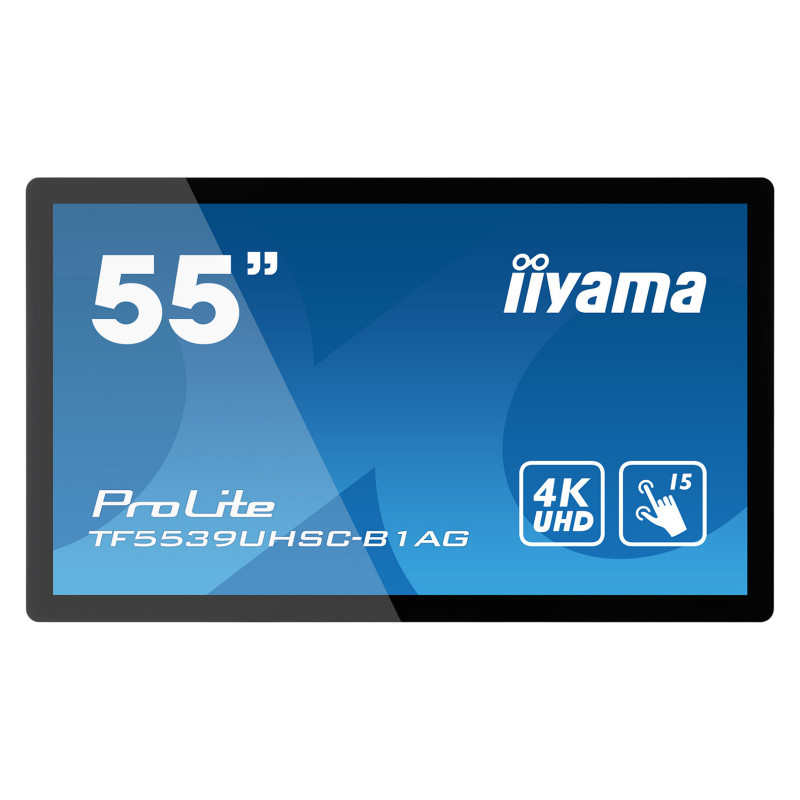

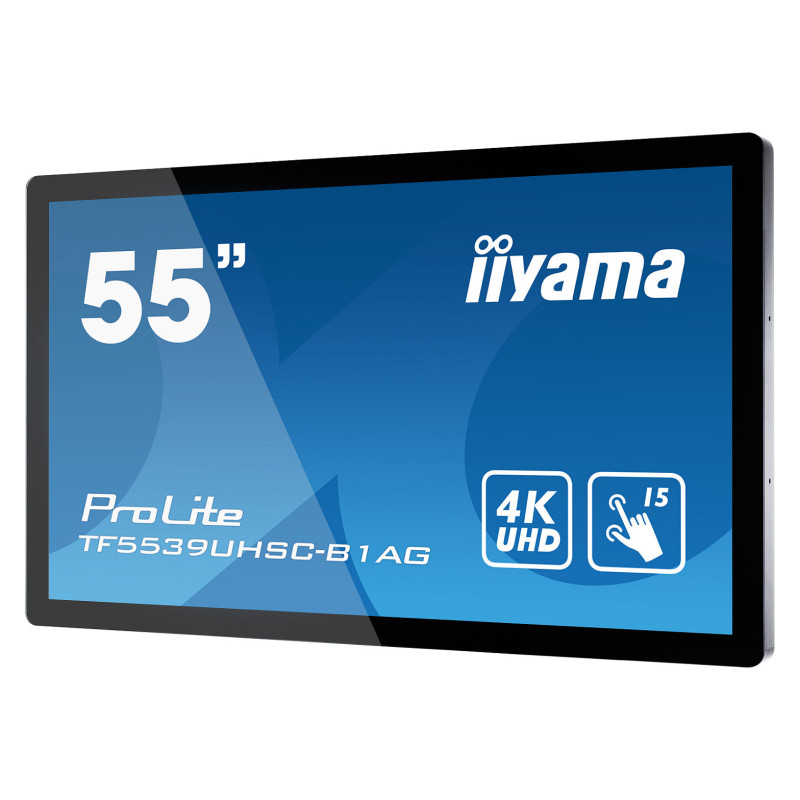

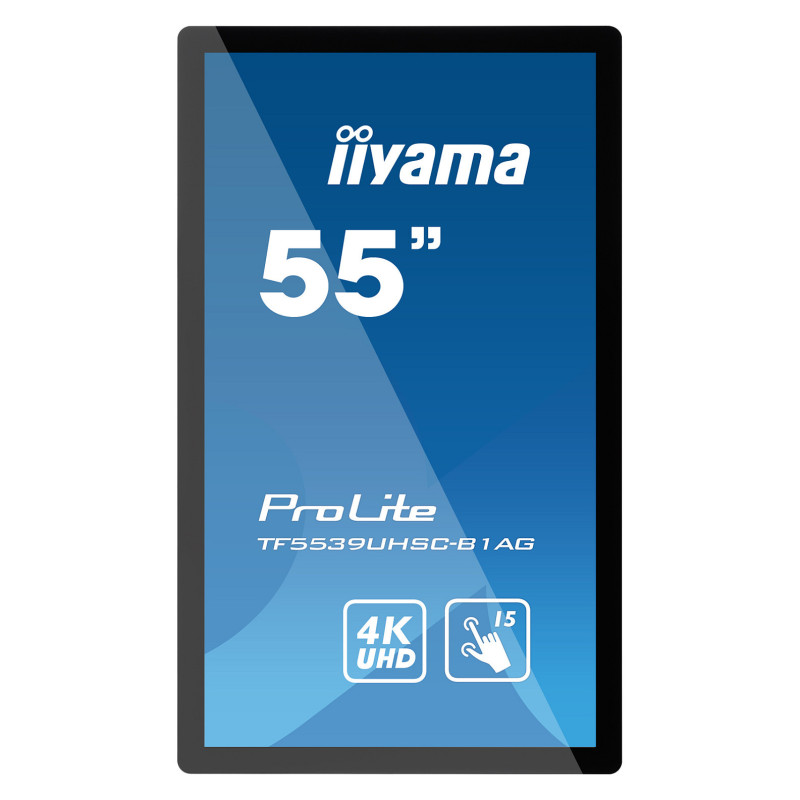

iiyama TF5539UHSC-B1AG Signage Display

iiyama TF5539UHSC-B1AG. Display diagonal: 139.7 cm (55"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Product colour: Black

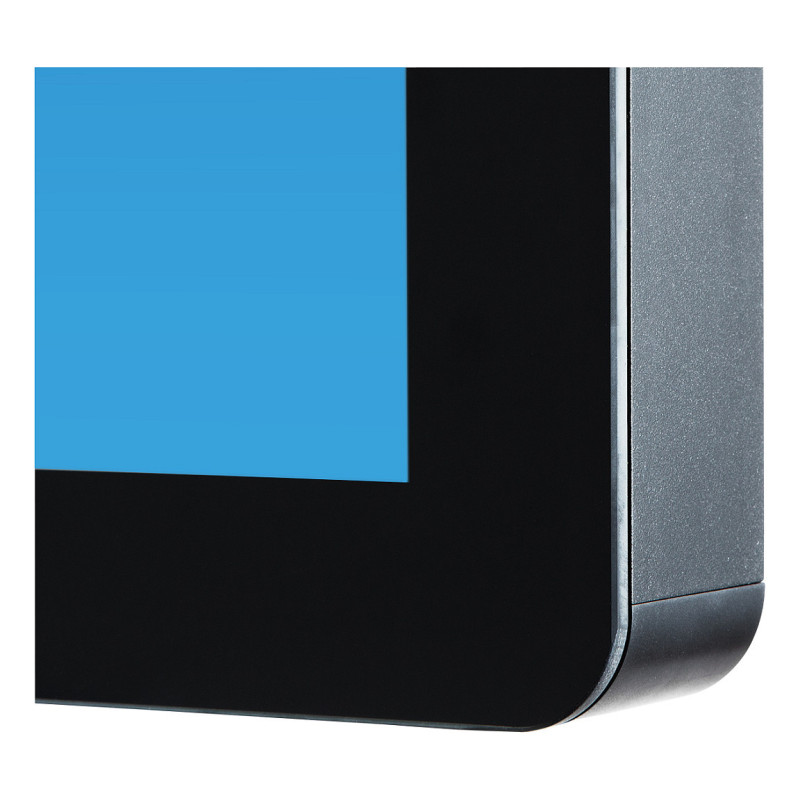

The 4K UHD (3840x2160) Open Frame TF5539UHSC-B1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.

Display

Panel type: IPS
Display diagonal: 139.7 cm (55")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 15
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1100:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.315 x 0.315 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 30 - 83 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Glass thickness: 4 mm

Ports interfaces

HDMI ports quantity: 2
HDMI version: 1.4/2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
RS-232C: Yes

Audio

Built-in speaker(s): Yes
RMS rated power: 16 W

Design

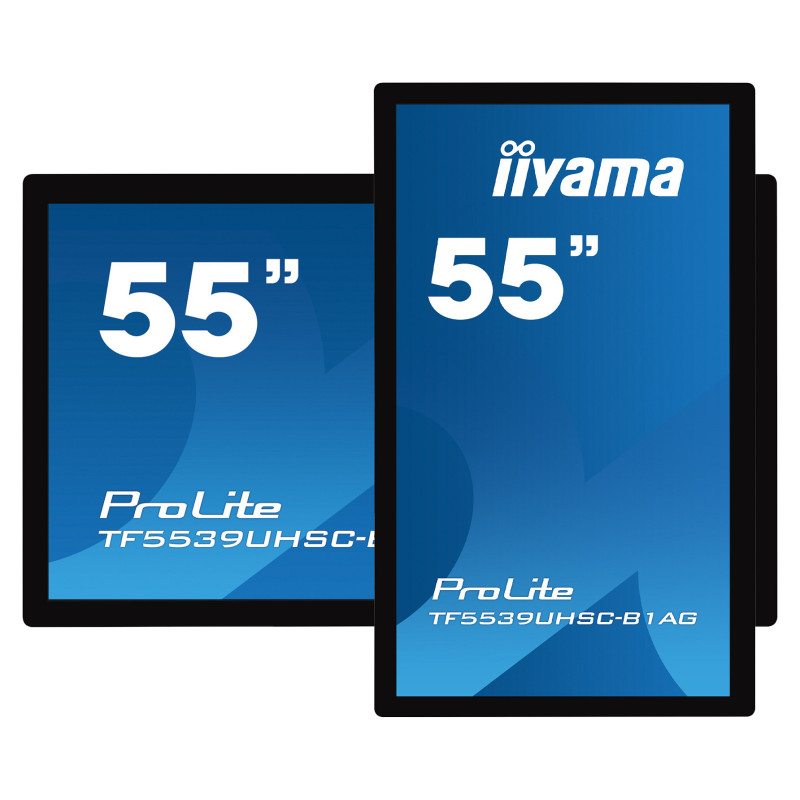

Placement supported: Horizontal/Vertical
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 600 x 400 mm

Performance

On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: German, Dutch, English, Spanish, French, Italian, Polish, Russian
HDCP: Yes
International Protection (IP) code: IP54
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 155 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

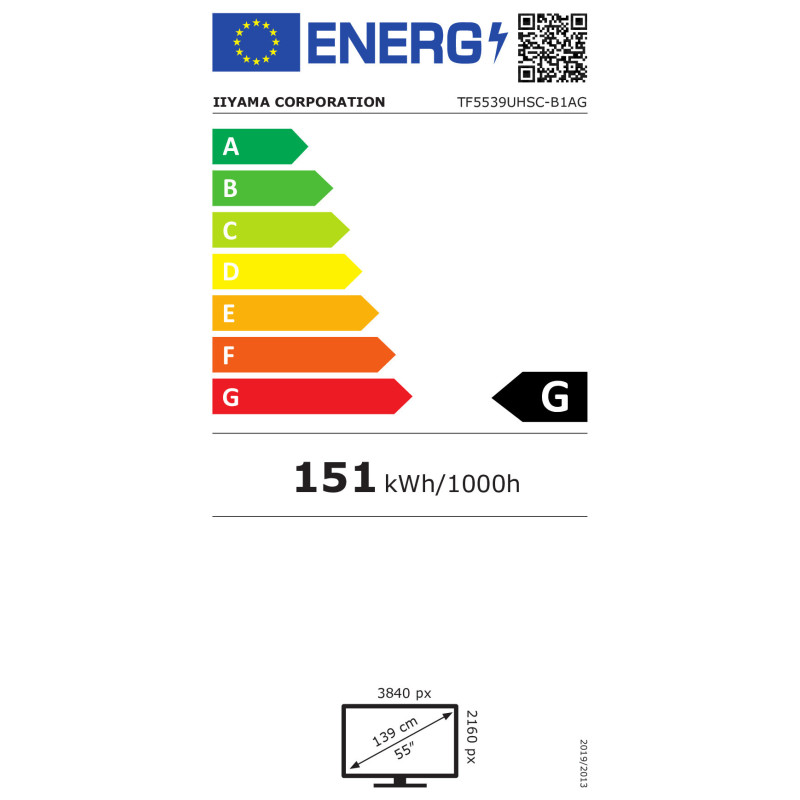

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 151 kWh
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Packaging data

Package width: 1400 mm
Package depth: 245 mm
Package height: 930 mm
Package weight: 46.5 kg

Packaging content

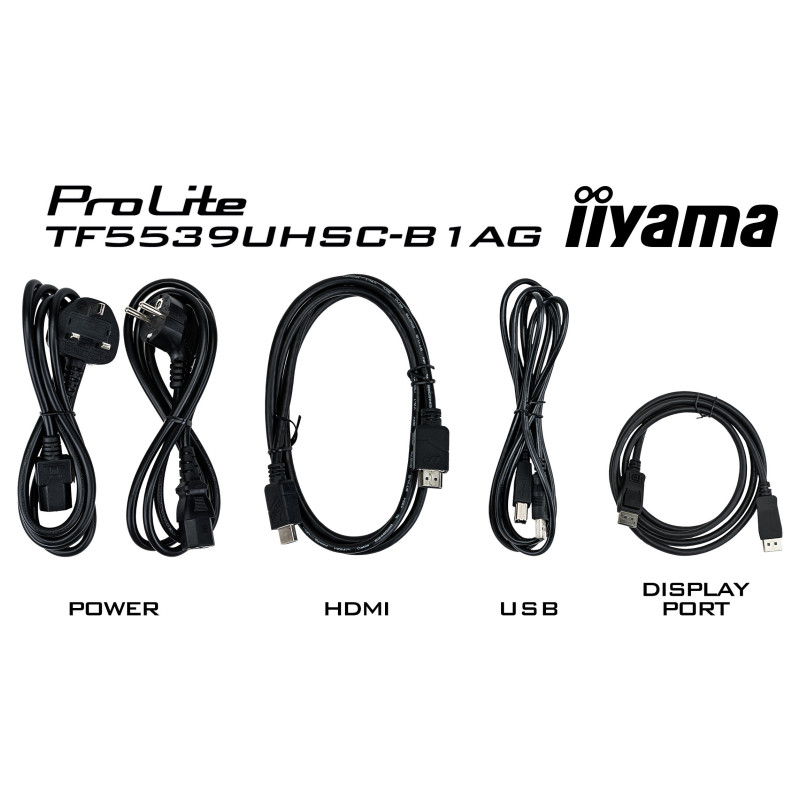

Cables included: AC, DisplayPort, HDMI, USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, EAC, RoHS, ErP, WEEE, cULus, REACH

Logistics data

Harmonized System (HS) code: 85285210

Features

Wall mountable: Yes

Technical details

Compliance certificates: CE, REACH, RoHS, WEEE

Other features

Maximum refresh rate: 60 Hz
Audio input: 1
Audio output: 1
Built-in microphone: No
Display viewable area (HxV): 1209.6 x 680.4 mm
Height (without stand): 749.4 mm
Weight (without stand): 41 kg
Depth (without stand): 68 mm
Power supply type: Internal
Housing material: Metal
Built-in camera: No
