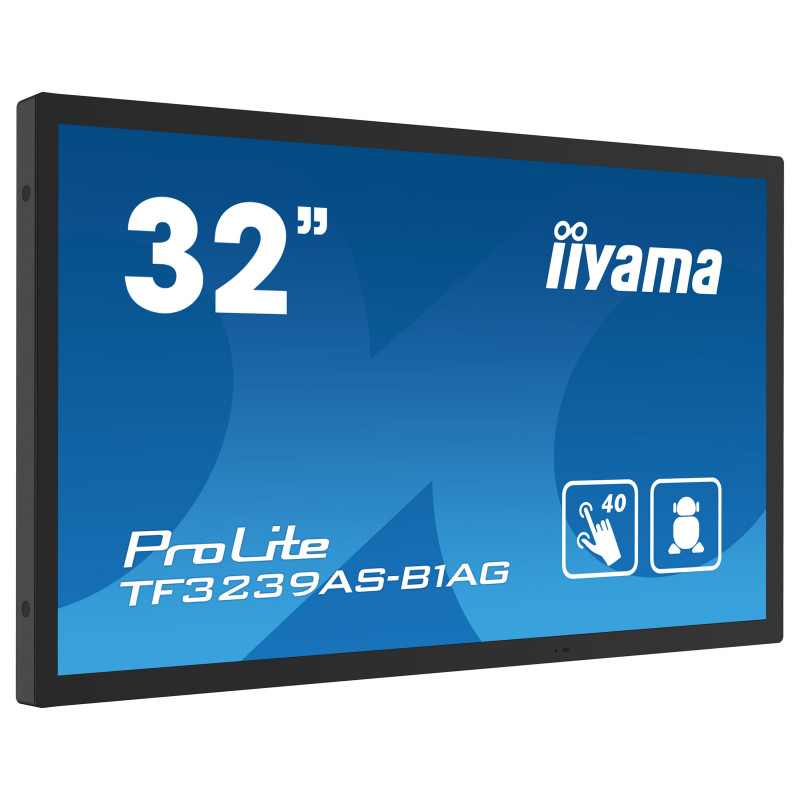

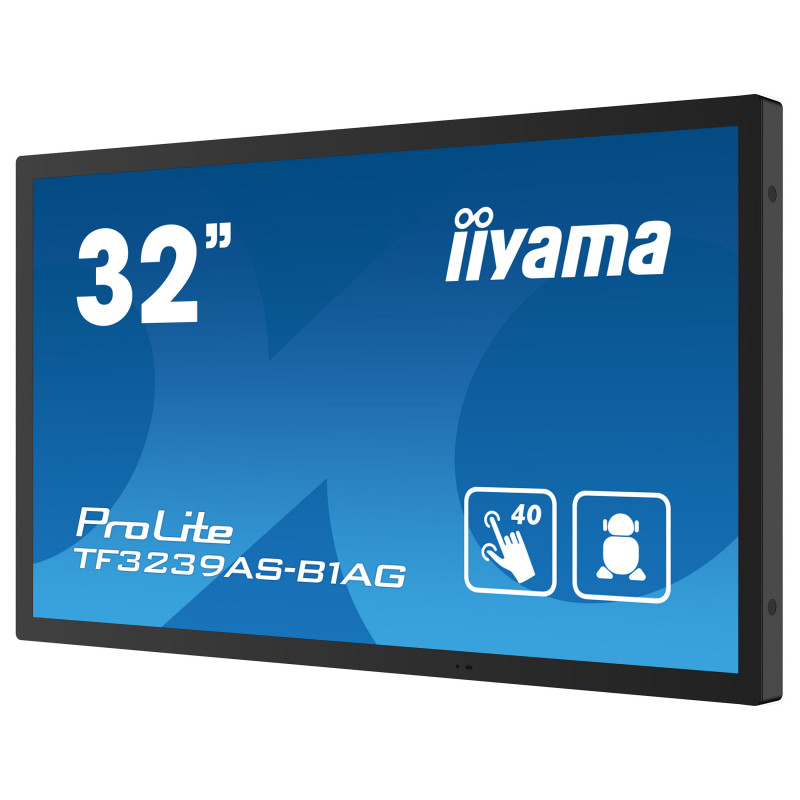

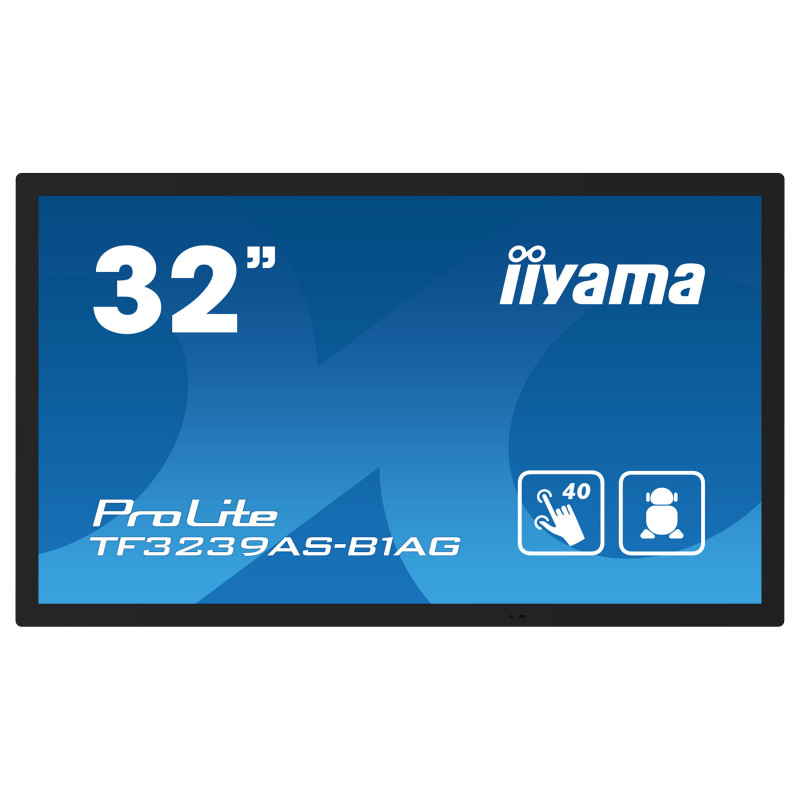

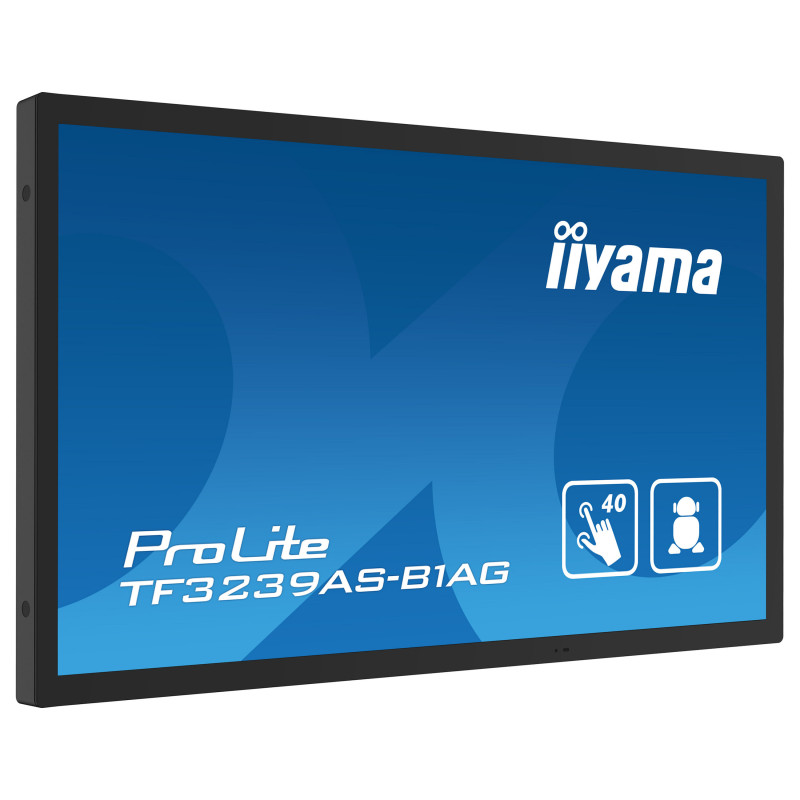

iiyama TF3239AS-B1AG Signage Display

iiyama TF3239AS-B1AG. Product design: Digital signage flat panel. Display diagonal: 80 cm (31.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 435 cd/m², HD type: Full HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF3239AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage2 CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before; while the FailOver feature ensures your content is always actively displayed through your choice of inputs For ease of integration, the TF3239AS-B1AG can be equipped with optional external mounting brackets ( OMK4-4 ).

Display

Panel type: IPS
Feature: LED backlight
Display diagonal: 80 cm (31.5")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 435 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system

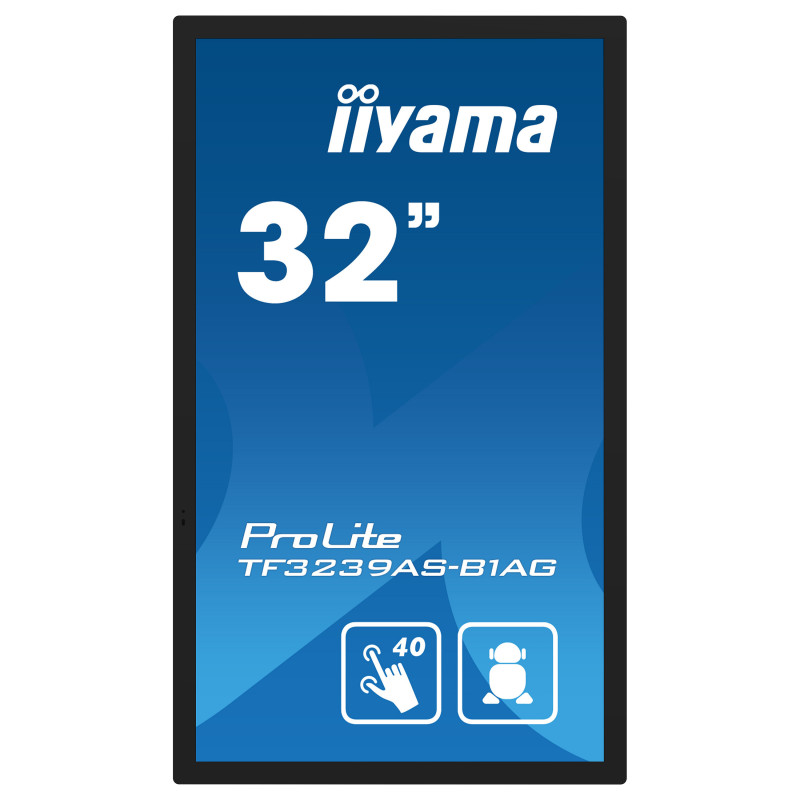

Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.363 x 0.363 mm
Active display area (W x H): 698.4 x 392.8 mm
Display diagonal (metric): 80 cm
Horizontal scan range: 28 - 160 kHz
Colour depth: 8 bit
Native refresh rate: 60 Hz
Haze rate: 25%
Surface hardness: 7H
Glass thickness: 3 mm

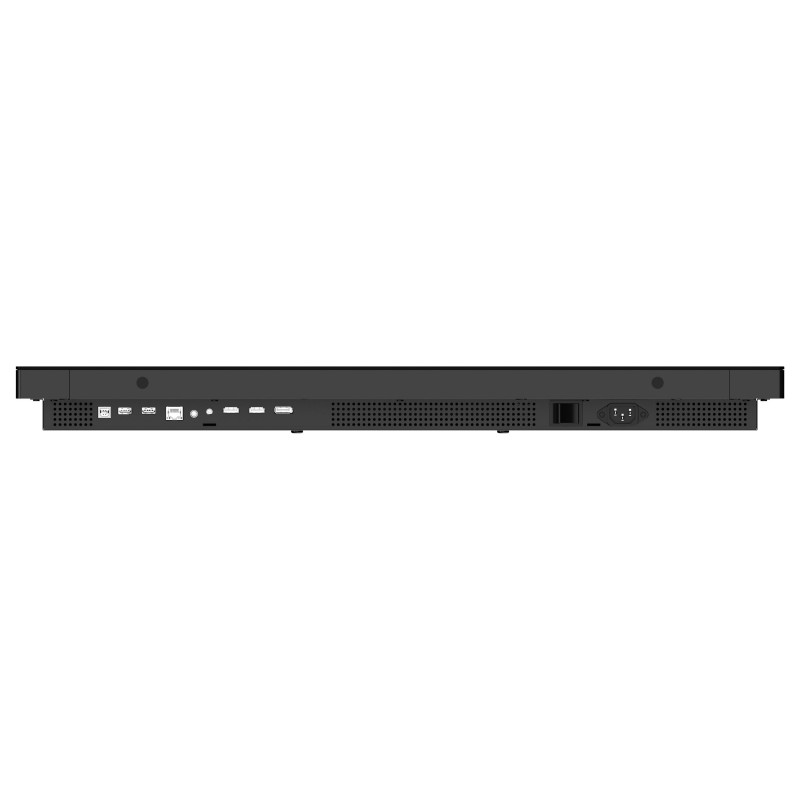

Ports & interfaces

HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB ports quantity: 2
USB version: 2.0
USB connector type: USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232C

Audio

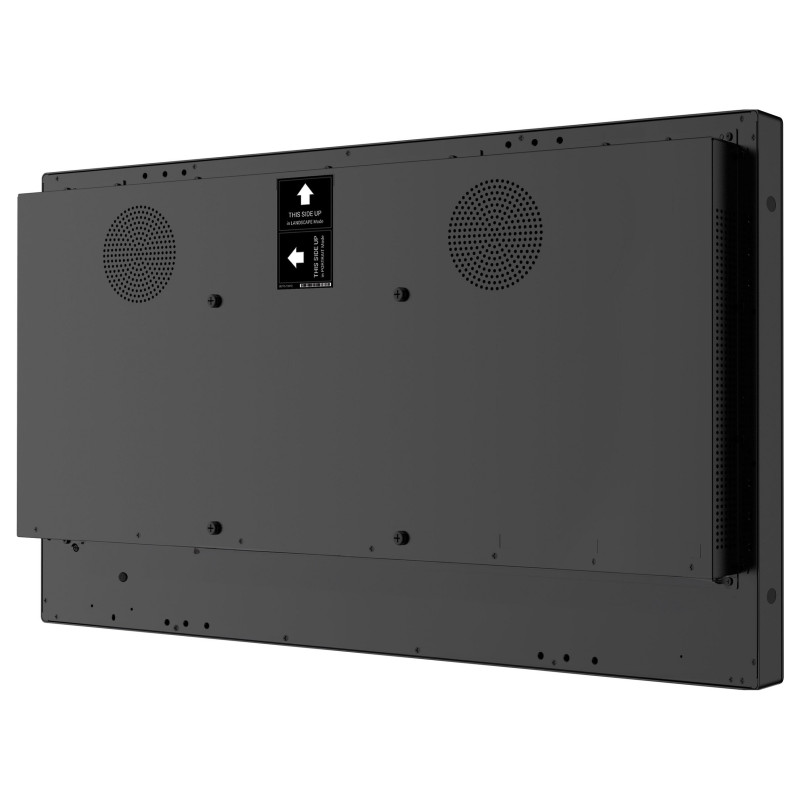

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor

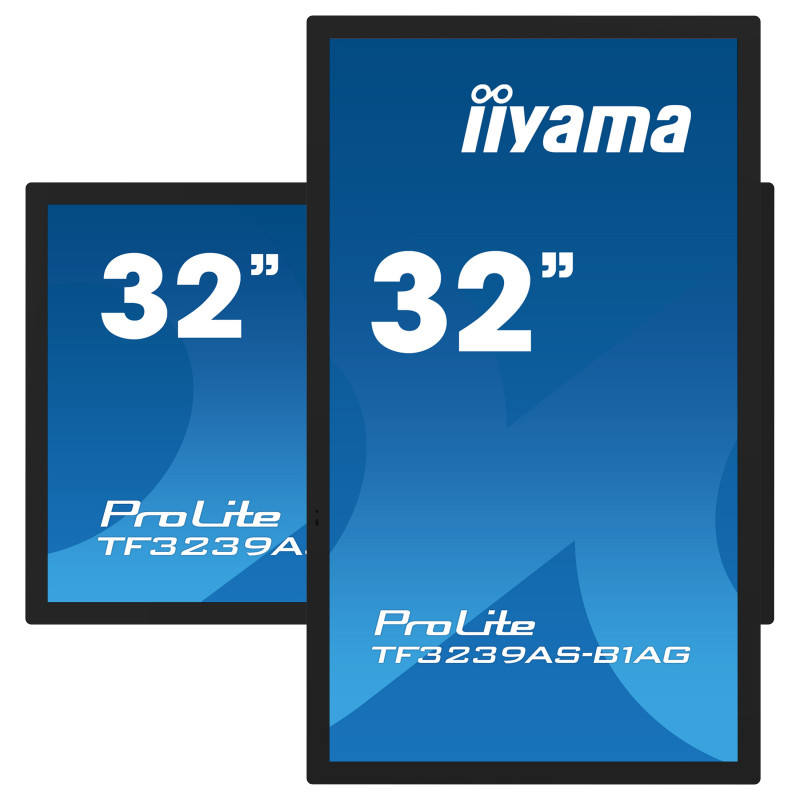

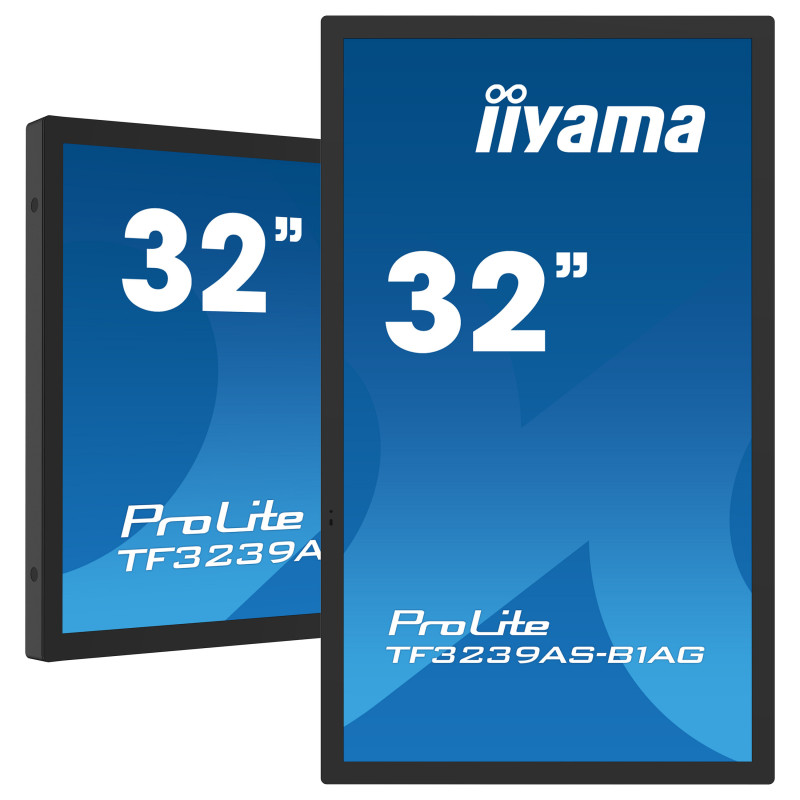

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

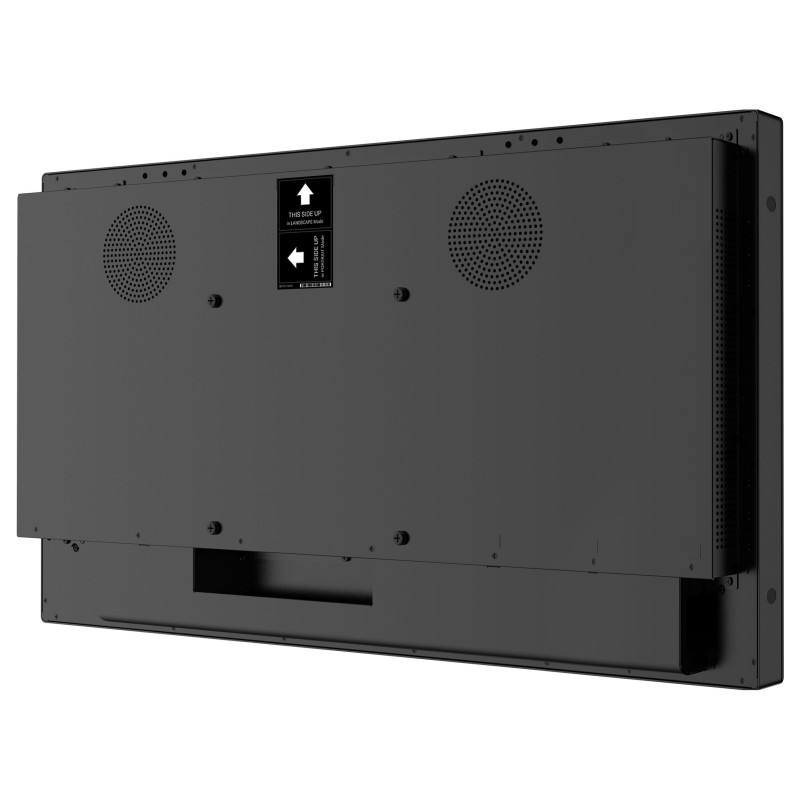

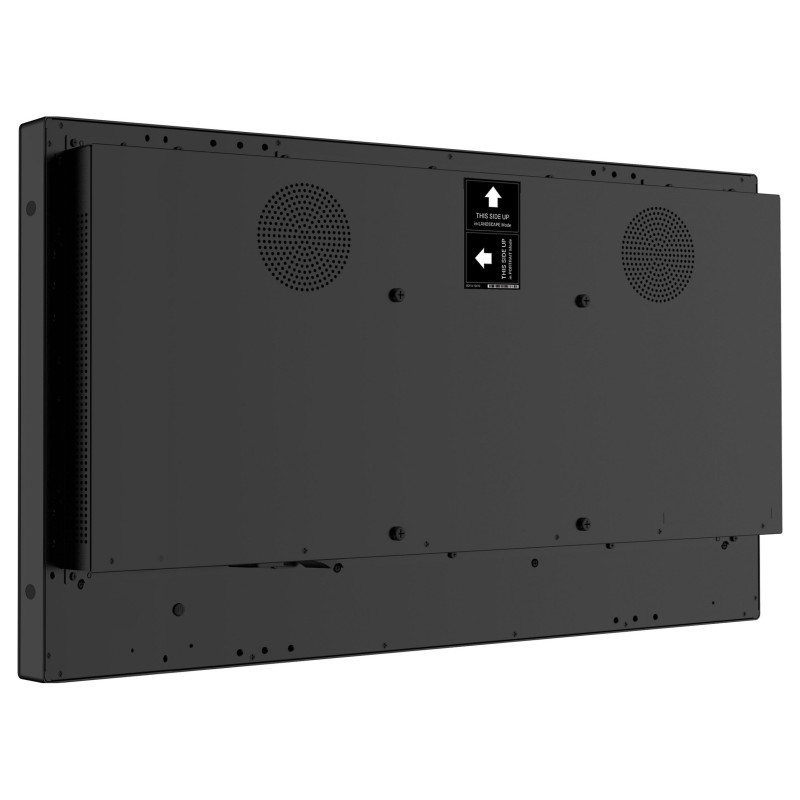

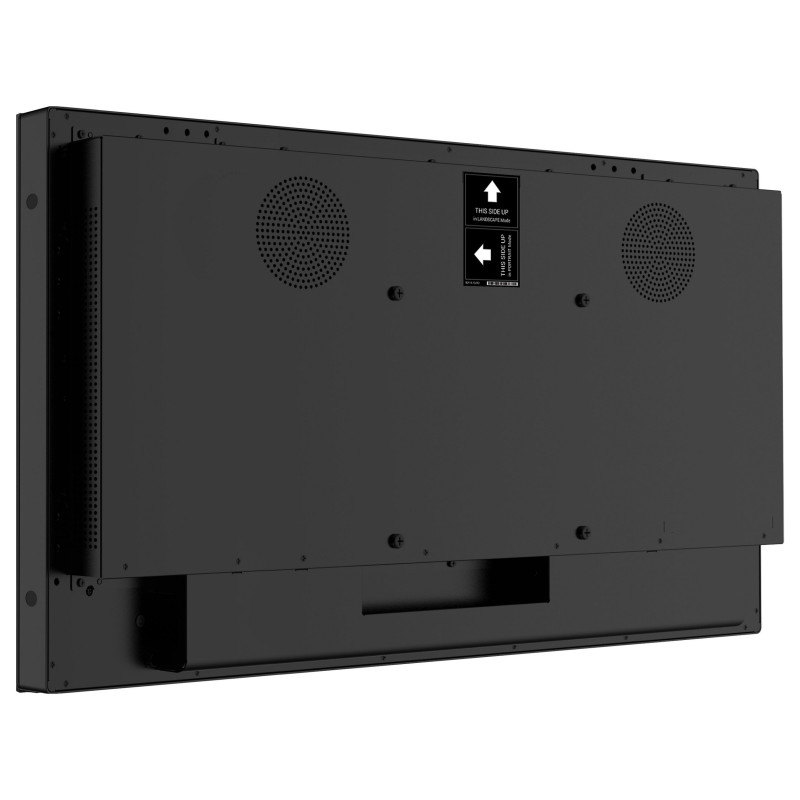

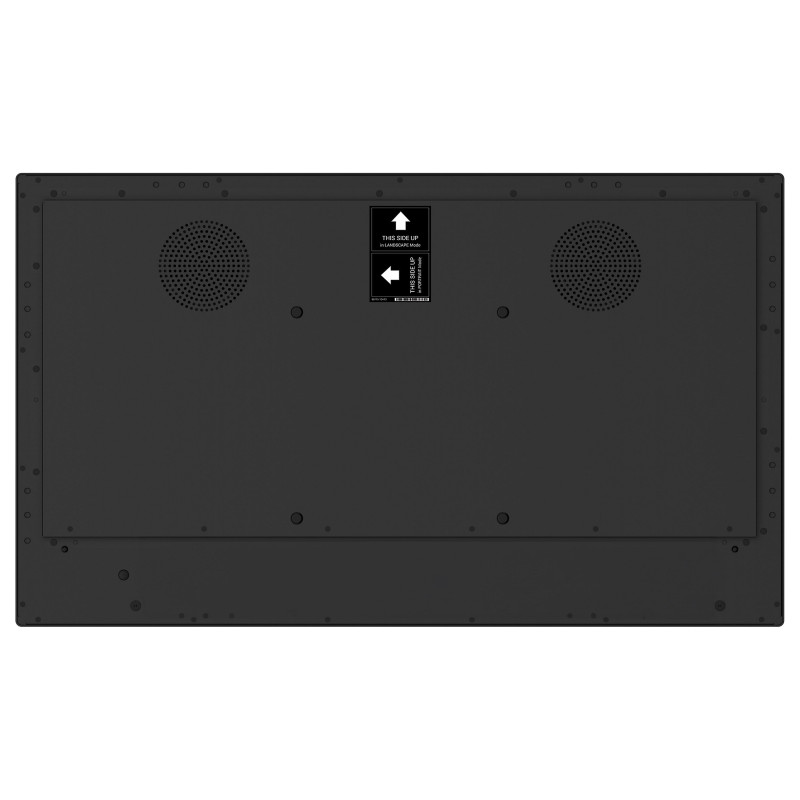

Feature: VESA mounting

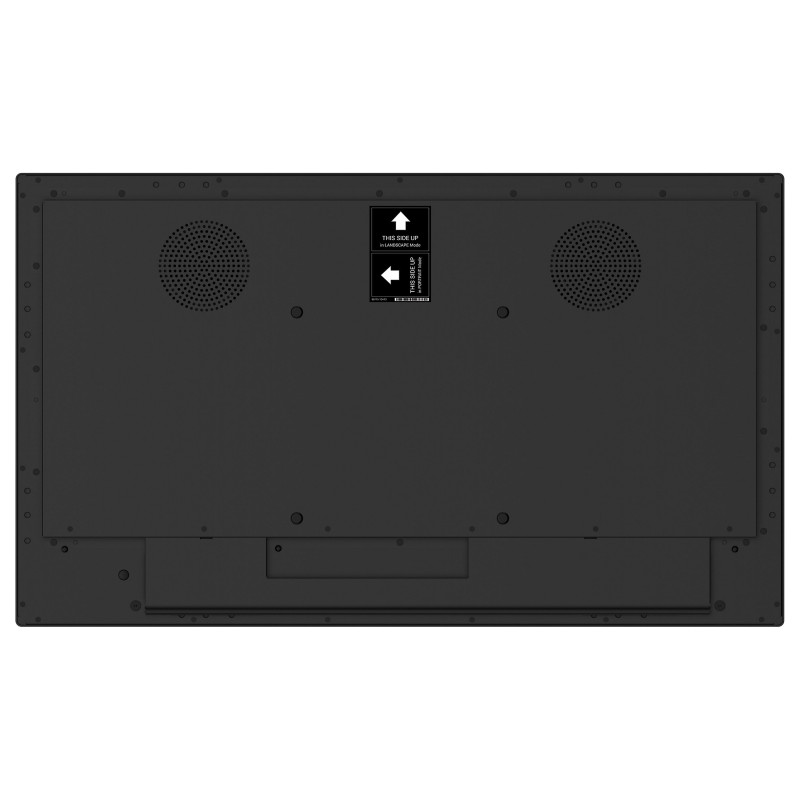

Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 2.2 cm
Bezel width (side): 2.2 cm
Bezel width (top): 2.2 cm
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
Number of OSD languages: 13
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
Feature: HDCP
International Protection (IP) code: IP65
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 50 W
Power consumption (standby): 0.4 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 31.3 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Computer system
Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android 11
Operating system version: 11

Weight & dimensions

Display width: 746.2 mm

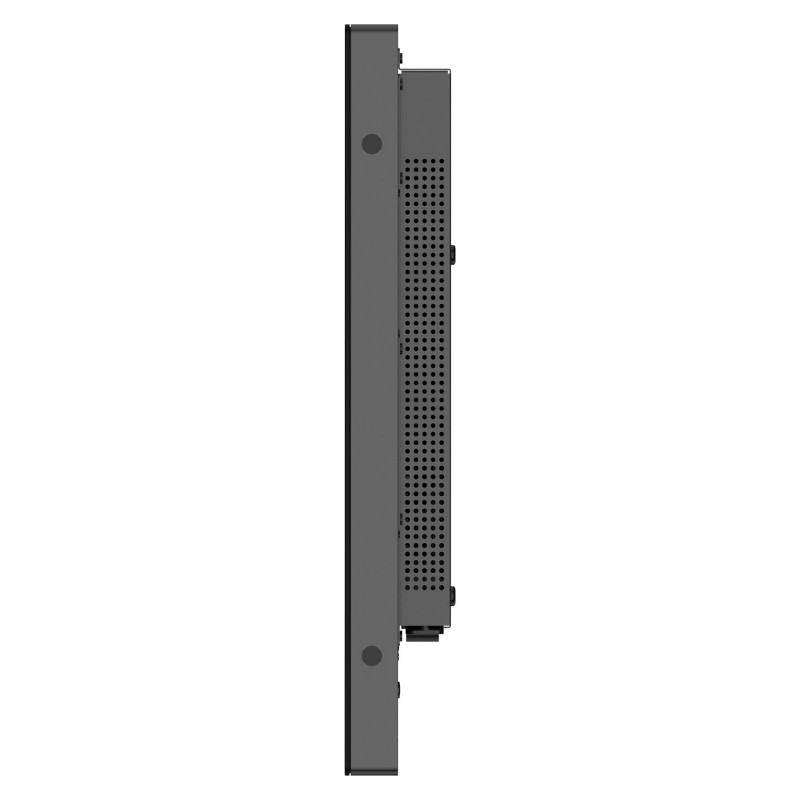

Display depth: 62.4 mm
Display height: 440.7 mm
Display weight: 13.2 kg
Width: 746.2 mm
Depth: 62.4 mm
Height: 440.7 mm
Weight: 13.2 kg
Width (with stand): 746.2 mm
Depth (with stand): 62.4 mm
Height (with stand): 440.7 mm
Weight (with stand): 13.2 kg

Packaging data

Package width: 840 mm
Package depth: 149 mm
Package height: 560 mm
Package volume: 16600 cm³
Package weight: 16.6 kg

Packaging content

Feature: Remote control included
Feature: Batteries included

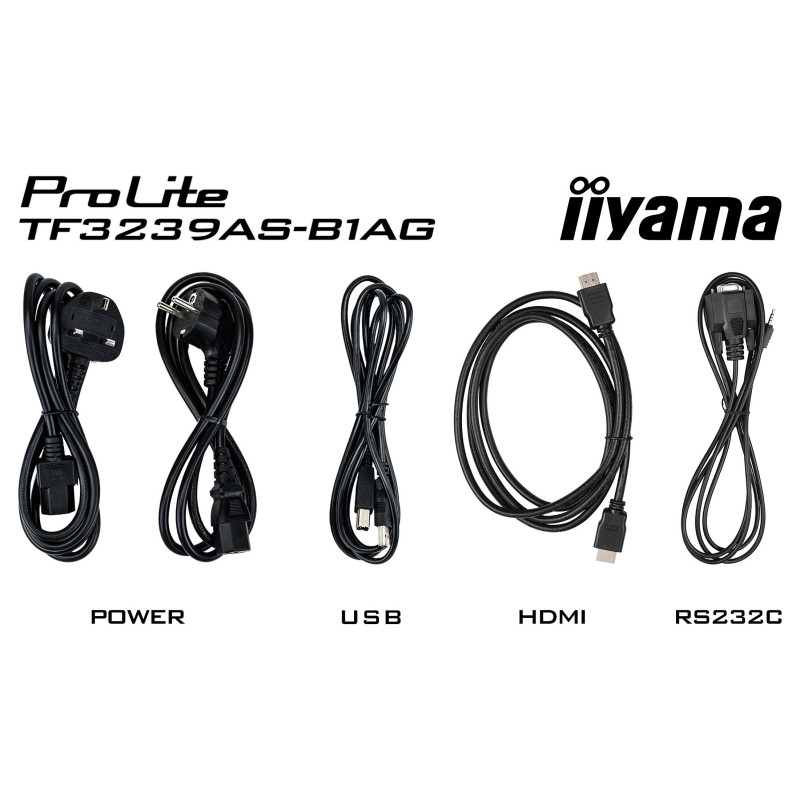

Cables included: AC, USB, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH

Network

Feature: Ethernet LAN

Technical details

Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Maximum refresh rate: 60 Hz
Feature: Quick start guide
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Brightness: 435 cd/m²
Display surface: Matt
Power supply type: Internal
