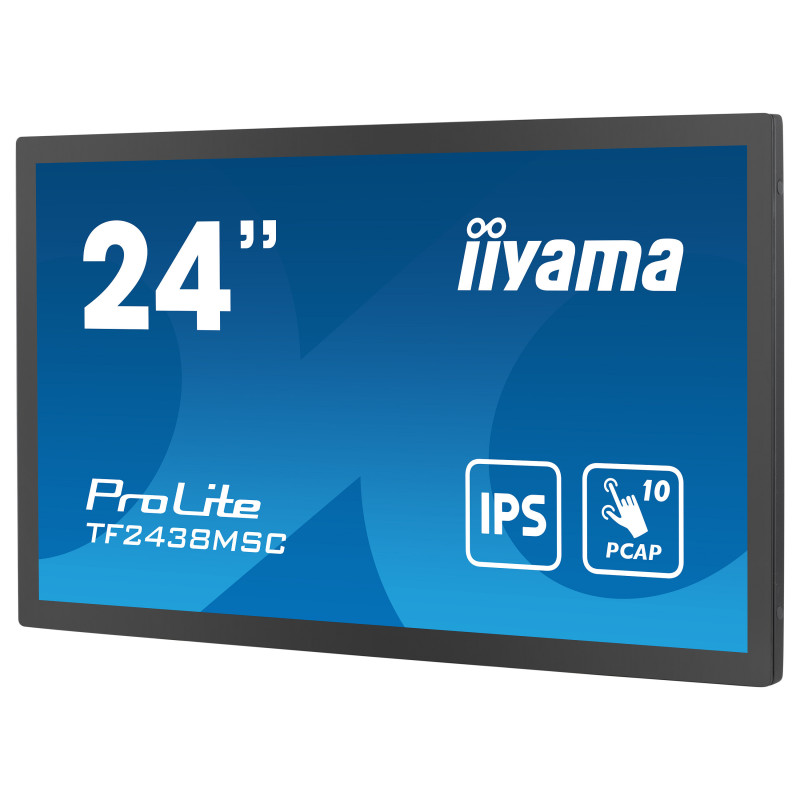

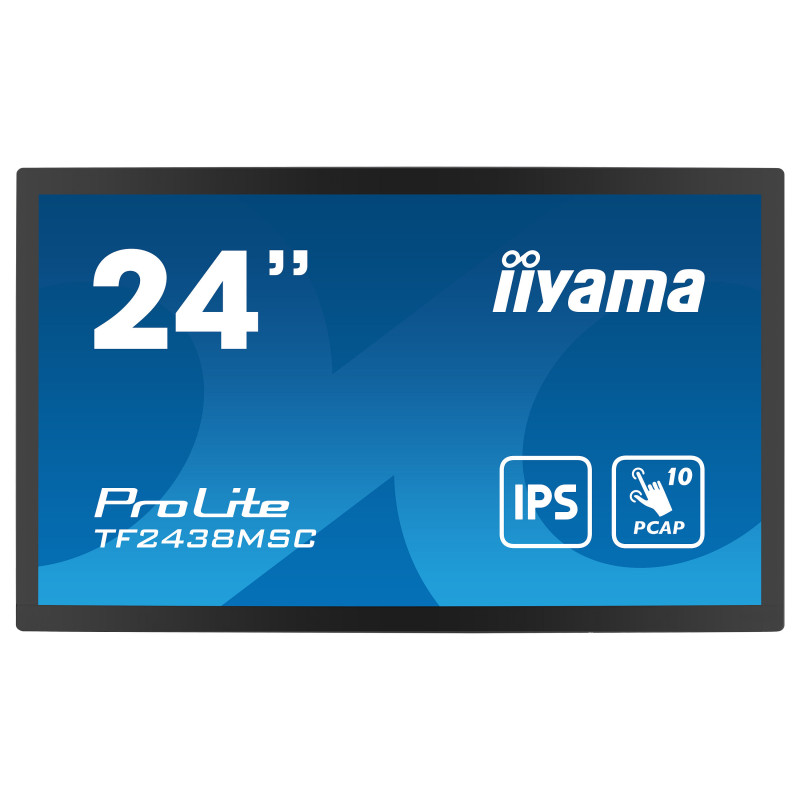

iiyama TF2438MSC-B1 computer monitor

iiyama TF2438MSC-B1. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black

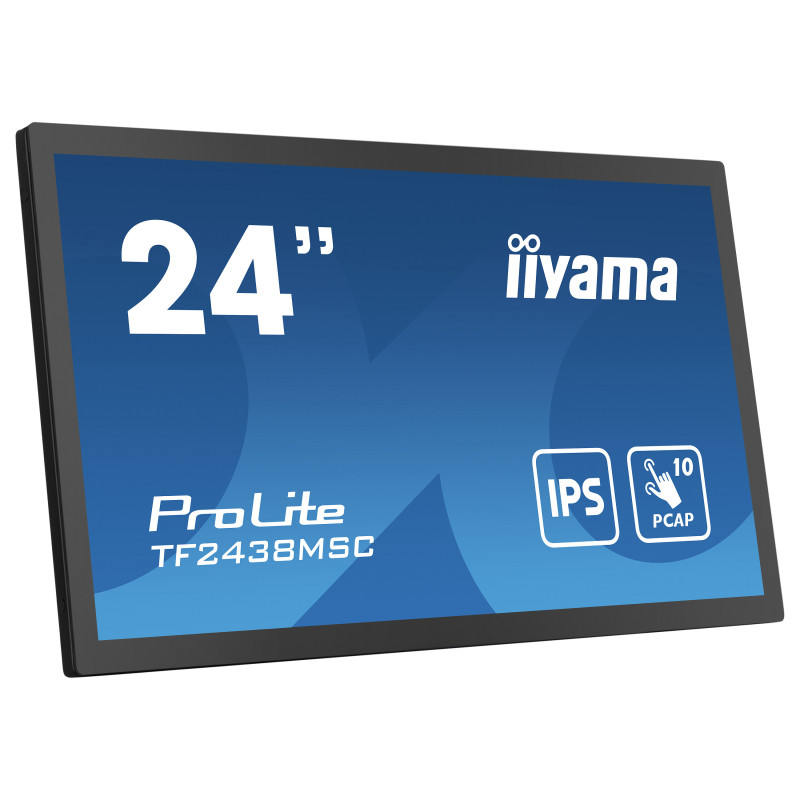

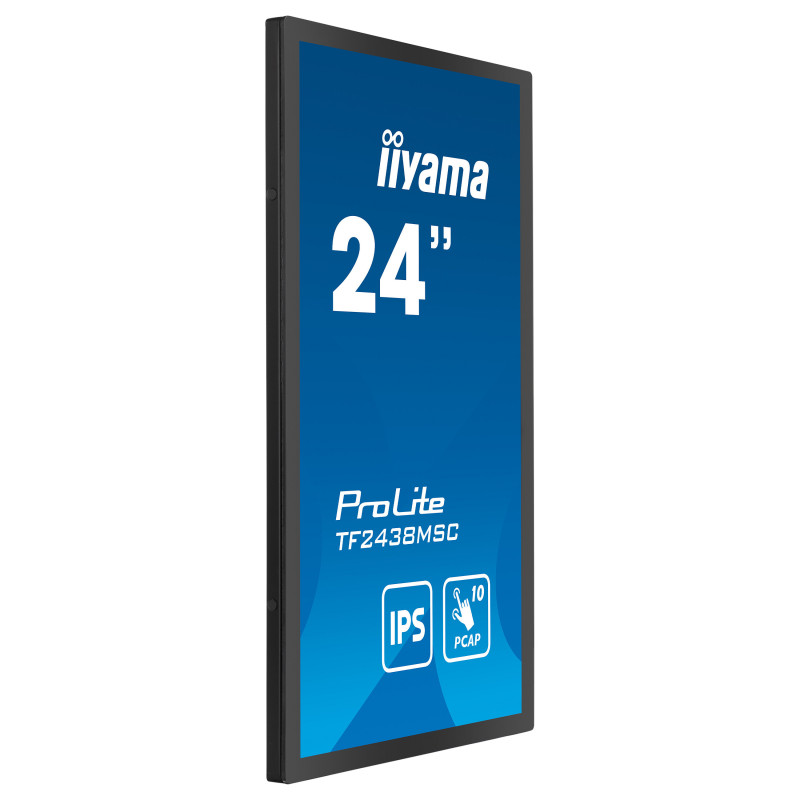

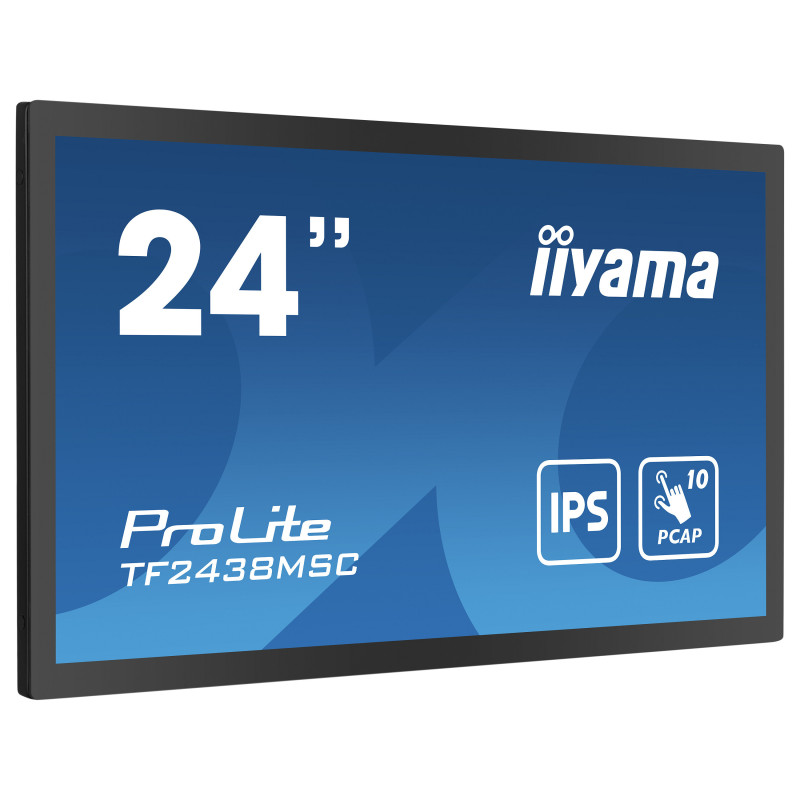

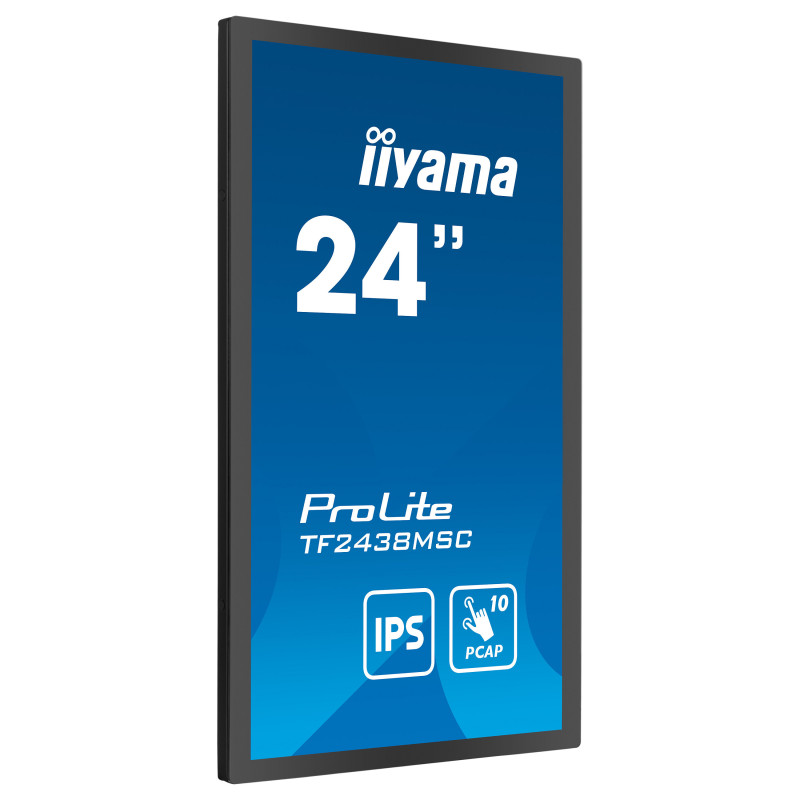

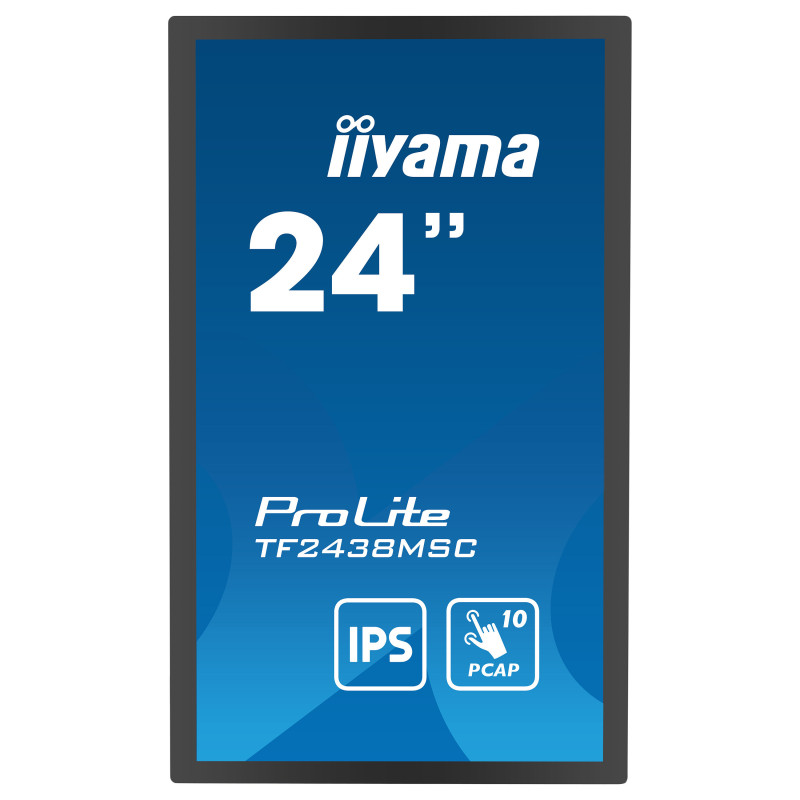

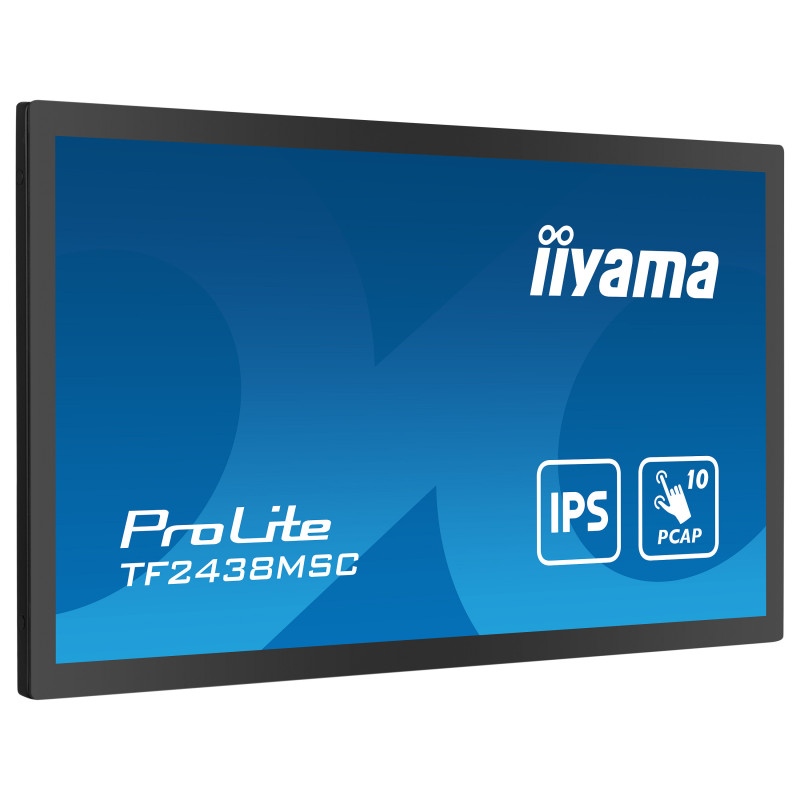

The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 600 cd/m²
Display brightness: 525 cd/m²
Response time: 5 ms
Response time measurement type: GTG (Gray to Gray)
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.275 x 0.275 mm
Horizontal scan range: 30 - 83 kHz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Display diagonal (metric): 60.5 cm
Surface hardness: 7H

Performance

Flicker-free technology: Yes
Low Blue Light technology: Yes

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 3.6 mm

Ports interfaces

USB version: 3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub: Yes
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports: 2
USB Touch port: Yes
DVI port: No
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Network

Wi-Fi: No
Ethernet LAN: No

Ergonomics

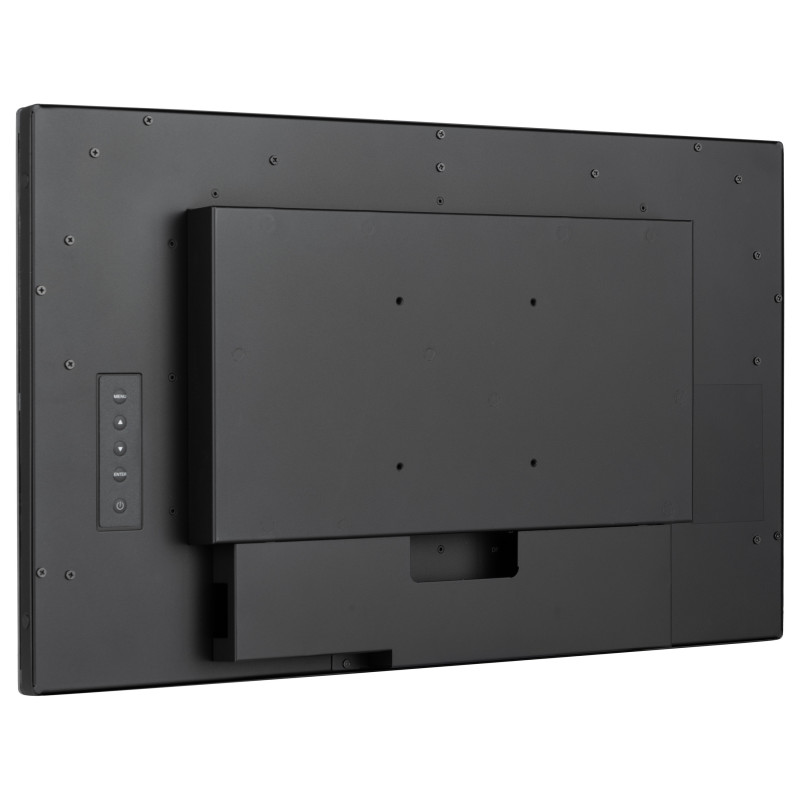

VESA mounting: Yes

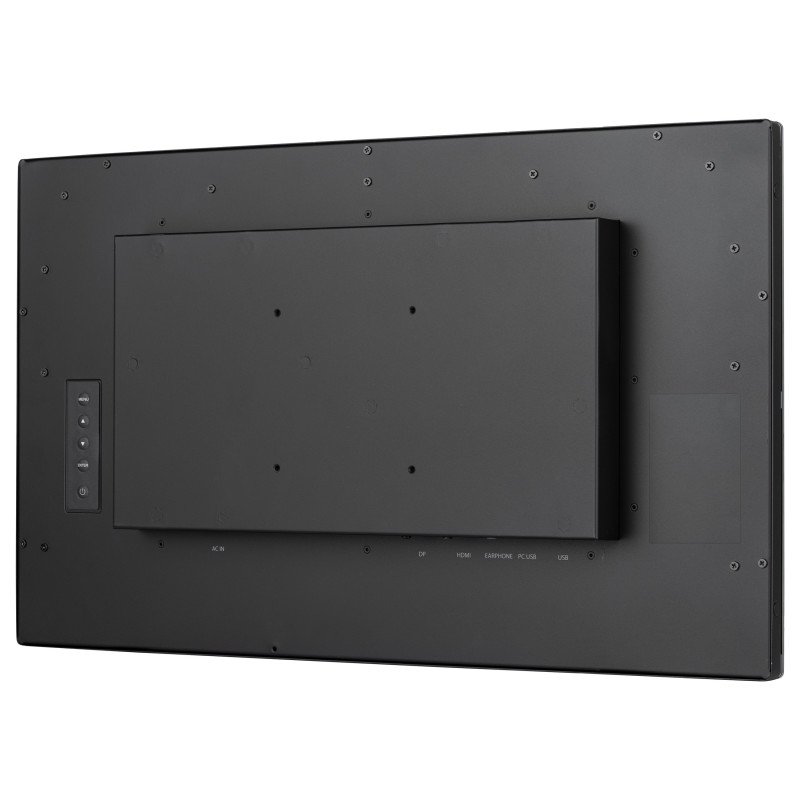

Panel mounting interface: 100 x 100 mm

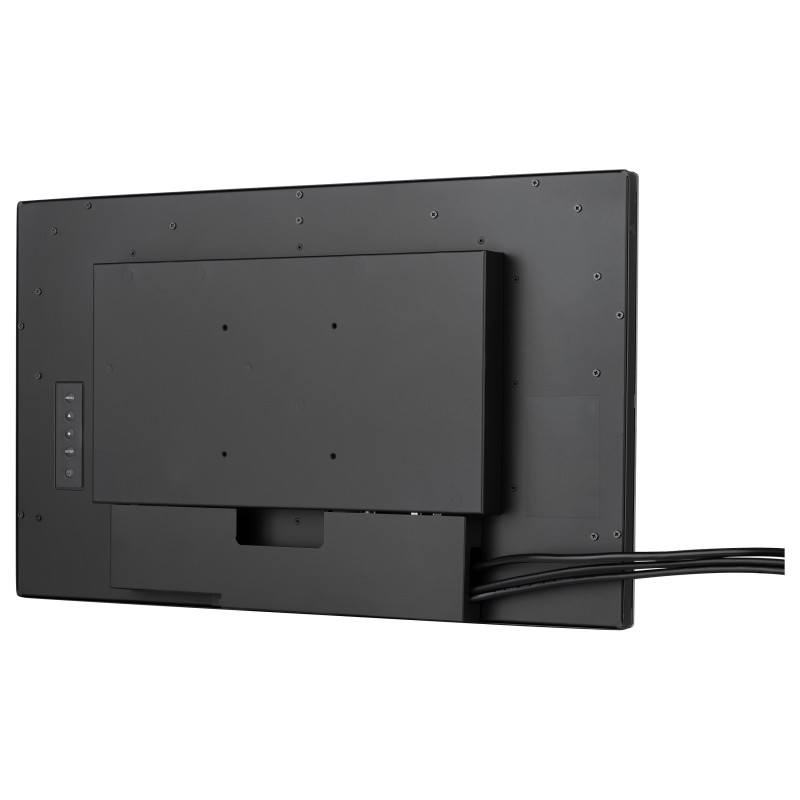

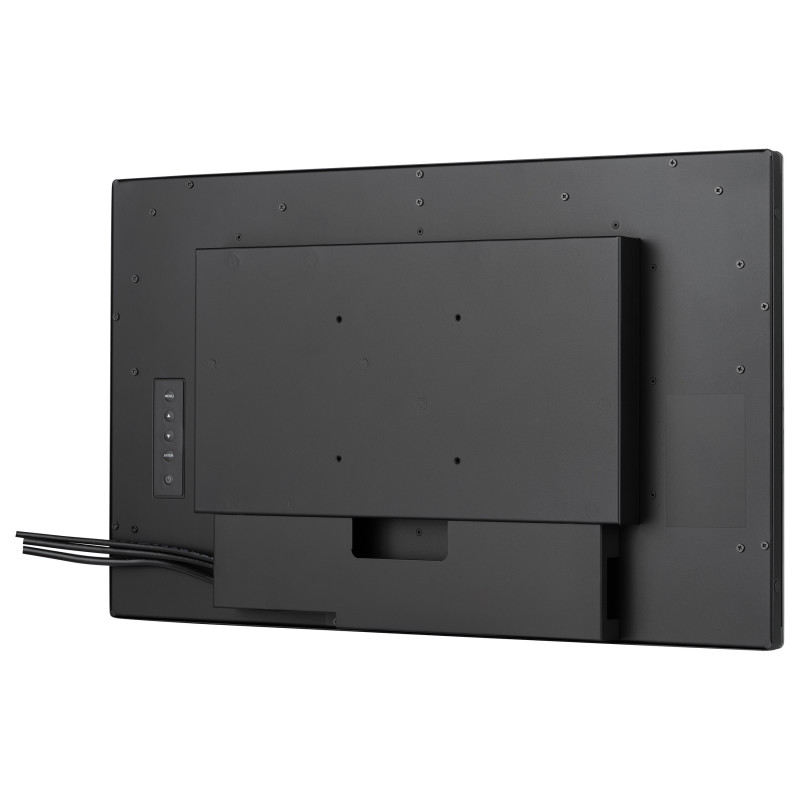

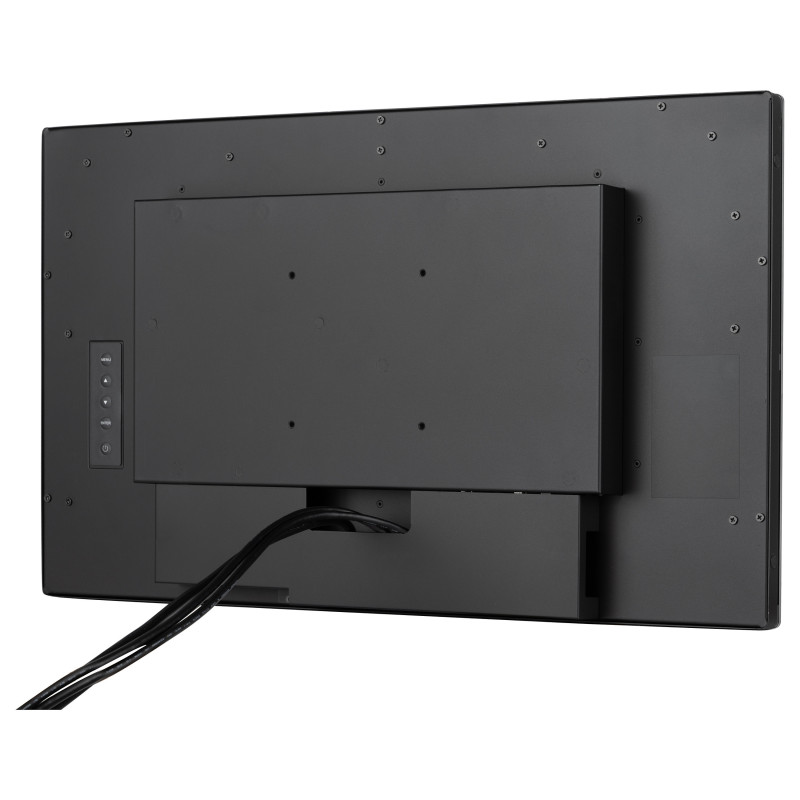

Cable management: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 15.4 kWh
Power consumption (typical): 22 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal

Weight dimensions

Width (with stand): 561.5 mm
Depth (with stand): 47.5 mm
Height (with stand): 337 mm
Weight (with stand): 6.5 kg
Bezel width (side): 1.73 cm
Bezel width (top): 2.03 cm
Bezel width (bottom): 2.03 cm

Packaging data

Package width: 635 mm
Package depth: 115 mm
Package height: 409 mm
Package weight: 8.1 kg
USB cable length: 1.5 m

Packaging content

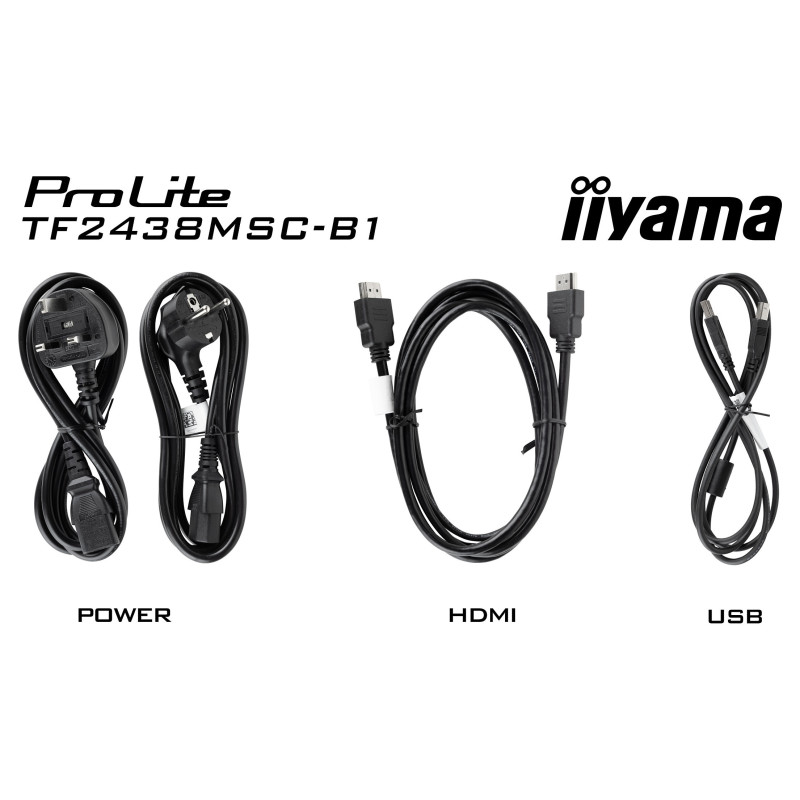

Cables included: AC, USB, HDMI
Quick start guide: Yes
HDMI cable length: 1.5 m
Power cable length: 1.8 m

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP1X
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Placement supported: Indoor
Brightness: 525 cd/m²
Built-in processor: No
Active display area (W x H): 527 x 296.5 mm
USB ports quantity: 2
Weight: 6.5 kg
Height: 337 mm
User controls: Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method: stylus, finger, glove (latex)
Width: 561.5 mm
Depth: 47.5 mm

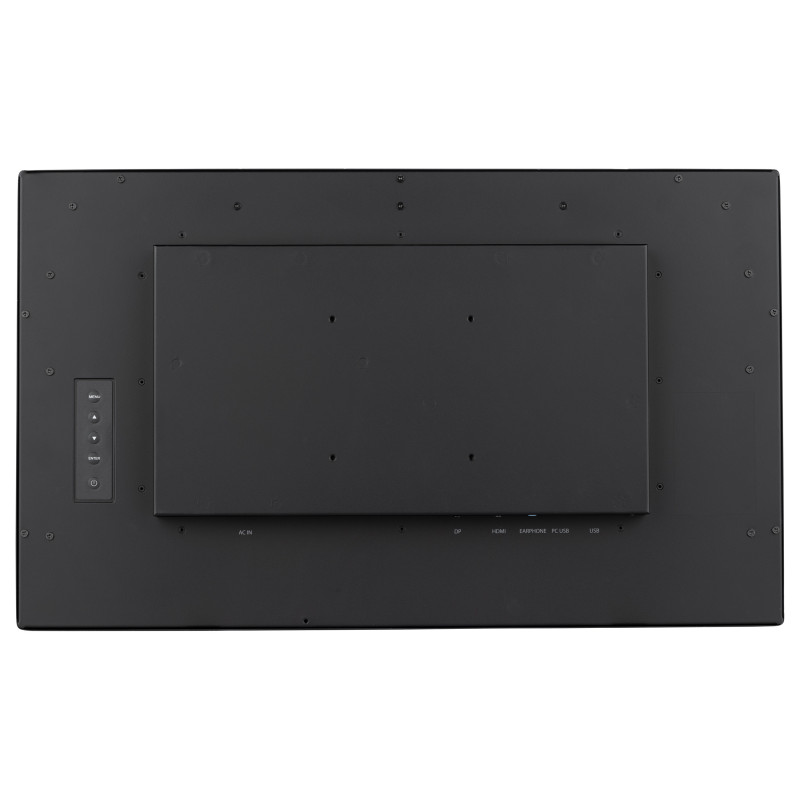

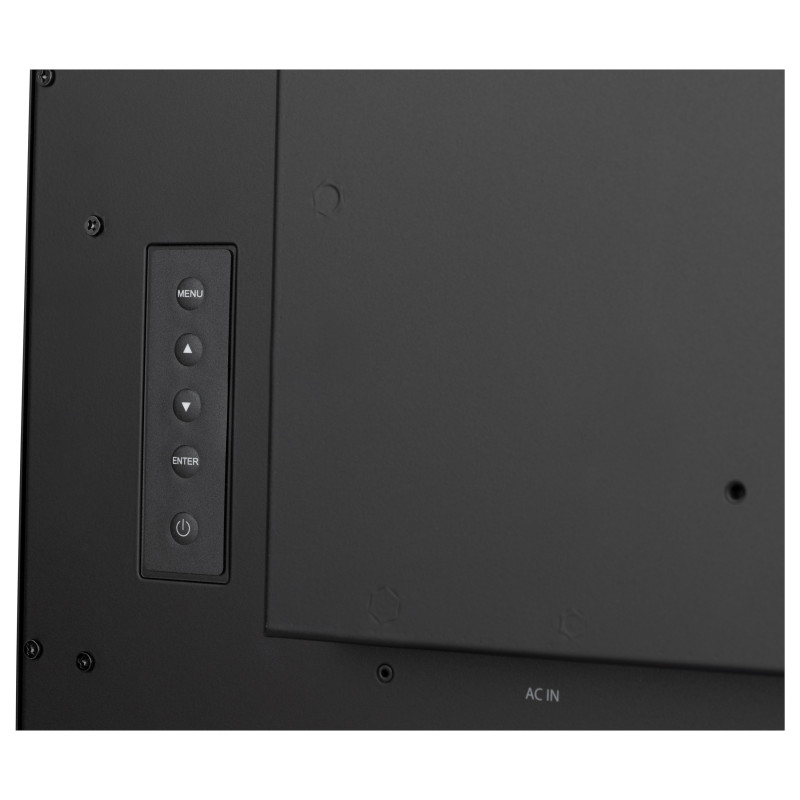

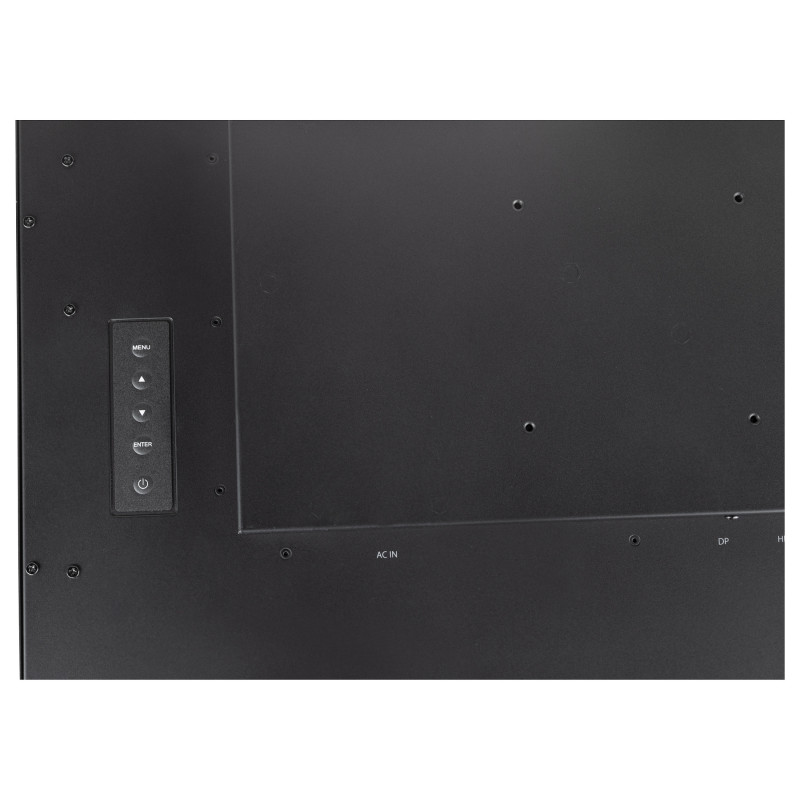

Control panel: Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Compliance certificates: CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Certification: CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
