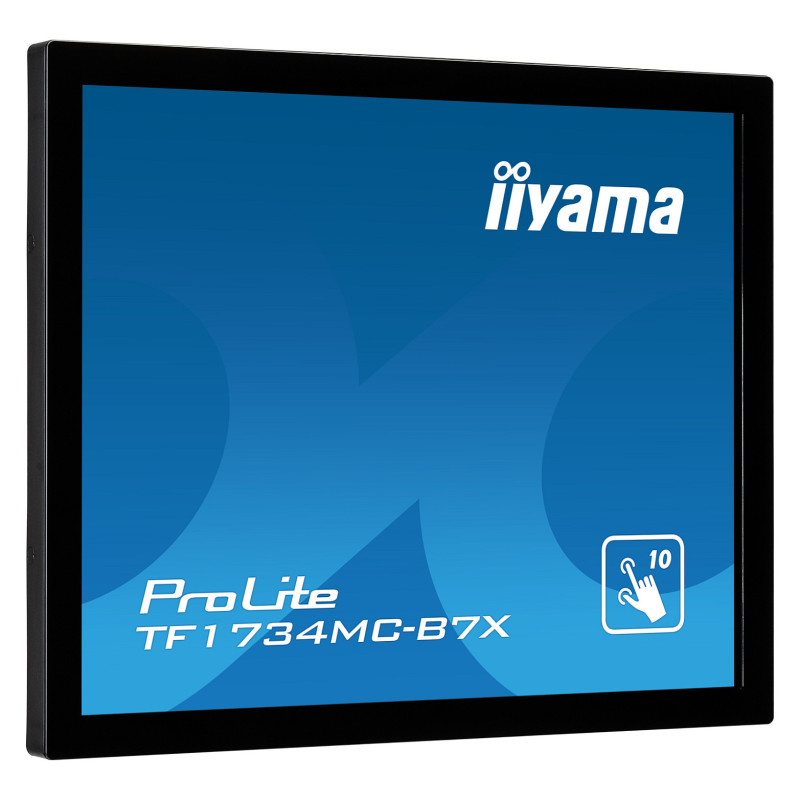

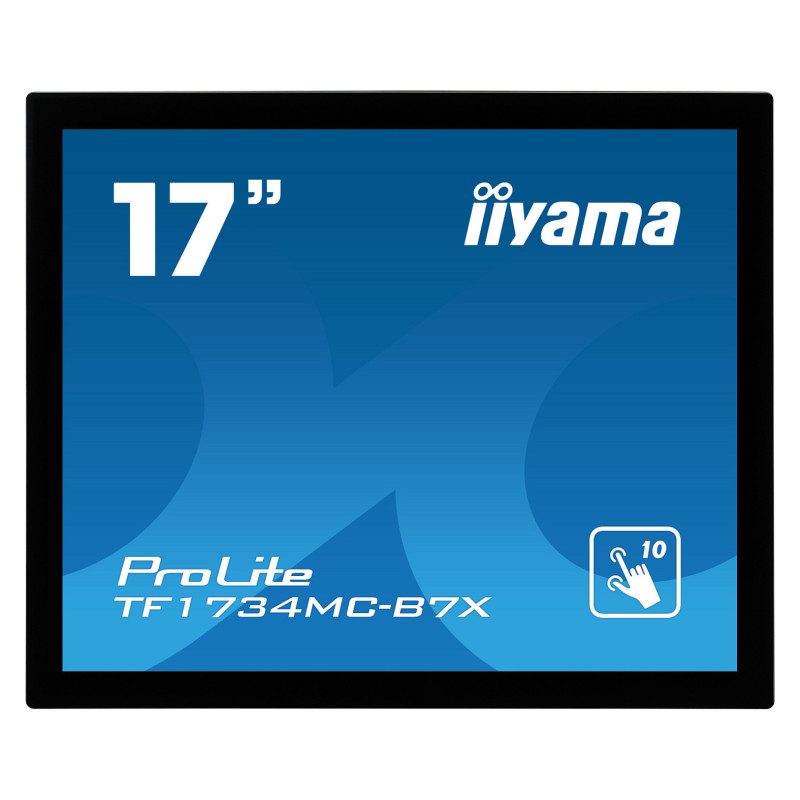

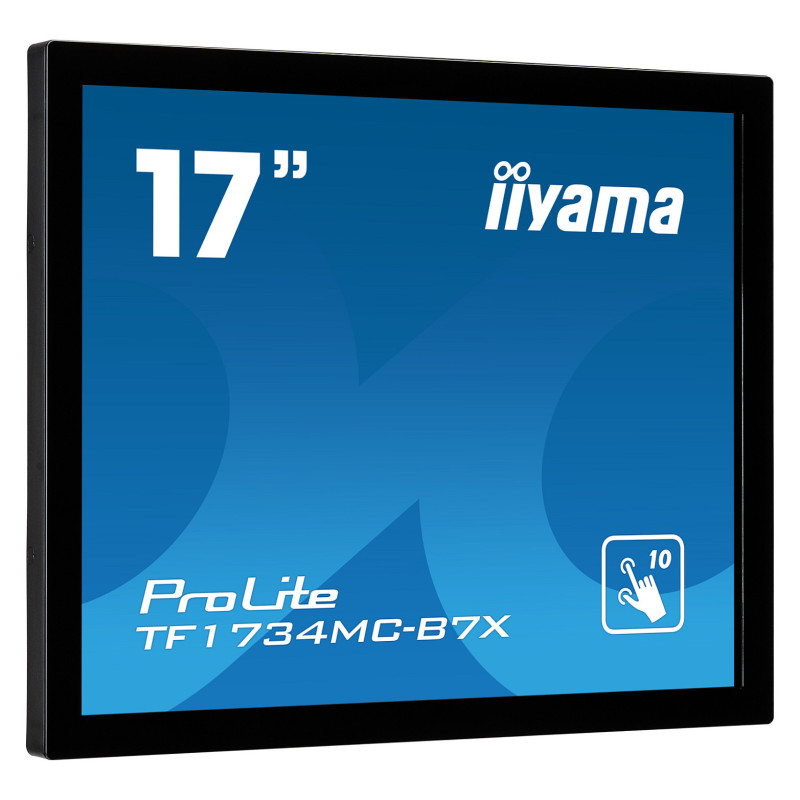

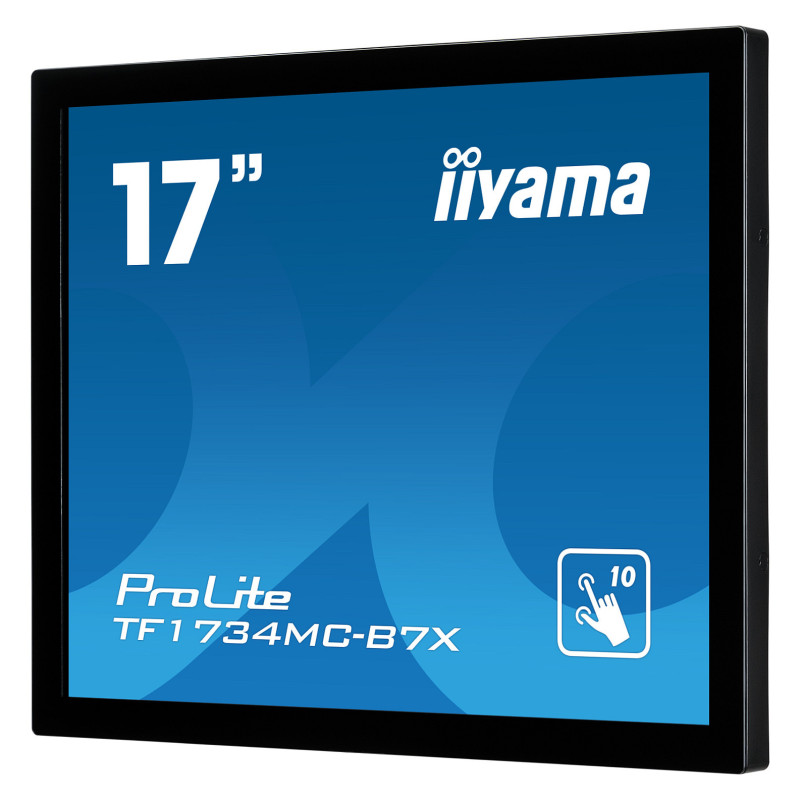

iiyama TF1734MC-B7X computer monitor

iiyama TF1734MC-B7X. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Display technology: LED, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. VESA mounting. Product colour: Black

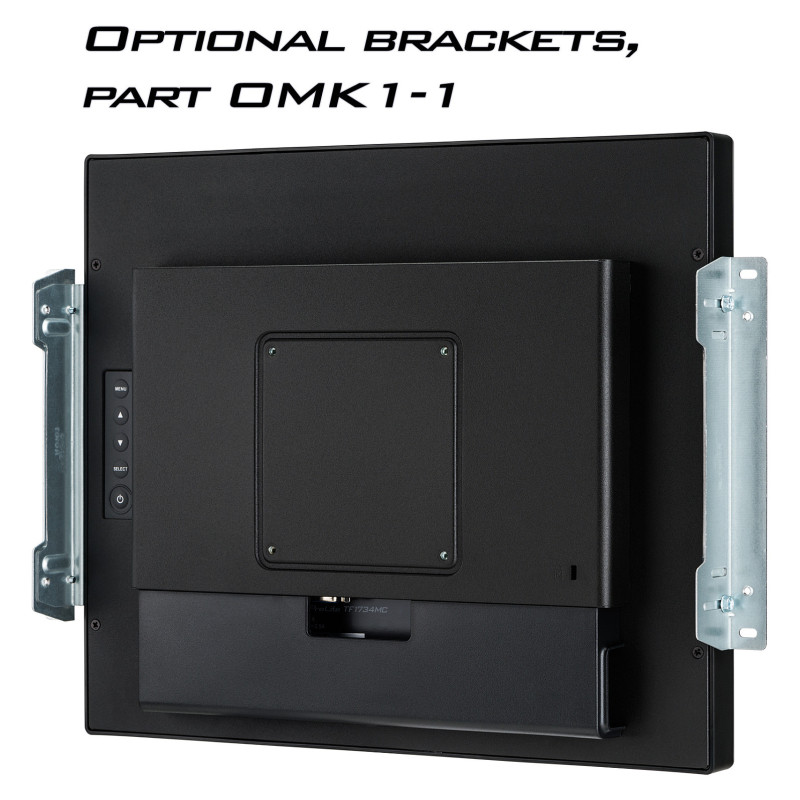

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display

Display diagonal: 43.2 cm (17")
Display resolution: 1280 x 1024 pixels
HD type: SXGA
Native aspect ratio: 5:4
Display technology: LED
Panel type: TN
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 1280 x 1024 (SXGA)
Supported video modes: 1024p
Aspect ratio: 5:4
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.264 x 0.264 mm
Horizontal scan range: 31.4 - 80 kHz
Viewable size, horizontal: 33.8 cm
Viewable size, vertical: 27.1 cm
Viewable size diagonal: 43 cm
Display diagonal (metric): 43 cm
Colour depth: 8 bit

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Multimedia

Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 3 mm

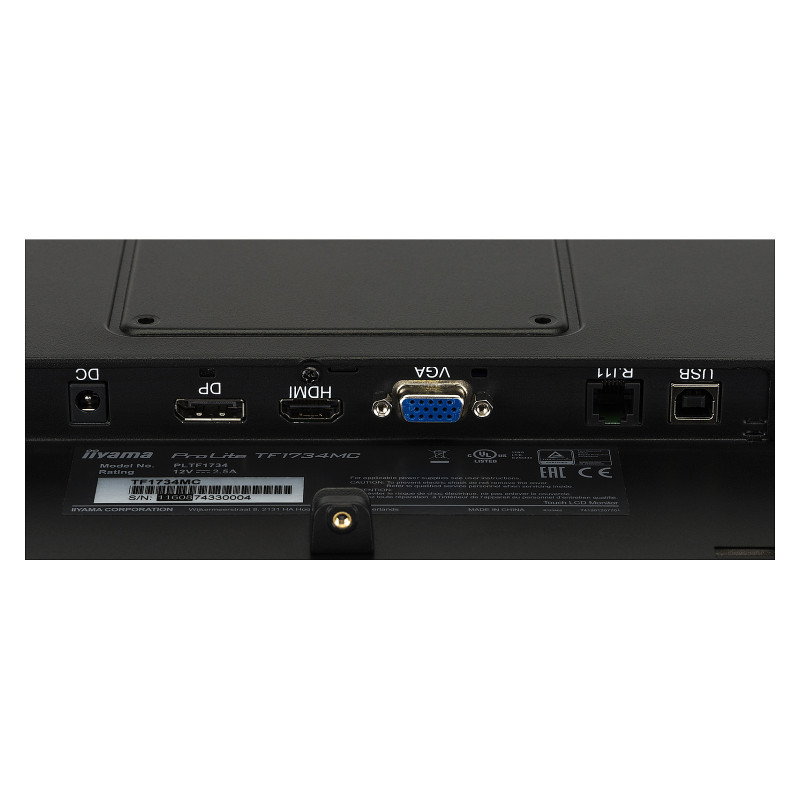

Ports interfaces

USB required: Yes
USB Touch port: Yes
USB Touch ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

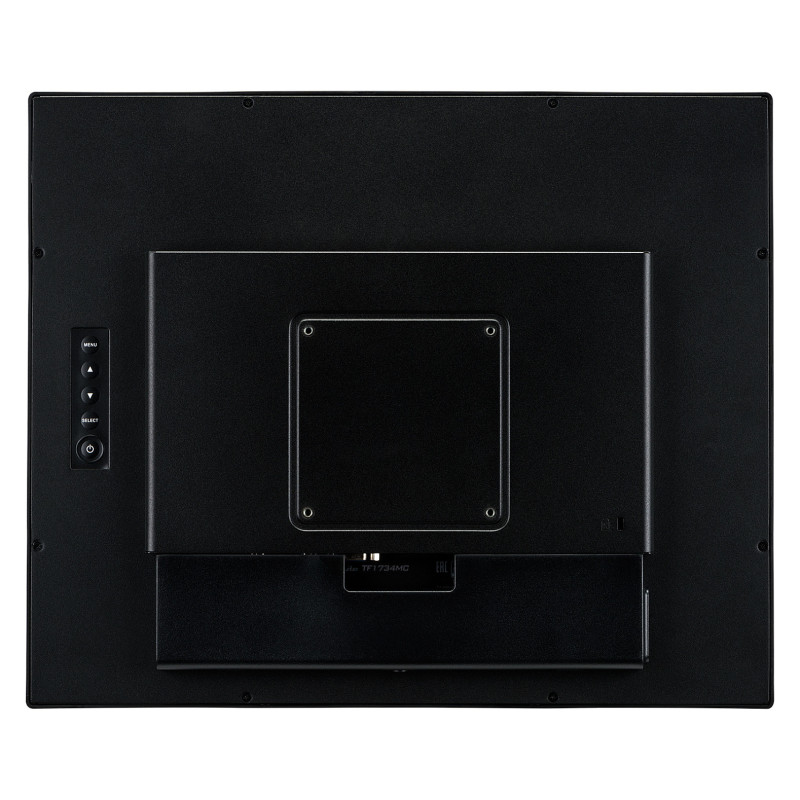

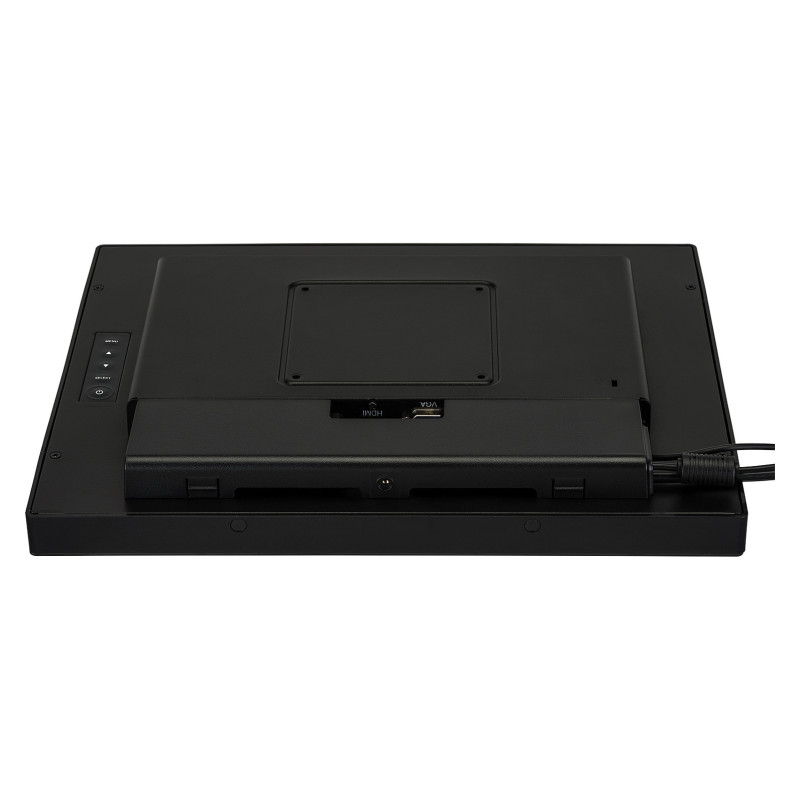

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Plug and Play: Yes

Power

Energy efficiency class (SDR): E
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 11.4 kWh
Power consumption (typical): 13 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 369 mm
Depth (with stand): 47.5 mm
Height (with stand): 307 mm
Weight (with stand): 3.6 kg
Width (without stand): 369 mm
Depth (without stand): 47.5 mm
Height (without stand): 307 mm
Weight (without stand): 3.6 kg

Packaging data

Package width: 455 mm
Package depth: 145 mm
Package height: 387 mm
Package weight: 4.9 kg

Packaging content

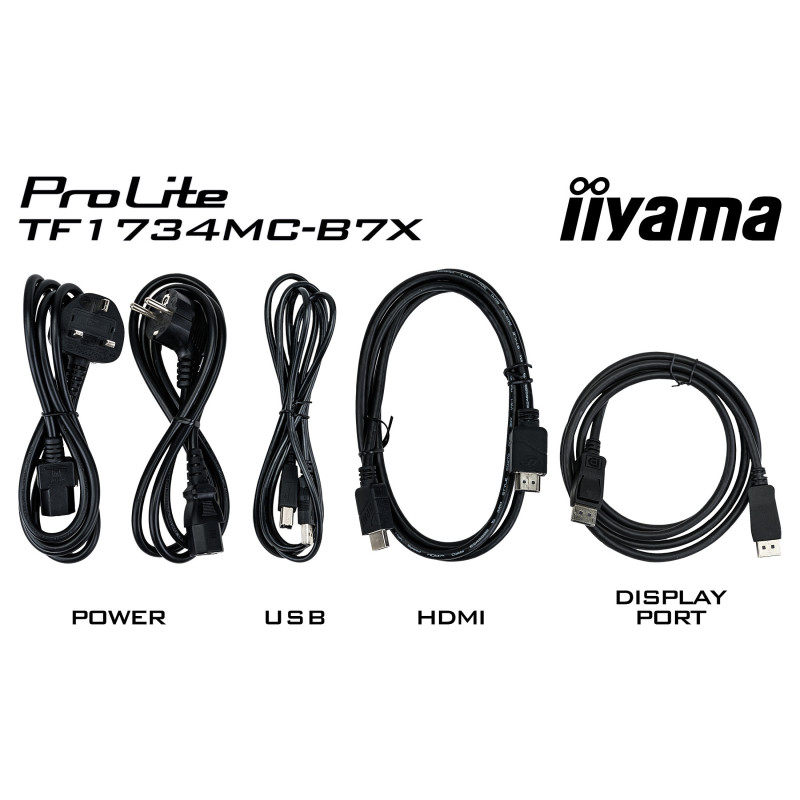

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy: 2 mm
AC adapter included: Yes
Display viewable area (HxV): 338 x 270 mm
Placement supported: Horizontal/Vertical
Brightness: 315 cd/m²
Packaging content: AC adapter
Active display area (W x H): 338 x 270.5 mm
Weight: 3.6 kg
User controls: picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Touch method: stylus, finger, glove
Height: 307 mm
Width: 369 mm
Depth: 47.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Supplied AC adapter type: AC
Certification: CE, EAC, RoHS support, ErP, WEEE, cULus, REACH

Logistics data

Harmonized System (HS) code: 85285210
