iiyama TF1515MC-B2 computer monitor

iiyama TF1515MC-B2. Display diagonal: 38.1 cm (15"), Display resolution: 1024 x 768 pixels, HD type: XGA, Display technology: LED, Response time: 8 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 160°, Viewing angle, vertical: 150°. VESA mounting. Product colour: Black

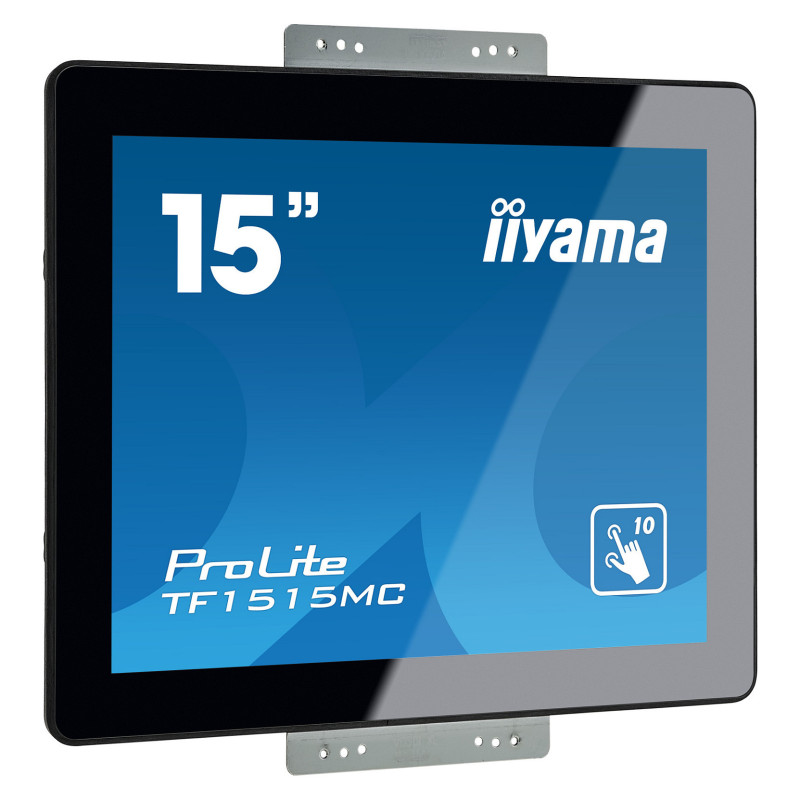

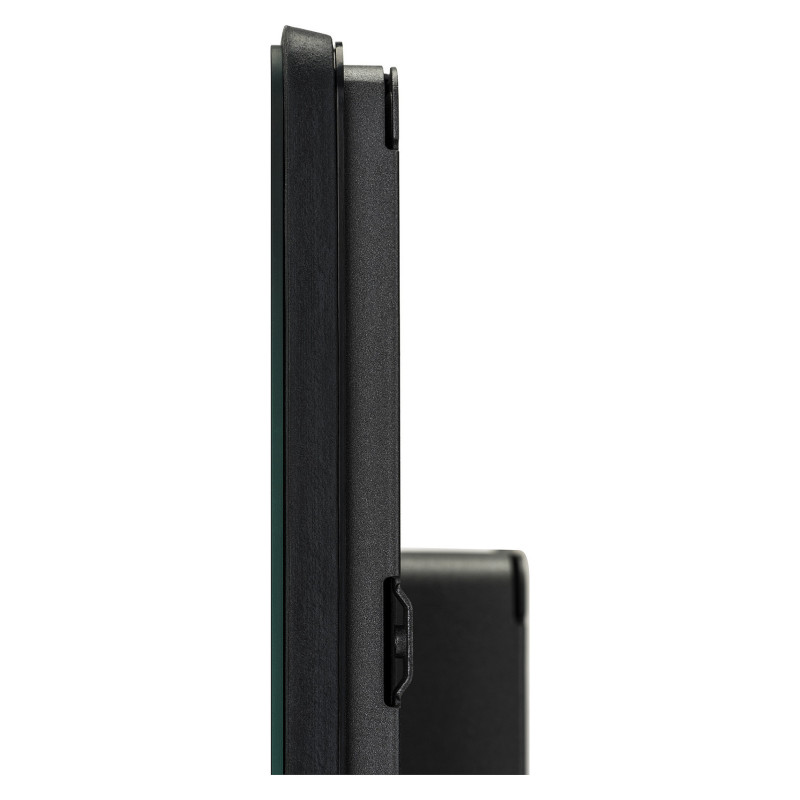

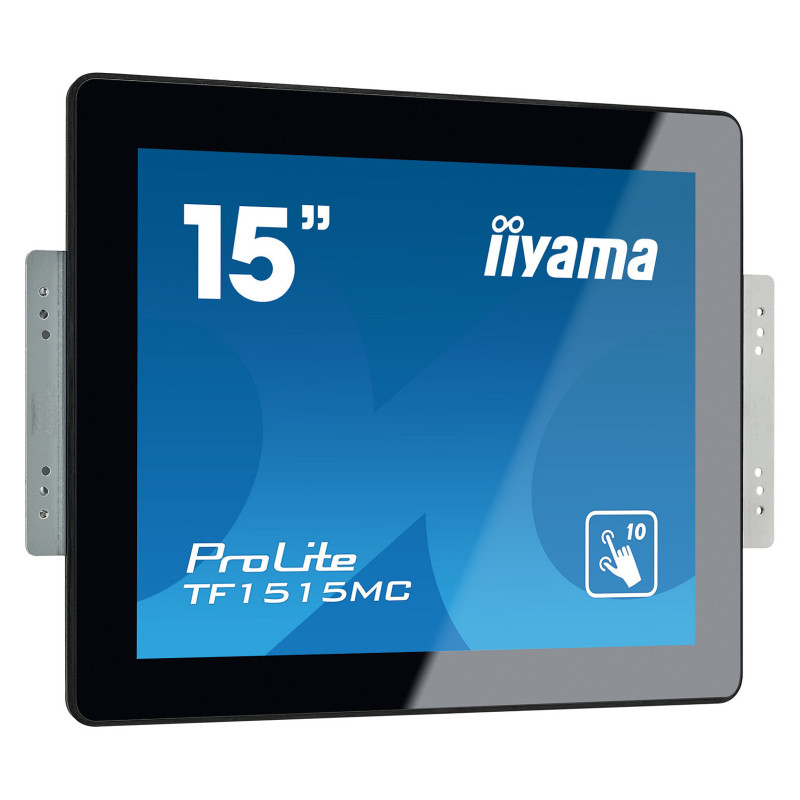

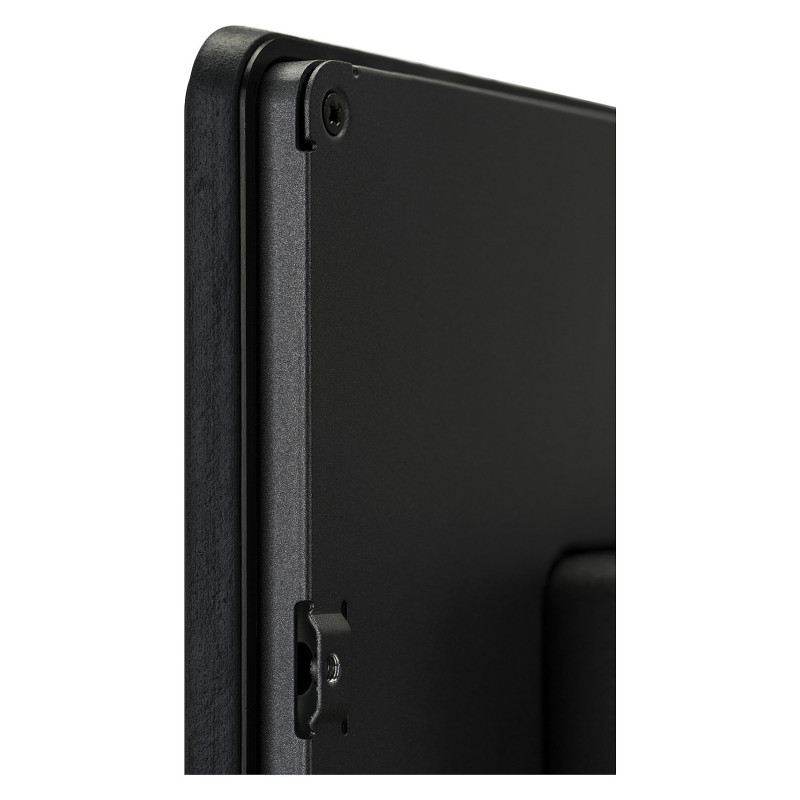

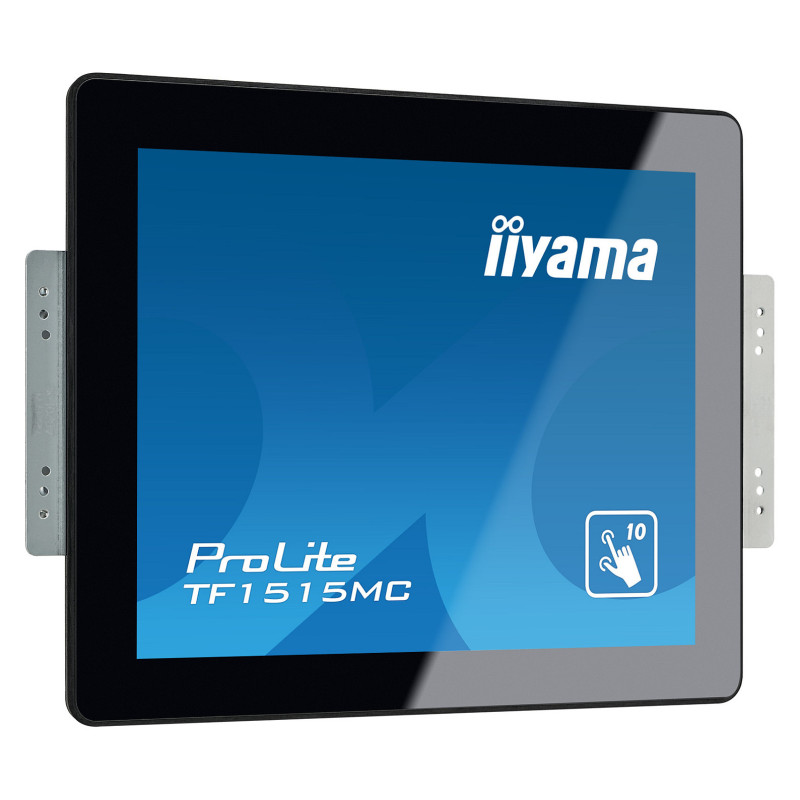

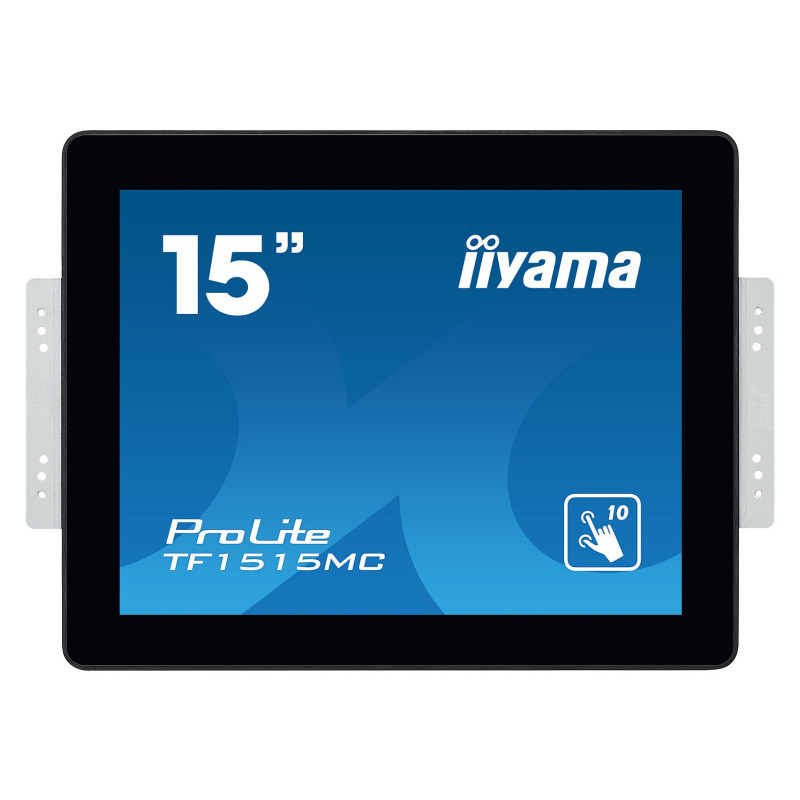

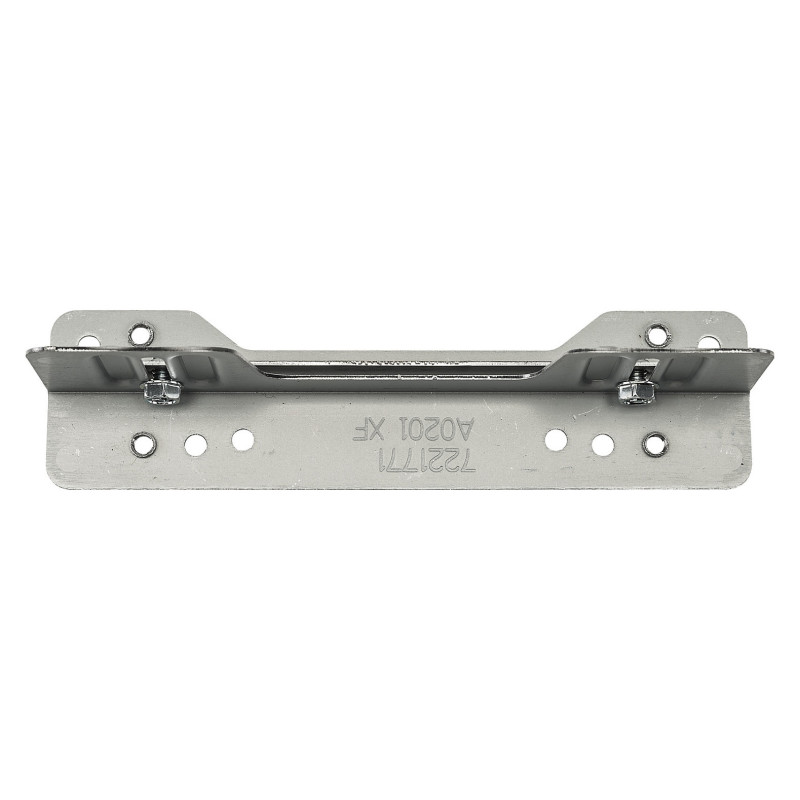

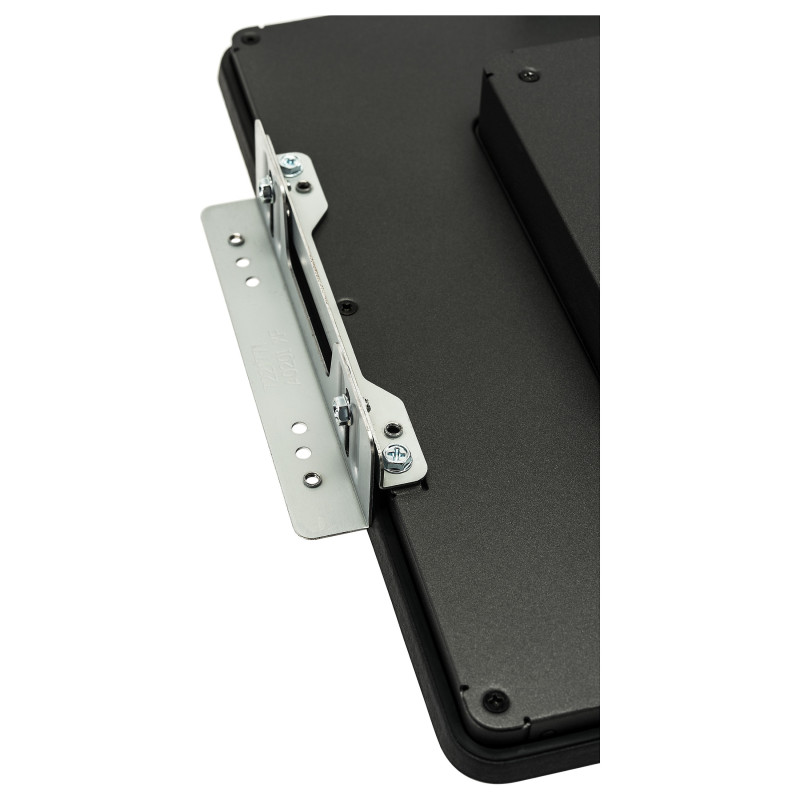

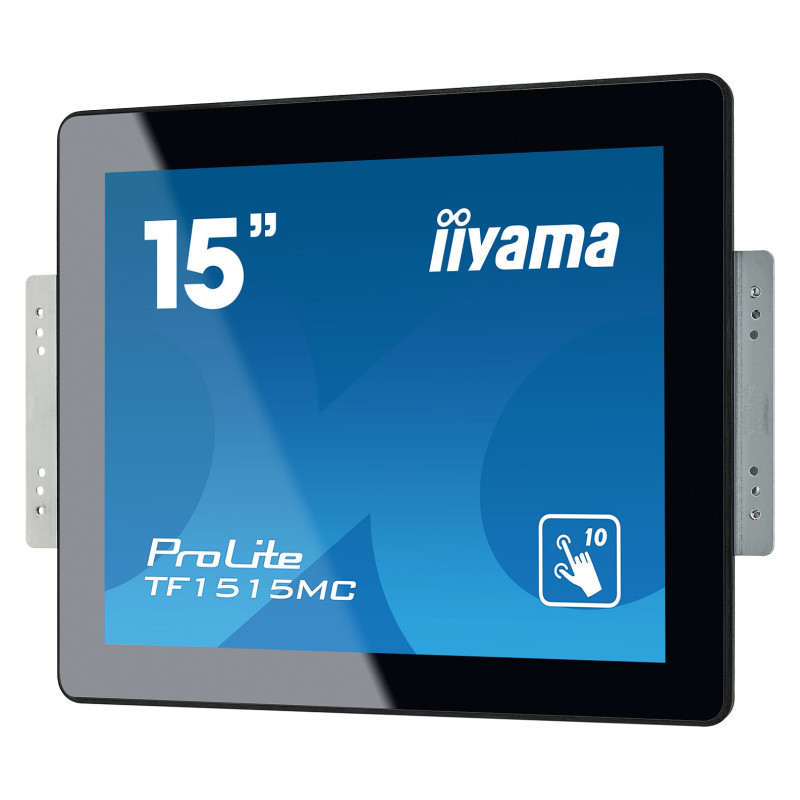

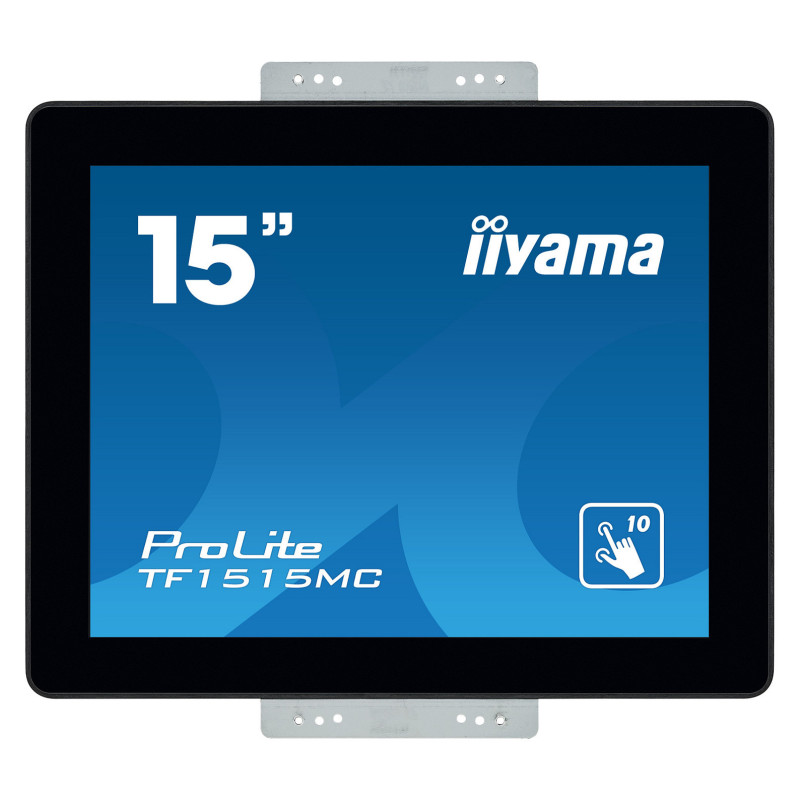

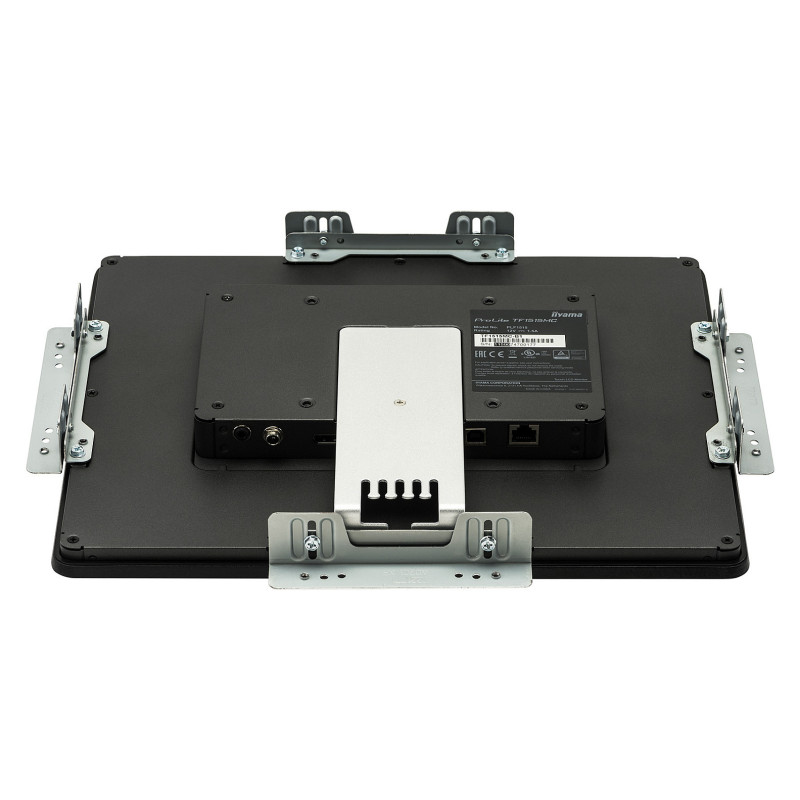

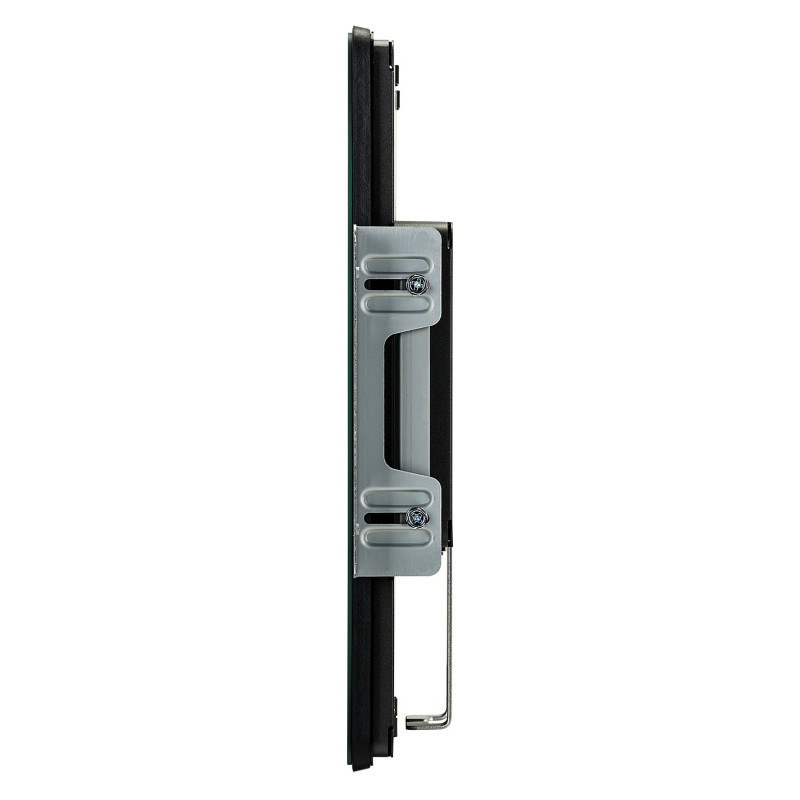

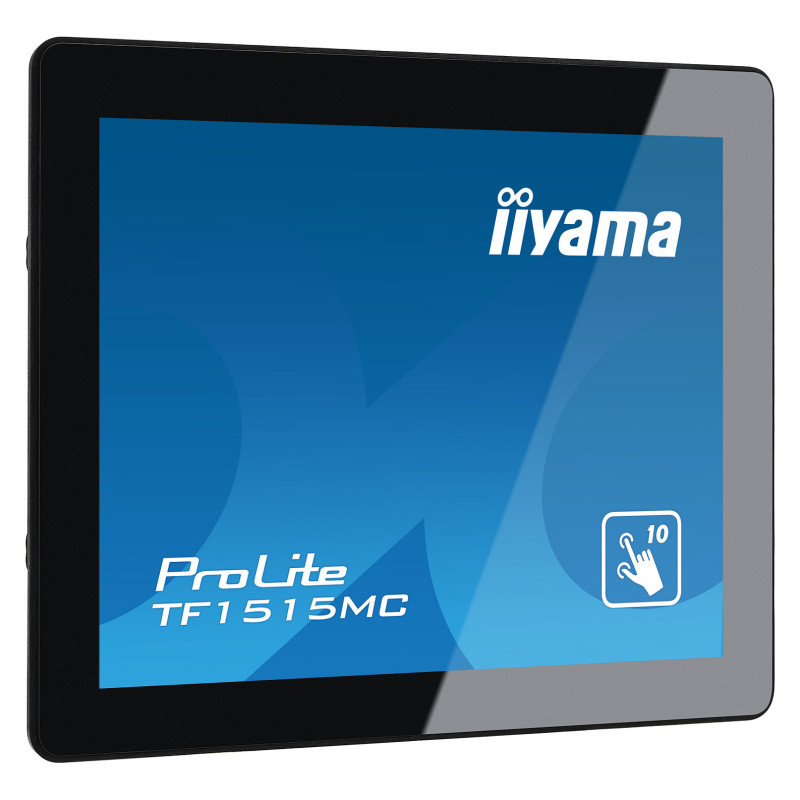

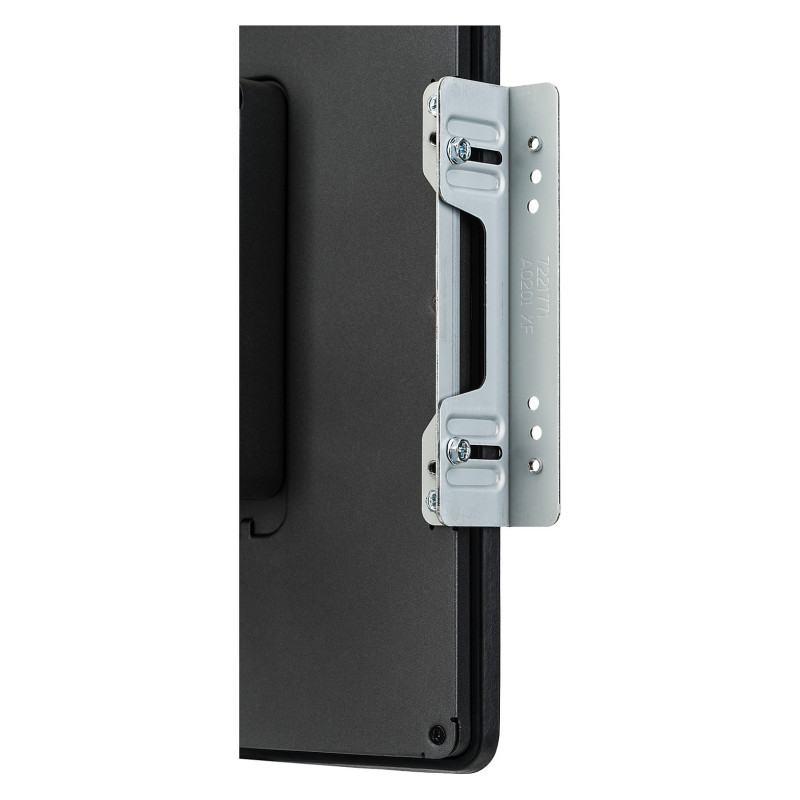

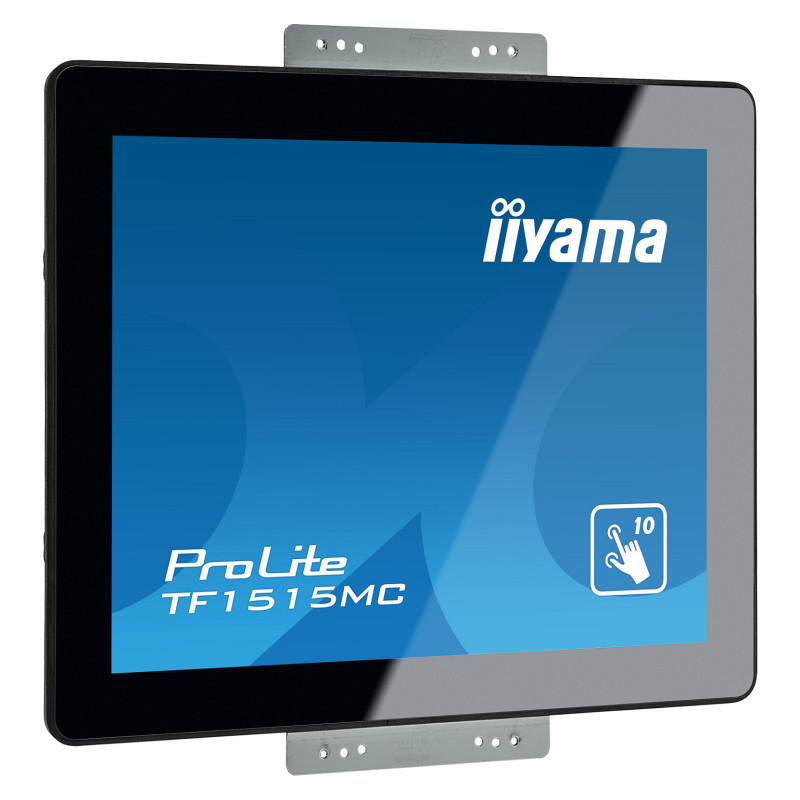

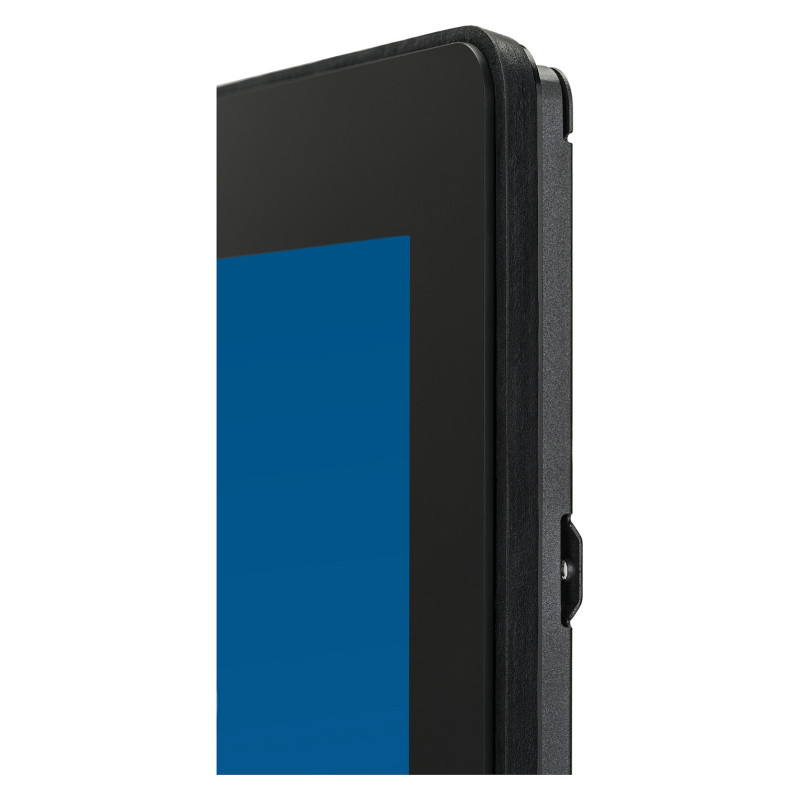

The ProLite TF1515MC-B2 (15 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1515MC-B2 can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 38.1 cm (15")
Display resolution: 1024 x 768 pixels
HD type: XGA
Native aspect ratio: 4:3
Display technology: LED
Panel type: TN
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 8 ms
Screen shape: Flat
Aspect ratio: 4:3
Contrast ratio (typical): 800:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 160°
Viewing angle, vertical: 150°
Display number of colours: 16.2 million colours
Pixel pitch: 0.297 x 0.297 mm
Horizontal scan range: 31.4 - 60 kHz
Viewable size, horizontal: 30.4 cm
Viewable size, vertical: 22.8 cm
Display diagonal (metric): 38 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Yes
Linux operating systems supported: Yes

Multimedia

Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 6 mm

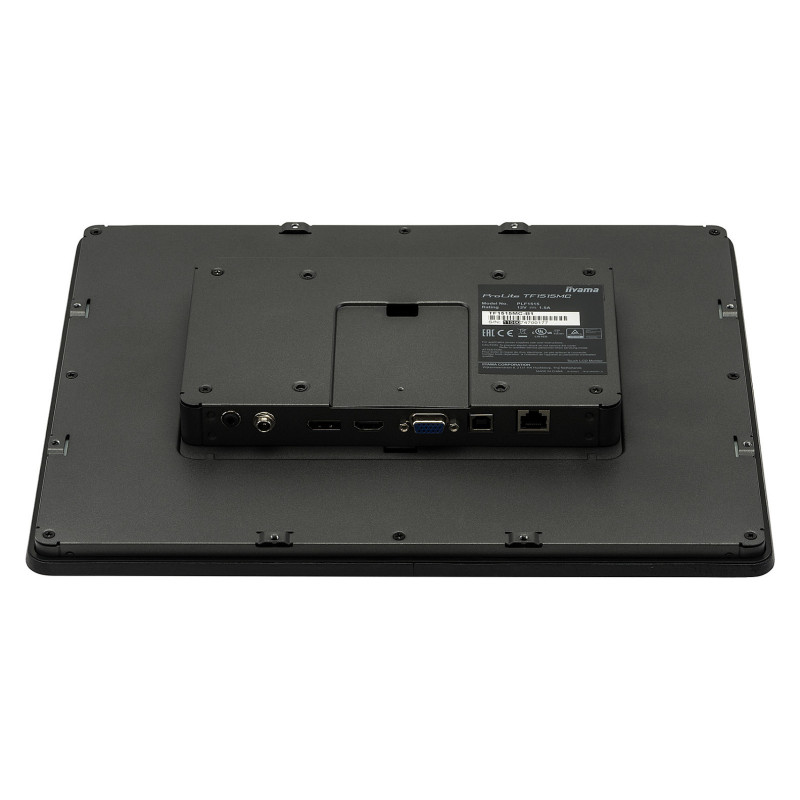

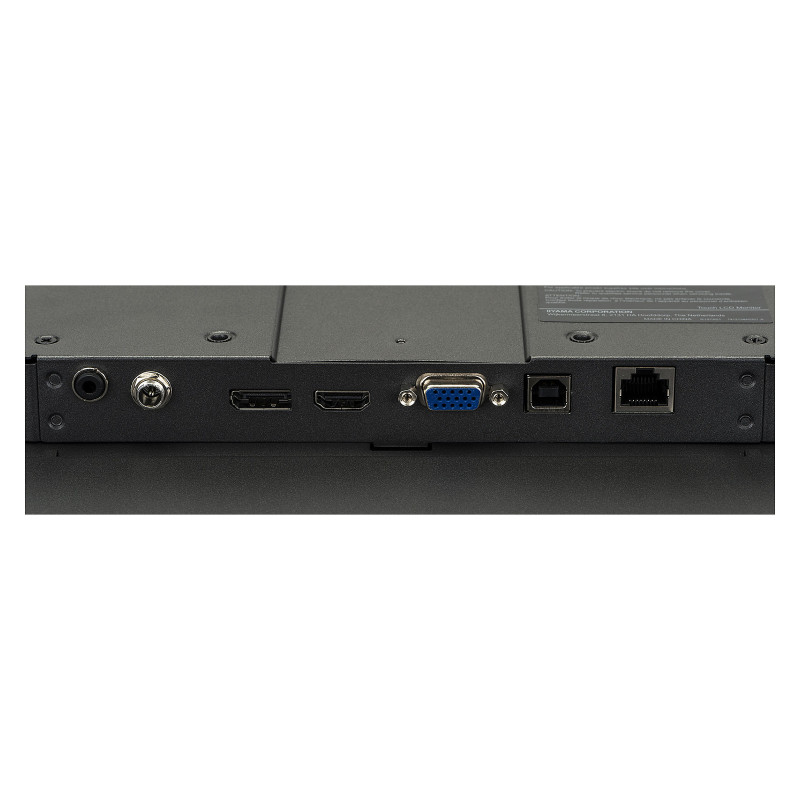

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

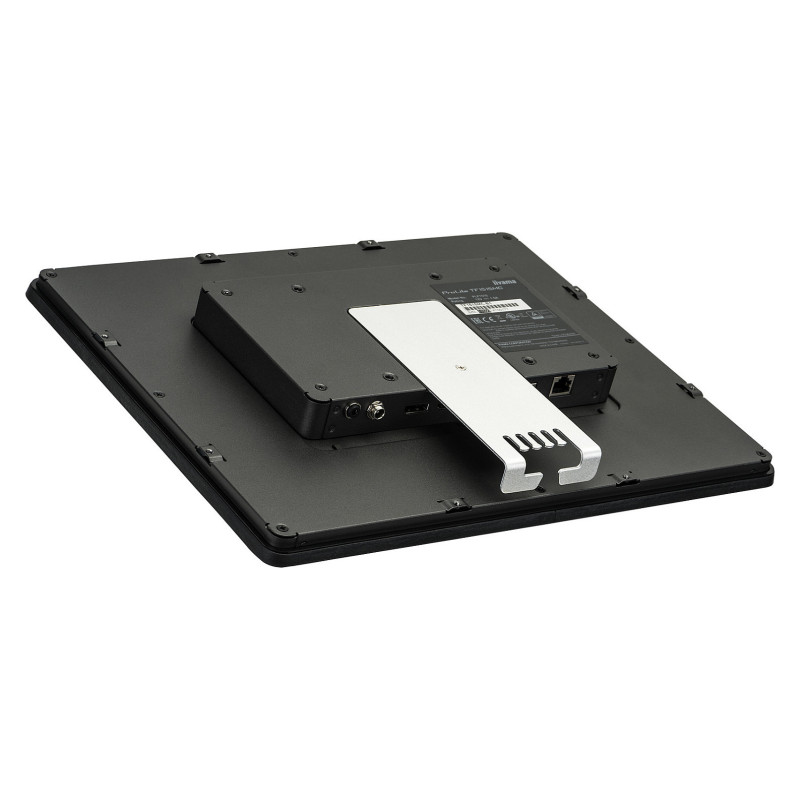

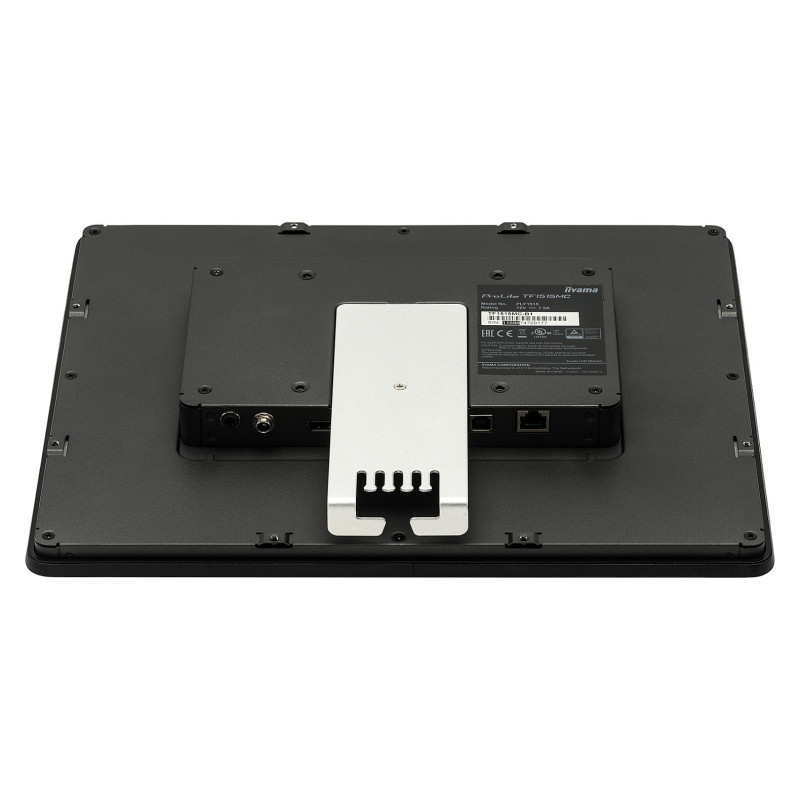

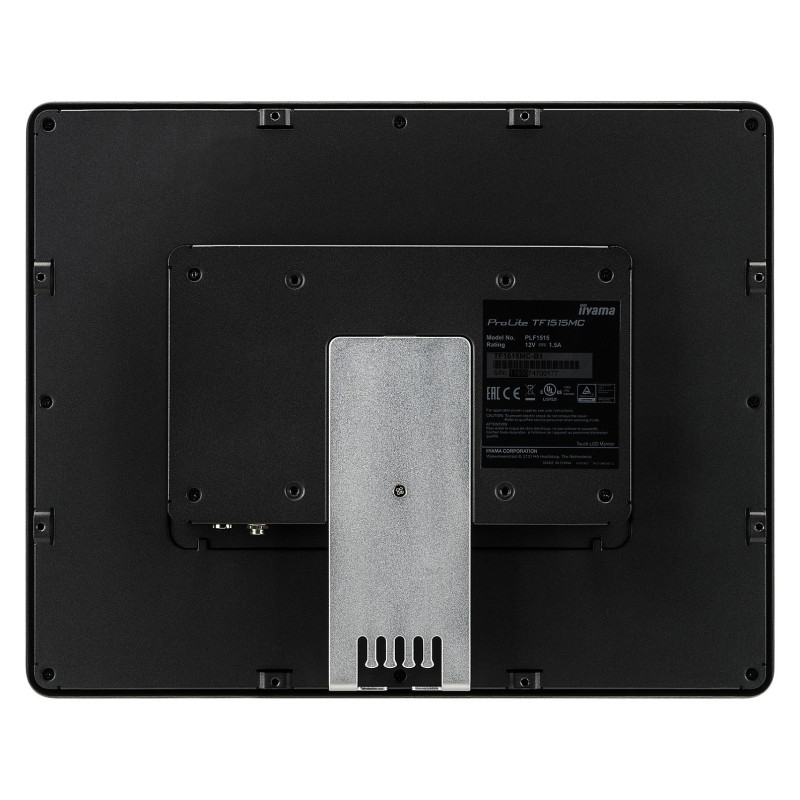

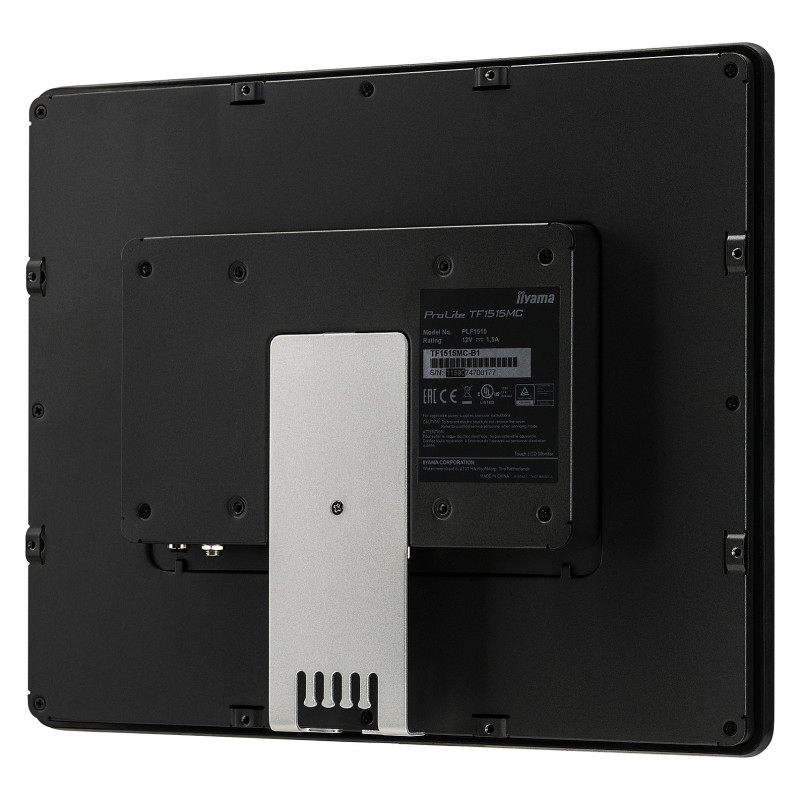

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Plug and Play: Yes
LED indicators: Yes

Power

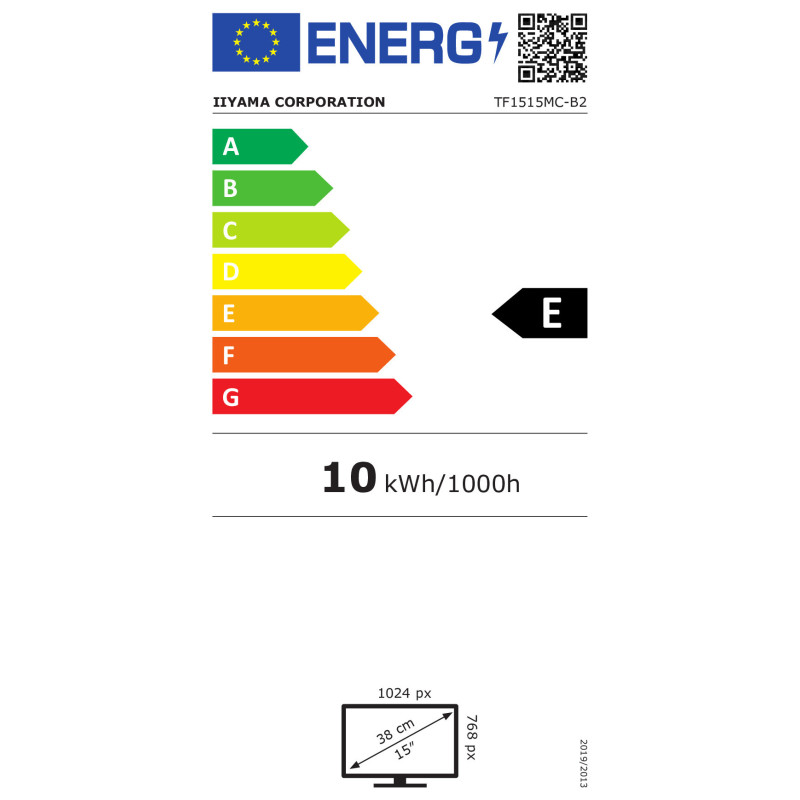

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 10 kWh
Power consumption (typical): 16 W
Power consumption (standby): 1.2 W
Power consumption (off): 1.2 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width (with stand): 364 mm
Depth (with stand): 41.5 mm
Height (with stand): 291 mm
Weight (with stand): 2.9 kg
Width (without stand): 364 mm
Depth (without stand): 291 mm
Height (without stand): 41.5 mm
Weight (without stand): 2.9 kg

Packaging data

Package width: 460 mm
Package depth: 175 mm
Package height: 470 mm
Package weight: 4.6 kg

Packaging content

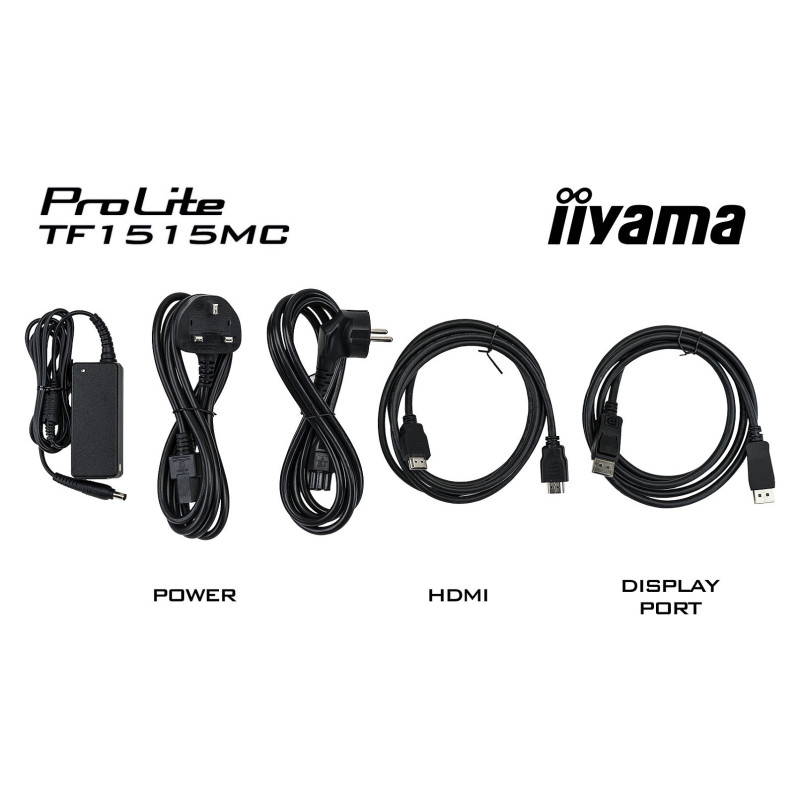

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Display viewable area (HxV): 304.1 x 228.1 mm
Placement supported: Horizontal/Vertical
Brightness: 315 cd/m²
Packaging content: AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Active display area (W x H): 304.1 x 228.1 mm
Weight: 2.9 kg
User controls: picture (contrast, brightness, H.position, V.position, H.size, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H.position, OSD V.position, touch switch), option (reset, language, source select, display mode, factory)
Touch method: stylus, finger, glove (latex)
Height: 291 mm
Width: 364 mm
Depth: 41.5 mm

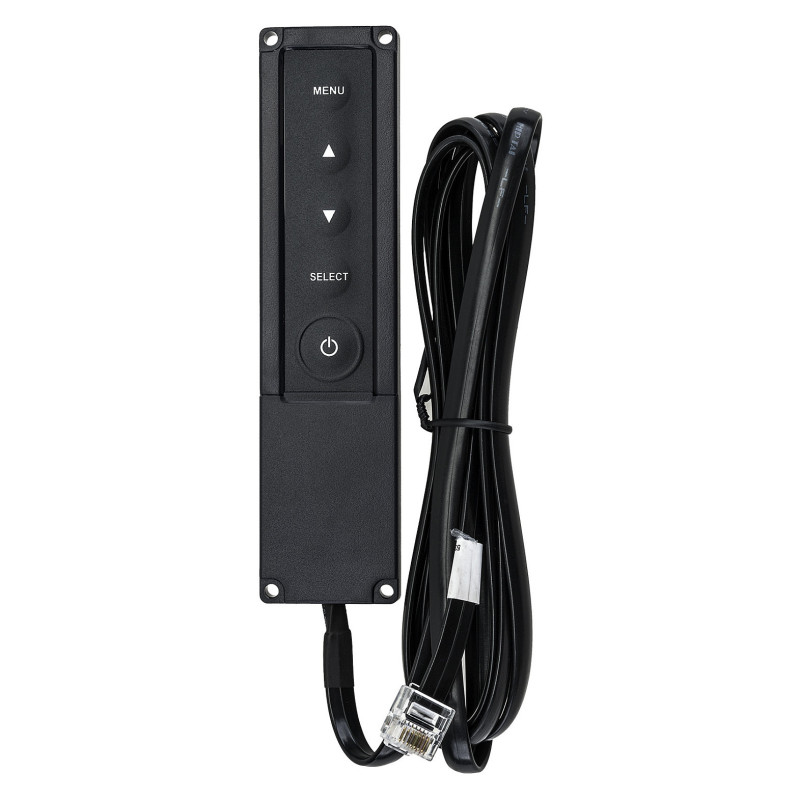

Control panel: menu,scroll up/ brightness, scroll down/ contrast, select, power
Compliance certificates: CB, CE, cULus, EAC, REACH, RoHS, WEEE
Certification: CB, CE, TÜV-Bauart, EAC, cULus

Logistics data

Products per pallet: 44 pc(s)
Pallet net width: 86 cm
Pallet net length: 12 cm
Pallet net height: 97 cm
Harmonized System (HS) code: 85285210
