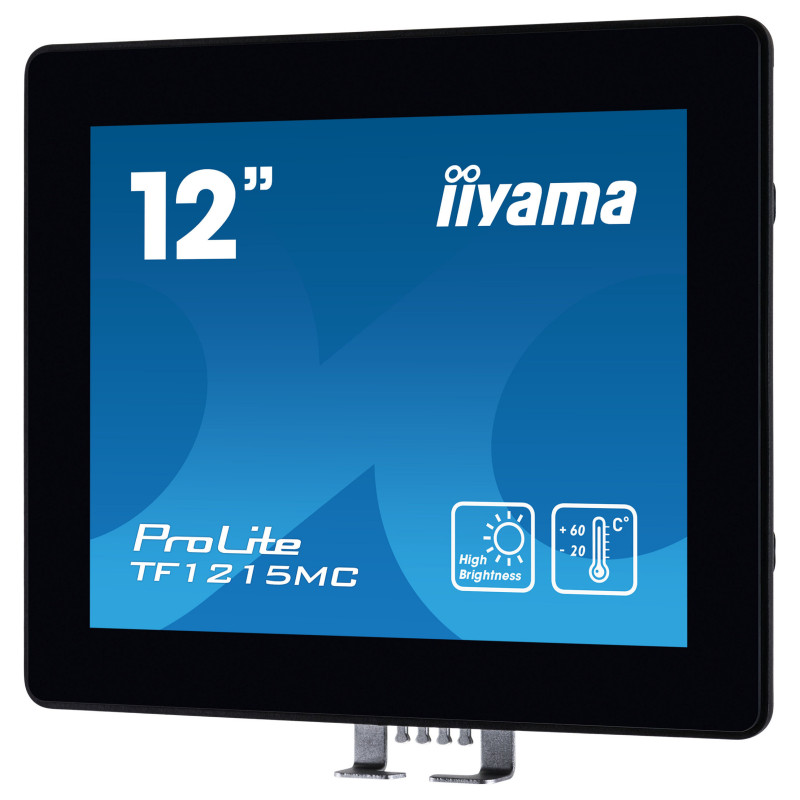

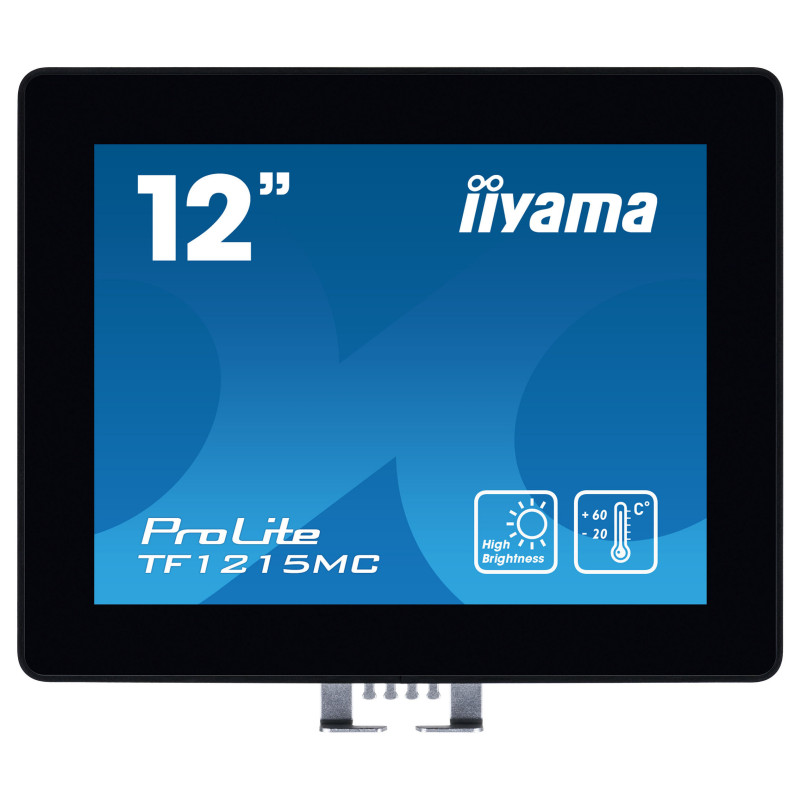

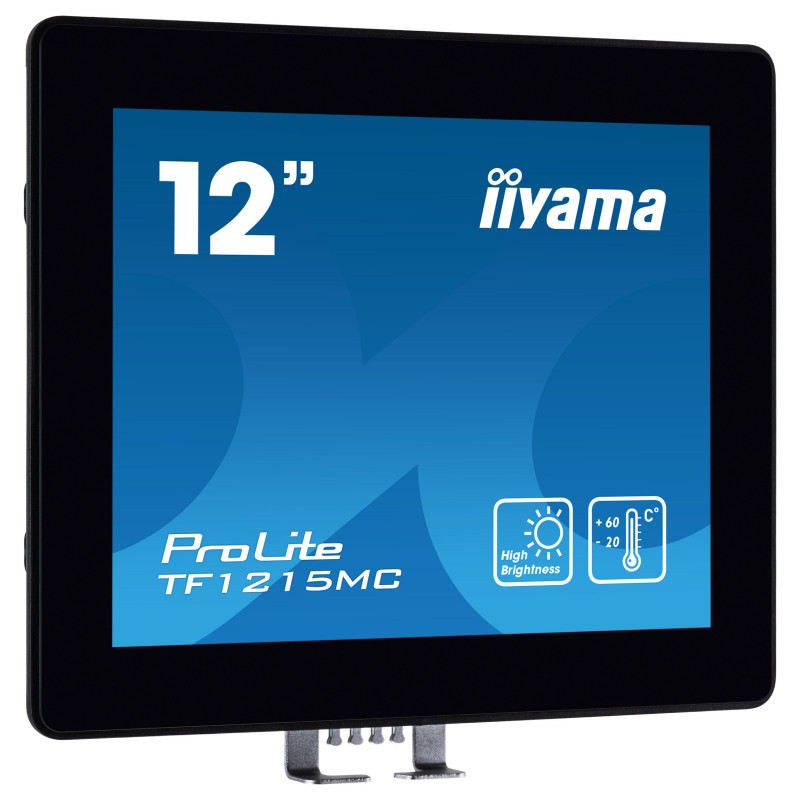

iiyama TF1215MC-B1 computer monitor

iiyama TF1215MC-B1. Display diagonal: 30.7 cm (12.1"), Display resolution: 1024 x 768 pixels, Display technology: LCD, Response time: 25 ms, Native aspect ratio: 4:3, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 30.7 cm (12.1")
Display resolution: 1024 x 768 pixels
Native aspect ratio: 4:3
Display technology: LCD
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 540 cd/m²
Display brightness: 450 cd/m²
Response time: 25 ms
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.2 million colours
Pixel pitch: 0.24 x 0.24 mm
Horizontal scan range: 31.4 - 60 kHz
Vertical scan range: 56 - 75 Hz
Viewable size, horizontal: 24.6 cm
Viewable size, vertical: 18.4 cm
Display diagonal (metric): 31 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Palm rejection: Yes

Multimedia

Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 3.15 mm

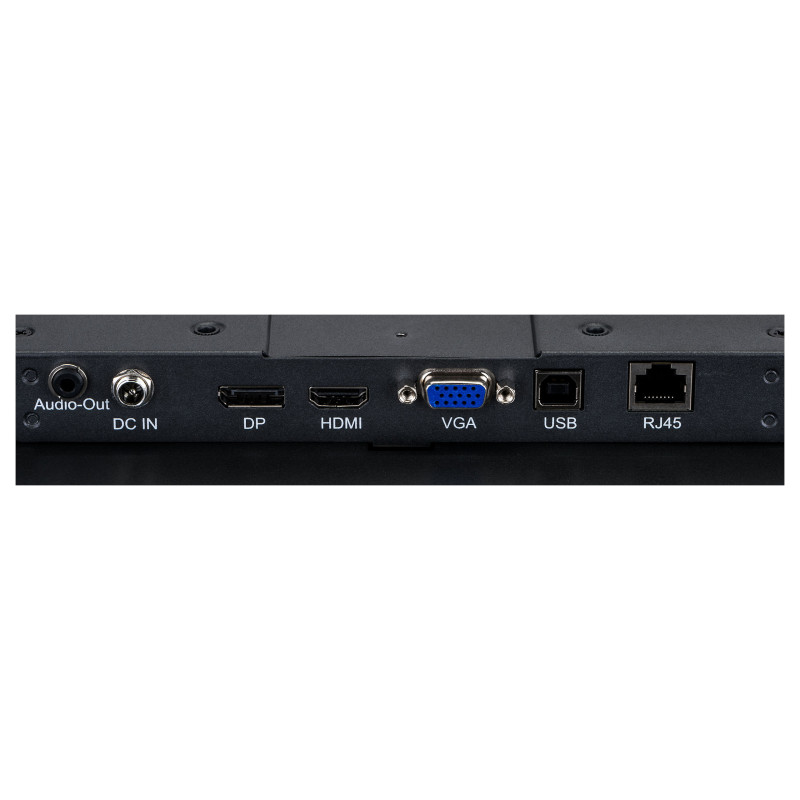

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio output: 1
HDCP: Yes

Ergonomics

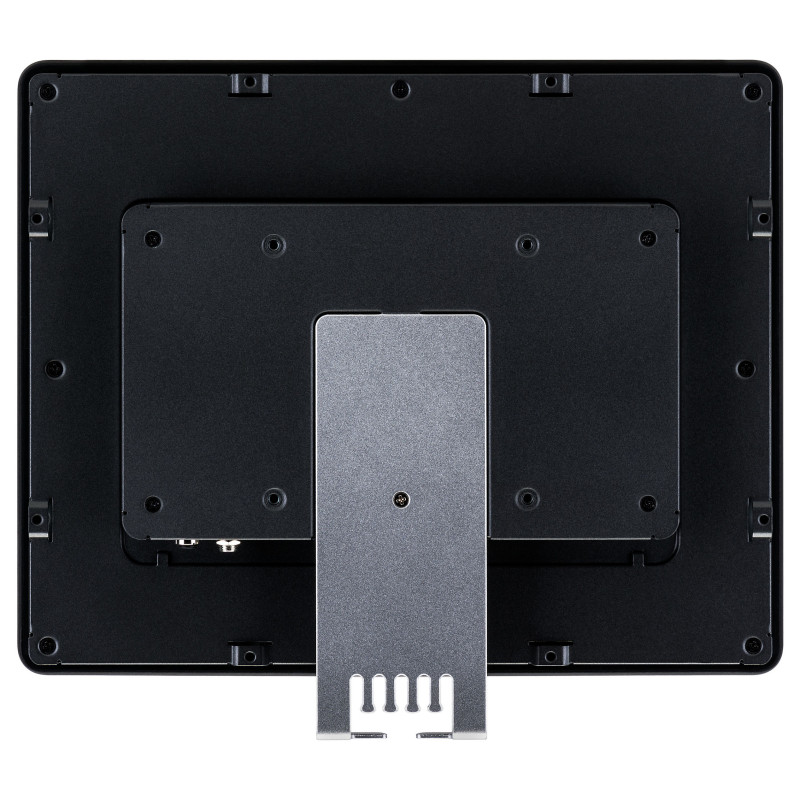

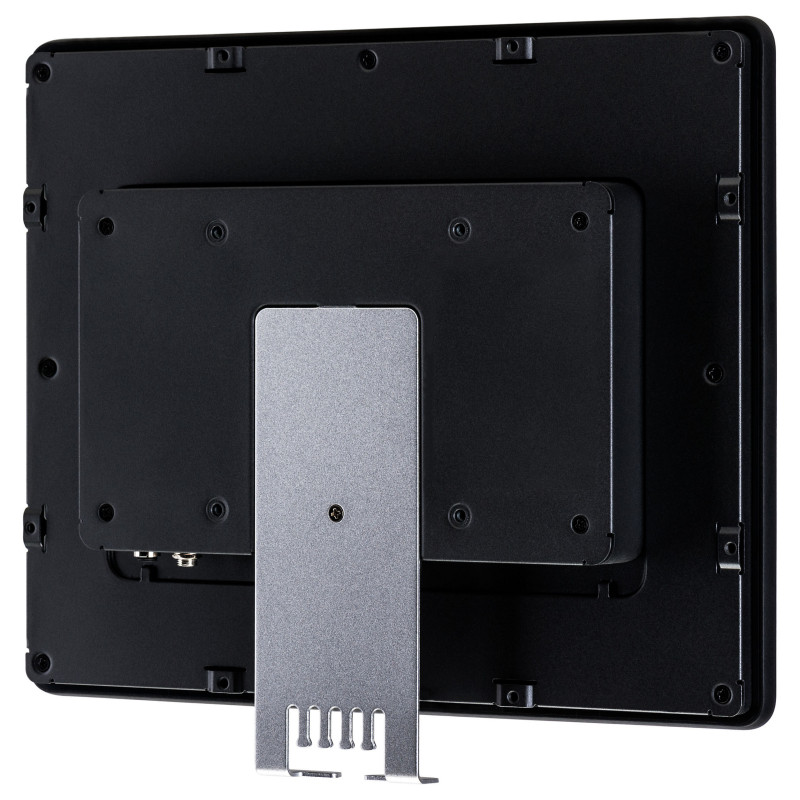

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Plug and Play: Yes
LED indicators: Yes

Power

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 11 kWh
Power consumption (typical): 10 W
Power consumption (standby): 0.55 W
Power consumption (off): 0.5 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width (with stand): 308.5 mm
Depth (with stand): 41.5 mm
Height (with stand): 248 mm
Weight (with stand): 2.1 kg
Width (without stand): 308.5 mm
Depth (without stand): 41.5 mm
Height (without stand): 248 mm
Weight (without stand): 2.1 kg

Packaging data

Package width: 435 mm
Package depth: 165 mm
Package height: 355 mm
Package weight: 3.9 kg

Packaging content

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Display viewable area (HxV): 245.8 x 184.3 mm
User controls: picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory)
Brightness: 450 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 245.8 x 184.3 mm
Touch method: finger, glove (latex), capacitive stylus
Weight: 2.1 kg
Height: 248 mm
Width: 308.5 mm
Depth: 41.5 mm
Control panel: Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Certification: CE, EAC, RoHS, ErP, WEEE, cULus, REACH

Logistics data

Harmonized System (HS) code: 85285210
