iiyama TF1015MC-B3 computer monitor

iiyama TF1015MC-B3. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: HD, Display technology: LED, Response time: 29 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub. VESA mounting. Product colour: Black

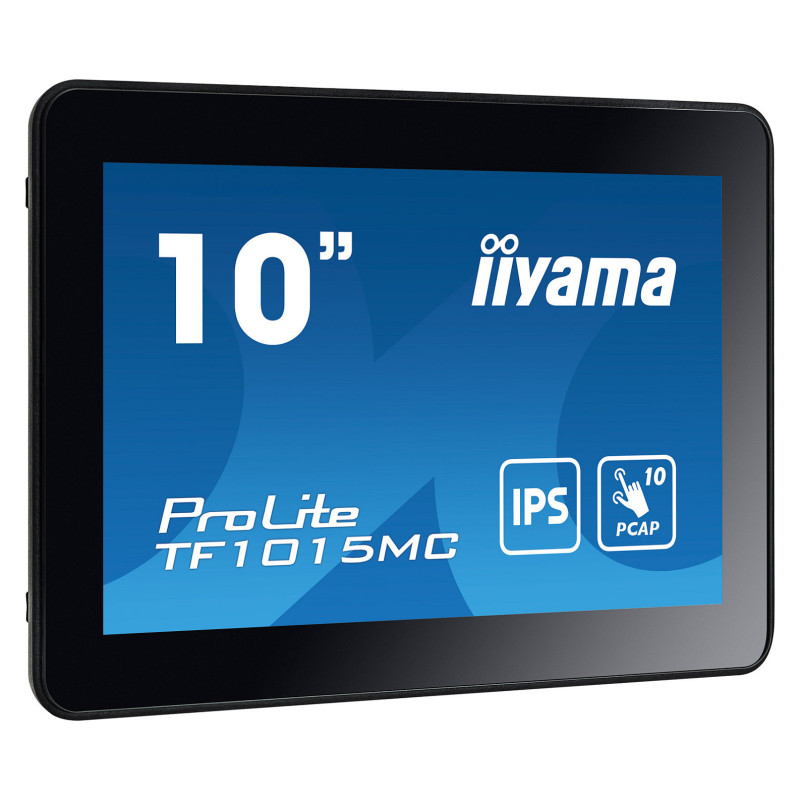

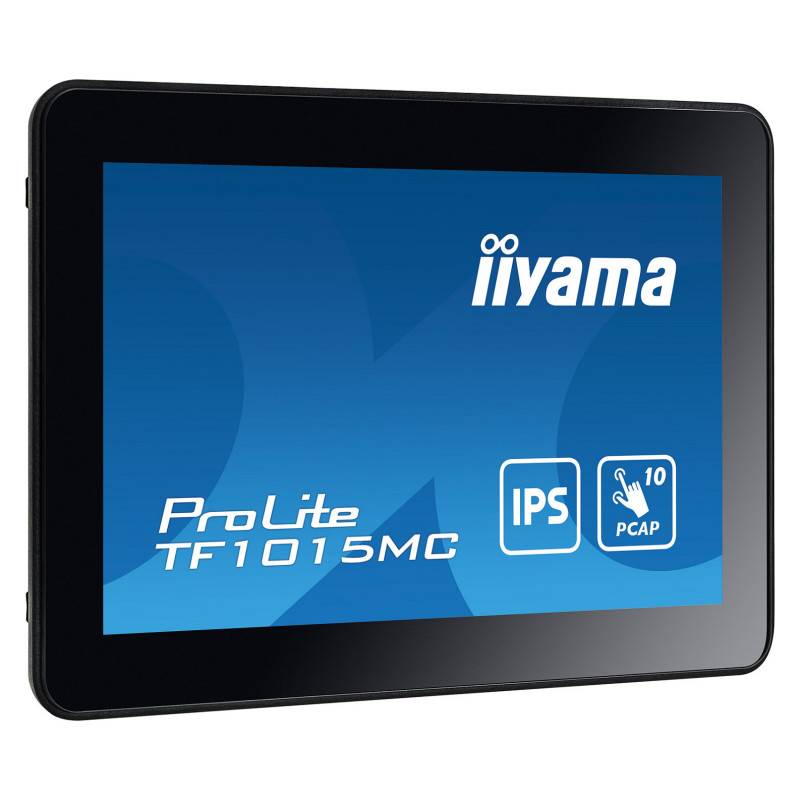

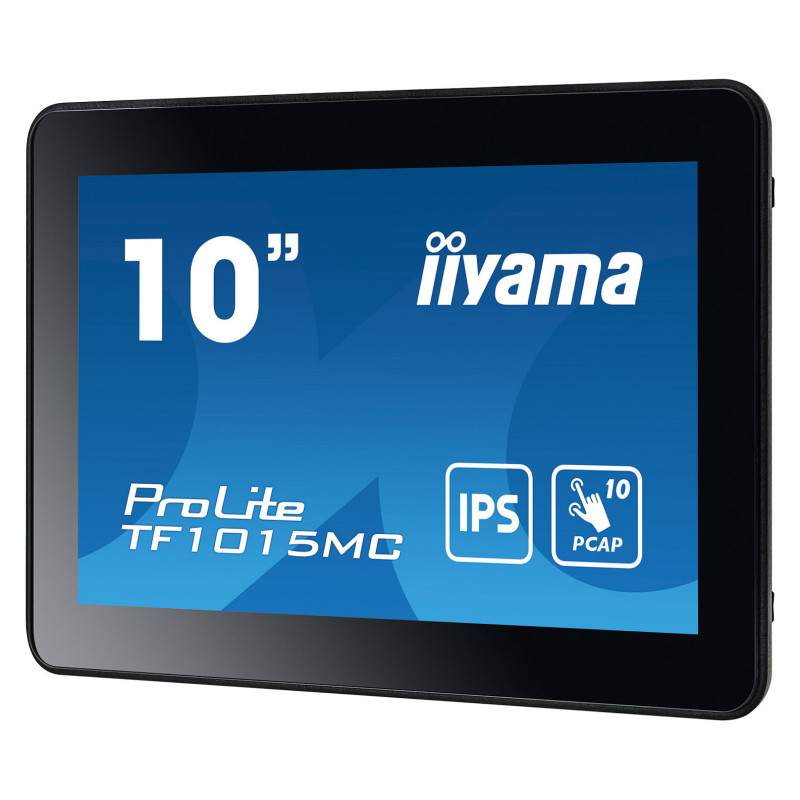

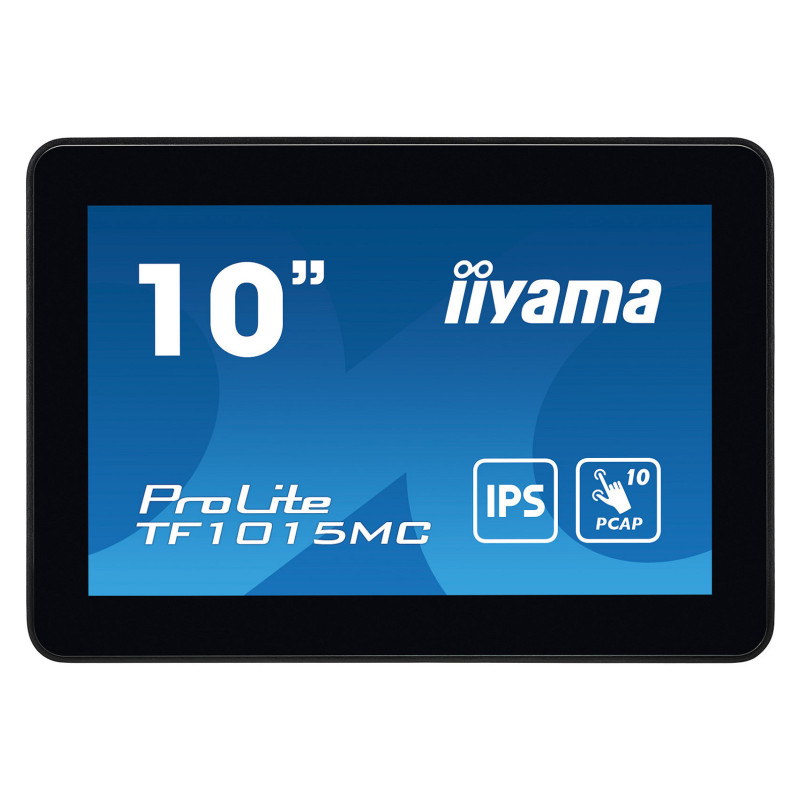

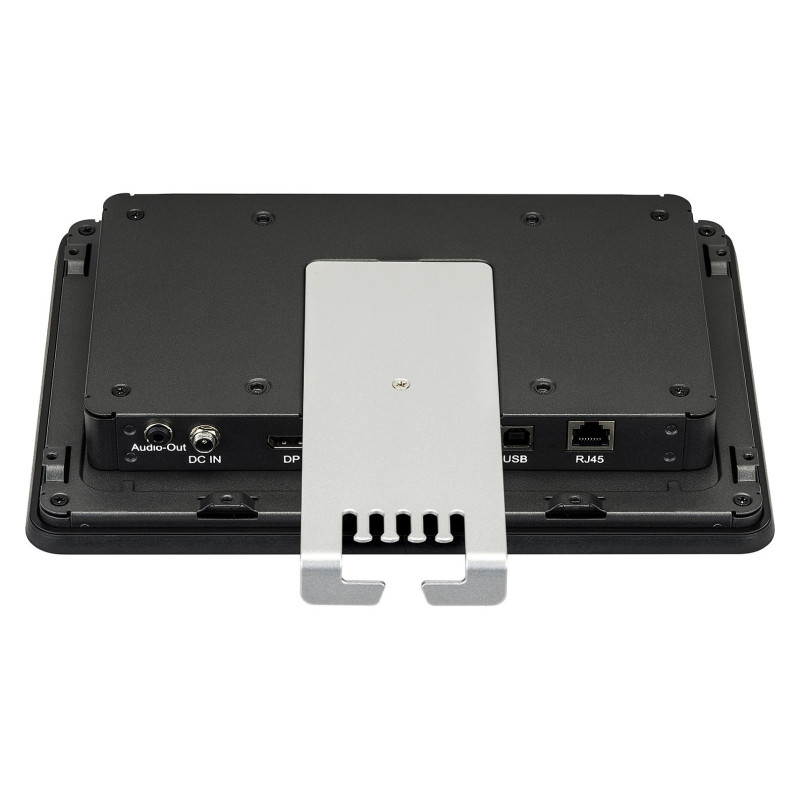

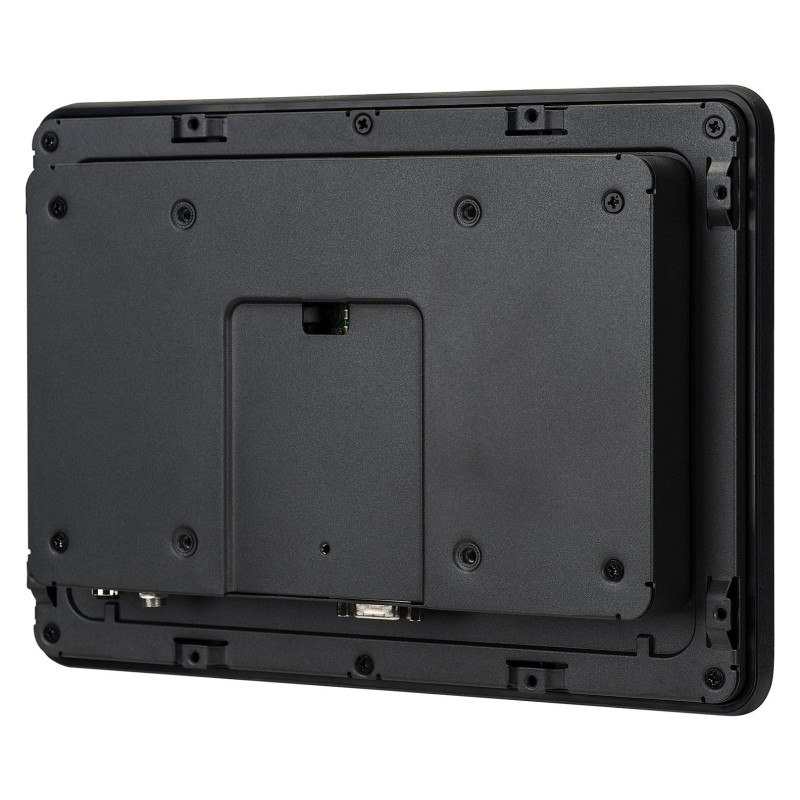

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
HD type: HD
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 425 cd/m²
Response time: 29 ms
Screen shape: Flat
Contrast ratio (typical): 800:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1695 x 0.1695 mm
Horizontal scan range: 30 - 49.7 kHz
Viewable size, horizontal: 21.7 cm
Viewable size, vertical: 13.6 cm
Digital horizontal frequency: 30 - 49.7 kHz
Display diagonal (metric): 25.7 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Design

Market positioning: Business
Product colour: Black
Front bezel colour: Black
Glass thickness: 3.3 mm

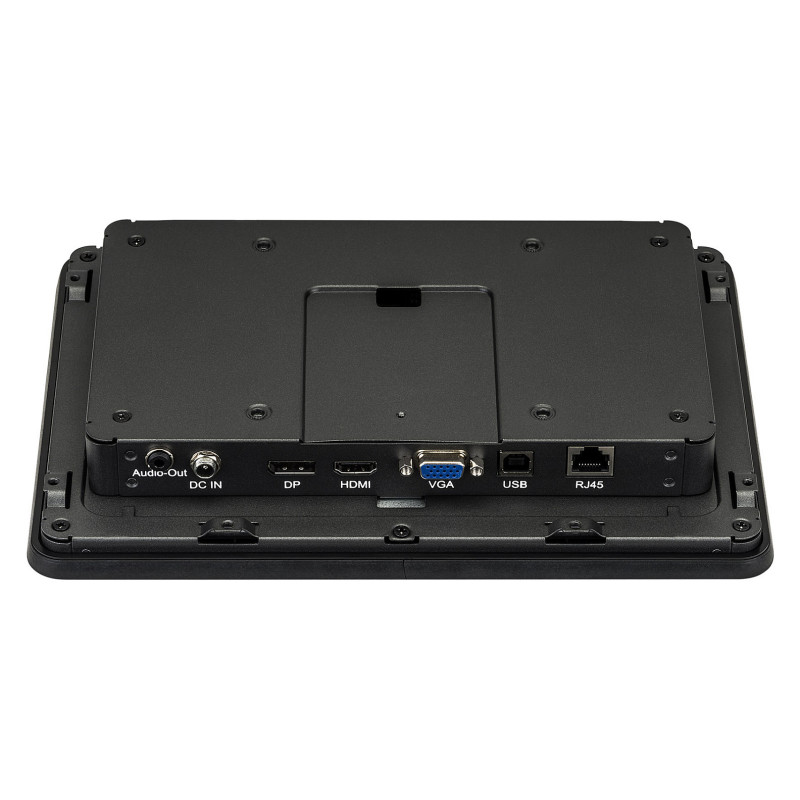

Ports interfaces

Built-in USB hub: Yes
Number of upstream ports: 1
USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
DVI port: No
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone connectivity: 3.5 mm
HDCP: Yes

Network

Ethernet LAN: Yes

Ergonomics

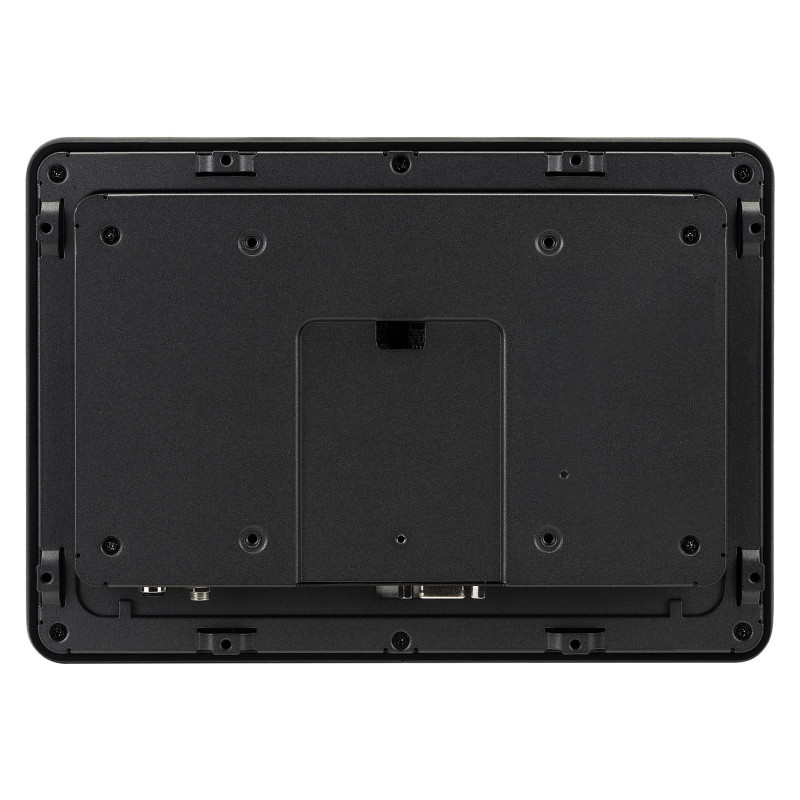

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Plug and Play: Yes
LED indicators: Yes

Power

Energy efficiency class (SDR): C
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 5.7 kWh
Power consumption (typical): 6 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width (with stand): 260.5 mm
Depth (with stand): 39.5 mm
Height (with stand): 183.5 mm
Weight (with stand): 1.4 kg
Width (without stand): 260.5 mm
Depth (without stand): 39.5 mm
Height (without stand): 183.5 mm
Weight (without stand): 2.7 kg

Packaging data

Package width: 310 mm
Package depth: 370 mm
Package height: 160 mm
Package weight: 2.7 kg

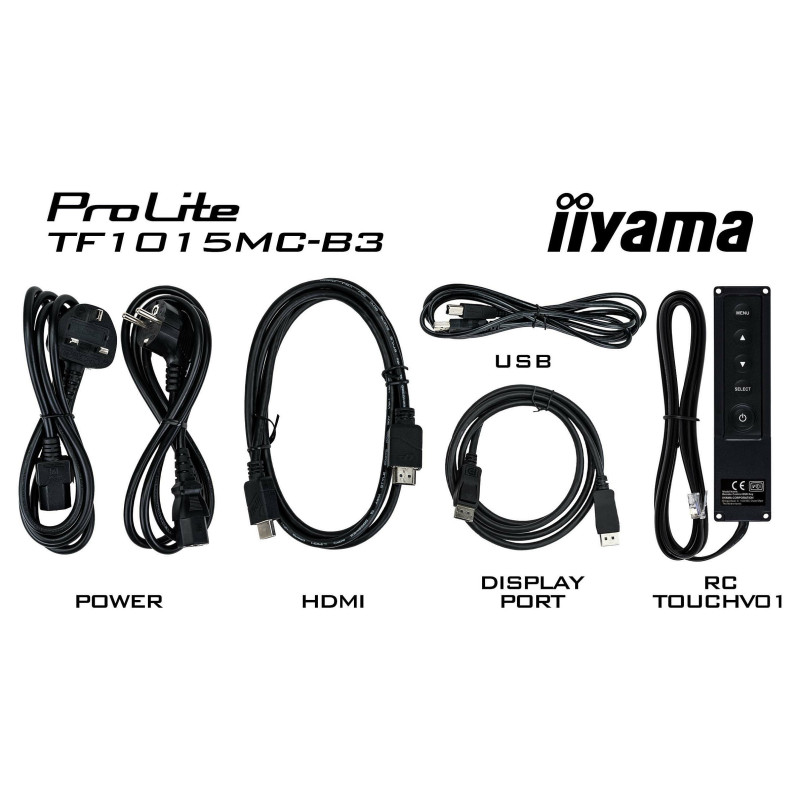

Packaging content

Cables included: AC, USB, HDMI, DisplayPort
Remote control included: Yes
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Placement supported: Indoor
Brightness: 425 cd/m²
Packaging content: AC adapter, external control pad
Active display area (W x H): 216.96 x 135.6 mm
USB ports quantity: 1
Weight: 1.4 kg
Height: 183.5 mm
Touch method: stylus, finger, glove (latex)
Width: 260.5 mm
User controls: picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory)
Depth: 39.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Ethernet LAN (RJ-45) ports: 1
Certification: CB, CE, TÜV-Bauart, EAC, cULus
