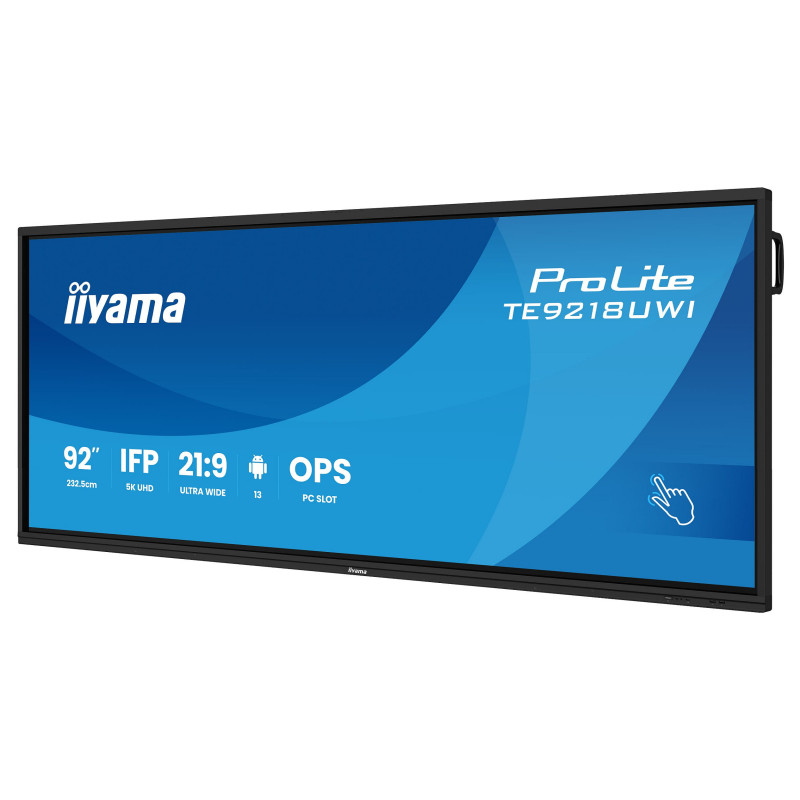

iiyama TE9218UWI-B1AG Signage Display

iiyama TE9218UWI-B1AG. Product design: Kiosk design. Display diagonal: 2.32 m (91.5"), Display technology: LED, Display resolution: 5120 x 2160 pixels, Display brightness: 500 cd/m², HD type: 5K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Android. Product colour: Black

The TE9218UWI-B1AG is a revolutionary 92" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 92" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.

Display

Panel type: VA
Display diagonal: 2.32 m (91.5")
Display technology: LED
Display resolution: 5120 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 5K Ultra HD
Feature: Touchscreen
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 50
Native aspect ratio: 21:9
Response time: 6.5 ms
Contrast ratio (typical): 4000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.418 x 0.418 mm
Active display area (W x H): 2142 x 903.6 mm
Display diagonal (metric): 232.5 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Glass thickness: 3 mm

Ports & interfaces

HDMI ports quantity: 5
HDMI version: 2.0/2.1
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPorts in: 1
Feature: USB port
USB ports quantity: 8
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
Feature: USB Type-C DisplayPort Alternate Mode
Ethernet LAN (RJ-45) ports: 2
Audio (L/R) in: 1
Audio (L/R) out: 4
Feature: Microphone in
Feature: RS-232C
Feature: OPS module slot

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 60 W

Design

Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

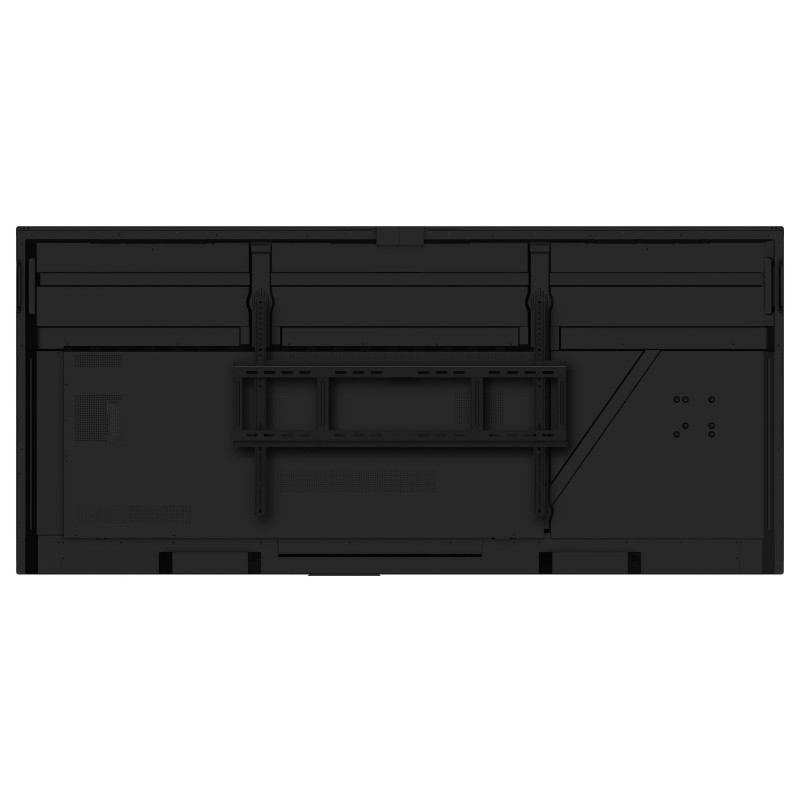

Feature: VESA mounting
Panel mounting interface: 800 x 600 mm
Bezel colour: Black
Feature: Anti-glare screen

Performance

Purpose: Universal
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 16/7
Feature: HDCP
HDCP version: 2.3
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 227 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

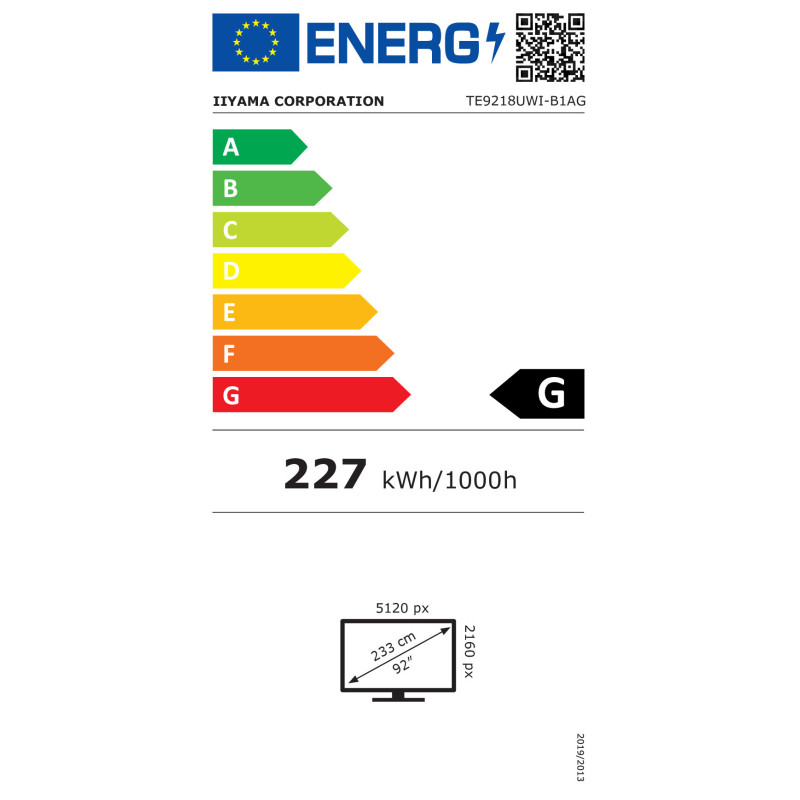

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 227 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Feature: Built-in processor
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A76+Cortex-A55
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G610 MP4
Internal storage capacity: 64 GB
Operating system installed: Android
Operating system version: 13

Weight & dimensions

Display width: 2203 mm
Display depth: 92 mm
Display height: 1000 mm
Display weight: 67.6 kg
Width: 2203 mm
Depth: 92 mm
Height: 1000 mm
Weight: 67.6 kg

Packaging data

Package width: 2360 mm
Package depth: 1140 mm
Package height: 225 mm
Package weight: 88.5 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Feature: Stylus pen
Number of stylus pens: 4

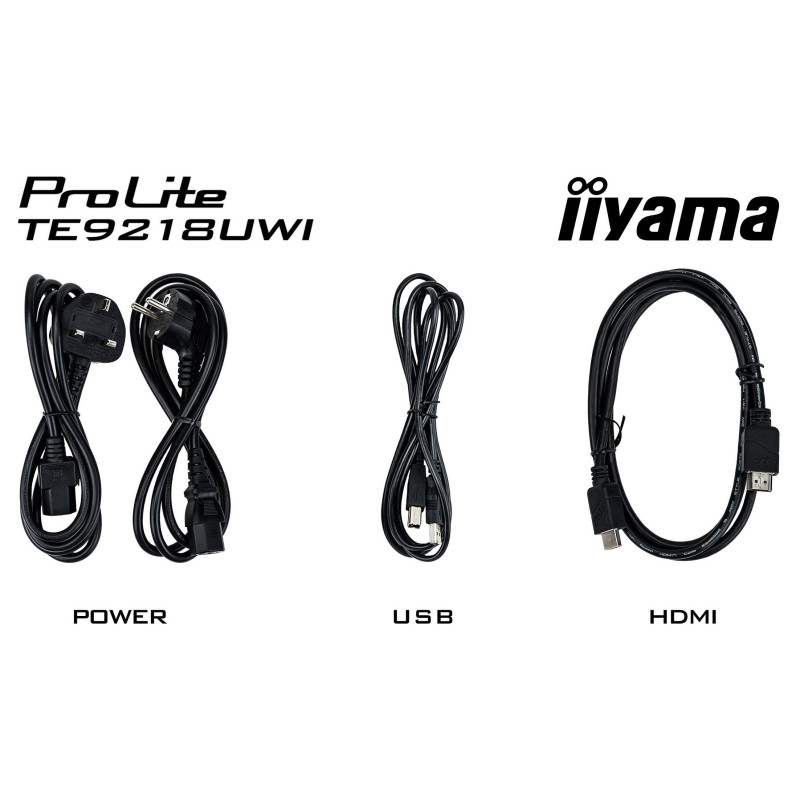

Cables included: AC, USB, HDMI
Feature: Mounting kit
Feature: Wi-Fi module included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Technical details

Feature: Audio in (mini jack)
Playback media: Y
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Feature: Quick start guide
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Built-in microphone
Power supply type: Internal
