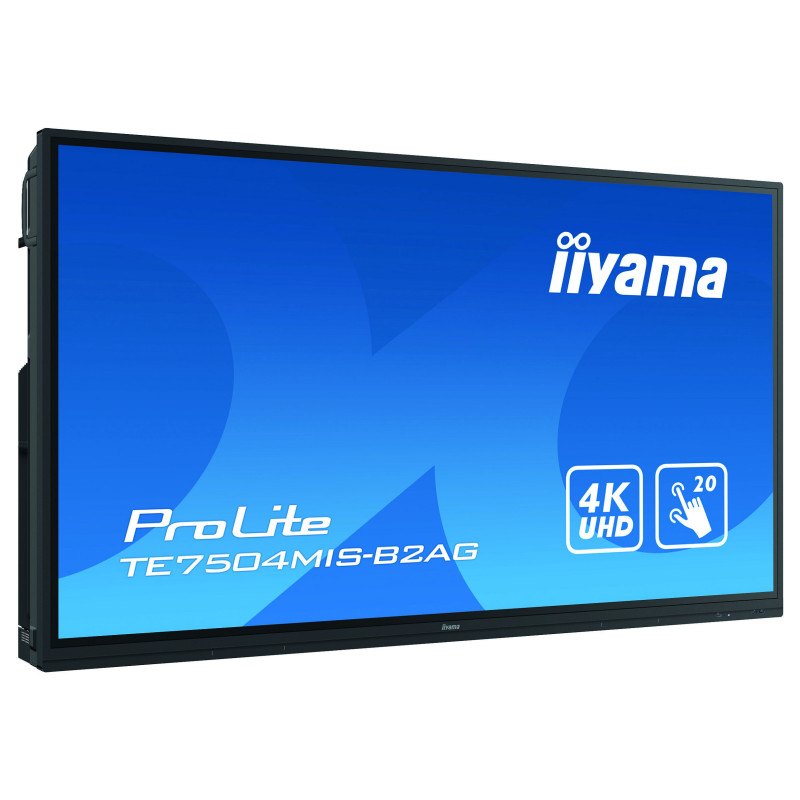

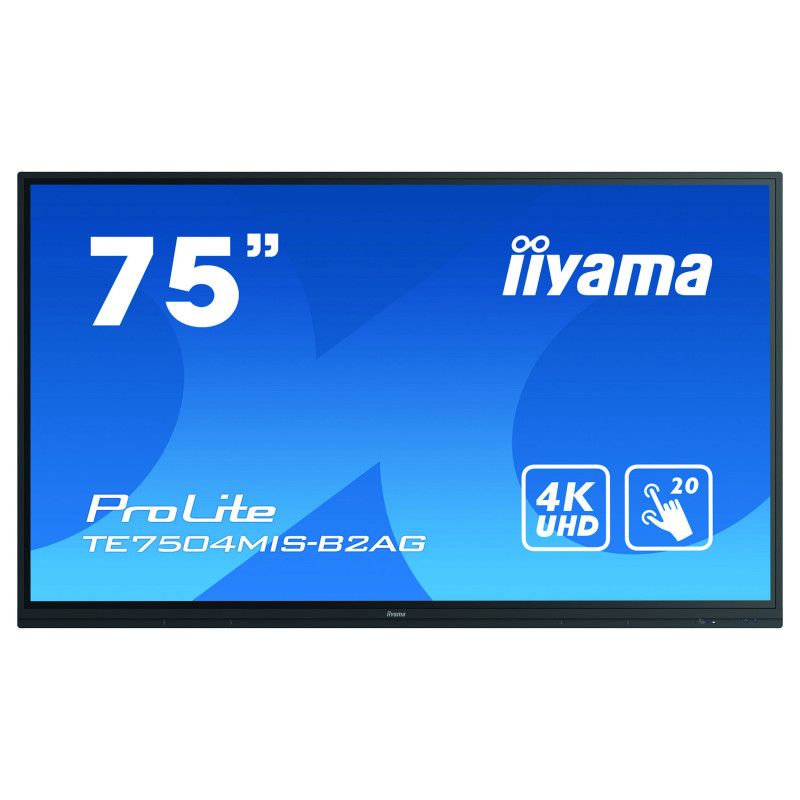

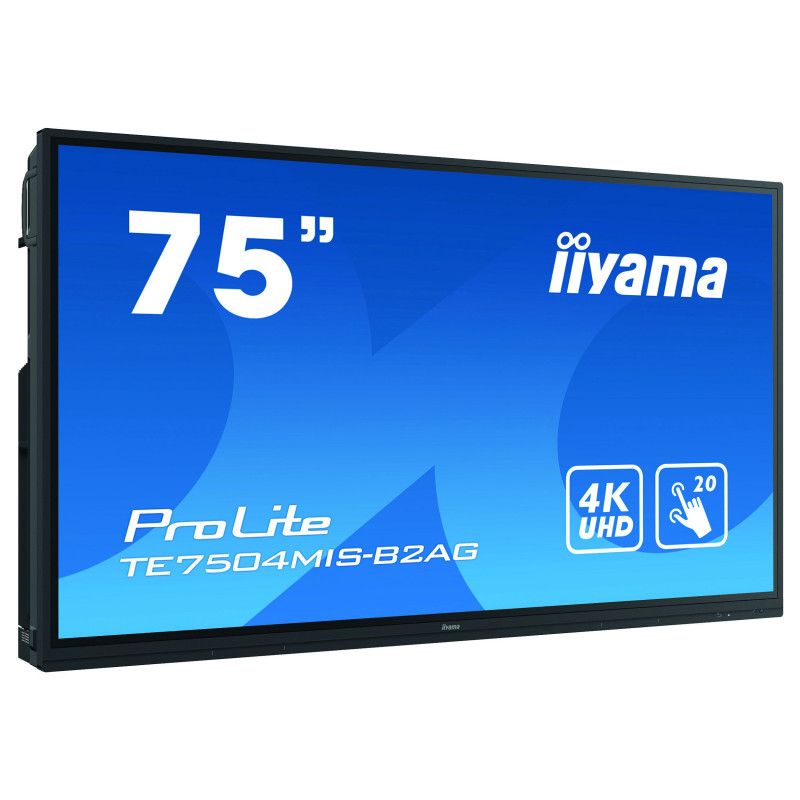

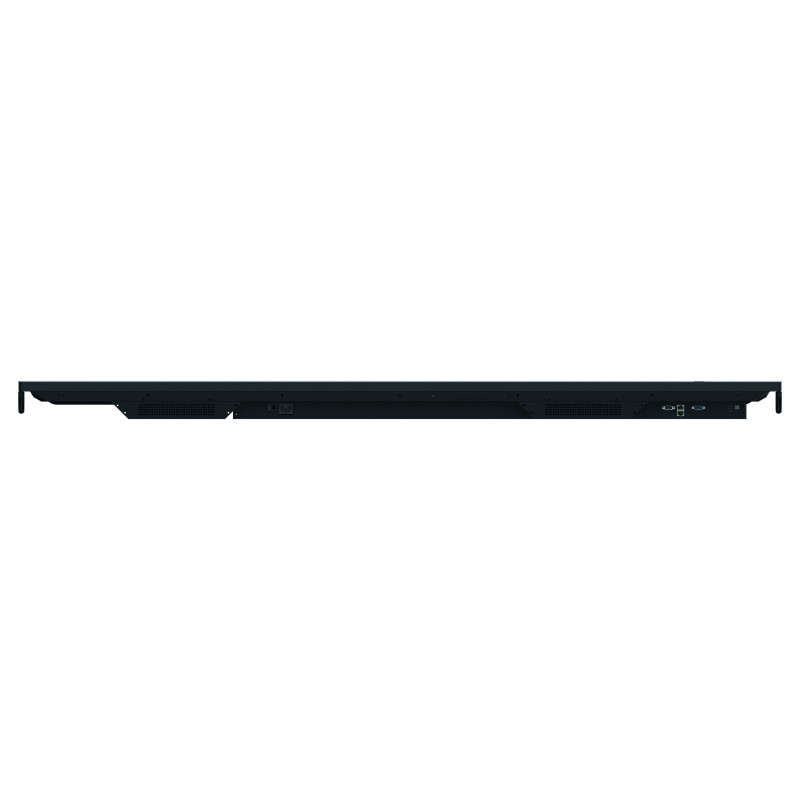

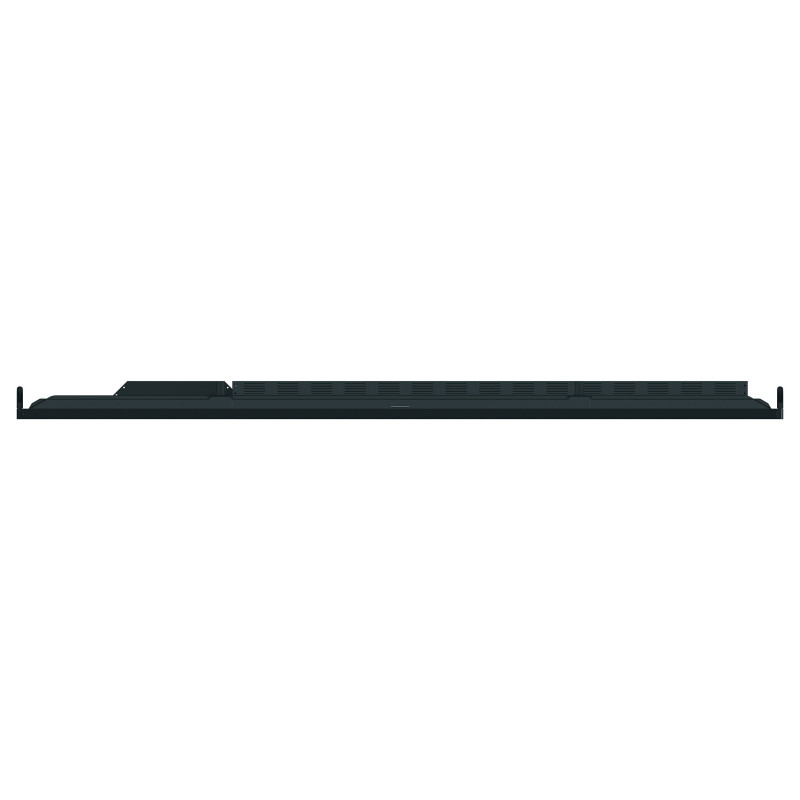

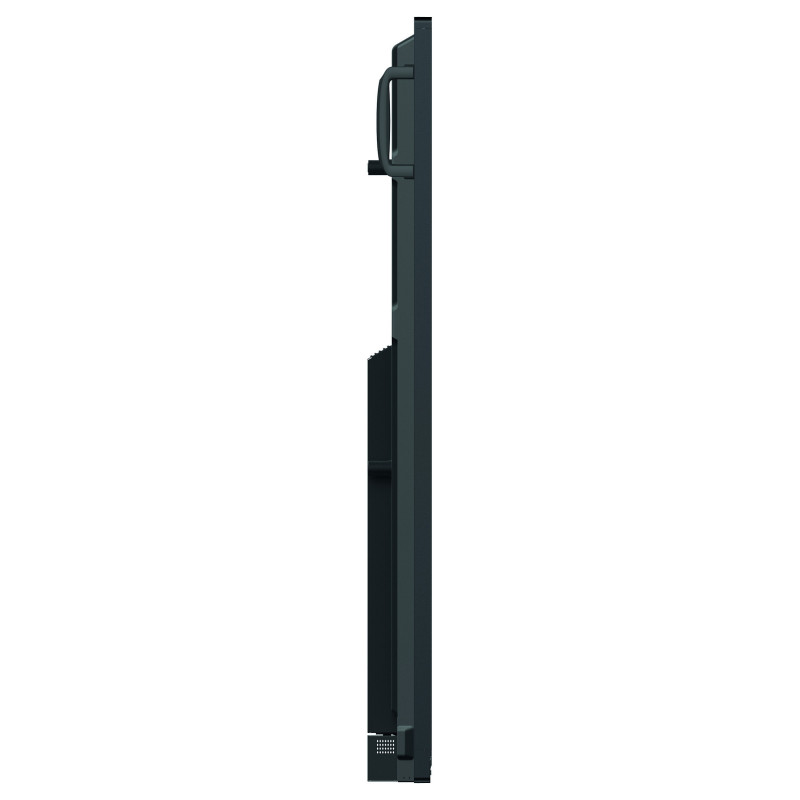

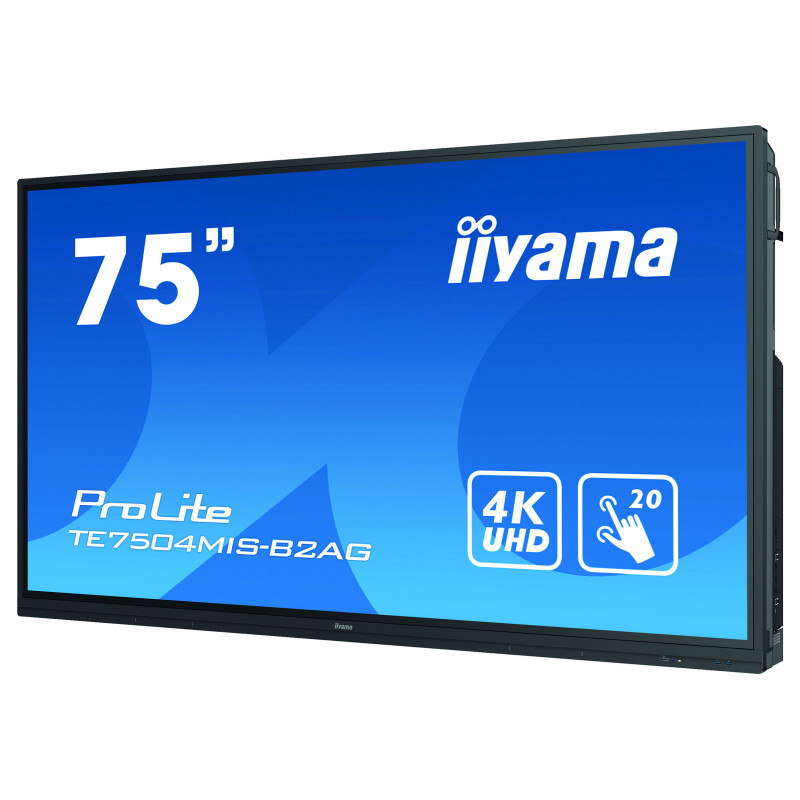

iiyama TE7504MIS-B2AG Signage Display

iiyama TE7504MIS-B2AG. Product design: Interactive flat panel. Display diagonal: 190.5 cm (75"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android. Product colour: Black

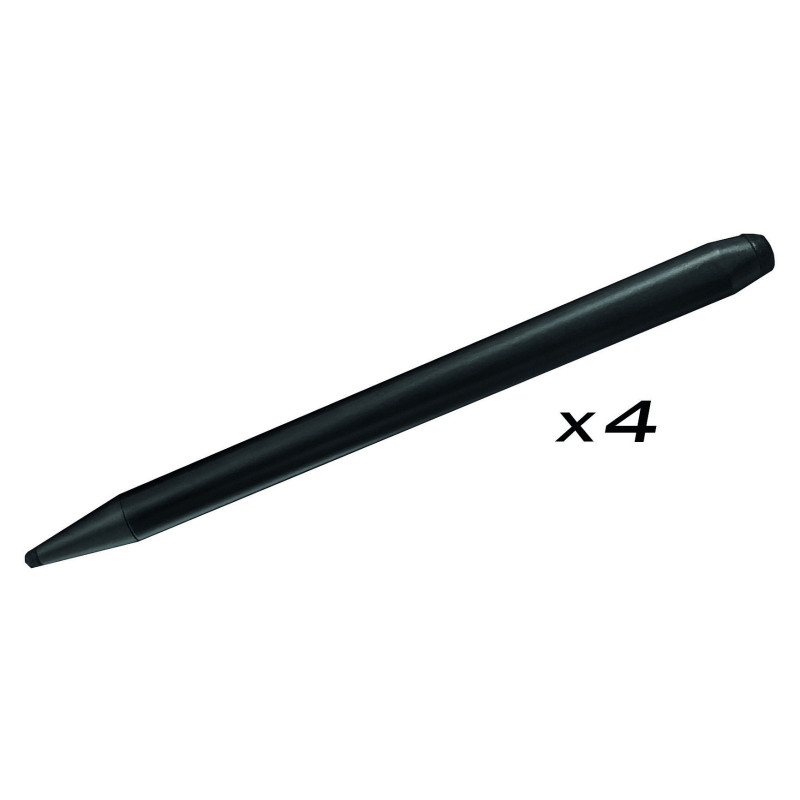

Share Your Vision with the ProLite TE7504MIS-B2AG; a perfect solution for educational and corporate use. Its 75'' PureTouch-IR 20-point touchscreen with iiWare 9.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office and ScreenSharePro. It comes with dual function touch pens, allowing users to annotate easily in 4K on files and on-screen content which can be saved directly to a USB device, 32GB internal memory or a selected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. Now with additional USB-C connection to support the latest in video, audio and touch signal via a single port and even charge your device with 65W power delivery.
The high-quality commercial IPS LCD screen with a 4K UHD resolution (3840x2160), 350cd/m2 and a contrast ratio of 1200:1 provide vibrant, detailed and high-quality images from anywhere in the class or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen has a 24/7 non-stop operating time and is equipped with an all-metal bezel, 3mm thick hardened glass to ensure robust durability in high-use environments such as classrooms or meeting rooms.
Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module (OWM002), ScreenSharePro and EShare app.
PURETOUCH IR
PureTouch-IR from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation.
IWARE
iiWare 9.0 features Note, Browser, Cloud Drive and the option for you to sideload relevant apps you require for your organisation.
SLOTPC
The Slot PC unlocks all of the control, security and flexibility of Windows 10 IoT including the entirety of the Microsoft eco system.
SCREENSHAREPRO
ScreenSharePro supports AirPlay, Chromecast and Miracast to easily stream content from your device to your 04 Series and vice versa, back to your notebook, tablet or phone.
SECURITY
Utilise Screen lock and USB passcode protection to ensure user security and the new Clean app will clear all data and passwords used.
24/7
24/7 displays are designed for a continuous operation.
AG COATING
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

Display

Display diagonal: 190.5 cm (75")
Display technology: IPS
Display resolution: 3840 x 2160 pixels
Display brightness: 350 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 20
Multi-touch: Yes
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Contrast ratio (dynamic): 3500:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.4296 x 0.4296 mm
Active display area (W x H): 1650 x 928 mm
Display diagonal (metric): 189.3 cm
Horizontal scan range: 30 - 80 kHz

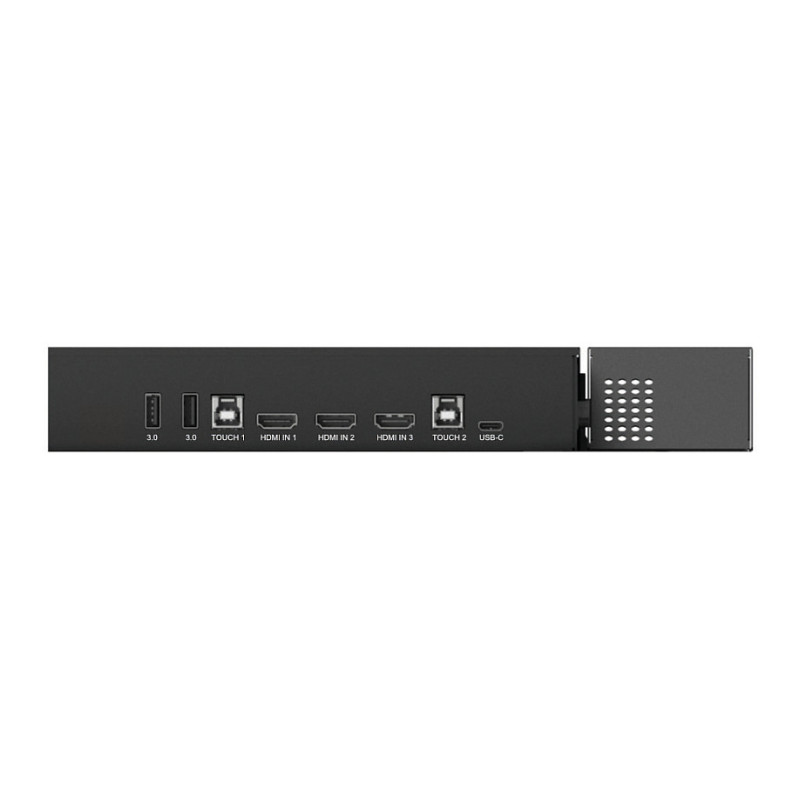

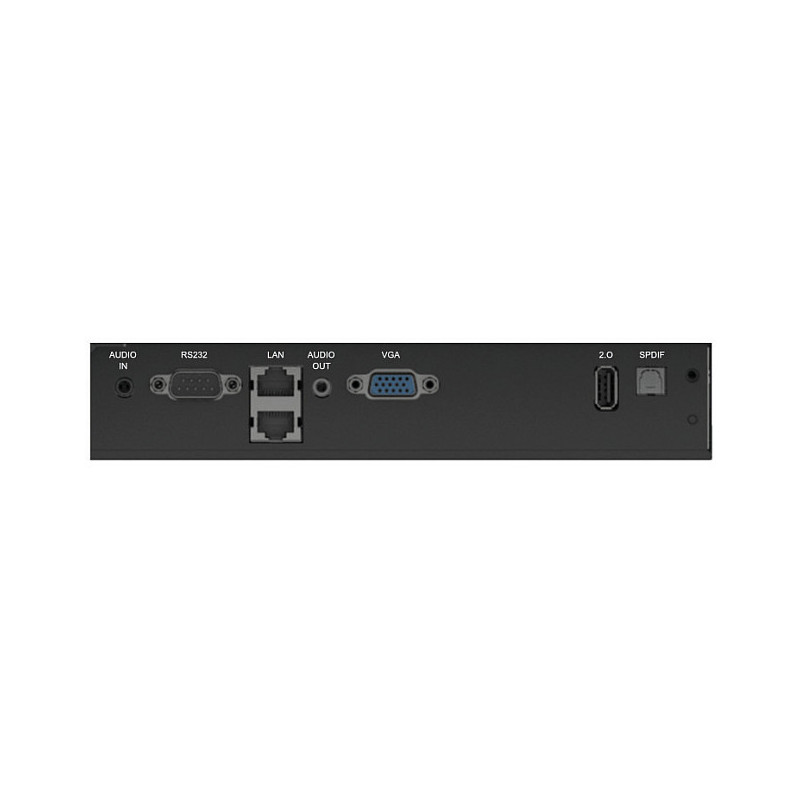

Ports interfaces

HDMI ports quantity: 3
HDMI input ports quantity: 3
DVI port: No
VGA (D-Sub) input ports: 1
USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports: 2
PC Audio in: Yes
RS-232C: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 32 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

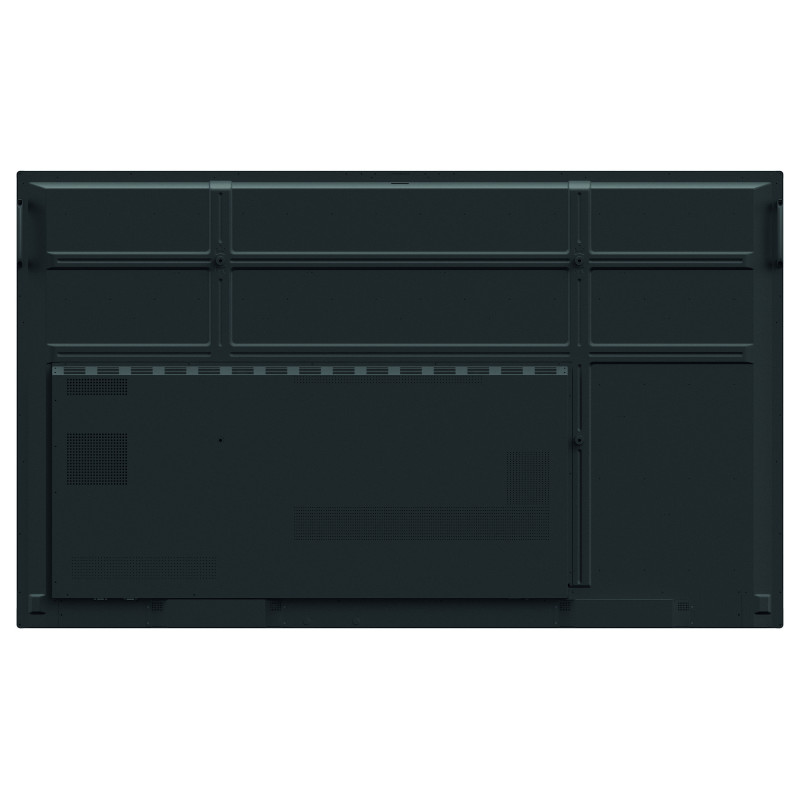

VESA mounting: Yes
Panel mounting interface: 800 x 400 mm
Bezel width (bottom): 4.3 cm
Bezel width (side): 1.4 cm
Bezel width (top): 1.4 cm

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 9
On Screen Display (OSD) languages: Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian
HDCP: Yes
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 260 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

Computer system

Computer system: Yes
Built-in processor: Yes
Internal memory: 4 GB
Internal storage capacity: 32 GB
Operating system installed: Android

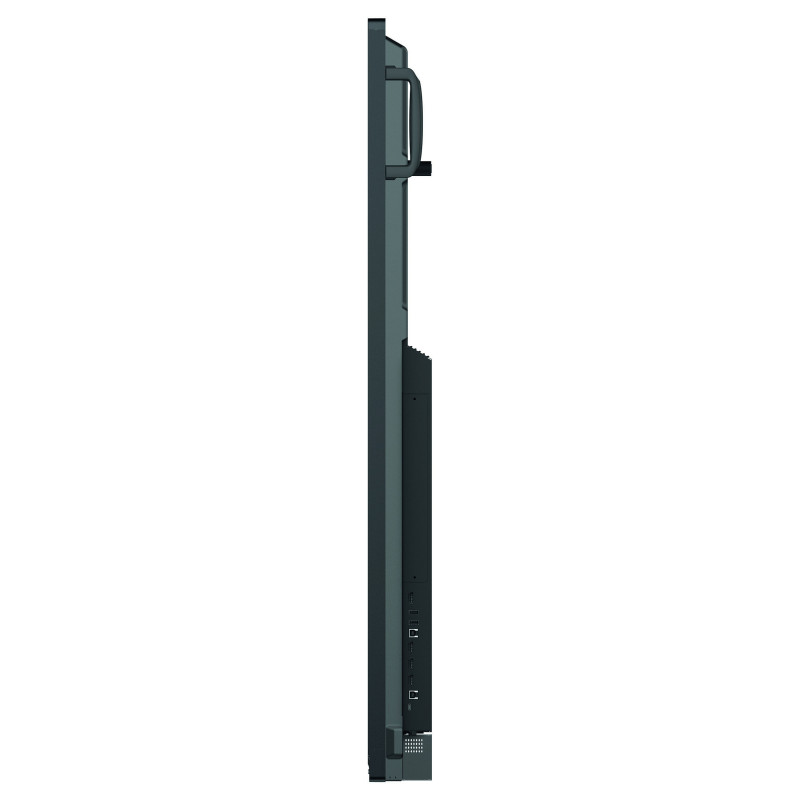

Weight dimensions

Display width: 1709 mm
Display depth: 86 mm
Display height: 1020 mm
Display weight: 50.8 kg

Packaging data

Package width: 1930 mm
Package depth: 1140 mm
Package height: 280 mm
Package weight: 69 kg

Packaging content

Remote control included: Yes
Batteries included: Yes
Cables included: AC, HDMI, USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Logistics data

Harmonized System (HS) code: 85285210

Network

Ethernet LAN: Yes
Wi-Fi: Yes

Technical details

Sustainability certificates: ErP
Compliance certificates: CE, REACH, RoHS, WEEE
