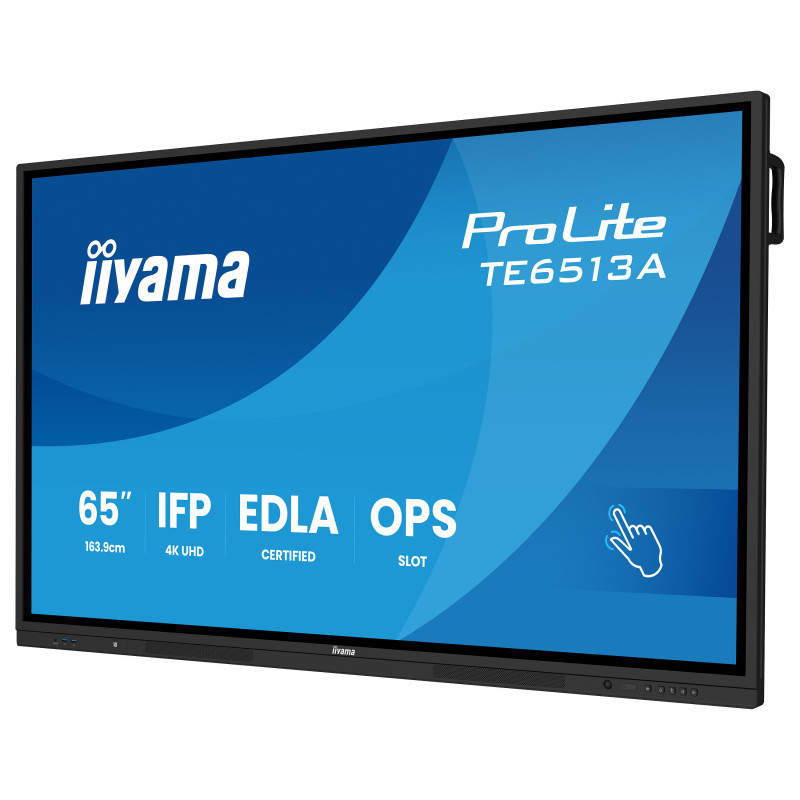

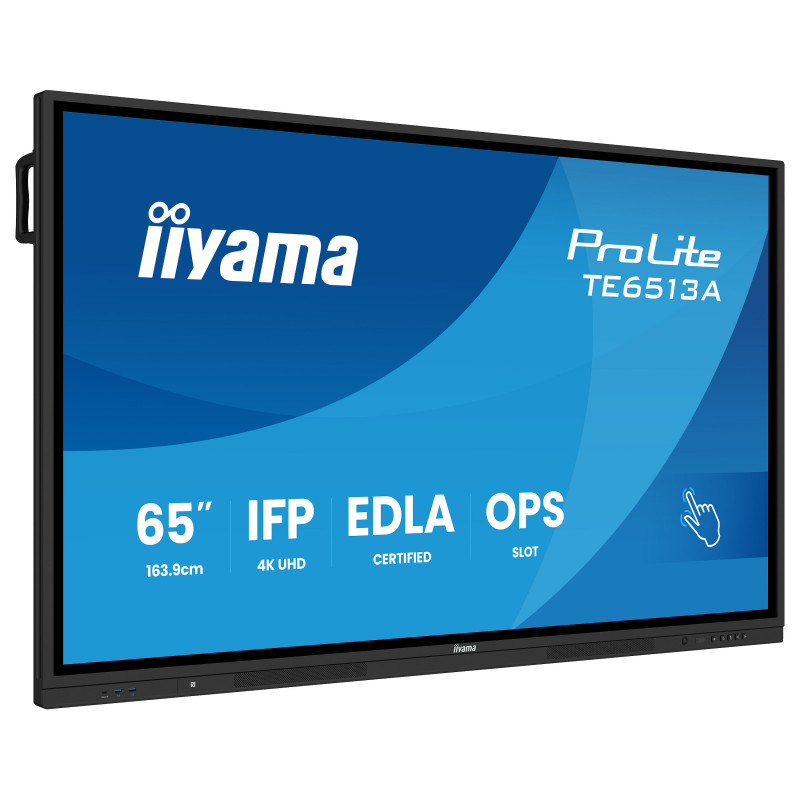

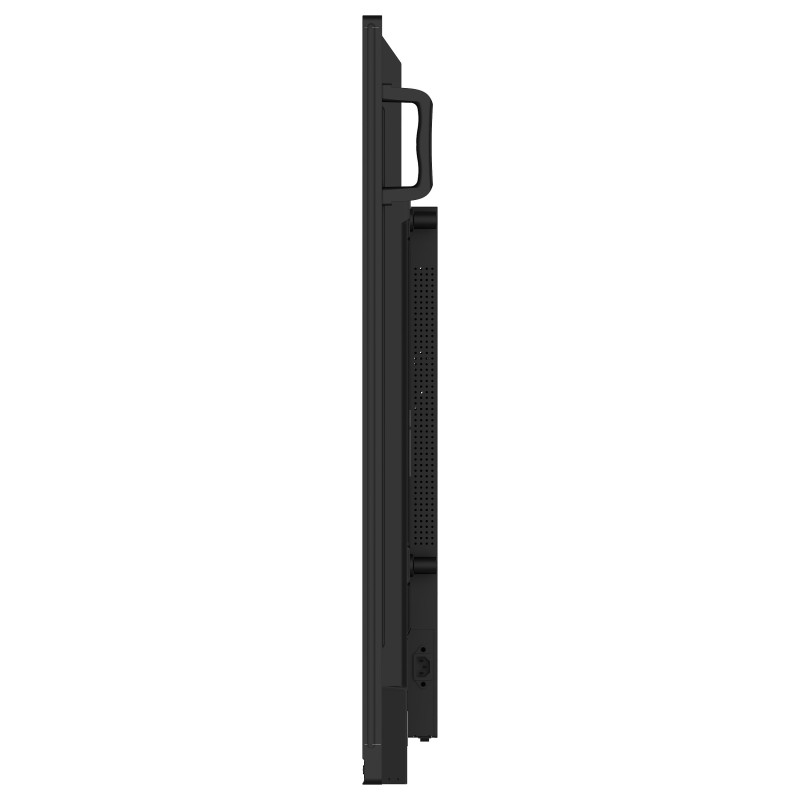

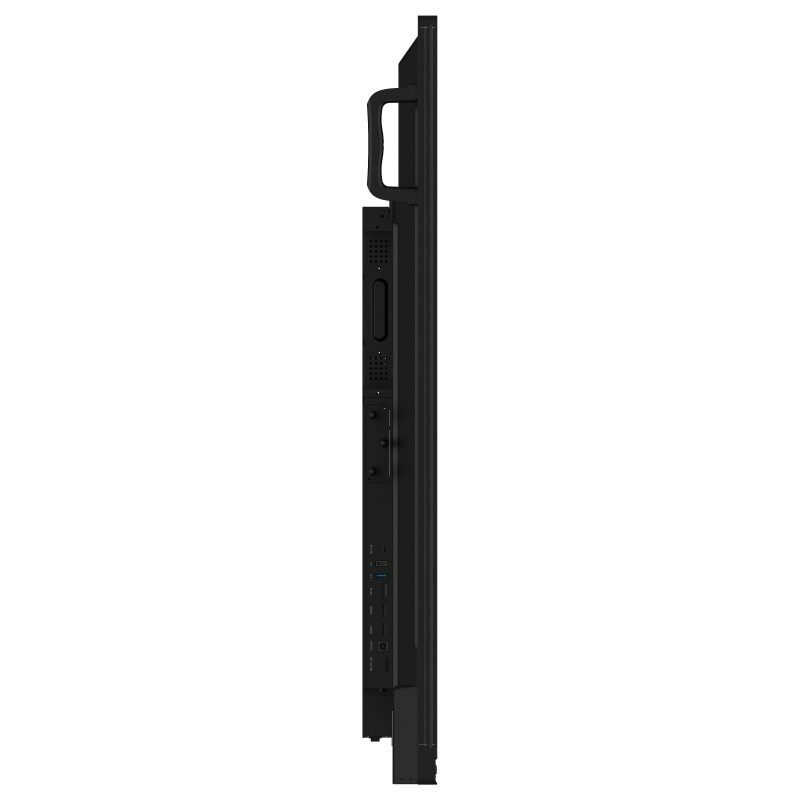

iiyama TE6513A-B2AG Signage Display 163.8 cm (64.5') Wi-Fi

iiyama TE6513A-B2AG Signage Display 163.8 cm (64.5') Wi-Fi. Display diagonal: 163.8 cm (64.5"), HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating system installed: Android
The TE6513A-B3AG is a 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with BT 5.0 connectivity, iiControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display

Panel type: IPS
Display diagonal: 163.8 cm (64.5")
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.372 x 0.372 mm
Active display area (W x H): 1428.5 x 803.5 mm
Display diagonal (metric): 163.9 cm
Horizontal scan range: 30 - 135 kHz
Surface hardness: 7H
Touch response time: 5 ms
Glass thickness: 3.2 mm

Ports interfaces

HDMI input ports quantity: 1
DisplayPorts quantity: 1
USB ports quantity: 6
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
Ethernet LAN (RJ-45) ports: 2
RS-232C: Yes
OPS module slot: Yes
Audio Return Channel (ARC): Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 60 W

Design

Orientation: Horizontal
Panel mounting interface: 600 x 400 mm
Bezel width (bottom): 4.67 cm
Bezel width (side): 1.67 cm
Bezel width (top): 1.41 cm
Bezel colour: Black
Anti-glare screen: Yes

Performance

On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
HDCP: Yes
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 144 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Built-in processor: Yes
Processor architecture: ARM Cortex-A53+Cortex-A72
Internal memory: 6 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14

Weight dimensions

Display width: 1489 mm
Display depth: 87 mm
Display height: 891.5 mm
Display weight: 39.4 kg
Width: 1489 mm
Depth: 87 mm
Height: 891.5 mm
Weight: 39.4 kg

Packaging data

Package width: 1640 mm
Package depth: 185 mm
Package height: 1010 mm
Package weight: 48.5 kg

Packaging content

Remote control included: Yes
Stylus pen: Yes
Number of stylus pens: 4
Cables included: AC, USB, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Logistics data

Products per pallet: 6 pc(s)

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6 (802.11ax)

Technical details

Audio in (mini jack): Yes
OPS slot: 1
Playback media: Y
User controls: general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, display mode colour temp), settings (wireless networks, share, device, personal, system)
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Quick start guide: Yes
Bluetooth: Yes
Bluetooth version: 5.0
Brightness: 500 cd/m²
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
