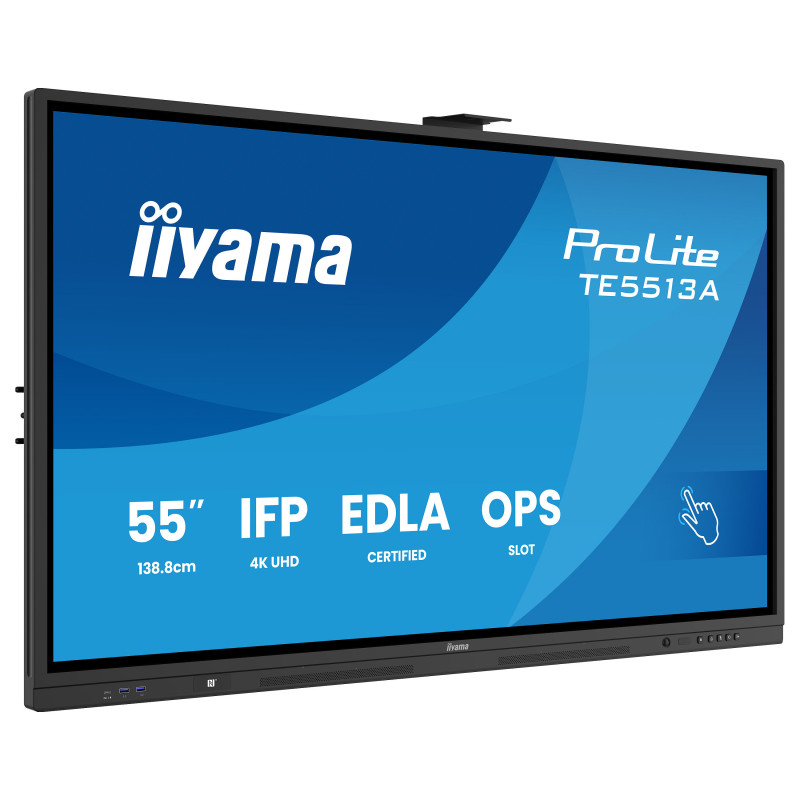

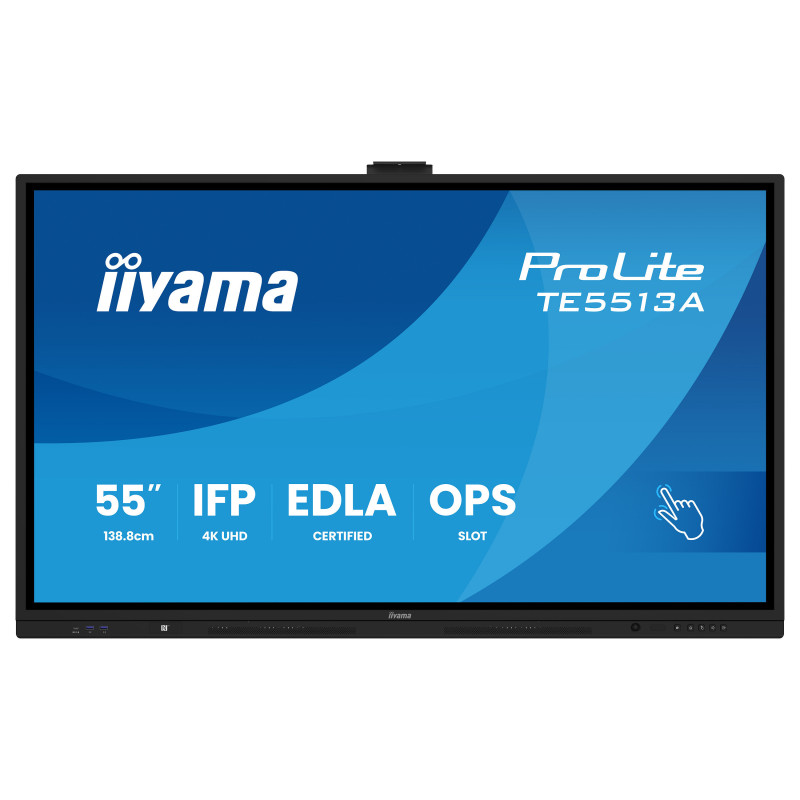

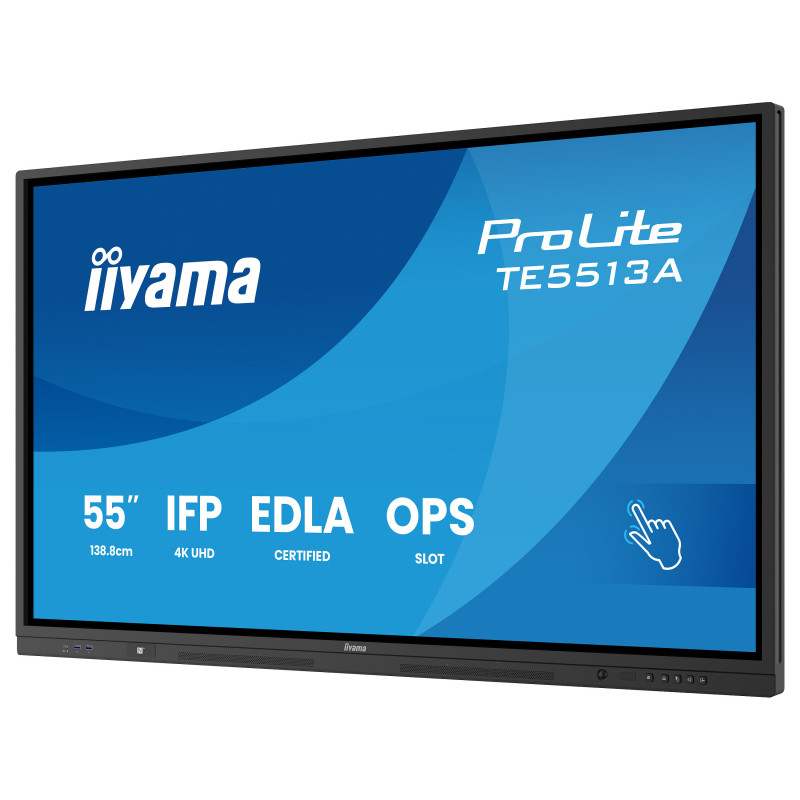

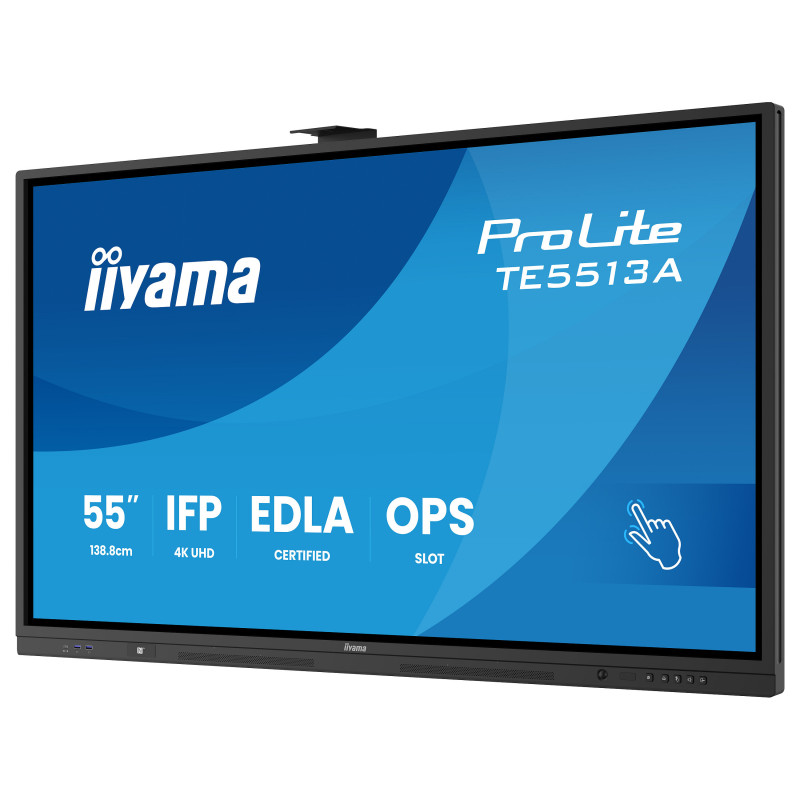

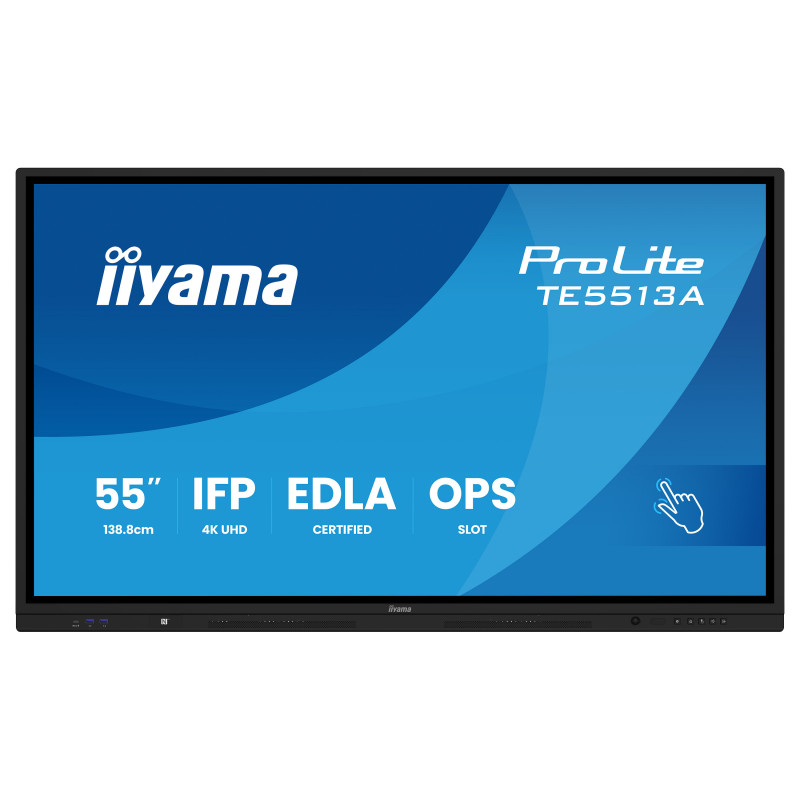

iiyama TE5513A-B1AG Signage Display

iiyama TE5513A-B1AG. Product design: Interactive flat panel. Display diagonal: 138.7 cm (54.6"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 18/7. Operating system installed: Android. Product colour: Black
The TE5513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.

Display

Panel type: IPS
Display diagonal: 138.7 cm (54.6")
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1210 x 680 mm
Display diagonal (metric): 138.8 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Glass thickness: 3.2 mm

Ports interfaces

HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DisplayPorts quantity: 1
DisplayPort version: 1.2
USB port: Yes
USB ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 2
RS-232C: Yes
OPS module slot: Yes
Audio Return Channel (ARC): Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 60 W

Design

Product design: Interactive flat panel
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

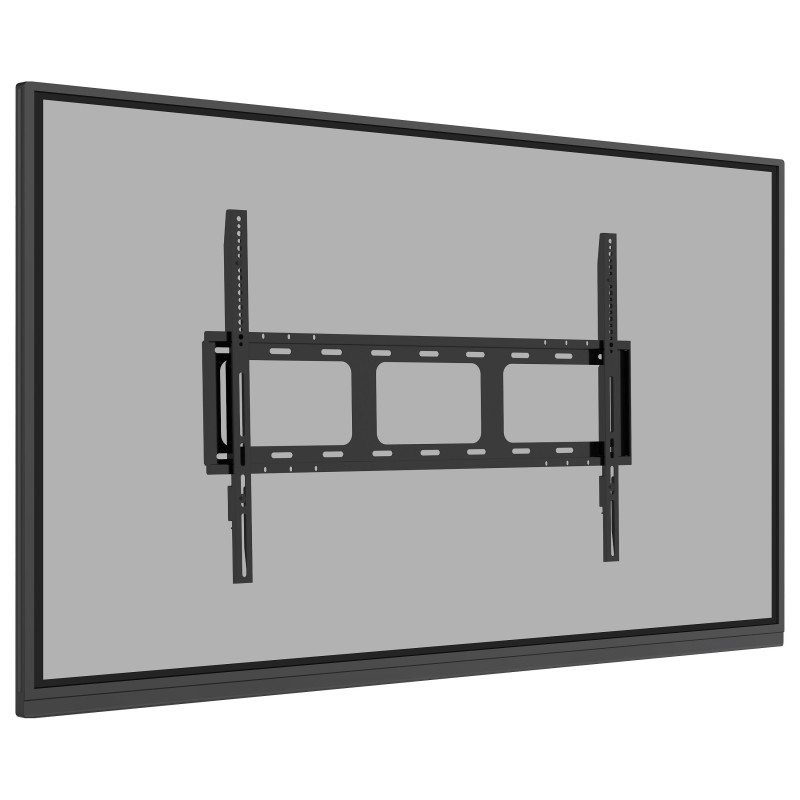

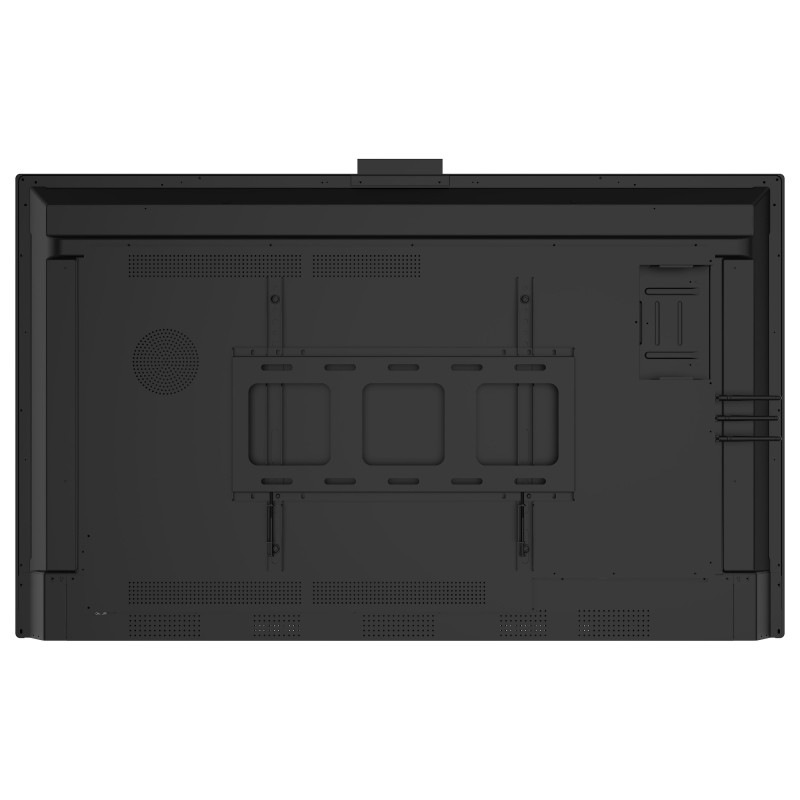

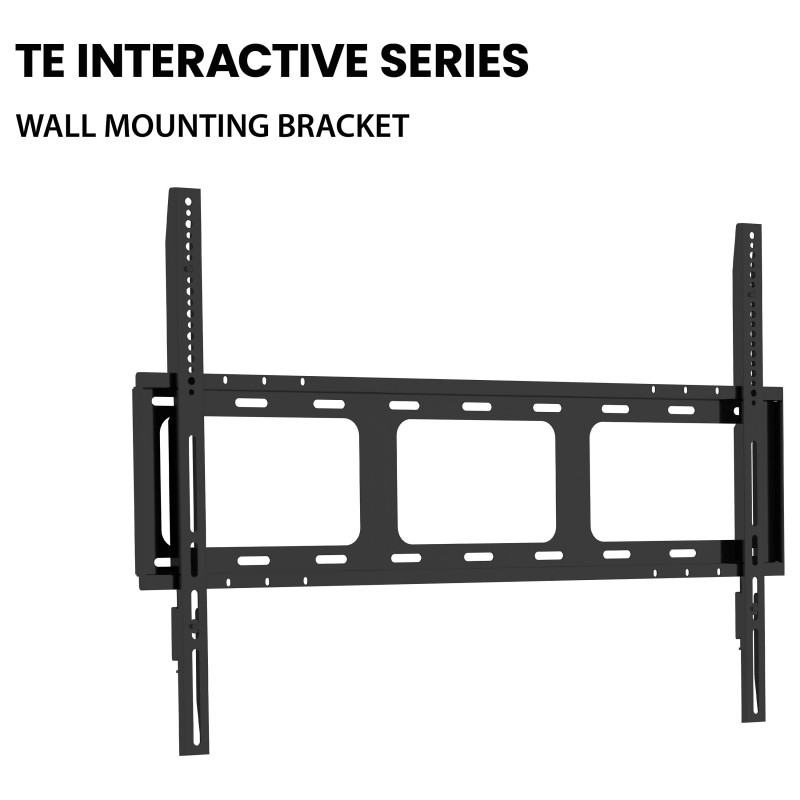

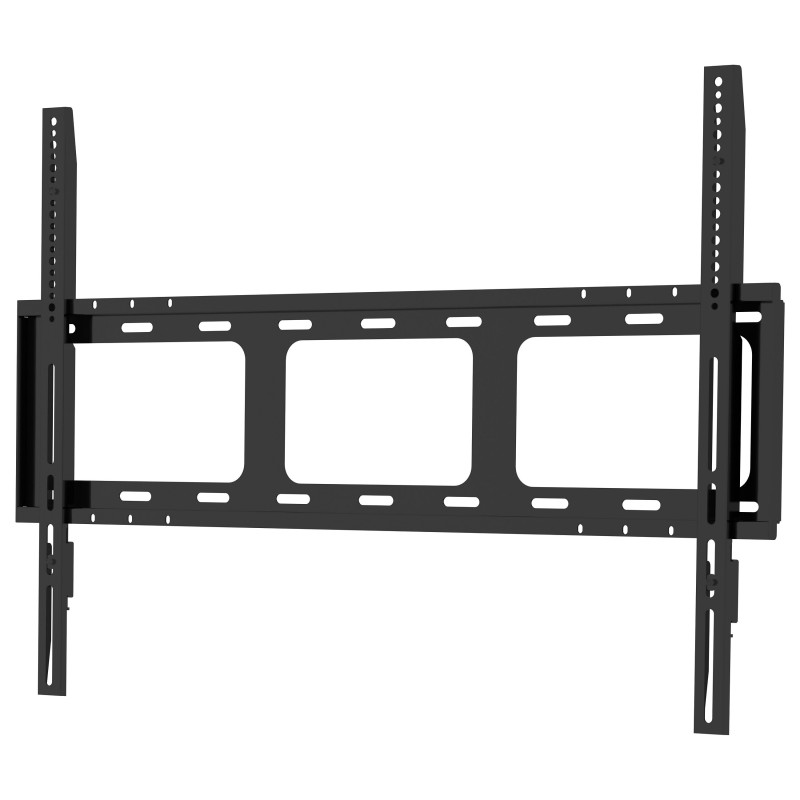

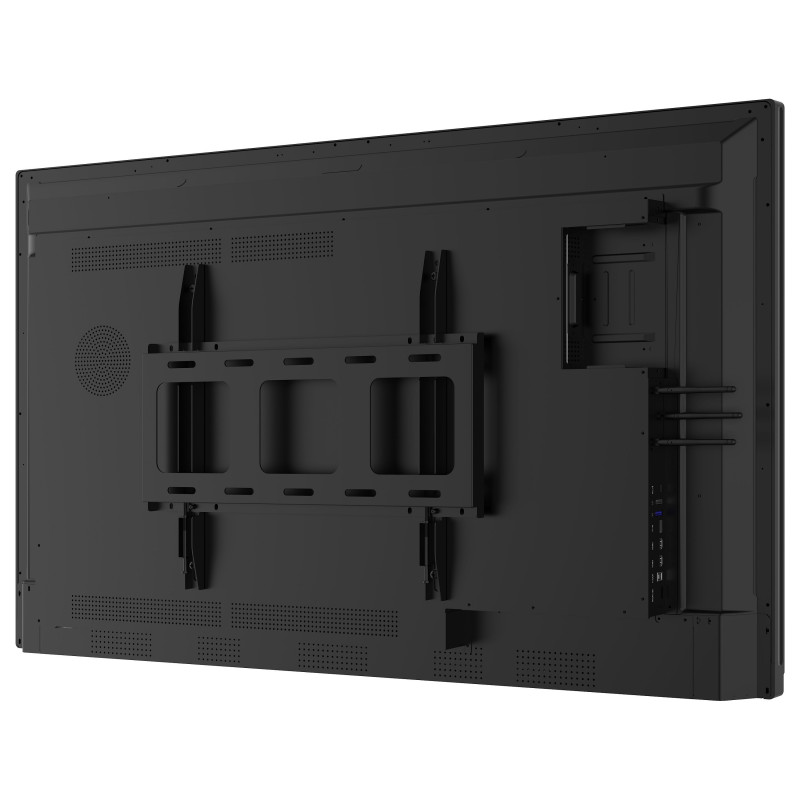

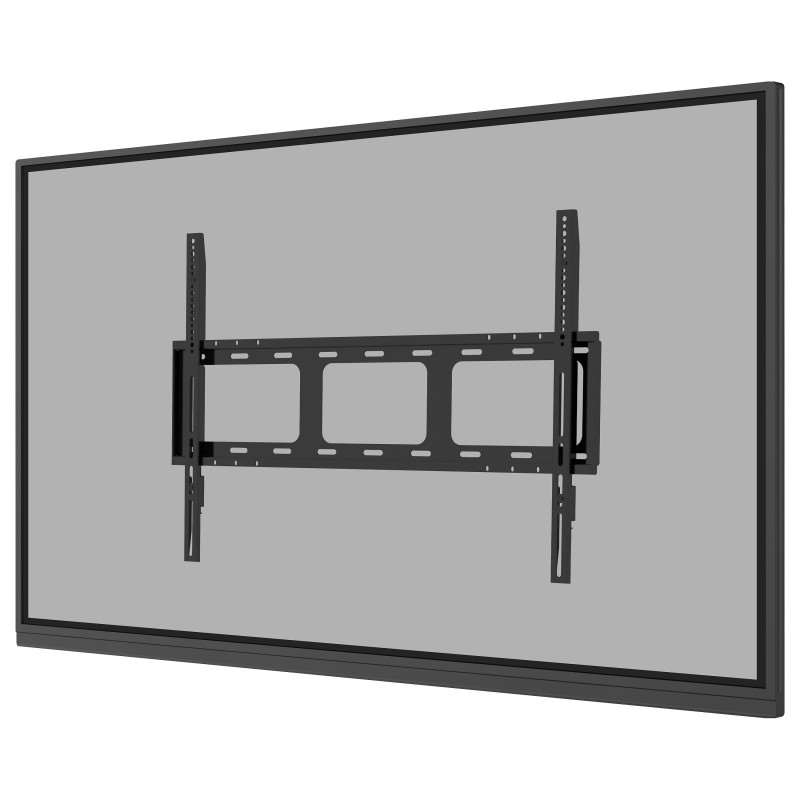

VESA mounting: Yes
Panel mounting interface: 400 x 400 mm
Bezel colour: Black
Anti-glare screen: Yes
Positioning accuracy: 1 mm

Performance

Purpose: Education
On Screen Display (OSD): Yes
Number of OSD languages: 13
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian
Operating hours (hours/days): 18/7
HDCP: Yes
HDCP version: 2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 125 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 125 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Computer system: Yes
Built-in processor: Yes
Processor architecture: ARM Cortex-A73
Processor frequency: 1.4 GHz
Processor cores: 4
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G52
Internal storage capacity: 128 GB
Operating system installed: Android
Operating system version: 14

Weight dimensions

Display width: 1267 mm
Display depth: 86 mm
Display height: 765.4 mm
Display weight: 28.7 kg
Width: 1267 mm
Depth: 86 mm
Height: 765.4 mm
Weight: 28.7 kg

Packaging data

Package width: 1385 mm
Package depth: 185 mm
Package height: 865 mm
Package weight: 34.8 kg

Packaging content

Remote control included: Yes

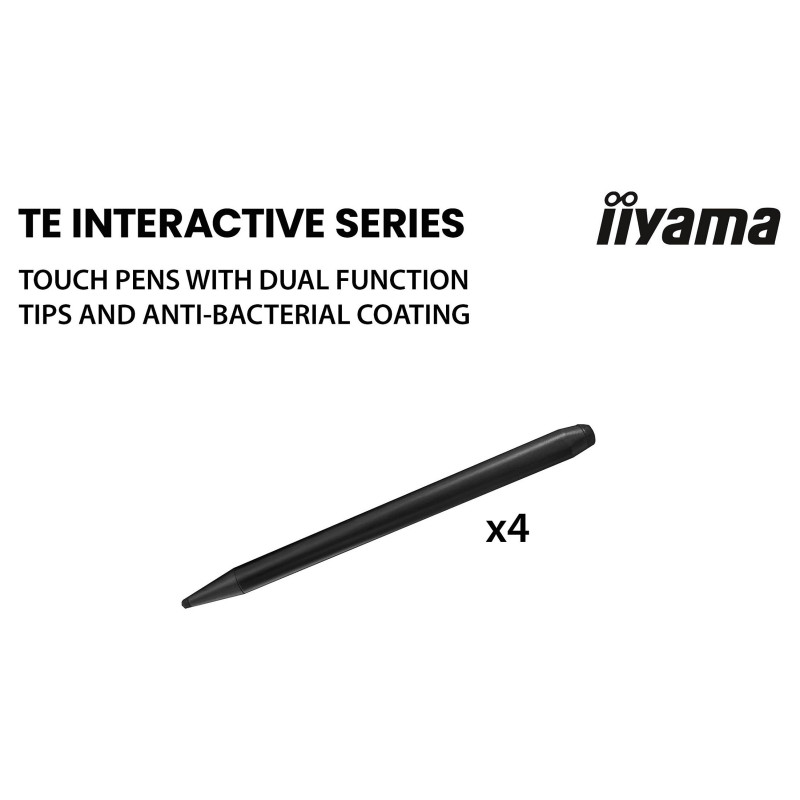

Stylus pen: Yes
Number of stylus pens: 4
Cables included: AC, USB, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6 (802.11ax)

Technical details

Audio in (mini jack): Yes
OPS slot: 1
Playback media: Y
User controls: general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless networks, share, device, personal, system)
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Quick start guide: Yes
Bluetooth: Yes
Bluetooth version: 5.0
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
