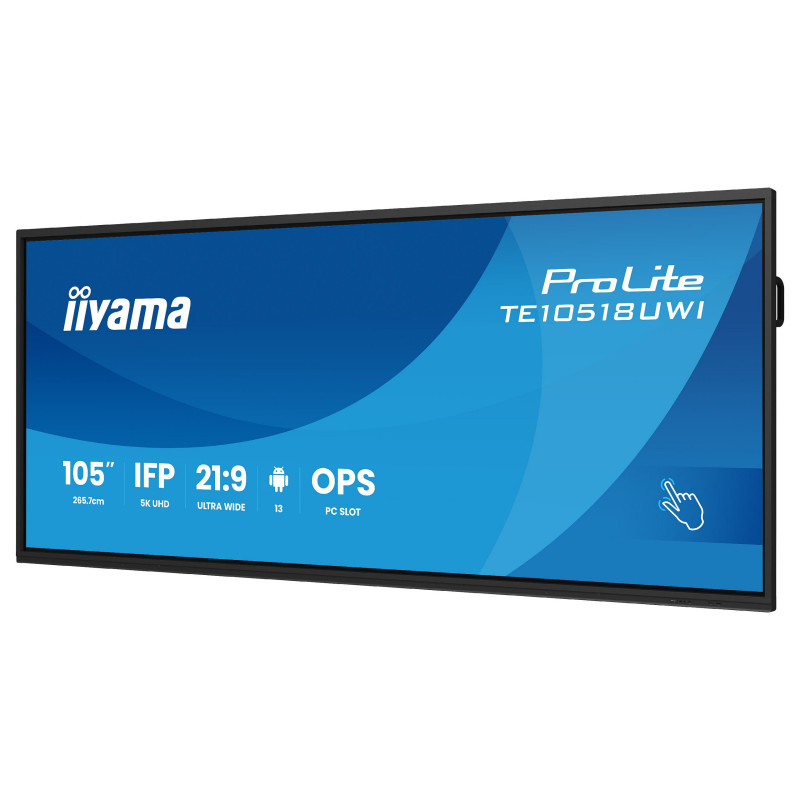

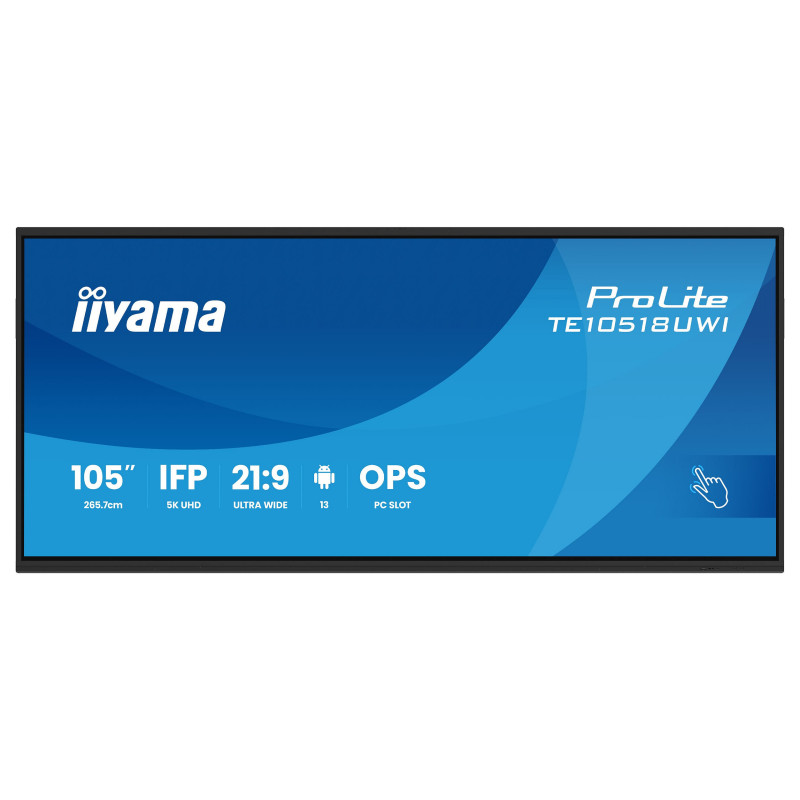

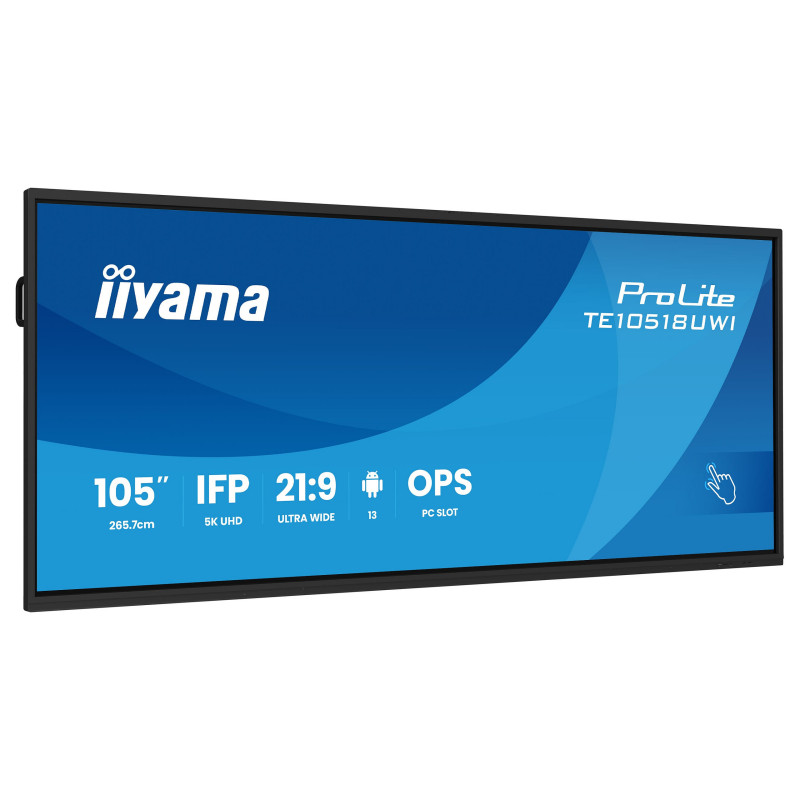

iiyama TE10518UWI-B1AG Signage Display

iiyama TE10518UWI-B1AG. Product design: Kiosk design. Display diagonal: 2.66 m (104.6"), Display technology: LED, Display resolution: 5120 x 2160 pixels, Display brightness: 450 cd/m², HD type: 5K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Android. Product colour: Black
The TE10518UWI-B1AG is a revolutionary 105" 5K UHD Interactive Touchscreen that brings a new level of collaboration and engagement to your workspace. Boasting cutting-edge technology and a host of impressive features and functionalities, this interactive display is designed to transform the way you work, communicate, and share ideas. Whether it's for boardrooms, classrooms, or collaborative meeting spaces, this 105" 21:9 Ultra-Wide interactive touchscreen is the ultimate tool to foster creativity, productivity, and seamless communication.

Display

Panel type: VA
Display diagonal: 2.66 m (104.6")
Display technology: LED
Display resolution: 5120 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 5K Ultra HD
Touchscreen: Yes
Touchscreen technology: PureTouch-IR
Number of simultaneous touchpoints: 40
Native aspect ratio: 21:9
Response time: 6.5 ms
Contrast ratio (typical): 4000:1
Contrast ratio (dynamic): 5000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.479 x 0.479 mm
Active display area (W x H): 2450 x 1033.6 mm
Display diagonal (metric): 265.7 cm
Horizontal scan range: 30 - 135 kHz
Native refresh rate: 60 Hz
Surface hardness: 7H
Glass thickness: 3 mm

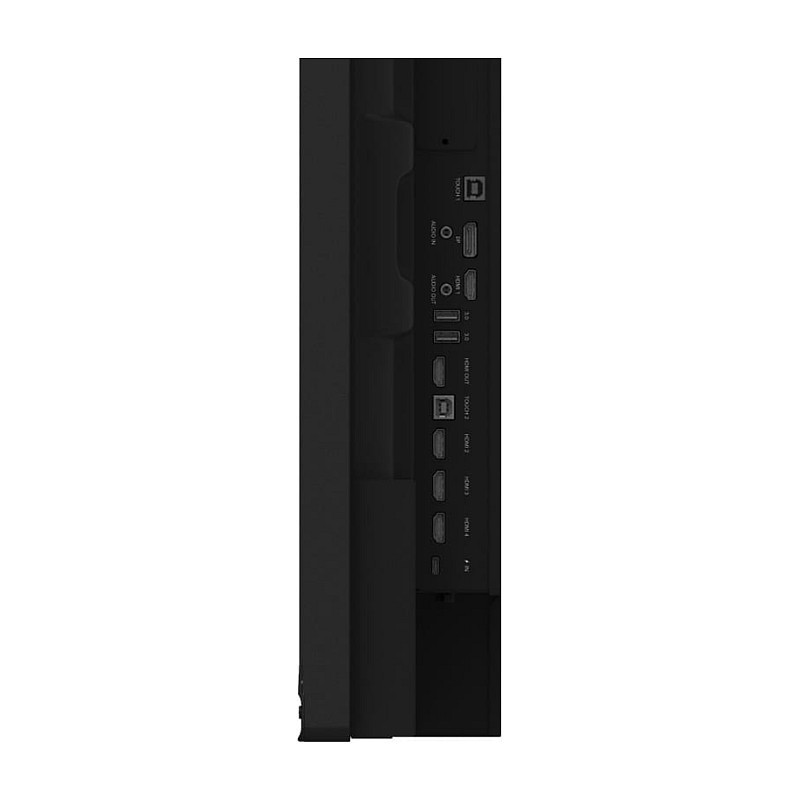

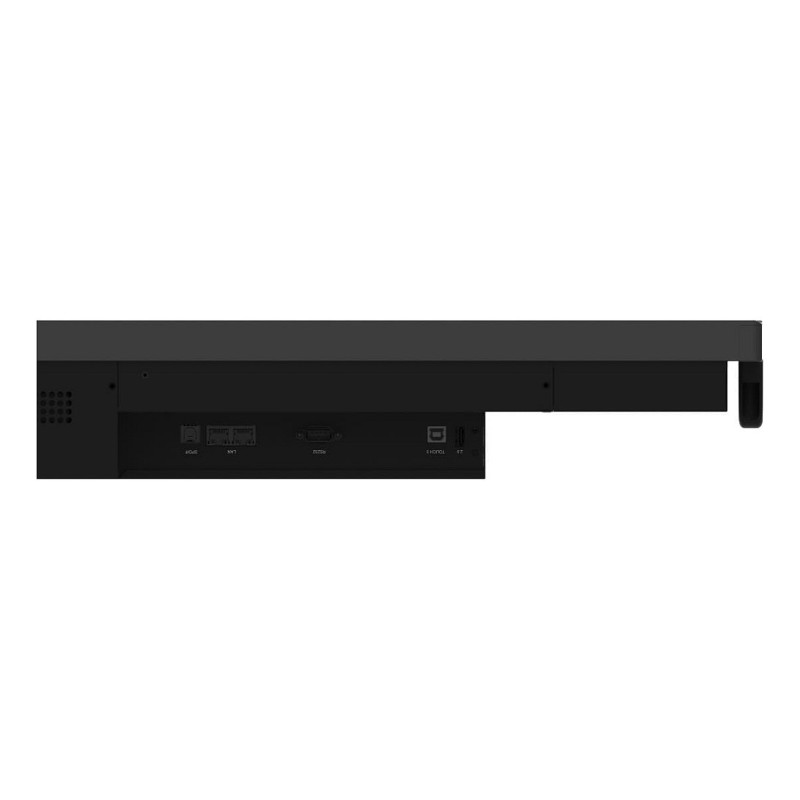

Ports interfaces

HDMI ports quantity: 5
HDMI version: 2.0/2.1
HDMI input ports quantity: 1
HDMI output ports quantity: 1
DVI port: No
DisplayPorts quantity: 1
DisplayPorts in: 1
USB port: Yes
USB ports quantity: 8
USB version: 3.2 Gen 1 (3.1 Gen 1)
USB connector type: USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 16
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 100 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 2
Audio (L/R) in: 1
Audio (L/R) out: 4
Microphone in: Yes
RS-232C: Yes

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 48 W

Design

Product design: Kiosk design
Placement supported: Indoor
Orientation: Horizontal
Product colour: Black

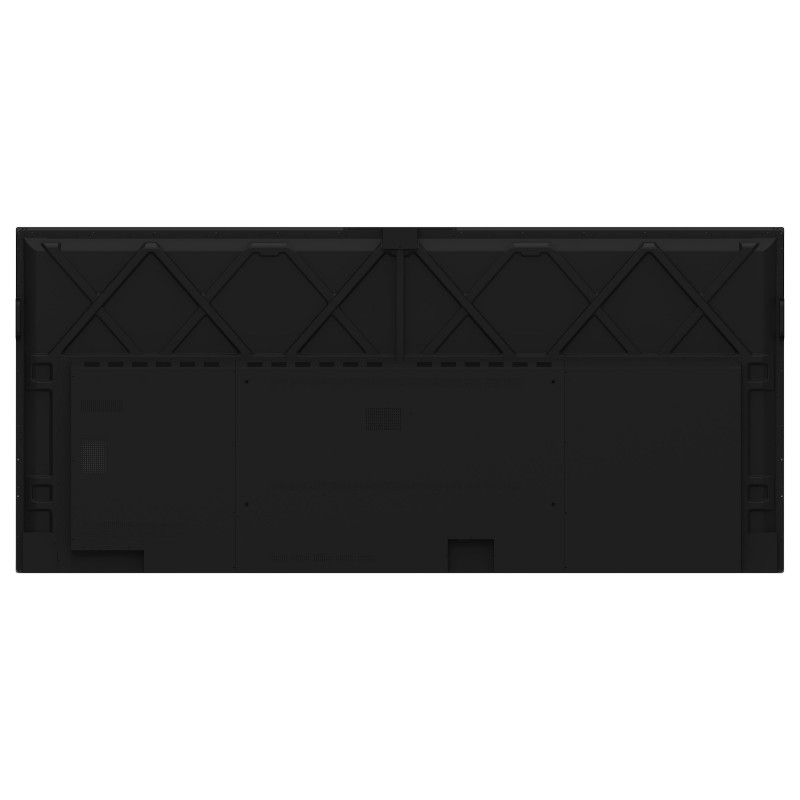

VESA mounting: Yes
Panel mounting interface: 1000 x 400 mm
Bezel colour: Black
Anti-glare screen: Yes

Performance

Purpose: Universal
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: CAT, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 16/7
HDCP: Yes
HDCP version: 2.3
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 282 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Computer system: No
Built-in processor: Yes
Processor manufacturer: AMD
Processor architecture: ARM Cortex-A76+Cortex-A55
Internal memory: 8 GB
On-board graphics card model: ARM Mali-G610 MP4
Internal storage capacity: 64 GB
Operating system installed: Android
Operating system version: 13

Weight dimensions

Display width: 2507.2 mm
Display depth: 103 mm
Display height: 1130.1 mm
Display weight: 91.4 kg
Width: 2507.2 mm
Depth: 103 mm
Height: 1130.1 mm
Weight: 91.4 kg

Packaging data

Package width: 2668 mm
Package depth: 280 mm
Package height: 1305 mm
Package weight: 119.5 kg

Packaging content

Remote control included: Yes
Batteries included: Yes

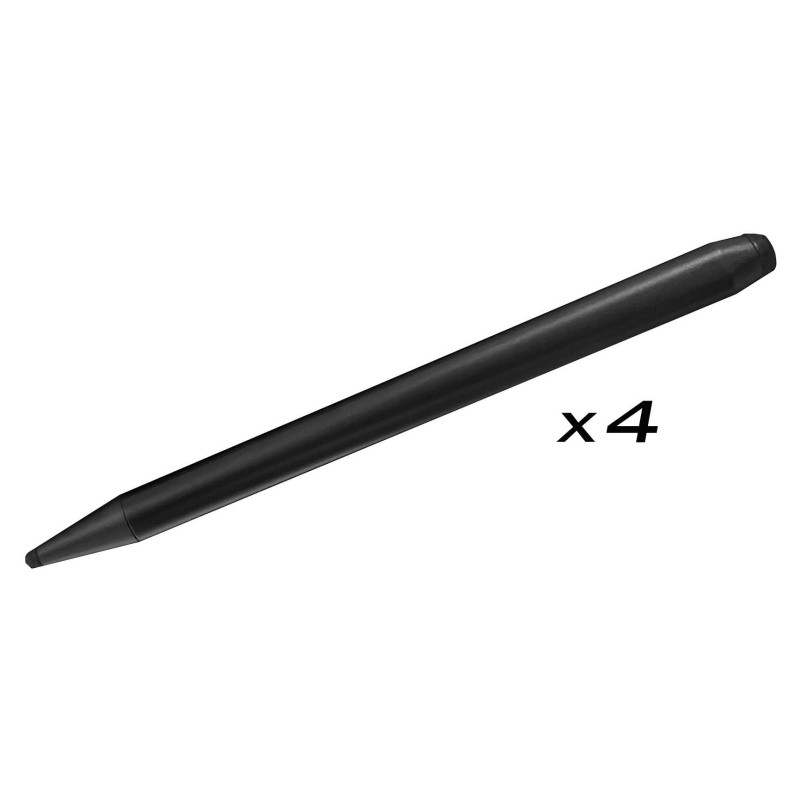

Stylus pen: Yes
Number of stylus pens: 4

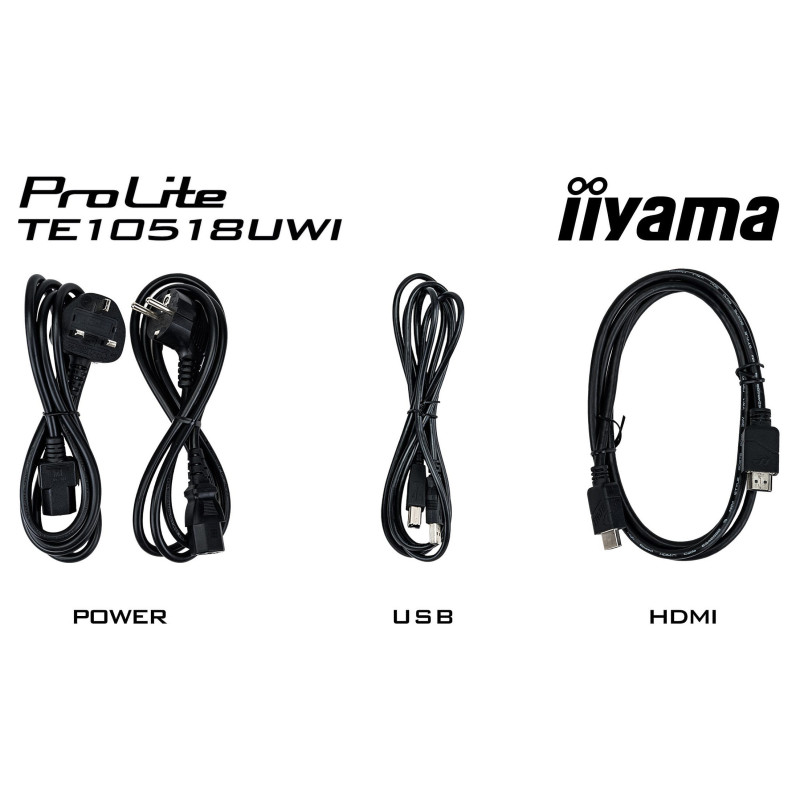

Cables included: AC, USB, HDMI
Mounting kit: Yes
Wi-Fi module included: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)

Network

Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b

Technical details

Audio in (mini jack): Yes
Playback media: Y
User controls: common settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (pixel shift, eye care, auto light, ECO, ECR, auto colour temp.), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), settings (wireless networks, personal, input output, application, system)
Sustainability certificates: ErP
Warranty period: 5 year(s)
Compliance certificates: CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE

Other features

Quick start guide: Yes
Bluetooth: Yes
Bluetooth version: 5.0
Built-in microphone: Yes
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
