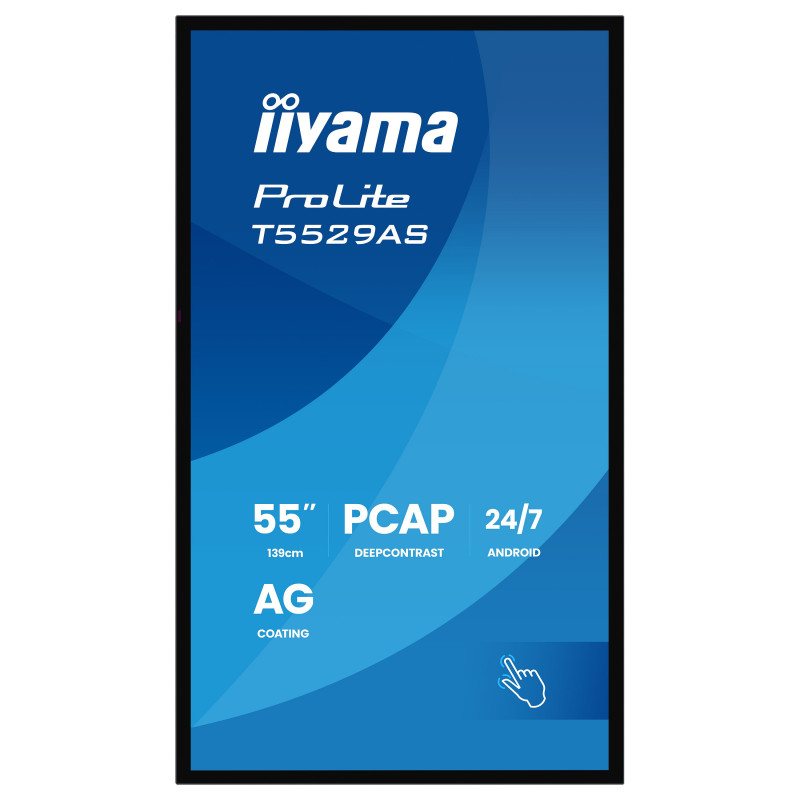

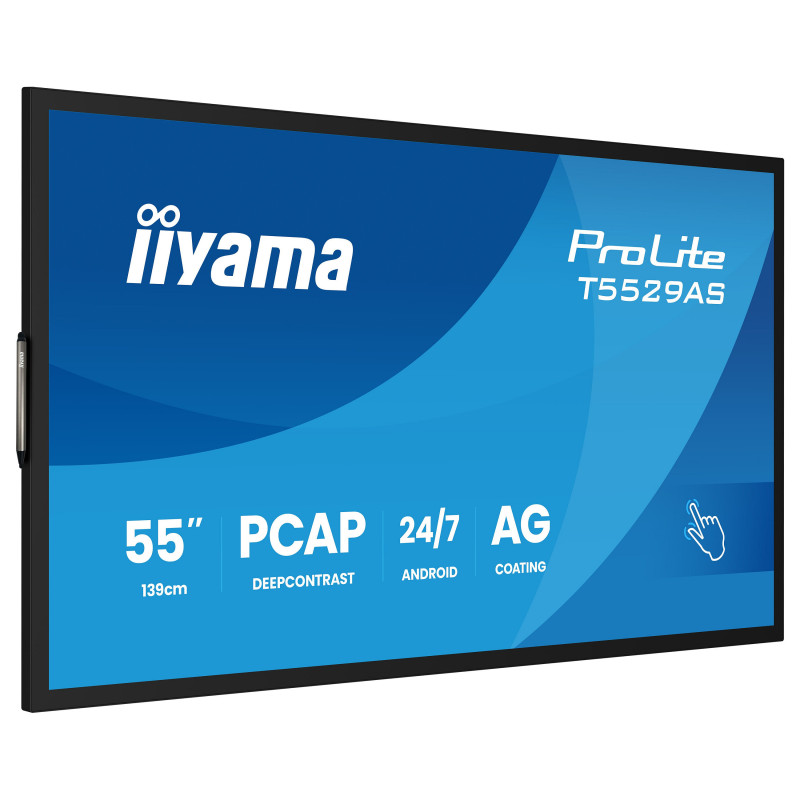

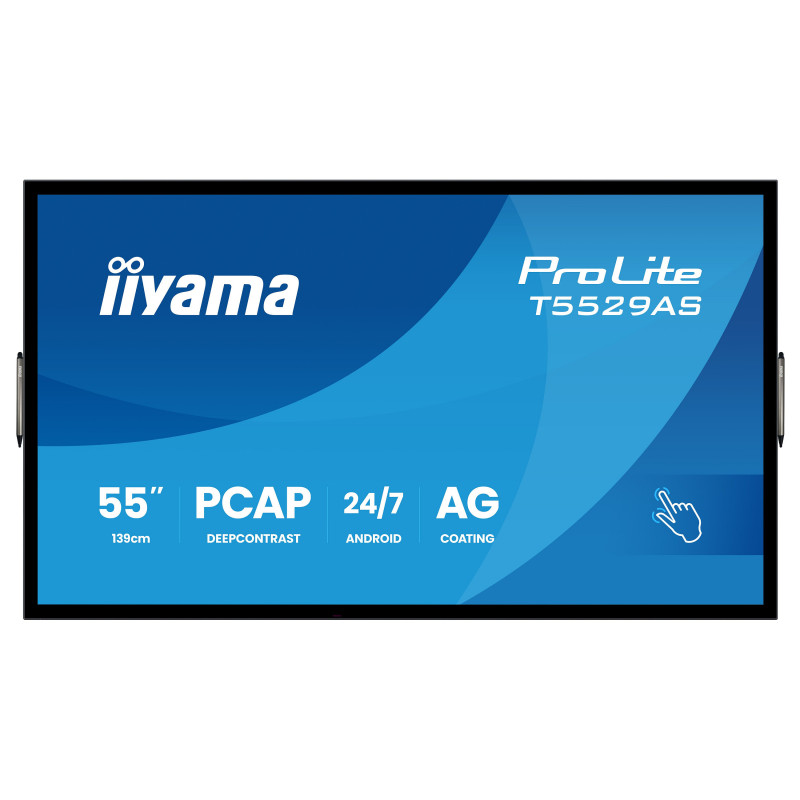

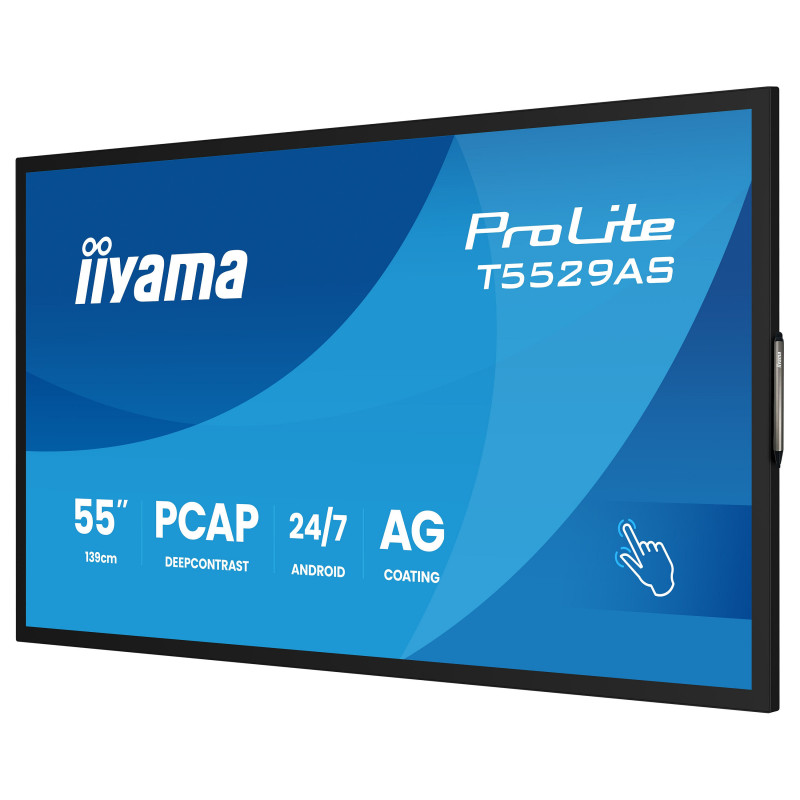

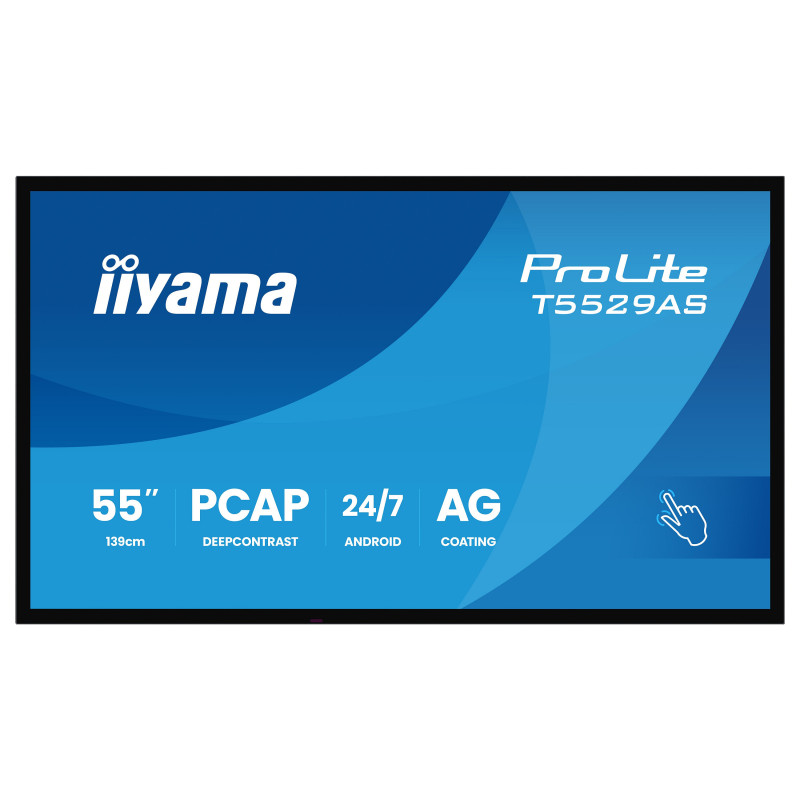

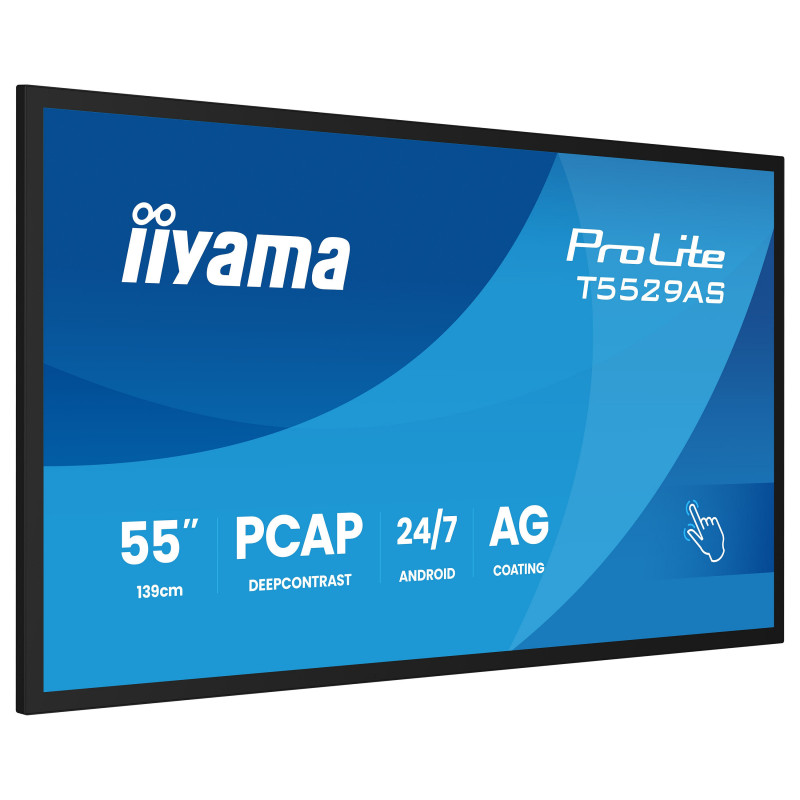

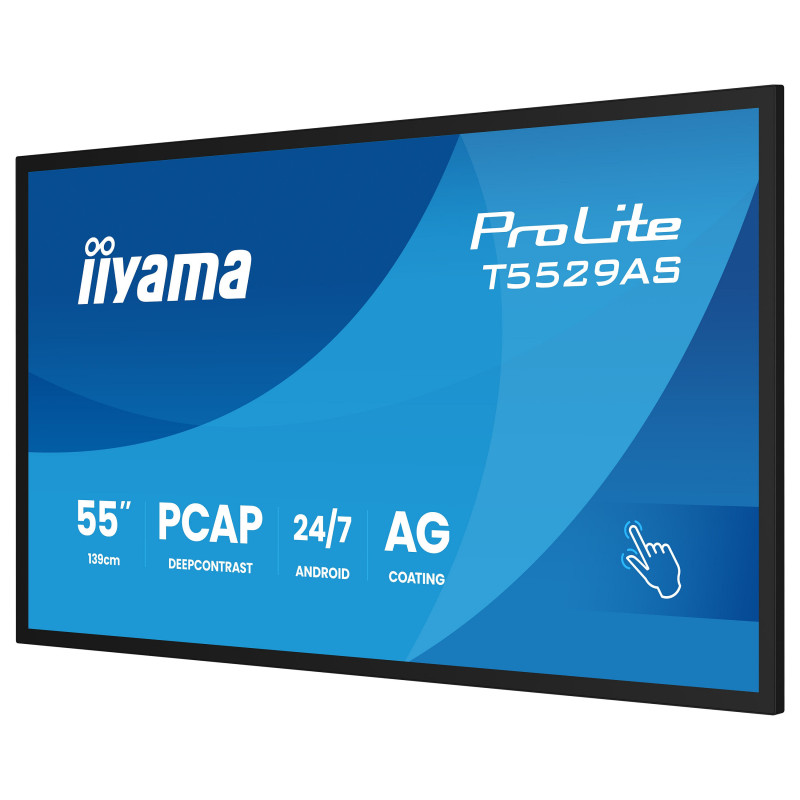

iiyama T5529AS-B1AG Signage Display

iiyama T5529AS-B1AG. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 450 cd/m², HD type: 4K Ultra HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black

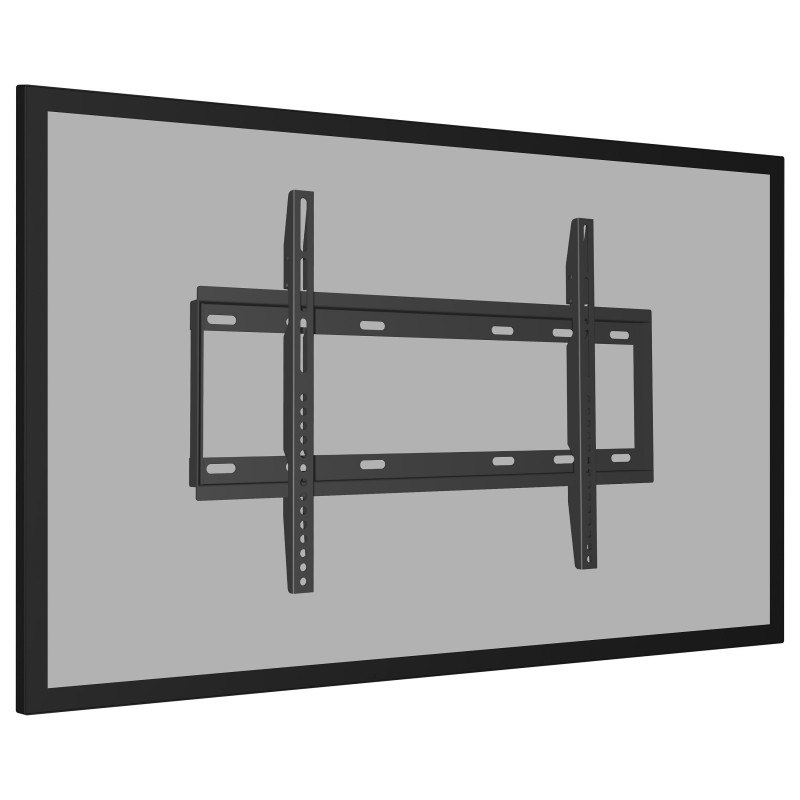

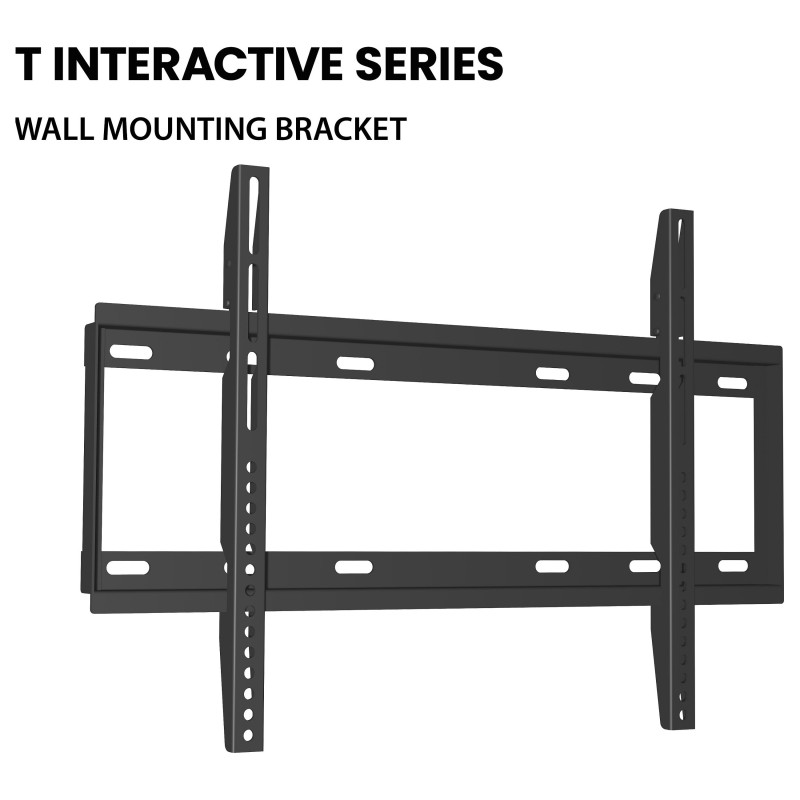

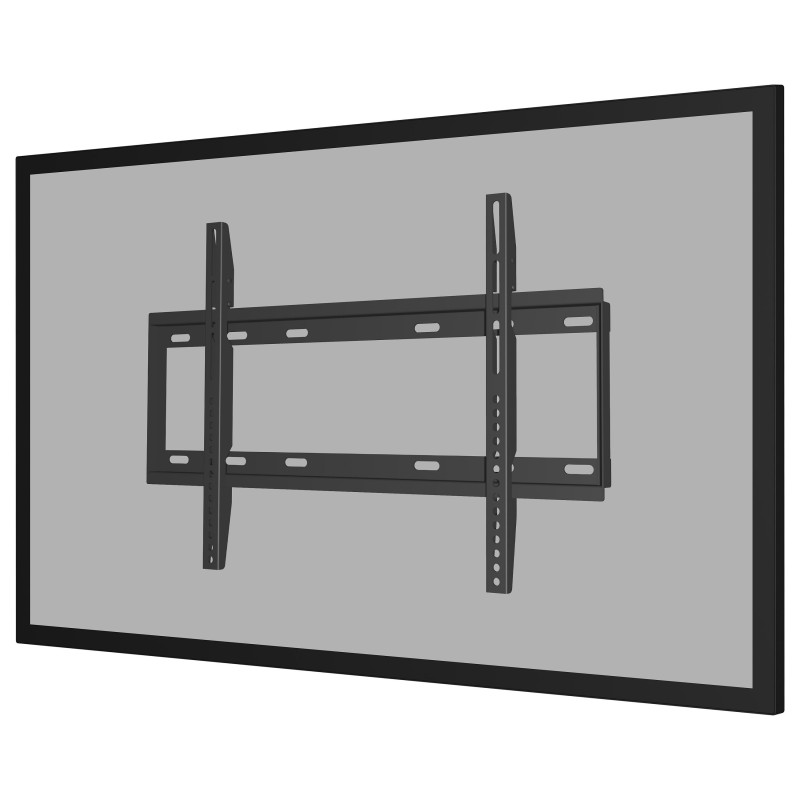

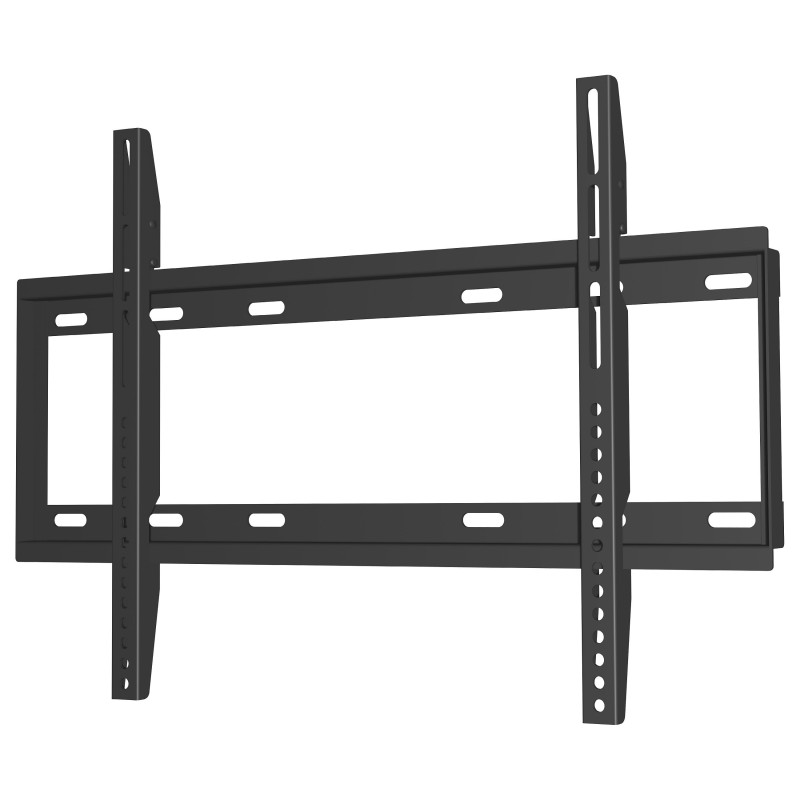

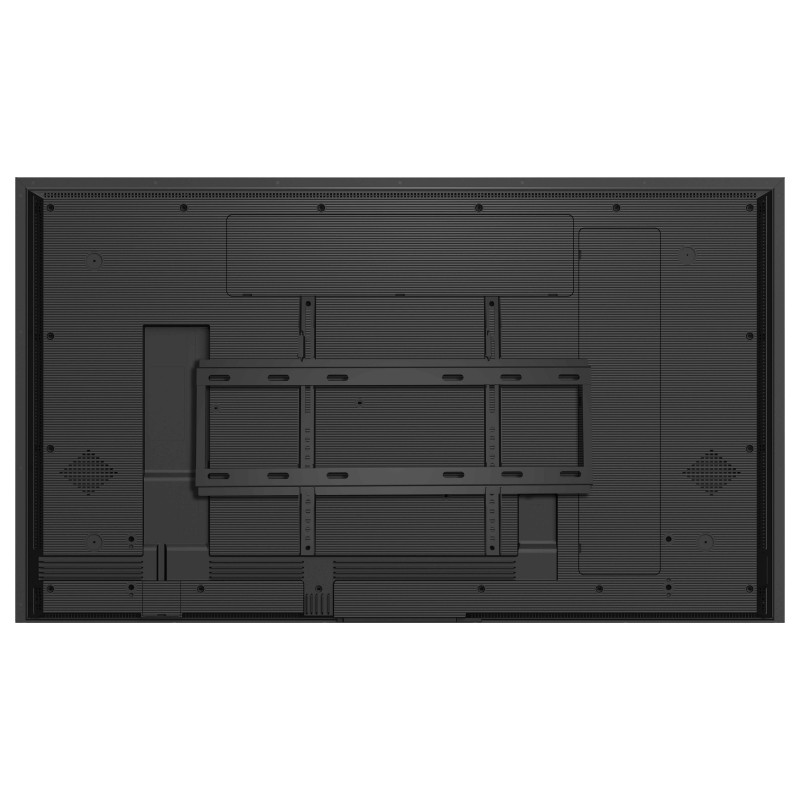

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn't just a display — it's a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

Display

Panel type: VA
LED backlight: Yes
LED backlighting type: Direct-LED
Display diagonal: 138.7 cm (54.6")
Display technology: LED
Display resolution: 3840 x 2160 pixels
Display brightness: 450 cd/m²
HD type: 4K Ultra HD
Touchscreen: Yes
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 20
Multi-touch: Yes
Native aspect ratio: 16:9
Response time: 6.5 ms
Contrast ratio (typical): 4000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.315 x 0.315 mm
Active display area (W x H): 1209.6 x 680.4 mm
Display diagonal (metric): 139 cm
Horizontal scan range: 28 - 160 kHz
Surface hardness: 8
Glass thickness: 3.7 mm

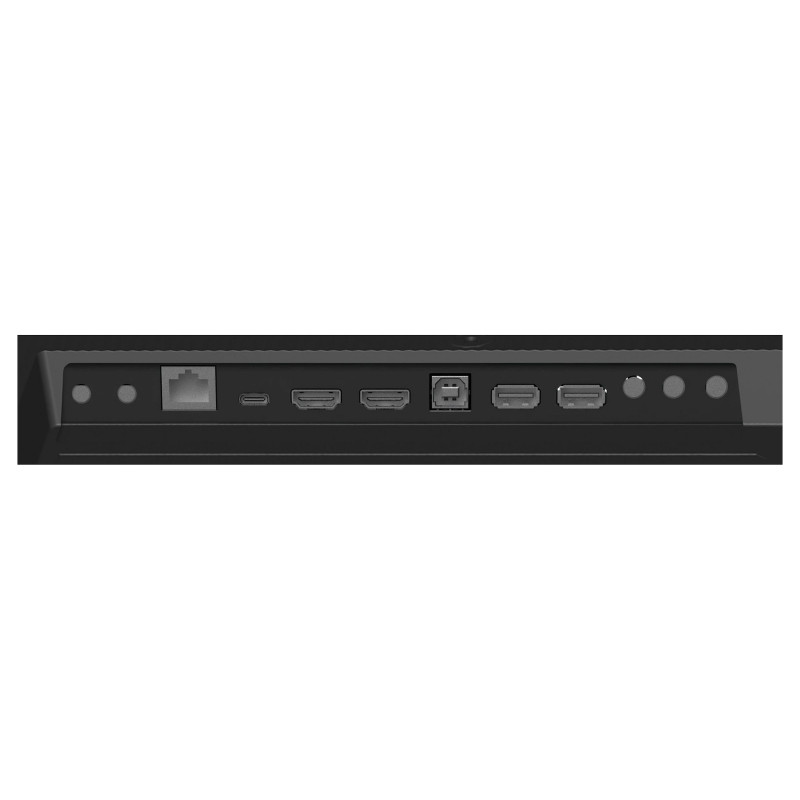

Ports interfaces

HDMI ports quantity: 2
HDMI version: 1.4/2.0
DVI port: No
USB port: Yes
USB ports quantity: 2
USB version: 2.0
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 15 W
USB Type-C DisplayPort Alternate Mode: Yes
Ethernet LAN (RJ-45) ports: 1
RS-232C: Yes
Remote (IR) input: 1
Remote (IR) output: 1

Audio

Built-in speaker(s): Yes
Number of built-in speakers: 2
RMS rated power: 20 W

Design

Product design: Kiosk design
Placement supported: Indoor

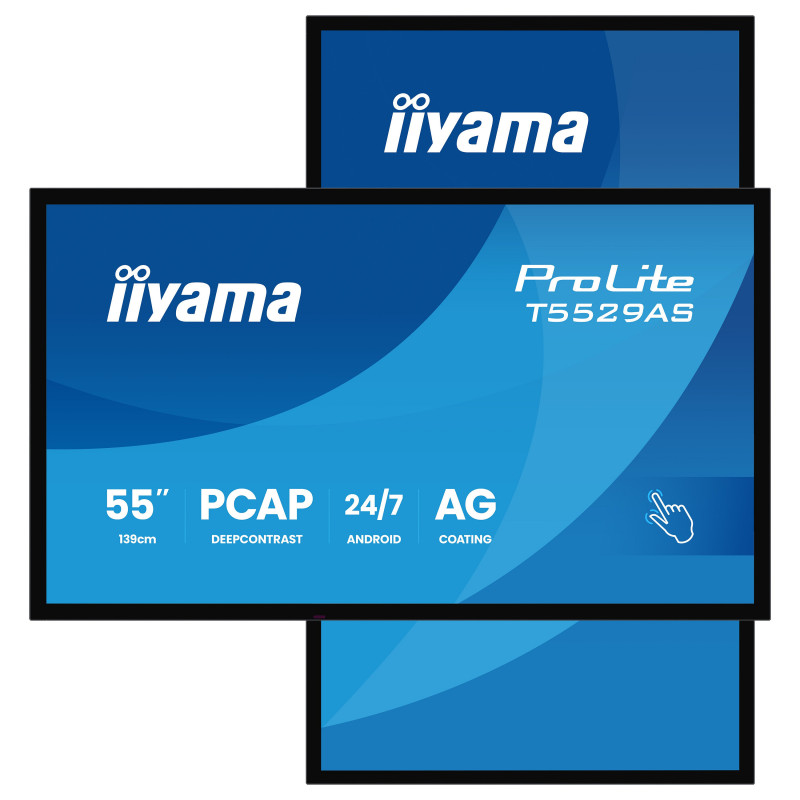

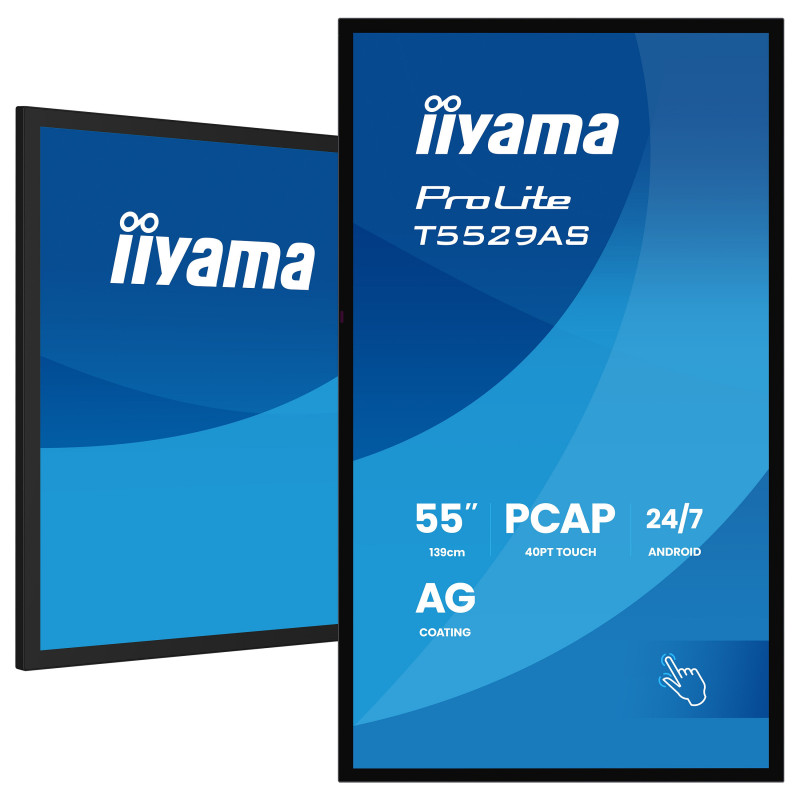

Orientation: Horizontal/Vertical
Product colour: Black
Screen shape: Flat

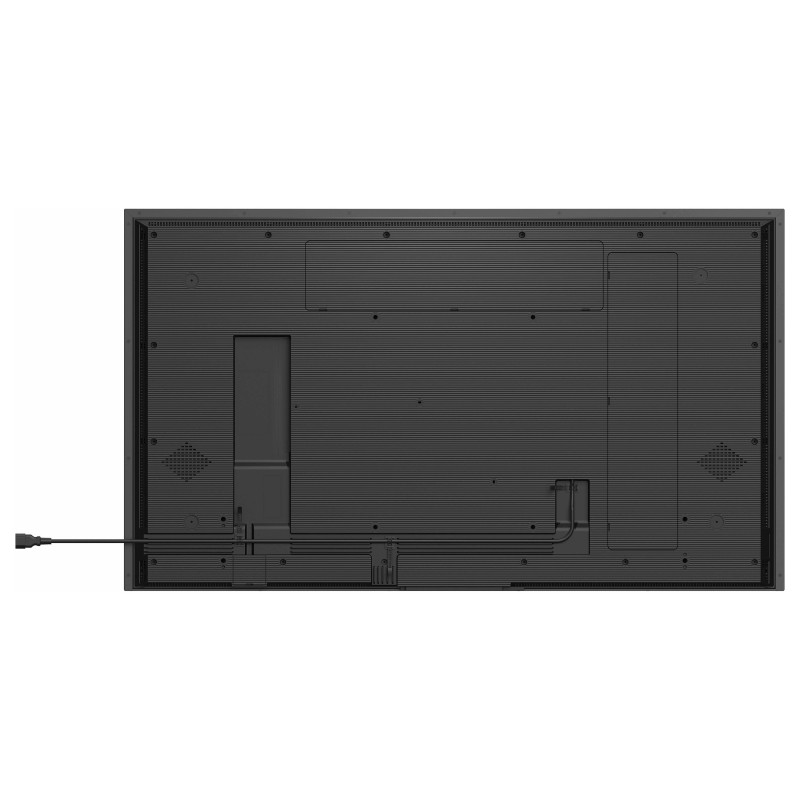

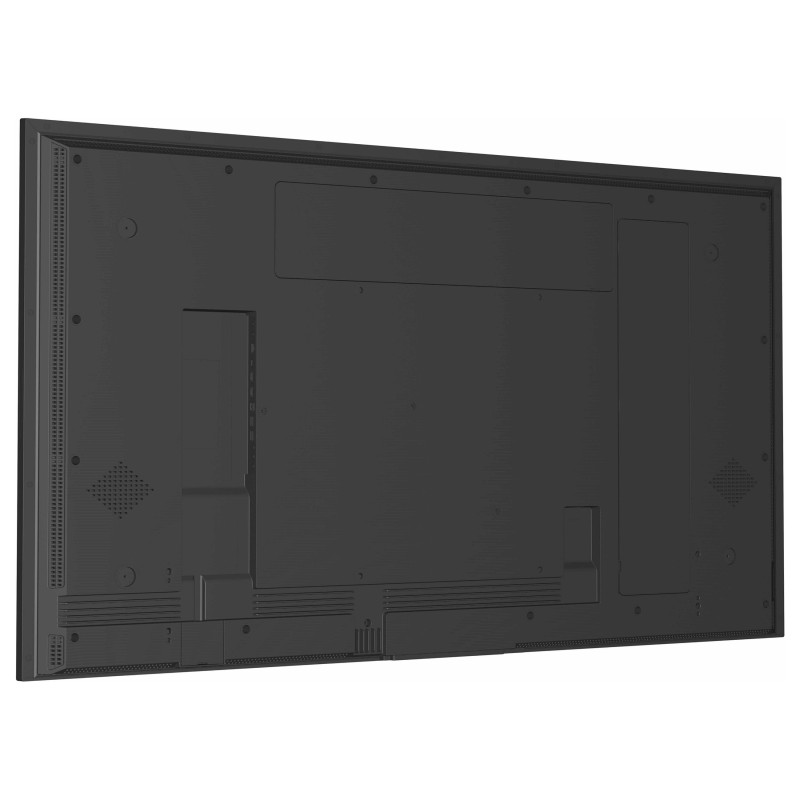

VESA mounting: Yes
Panel mounting interface: 300 x 400 mm
Bezel colour: Black
Anti-glare screen: Yes

Performance

Purpose: Universal
On Screen Display (OSD): Yes
Number of OSD languages: 8
On Screen Display (OSD) languages: Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 1.4/2.2
Mean time between failures (MTBF): 50000 h

Power

Power consumption (typical): 104 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W

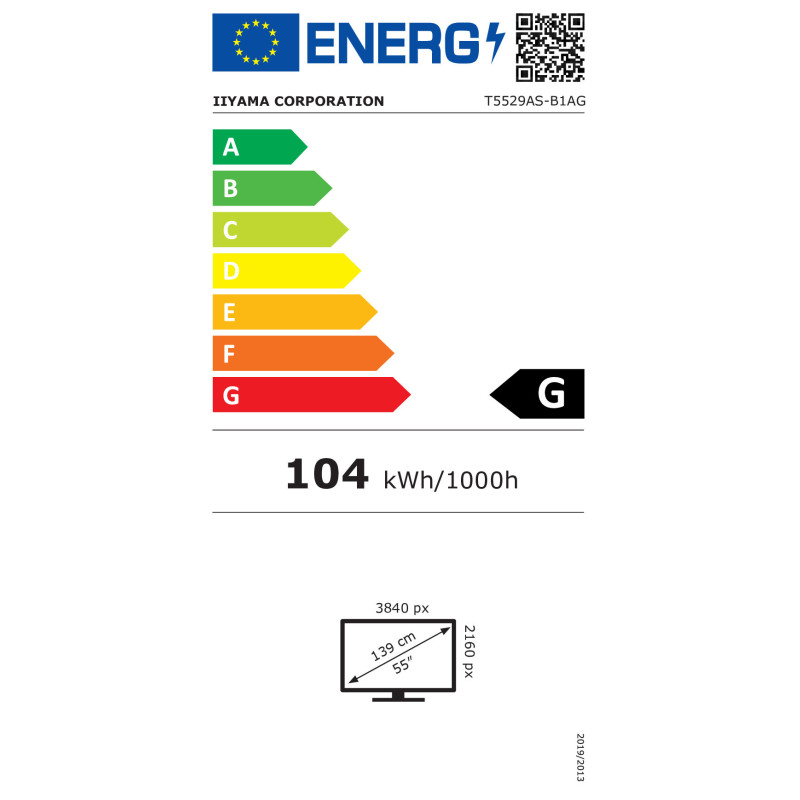

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 104 kWh

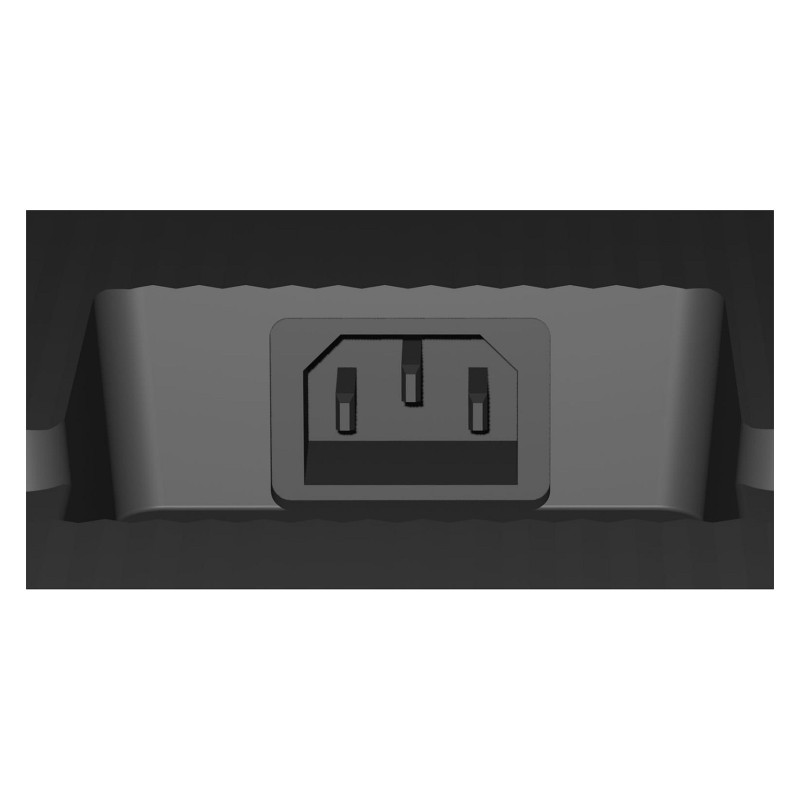

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G

Computer system

Built-in processor: Yes
Processor manufacturer: ARM
Processor architecture: ARM Cortex-A73
Processor cores: 4
Internal memory: 4 GB
On-board graphics card model: ARM Mali-G51
Internal storage capacity: 32 GB
Operating system installed: Android
Operating system version: 14

Weight dimensions

Display width: 1258.2 mm

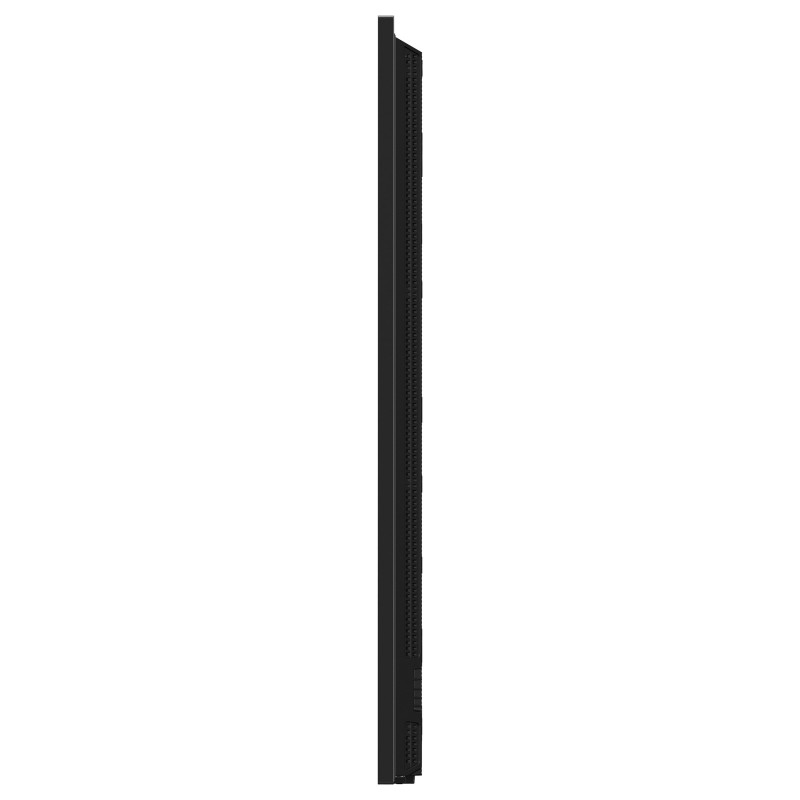

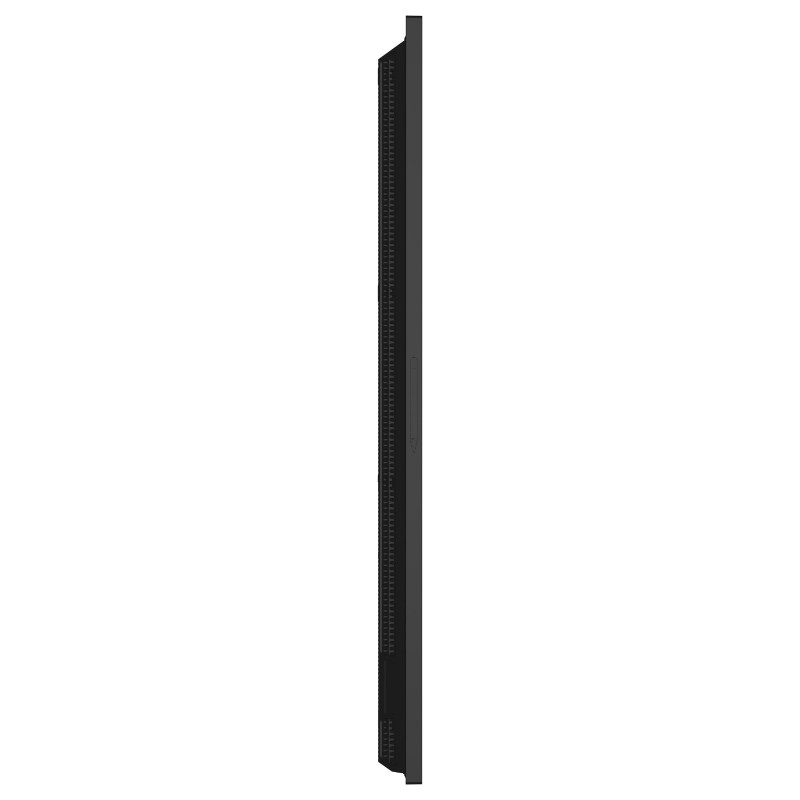

Display depth: 42.3 mm
Display height: 728.8 mm
Display weight: 26.8 kg
Width: 1258.2 mm
Depth: 42.3 mm
Height: 728.8 mm
Weight: 26.8 kg
Width (with stand): 1258.2 mm
Depth (with stand): 42.3 mm
Height (with stand): 728.8 mm
Weight (with stand): 26.8 kg

Packaging data

Package width: 1400 mm
Package depth: 164 mm
Package height: 850 mm
Package weight: 32.7 kg

Packaging content

Remote control included: Yes
Batteries included: Yes

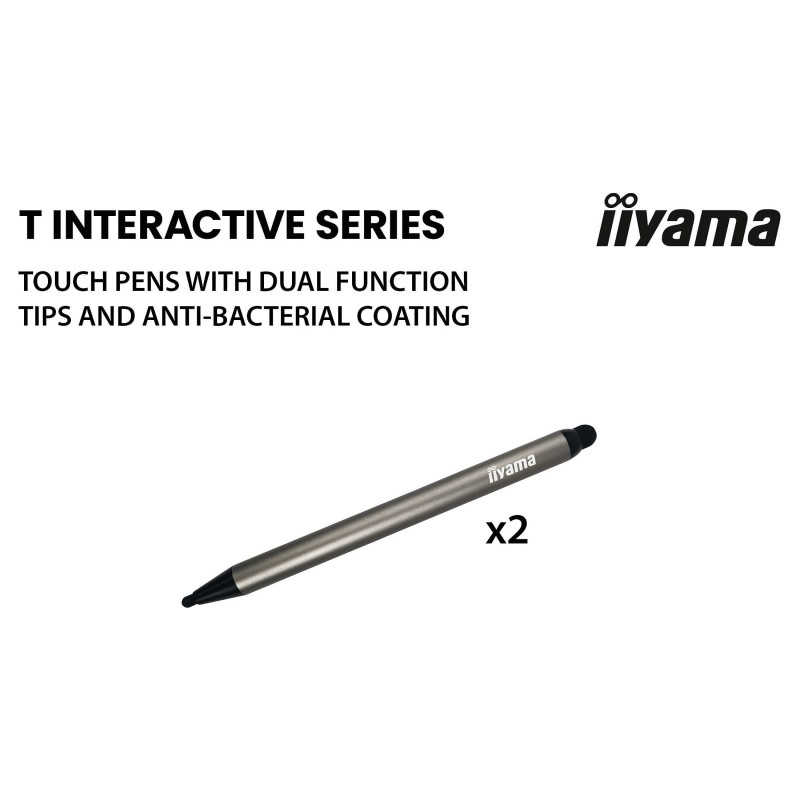

Stylus pen: Yes
Number of stylus pens: 2

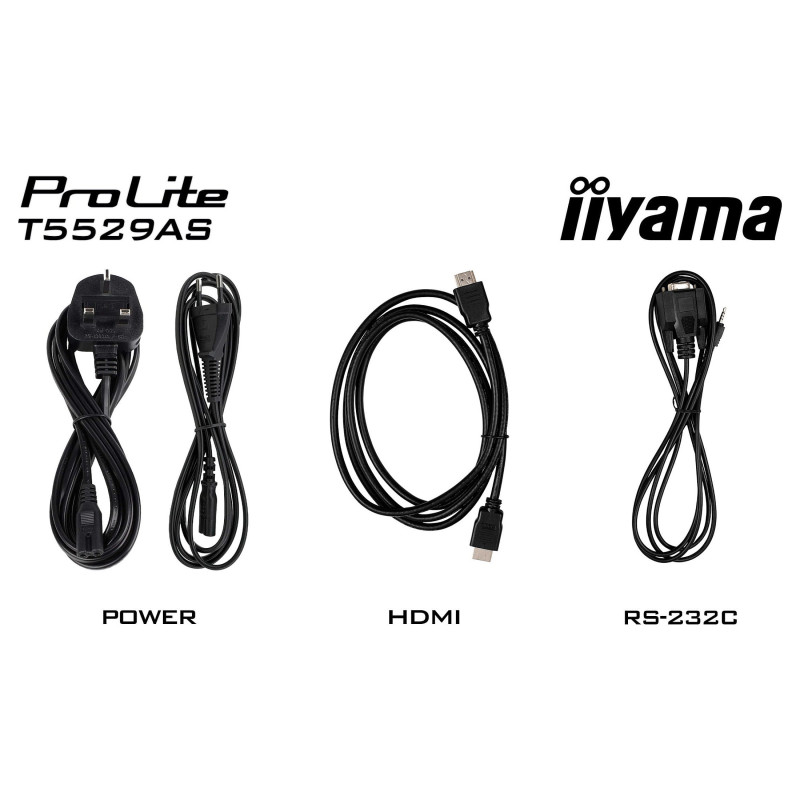

Cables included: AC, HDMI, RS-232

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): -20 - 60%

Certificates

Certification: CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus

Network

Ethernet LAN: Yes
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac)

Technical details

User controls: picture (brightness, contrast, sharpness, black level, tint, colour, noice reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass,volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
Sustainability certificates: ErP
Compliance certificates: CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

Other features

Quick start guide: Yes
Backlight type: Direct LED
Viewable size, horizontal: 121 cm
Viewable size, vertical: 68 cm
Brightness: 450 cd/m²
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power supply type: Internal
