iiyama ProLite TW1025LASC-B3PNR computer monitor

iiyama ProLite TW1025LASC-B3PNR. Display diagonal: 25.6 cm (10.1"), Display resolution: 1280 x 800 pixels, HD type: WXGA, Display technology: LED, Response time: 25 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 160°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black

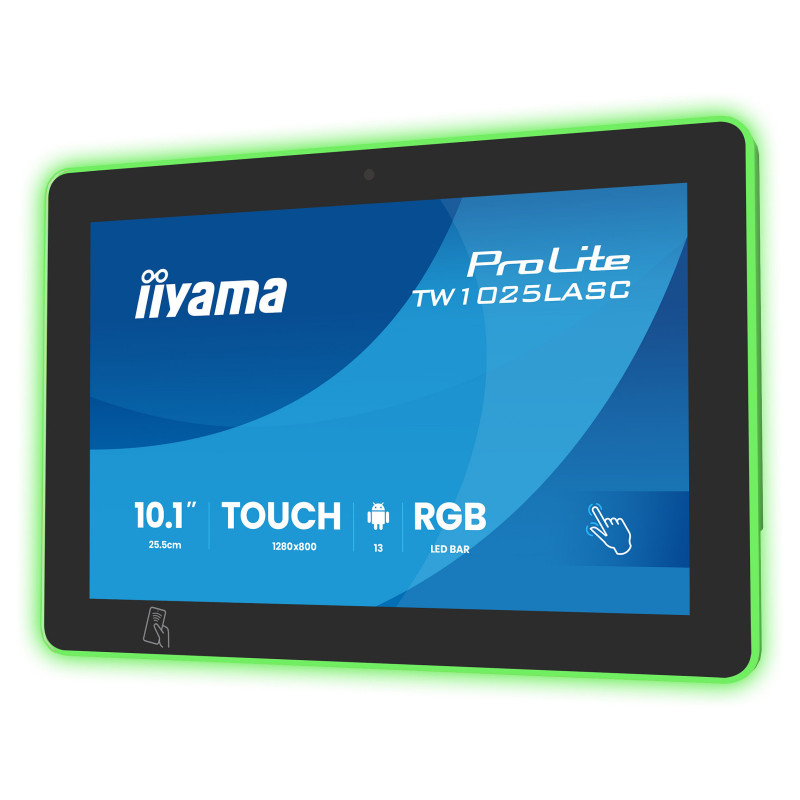

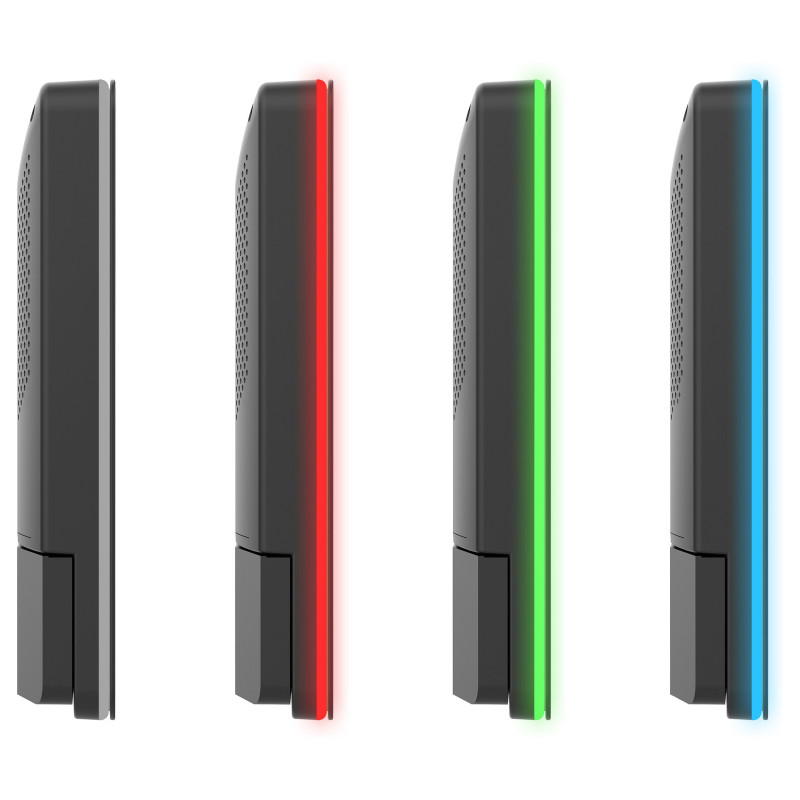

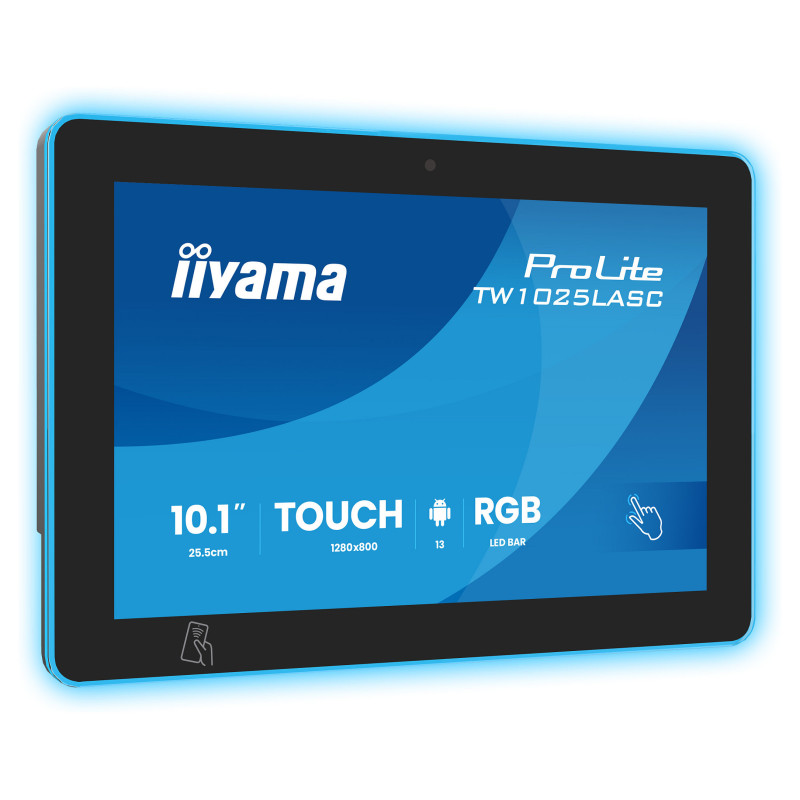

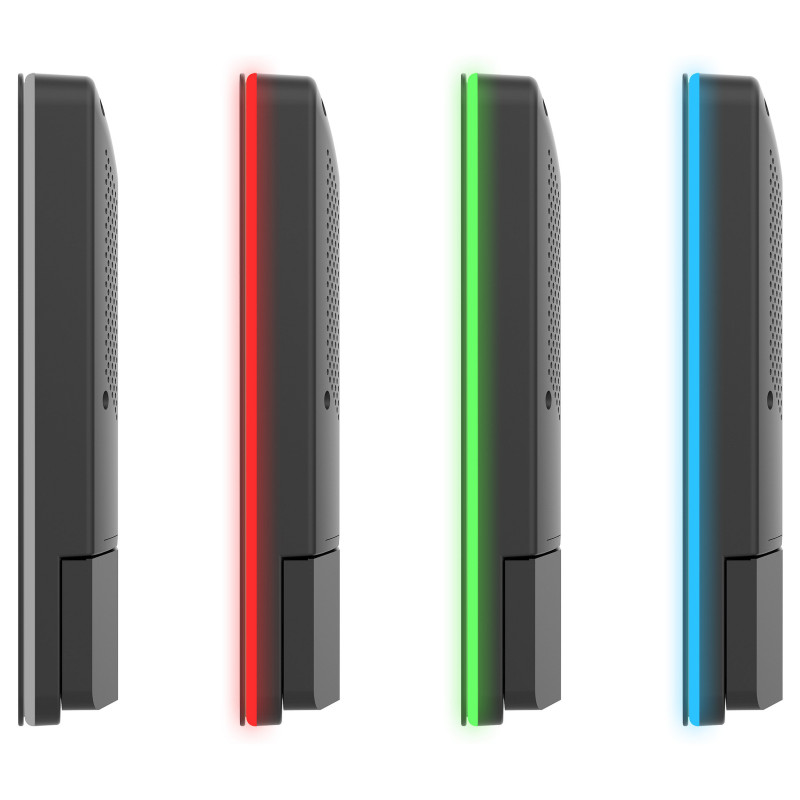

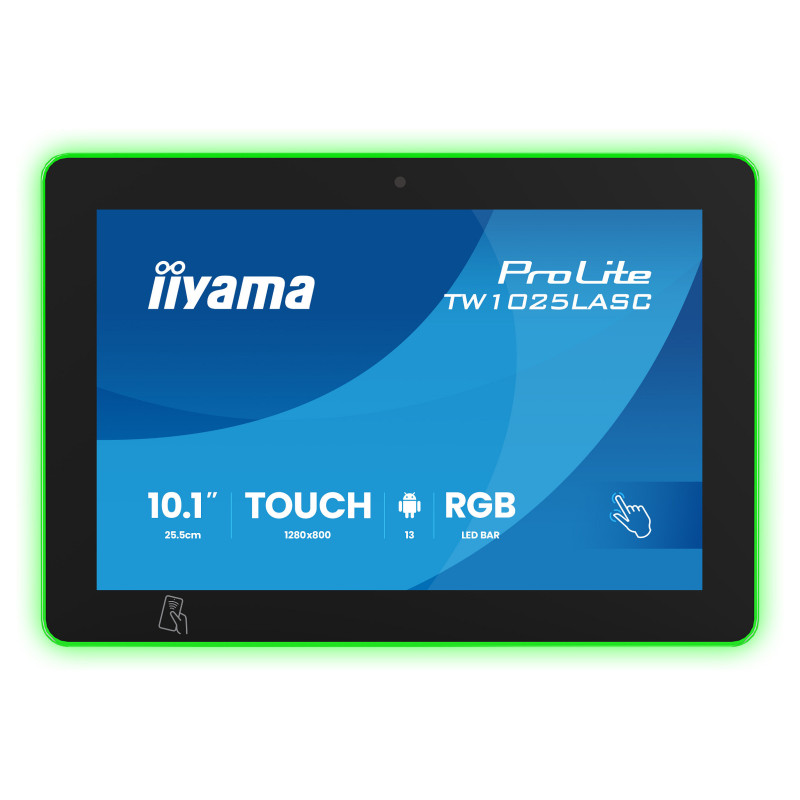

The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 16 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Additionally, it integrates effortlessly with iiSignage² , iiyama's Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

Display

Display diagonal: 25.6 cm (10.1")
Display resolution: 1280 x 800 pixels
HD type: WXGA
Native aspect ratio: 16:10
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Display brightness (typical): 450 cd/m²
Display brightness: 390 cd/m²
Response time: 25 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 160°
Display number of colours: 16.7 million colours
Pixel pitch: 0.1692 x 0.1692 mm
Viewable size, horizontal: 21.7 cm
Viewable size, vertical: 13.5 cm
Display diagonal (metric): 25.5 cm
Surface hardness: 6H
Colour depth: 8 bit

Performance

Operating hours (hours/days): 24/7
Operating system version: 13

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Megapixel (approx.): 5 MP
Feature: Built-in camera

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 1.85 mm

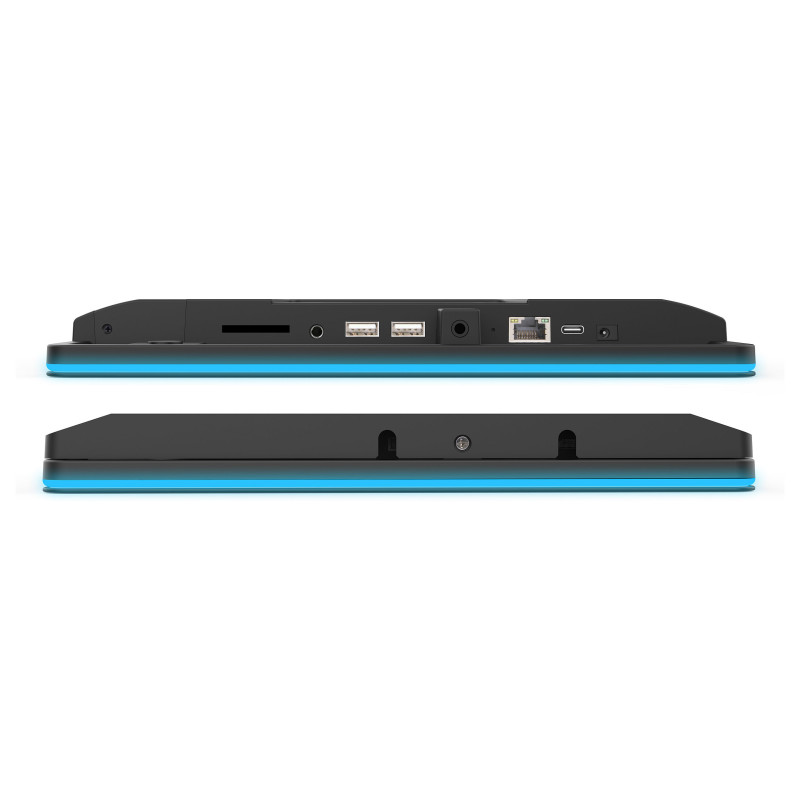

Ports & interfaces

Feature: Built-in USB hub
Feature: USB Touch port
Feature: Card reader integrated
Compatible memory cards: SD

Network

Feature: Wi-Fi
Wi-Fi standards: Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Feature: Bluetooth
Bluetooth version: 5.2
Feature: Ethernet LAN

Ergonomics

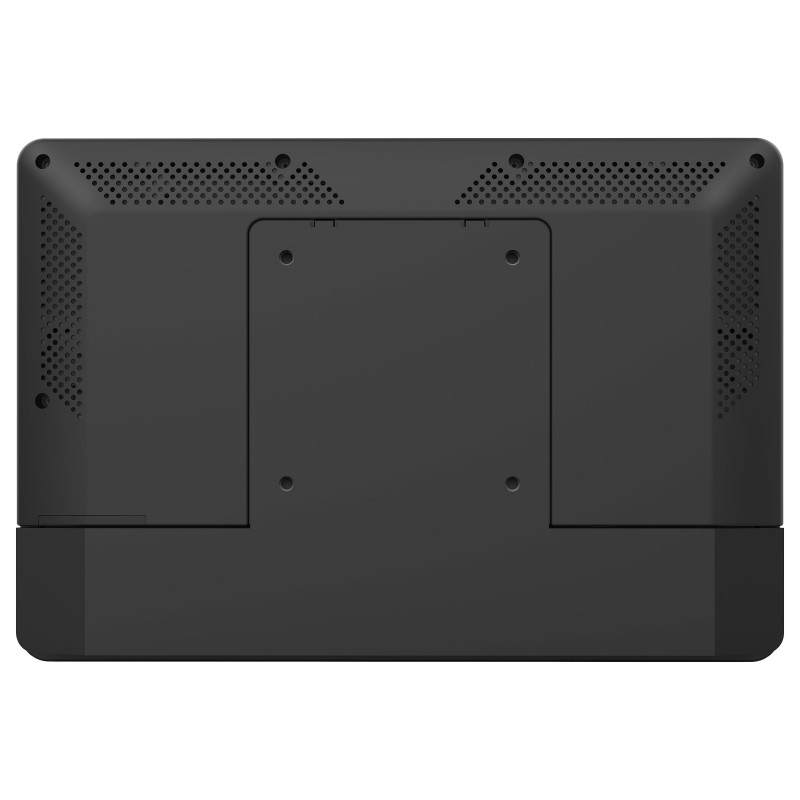

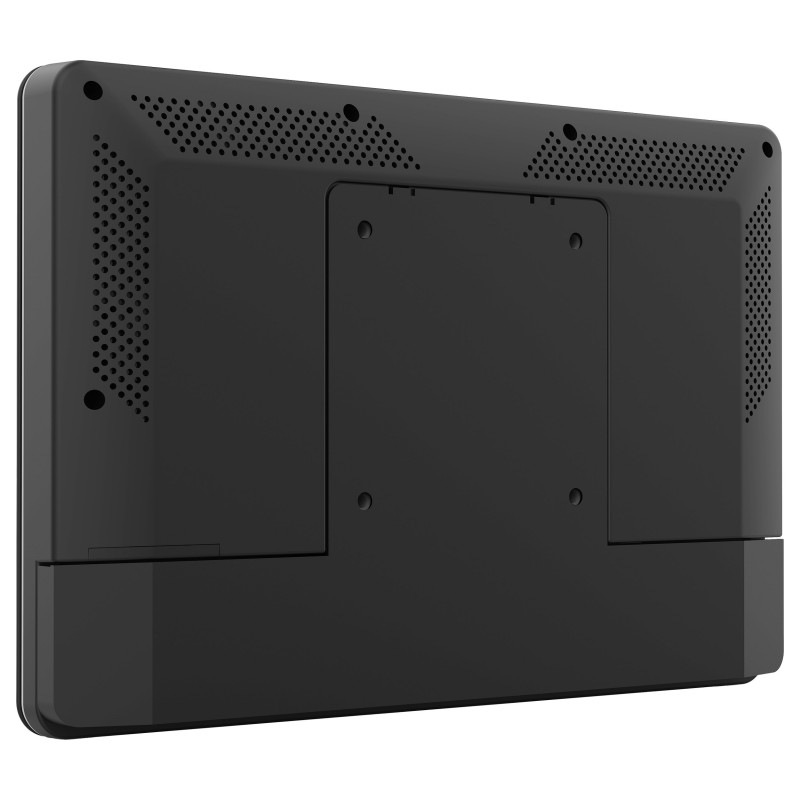

Feature: VESA mounting

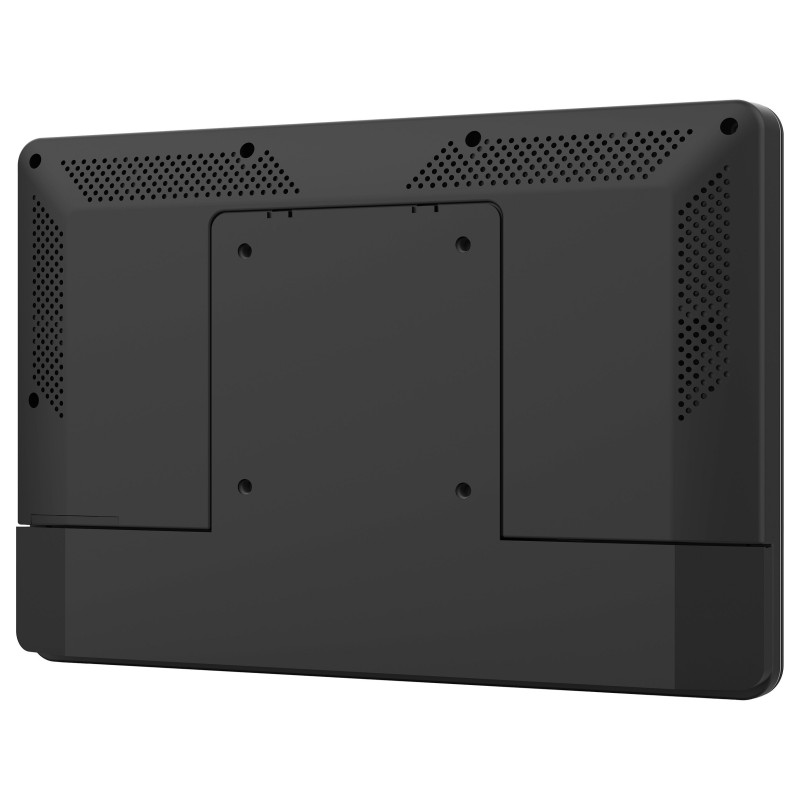

Panel mounting interface: 75 x 75 mm
Feature: Cable management

Power

Power consumption (typical): 10 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External

Weight & dimensions

Width (with stand): 259.5 mm
Depth (with stand): 28 mm
Height (with stand): 178.5 mm
Weight (with stand): 1.1 kg
Weight (without stand): 1.6 kg

Packaging data

Package width: 363 mm
Package depth: 65 mm
Package height: 225 mm

Packaging content

Feature: Quick start guide

Sustainability

Sustainability certificates: ErP

Other features

Feature: AC adapter included
User controls: Power switch
Google applications: Google Chrome, Gmail, Google Calendar
Brightness: 390 cd/m²

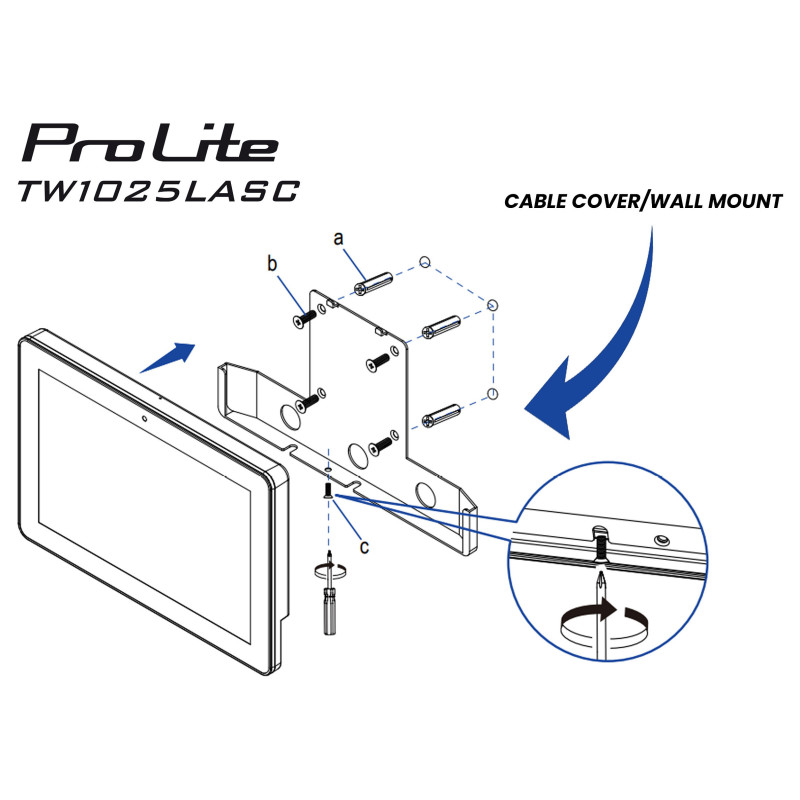

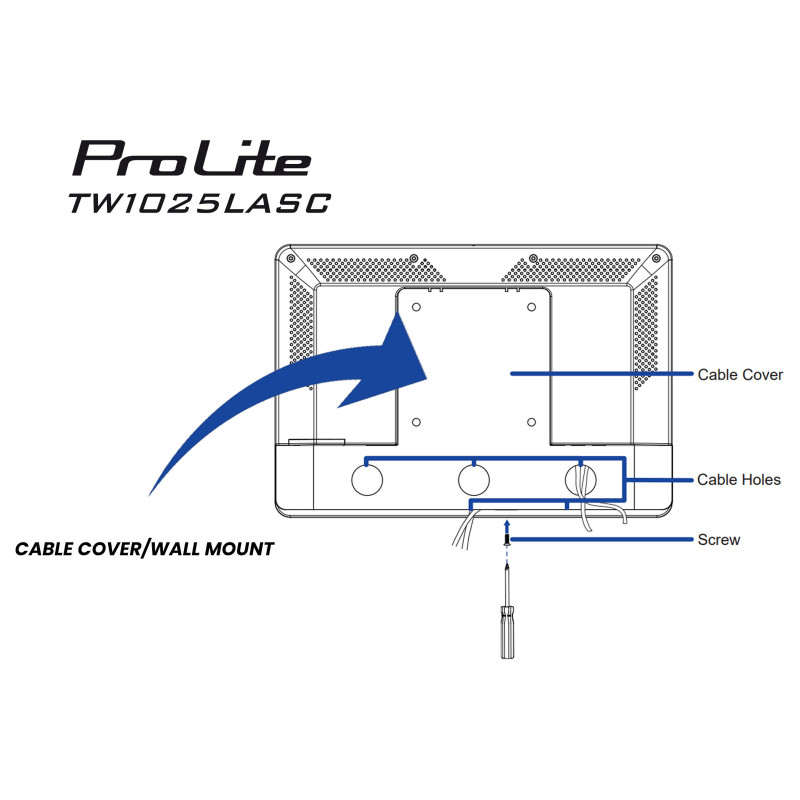

Packaging content: AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount
Feature: Built-in processor
Active display area (W x H): 216.6 x 135.4 mm
Touch method: finger, glove (latex), capacitive stylus
USB ports quantity: 3
Weight: 1.1 kg
Height: 178.5 mm
Width: 259.5 mm
Depth: 28 mm
Control panel: Power switch
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Ethernet LAN (RJ-45) ports: 1
