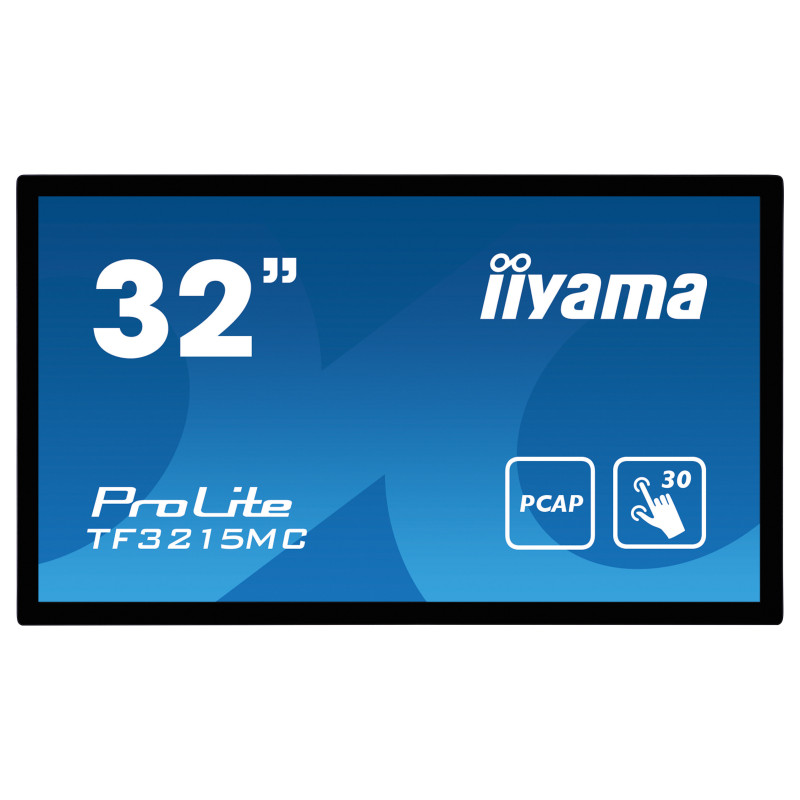

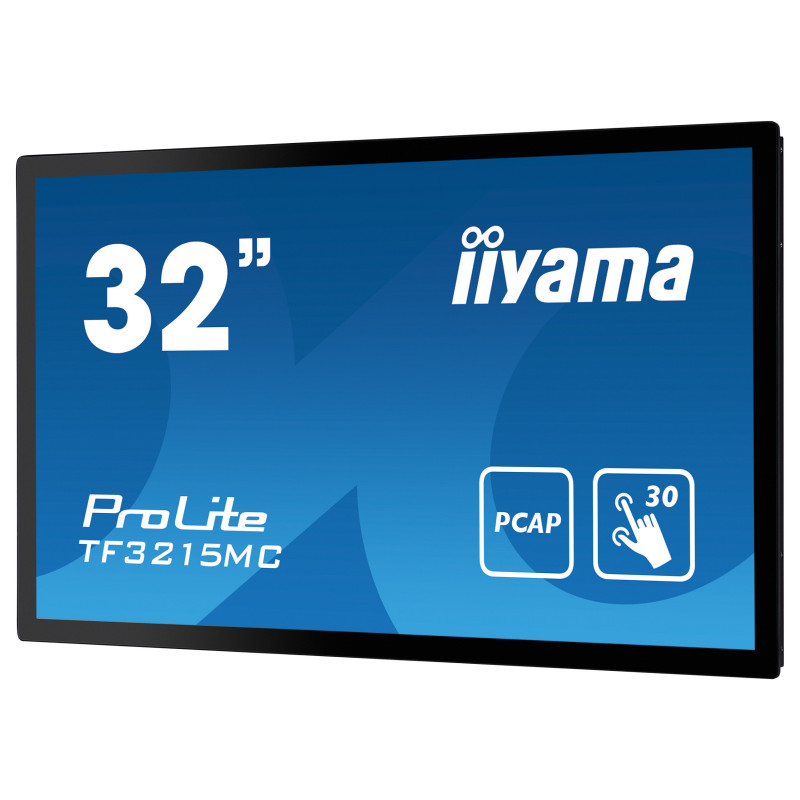

iiyama ProLite TF3215MC-B2 computer monitor

iiyama ProLite TF3215MC-B2. Display diagonal: 80 cm (31.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

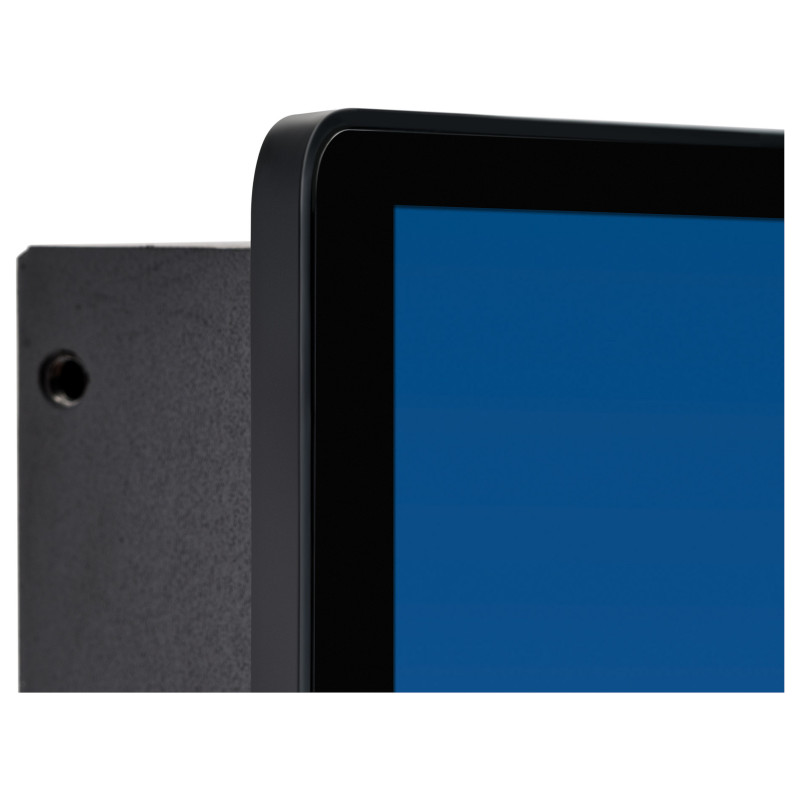

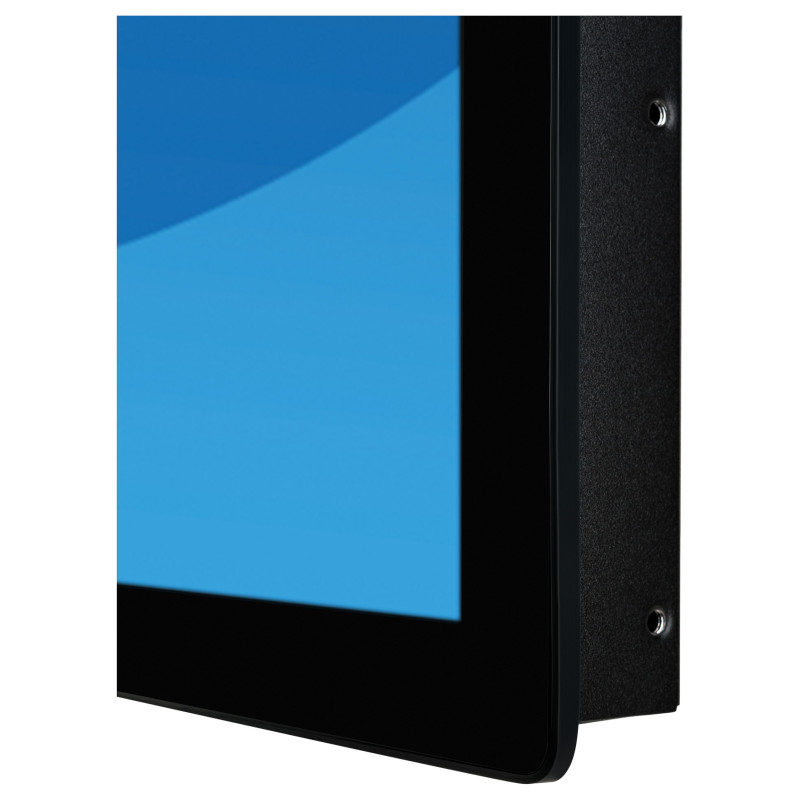

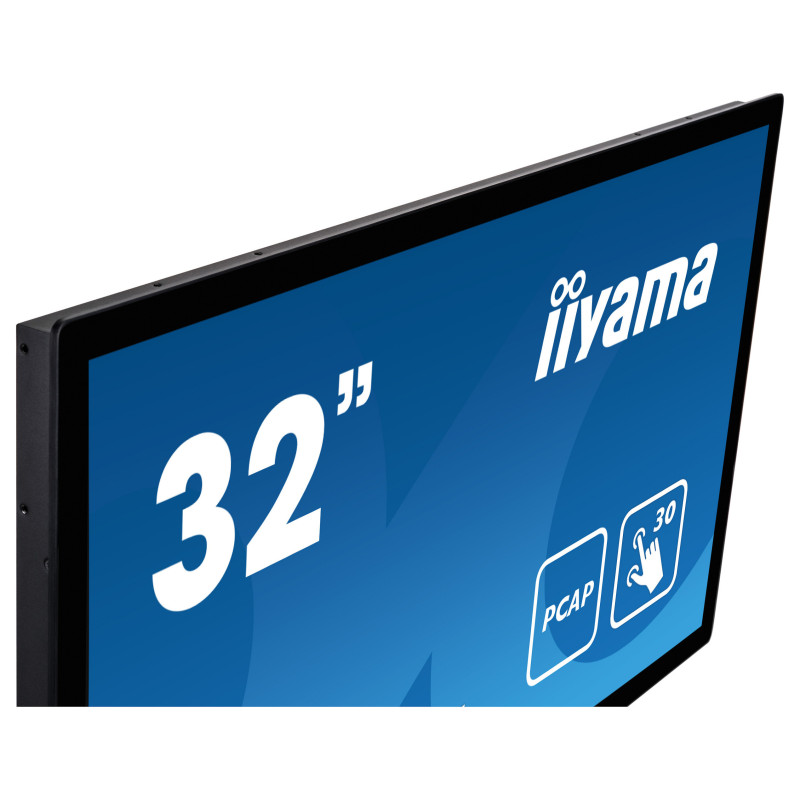

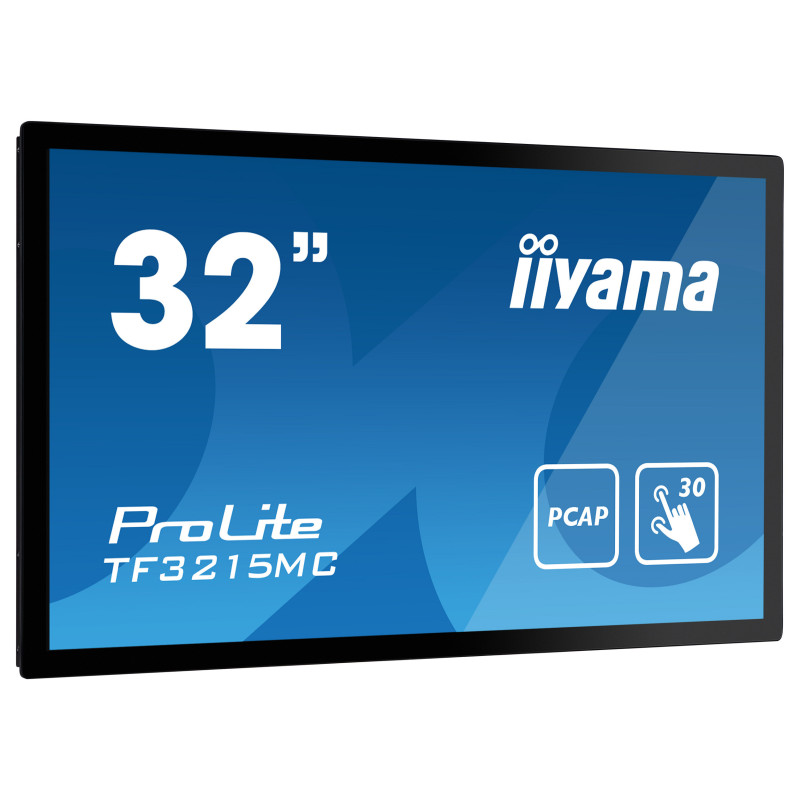

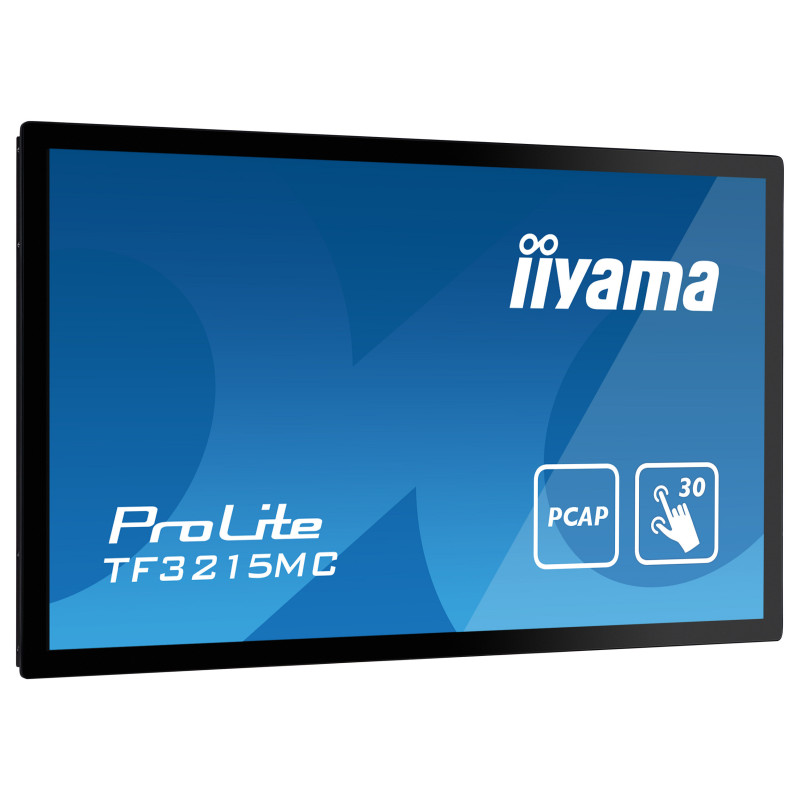

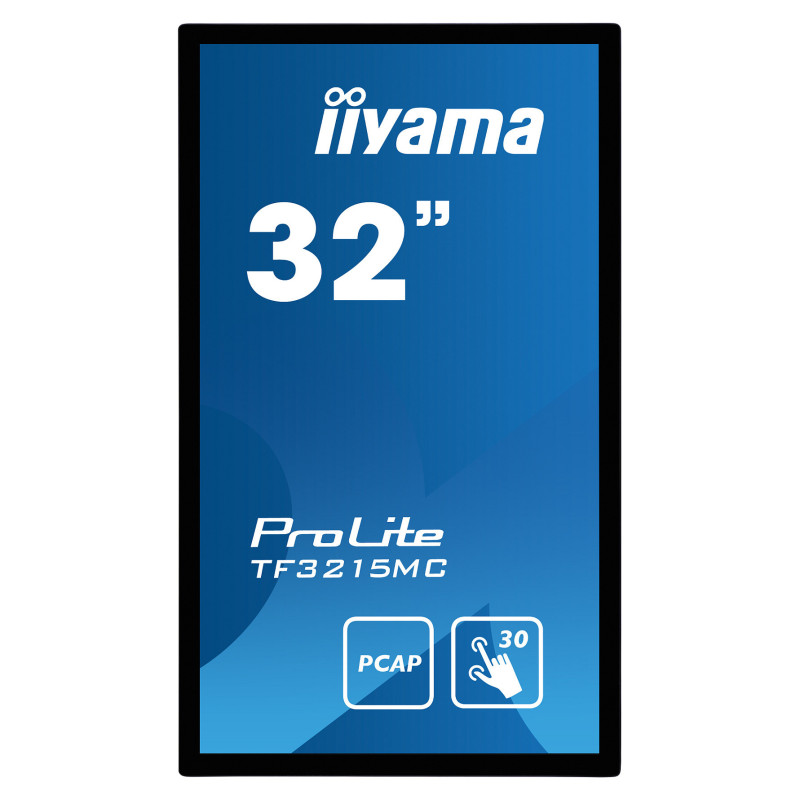

The ProLite TF3215MC-B2 with 30-point PCAP touch technology is a open frame monitor with an eye-catching edge-to-edge glass design. Thanks to this completely frame-less glass surface, it guarantees high durability and scratch resistance, making it perfect for kiosk systems and high-traffic public applications. The VA panel technology offers higher contrast and darker blacks. Equipped with a foam seal, the monitor supports seamless integration and the IP65 rating ensures dust and water resistance from the front. Portrait and landscape orientation ensures flexible mounting options for 24/7 operation in almost any installation. The TF3215MC-B2 is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multi-media applications.

Display

Display diagonal: 80 cm (31.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: VA
Touchscreen: Yes
Touchscreen type: Kiosk
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 30
Display brightness (peak): 500 cd/m²
Display brightness (typical): 500 cd/m²
Display brightness: 460 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 3000:1
Contrast ratio (dynamic): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.3637 x 0.3637 mm
Horizontal scan range: 30 - 68 kHz
Vertical scan range: 47 - 63 Hz
Viewable size, horizontal: 69.8 cm
Viewable size, vertical: 39.3 cm
Display diagonal (metric): 80 cm
Surface hardness: 7H
Colour depth: 8 bit

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Operating hours (hours/days): 24/7

Multimedia

Built-in speaker(s): No
Built-in camera: No

Design

Market positioning: Office
Product colour: Black
Housing material: Metal
Front bezel colour: Black
Glass thickness: 3 mm

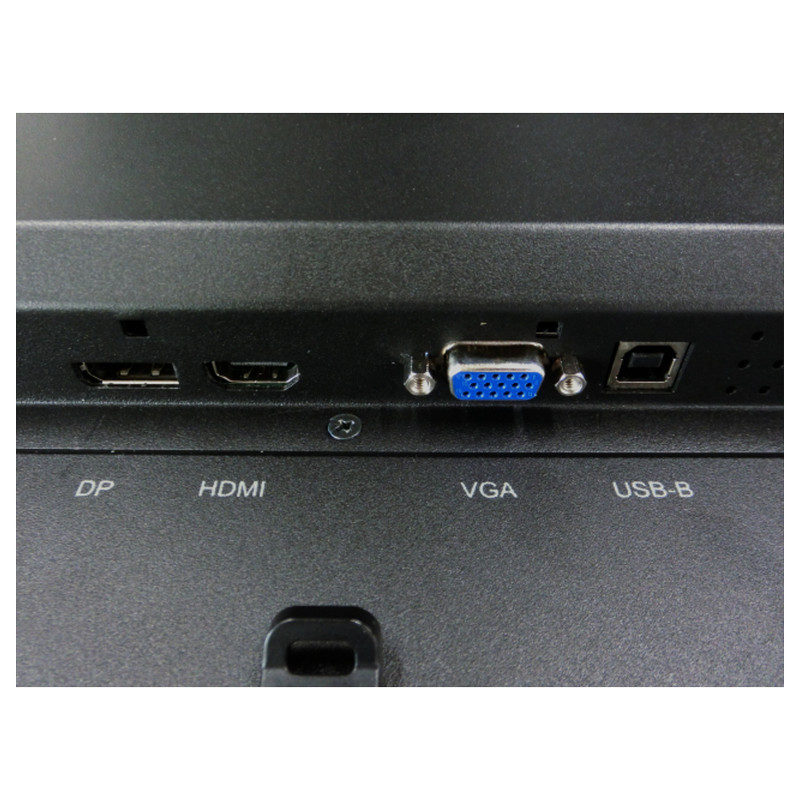

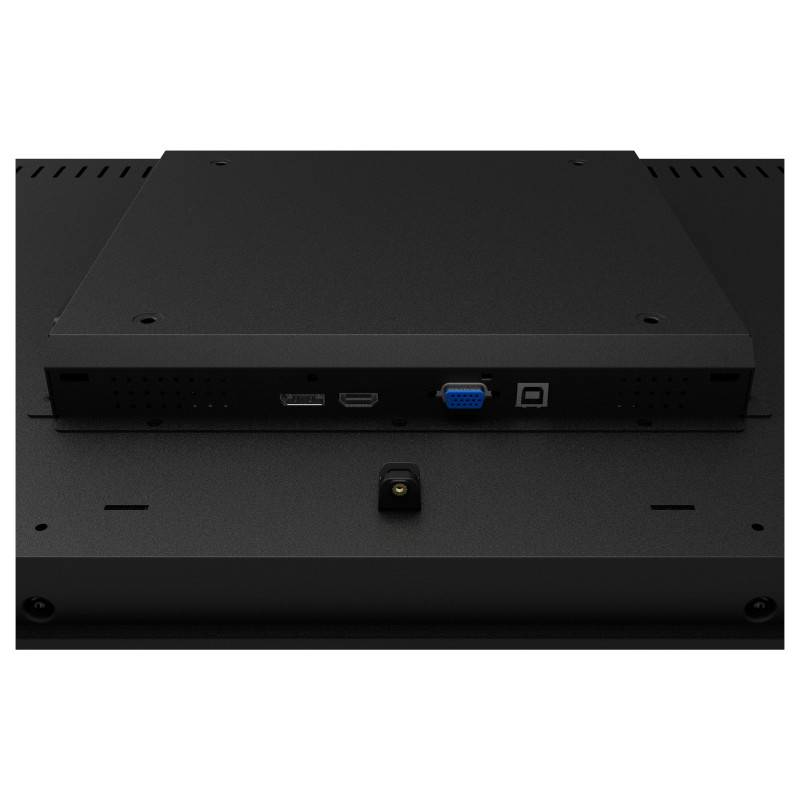

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

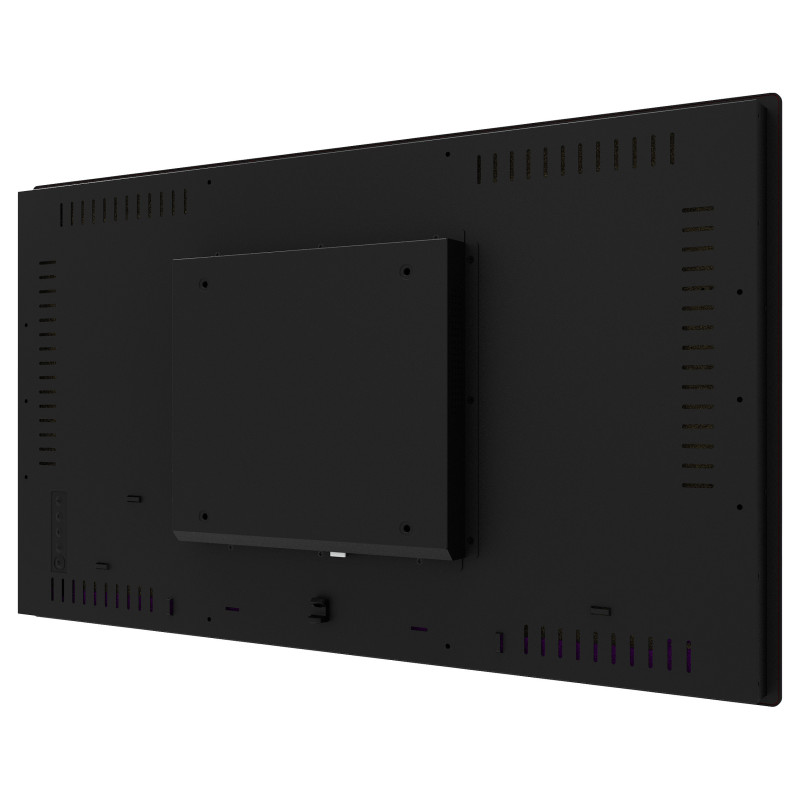

VESA mounting: Yes

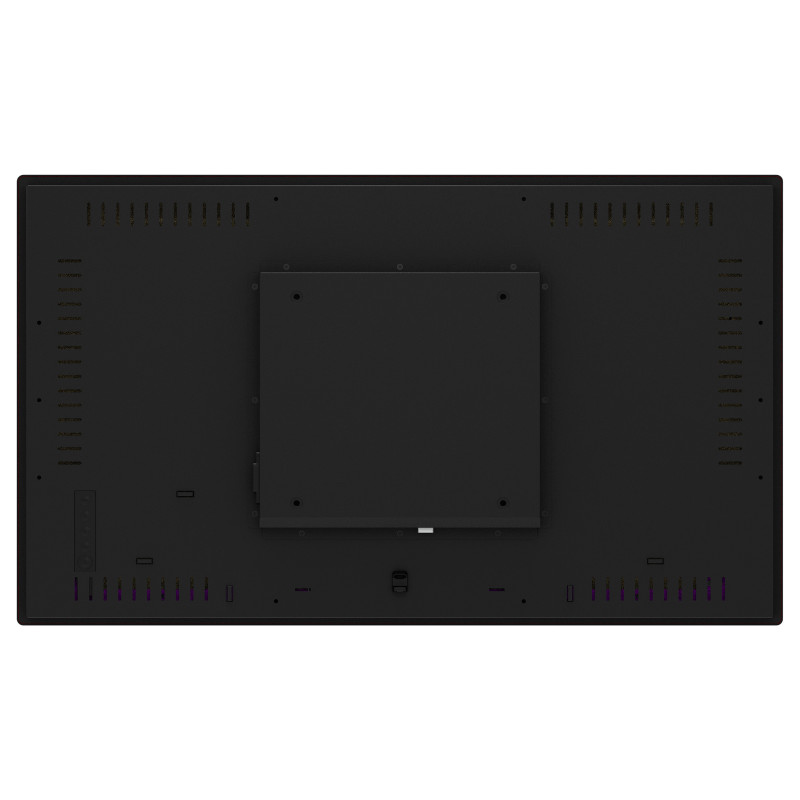

Panel mounting interface: 200 x 200 mm

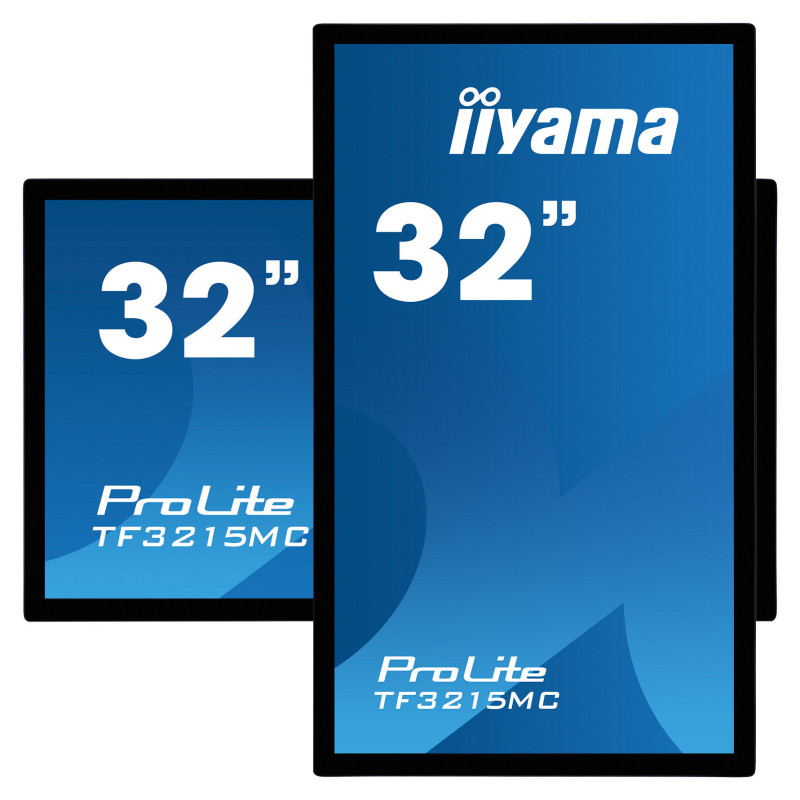

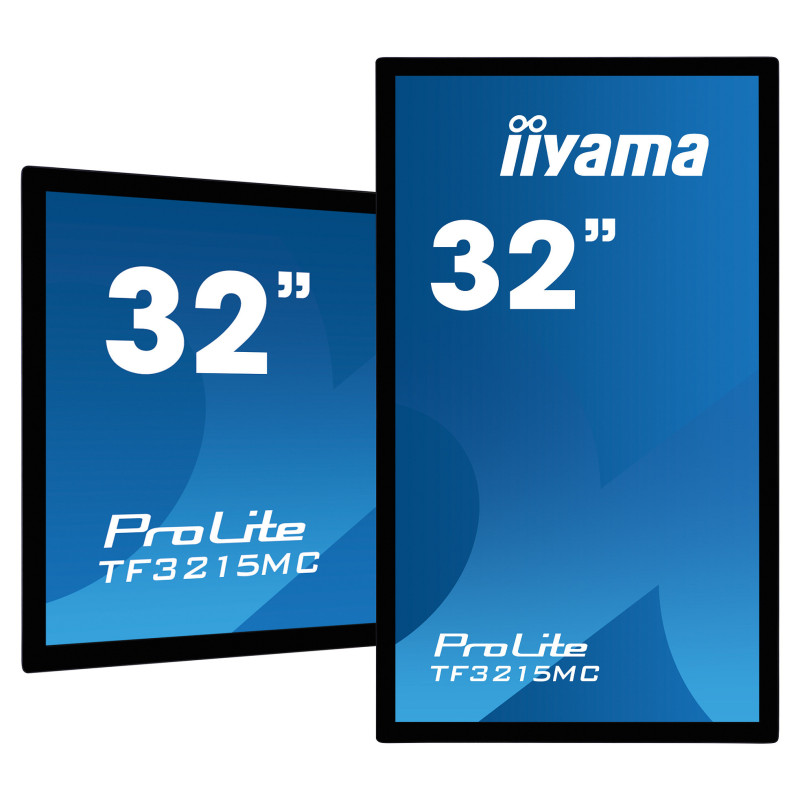

Wall mountable: Yes
Cable management: Yes
Cable lock slot: No
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 7
Plug and Play: Yes

Power

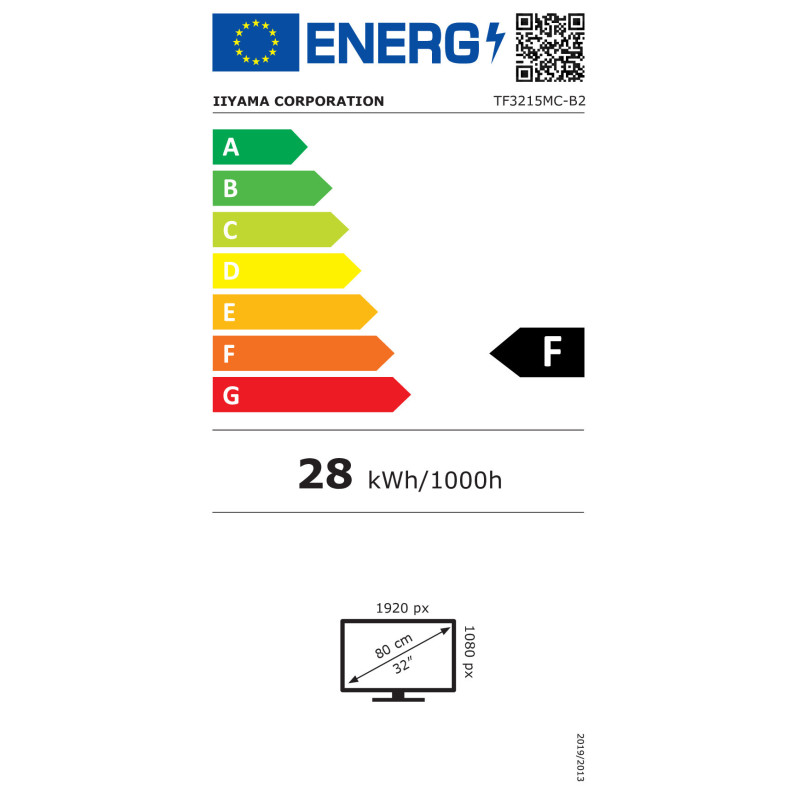

Energy efficiency class (SDR): F
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 27.5 kWh
Power consumption (typical): 32 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width (with stand): 743 mm
Depth (with stand): 61 mm
Height (with stand): 437 mm
Weight (with stand): 10 kg
Width (without stand): 742.5 mm
Depth (without stand): 61 mm
Height (without stand): 437 mm
Weight (without stand): 10 kg

Packaging data

Package width: 890 mm
Package depth: 155 mm
Package height: 630 mm
Package weight: 13.3 kg

Packaging content

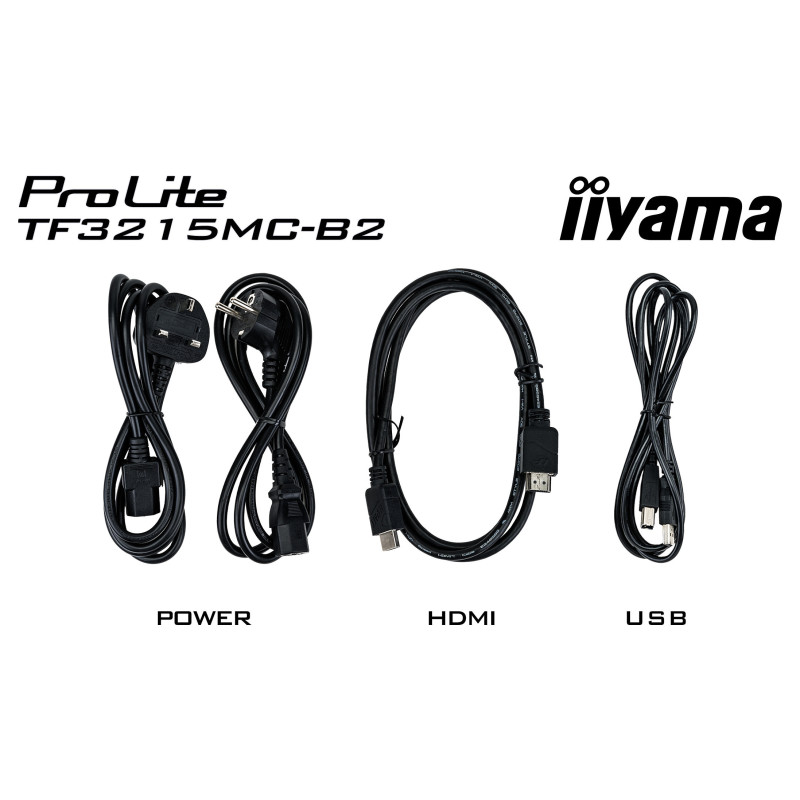

Cables included: AC, USB, HDMI
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Positional accuracy: 2 mm
User controls: Picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (timeout, poition, H-Position, V-Position, touch switch), option (reset, language, source select, display mode, factory)
Brightness: 460 cd/m²
Active display area (W x H): 698.4 x 392.8 mm
Touch method: finger, glove (latex), capacitive stylus
Weight: 10 kg
Height: 437 mm
Width: 743 mm
Depth: 61 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power
Compliance certificates: CE, EAC, REACH, RoHS, UKCA, WEEE
Mean time between failures (MTBF): 50000 h
Supplied AC adapter type: AC
