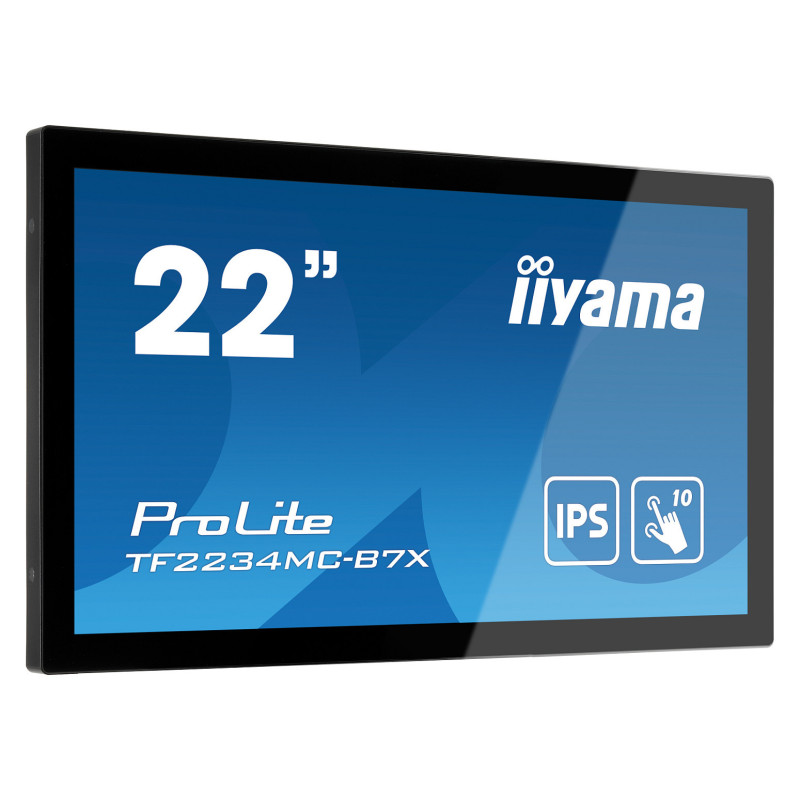

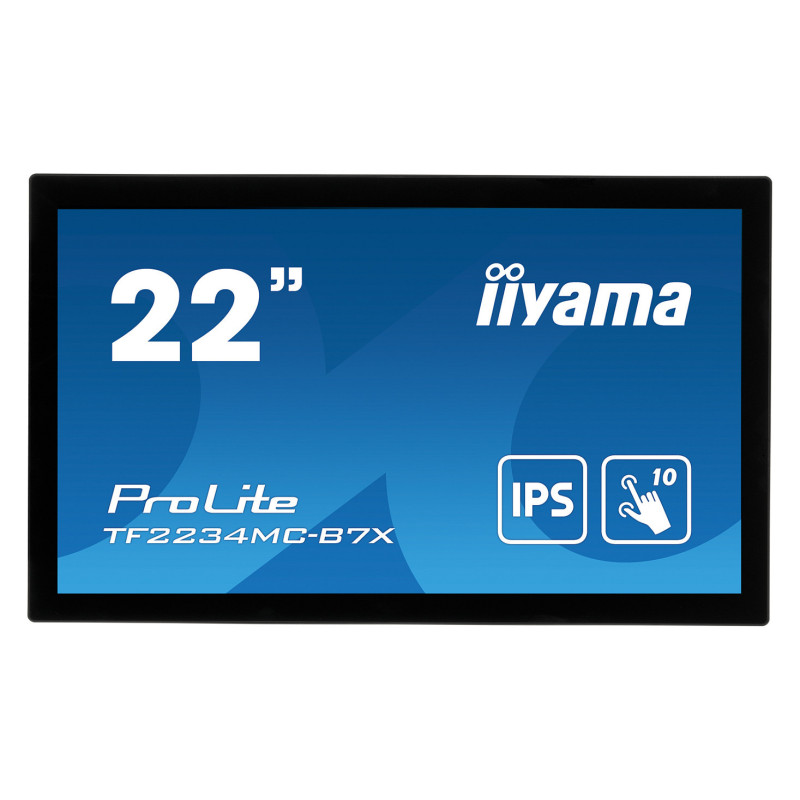

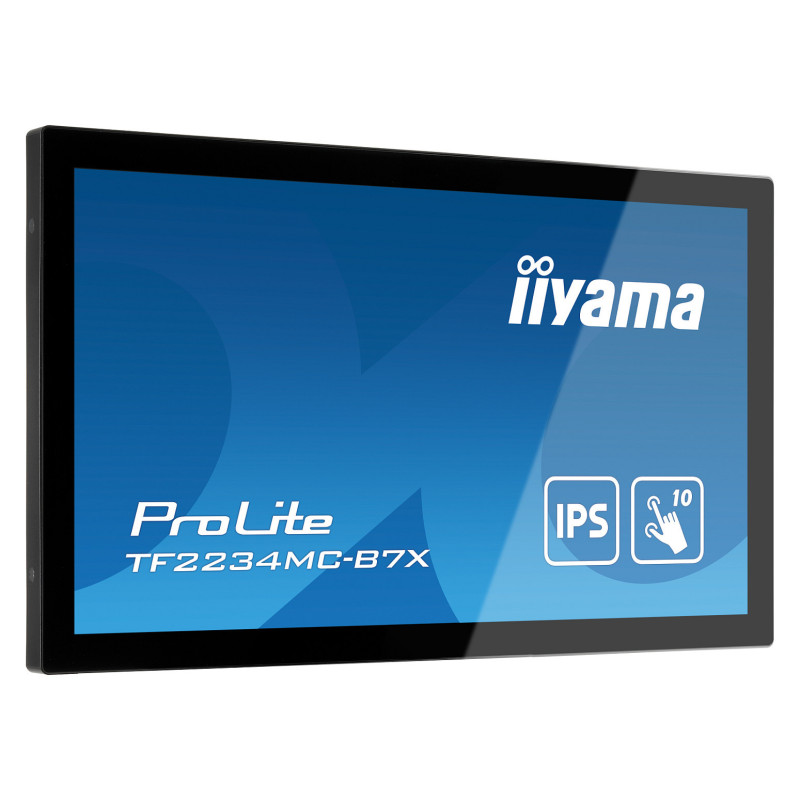

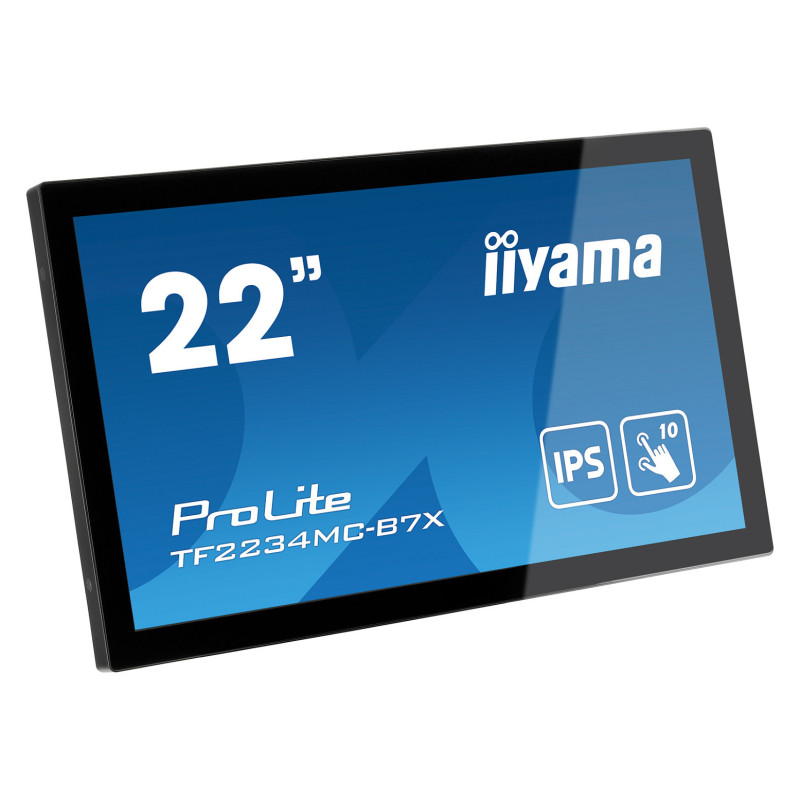

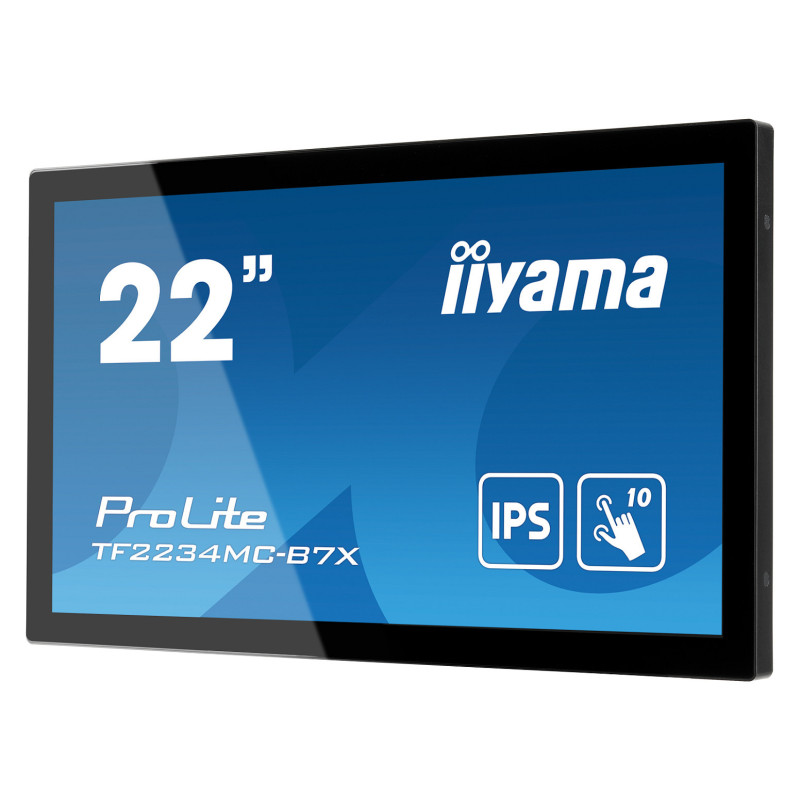

iiyama ProLite TF2234MC-B7X computer monitor

iiyama ProLite TF2234MC-B7X. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black
The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Touchscreen: Yes
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 305 cd/m²
Response time: 8 ms
Response time measurement type: GTG (Gray to Gray)
Screen shape: Flat
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.247 x 0.247 mm
Horizontal scan range: 30 - 84 kHz
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 7H

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Palm rejection: Yes

Multimedia

Built-in microphone: No
Built-in camera: No

Design

Product colour: Black
Front bezel colour: Black
Glass thickness: 1.5 mm

Ports interfaces

USB Touch port: Yes
VGA (D-Sub) ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
DisplayPorts quantity: 1
HDCP: Yes

Ergonomics

VESA mounting: Yes
Panel mounting interface: 100 x 100 mm
Wall mountable: Yes
On Screen Display (OSD): Yes
On Screen Display (OSD) languages: Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Number of OSD languages: 8

Power

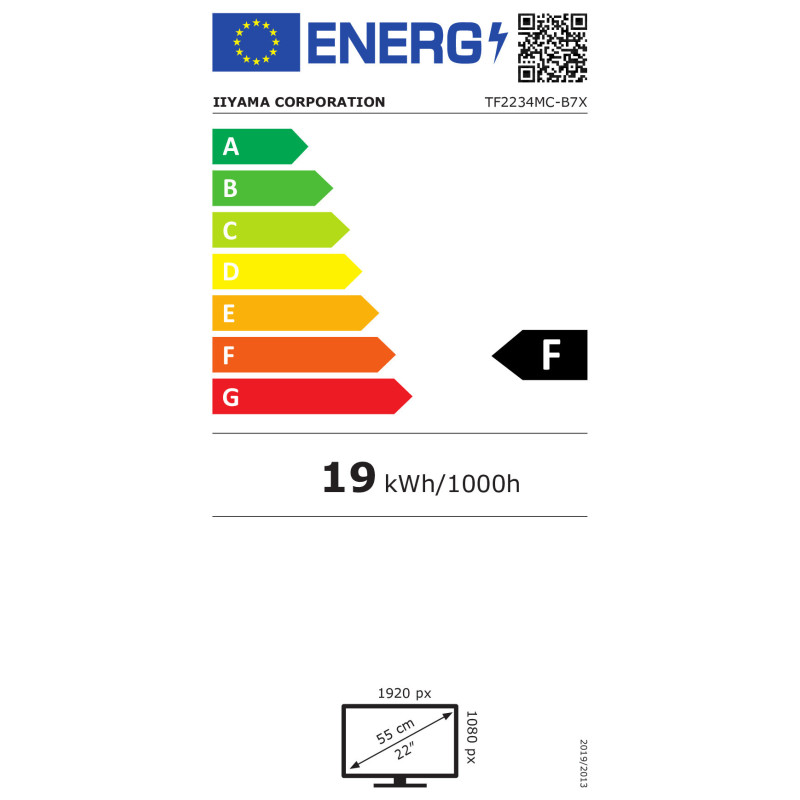

Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 18 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.3 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Weight dimensions

Width (with stand): 517.5 mm
Depth (with stand): 46 mm
Height (with stand): 313.5 mm
Weight (with stand): 4.4 kg
Width (without stand): 517.5 mm
Depth (without stand): 46 mm
Height (without stand): 313.5 mm
Weight (without stand): 4.4 kg

Packaging data

Package width: 610 mm
Package depth: 160 mm
Package height: 405 mm
Package weight: 6.8 kg

Packaging content

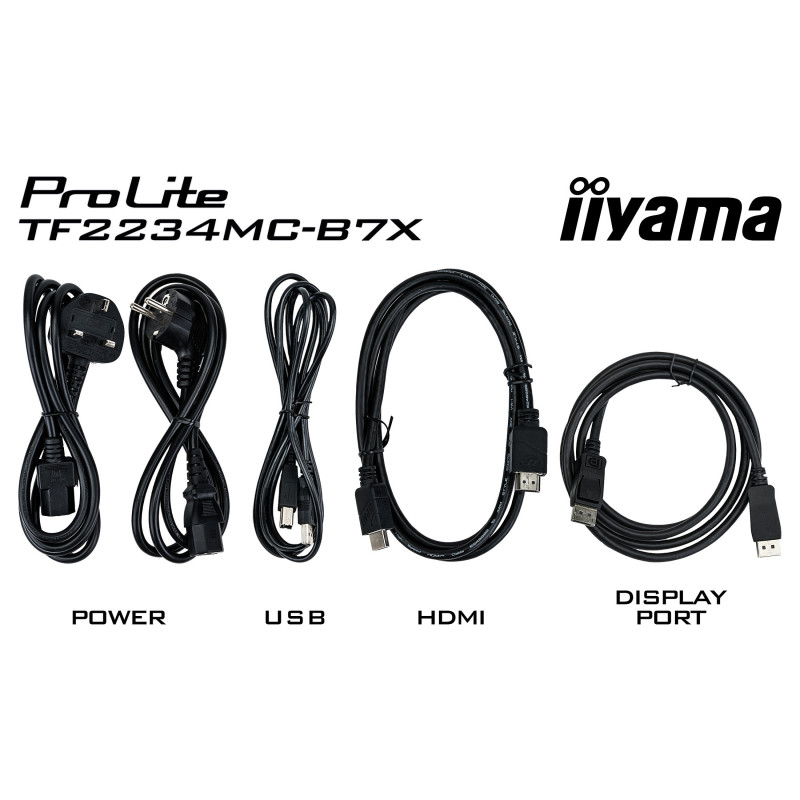

Cables included: AC, USB, HDMI, DisplayPort
Quick start guide: Yes

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Compatible operating systems: All iiyama monitors are Plug Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
AC adapter included: Yes
Display viewable area (HxV): 476 x 267.7 mm
User controls: picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)

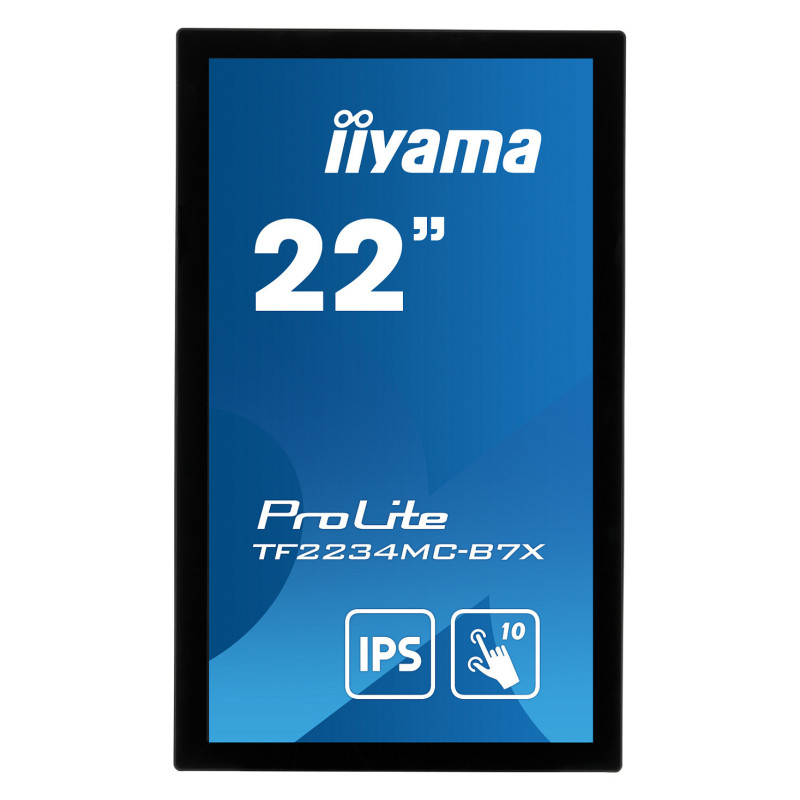

Placement supported: Horizontal/Vertical
Brightness: 305 cd/m²
Packaging content: AC adapter
Touch method: stylus, finger, glove (latex)
Weight: 4.4 kg
Height: 313.5 mm
Width: 517.5 mm
Depth: 46 mm

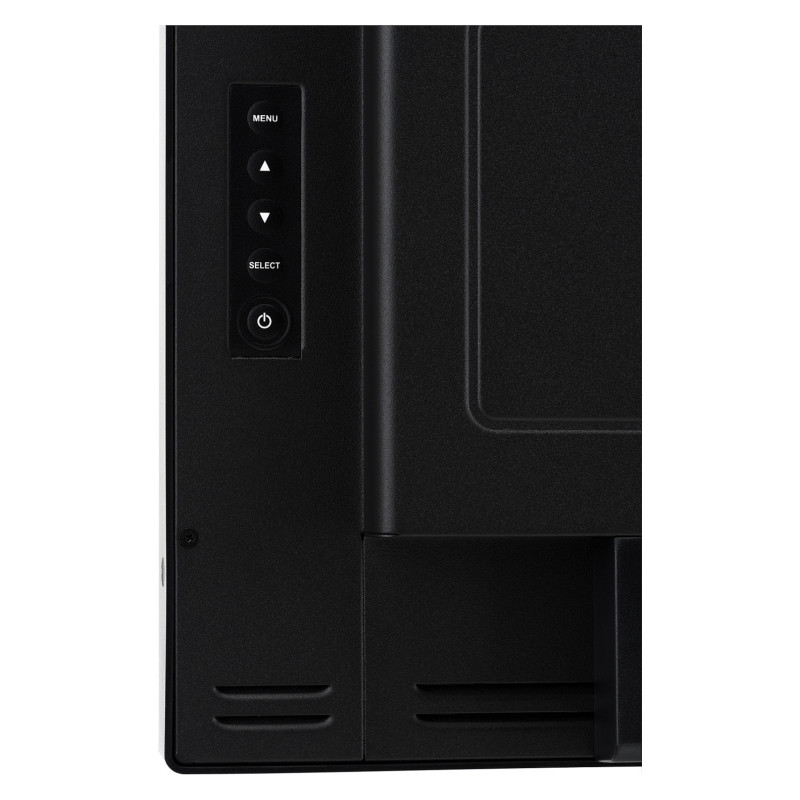

Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CE, cULus, EAC, REACH, RoHS, WEEE
Certification: CE, EAC, RoHS, ErP, WEEE, cULus, REACH

Logistics data

Products per pallet: 48 pc(s)
Pallet net width: 109 cm
Pallet net length: 192.7 cm
Pallet net height: 109 cm
Harmonized System (HS) code: 85285210
