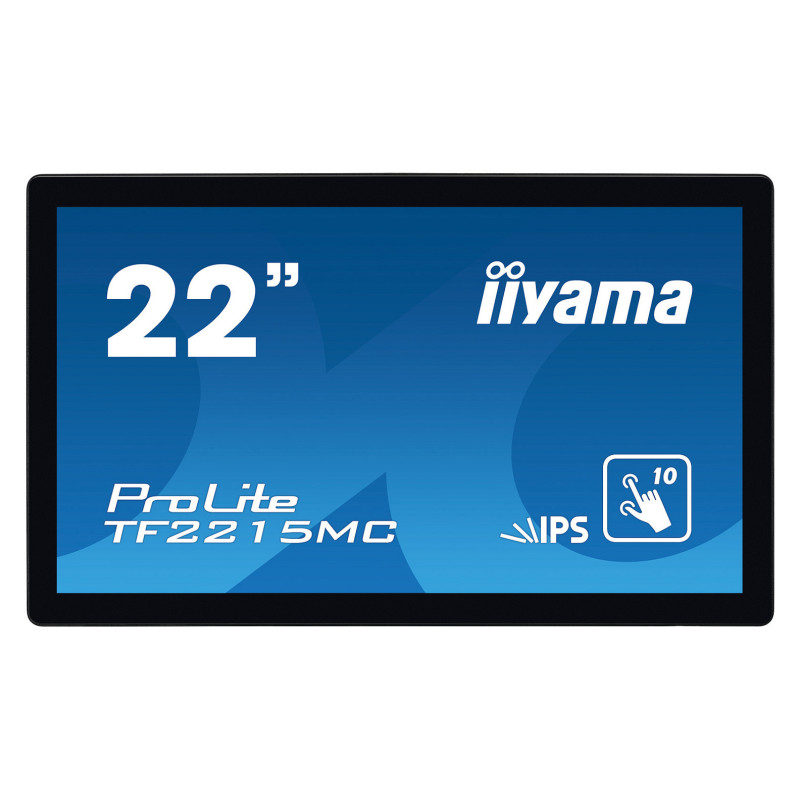

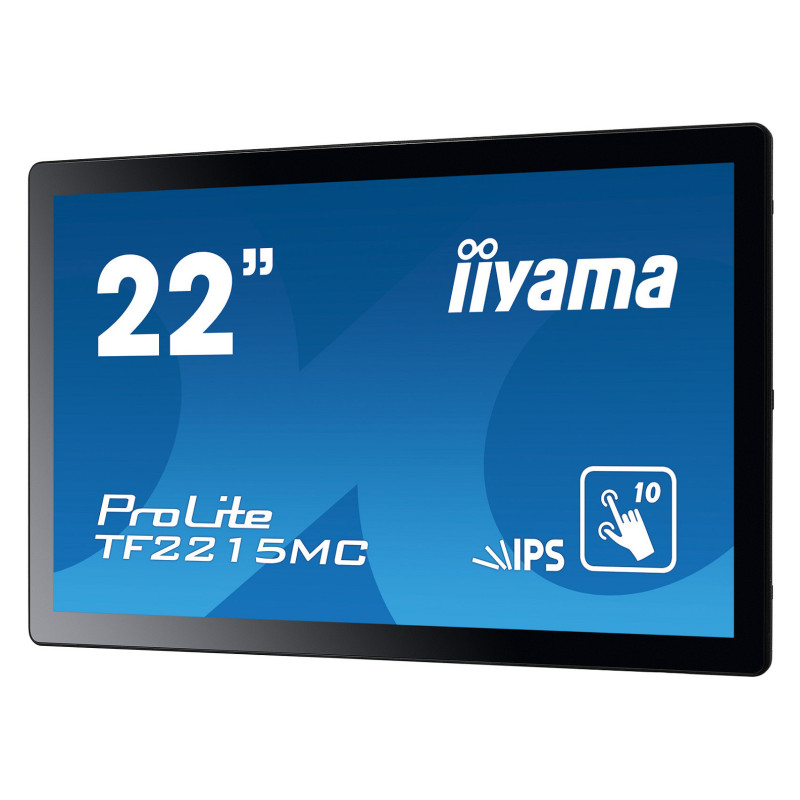

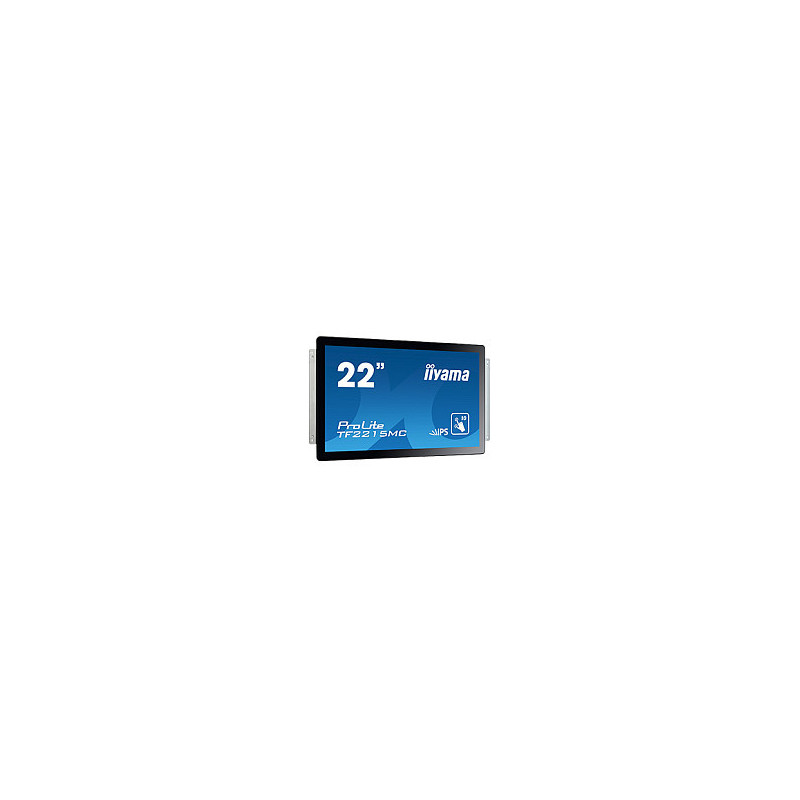

iiyama ProLite TF2215MC-B2 computer monitor

iiyama ProLite TF2215MC-B2. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. VESA mounting. Product colour: Black

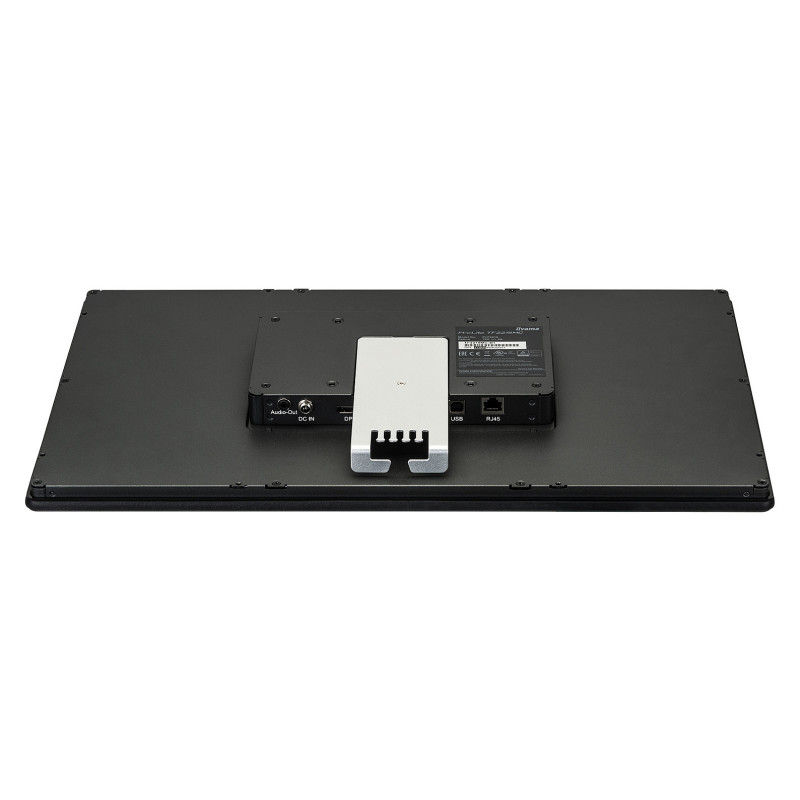

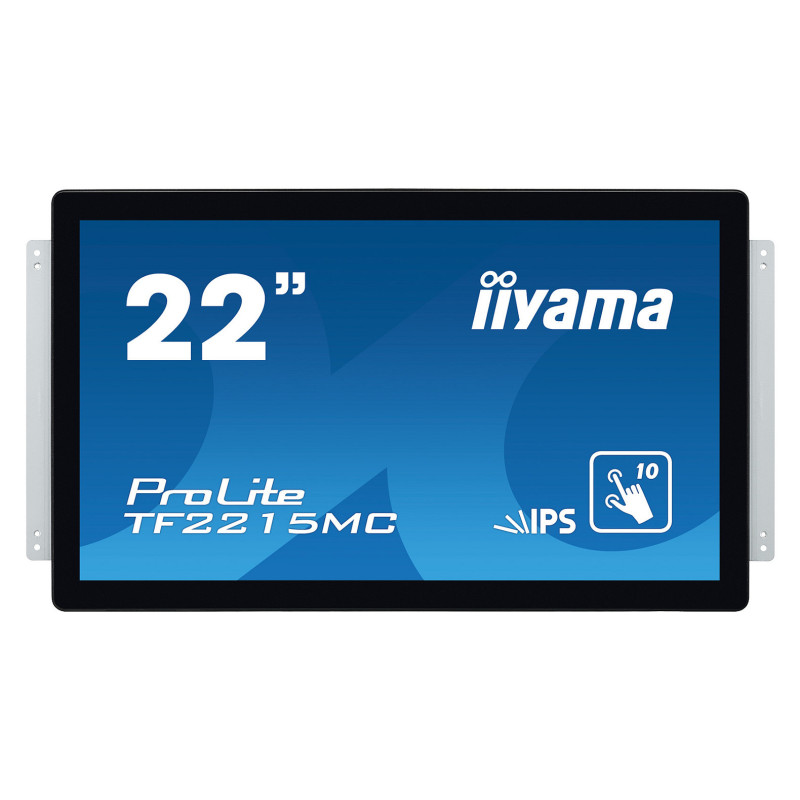

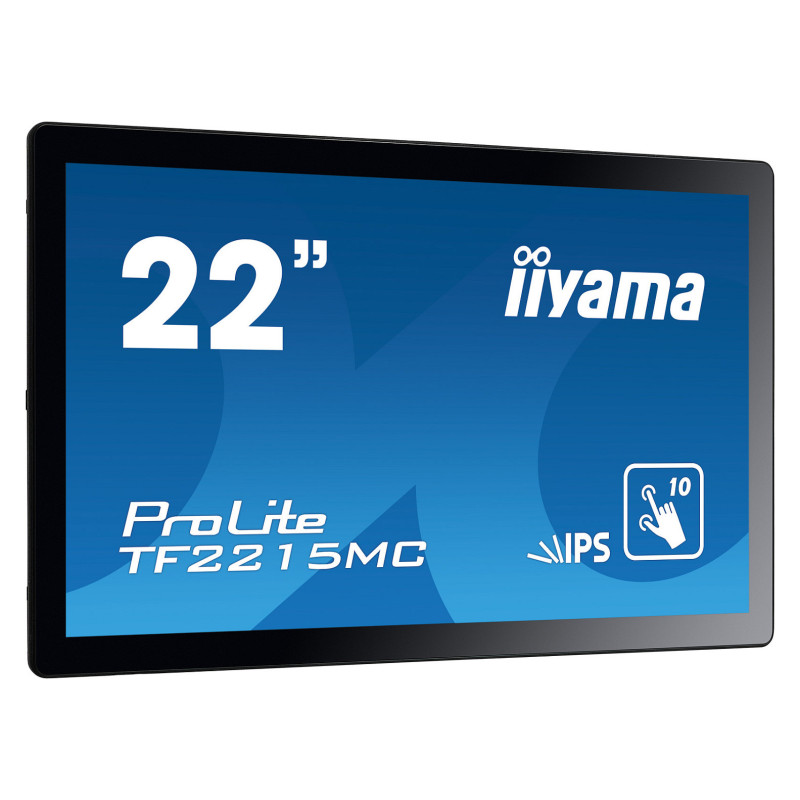

The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.

Display

Display diagonal: 54.6 cm (21.5")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: IPS
Feature: Touchscreen
Touchscreen type: Multi-user
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (typical): 350 cd/m²
Display brightness: 315 cd/m²
Response time: 14 ms
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Pixel pitch: 0.24795 x 0.24795 mm
Horizontal scan range: 31.4 - 82 kHz
Vertical scan range: 56 - 75 Hz
Viewable size, horizontal: 47.6 cm
Viewable size, vertical: 26.8 cm
Display diagonal (metric): 54.6 cm
Surface hardness: 7H
Feature: Separate H/V sync

Design

Product colour: Black
Front bezel colour: Black

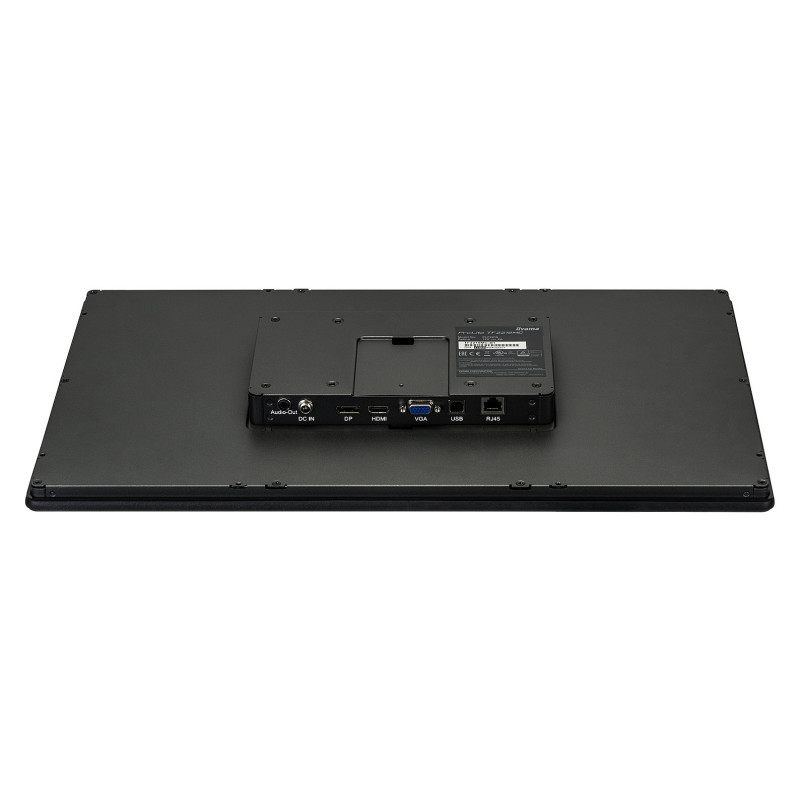

Ports & interfaces

Feature: USB Touch port
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Headphone outputs: 1
Feature: HDCP

Ergonomics

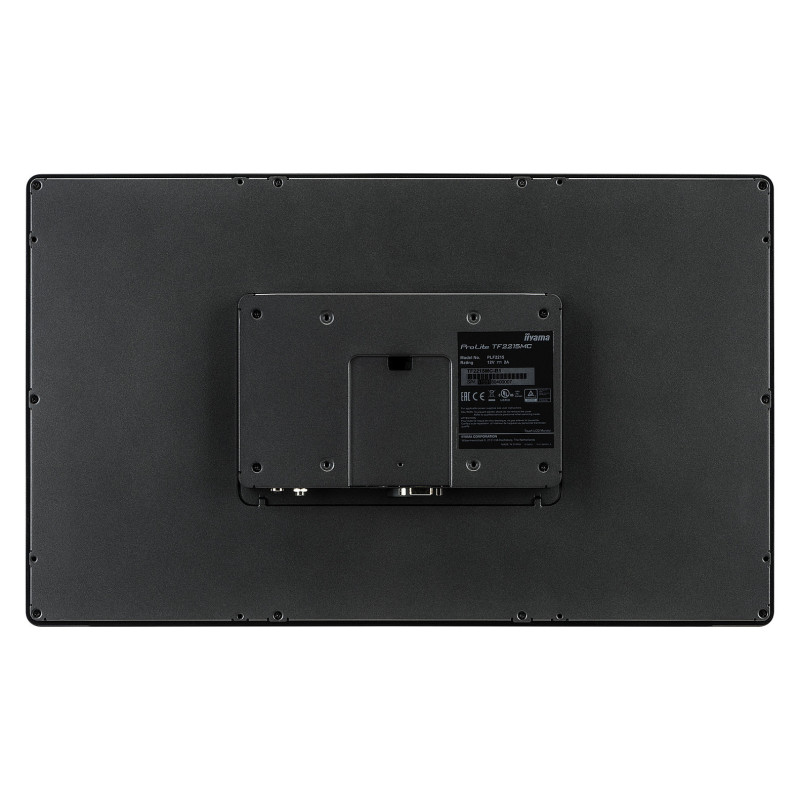

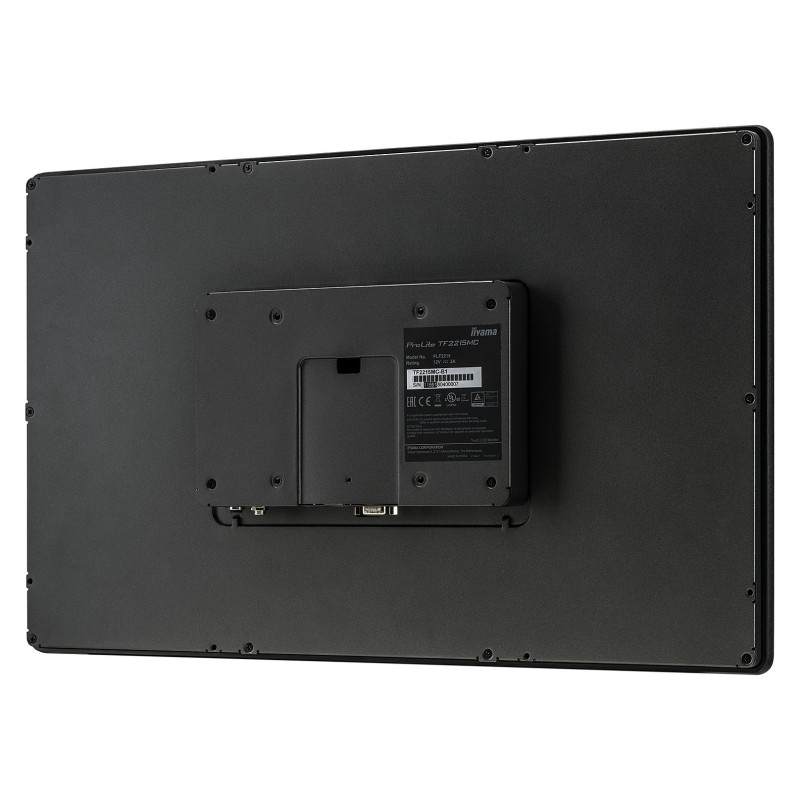

Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages: 6
Feature: Plug and Play

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 19 kWh
Power consumption (typical): 20.8 W
Power consumption (standby): 1.05 W
Power consumption (off): 0.32 W
AC adapter output voltage: 12 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width (with stand): 520 mm
Depth (with stand): 42.5 mm
Height (with stand): 315 mm
Weight (with stand): 4.4 kg
Width (without stand): 520 mm
Depth (without stand): 42.5 mm
Height (without stand): 315 mm
Weight (without stand): 4.4 kg

Packaging content

Cables included: AC, USB, HDMI, DisplayPort
Feature: Quick start guide

Sustainability

Sustainability certificates: ErP

Other features

International Protection (IP) code: IP65
Feature: AC adapter included
Display viewable area (HxV): 476.064 x 267.786 mm
Placement supported: Horizontal/Vertical
Brightness: 315 cd/m²
Packaging content: AC adapter, Touch Panel Driver Disk (CD-ROM), external control pad
Active display area (W x H): 476.064 x 267.786 mm
Weight: 4.4 kg
Height: 315 mm
Touch method: stylus, finger, glove (latex)
Width: 520 mm
Depth: 42.5 mm
Control panel: Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates: CB, CE, cULus, REACH, RoHS, WEEE
Supplied AC adapter type: AC
Certification: CB, CE, TÜV-Bauart, CU, cULus, REACH

Logistics data

Harmonized System (HS) code: 85285210
